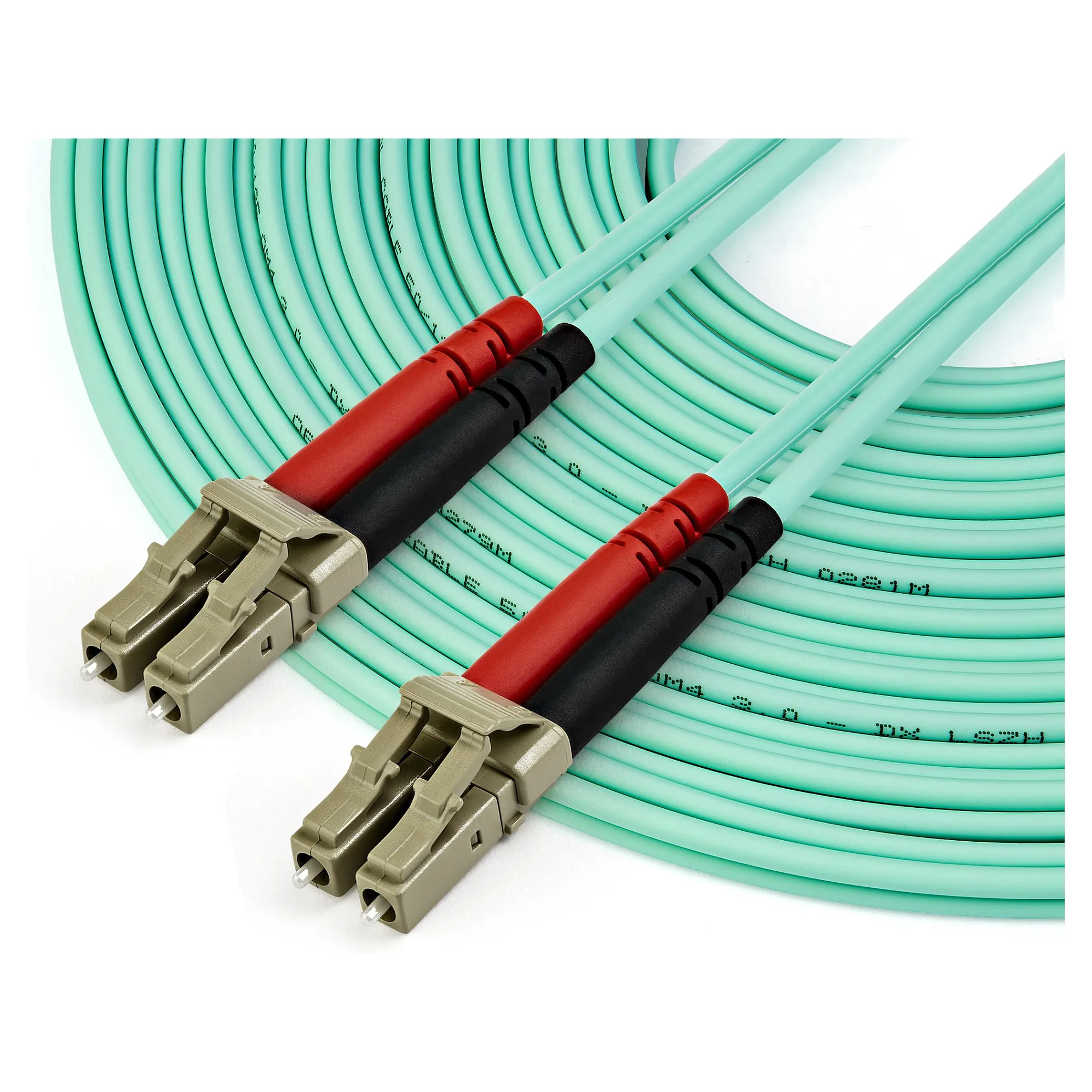

StarTech.com 10m (30ft) LC/UPC to LC/UPC OM4 Multimode Fiber Optic Cable, 50/125µm LOMMF/VCSEL Zipcord Fiber, 100G, Low Insertion Loss – LSZH Fiber Jumper Cord. Cable length: 10 m, Fibre optic type: OM4, Connector 1: LC, Connector 2: LC, Core diameter: 50 µm, Full duplex

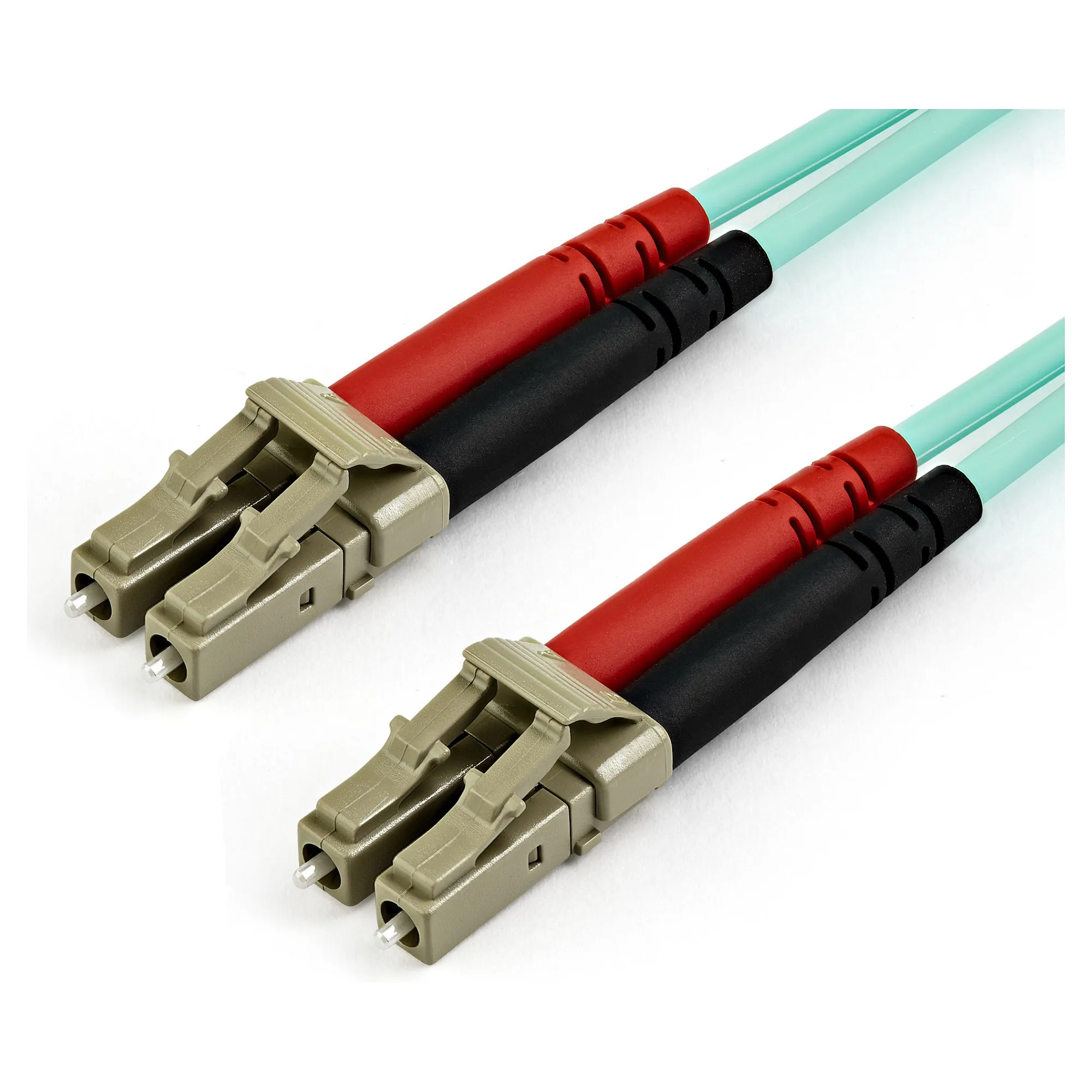

The LC to LC Multimode Duplex Fiber Optic Patch cable facilitates reliable connectivity across 40 and 100 Gigabit networks.
Engineered for Optimal Performance

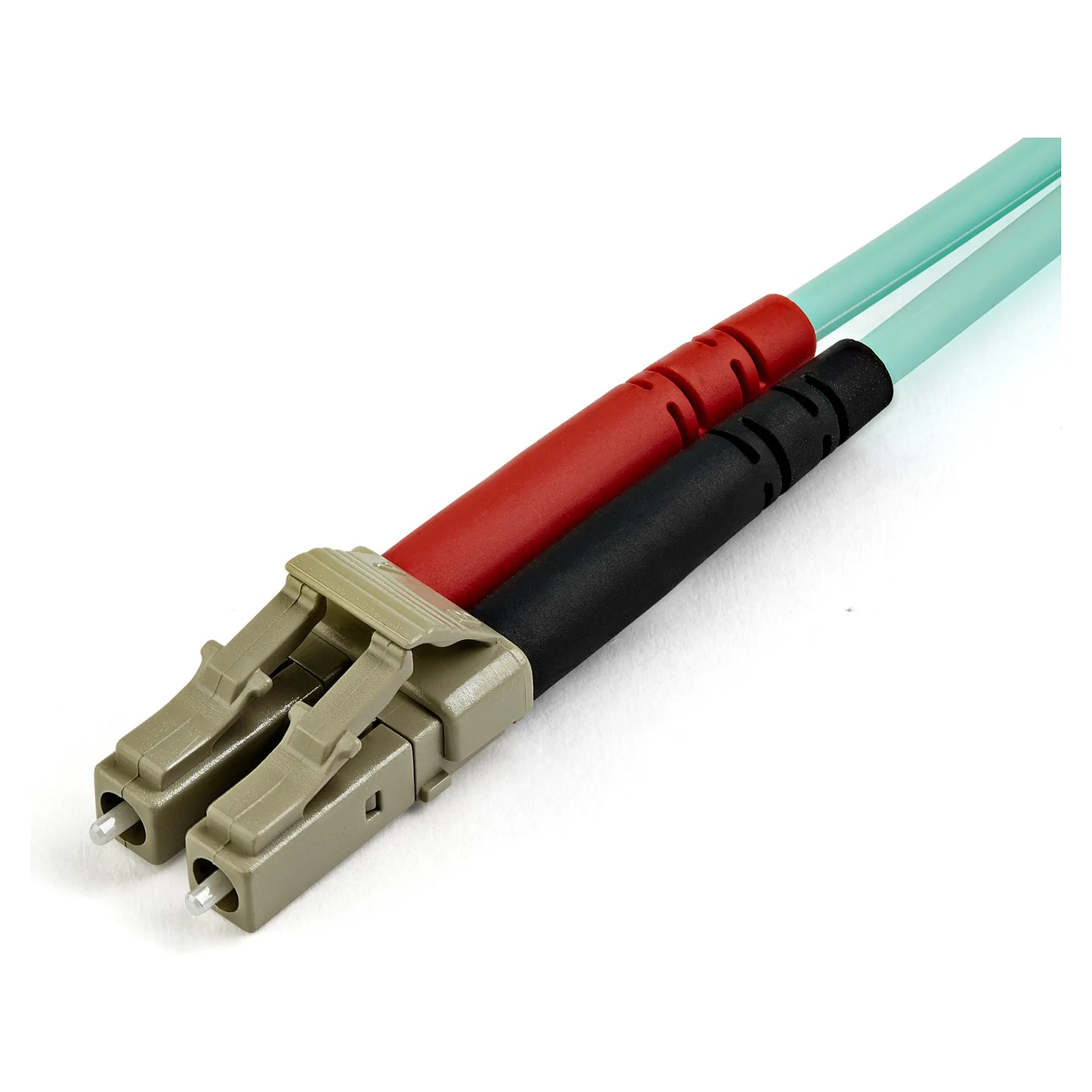

With laser-optimized multimode fiber (LOMMF), the OM4 fiber patch cable is ideal for 850 nm and 1350 nm Vertical Cavity Surface Emitting Laser (VCSEL) and LED sources. Precision-manufactured ceramic ferrules ensure correct fiber alignment to prevent connectivity issues and minimize insertion loss. Designed for reliability in high-density network applications, the LC to LC UPC polished fiber ends greatly improves return loss characteristics over older PC polishing techniques which may negatively affect performance.
Wide Compatibility
This multimode 50/125µm fiber optic patch cord is backward compatible with OM3 and 1/10/40 Gbps networks, ensuring a reliable connection with legacy fiber environments.
Flame Resistant
Housed in a LSZH (Low-Smoke, Zero-Halogen) flame-retardant jacket, this OM4 fiber cable emits low smoke and toxic fumes when exposed to high heat or in the event of a fire. It enables safer cable installations in areas with poor ventilation including some industrial settings, self-contained environments such as trains and aircraft, as well as residential settings where building codes are a consideration.
Each OM4 fiber cable is also individually tested and certified to be within acceptable optical insertion loss limits for guaranteed compatibility and 100% reliability.
Cable length: 10 m
Fibre optic type: OM4
Connector 1: LC
Connector 2: LC
Connector 1 gender: Male
Connector 2 gender: Male
Product colour: Aqua colour
Feature: Full duplex
Core diameter: 50 µm
Cladding diameter: 125 µm
Fiber mode structure: Multi-mode
Wavelengths supported: 850 nm
Data transfer rate: 100 Gbit/s
Jacket material: Low smoke zero halogen (LSZH)
Sustainability
Feature: Sustainability compliance
Doesn’t contain: Halogen
Certificates
Compliance certificates: RoHS, CE
Operational conditions
Operating temperature (T-T): -20 – 60 °C
Storage temperature (T-T): -20 – 60 °C
Weight & dimensions
Weight: 131 g
Packaging data
Package width: 198 mm
Package depth: 166 mm
Package height: 36 mm
Package weight: 142 g

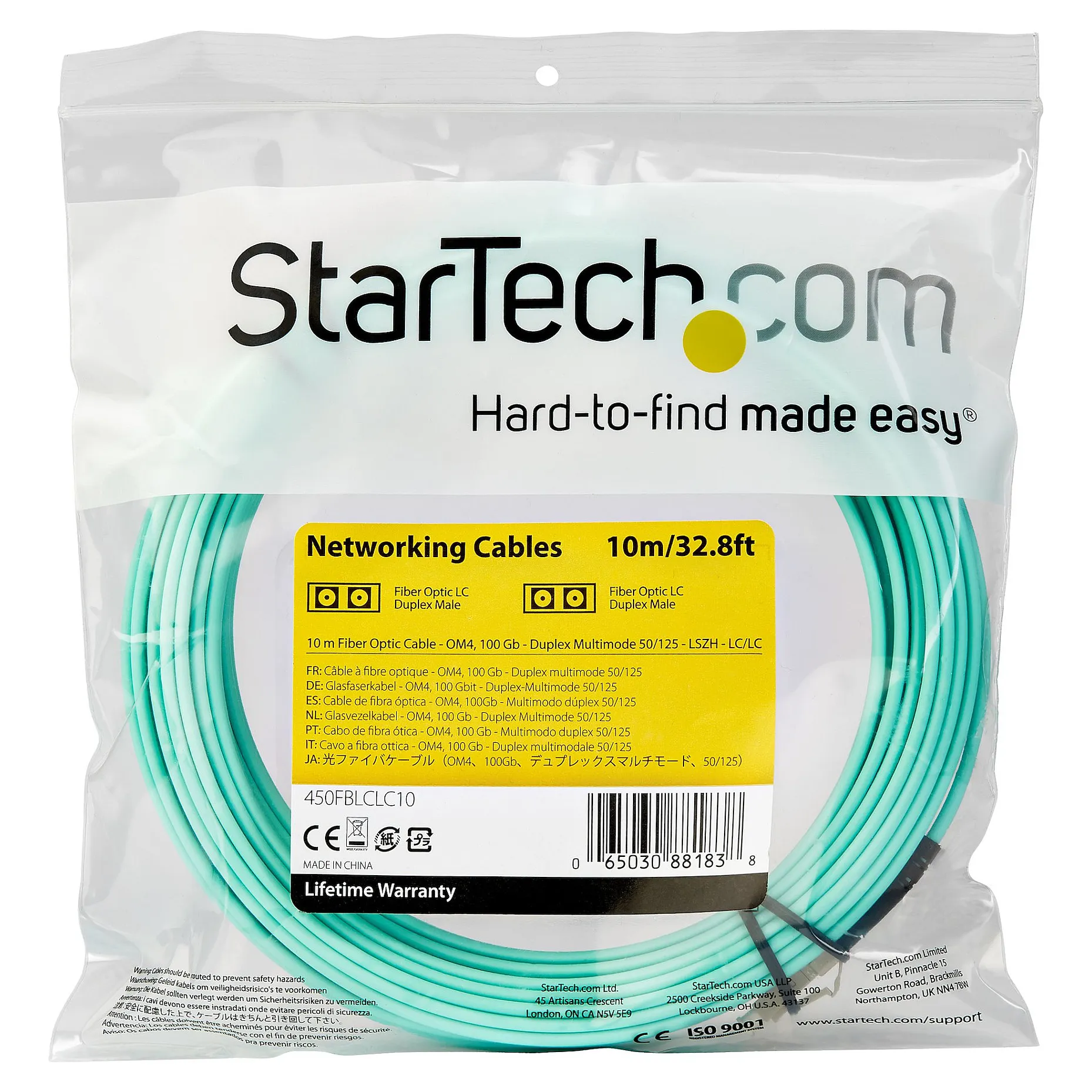

Packaging content
Quantity per pack: 1 pc(s)
Logistics data
Master (outer) case width: 410 mm
Harmonized System (HS) code: 85447000
Master (outer) case length: 410 mm
Master (outer) case height: 450 mm
Products per master (outer) case: 80 pc(s)
