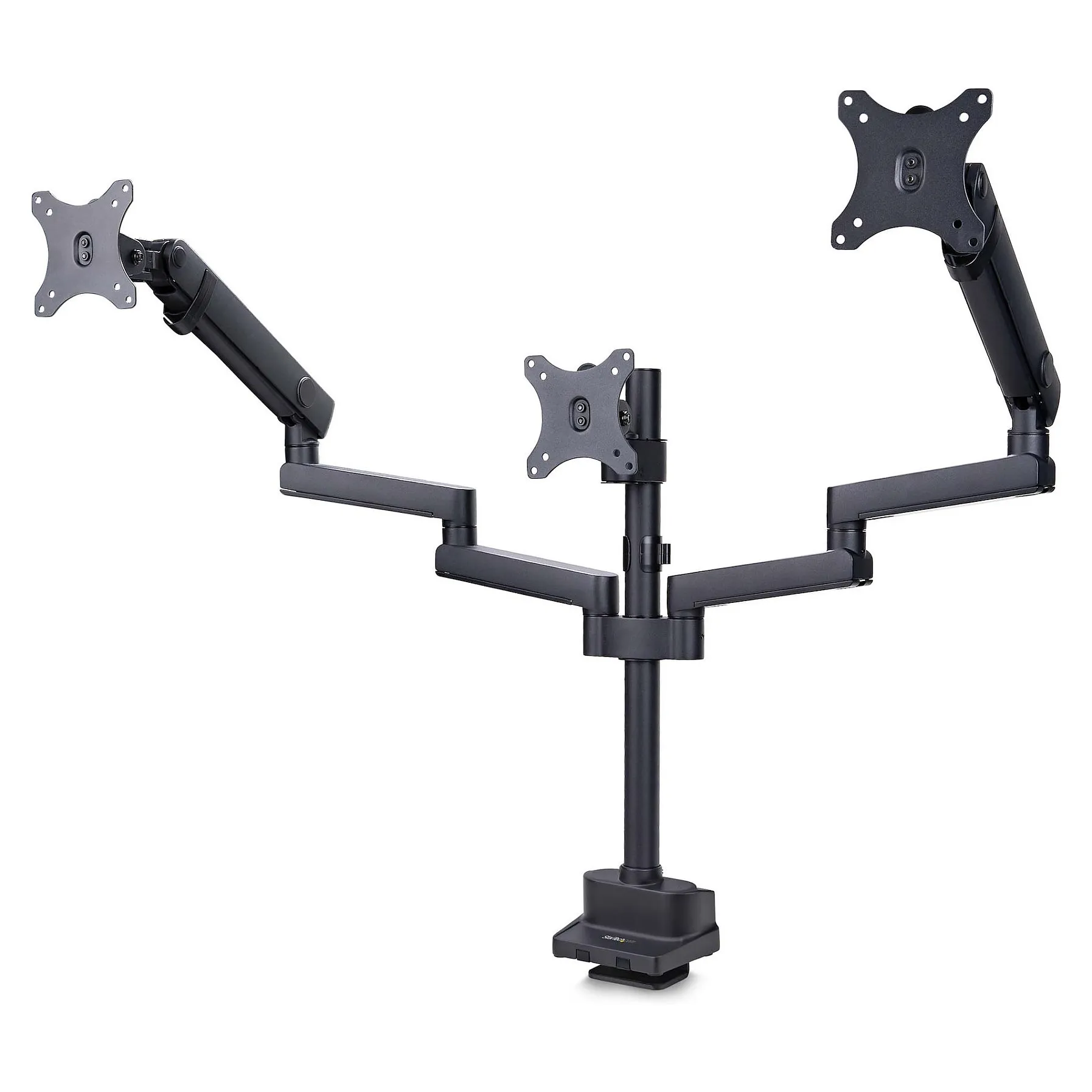

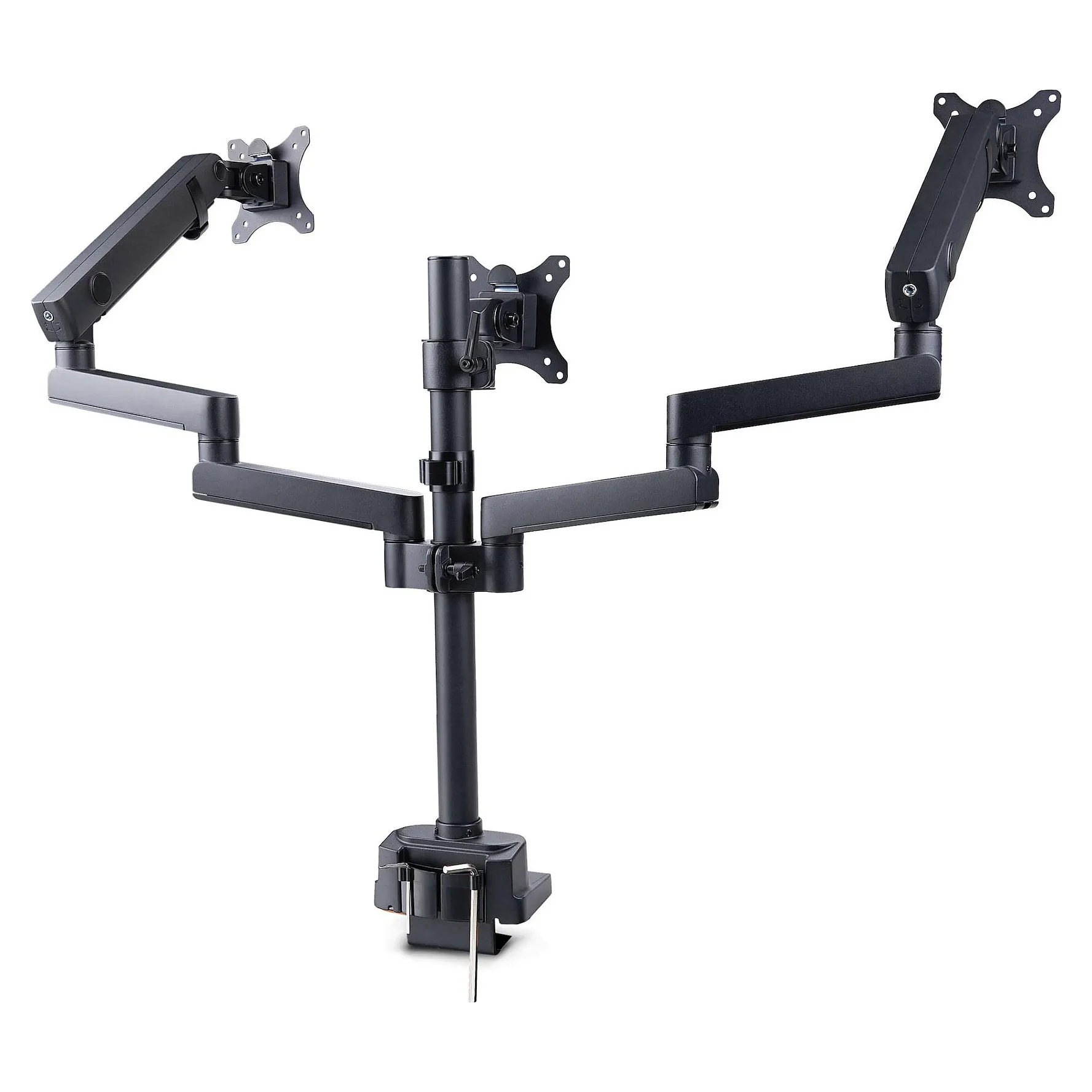

StarTech.com Desk Mount Triple Monitor Arm For Up To Three 27in Screens, VESA 75×75/100×100, Tool-Less Arm Adjustments, C-Clamp/Grommet Mount, Mechanical Spring Arm. Mounting: Clamp/Grommet, Maximum weight capacity: 21 kg, Maximum screen size: 68.6 cm (27"), Minimum VESA mount: 75 x 75 mm, Maximum VESA mount: 100 x 100 mm. Height adjustment, Tilt angle range: -90 – 90°. Product colour: Black

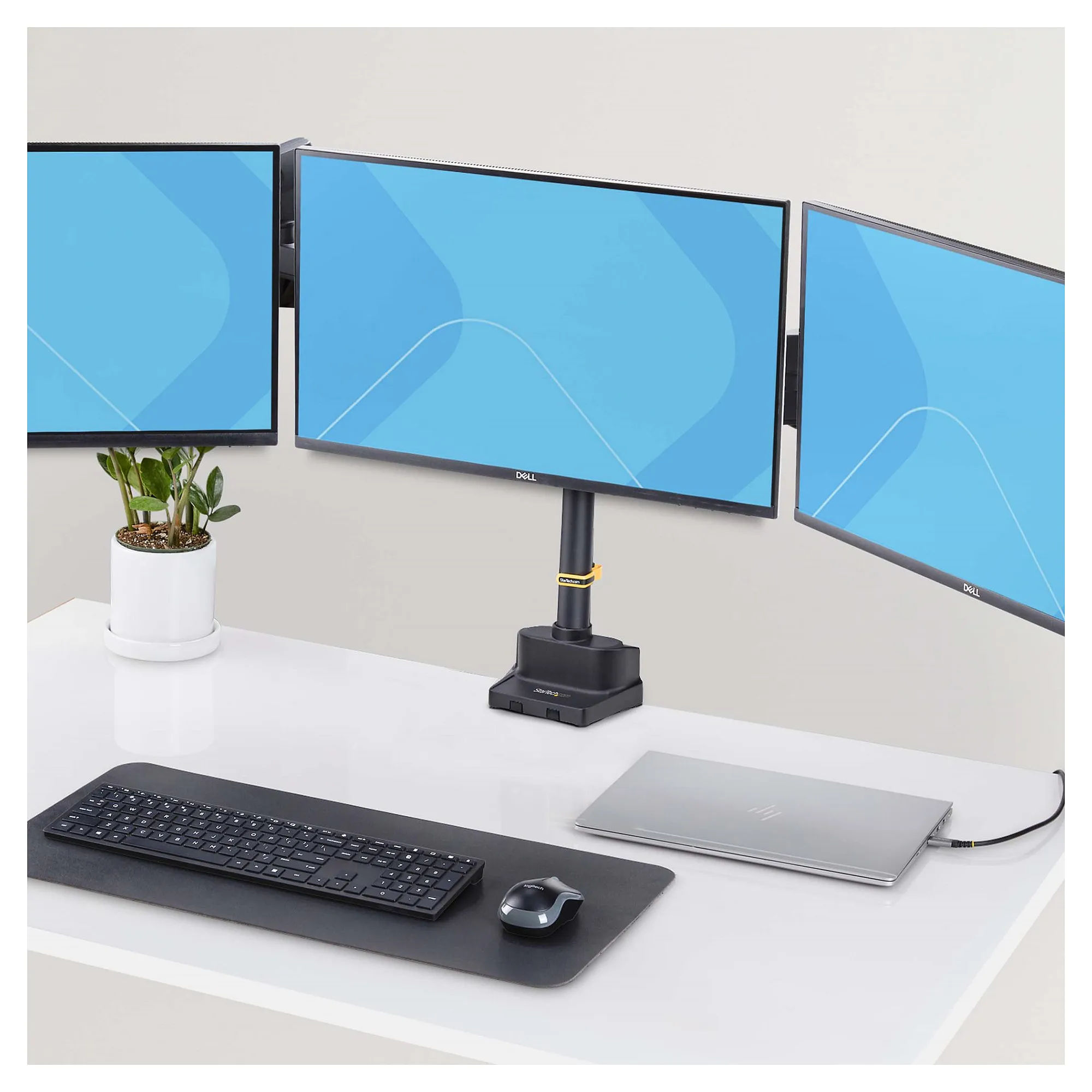

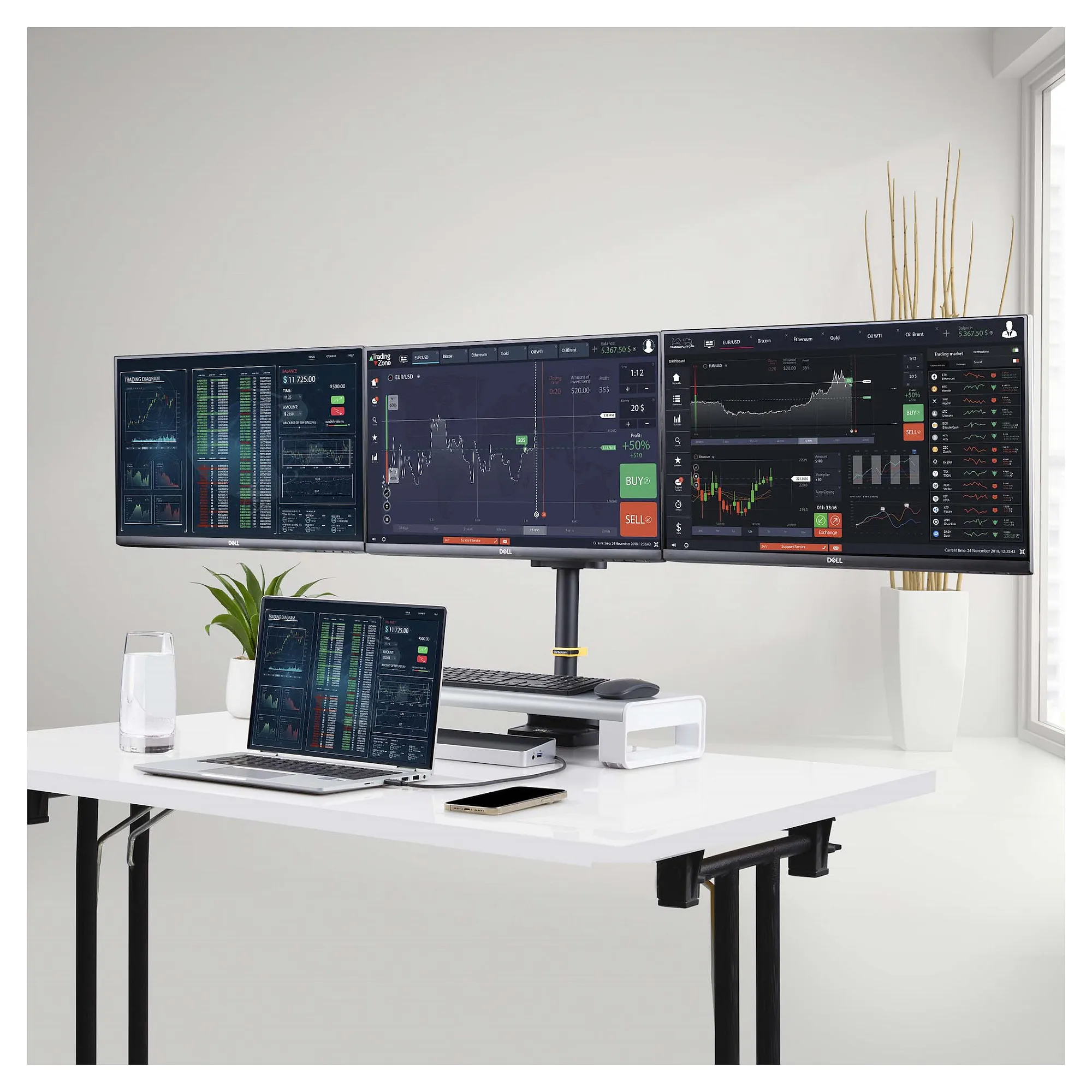

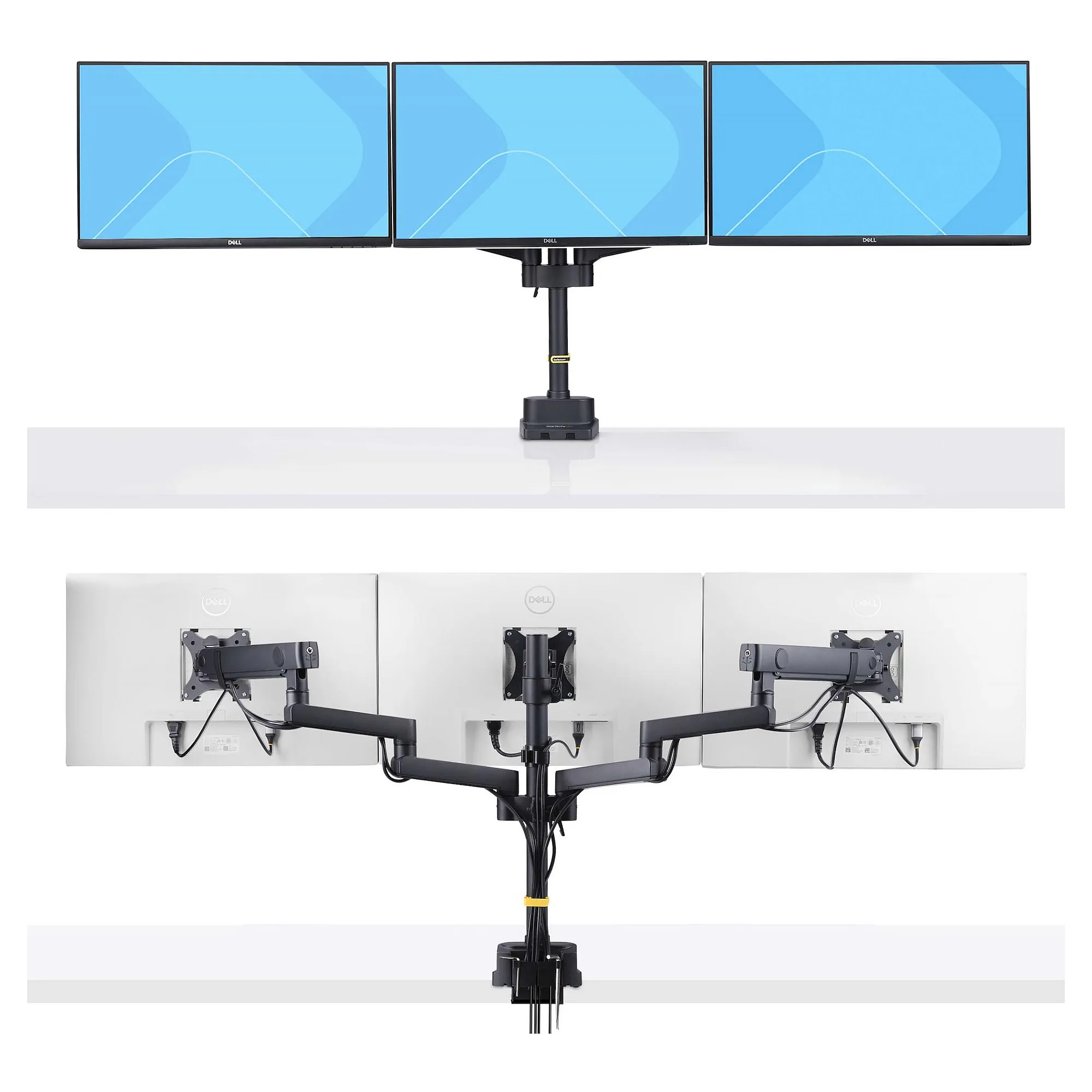

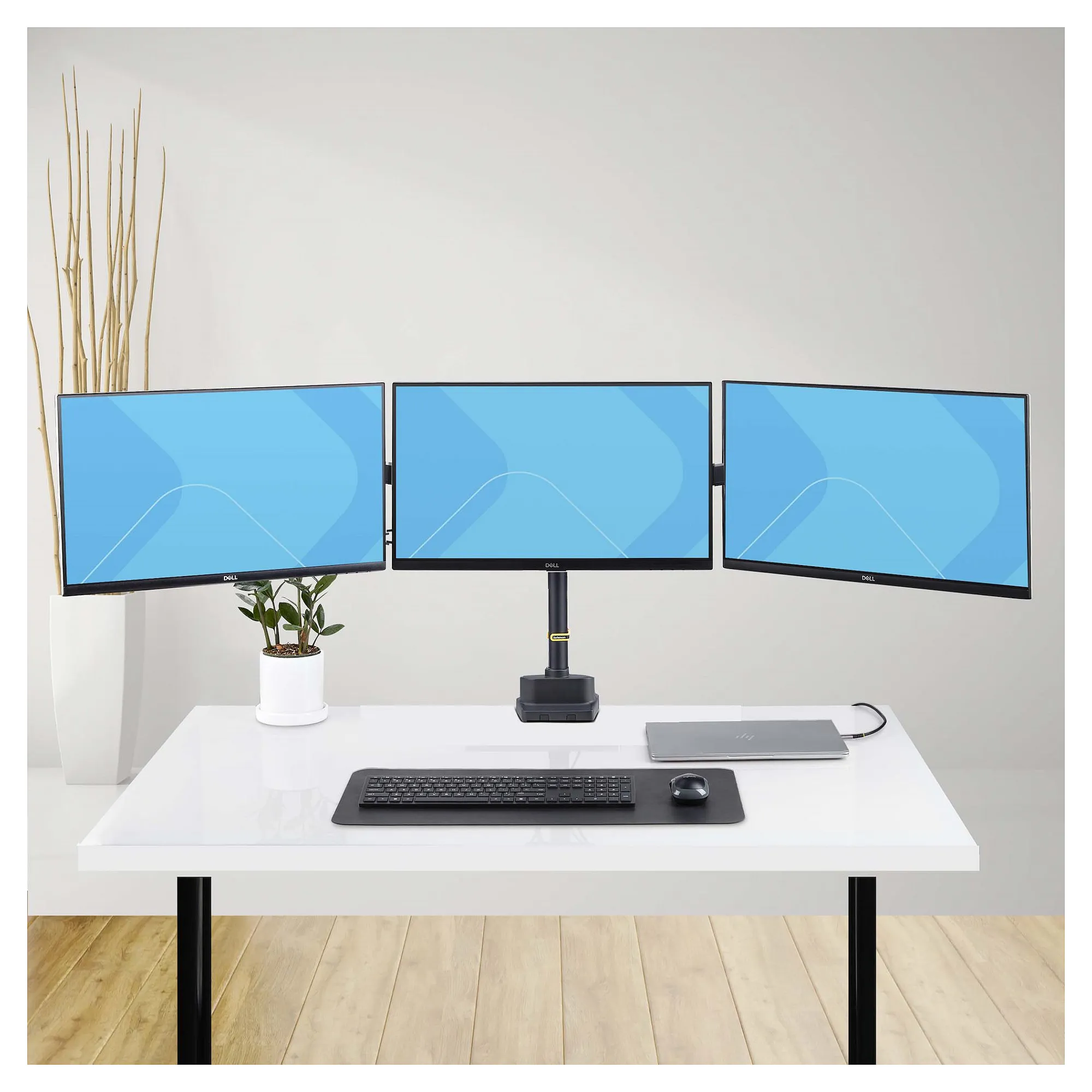

This monitor desk mount is designed to support up to three 27-inch displays, creating an ergonomic multi-monitor setup that provides an extensive viewing area for productivity. The mechanical spring-assisted arms allow multiple adjustment to suit different ergonomic needs.

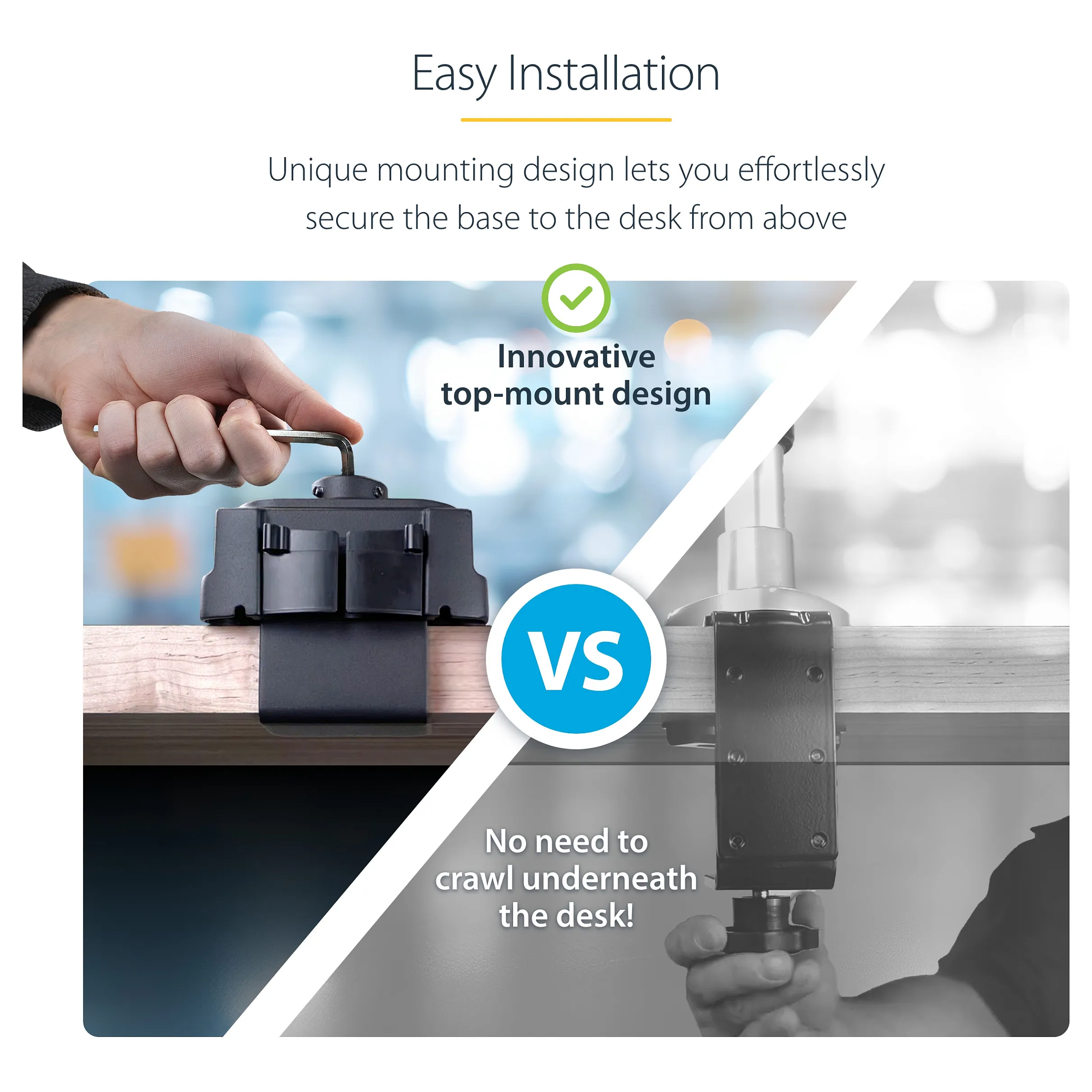

Top-Down Installation

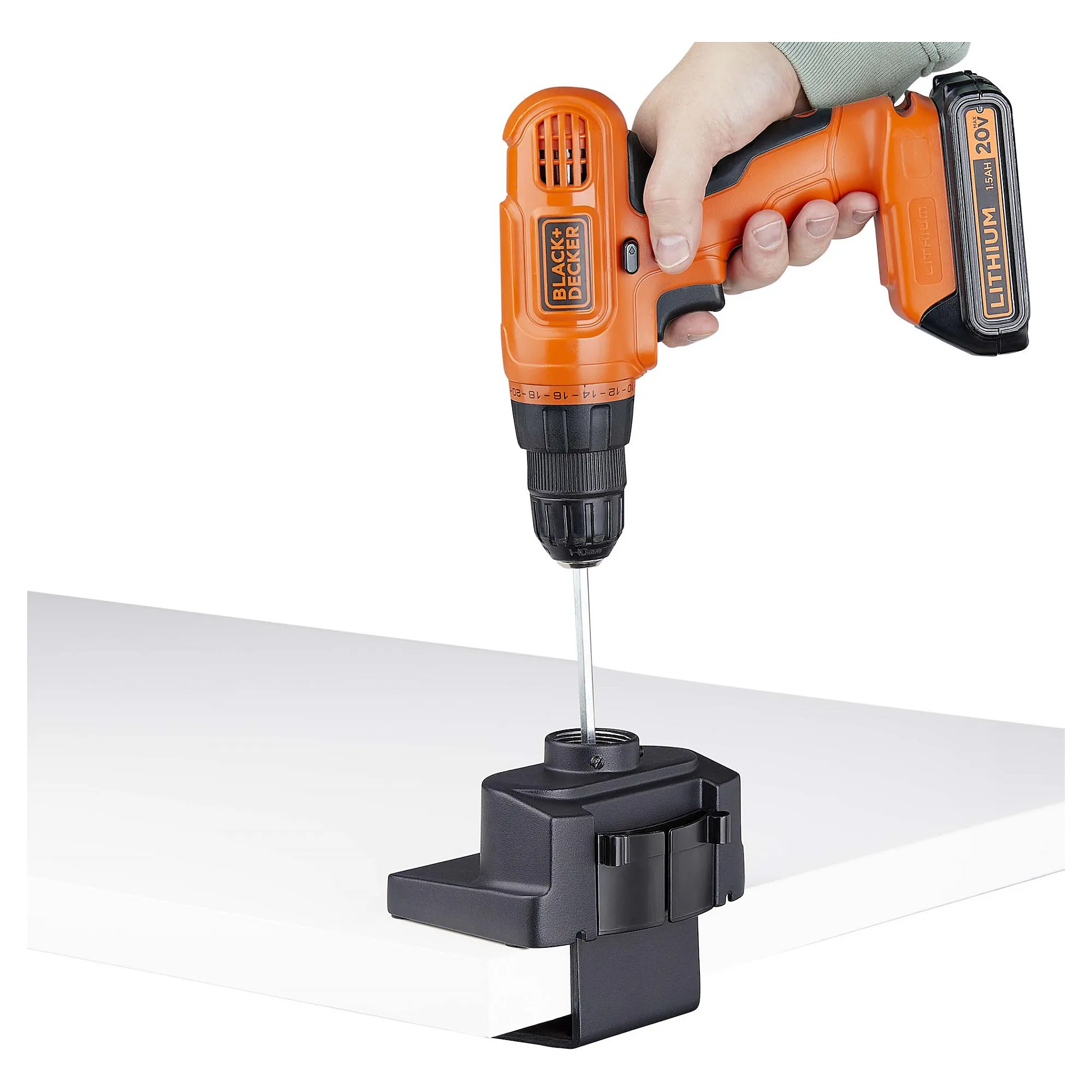

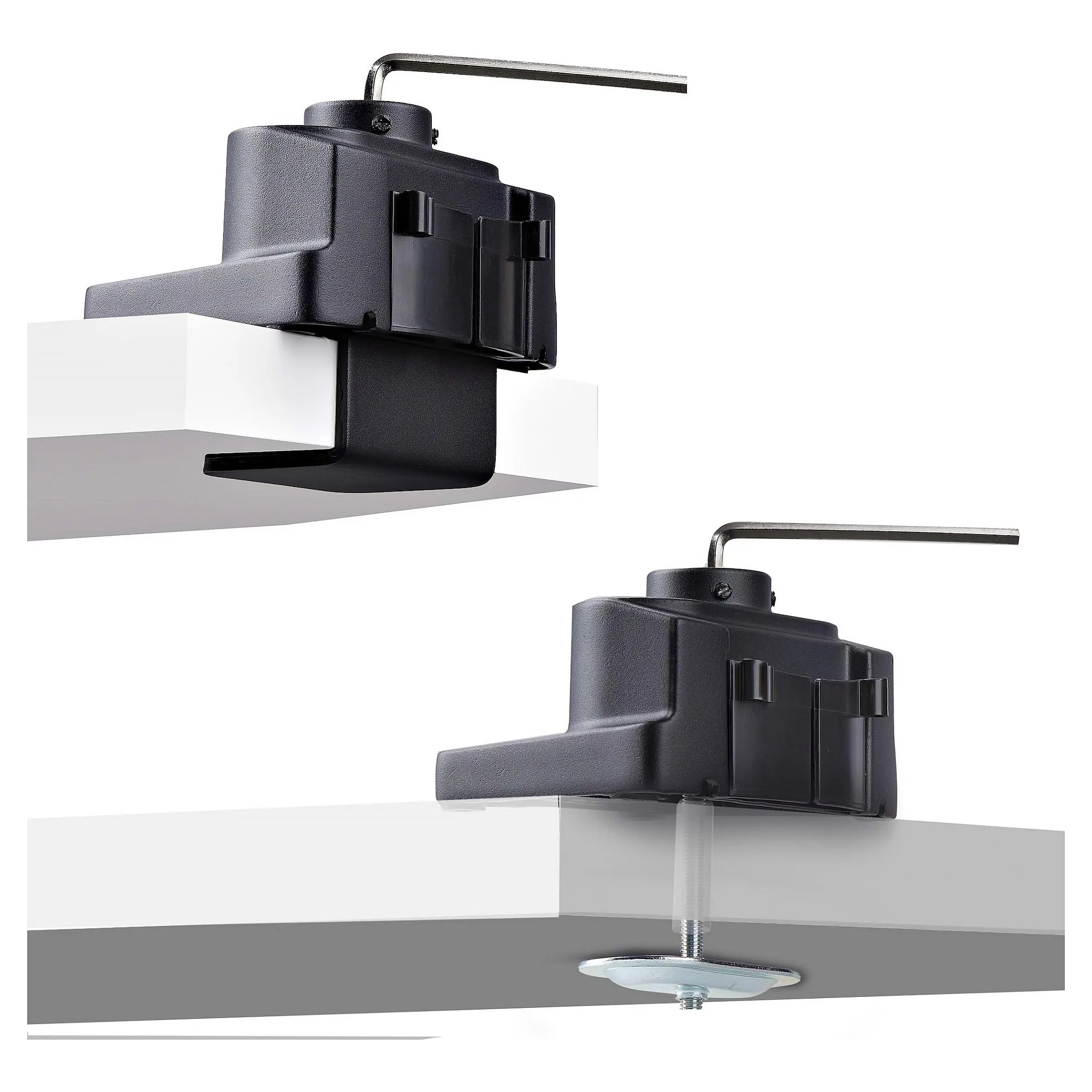

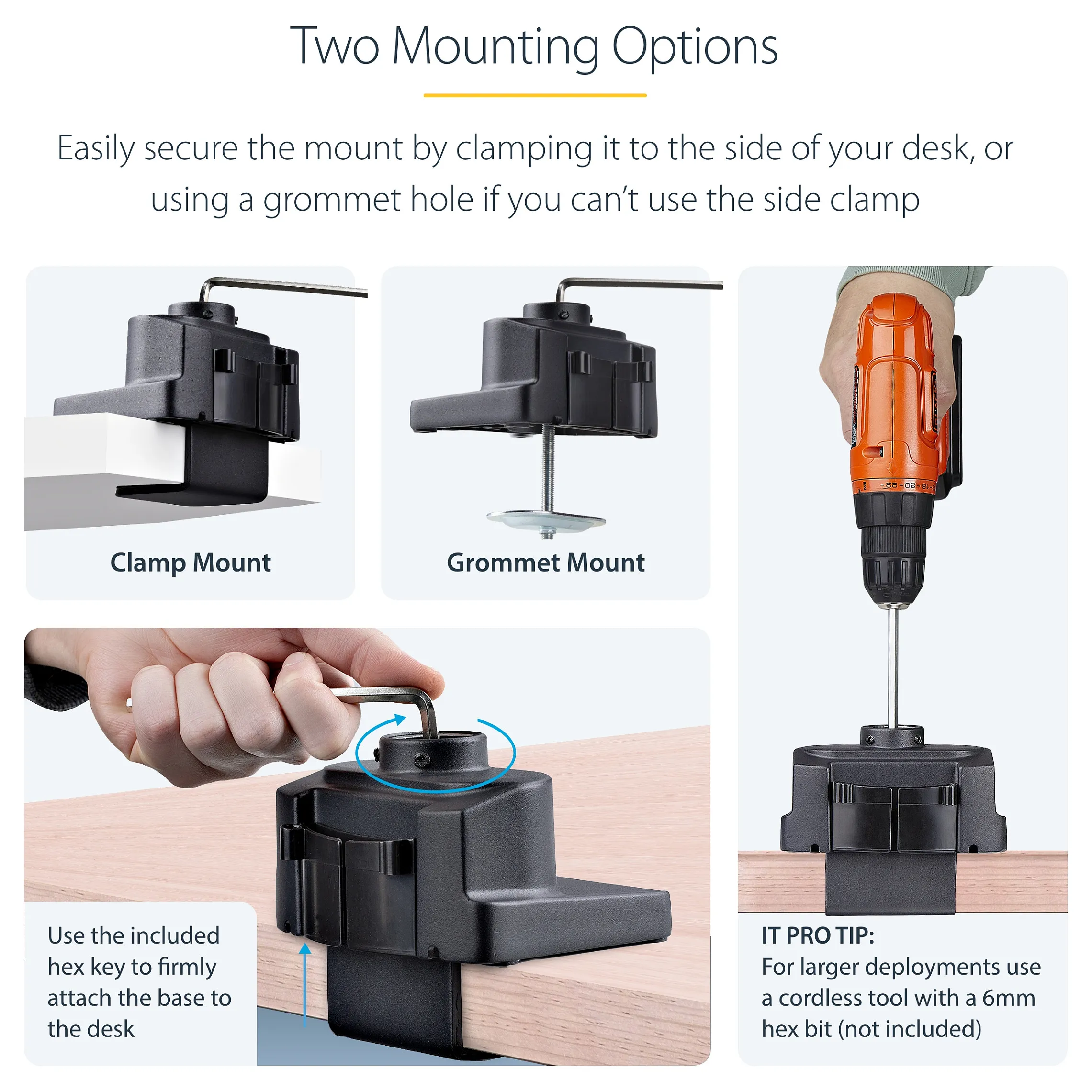

The unique top-screw desk clamp simplifies installation by enabling users to tighten the clamp from manually from above using a hex key or a hand drill, eliminating the need to go under the desk. In addition, the desk clamp is designed with an interchangeable C-clamp and grommet mount to accommodate desks up to 2 inches (50mm) thick, providing flexibility for different desk configurations.

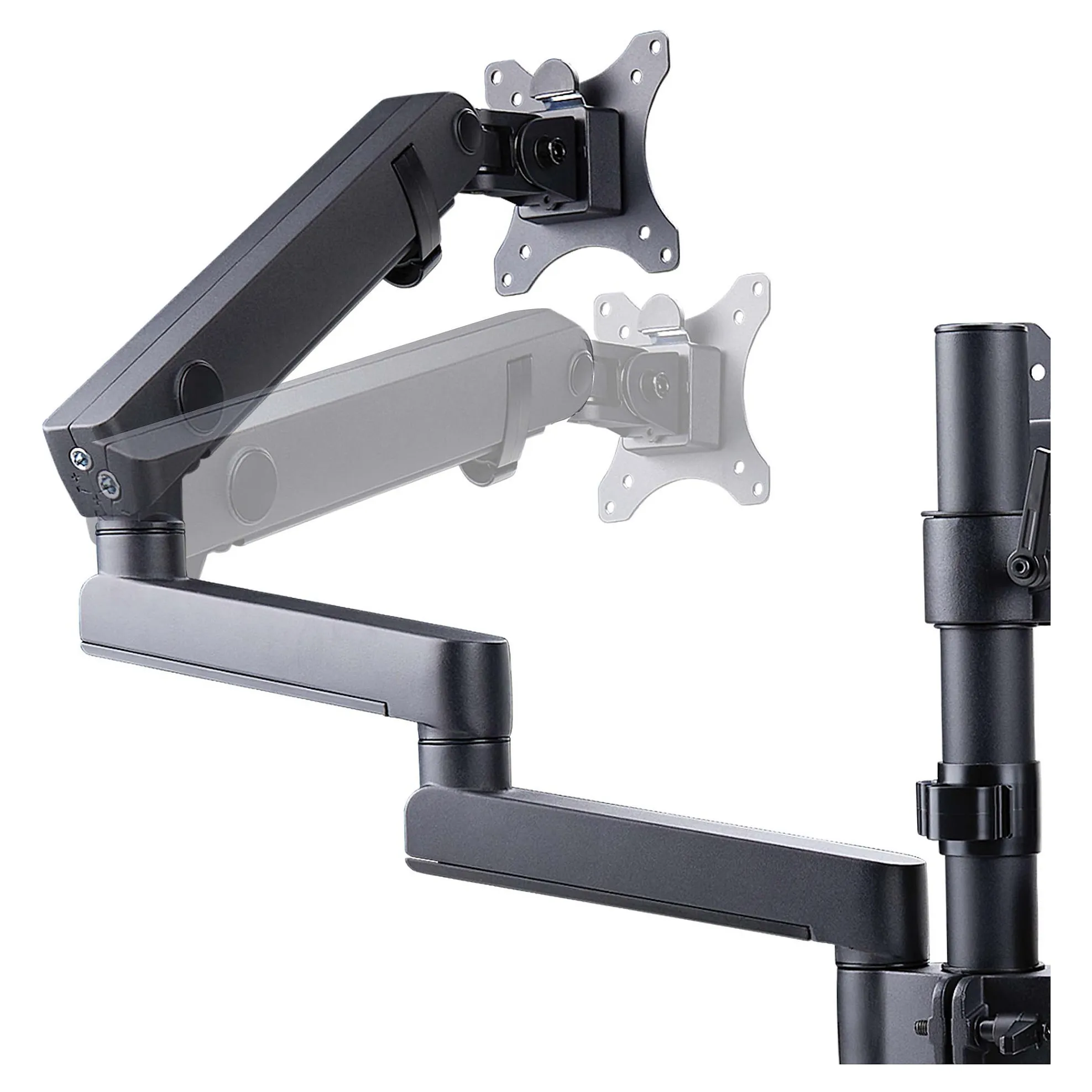

Height Adjustment with One Smooth Motion

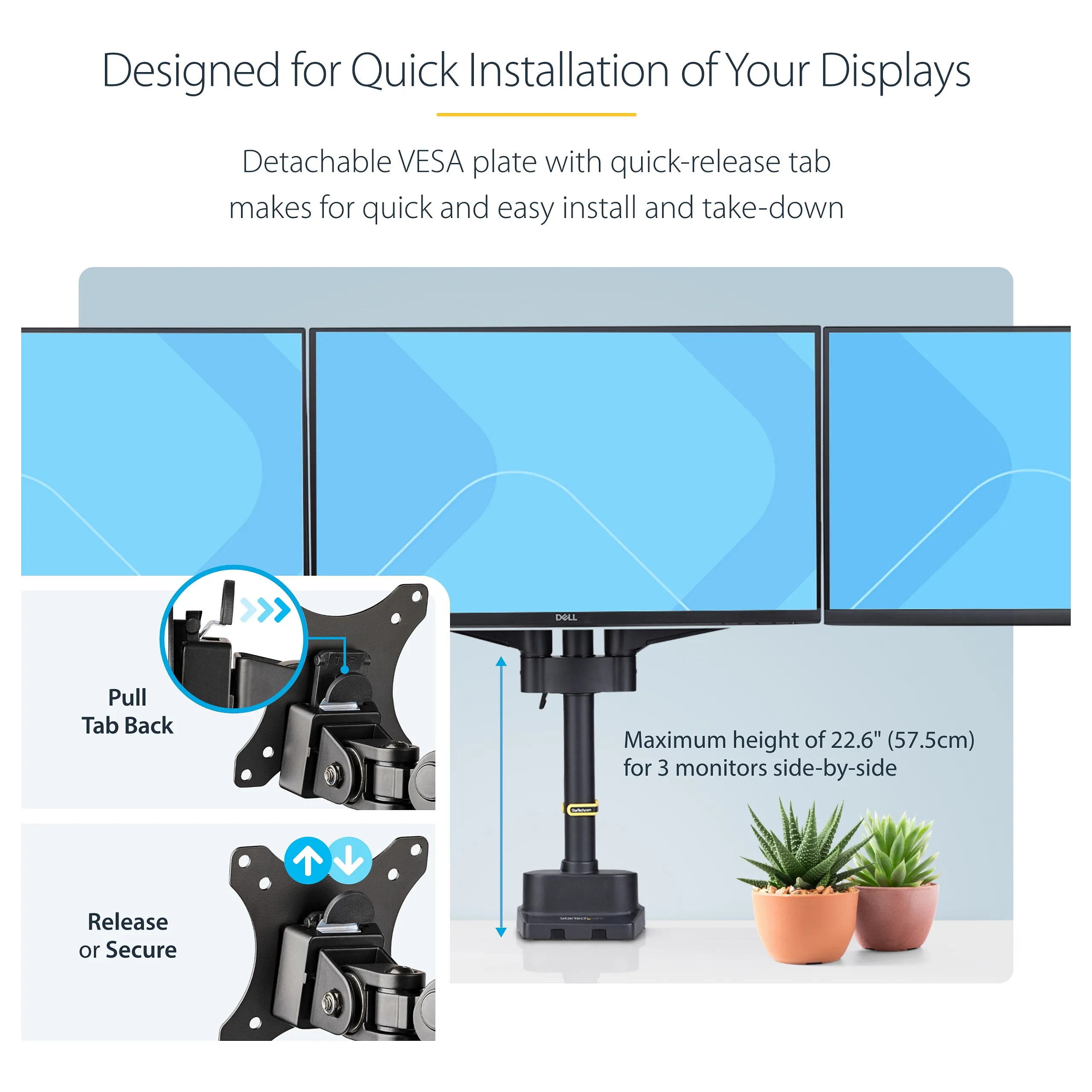

The central monitor mount enables height adjustments along the 19-inch (483mm) pole, allowing users to customize the screen placement for maximum productivity and comfort. The outboard arms enable independent toolless height adjustment of up to 10in (255mm) with effortless one-touch motion. For additional adjustments, reposition the outboard arms along the pole for different height ranges. The arms can extend up to 28.4in (722mm) from the pole.

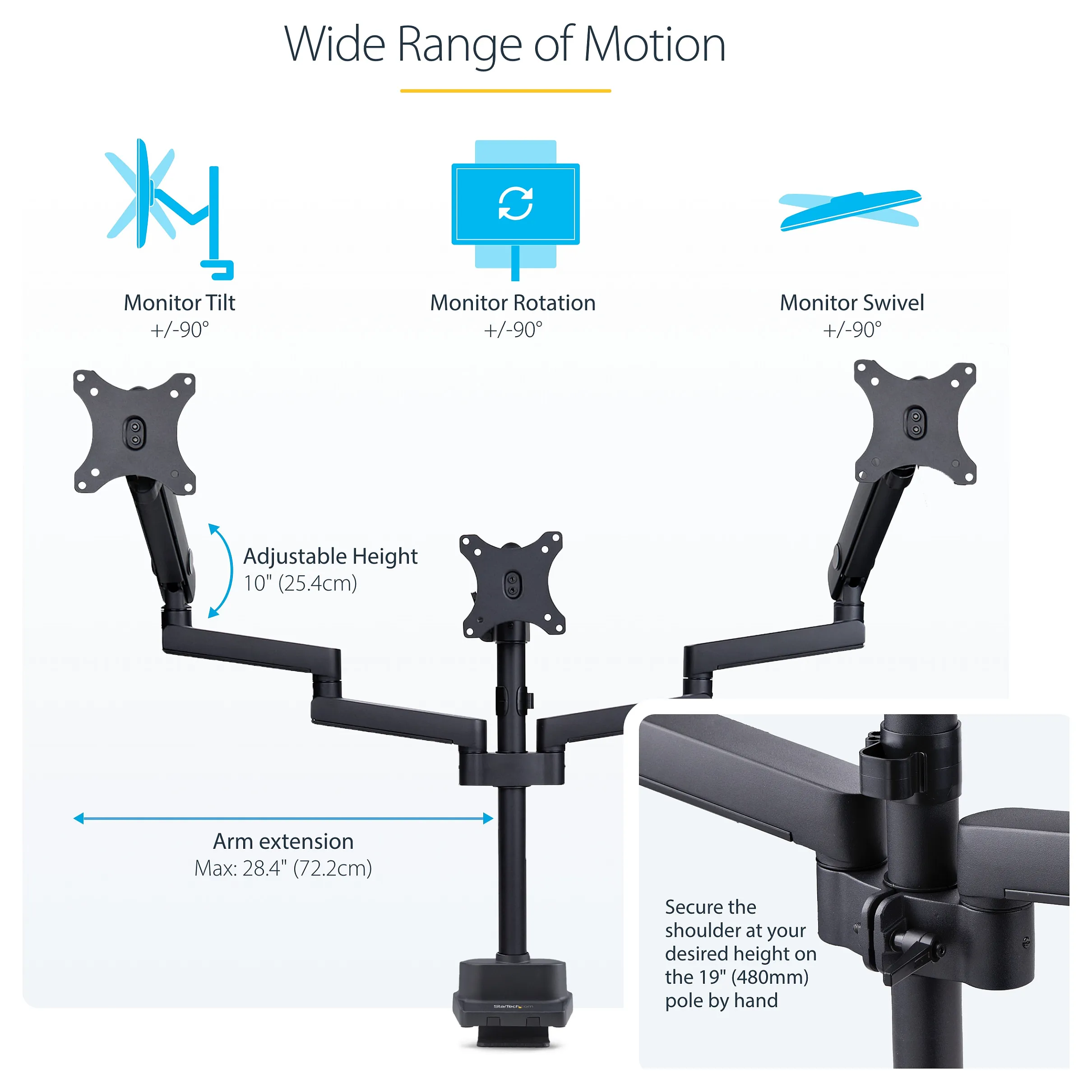

Range of Motion

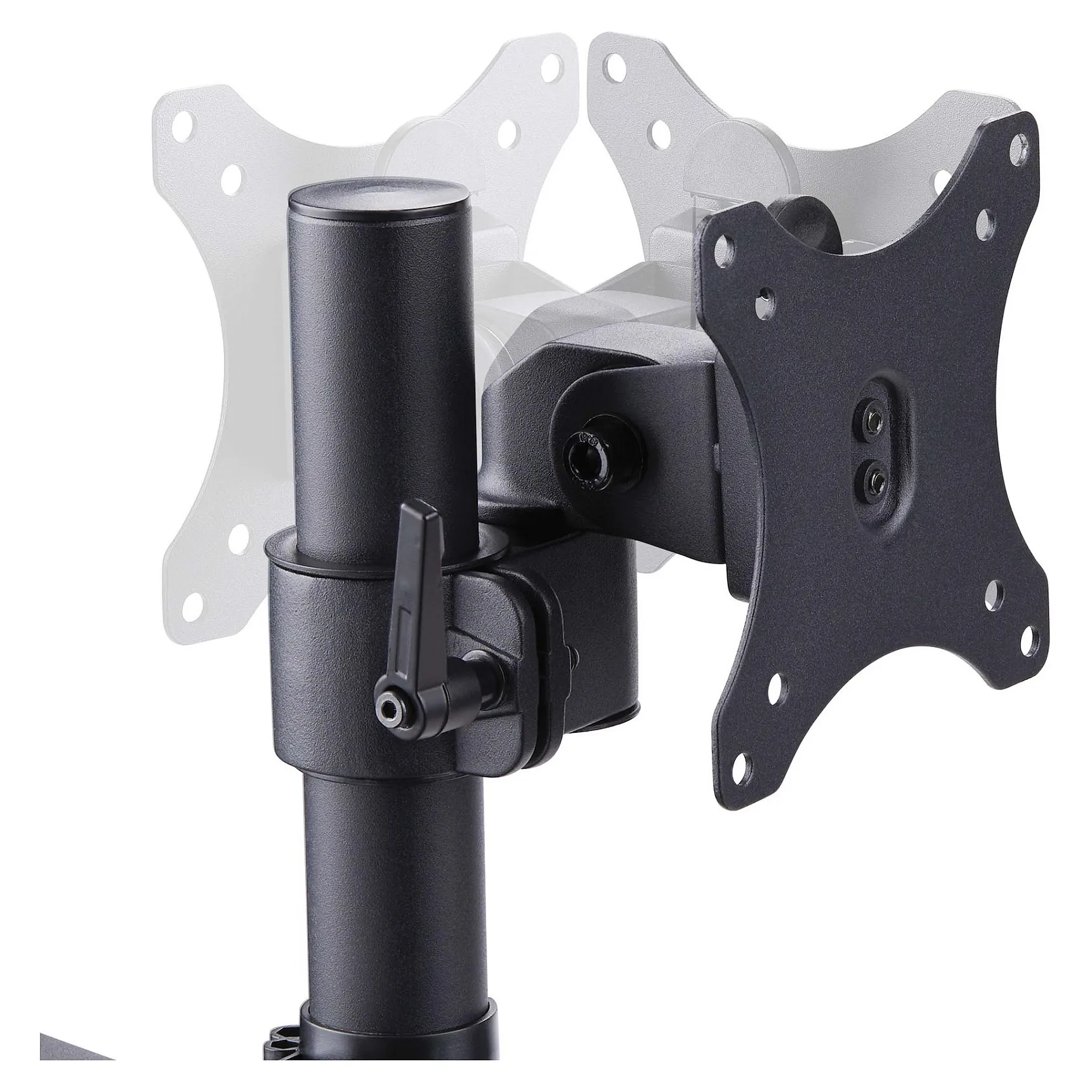

The articulating arms allow toolless adjustments of +/-180° horizontal swivel and +/-90° screen rotation on the VESA plates for portrait or landscape orientations. The VESA mounting plates allow for +/-90° display tilt to provide an ideal viewing angle.

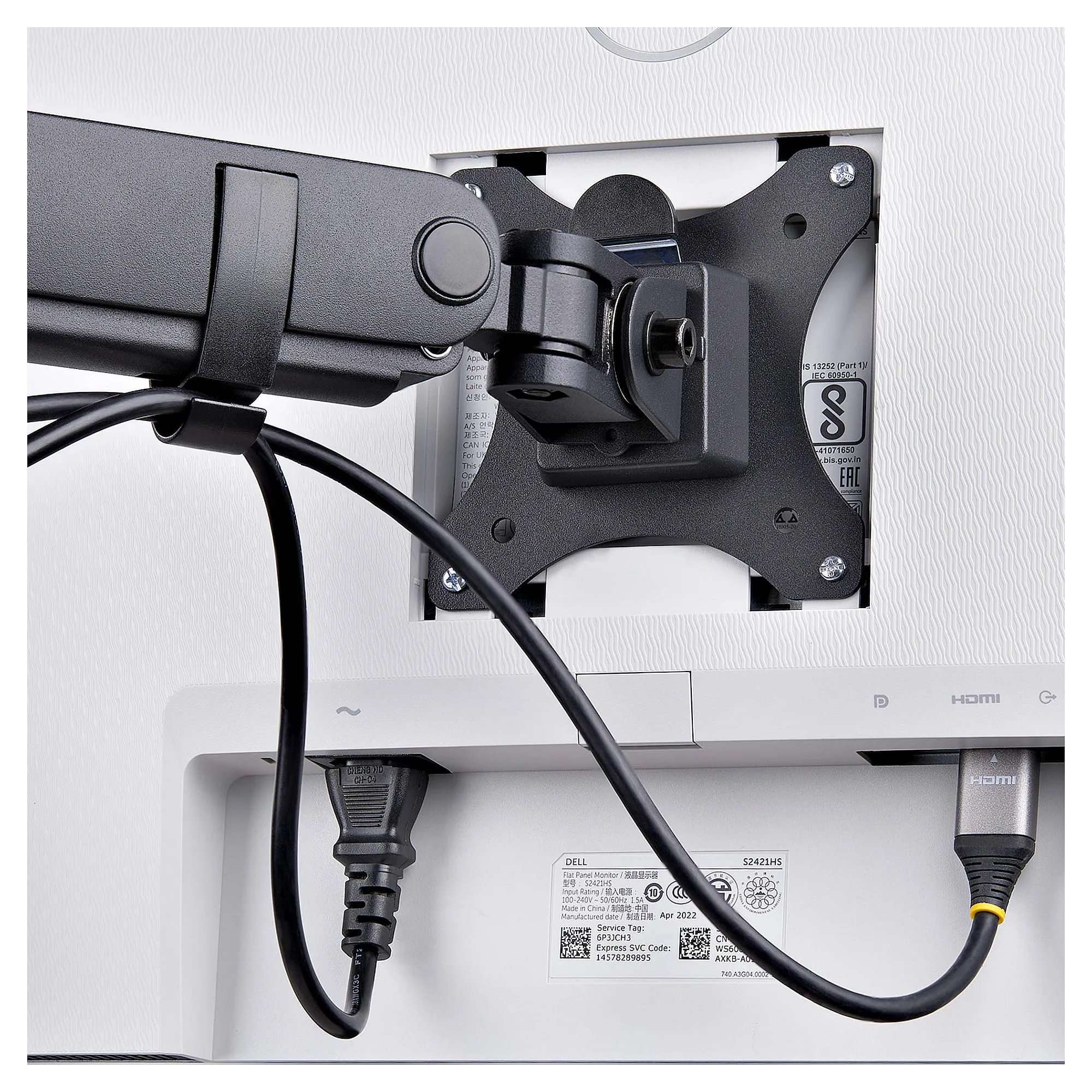

Cable Management

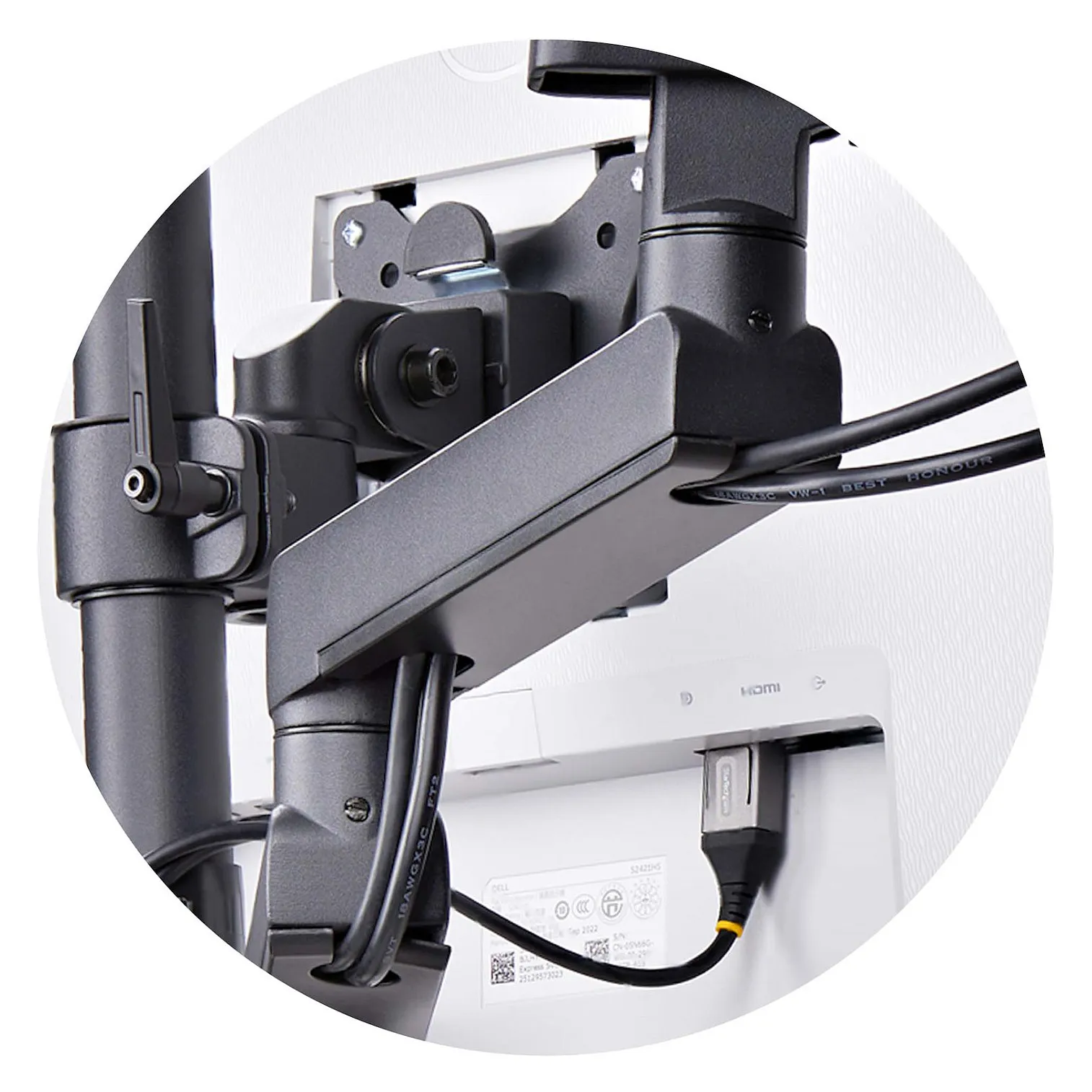

To maintain an organized workspace, the adjustable arms feature cable management channels along the underside to keep cables out of sight, reducing clutter and contributing to a tidy setup. A cable clip on the pole also helps maintain an organized workspace.
Maximum weight capacity: 21 kg
Number of displays supported: 3
Maximum weight capacity (per display): 7 kg
Maximum screen size: 68.6 cm (27″)
Mounting: Clamp/Grommet
Mounting type: Desk
Minimum VESA mount: 75 x 75 mm
Maximum VESA mount: 100 x 100 mm
Extension arm (max): 72.2 cm
Desk thickness (max): 5 cm
Ergonomics
Feature: Height adjustment
Height adjustment range: 225 – 562 mm
Tilt angle range: -90 – 90°
Feature: Rotating
Angle of rotation: 90°
Pivot angle: -180 – 180°
Feature: Cable management
Design
Housing material: Aluminium, Plastic, Steel
Product colour: Black

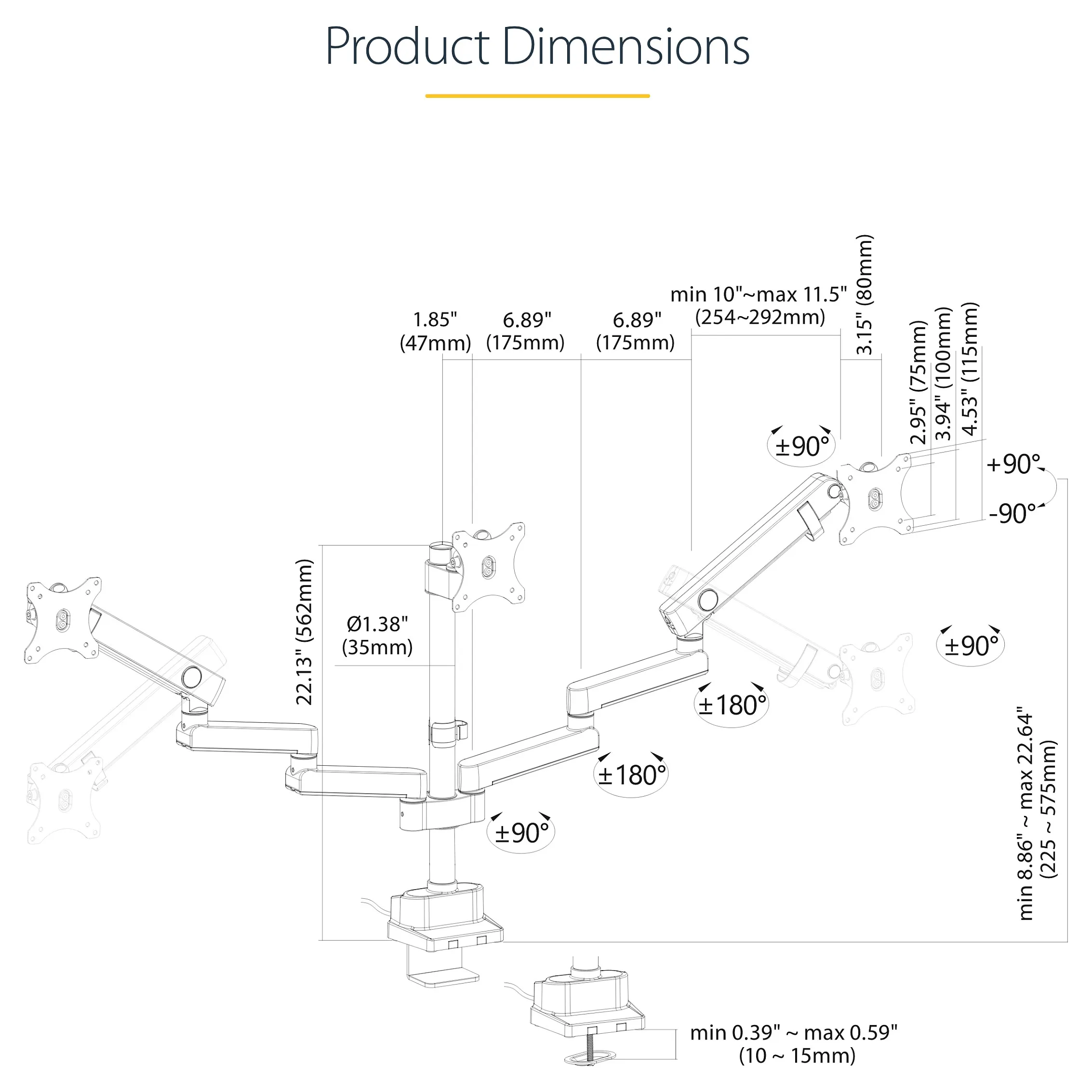

Weight & dimensions
Width: 176 mm
Depth: 1400 mm
Height: 649 mm
Weight: 1 kg
Packaging data
Package width: 562 mm
Package depth: 405 mm
Package height: 121 mm
Package weight: 8.9 kg

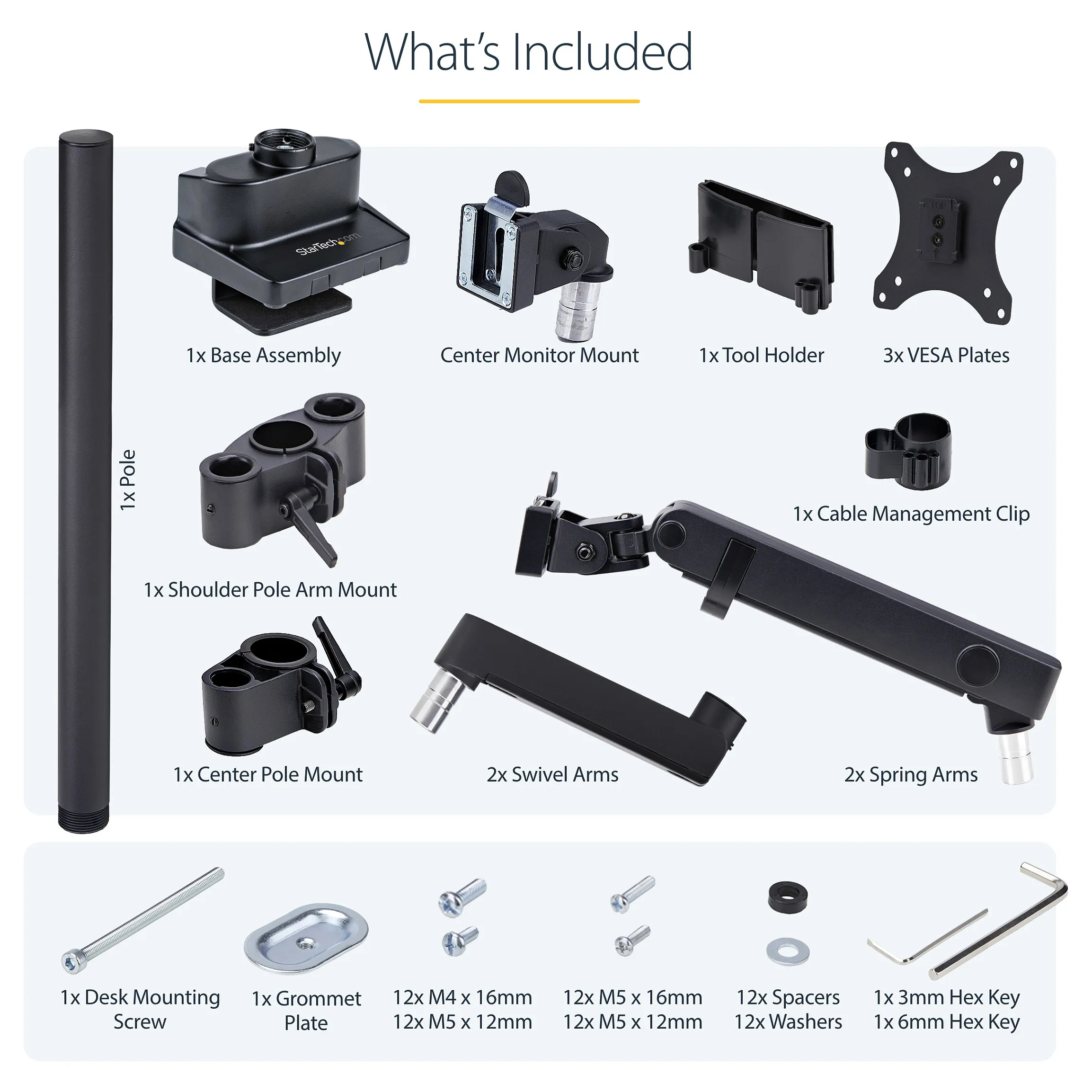

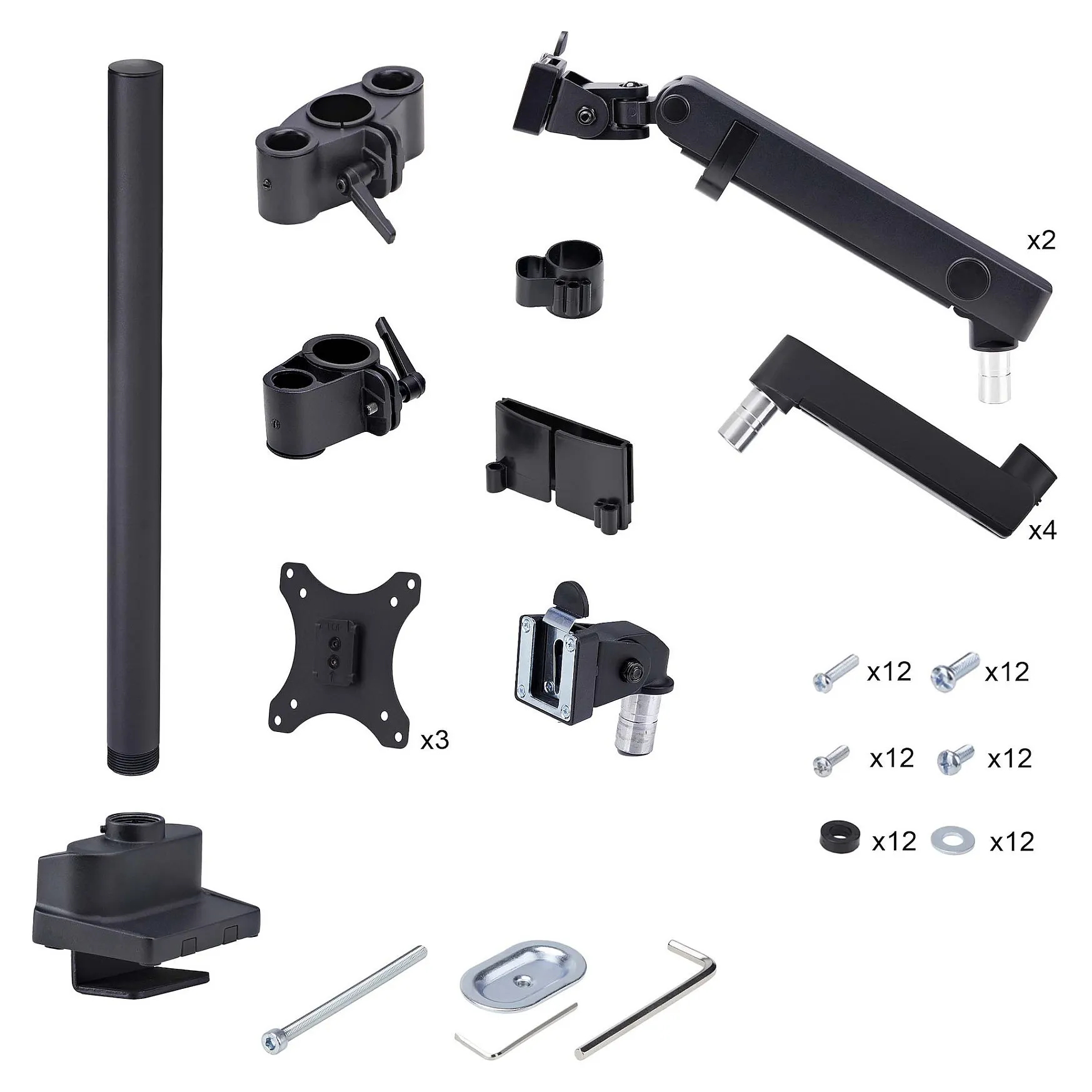

Packaging content
Feature: Wrench included
Wrench type: Hexagonal wrench
Feature: Clamp included
Feature: VESA mount included
Number of cable clips: 1
Feature: Screws included
Number of screws: 49
Number of washers included: 12
Number of spacers included: 12
Feature: Grommet plate included
Feature: Manual
Logistics data
Master (outer) case width: 590 mm
Master (outer) case length: 426 mm
Master (outer) case height: 268 mm
Products per master (outer) case: 2 pc(s)
