StarTech.com USB-C/USB-A to M.2 NVMe Dock Adapter, 10Gbps, Tool-Free External M.2 NVMe SSD Reader, B+M/M-Key. Storage media type: SSD, Storage drive interface: M.2, Storage drive sizes supported: M.2. Host interface: USB 3.2 Gen 2 (3.1 Gen 2) Type-C. Product colour: Black, Maximum data transfer rate: 10 Gbit/s. Width: 59 mm, Depth: 403.7 mm, Height: 18 mm. Package width: 152 mm, Package depth: 100 mm, Package height: 30 mm

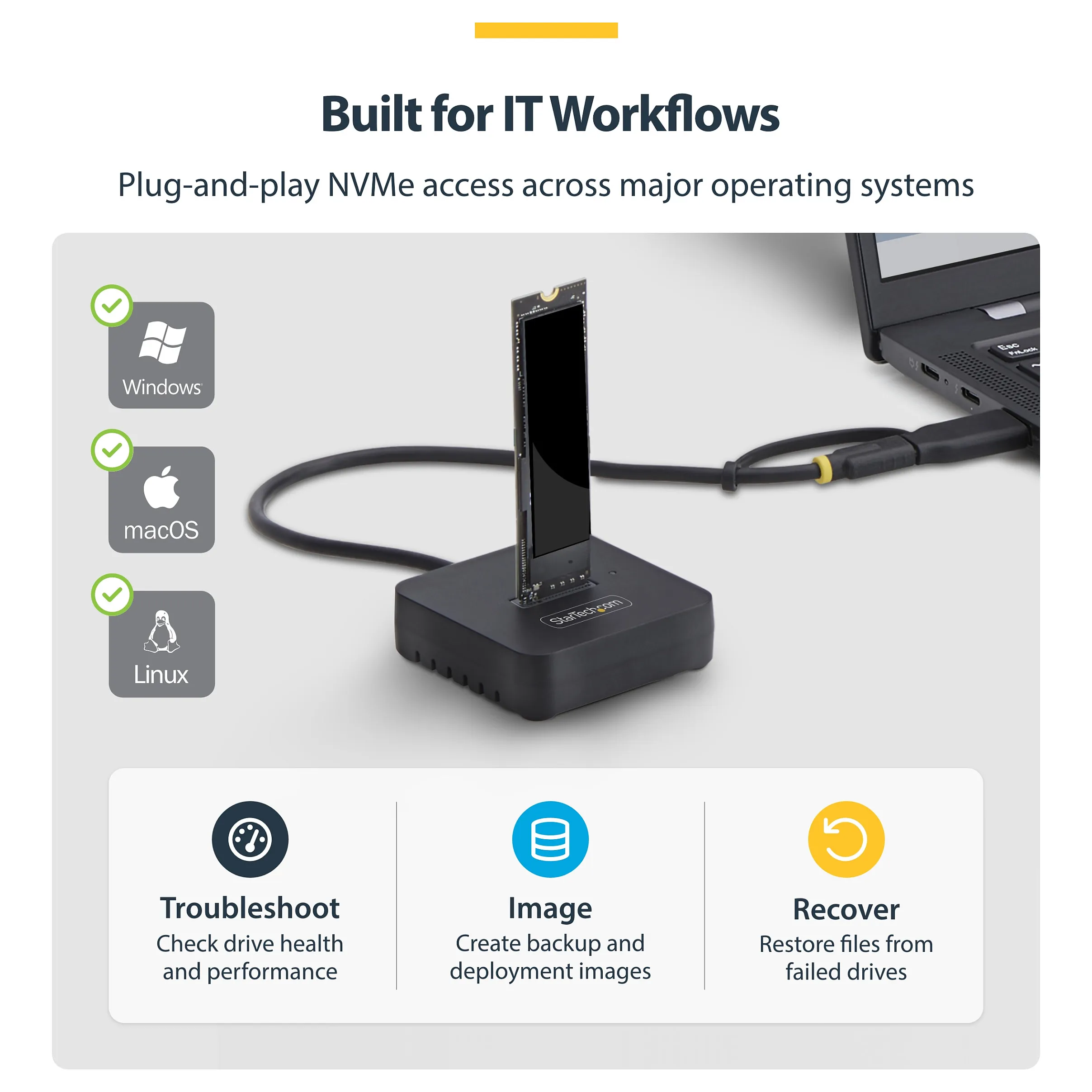

Access and manage M.2 NVMe SSDs through a single USB-C or USB-A 10Gbps connection. The M.2 NVMe SSD Dock enables fast read and write access for data transfer, recovery, and upgrades. This drive reader is a versatile solution for IT professionals performing backups, disk imaging, or maintenance on M.2 NVMe drives.

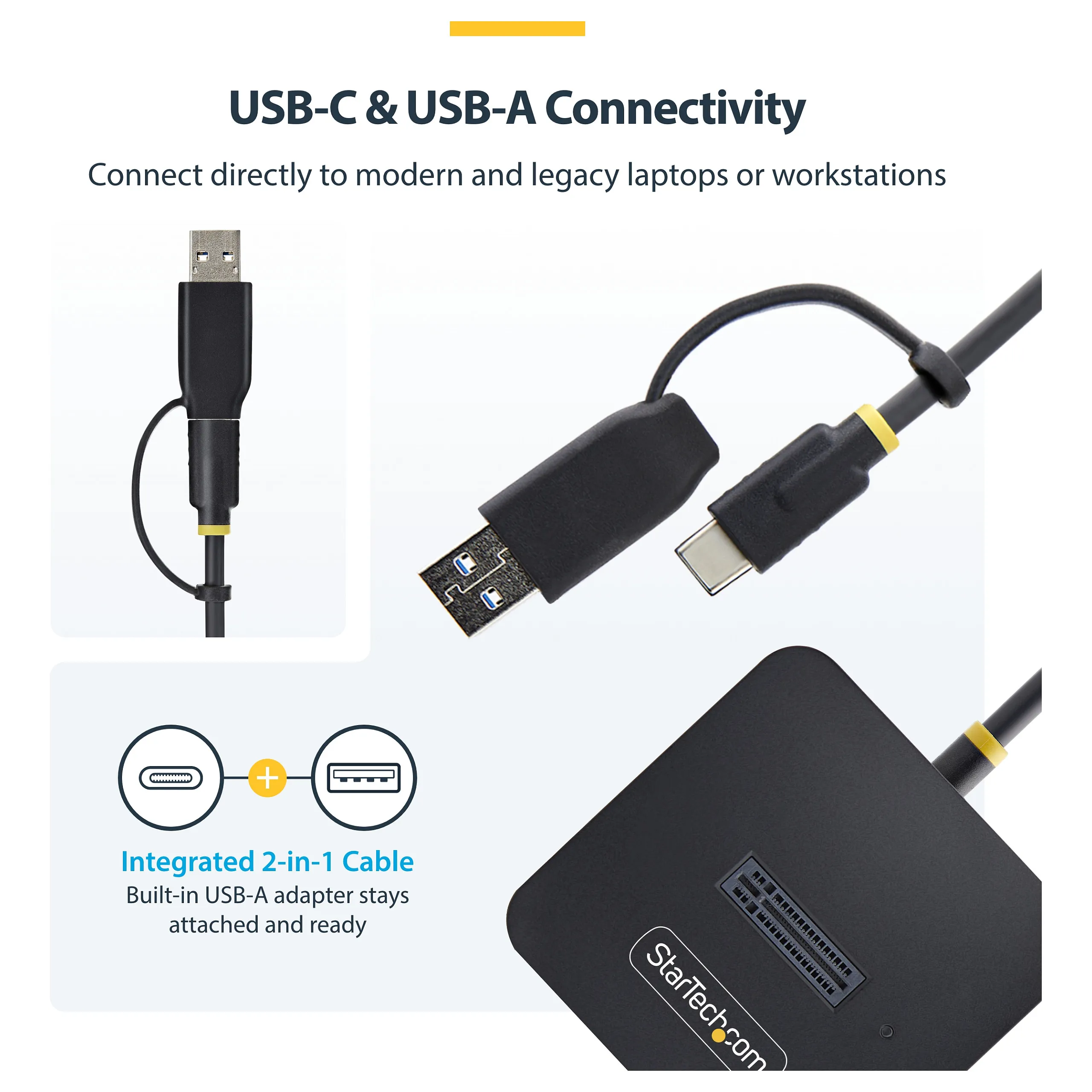

External Drive Access over USB-C and USB-A

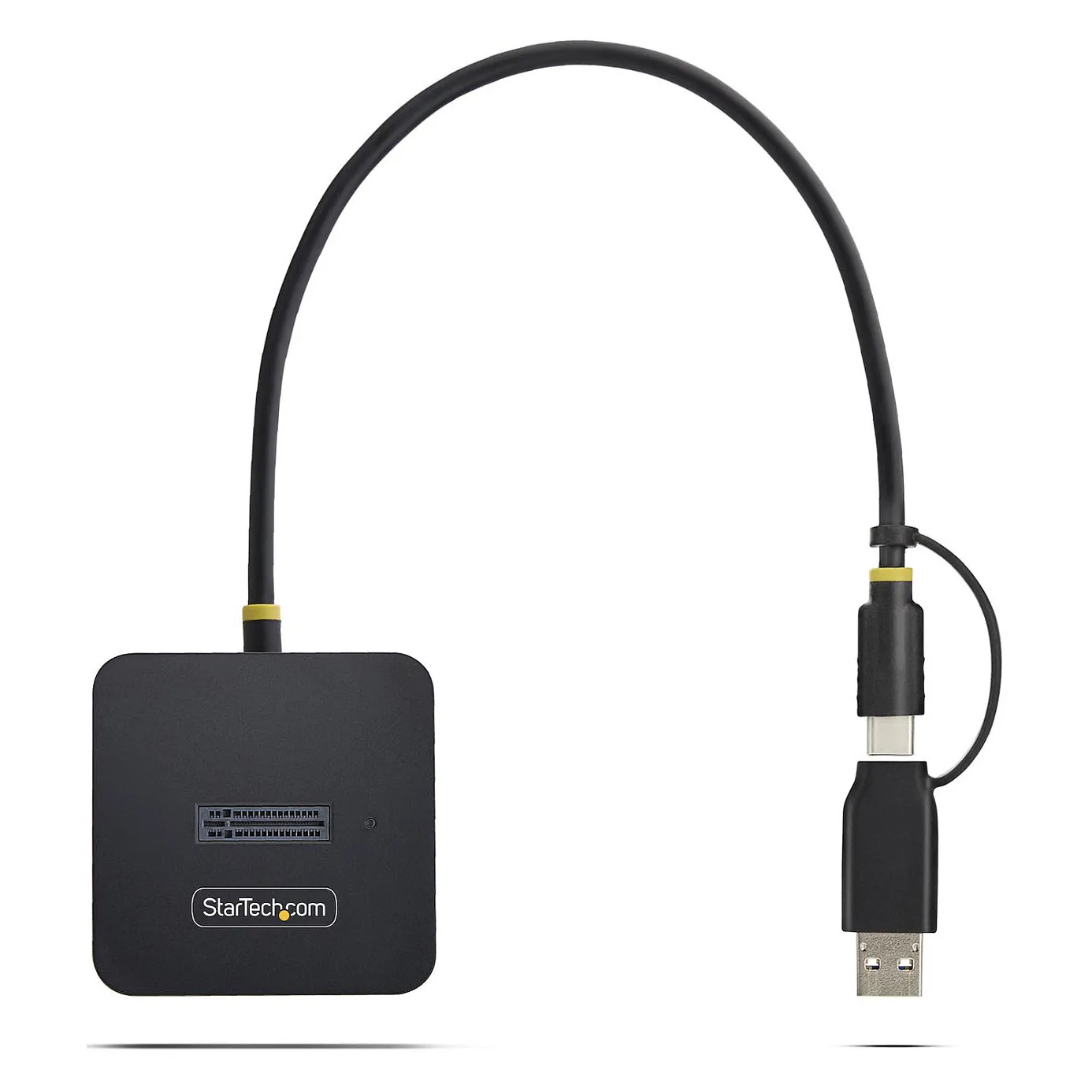

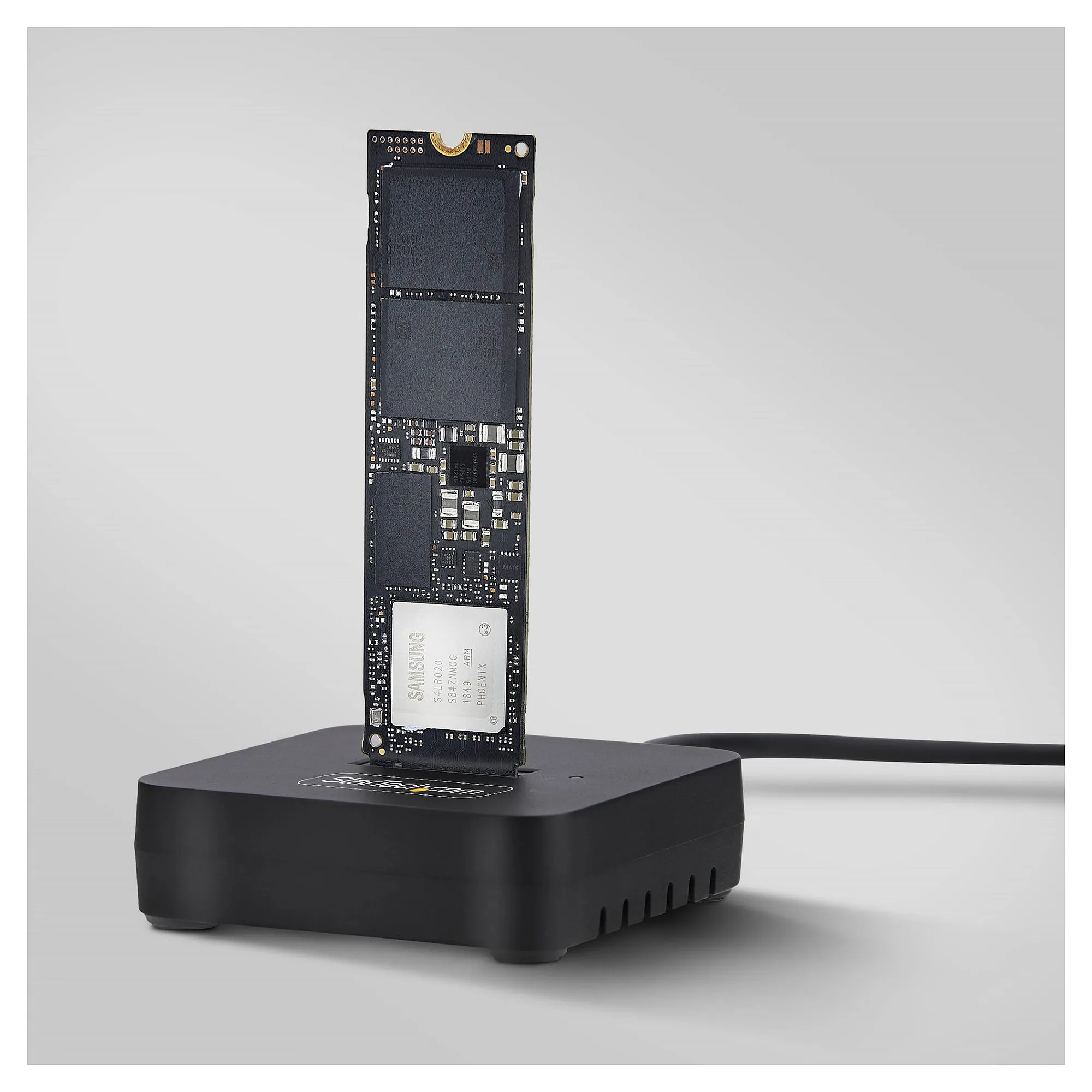

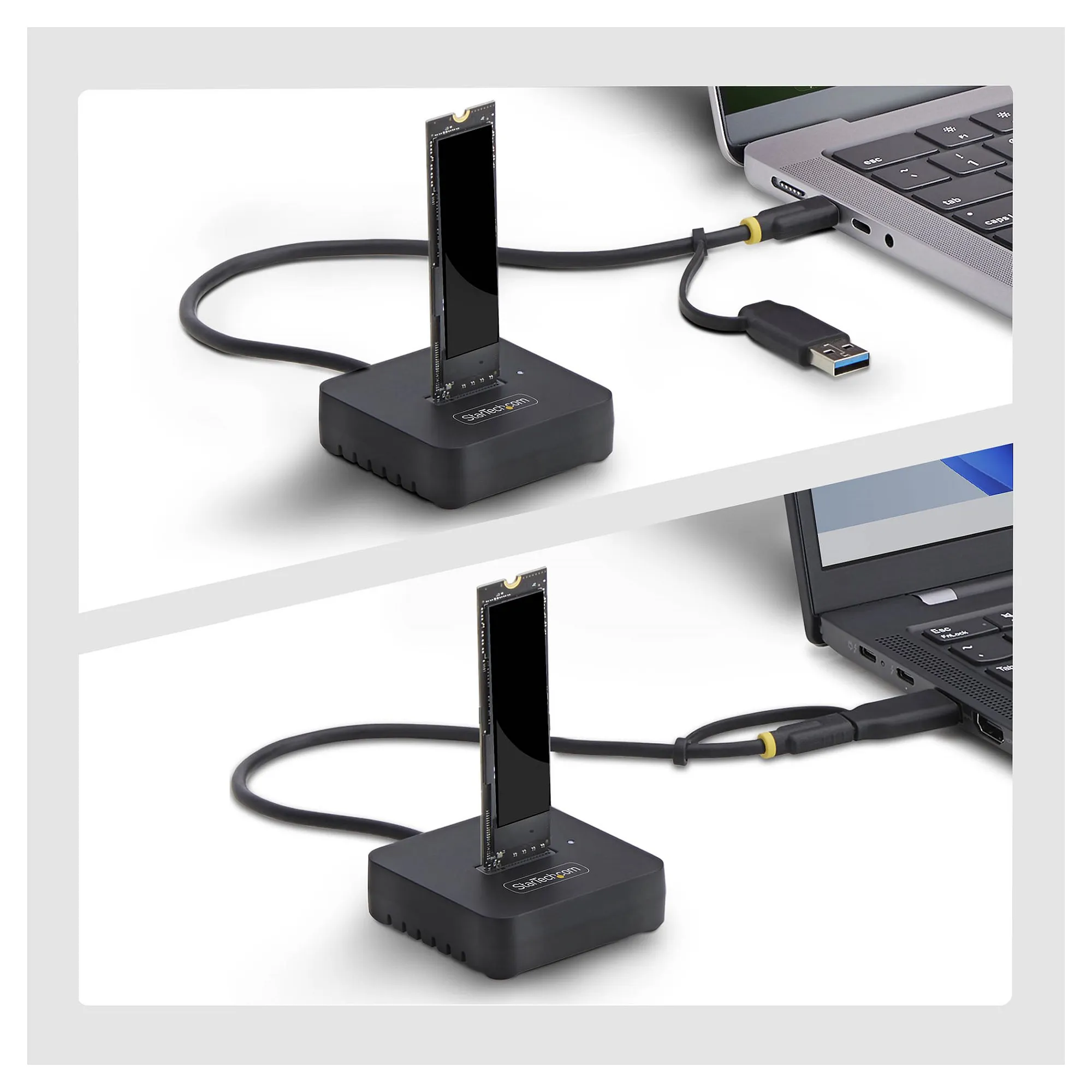

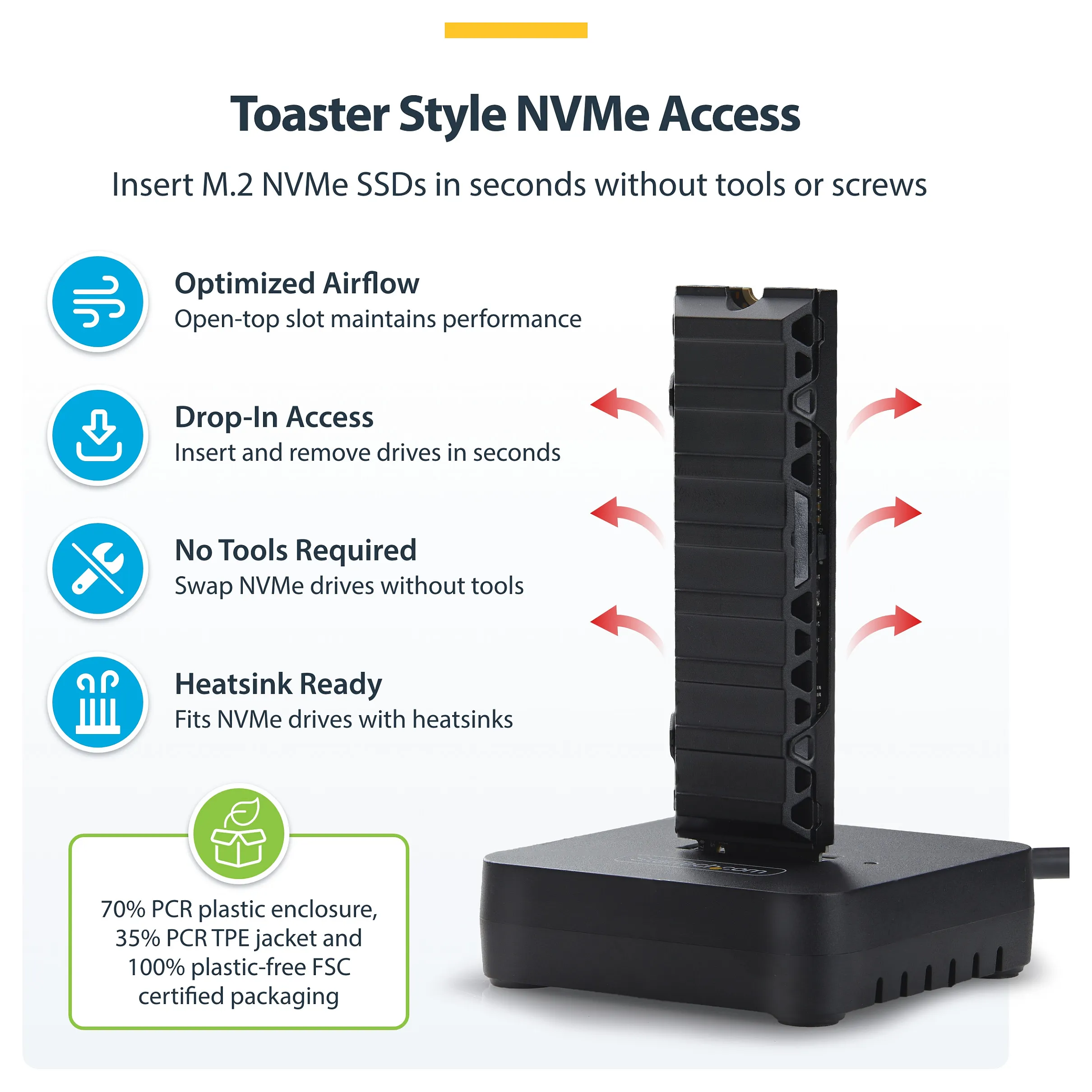

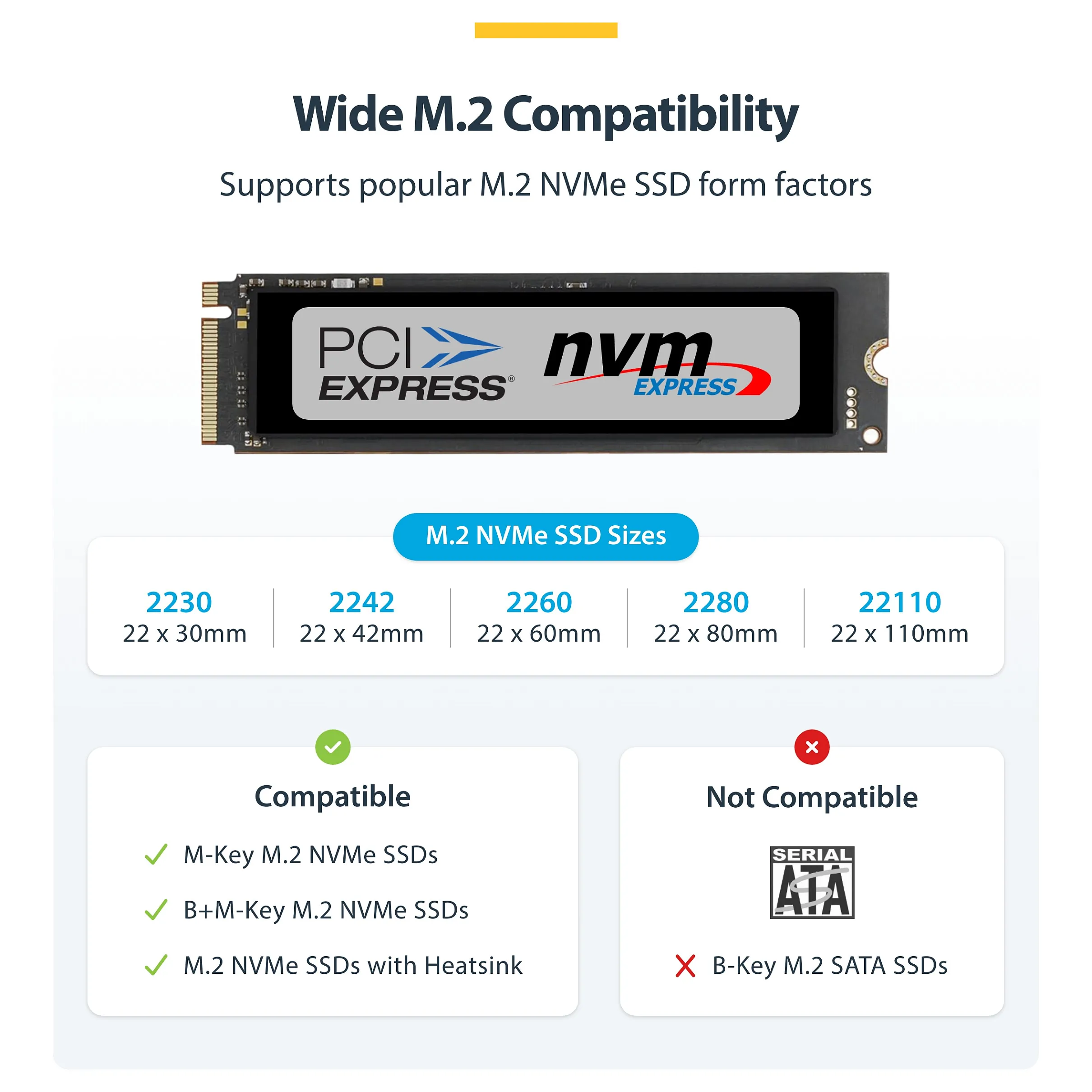

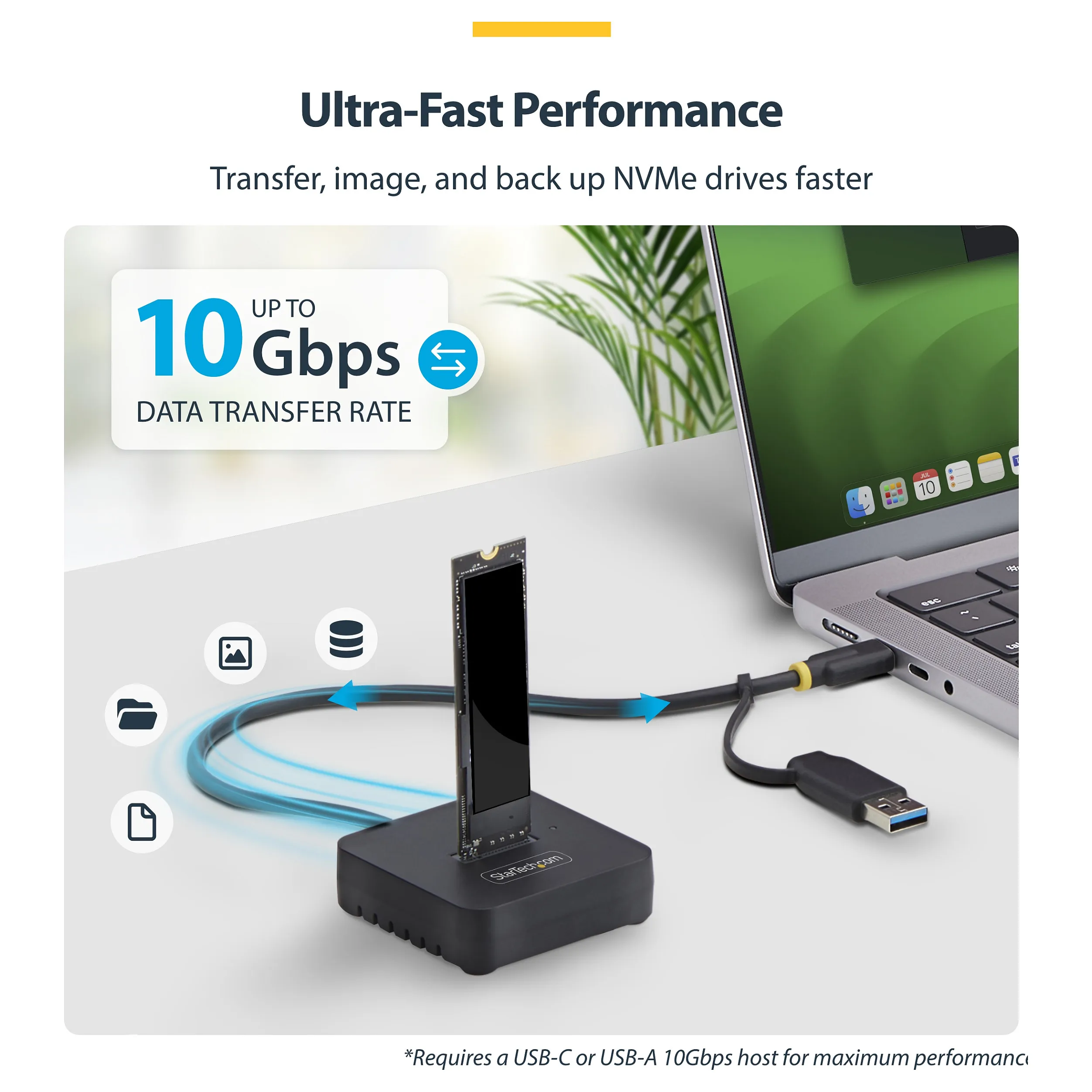

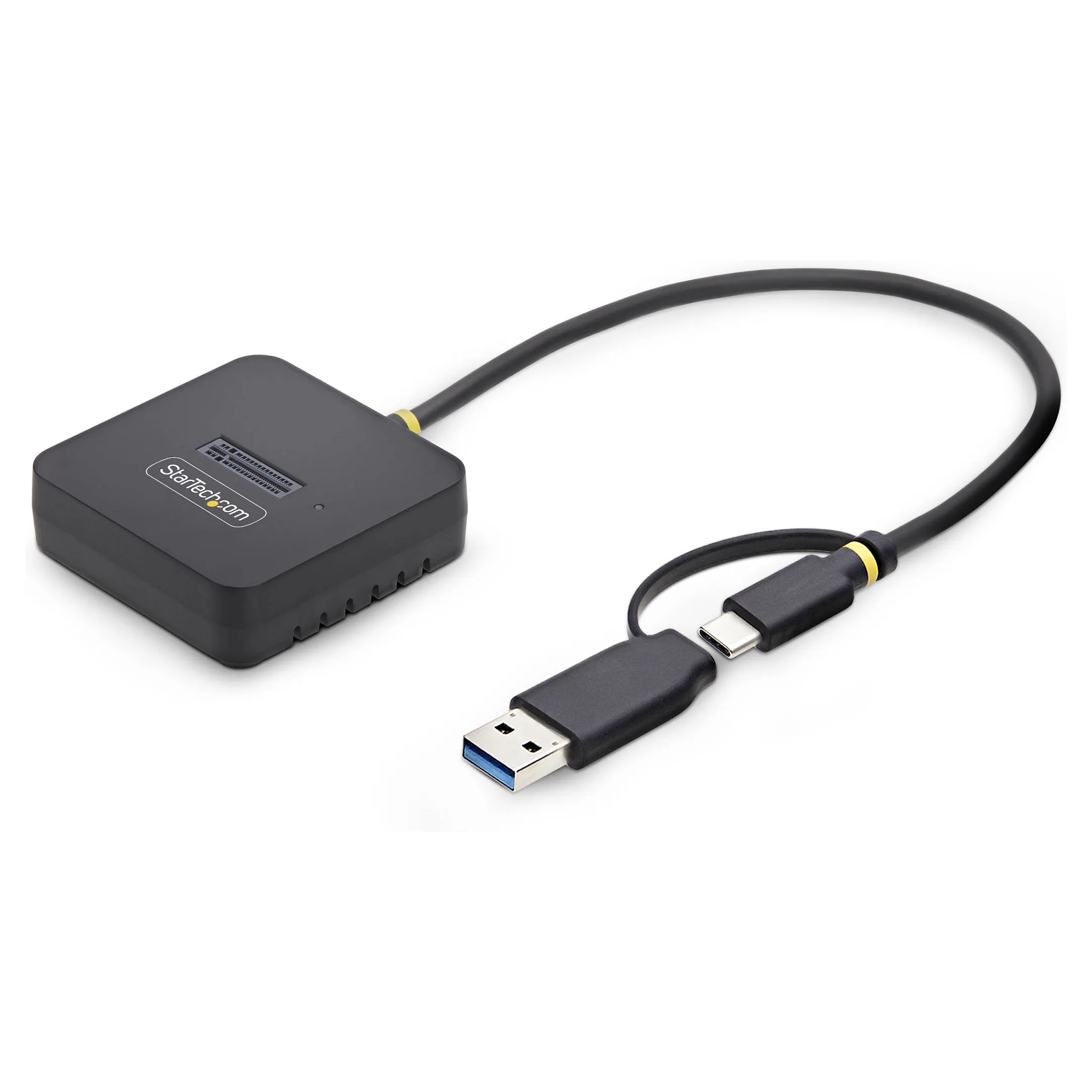

Connect the M.2 NVMe Dock directly to a laptop or workstation using the integrated USB-C cable with USB-A adapter. The open-top, toaster-style M.2 slot maintains airflow for consistent performance during sustained workloads and provides ample clearance to support NVMe drives with attached heatsinks. The NVMe adapter supports read/write speeds of up to 10Gbps. Please note that M.2 SATA drives are not supported.

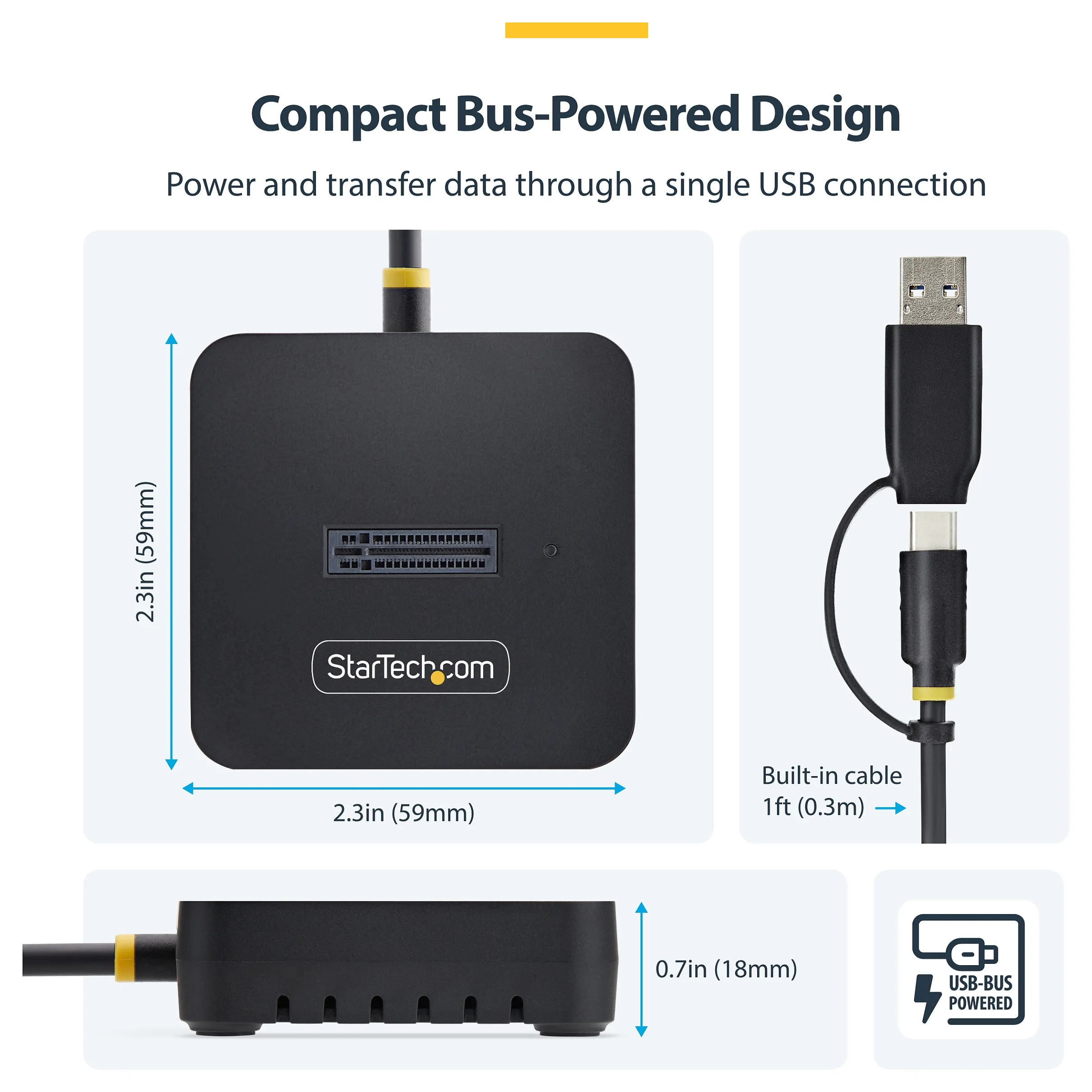

Compact Form Factor

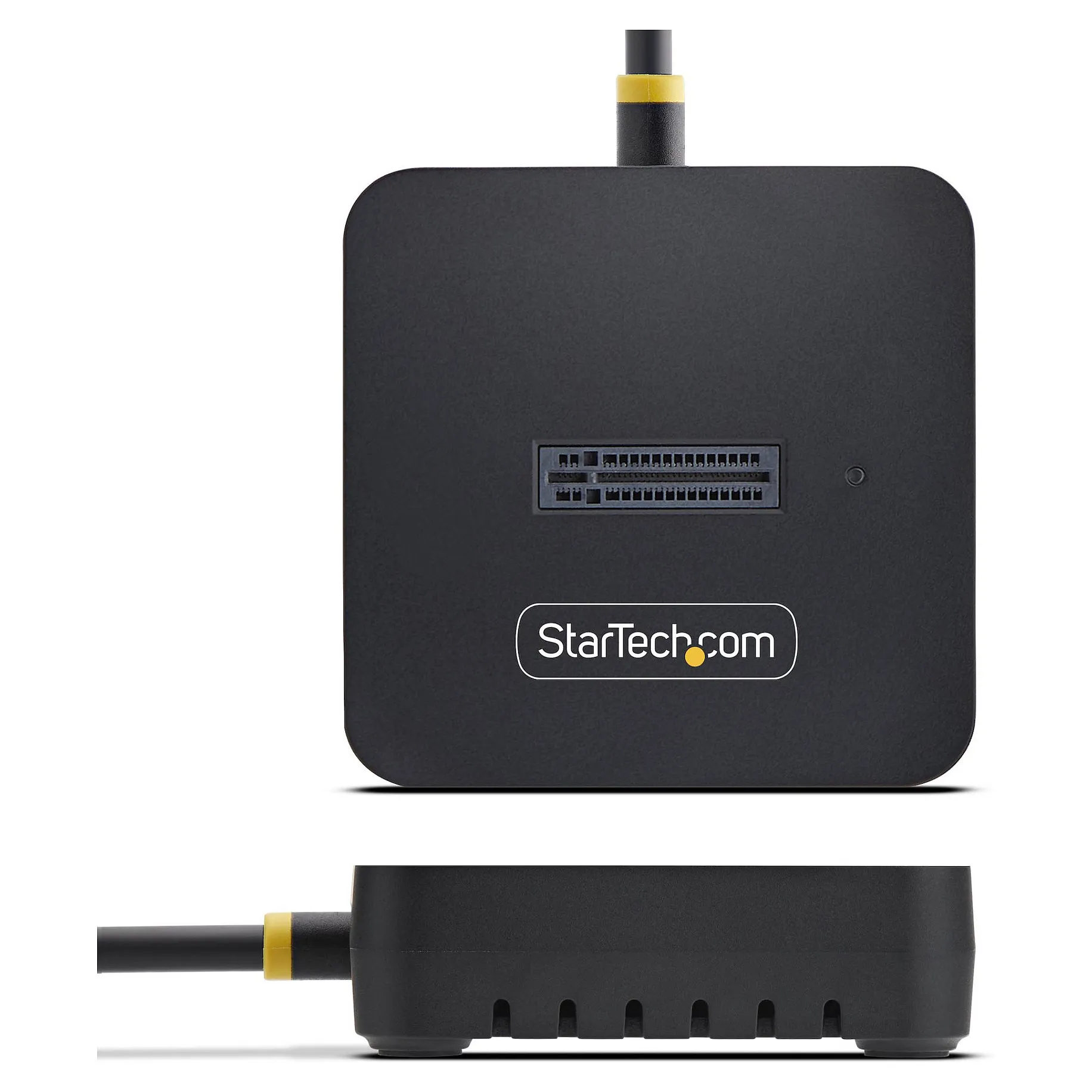

Lightweight and portable, the USB-C/USB-A to M.2 NVMe Dock Adapter fits easily into any IT toolkit or workspace. The enclosure is constructed from 70% post-consumer recycled (PCR) plastic with a 35% PCR TPE jacket, and is packaged in 100% plastic-free FSC certified packaging to help reduce material waste. It runs entirely on USB bus power, requiring no external power adapter. Ideal for IT technicians and end users needing portable, fast M.2 NVMe drive access.
Storage media type: SSD
Storage drive interface: M.2
Storage drive sizes supported: M.2
Number of storage drives supported: 1
Ports & interfaces
Host interface: USB 3.2 Gen 2 (3.1 Gen 2) Type-C
Features
Product colour: Black
Maximum data transfer rate: 10 Gbit/s
Feature: Hot-swap
Feature: S.M.A.R.T. support
Feature: TRIM support
LED indicators: Yes
Feature: UASP support
Weight & dimensions
Width: 59 mm
Depth: 403.7 mm
Height: 18 mm
Weight: 62 g
Packaging data
Package width: 152 mm
Package depth: 100 mm
Package height: 30 mm
Package weight: 109 g
Packaging content
Feature: User guide

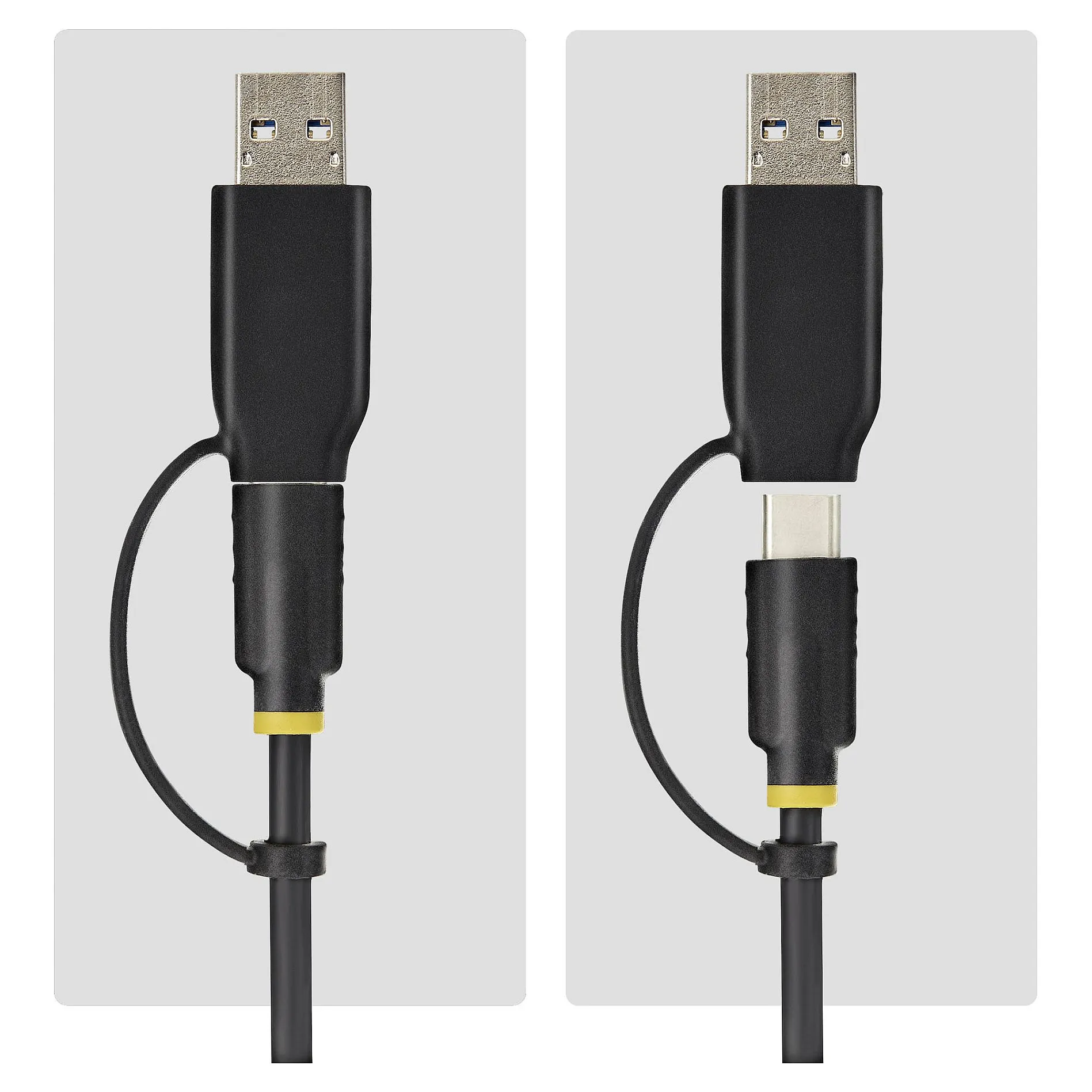

Interface adapters included: USB Type-A male – USB Type-C female
Operational conditions
Operating temperature (T-T): 0 – 40 °C
Storage temperature (T-T): -20 – 60 °C
Operating relative humidity (H-H): 20 – 85%
Other features
Chipset: ASMedia – ASM2362
Mean time between failures (MTBF): 129956 h
Logistics data
Master (outer) case width: 485 mm
Master (outer) case length: 325 mm
Master (outer) case height: 230 mm
Products per master (outer) case: 60 pc(s)
