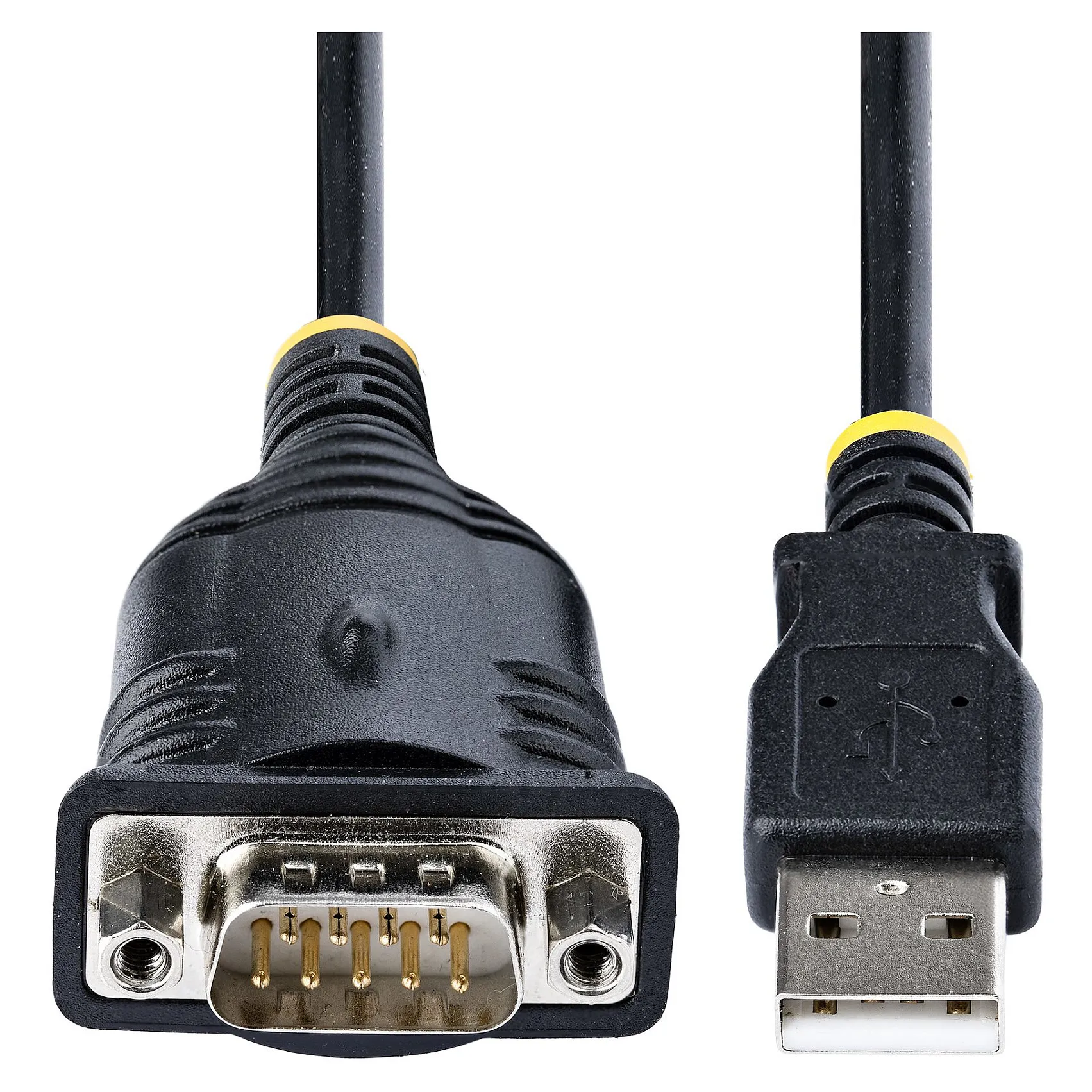

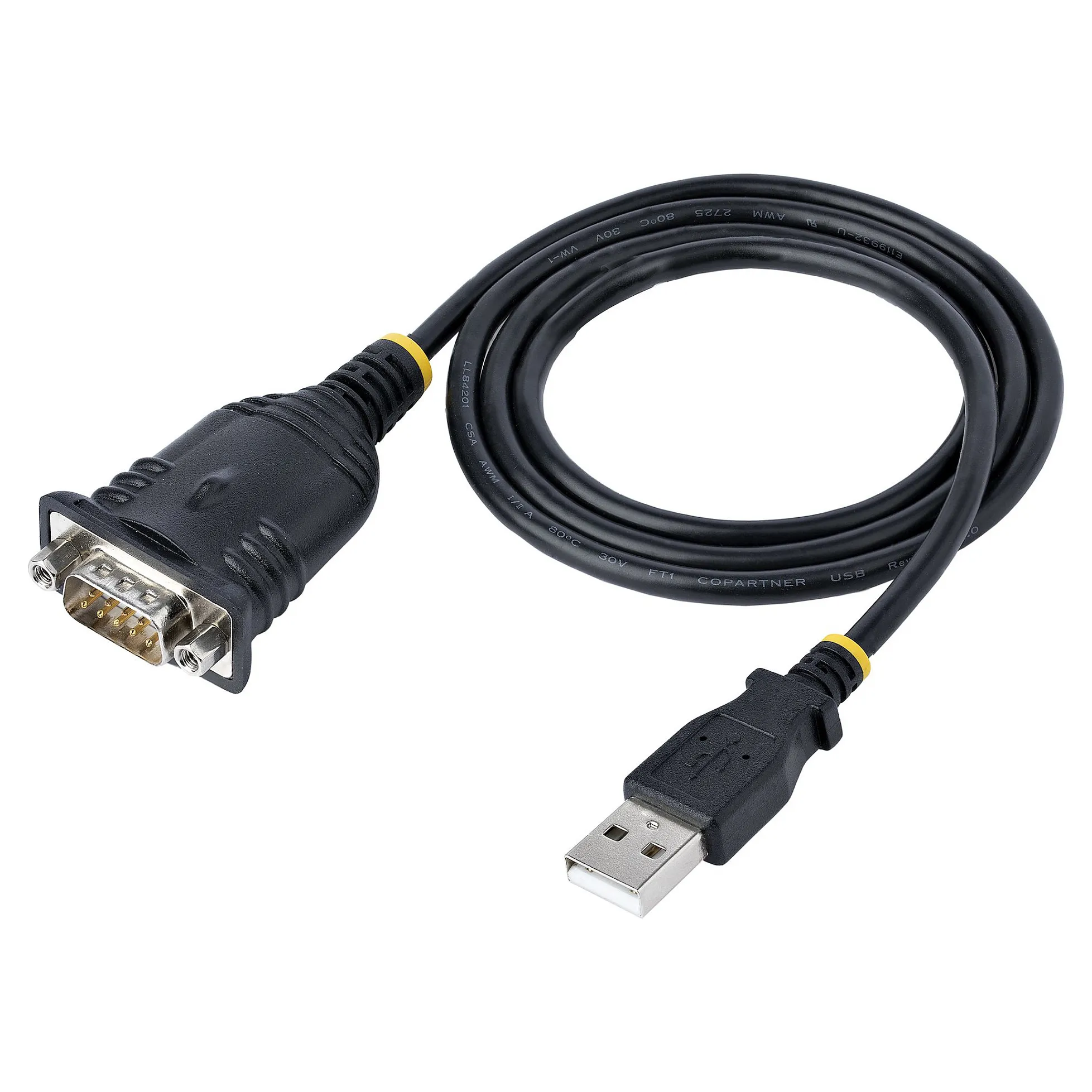

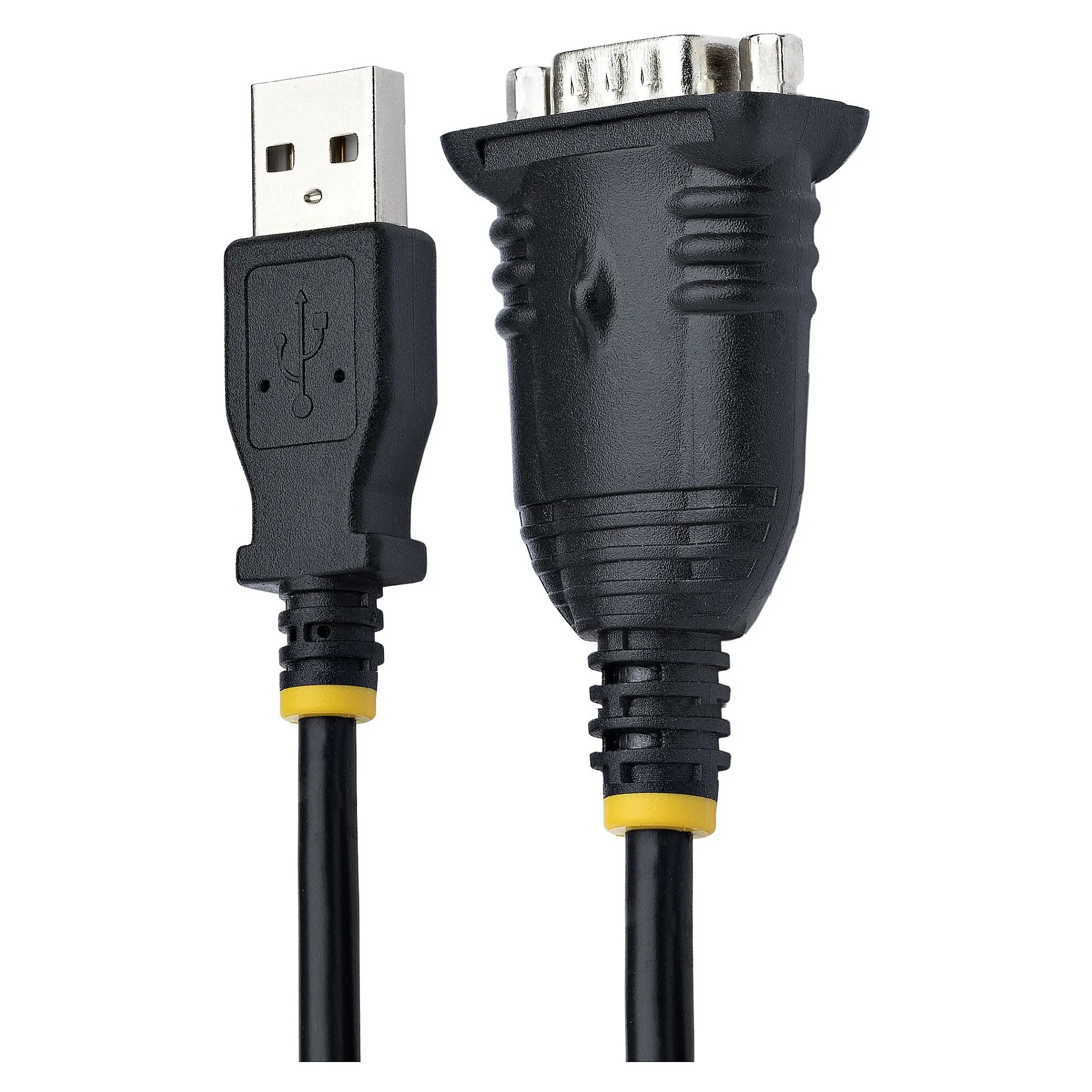

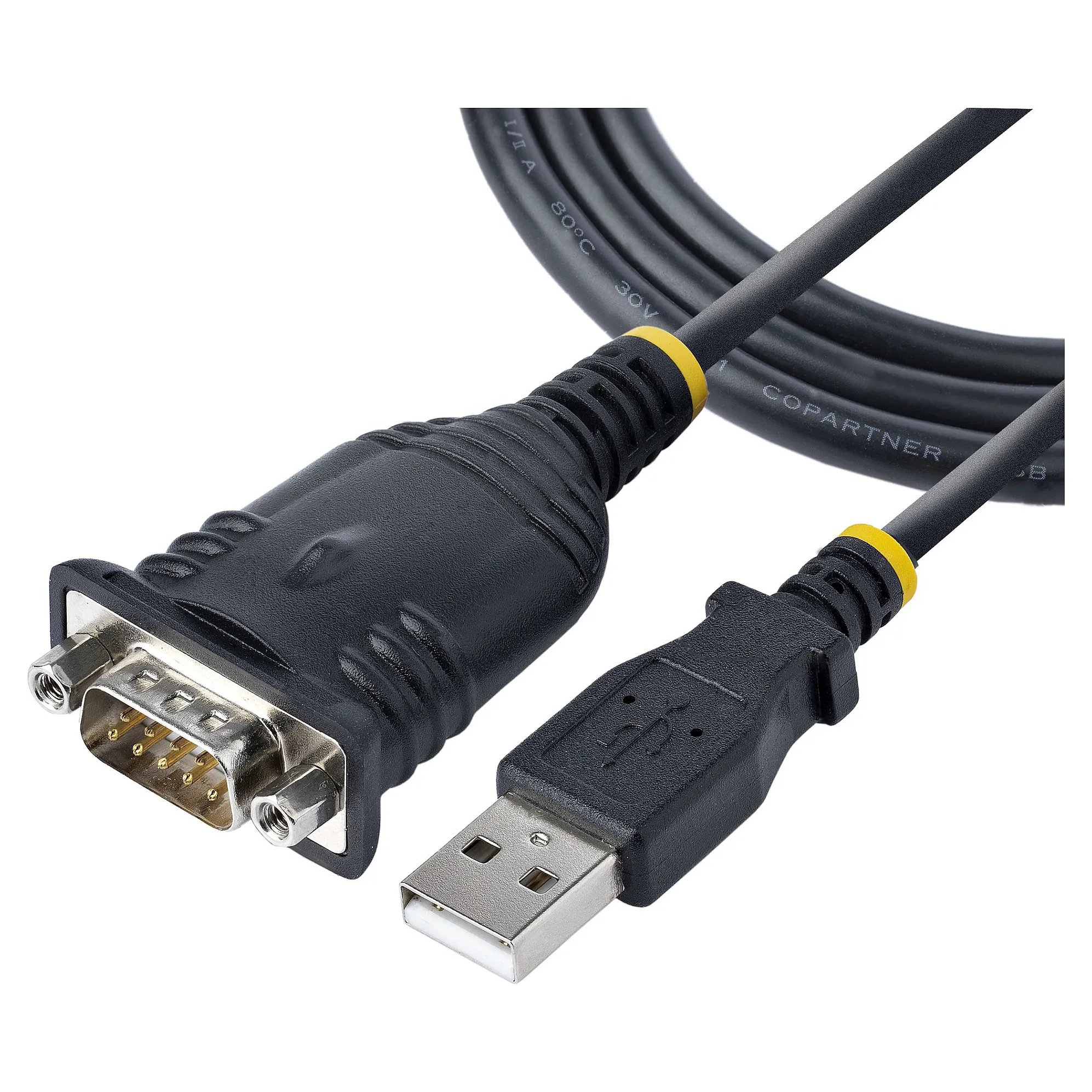

StarTech.com 3ft (1m) USB to Serial Cable, DB9 Male RS232 to USB Converter, Prolific IC, USB to Serial Adapter for PLC/Printer/Scanner/Switch, USB to COM Port Adapter, Windows/Mac. Connector 1: DB-9, Connector 2: USB Type-A, Cable length: 0.91 m. Product colour: Black
The 1P3FP-USB-SERIAL 1 Port USB to Serial Adapter lets you add an RS-232 DB9 serial COM port to your laptop or desktop computer, allowing it to control and communicate with a serial peripheral device.
Accessible Connectivity

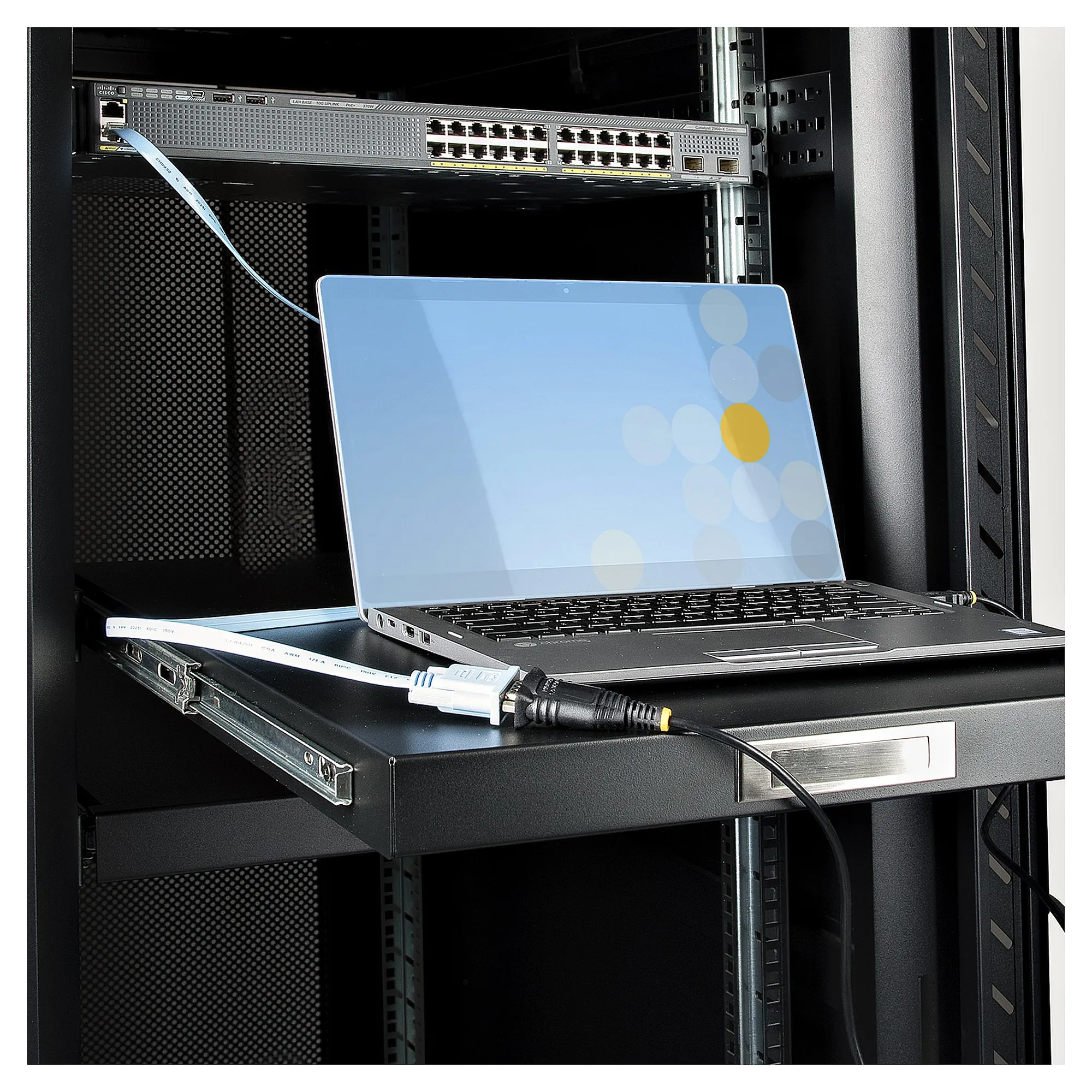

The USB to RS232 cable is a convenient connectivity solution that bridges the gap between current and legacy technologies. The small footprint, data rate of up to 921.6 kbps, and 3 ft (0.91 m) cable length makes it the ideal solution for the IT industry, point of sales (POS), industrial applications, AV, and office setups.
Connect with Ease
This adapter cable allows you to add an RS-232 DB9 COM port by connecting it to the commonly found USB Type-A port, located on your host device. This USB 2.0 converter is compatible with other USB revisions. It supports Windows, macOS, and Linux (including the latest versions) for maximum compatibility.
1P3FP-USB-SERIAL is backed for 3-years by StarTech.com, including free lifetime 24/5 multilingual technical assistance.
Connector 1: DB-9
Connector 2: USB Type-A
Connector 1 gender: Male
Connector 2 gender: Male
Connector 1 form factor: Straight
Connector 2 form factor: Straight
USB version: 2.0
Cable length: 0.91 m
Performance
Product colour: Black
Chipset: Prolific – PL2303RA
Data bits: 5, 6, 7, 8
Stop bits: 1, 1.5, 2
Flow Control type: DTR/DSR, No, RTS/CTS, XON/XOFF
Baud rate: 921.6 Kbit/s
Parity bit: Even, Mark, No, Odd, Space
FIFO (First In, First Out): 512 B
Compatible operating systems: Windows 7, 8.1, 10, 11Windows Server 2016, 2019macOS 10.11 to 10.15, 11.0, 12.0, Mac OS X 13.0 VenturaLinux 4.15.x LTS Versions OnlyChrome OS
Operational conditions
Operating temperature (T-T): 0 – 80 °C
Storage temperature (T-T): -20 – 100 °C
Relative humidity: 20 – 80%
Certificates
Compliance certificates: CE, RoHS
Weight & dimensions
Width: 45 mm
Depth: 34 mm
Height: 16 mm
Weight: 39.2 g
Packaging content
Feature: Manual
Packaging data
Package width: 199 mm
Package depth: 133 mm
Package height: 23 mm
Package weight: 102.2 g
Logistics data
Products per master (outer) case: 100 pc(s)
Master (outer) case width: 578 mm
Master (outer) case length: 363 mm
Master (outer) case height: 304 mm
