StarTech.com 10ft (3m) USB to Null Modem Serial Adapter Cable, Interchangeable DB9 Screws/Nuts, COM Retention, USB-A to RS232, FTDI, Level-4 ESD Protection, Windows/macOS/ChromeOS/Linux – Rugged TPE Construction. Product colour: Black, Cable length: 3 m, Connector 1: USB Type-A. Quantity per pack: 1 pc(s), Package width: 146 mm, Package depth: 125 mm. Compliance certificates: RoHS. Weight: 120 g. Master (outer) case width: 577 mm, Master (outer) case length: 364 mm, Master (outer) case height: 305 mm
Add RS-232 DCE serial communications support to a desktop or laptop computer and resolve DCE/DTE conflicts directly without the need for additional cross-wired serial cables or adapters.
Serial Port Expansion

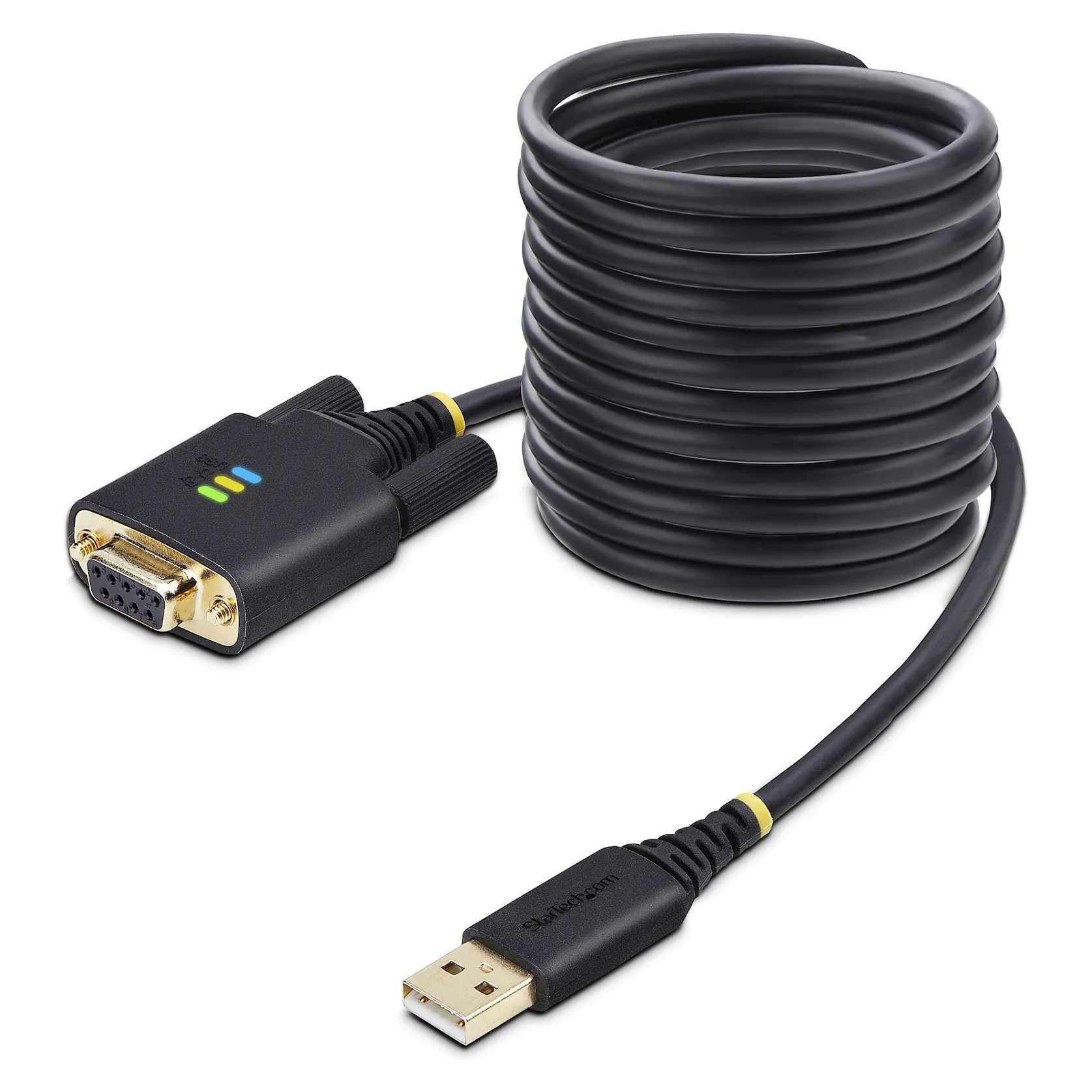

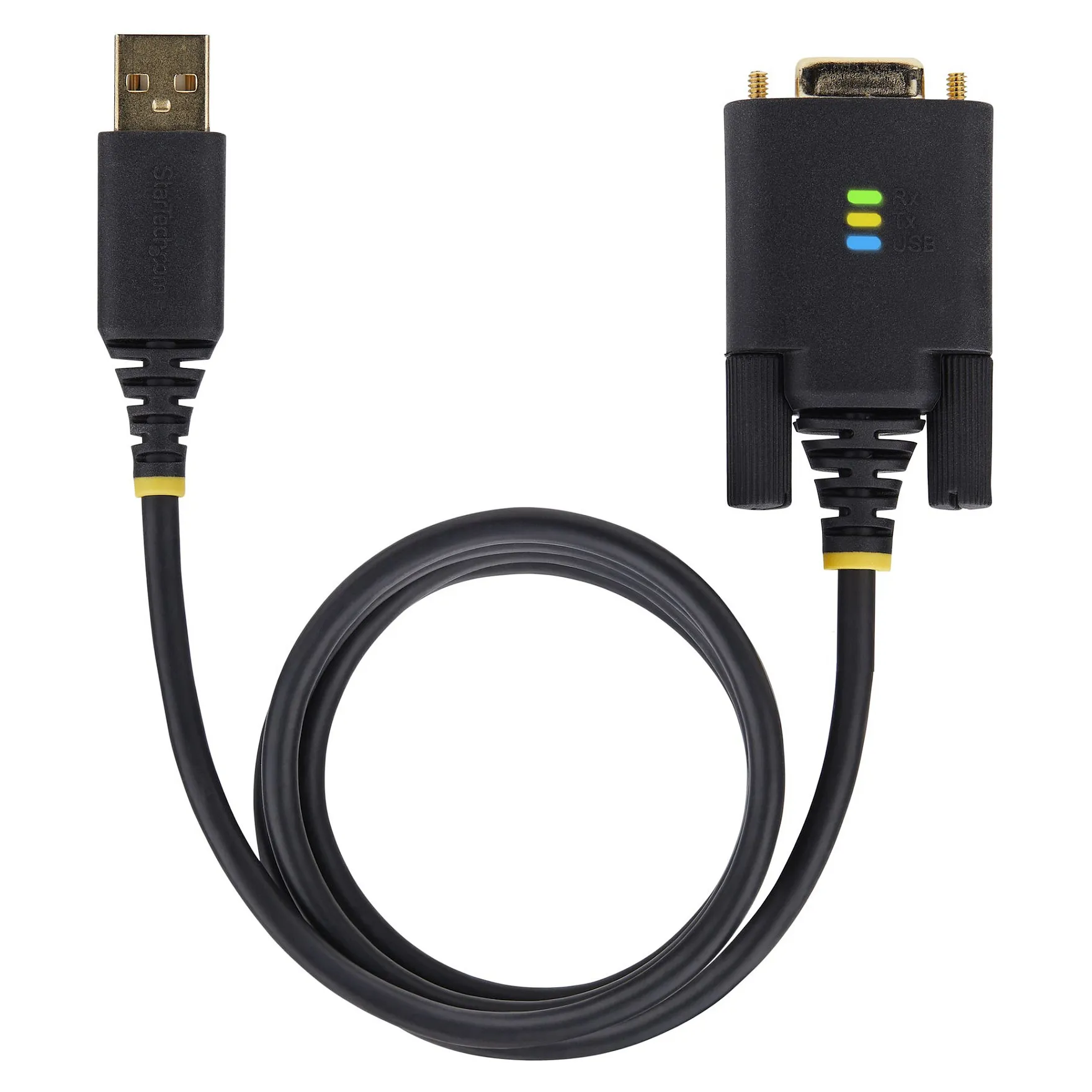

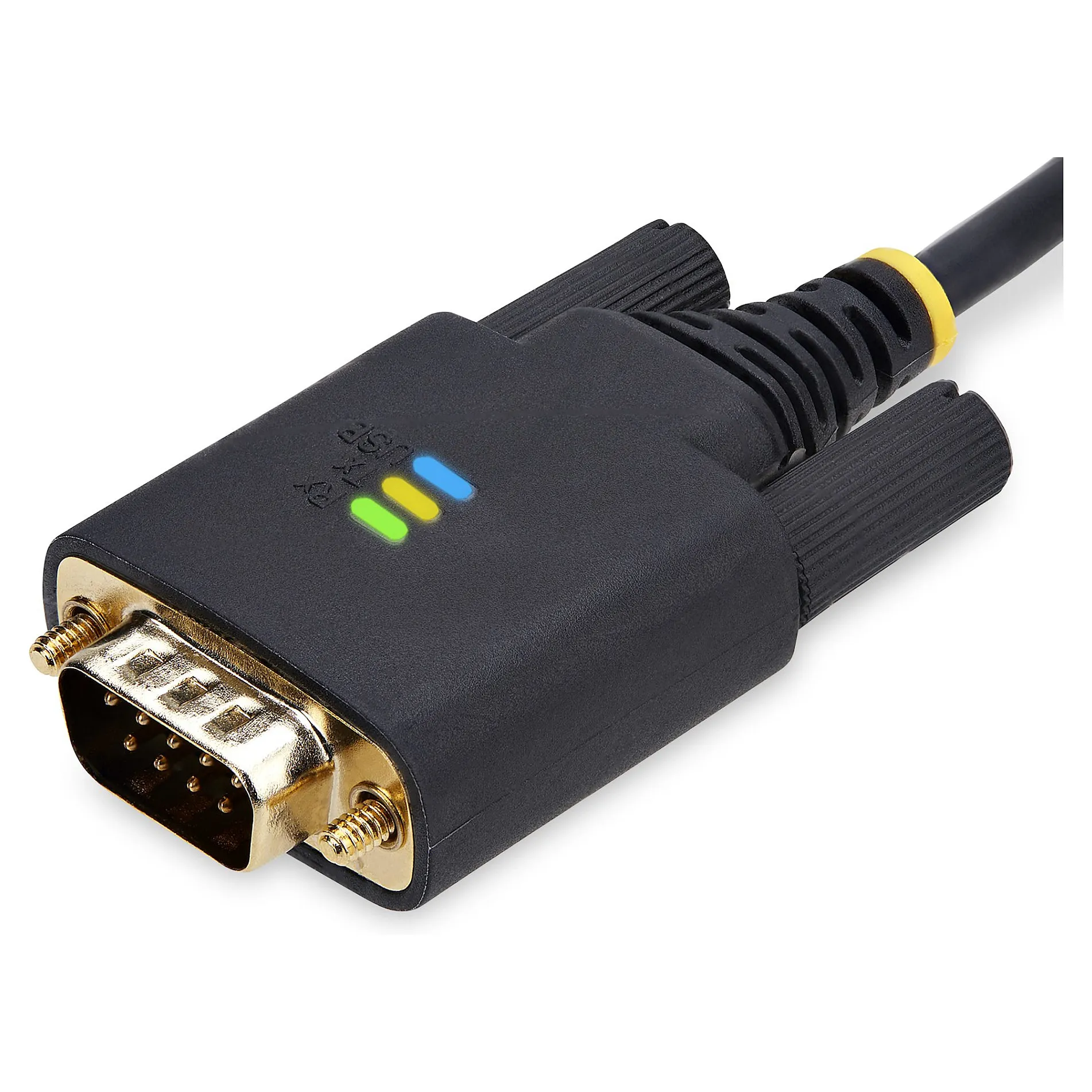

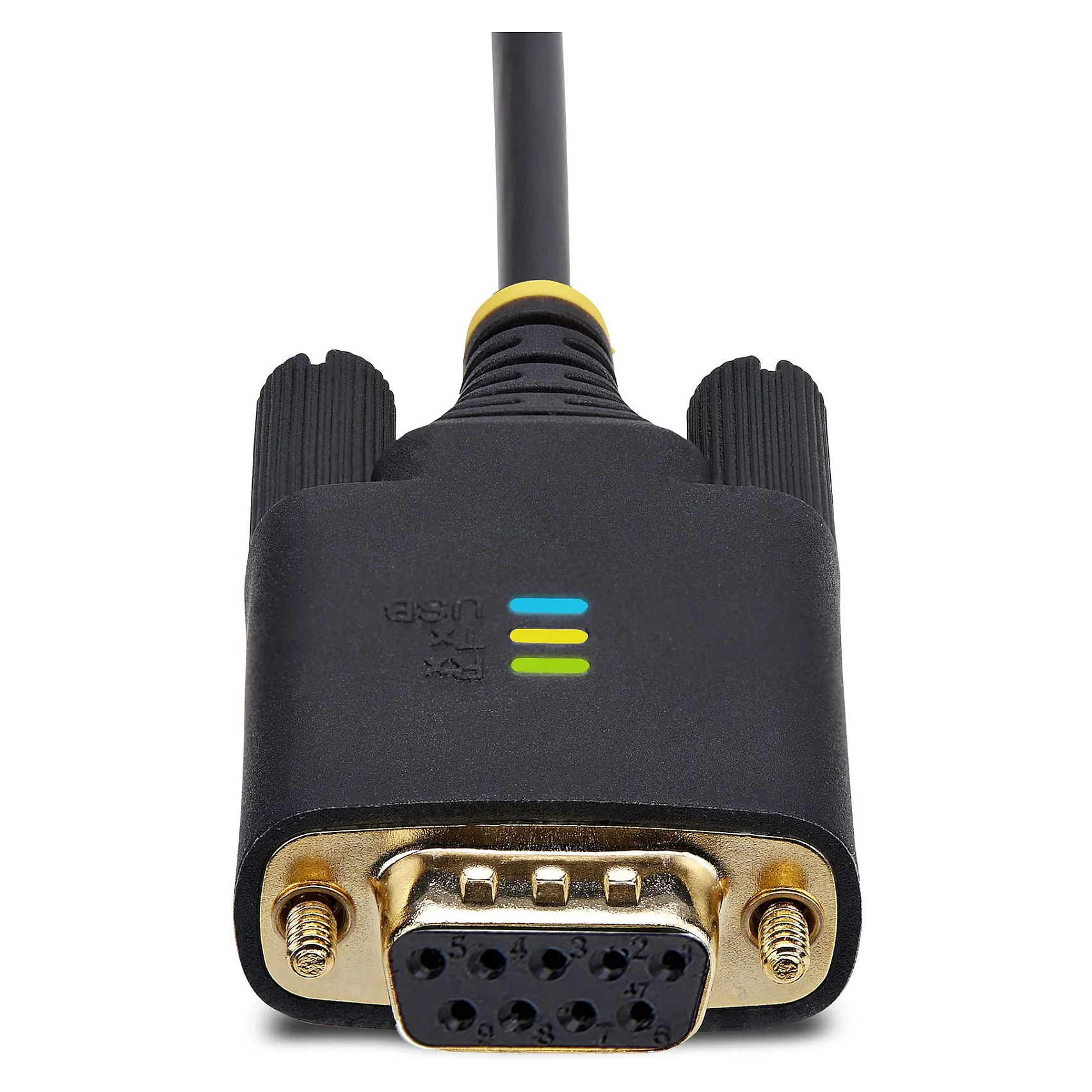

The 10ft (3m) Null Modem USB Serial Adapter adds an RS-232 serial DB/DE-9 (female) connector to a desktop or laptop via a USB Type-A port. Secure the adapter to a serial device, using pre-installed and removable slotted D-Sub thumbscrews or install the included DB-9 Nuts for compatibility with other serial peripheral devices or cables.

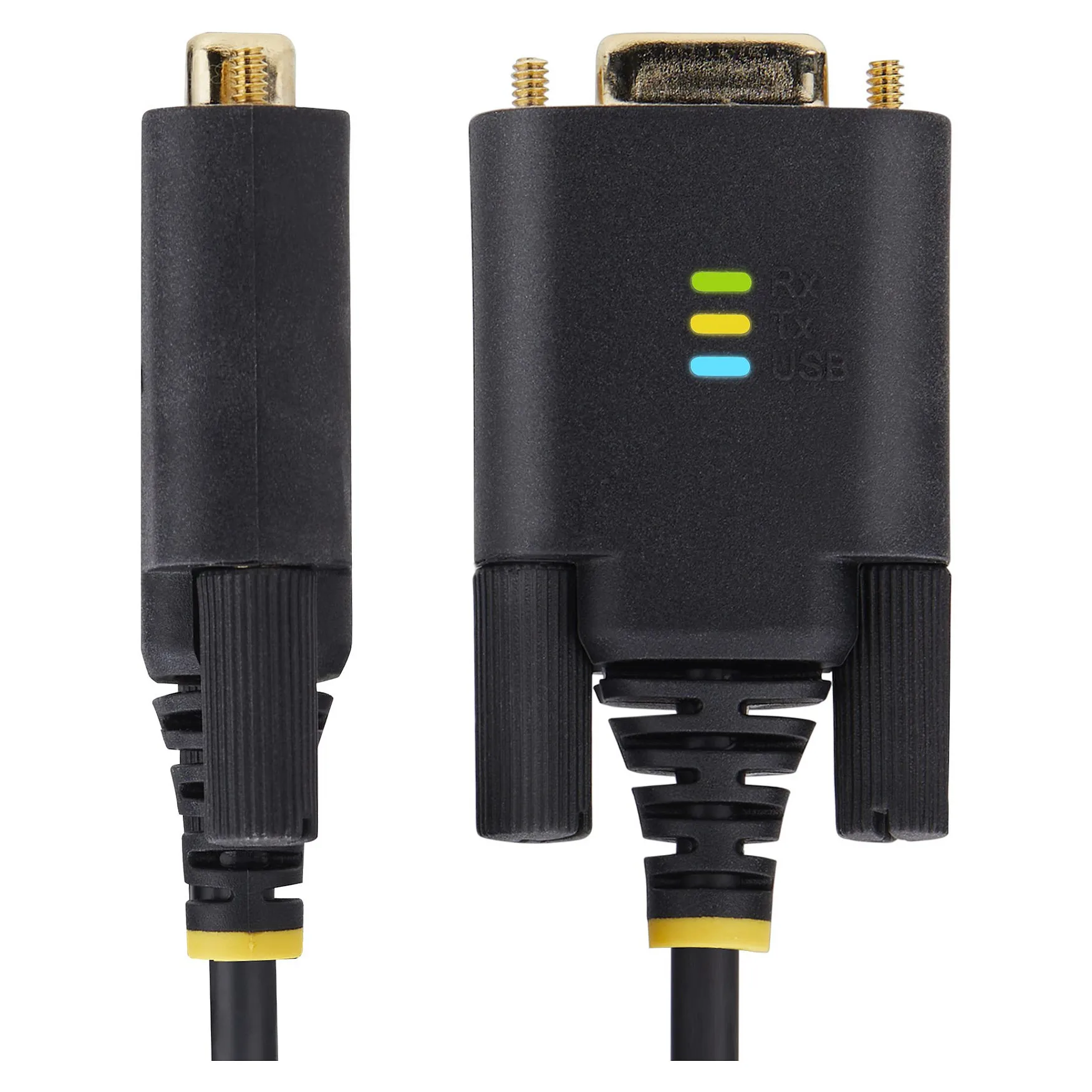

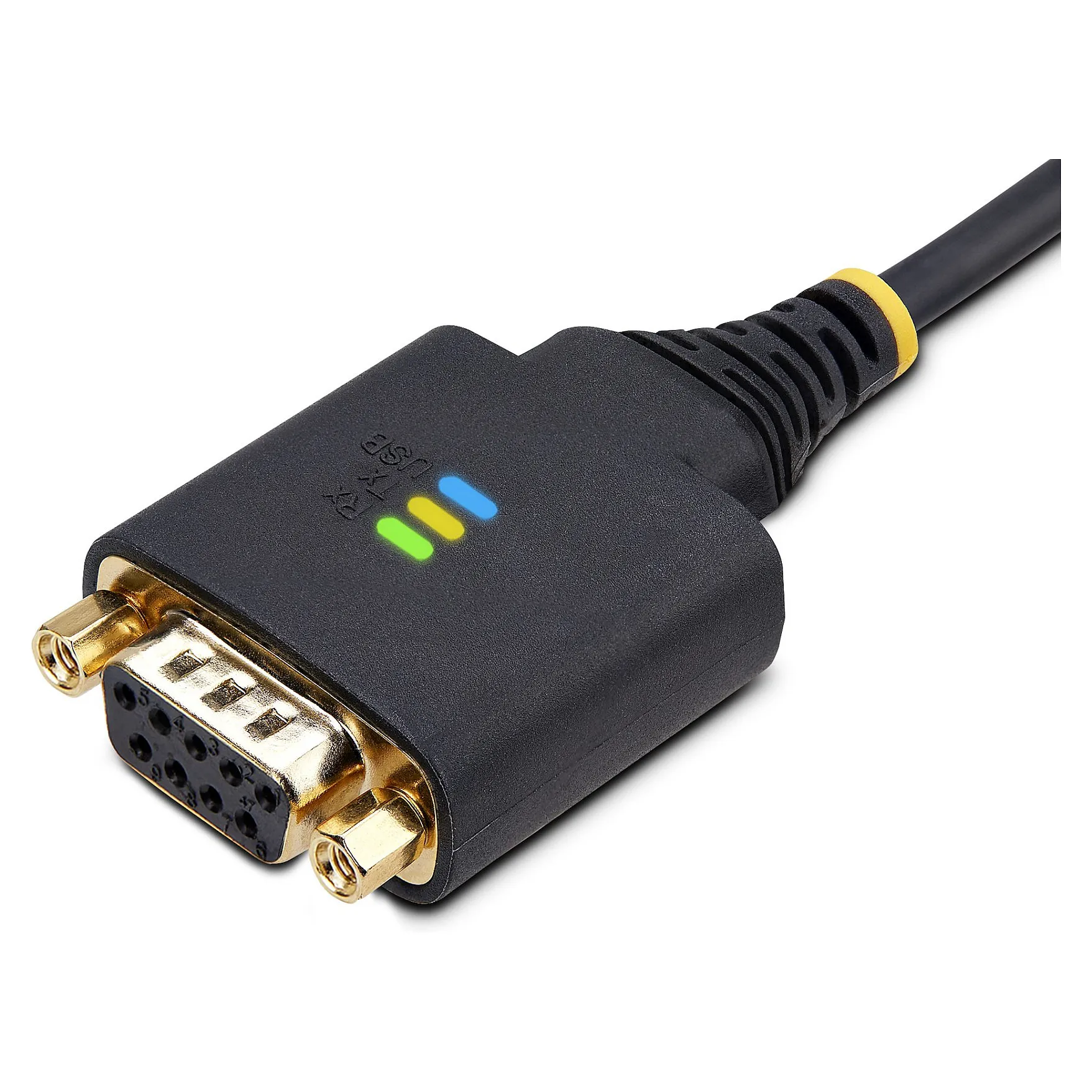

LED Indicators
Data transmission and reception LED indicators on the adapter provide real-time monitoring of port activity. The USB LED indicates when the adapter has successfully enumerated on the desktop or laptop. All the LEDs aid with diagnostics and troubleshooting.
Seamless Connectivity
The adapter is compatible with Windows, macOS, ChromeOS, and Linux. Drivers automatically install to Windows 7 and newer versions, macOS 10.15 and above, and Linux. The USB to RS-232 adapter features COM retention, which automatically reassigns the COM port value if the cable is disconnected and reconnected, or if the system is rebooted.
Built To Last
The rugged TPE construction and Level-4 ESD protection (15kV air and 8kV contact) enhance the reliability and longevity of the USB to Serial Adapter. Copper shielding minimizes Electromagnetic and Radio Frequency Interference (EMI and RFI). Gold-plated connectors enhance signal conductivity.
Product colour: Black
Cable length: 3 m

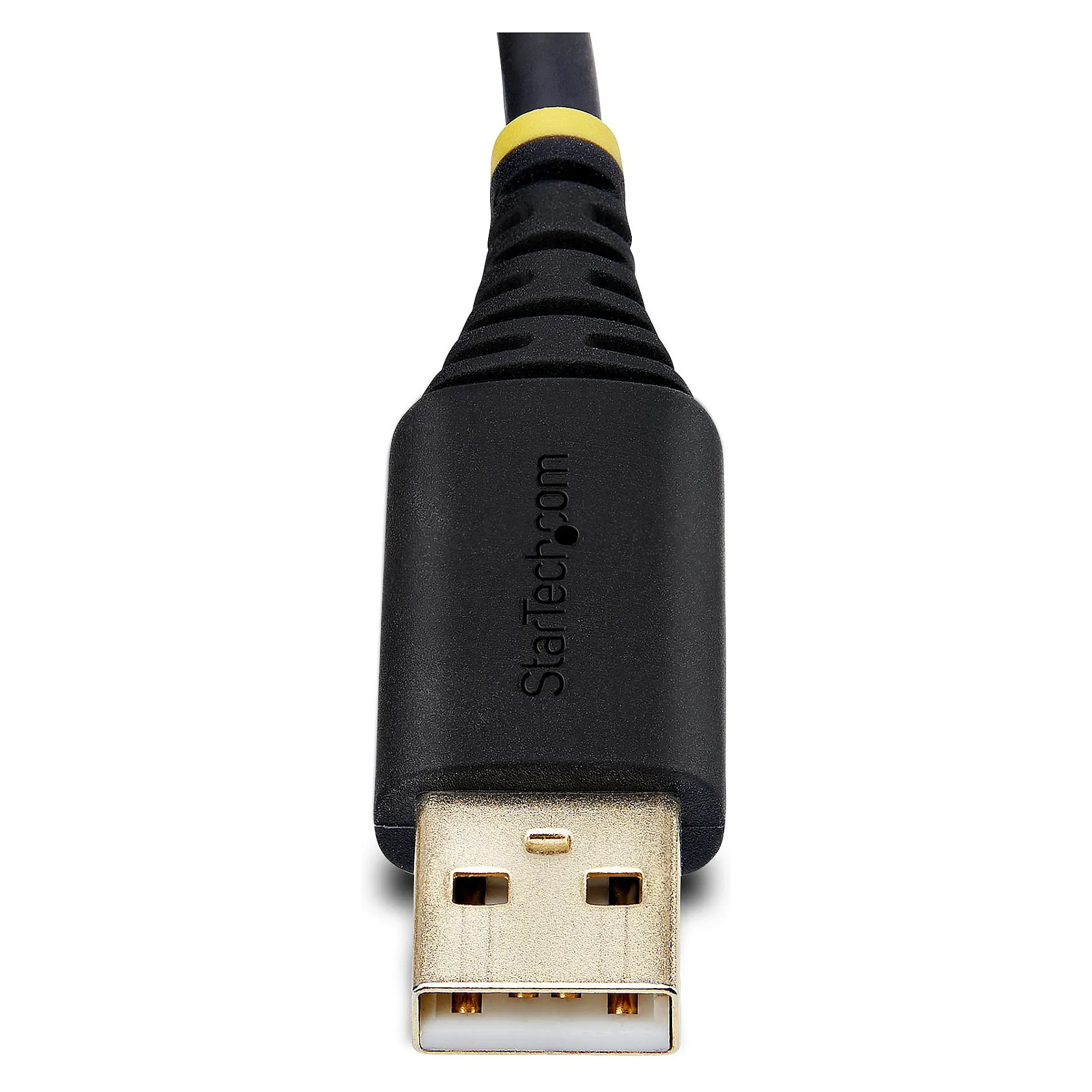

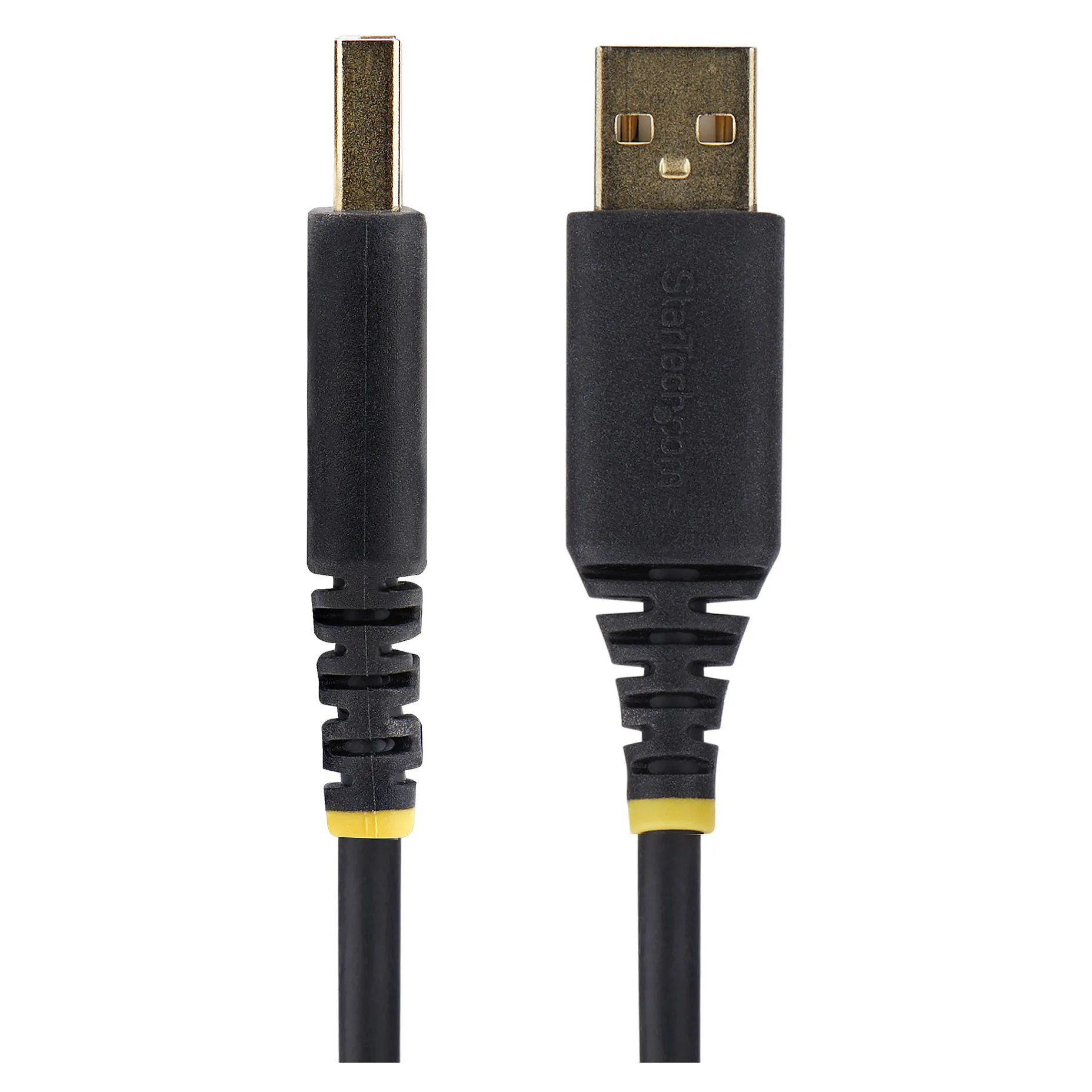

Connector 1: USB Type-A
Connector 2: DB-9
Connector 1 gender: Male
Connector 2 gender: Male
Connector 1 form factor: Straight
Connector 2 form factor: Straight
Jacket material: Thermoplastic elastomer (TPE)
Chipset: FTDI – FT232R
Baud rate: 921.6 Kbit/s
Data bits: 7, 8
FIFO (First In, First Out): 256 B
Parity bit: Even, Mark, No, Odd, Space
Stop bits: 1, 2
Linux operating systems supported: Yes
Server operating systems supported: Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019, Windows Server 2022
Packaging data
Quantity per pack: 1 pc(s)
Package width: 146 mm
Package depth: 125 mm
Package height: 33 mm
Package weight: 130 g
Certificates
Compliance certificates: RoHS
Operational conditions
Operating temperature (T-T): -40 – 80 °C
Storage temperature (T-T): -40 – 80 °C
Operating relative humidity (H-H): 0 – 95%
Weight & dimensions
Weight: 120 g
Sustainability
Feature: Sustainability compliance
Packaging content
Feature: Manual
Logistics data
Master (outer) case width: 577 mm
Master (outer) case length: 364 mm
Master (outer) case height: 305 mm
Products per master (outer) case: 40 pc(s)
