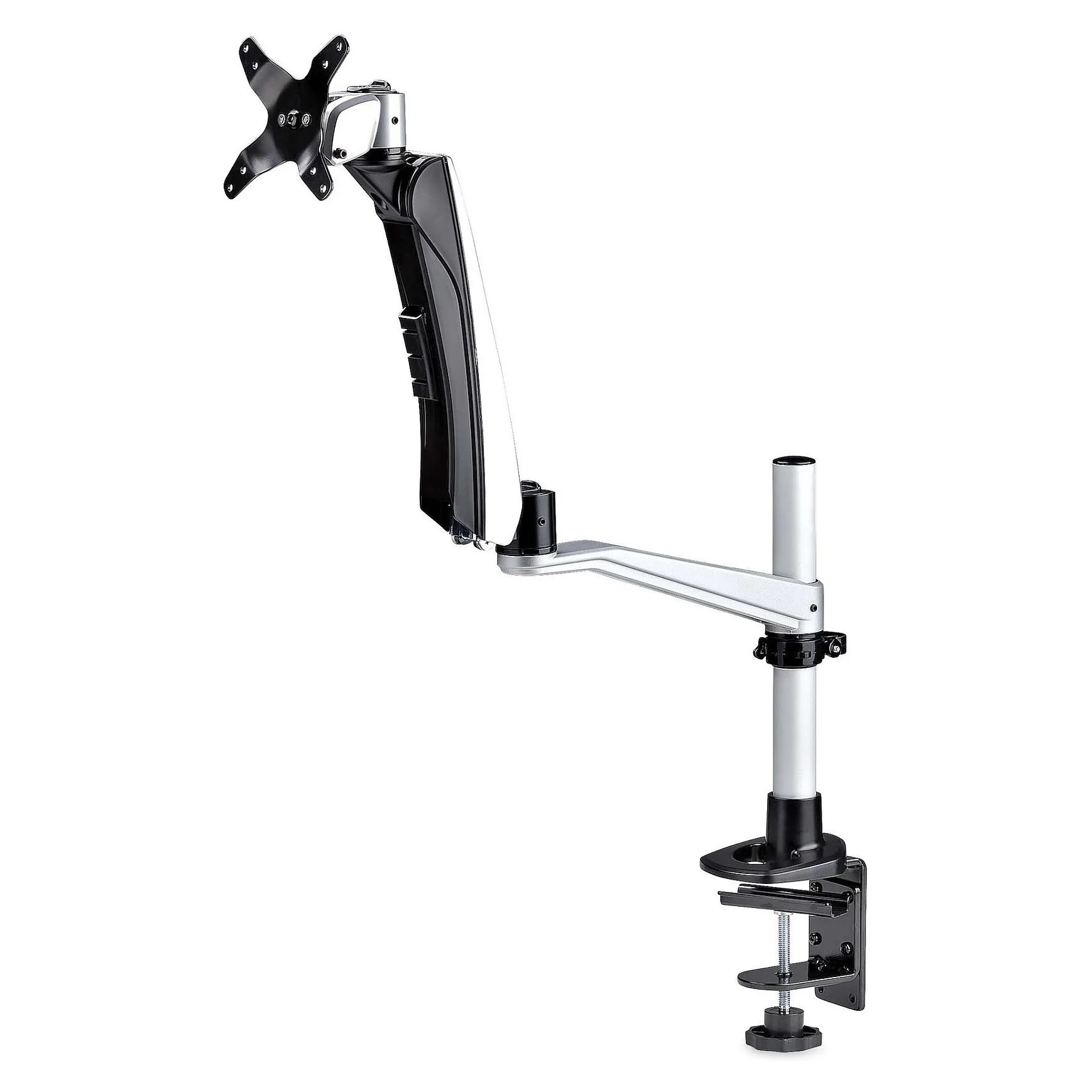

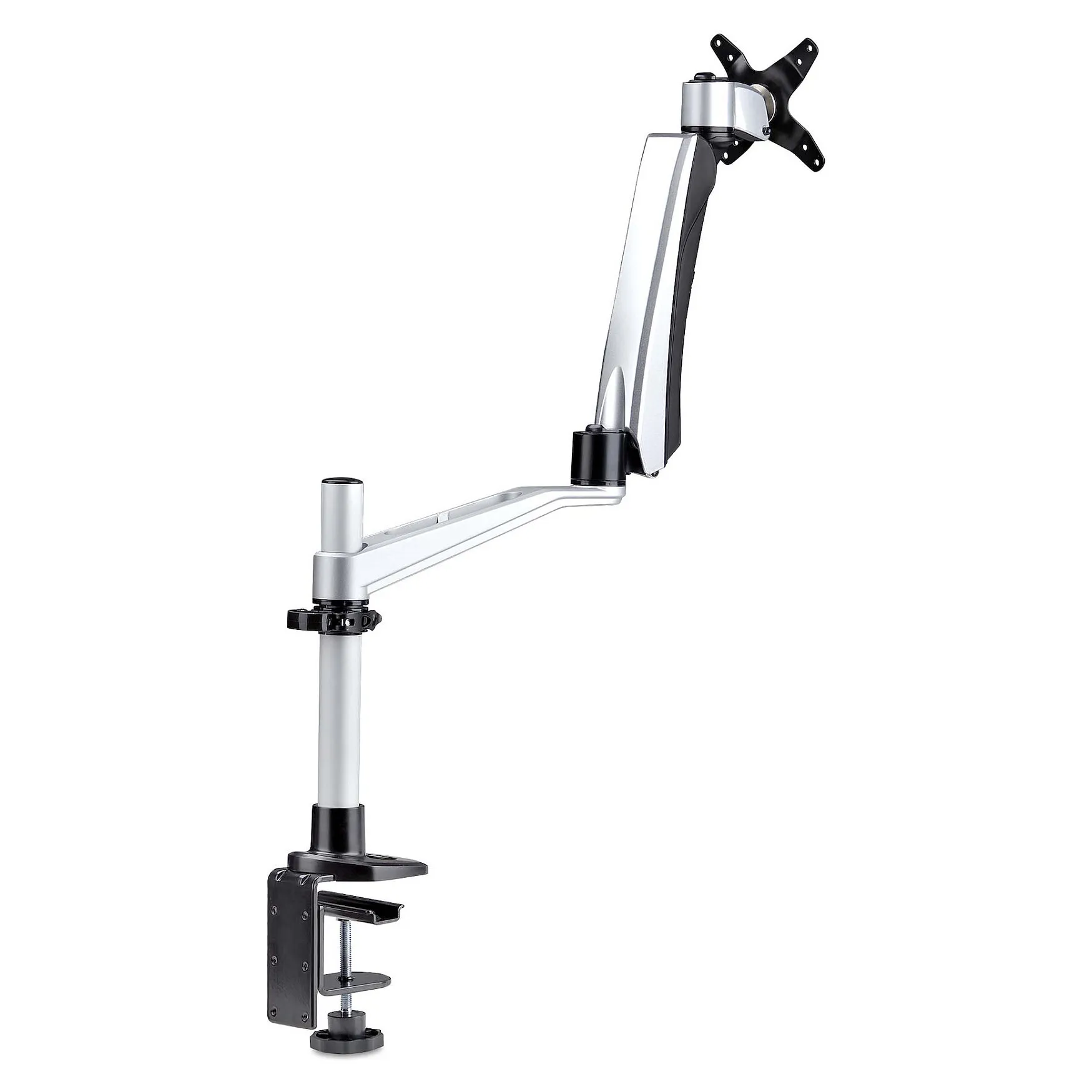

StarTech.com Desk Mount Monitor Arm For 27in 16:9 or 30in 21:9 Ultrawide Screens, VESA 75×75/100×100, Tool-Less Mechanical Spring Arm, C-Clamp/Grommet, TAA. Mounting: Clamp/Grommet, Maximum weight capacity: 9 kg, Minimum screen size: 43.2 cm (17"), Maximum screen size: 76.2 cm (30"), Minimum VESA mount: 75 x 75 mm, Maximum VESA mount: 100 x 100 mm. Height adjustment, Tilt angle range: -15 – 90°. Product colour: Black, Silver

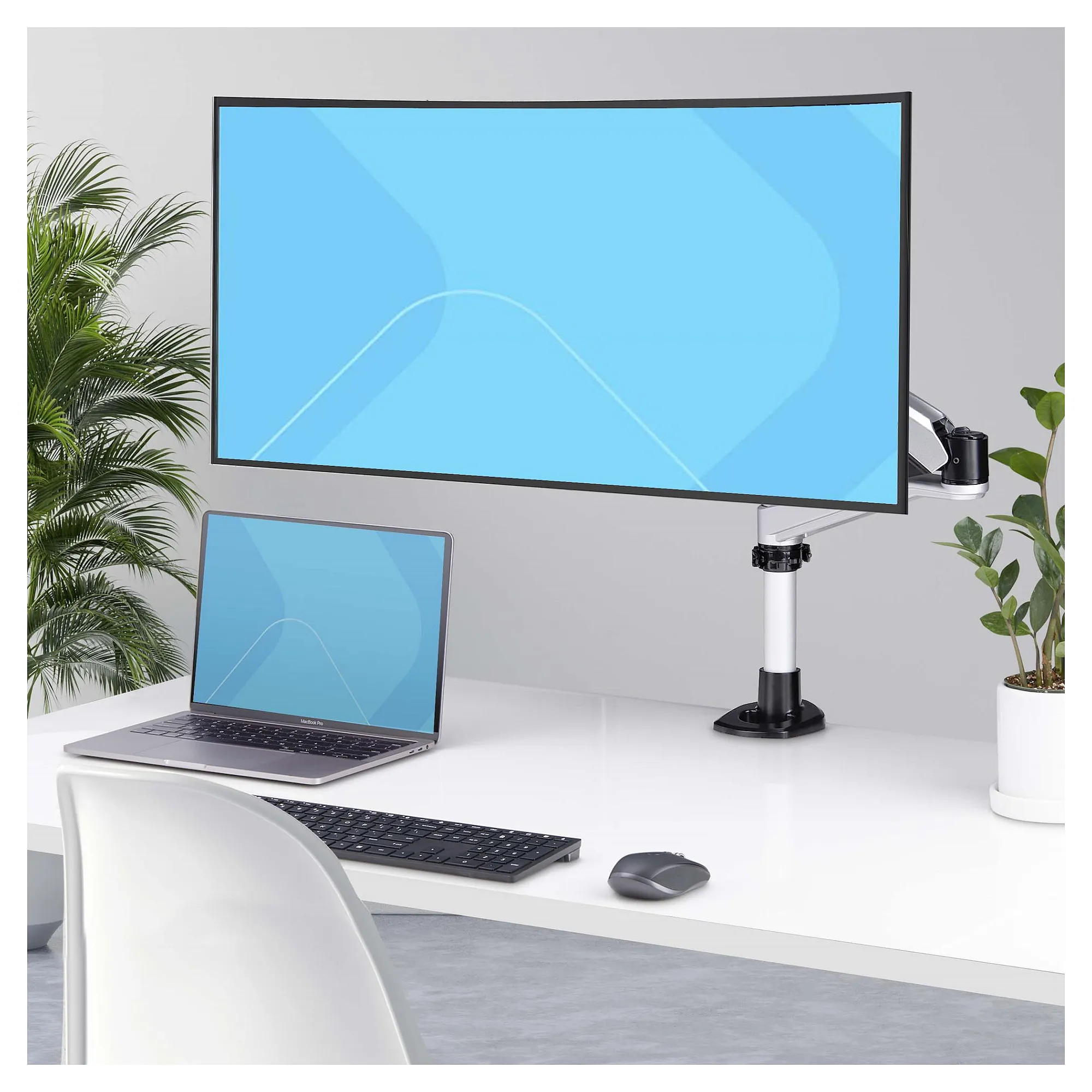

This monitor desk mount is designed to support up to 27-inch 16:9 or 30-inch 21:9 display, creating an ergonomic area for productivity. The mechanical spring-assisted arm enables multiple adjustment to suit different ergonomic needs.

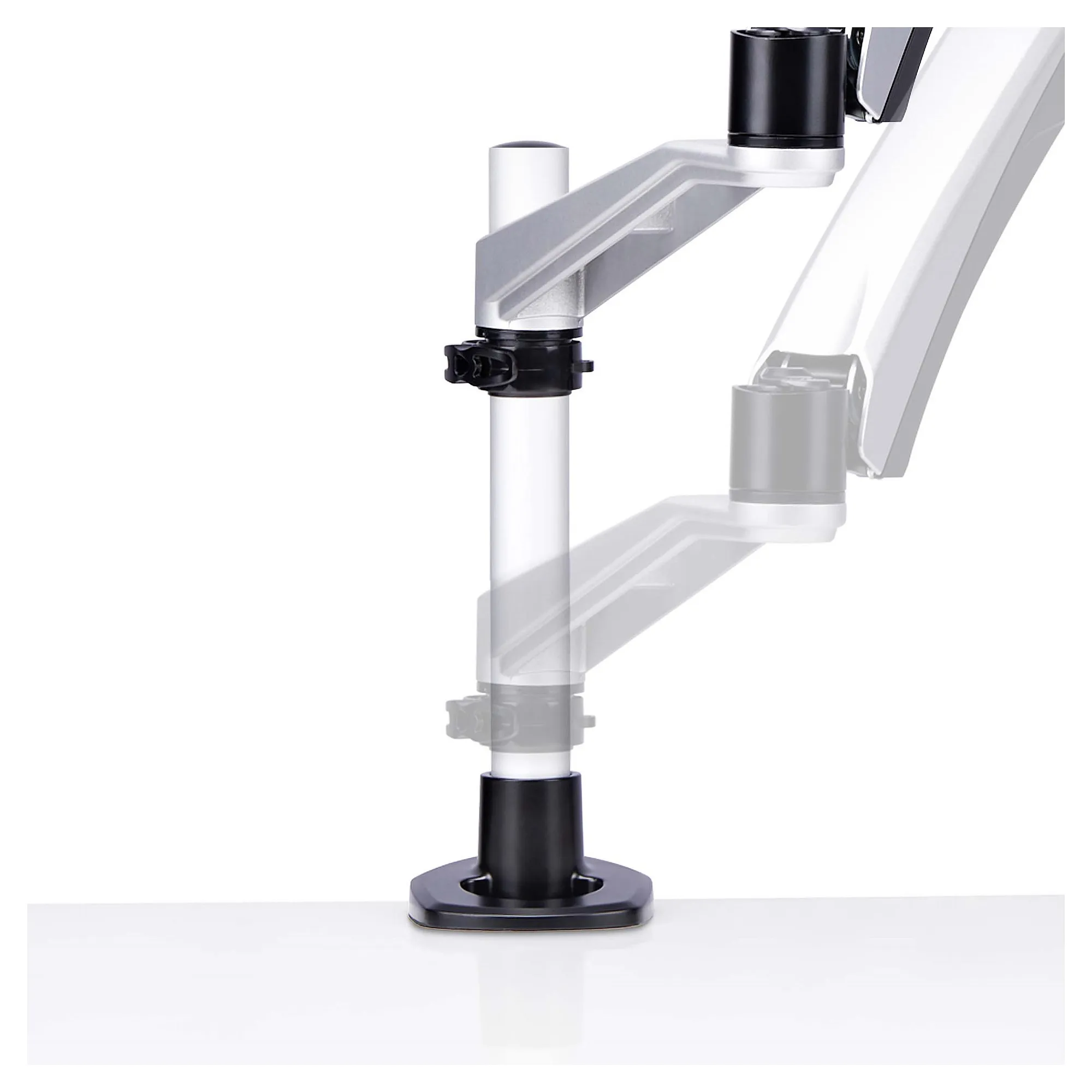

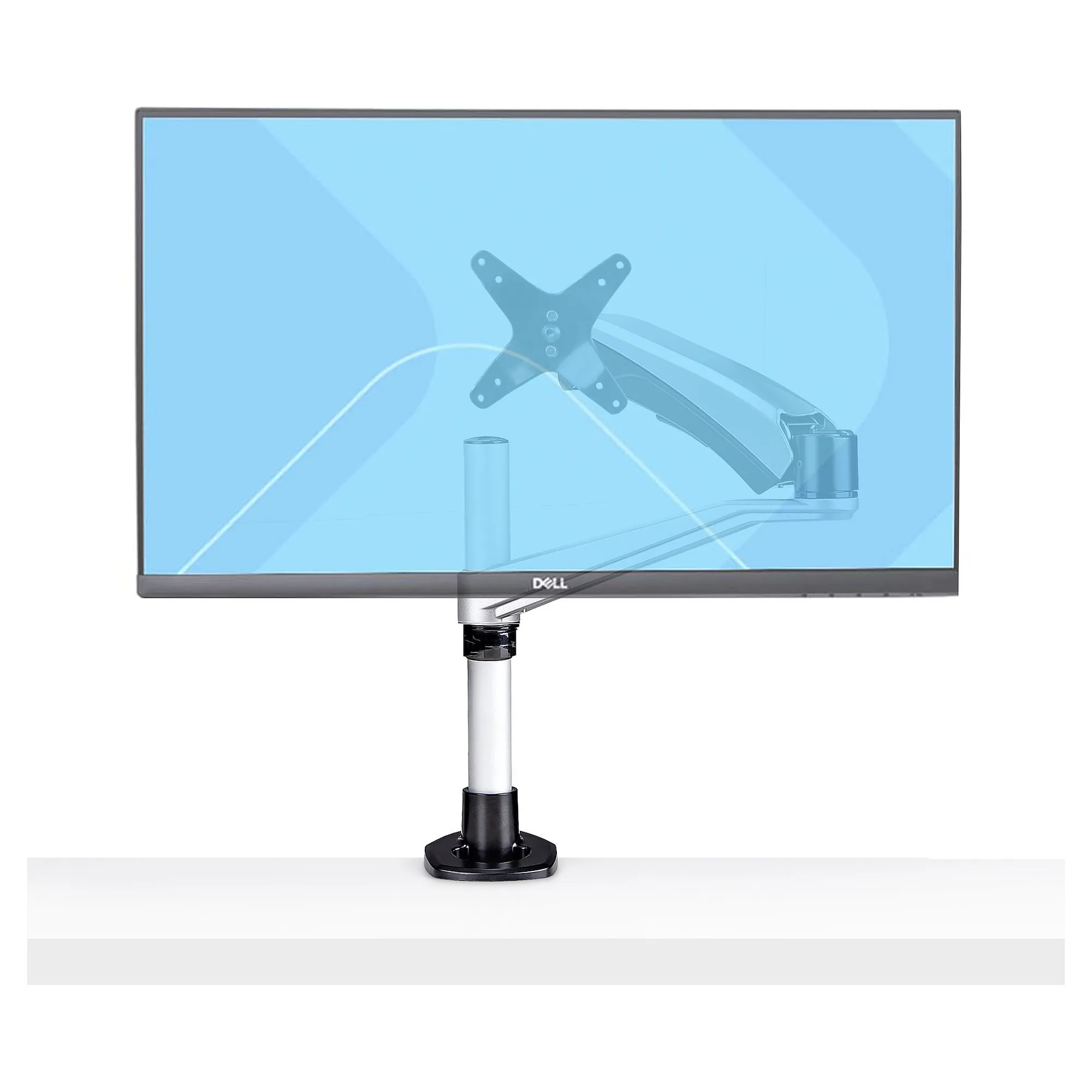

Height Adjustment with One Smooth Motion
The spring arm enables toolless height adjustment of up to 10.6in (270mm) with effortless one-touch motion. Adjust the height of the arm along the 10.2in (261mm) pole. The arm can extend up to 22.2in (590mm) from the pole.

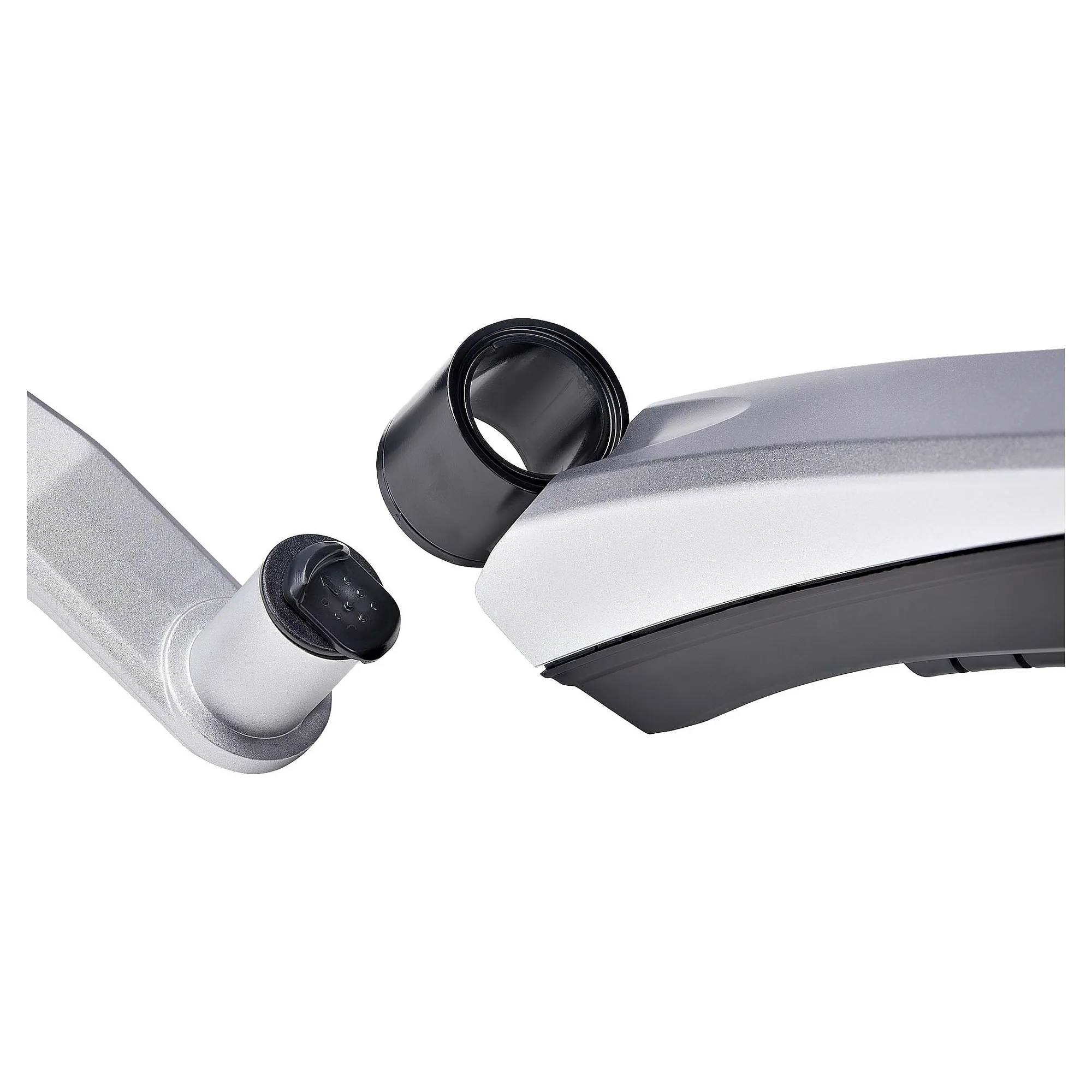

Toolless Assembly

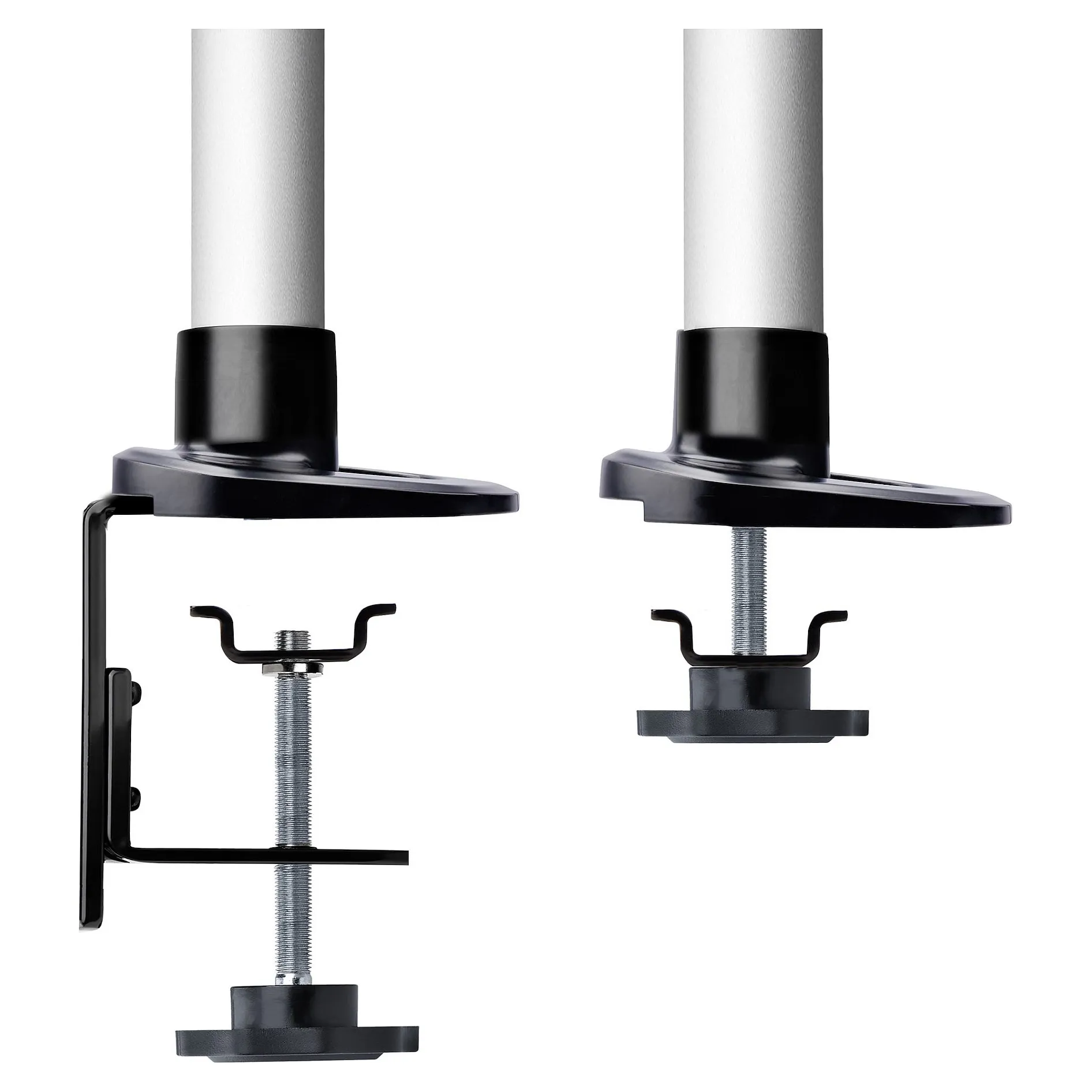

The quick toolless slide and click design makes assembly quick and simple. The pre-assembled desk clamp and pole can be easily secured by hand to the desk, saving total installation time.

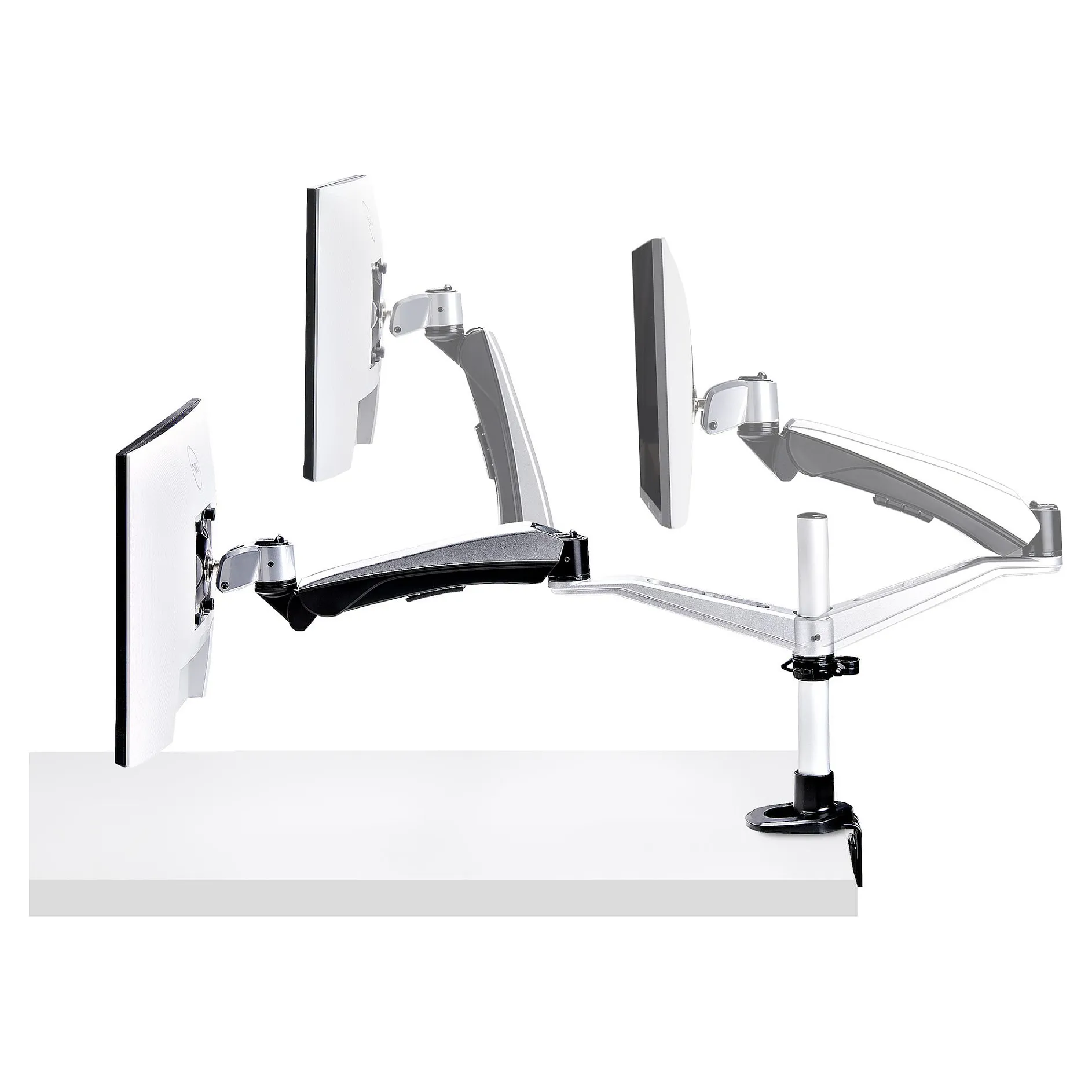

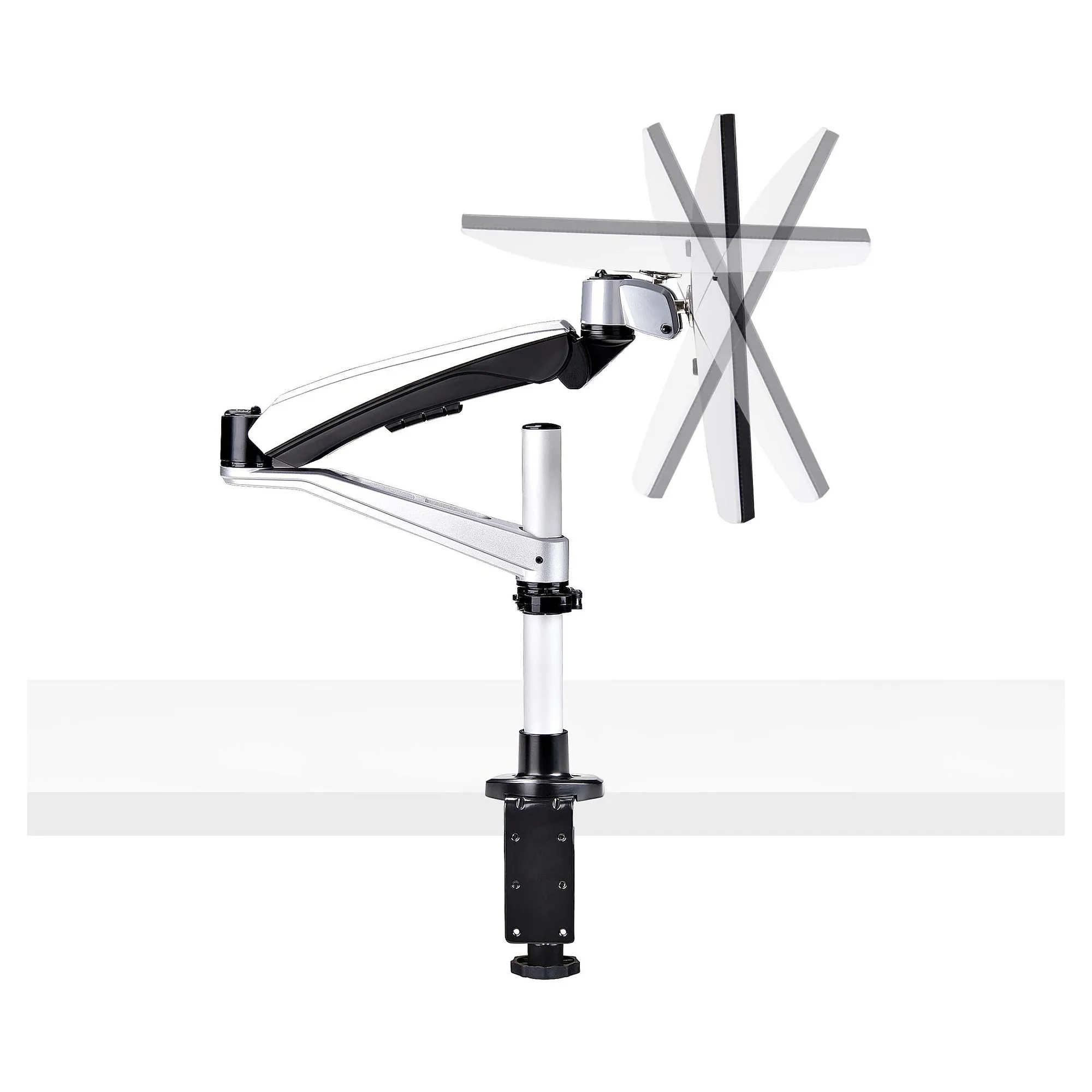

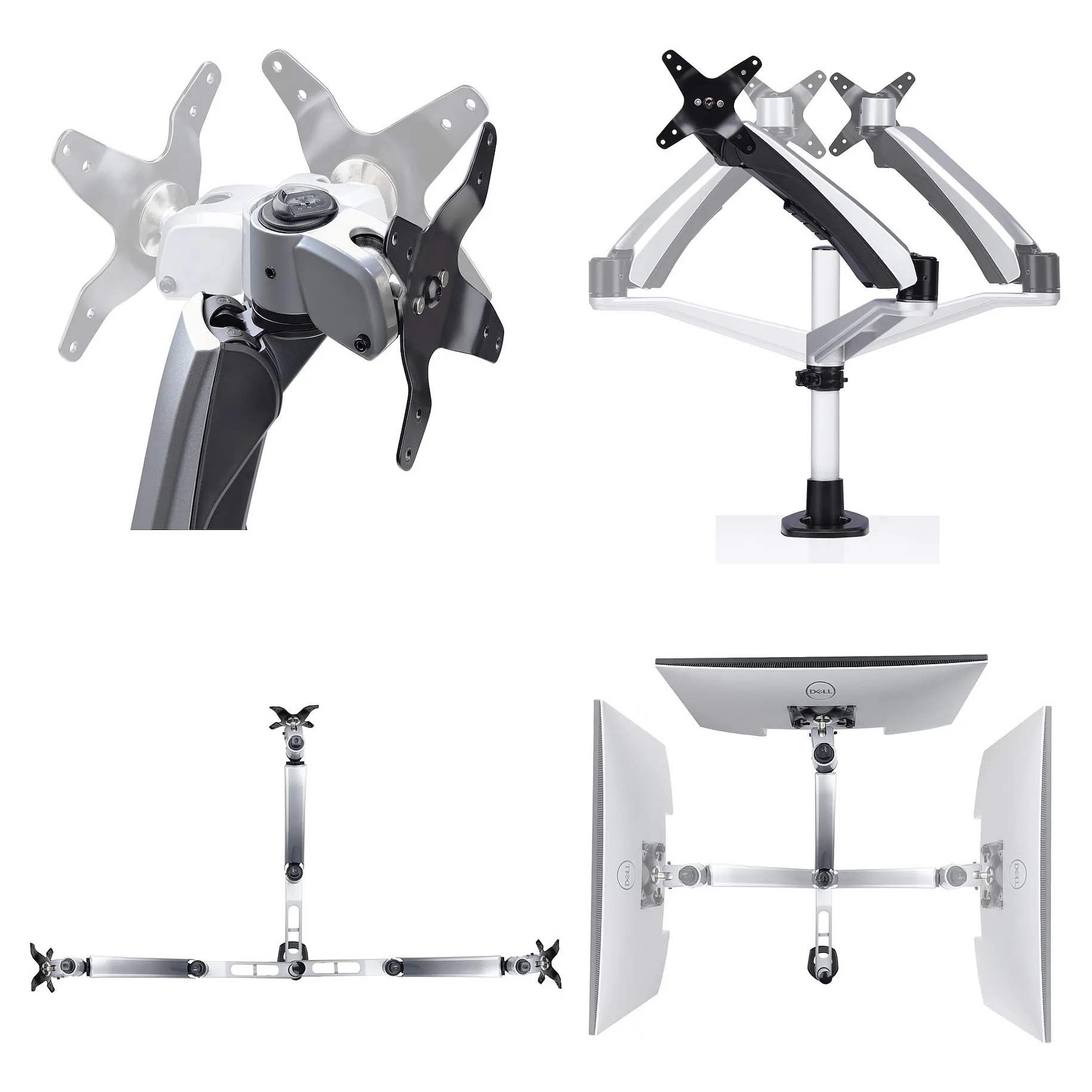

Range of Motion
The articulating arm enables toolless adjustments of +/-180° horizontal swivel, 105° tilt, 240° pan, and 360° screen rotation on the VESA plate for portrait or landscape orientations. This flexibility enables users to customize the screen placement for maximum productivity and comfort.
Durable Construction
With its steel and aluminum construction, the premium monitor arm supports a weight capacity of 19.8 lb. (9 kg). Die-cast aluminum arms with mechanical springs that passed 10,000 cycle test and are backed for 10 years for long-lasting performance.

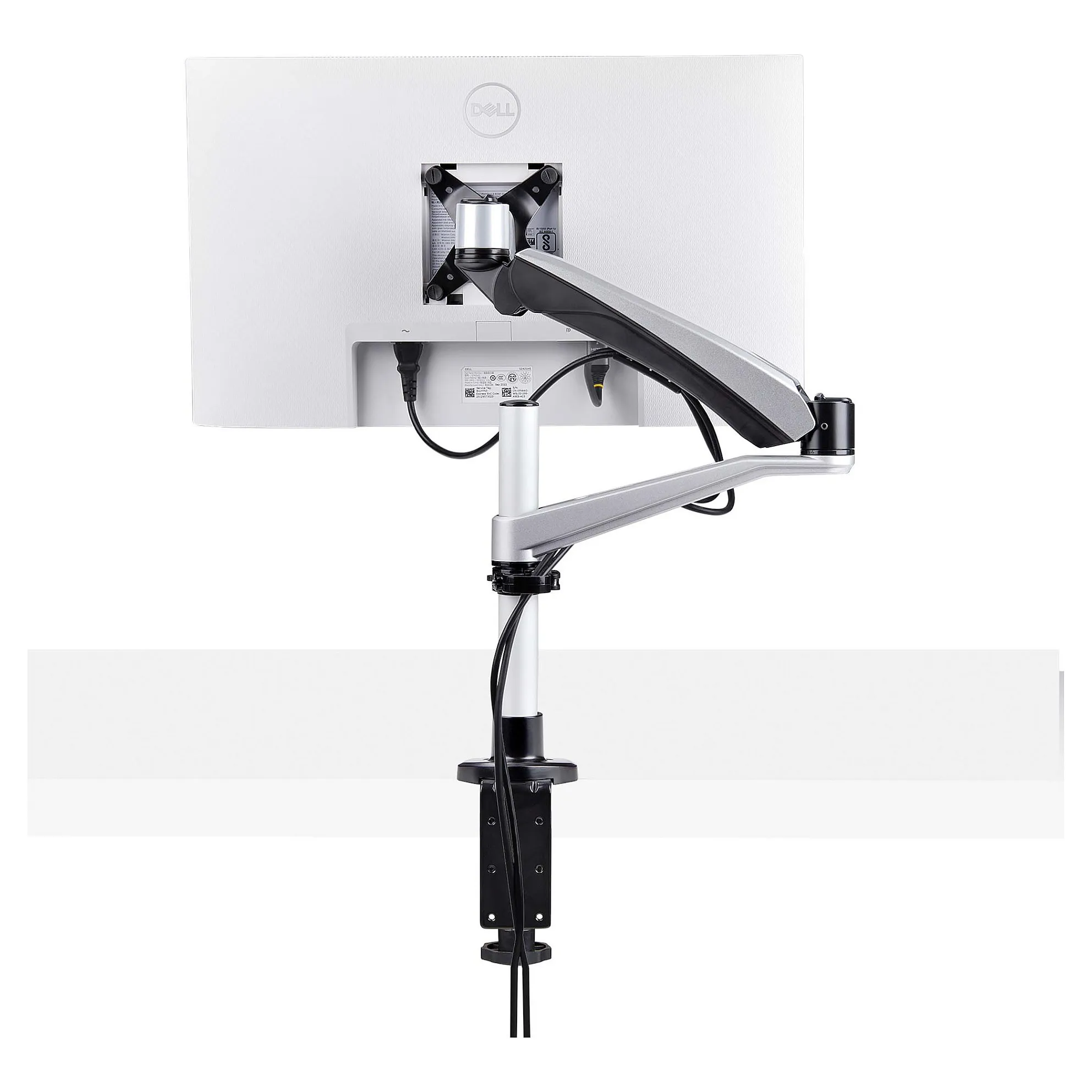

Cable Management
To maintain an organized workspace, the adjustable arm features a cable management channel along the underside to keep cables out of sight, reducing clutter and contributing to a tidy setup. A cable clip on the pole also helps maintain an organized workspace.
Maximum weight capacity: 9 kg
Minimum screen size: 43.2 cm (17″)
Number of displays supported: 1
Maximum screen size: 76.2 cm (30″)

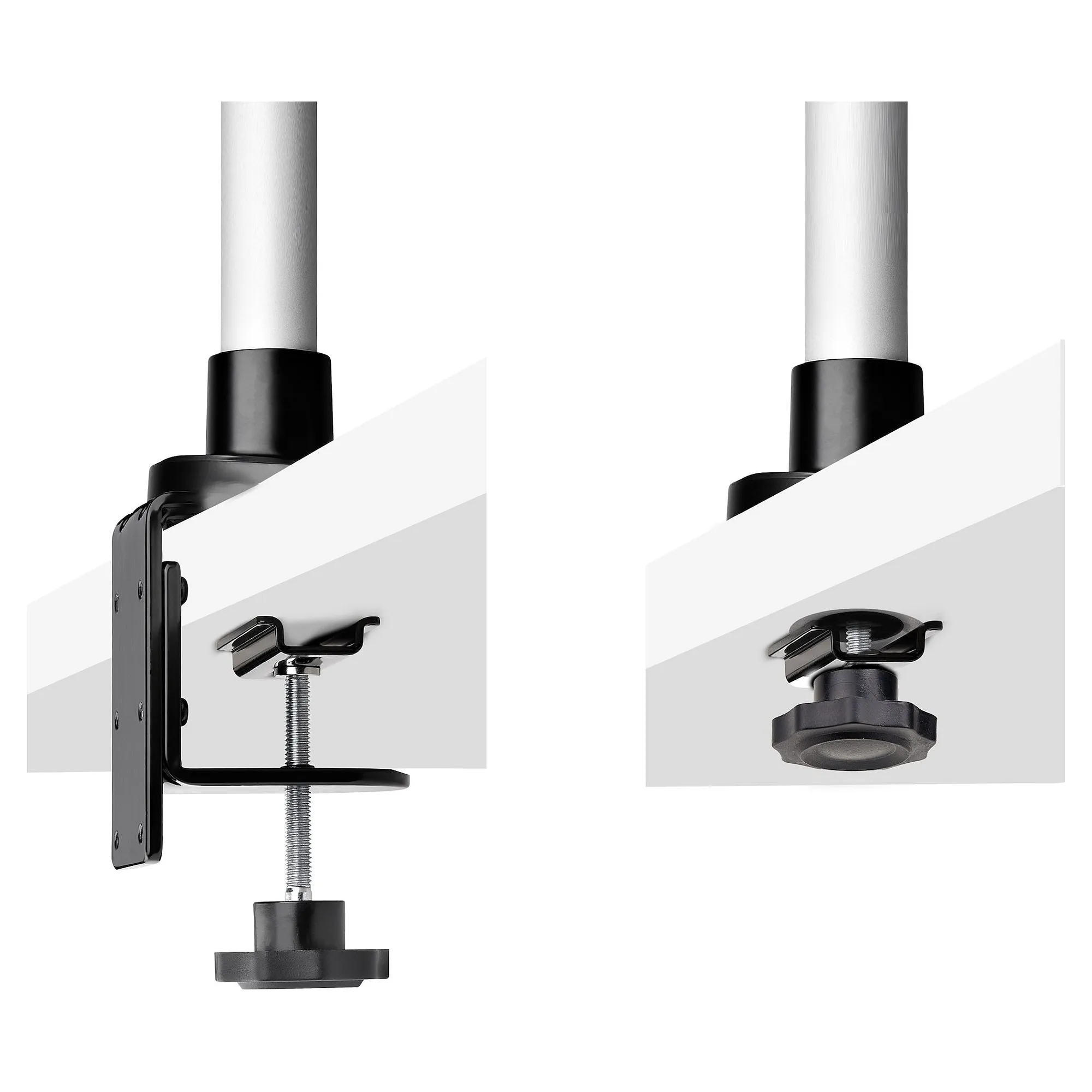

Mounting: Clamp/Grommet
Mounting type: Desk
Minimum VESA mount: 75 x 75 mm
Maximum VESA mount: 100 x 100 mm
Extension arm (max): 59 cm
Desk thickness (min): 1 cm
Clamp mount desk thickness (max): 11 cm
Grommet mount desk thickness (max): 6 cm
Ergonomics
Feature: Height adjustment
Height adjustment range: 270 – 302 mm
Tilt angle range: -15 – 90°
Feature: Swivelling
Swivel angle: 120°
Feature: Rotating
Angle of rotation: 90°
Pivot angle: -180 – 180°
Feature: Cable management
Design
Housing material: Aluminium, Plastic, Steel
Product colour: Black, Silver
Weight & dimensions
Width: 674 mm
Depth: 103 mm
Height: 361 mm
Weight: 3 kg
Packaging data
Package width: 478 mm
Package depth: 295 mm
Package height: 141 mm
Package weight: 3.8 kg

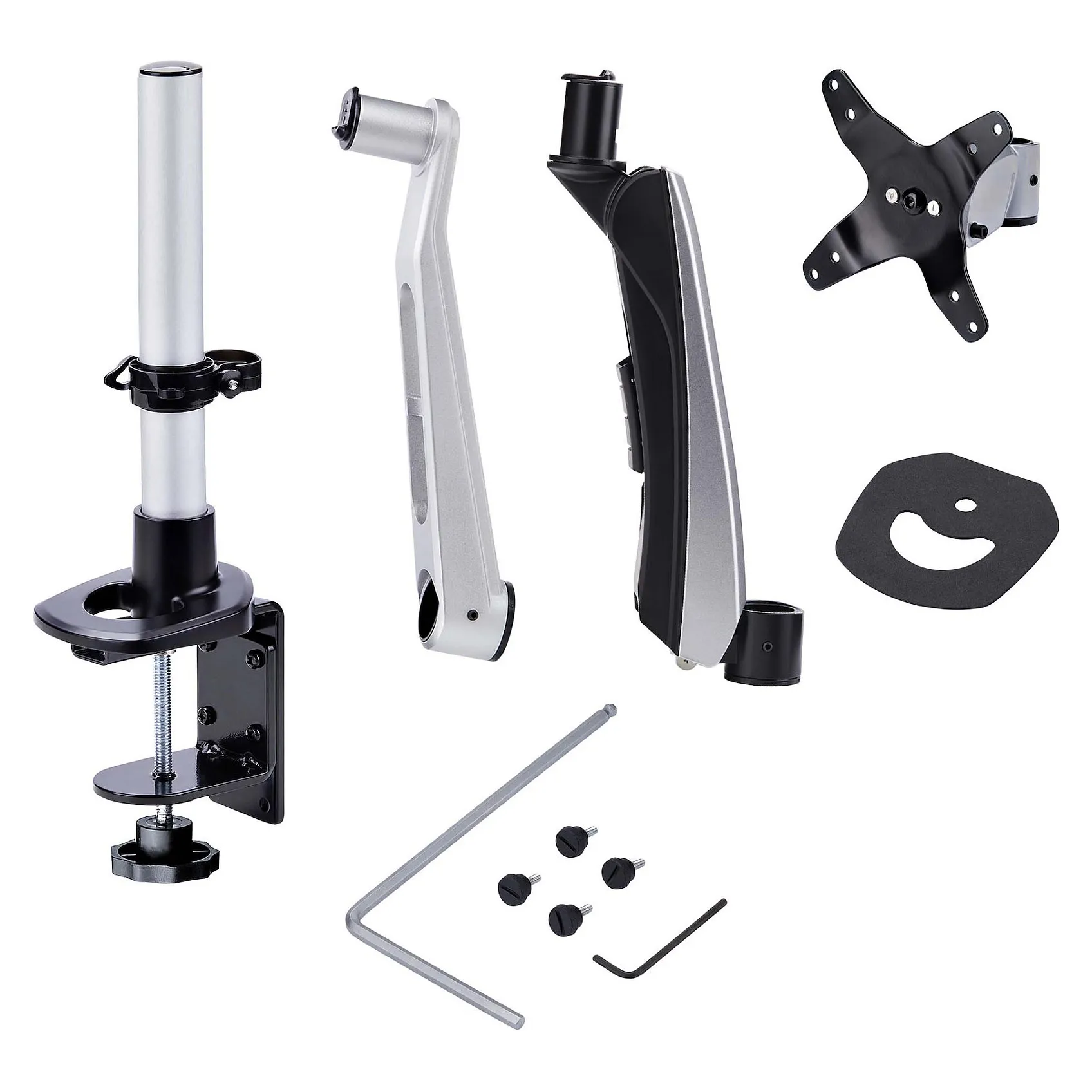

Packaging content
Feature: Wrench included
Wrench type: Hexagonal wrench
Feature: VESA mount included
Number of cable clips: 1
Feature: Screws included
Number of screws: 4
Feature: Manual
Other features
Compliance certificates: Trade Agreements Act (TAA)
Logistics data
Master (outer) case width: 485 mm
Master (outer) case length: 702 mm
Master (outer) case height: 312 mm
Products per master (outer) case: 5 pc(s)
