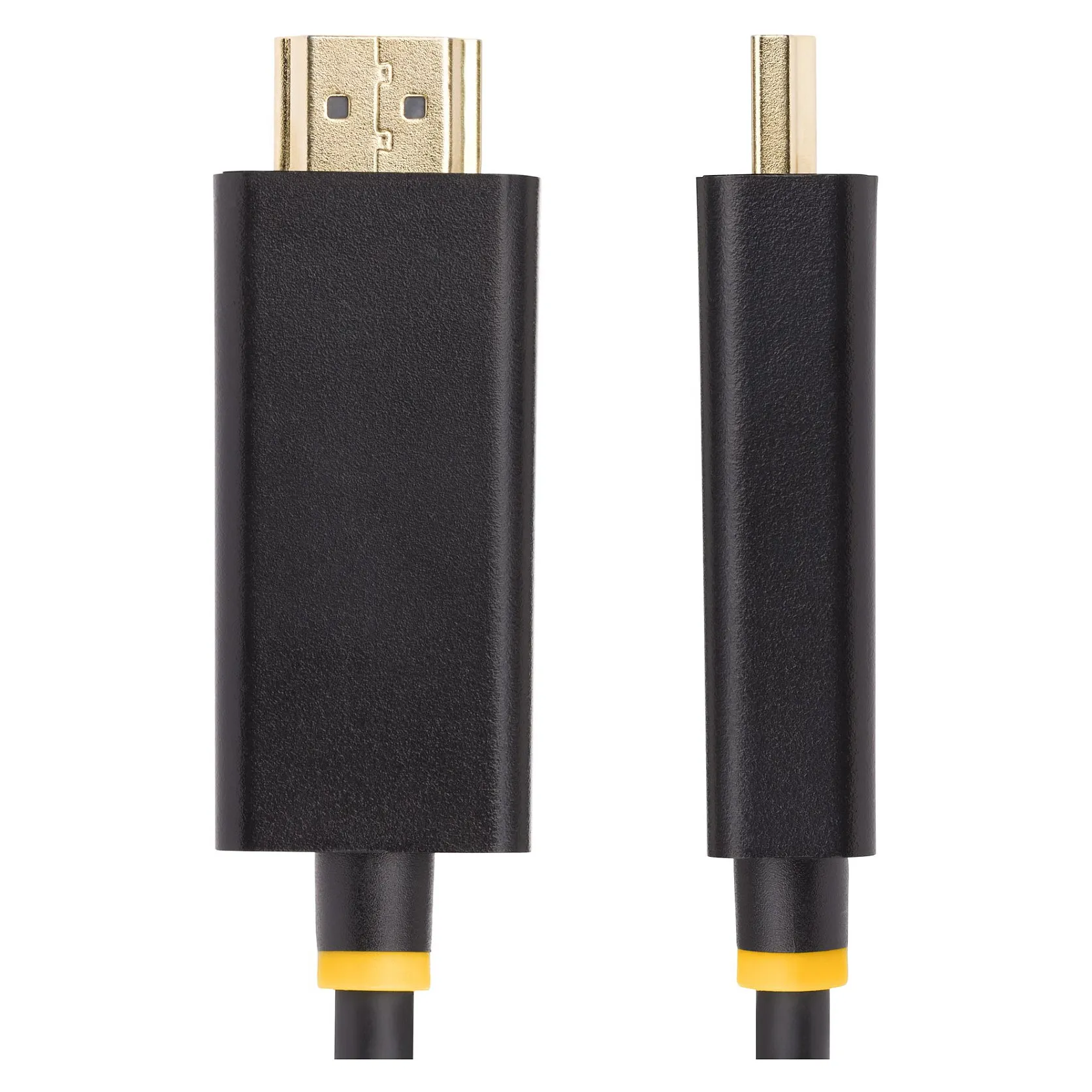

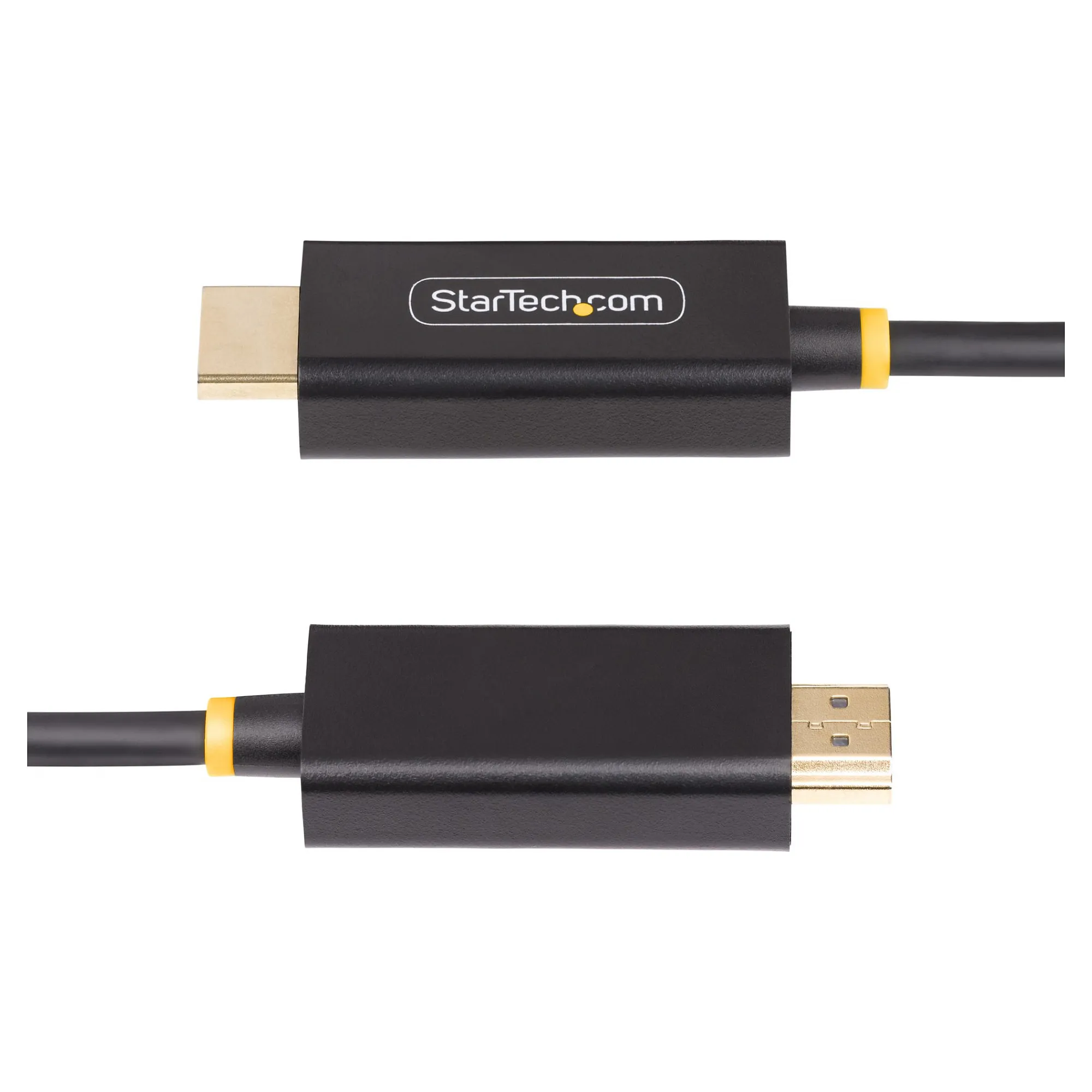

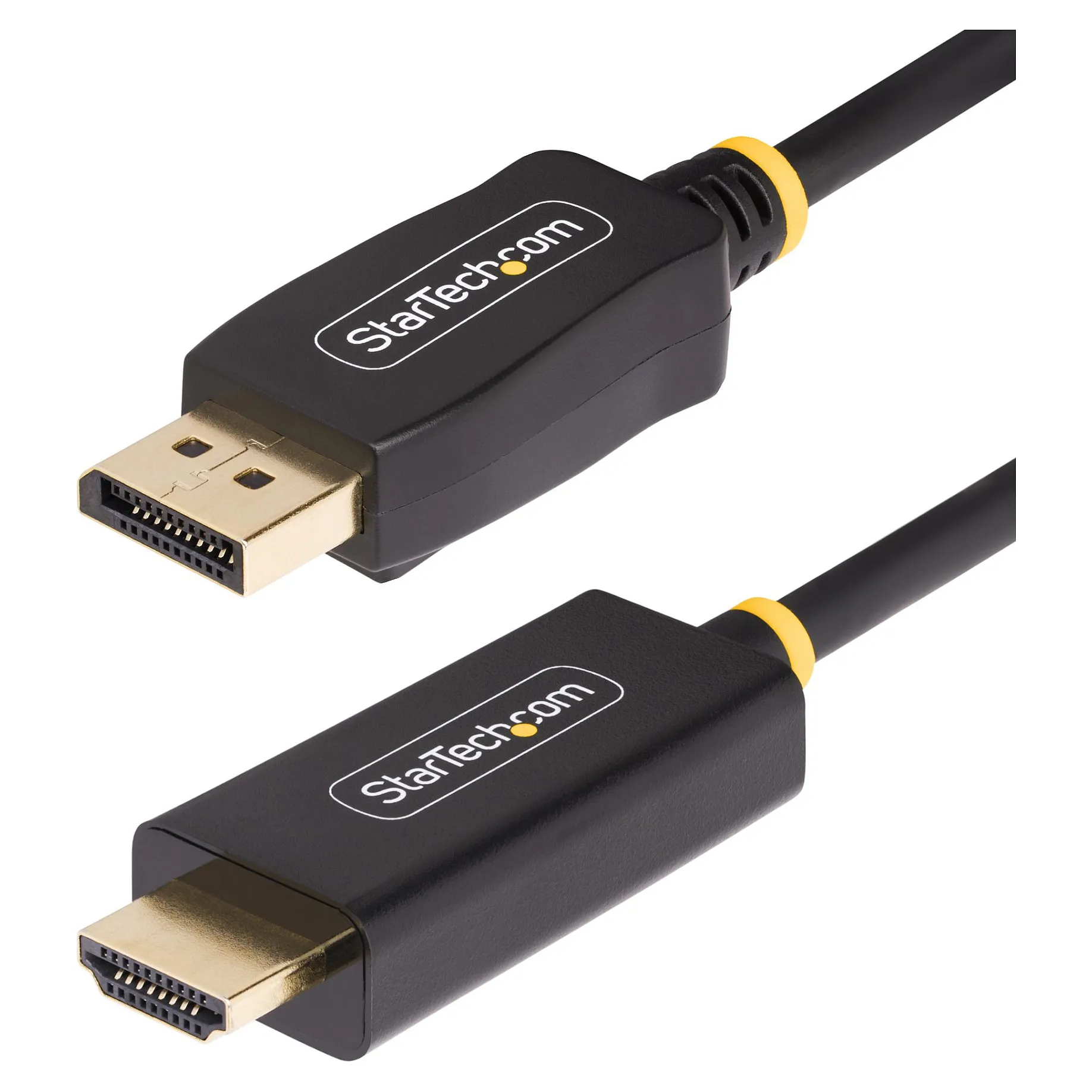

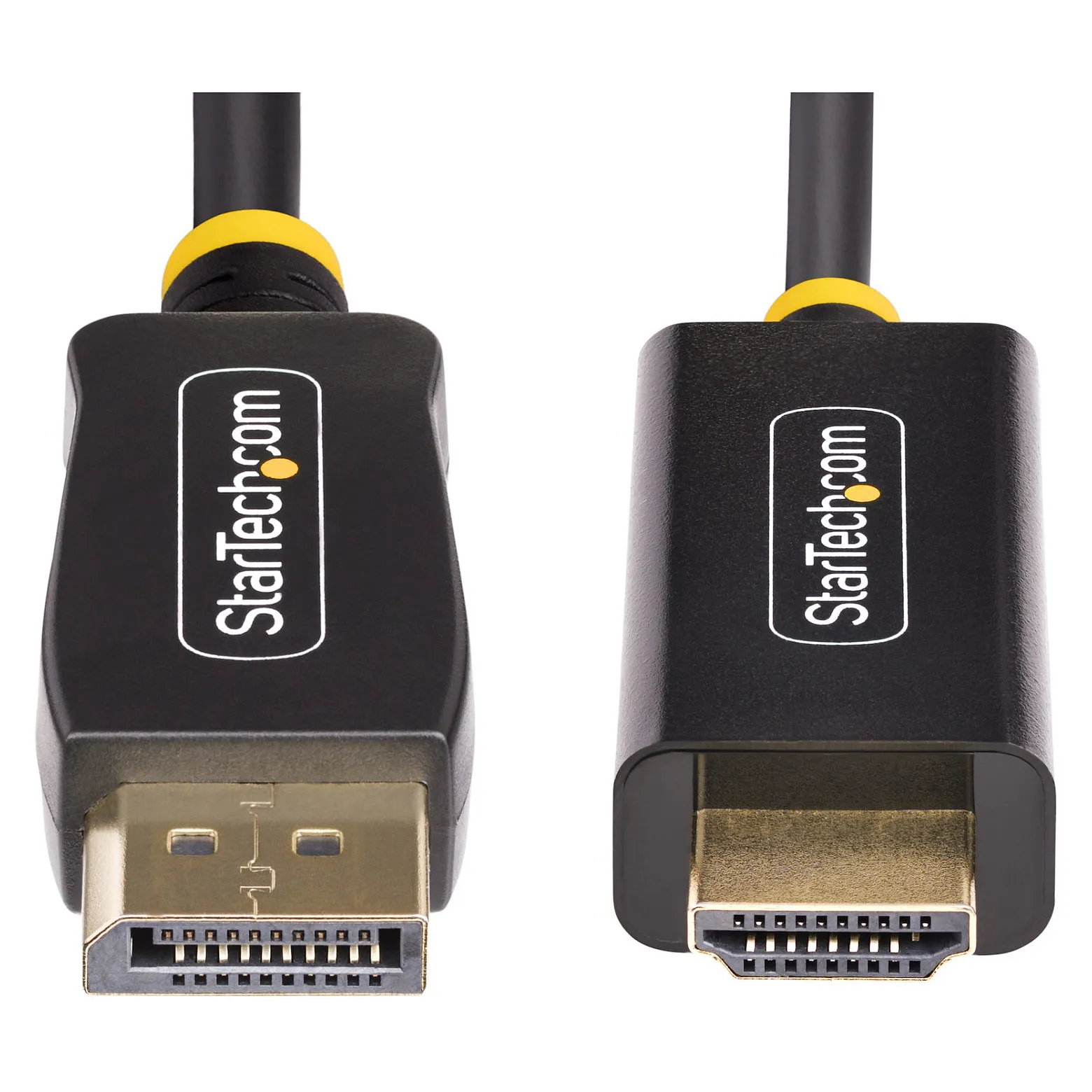

StarTech.com 1m DisplayPort to HDMI Adapter Cable, 4K 60Hz with HDR, DP to HDMI 2.0b, Active Video Converter, DisplayPort Desktop to HDMI Monitor. Cable length: 1 m, Connector 1: DisplayPort, Connector 2: HDMI Type A (Standard). Compliance certificates: RoHS. Cable diameter: 5.5 mm. Package width: 128 mm, Package depth: 220 mm, Package height: 18 mm. Quantity per pack: 1 pc(s)

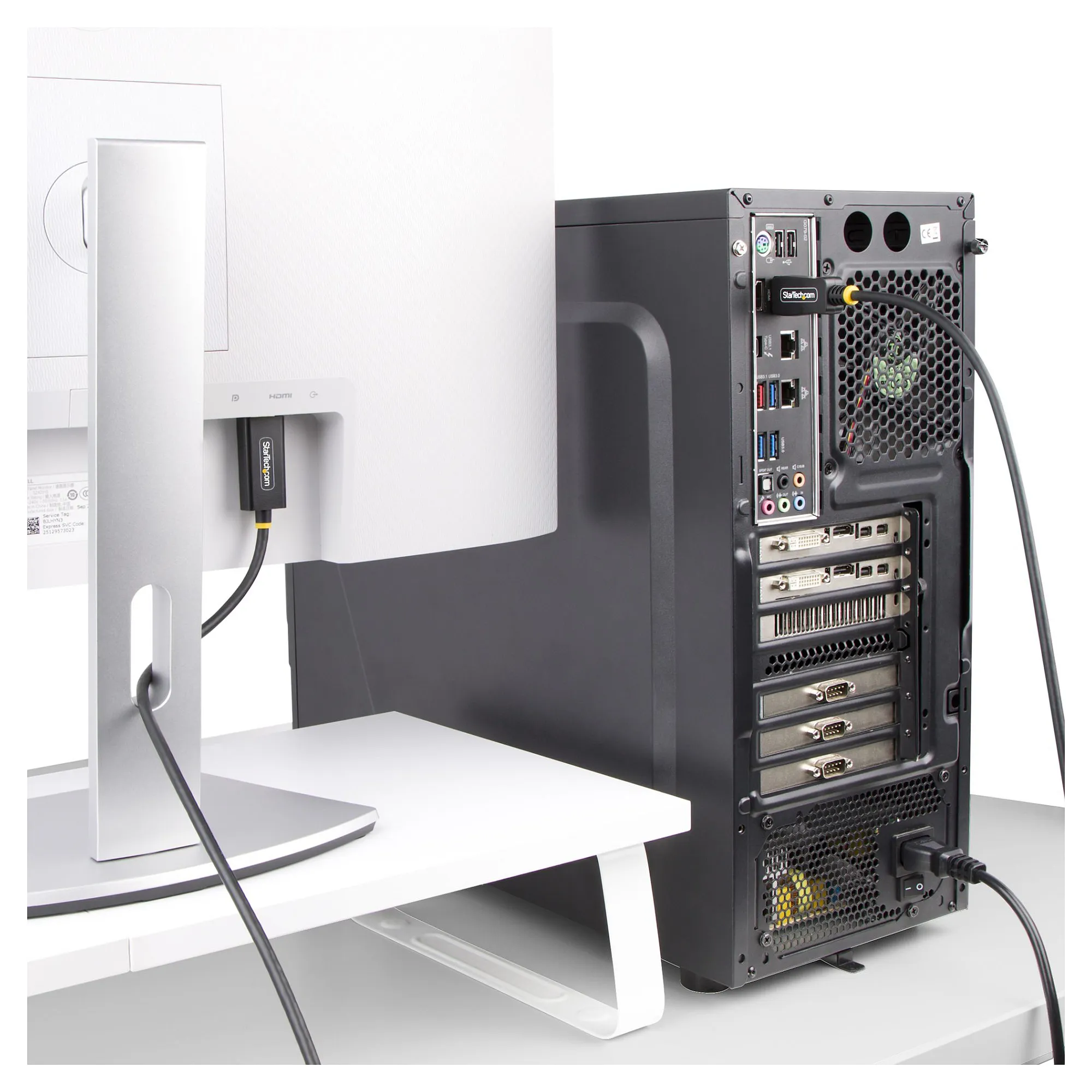

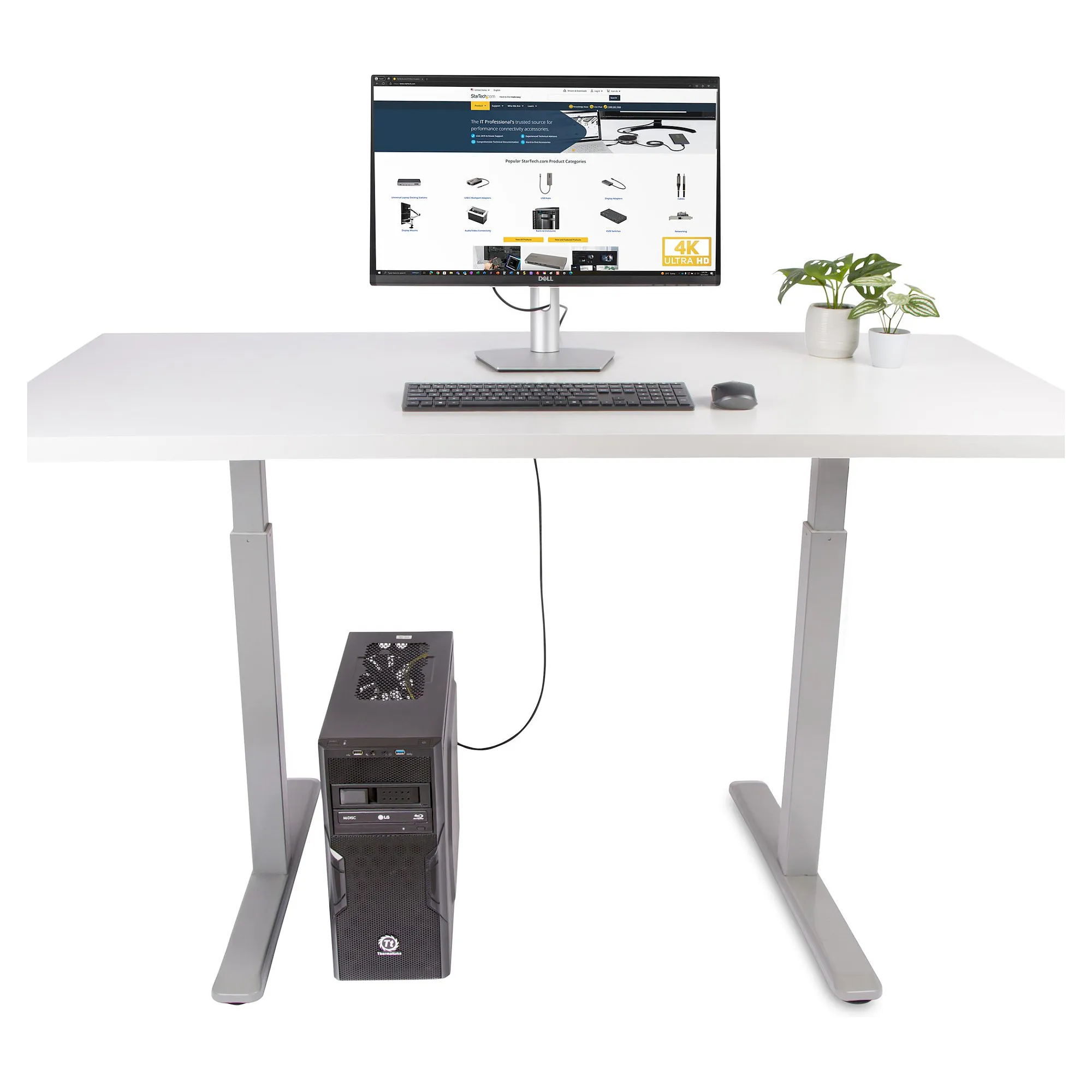

Connect a DisplayPort-enabled desktop to 4K 60Hz High Dynamic Range (HDR)-capable HDMI monitor, using this 1-meter Active DisplayPort to HDMI Adapter Cable.
4K 60Hz HDR Capabilities
HDR improves visual quality by providing a wide assortment of colors across a dynamic range of brightnesses, resulting in a more vibrant viewing experience. The DP 1.4 to HDMI 2.0b adapter supports 18Gbps bandwidth, allowing for 4:4:4/RGB color space, 8-bit with dithering, and 7.1ch audio. It also supports HBR3 and HDCP 1.4/2.3.
Compatibility
The Universal Adapter Cable is compatible with all hardware platforms and any operating system. Utilize integrated or dedicated GPU (Intel/AMD/Nvidia) capabilities, enabling high-performance graphics with minimal CPU usage.
Designed and Built for IT Professionals
Integrated video adapter cable reduces points of failure, signal loss and clutter, and requires no additional power. Built with adaptive receiver equalization to optimize the input signal and amplify the output signal, to ensure display compatibility. Cage shielding prevents Electromagnetic Interference (EMI) and helps maintain signal integrity. This Active Adapter Cable works with computers from Dell, HP, Lenovo, and other desktop manufacturers. It is backward compatible with 4K 30Hz, 1080p, and other lower resolutions.
Connector 1 form factor: Straight
Connector 2 form factor: Straight
Connector contacts plating: Gold
Cable length: 1 m
Connector 1: DisplayPort
Connector 2: HDMI Type A (Standard)
Connector 1 gender: Male
Connector 2 gender: Male
HDMI version: 2.0b
Feature: HDCP
HDCP version: 1.4/2.3
DisplayPort version: 1.4
Feature: High Dynamic Range (HDR) supported
Maximum resolution: 4096 x 2160 pixels
Supported graphics resolutions: 1920 x 1200 (WUXGA), 2048 x 1536 (QXGA), 2560 x 1440, 3200 x 1800, 3860 x 2160, 4096 x 2160
Bandwidth: 18000 MB/s
Maximum refresh rate: 120 Hz
Product colour: Black
Chipset: Synaptics – VMR7100
Jacket material: Polyvinyl chloride (PVC)
Colour depth: 8 bit
Colour sampling: 4:4:4
Supported audio channels: 7.1
Converter type: Active video converter
Operational conditions
Operating temperature (T-T): 0 – 40 °C
Storage temperature (T-T): -10 – 70 °C
Certificates
Compliance certificates: RoHS
Weight & dimensions
Cable diameter: 5.5 mm
Packaging data
Package width: 128 mm
Package depth: 220 mm
Package height: 18 mm
Package weight: 60 g
Packaging content
Quantity per pack: 1 pc(s)
Logistics data
Master (outer) case width: 400 mm
Master (outer) case length: 300 mm
Master (outer) case height: 300 mm
Products per master (outer) case: 150 pc(s)
