StarTech.com 160W Universal DC Power Adapter (24V/6.6A), 4ft(1.2m) 2-Wire Cord, 2/3-Pin Terminal Blocks, 100-240V AC/DC External Power Supply for Industrial USB Hubs, NA/UK/EU/ANZ. Purpose: Universal, Power supply type: Indoor, Input voltage: 100 – 240 V. Product colour: Black, Housing material: Plastic. Compliance certificates: PSE. Cable length: 1.2 m, Width: 53 mm, Depth: 115 mm. Package width: 204 mm, Package depth: 162 mm, Package height: 92 mm
Power a StarTech.com Industrial USB Hub, or other device with a 2-or-3-wire terminal block DC input, using this 24V Universal Power Adapter.
High-Performance Universal Power Adapter

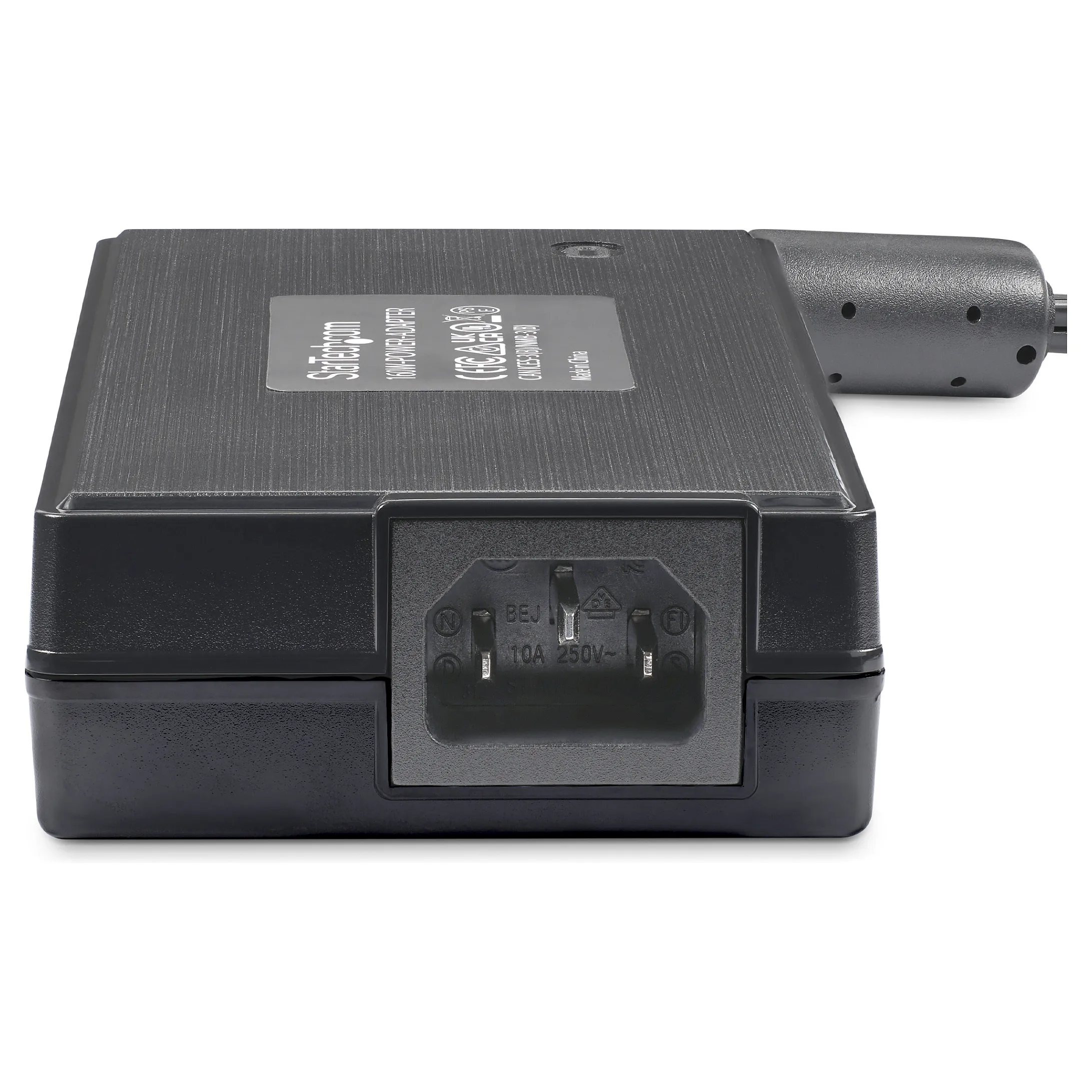

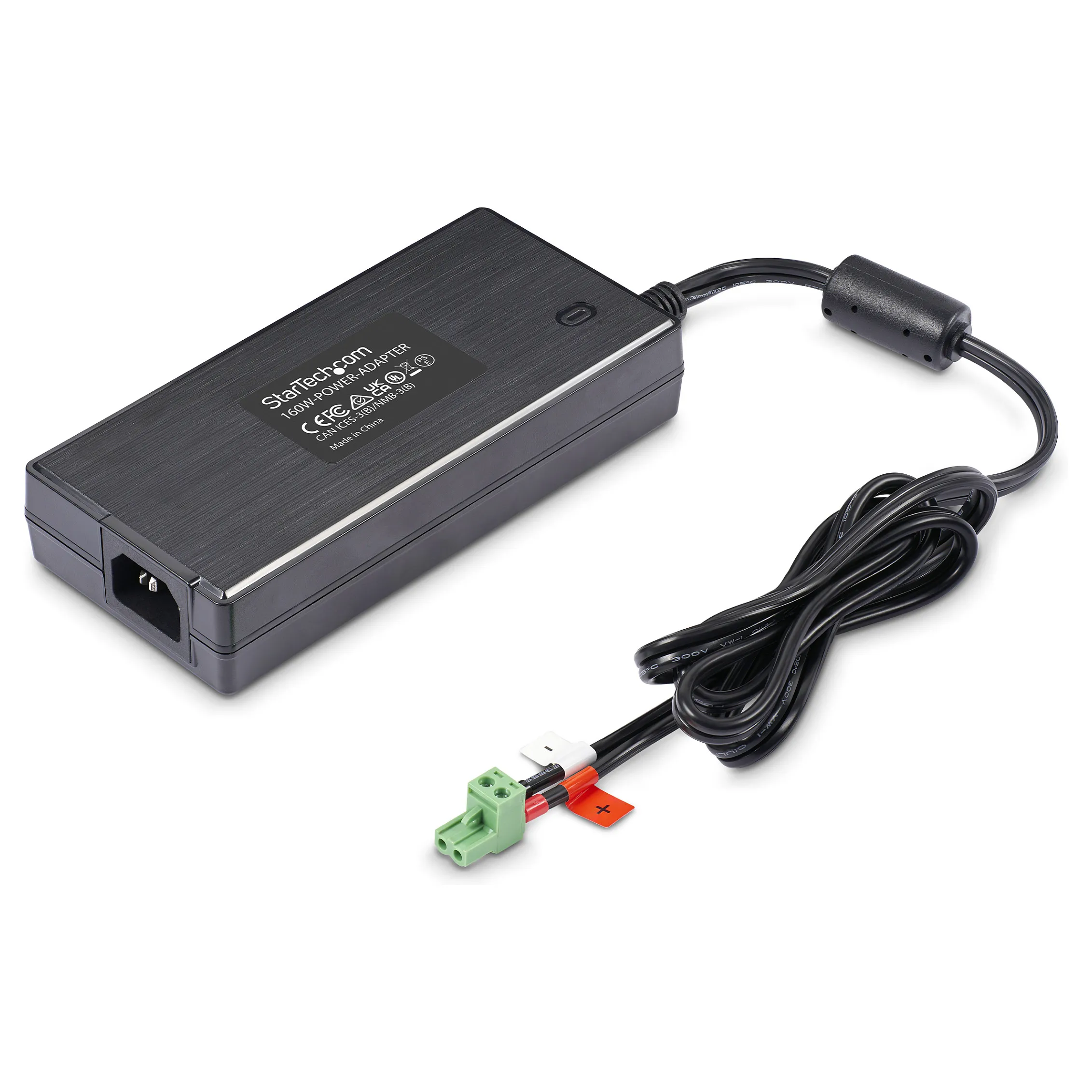

The Power Adapter features an auto-switching 100-240V AC input with a 24V/6.6A (158.4W) DC output and attached 4ft (1.2m) DC cord.
Four 4ft (1.2m) regional power cables are included, to ensure international support:
• North America – Type-A NEMA 1-15
• United Kingdom – Type-G BS 1363
• Europe – CEE 7/7
• Australia/New Zealand – Type-I AS 3112
Device Compatibility

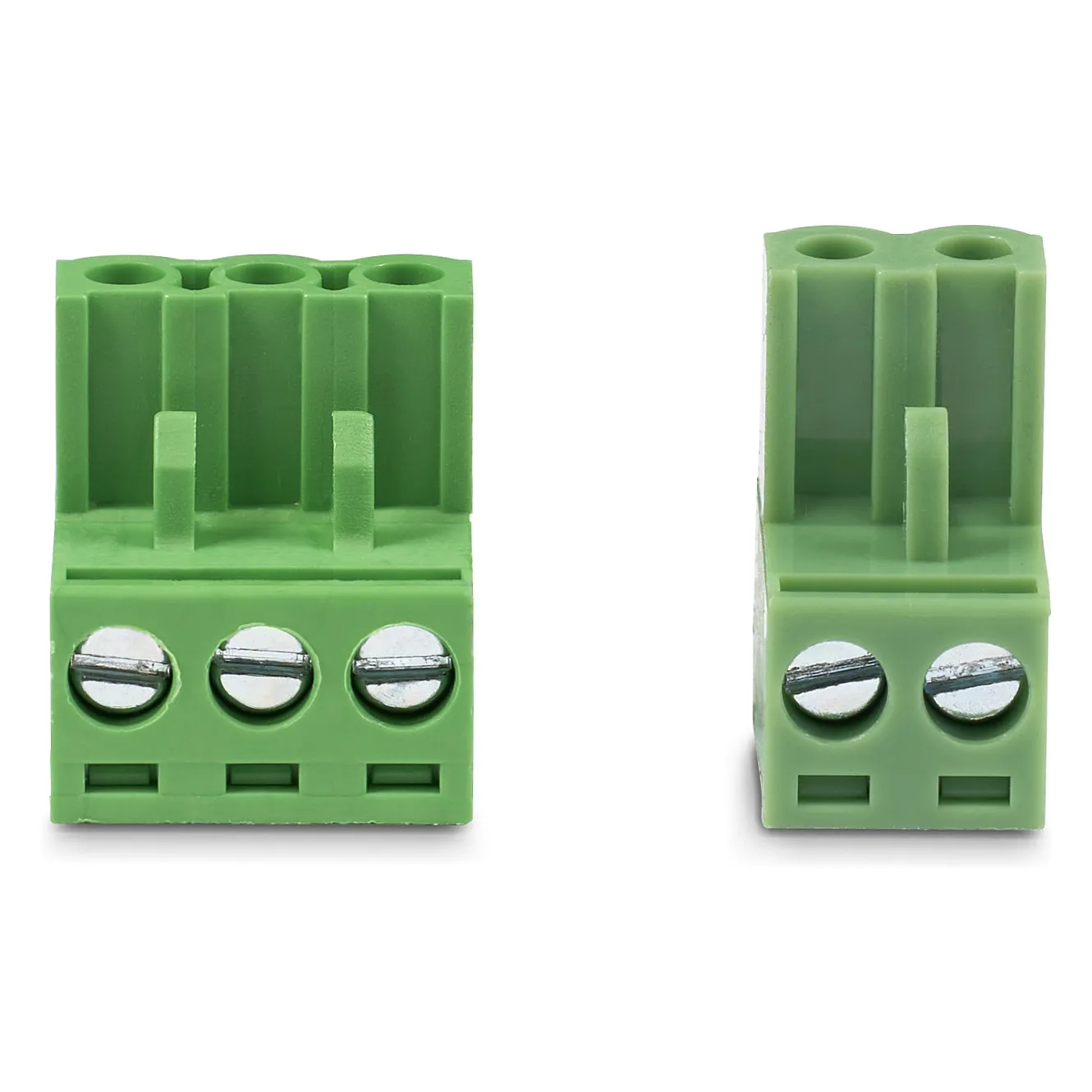

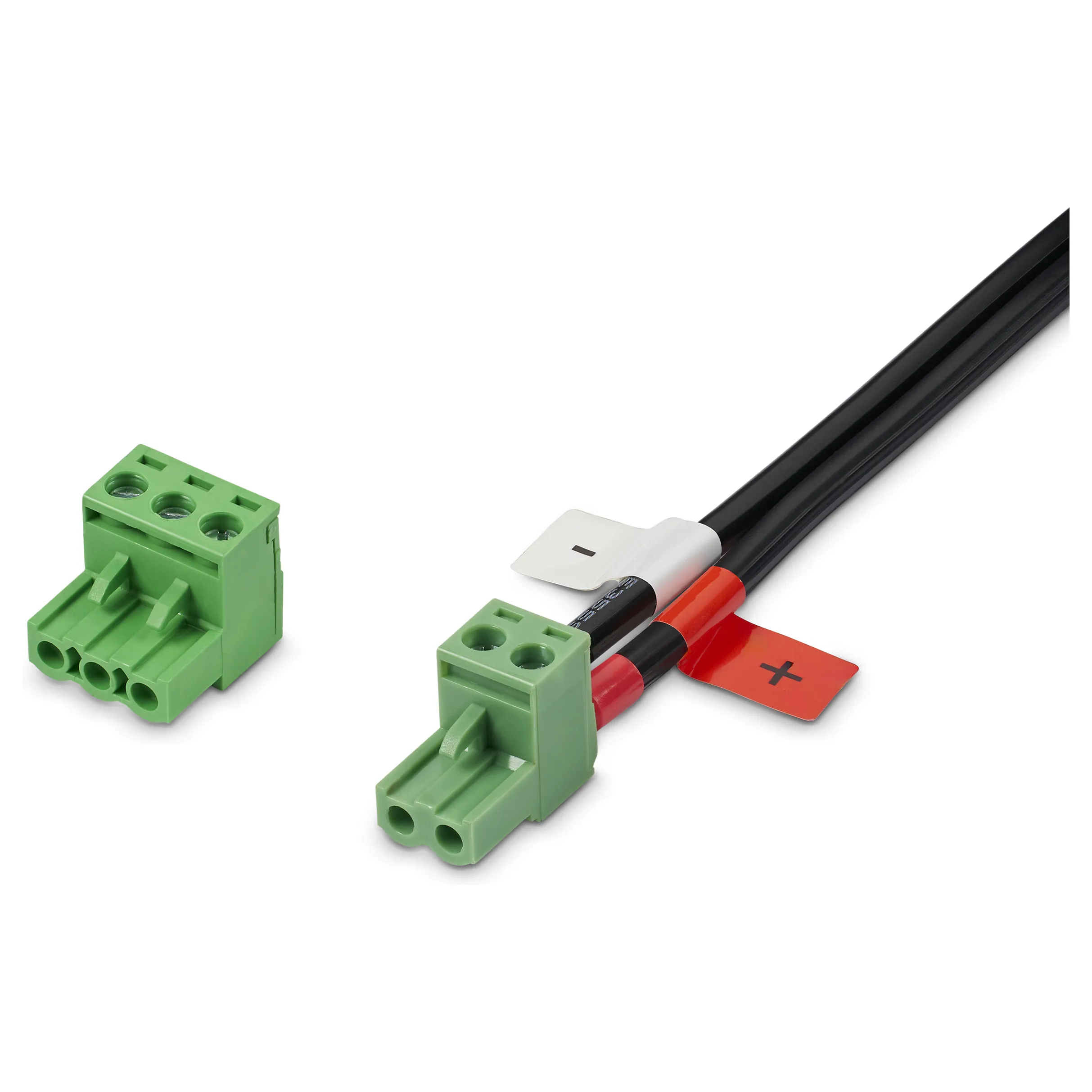

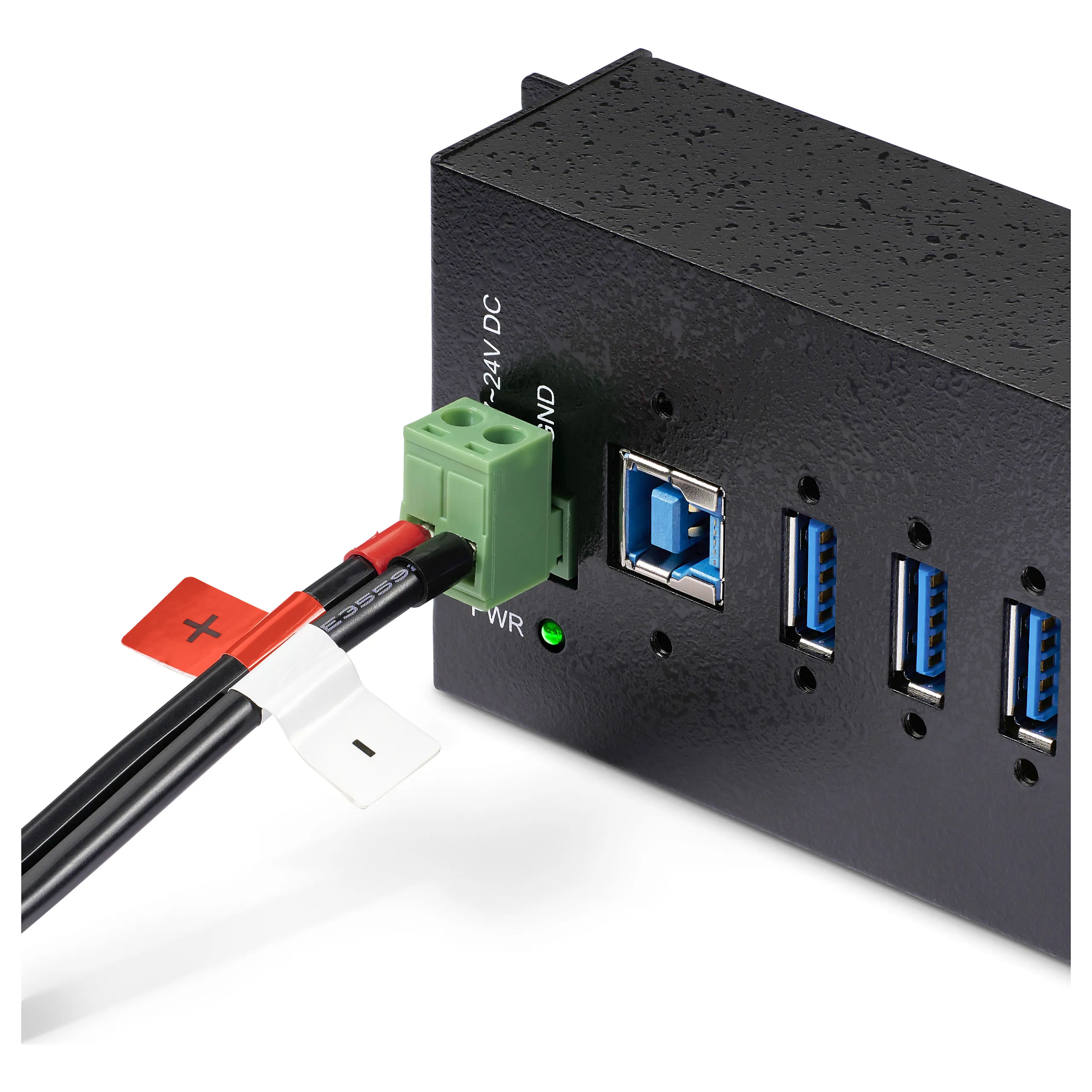

The Power Adapter features two bare-wire leads with both 2-conductor and 3-conductor terminal block connectors included, for seamless integration with a variety of devices. This power supply can be used as an accessory and primary power source for many StarTech.com Industrial USB Hubs, such as:
• 16-Port Industrial USB 5Gbps Hub (5G16AINDS-USB-A-HUB)
• 10-Port Industrial USB 5Gbps Hub (ST1030USBM)
• 7-Port Industrial USB 5Gbps Hub (ST7300USBME)
• 7-Port Industrial USB 2.0 (480Mbps) Hub (HB20A7AME)
• 7-Port Industrial USB 2.0 (480Mbps) Hub with Extended Temperature Range (ST7200USBM)
• 4-Port Industrial USB 2.0 (480Mbps) Hub with Extended Temperature Range (HB20A4AME)
• 4-Port Industrial USB 2.0 (480Mbps) Hub (ST4200USBM)
This power adapter can also be used to replace a lost or broken power adapter, or can be kept as a redundant back-up power brick for mission critical applications for StarTech.com Industrial USB Hubs that include a power adapter, such as:
• 10-Port USB 5Gbps Industrial Hub (HB30A10AME)
• 7-Port USB 5Gbps Industrial Hub (HB30A7AME)
• 4-Port Industrial USB 5Gbps Hub (ST4300USBM)
Purpose: Universal
Power supply type: Indoor
Input voltage: 100 – 240 V
Input current: 3.5 A
Output power: 158.4 W
Output voltage: 24 V
Output current: 6.6 A
Brand compatibility: StarTech.com
Compatibility: HB30A10AME, HB30A7AME, ST1030USBM, ST7300USBME, ST4300USBM, HB20A7AME, ST7200USBM, HB20A4AME, ST4200USBM, 5G16AINDS-USB-A-HUB
Design
Product colour: Black
Housing material: Plastic
Operational conditions
Operating temperature (T-T): 5 – 55 °C
Storage temperature (T-T): -20 – 80 °C
Operating relative humidity (H-H): 20 – 80%
Certificates
Compliance certificates: PSE
Sustainability
Feature: Sustainability compliance
Weight & dimensions
Cable length: 1.2 m
Width: 53 mm
Depth: 115 mm
Height: 37 mm
Weight: 291 g
Packaging data
Package width: 204 mm
Package depth: 162 mm
Package height: 92 mm
Package weight: 350 g
Packaging content
Cables included: AC
Quantity per pack: 1 pc(s)
Logistics data
Master (outer) case width: 480 mm
Master (outer) case length: 230 mm
Master (outer) case height: 369 mm
Products per master (outer) case: 10 pc(s)
