StarTech.com Dual-Monitor USB4 Docking Station, Dual 4K 120Hz or Single 8K 60Hz HDMI, 100W Laptop Charging, 2.5GbE, USB-C Multi-Monitor Dock, Driverless. Connectivity technology: Wired, Host interface: USB4, USB Power Delivery up to: 100 W. Ethernet LAN data rates: 10,100,1000,2500 Mbit/s. Product colour: Silver, Data transfer rate: 40 Gbit/s, HD type: 4K Ultra HD. Power source type: DC, AC input voltage: 100 – 240 V, Input current: 2.5 A. Windows operating systems supported: Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10…, Other operating systems supported: ChromeOS
This USB4 (USB-C 40Gbps) docking station uses a single USB4 or Thunderbolt port on a host computer to add high-performance connectivity while charging the laptop.
Flexible High-Performance Video

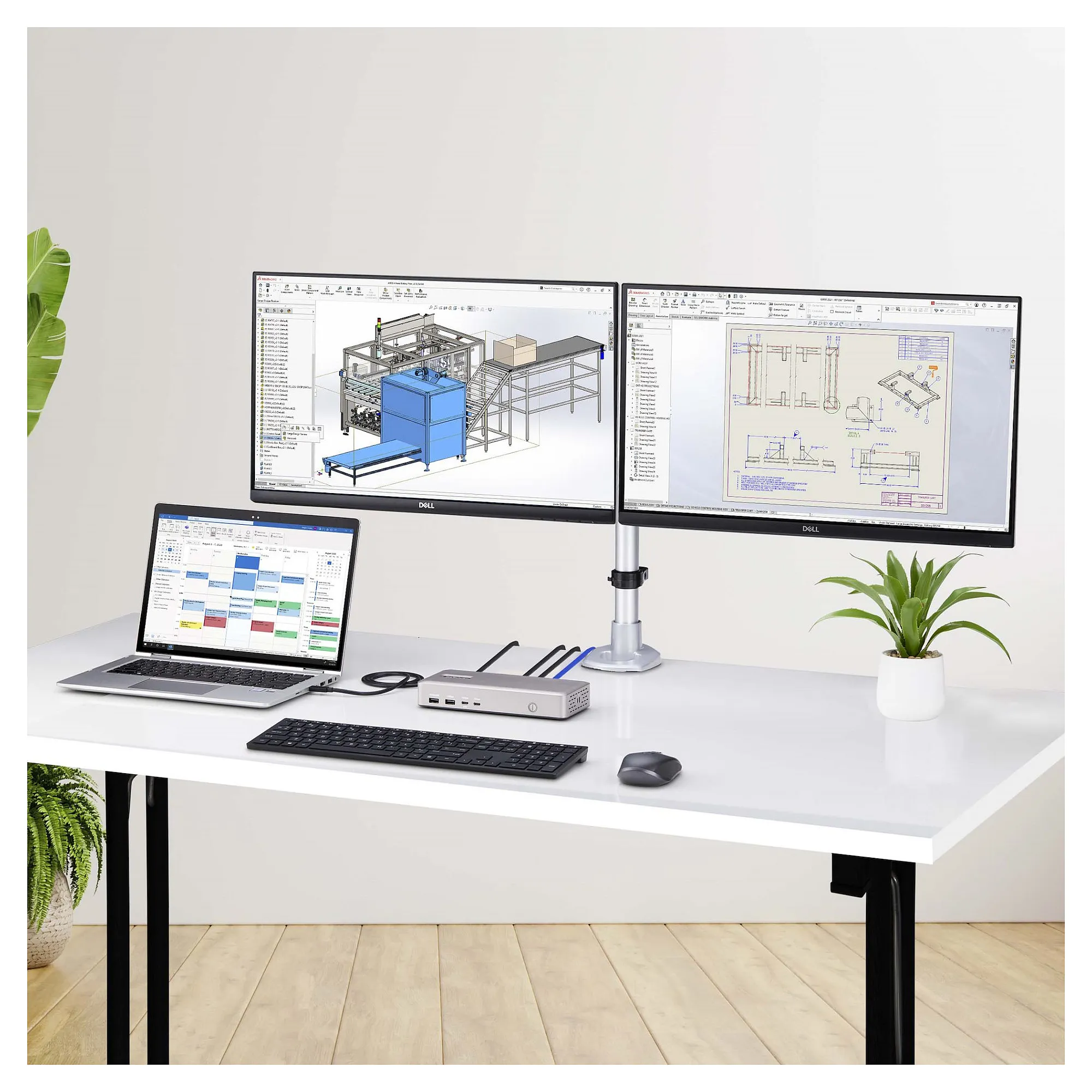

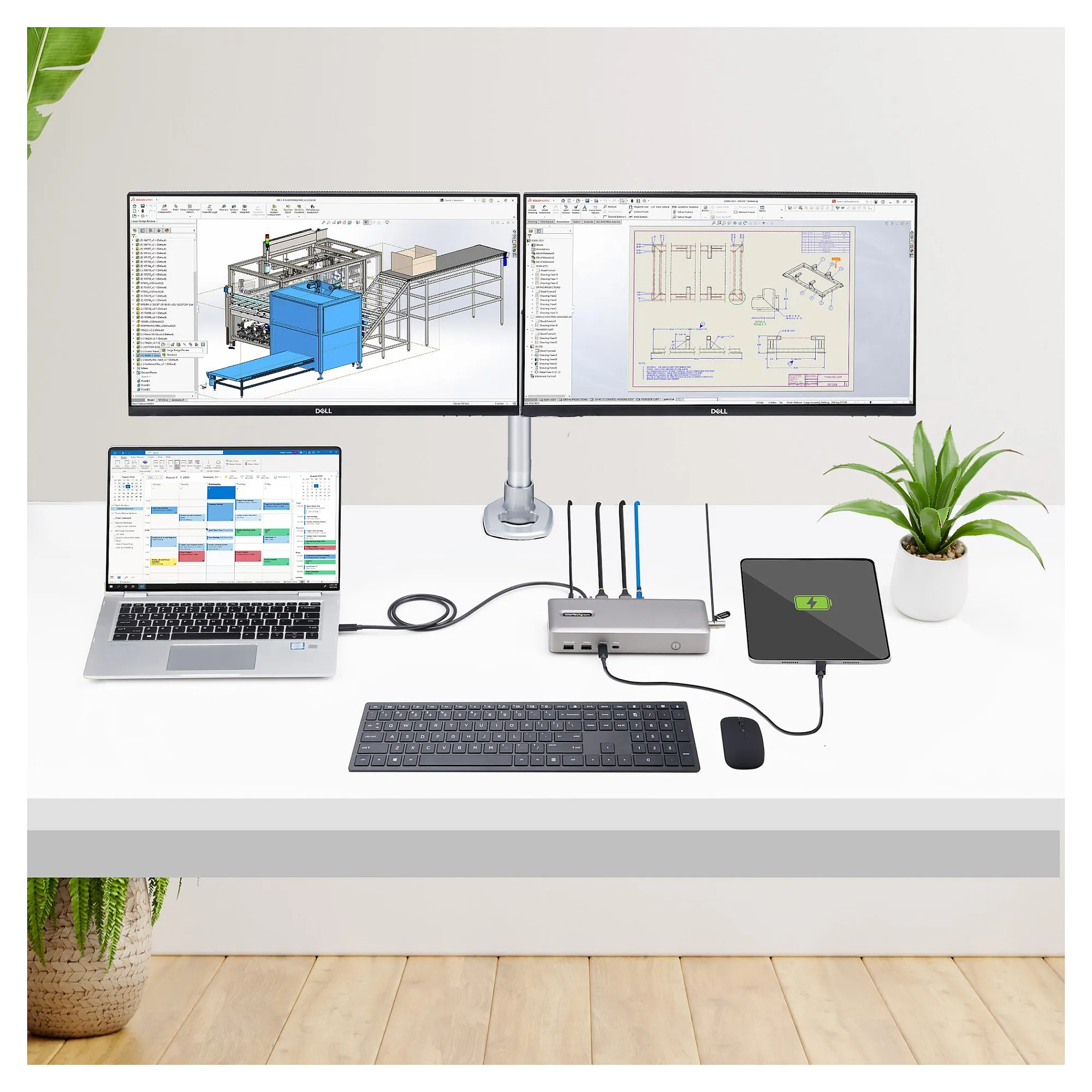

The dock is equipped with 2x HDMI 2.1 video outputs for connecting dual monitors to the host computer. The dock supports can support dual-monitors with support for resolutions up dual 4K 60Hz at 4:4:4 (RGB) or dual 4K 120Hz at 4:2:2. A single display workstation is also supported at resolutions up to 8K 30Hz 4:4:4 (RGB) or 8K 60Hz at 4:2:2.
Port Connectivity
The docking station utilizes the high 40Gbps throughput available from a Thunderbolt 4/3, or USB4 port to provide a wide range of port connectivity to suit a variety of applications.

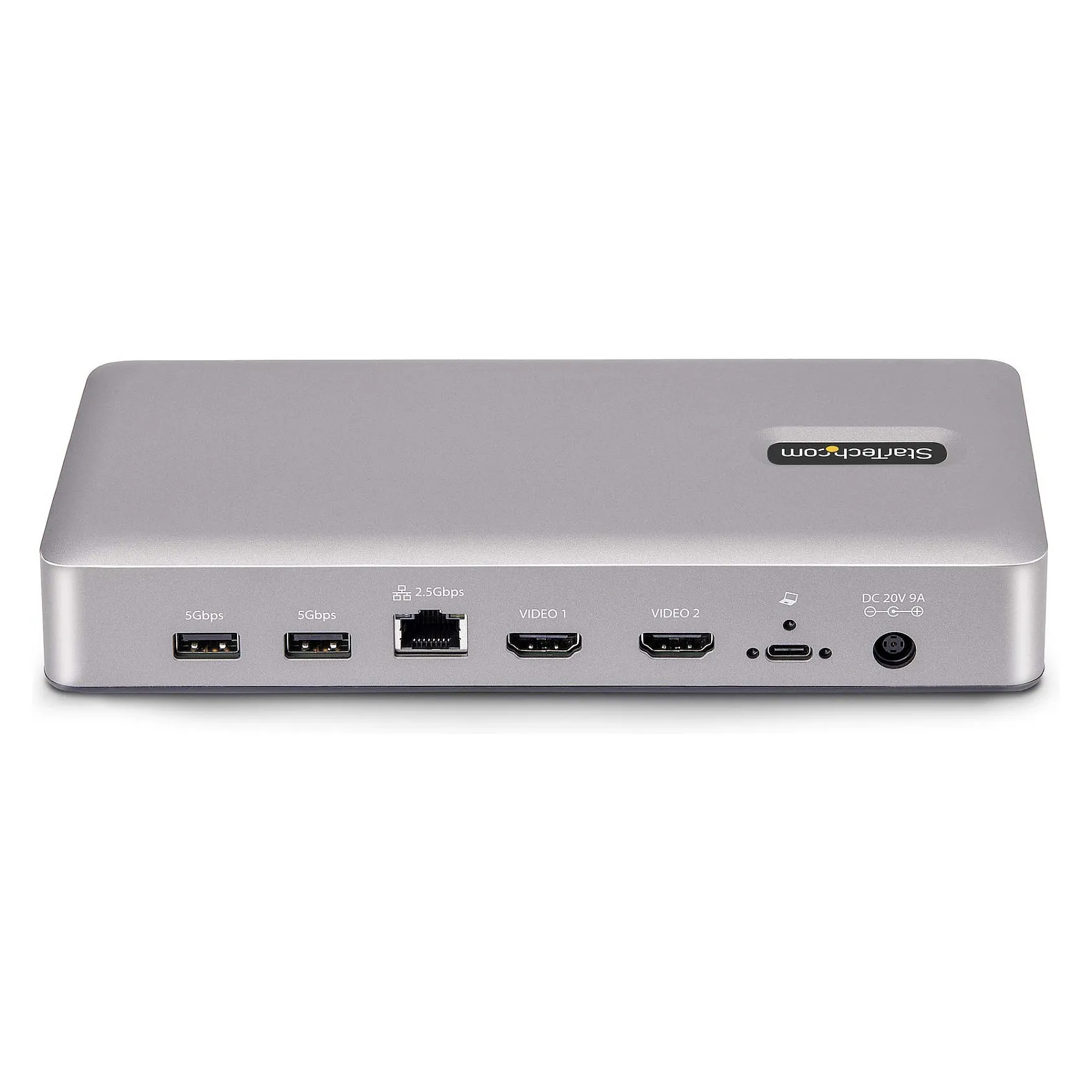

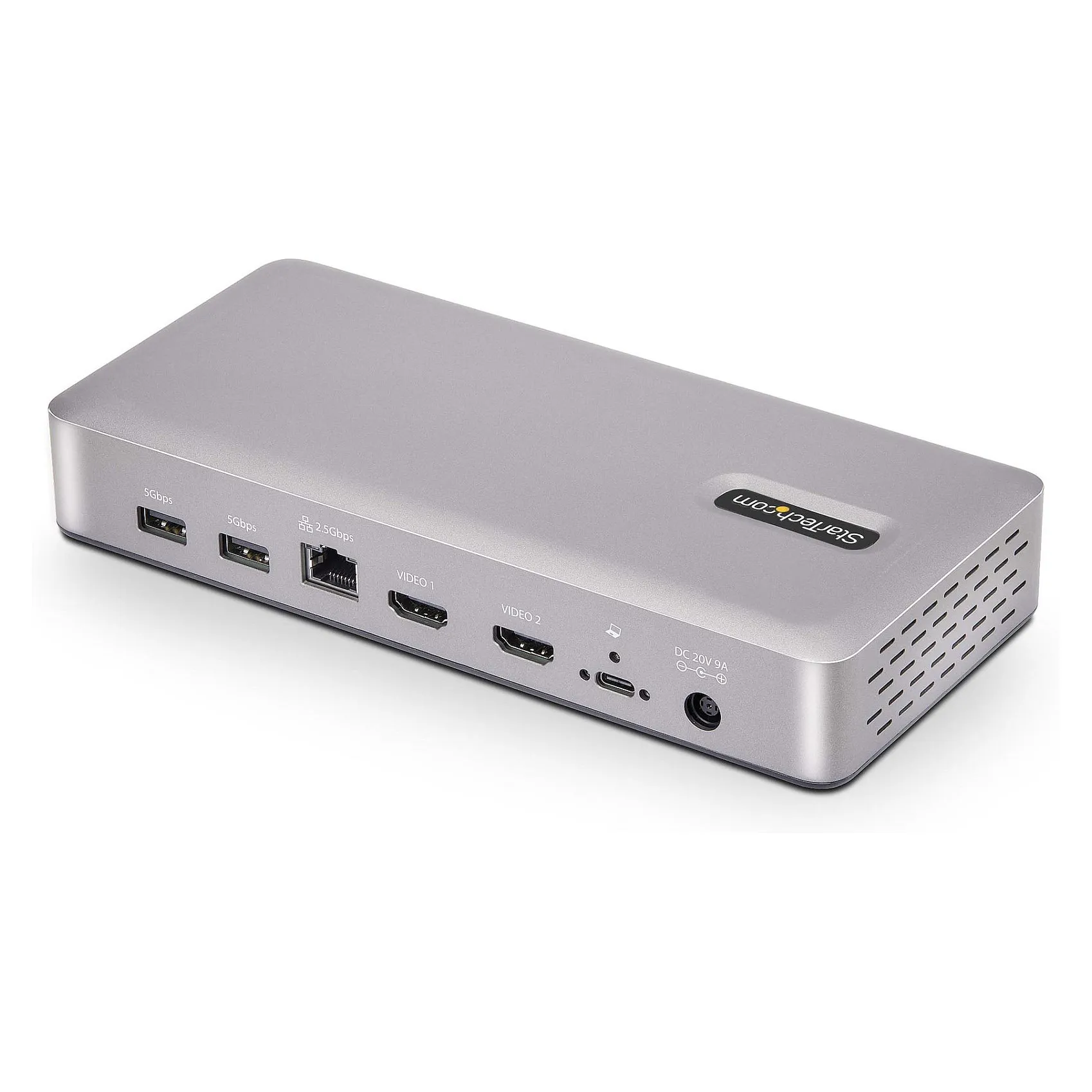

The dock features:
• 2x HDMI ports to connect displays.

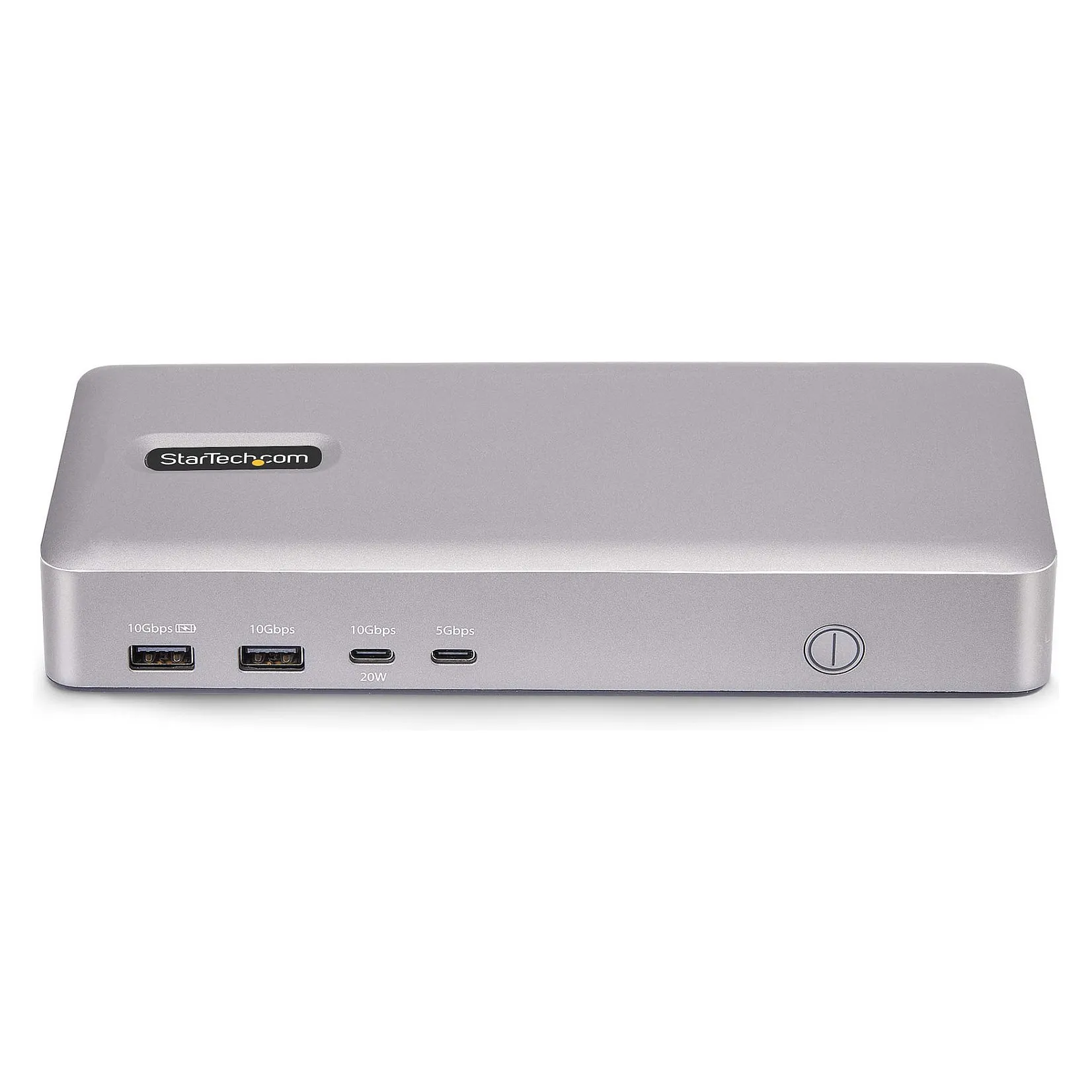

• 6x USB Hub (2x 10Gbps USB Type-A, 2x USB Type-A 5Gbps, 1x USB Type-C 10Gbps, 1x USB-C 5Gbps) to connect USB peripheral devices.
• 1x 2.5 Gigabit Ethernet port with PXE boot and WoL to connect to a wired Local Area Network (LAN)
100W USB Power Delivery

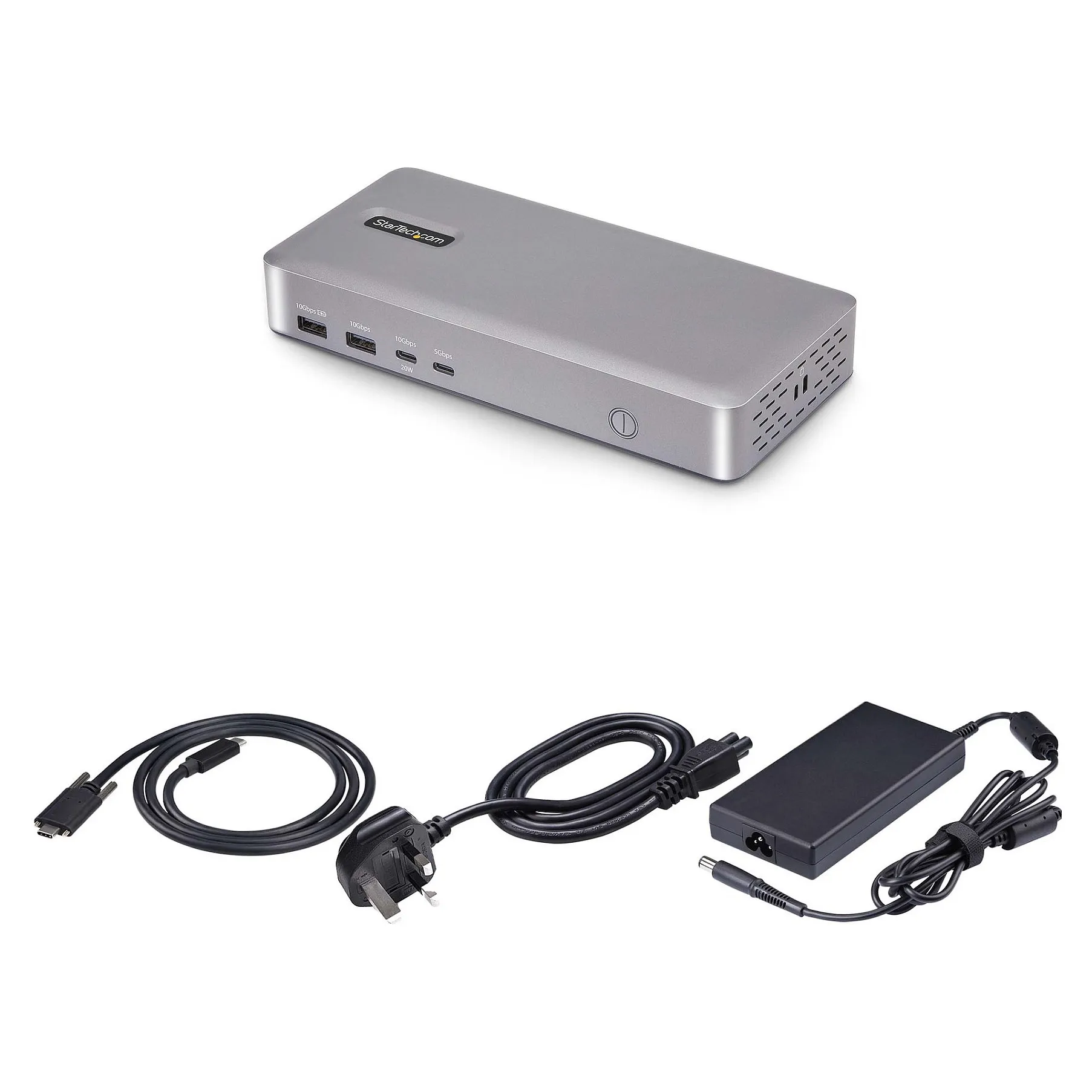

Includes a 180W power adapter and supports 100W USB power delivery. This enables the dock to charge the laptop, with enough additional power for all downstream ports. The 6-Port USB hub includes a 20W downstream USB-C Power Delivery port and a 7.5W BC 1.2 Downstream Charging Port (DCP) for charging tablets, smartphones or other battery-powered USB devices.
Enhance Productivity and Device Management with the StarTech.com Connectivity Tools App
Developed to improve performance and security, Connectivity Tools is the only software suite on the market that works with a wide range of IT connectivity accessories. The software includes:
• Advanced Windows Layout Utility : To setup and save custom windows layouts.
• Mac Address Pass-Through Utility : To improve network security.
• USB Event Monitoring Utility : To track and log connected USB devices
• Wi-Fi Auto Switch Utility : Enabling users to quickly access faster network speeds via wired LAN.
For more information and to download the StarTech.com Connectivity Tools application, please visit: www.StarTech.com/Connectivity-Tools
Connectivity technology: Wired
Host interface: USB4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 1
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity: 1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 2
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 1
Feature: USB Power Delivery (USB PD)
USB Power Delivery up to: 100 W
HDMI ports quantity: 2
Feature: DC-in jack
Network
Feature: Ethernet LAN
Ethernet LAN (RJ-45) ports: 1
Ethernet LAN data rates: 10,100,1000,2500 Mbit/s
Feature: Wake-on-LAN ready
Feature: Full duplex
Performance
Data transfer rate: 40 Gbit/s
HD type: 4K Ultra HD
Maximum digital resolution: 3840 x 2160 pixels
Number of displays supported: 2
Maximum refresh rate: 120 Hz

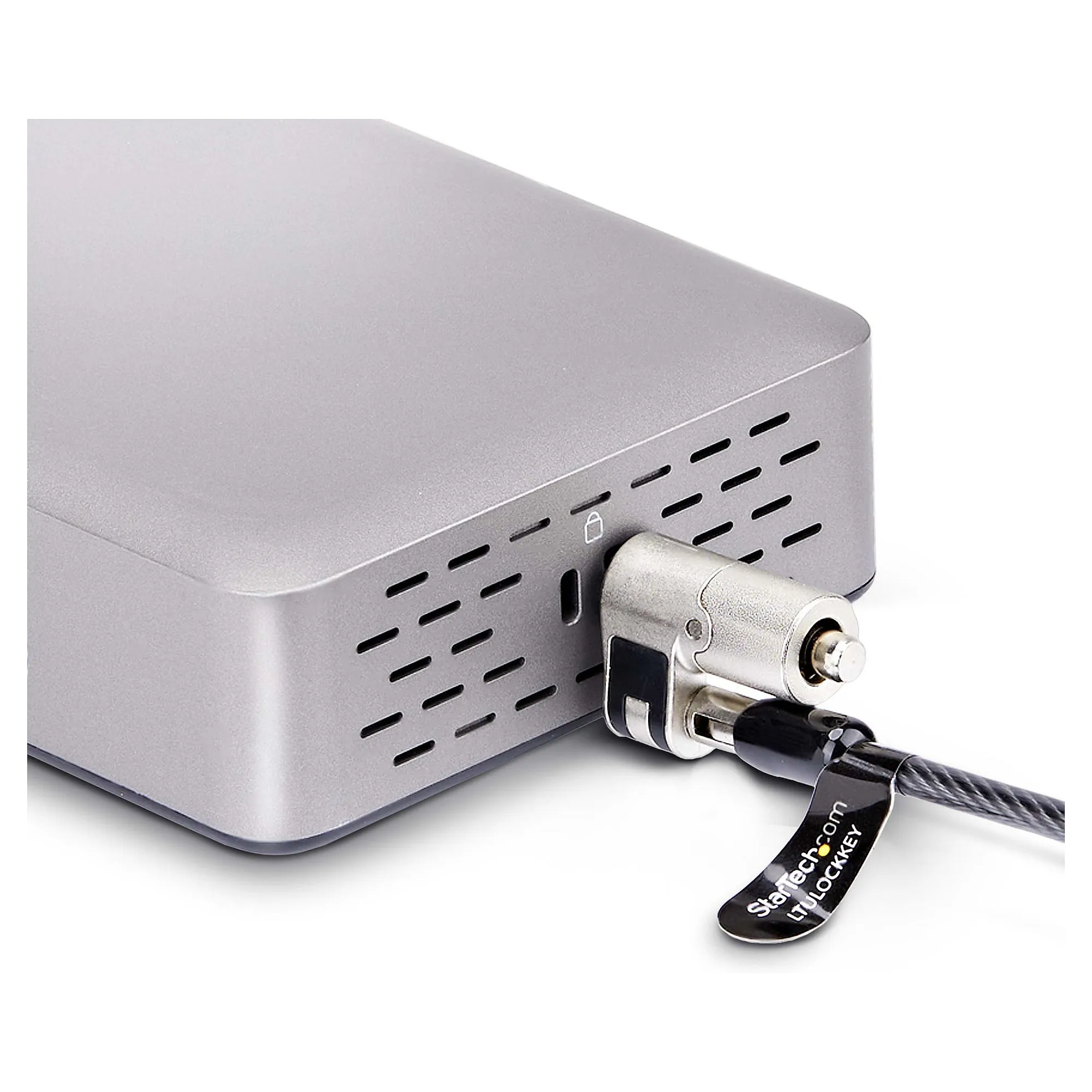

Feature: Cable lock slot
Cable lock slot type: Kensington, Nano
Product colour: Silver
Feature: On/off switch
LED indicators: Yes
Feature: UASP support
Housing material: Plastic
Power
Power source type: DC
AC input voltage: 100 – 240 V
Input current: 2.5 A
Output voltage: 20 V
Output current: 9 A
Power consumption (typical): 165 W
Power plug type: Type M
Compatible power plug types: EU, UK
Software
Other operating systems supported: ChromeOS
Operational conditions
Operating temperature (T-T): 0 – 40 °C
Storage temperature (T-T): -20 – 70 °C
Operating relative humidity (H-H): 0 – 95%

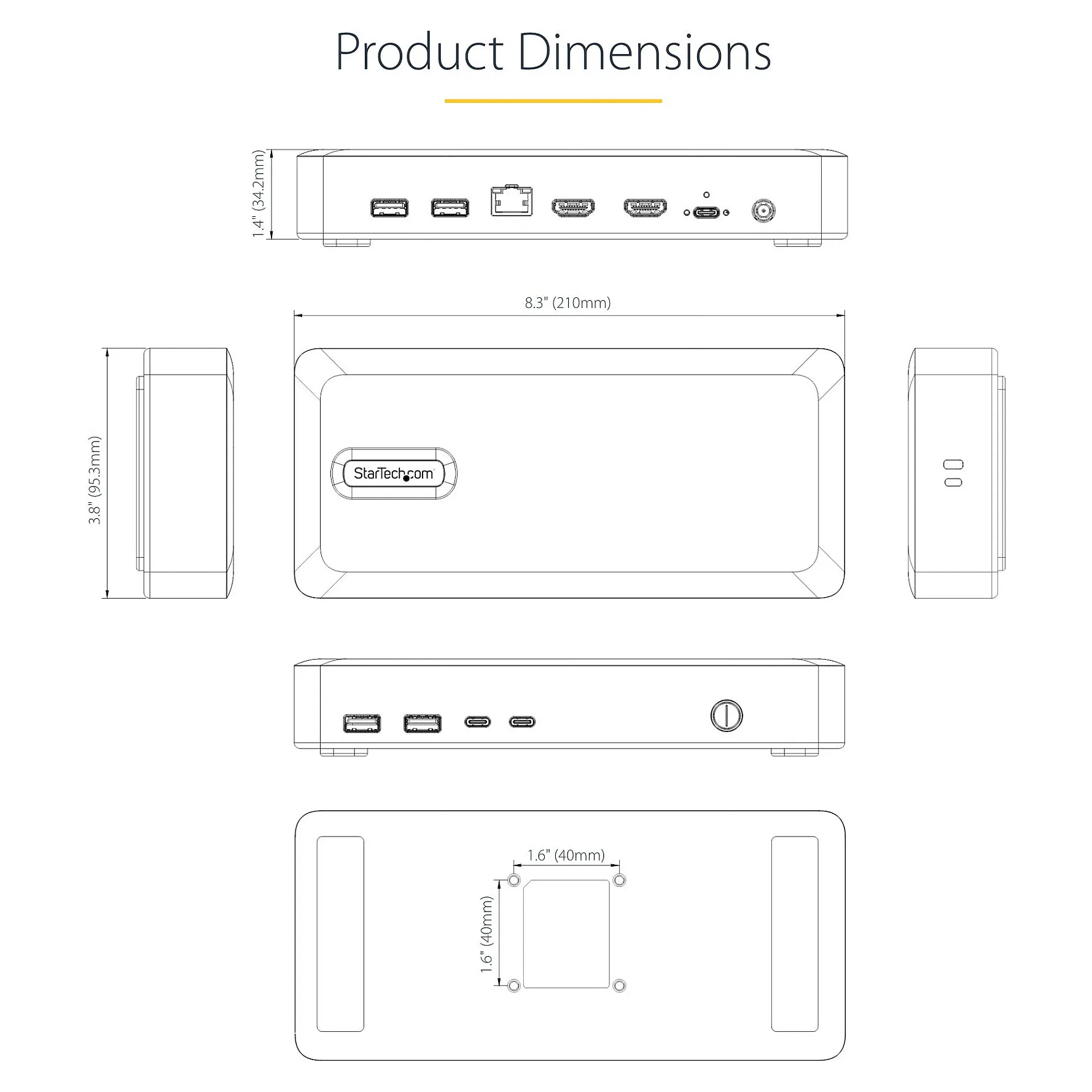

Weight & dimensions
Width: 210 mm
Depth: 95 mm
Height: 34 mm
Weight: 138.6 g
Packaging data
Package width: 145 mm
Package depth: 230 mm
Package height: 89 mm
Package weight: 1.3 kg
Packaging content
Cables included: USB
Feature: Quick start guide
Logistics data
Products per master (outer) case: 8 pc(s)
Master (outer) case width: 305 mm
Master (outer) case length: 375 mm
Master (outer) case height: 265 mm
Other features
Chipset: VIA – VL830, VIA – VL163, Realtek – RTD2188-VA-CG, Genesys Logic – GL9901NE
