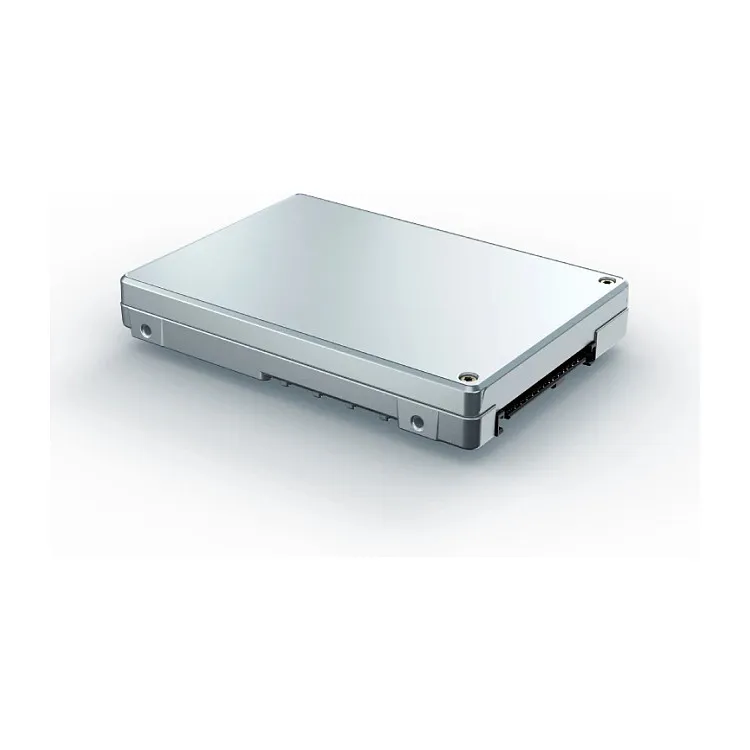

Solidigm D7-P5520. SSD capacity: 15 TB, SSD form factor: U.2, Read speed: 7100 MB/s, Write speed: 3700 MB/s, Component for: Server
Our highest-performing SSD Series includes the Solidigm D7-P5520: one of the industry’s most advanced PCIe products, performance-tuned for the real world. Designed with the highest standard endurance and tested with zero tolerance for data errors, it delivers consistently durable performance.
Accelerate and Consolidate Mixed and Mainstream Random Workloads
For highly mixed and mainstream workload environments requiring low latency for improved user experience, the D7-P5520 delivers consistent, exceptional performance where it counts. For solutions such as AI/ML, database, and cloud applications, it provides substantial random and sequential read/writes, high random read IOPS, and sequential write throughput.
The Industry’s Broadest PCIe 4.0 Portfolio
Form factor and capacity expansion enable server modernization opportunities spanning a broad range of 1U and 2U configurations for compute and storage servers. The Solidigm D7-P5520 is available in U.2, E1.L, E1.S 9.5 mm and E1.S 15 mm form factors.
Deploy With Confidence
Solidigm D7 Series drives are designed and tested with a passion for—and a relentless focus on—quality and reliability. Our data reliability is enhanced on multiple levels with PLI testing that simulates real-world conditions. Consistency is key, and this SSD provides up to 90% IOPS consistency and <0.3% IOPS variability over the life of the drive.
SSD capacity: 15 TB
SSD form factor: U.2
Interface: PCI Express 4.0
Feature: NVMe
Memory type: TLC 3D NAND
Component for: Server
Read speed: 7100 MB/s
Write speed: 3700 MB/s
Random read (4KB): 1000000 IOPS
Random write (4KB): 200000 IOPS
Random latency – read (up to): 75 µs
Random latency – write (up to): 15 µs
Sequential latency – read (up to): 10 µs
Sequential latency – write (up to): 13 µs
PCI Express interface data lanes: x4
Uncorrectable Bit Error Rate (UBER): < 1 per 10^17 bits read
Mean time between failures (MTBF): 2000000 h
Power
Power consumption (idle): 5 W
Weight & dimensions
Weight: 165 g
Operational conditions
Operating temperature (T-T): 0 – 70 °C
Operating vibration: 2.17 G
Non-operating vibration: 3.13 G
Operating shock: 1000 G
Non-operating shock: 1000 G
Other features
Power consumption (active): 13 W
