Smart switch SONOFF BASIC-ZB1GSP ZigBee

SONOFF BASIC-ZB1GSP Zigbee switch

Manage high-power devices with the SONOFF BASIC-ZB1GSP Zigbee smart switch. The device features standard DIN-rail mounting, allowing for easy integration into your existing electrical system without the need for drilling or additional modifications. With a load capacity of up to 32 A and the ability to monitor energy parameters, this switch is ideal for both residential installations and more demanding applications, such as electric vehicle chargers, water heaters, and heating systems.

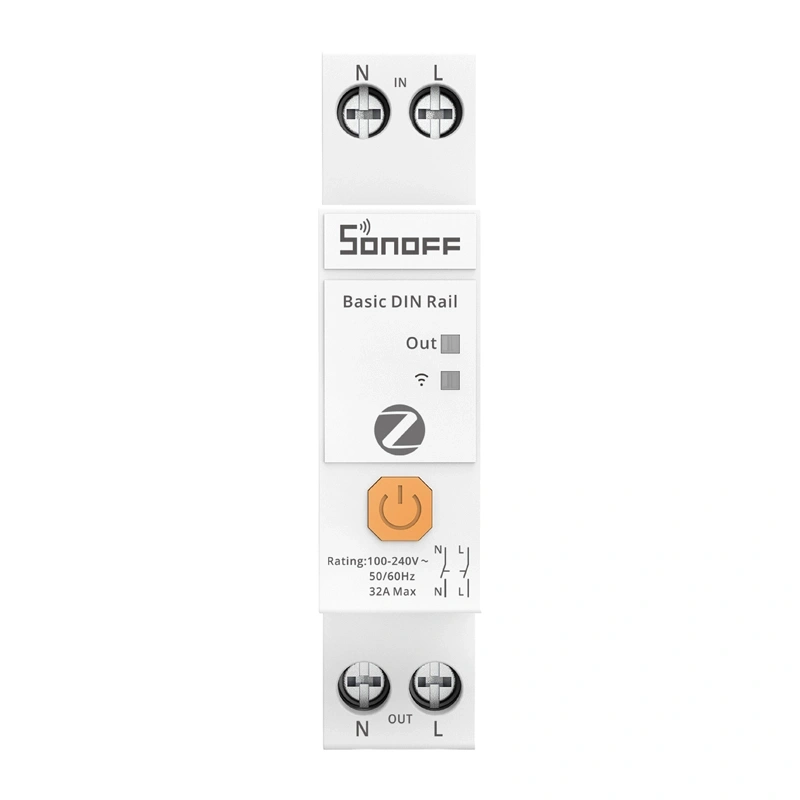

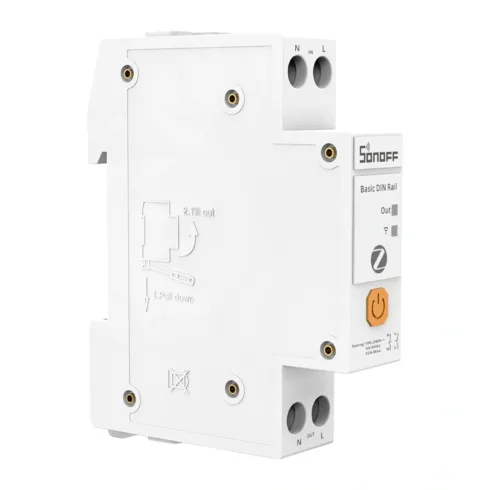

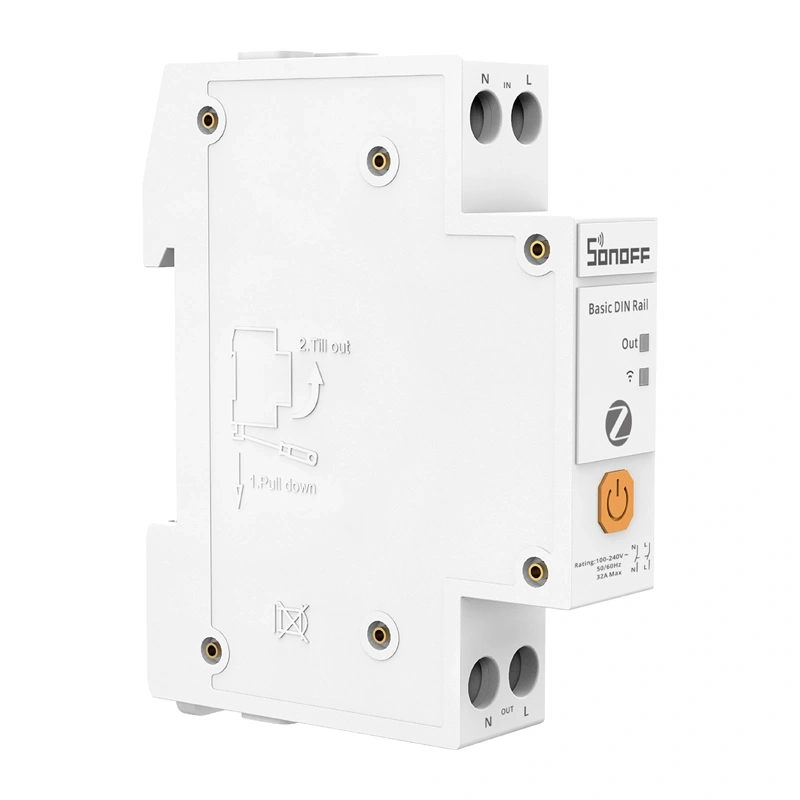

Convenient DIN-rail mounting

The device is designed for mounting on standard DIN rails, commonly used in electrical distribution panels. This solution allows for quick installation of the switch in the desired location without the need to drill additional holes or modify the system’s enclosure. As a result, the SONOFF BASIC-ZB1GSP can serve as a convenient component for upgrading existing energy management systems in homes, workshops, or industrial facilities.

Energy monitoring and consumption analysis

The switch enables real-time tracking of key electrical parameters, such as voltage, current, power, and energy consumption. Data can be stored and exported, which facilitates analysis of connected devices’ performance and allows for better management of energy usage. Monitoring features help determine the system’s operation more accurately and verify the actual current consumption of connected devices.

Supports high loads up to 32 A

The SONOFF BASIC-ZB1GSP is designed to work with devices requiring higher power, supporting a maximum load of up to 32 A and power up to 7,680 W. These specifications make it suitable for use with electric vehicle chargers, water heaters, and underfloor heating systems, among other applications. The switch is ideal for any situation where standard modules with lower load capacity may prove insufficient.

Enhanced installation safety

The device is equipped with overload protection features and the ability to set individual thresholds for voltage, current, and power. If specified values are exceeded, the switch can automatically disconnect the output, reducing the risk of damage to connected devices. An additional safety feature is the dual-switching design, which allows both the phase and neutral wires to be disconnected, ensuring more complete circuit isolation.

Zigbee 3.0 and stable communication

Support for the Zigbee 3.0 standard ensures a stable connection to the smart home system and broad compatibility with devices using this protocol. The switch can also function as a Zigbee router, relaying the signal and helping to increase the range and stability of the entire network. This allows it to be part of extensive automation and energy management systems.

Home and industrial applications

The SONOFF BASIC-ZB1GSP is well-suited for many installations requiring smart energy management. It can be used to control high-power devices, monitor electrical systems, and automate selected circuits. The ability to mount it in a distribution panel makes the device suitable for use in homes as well as industrial and commercial facilities.

Robust construction and compatibility with installations

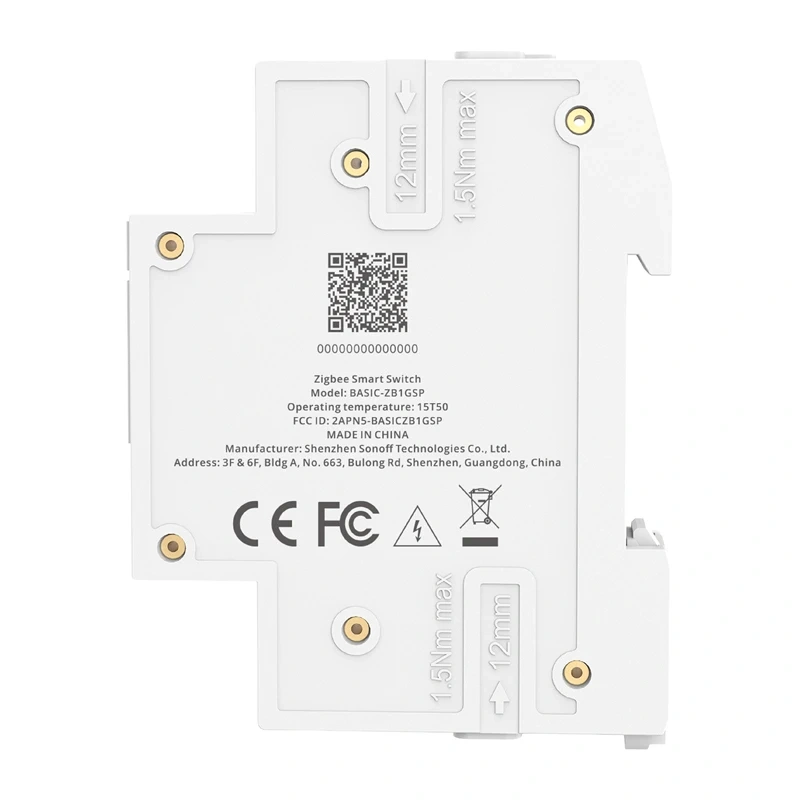

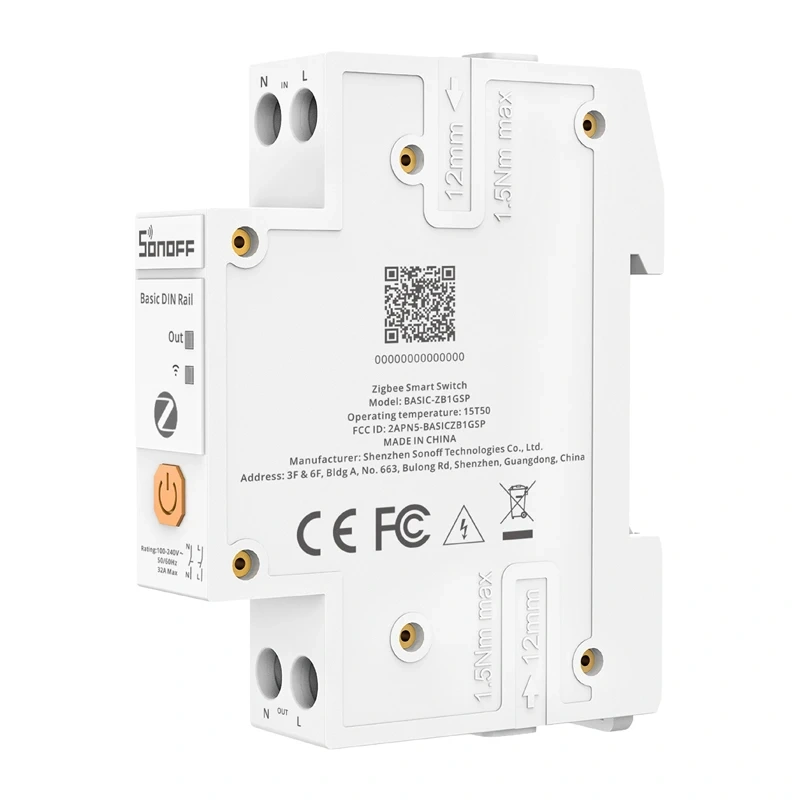

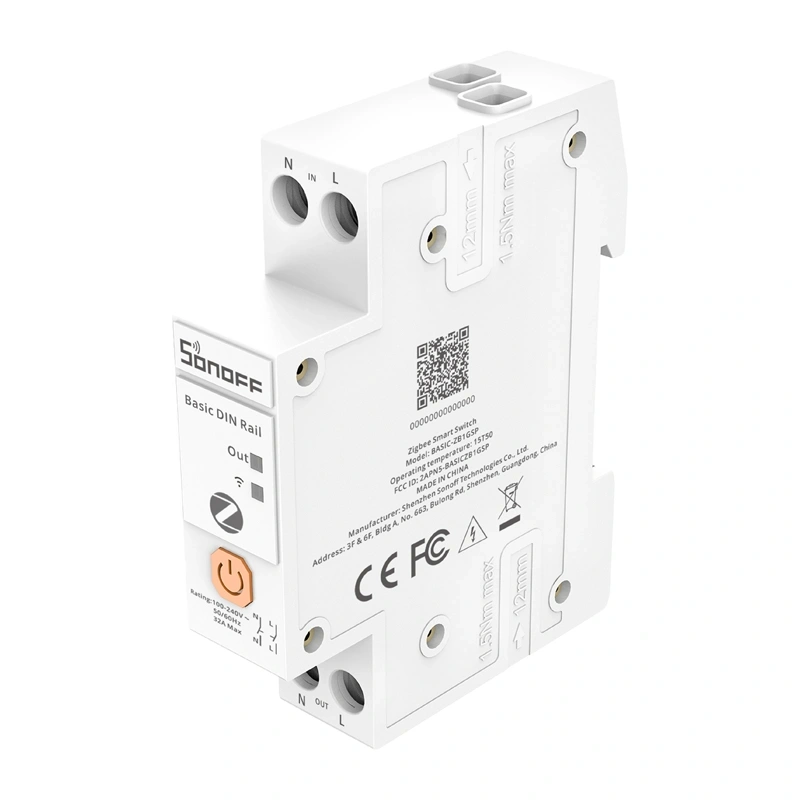

The PC plastic housing ensures a durable design suited for daily operation in indoor installations. The switch measures 84 × 66.5 × 18 mm and weighs 93.5 g, allowing it to maintain a compact form factor while handling high loads. The device is compatible with copper wires ranging from 4 mm² to 10 mm² in cross-section and can operate at temperatures from -15°C to 50°C and humidity levels of 10–90% RH without condensation.

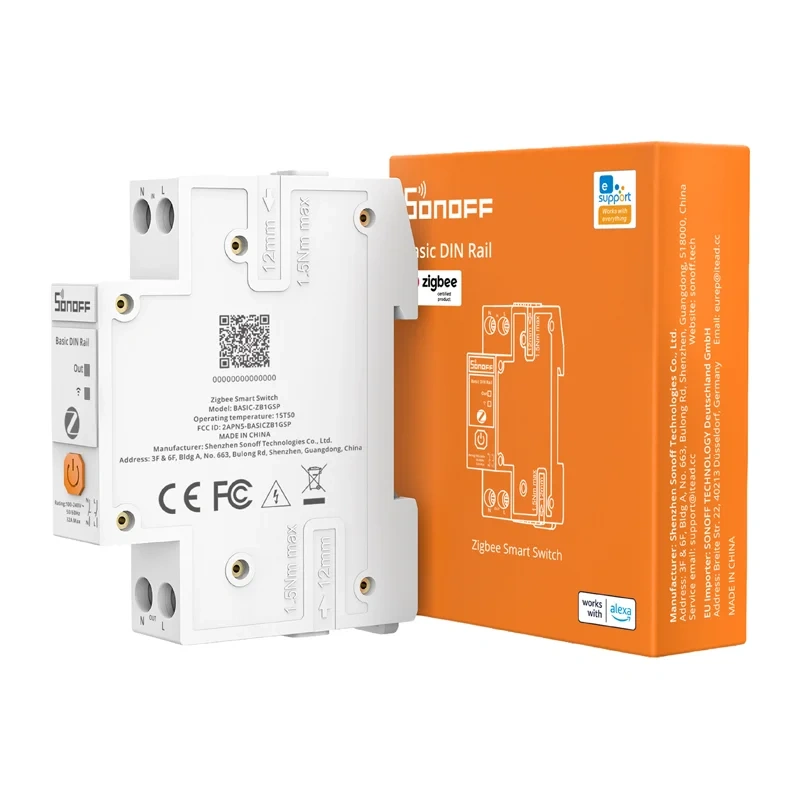

Included in the set

• SONOFF BASIC-ZB1GSP switch
• User manual
