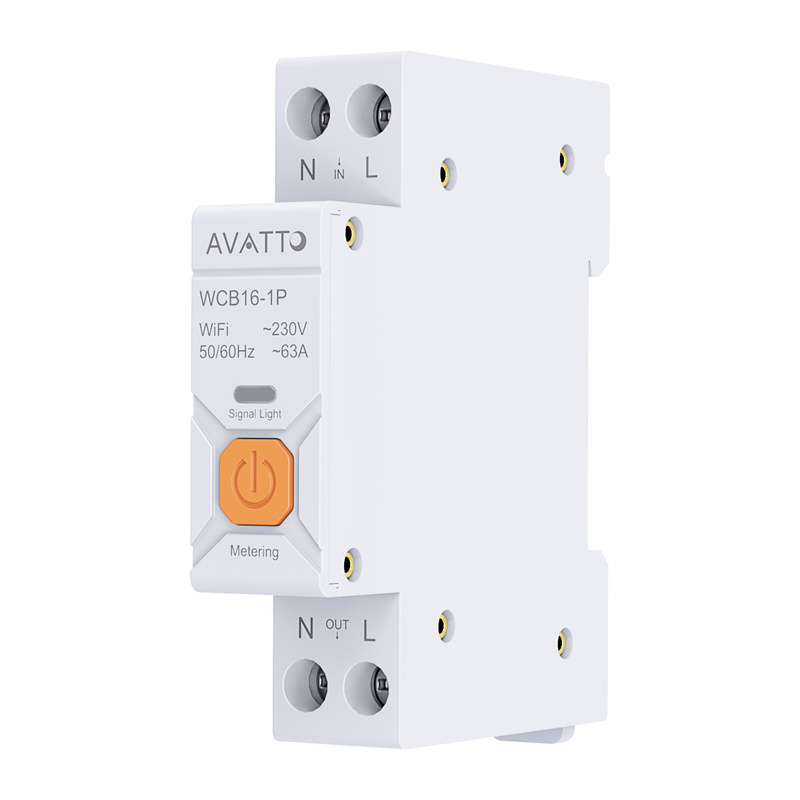

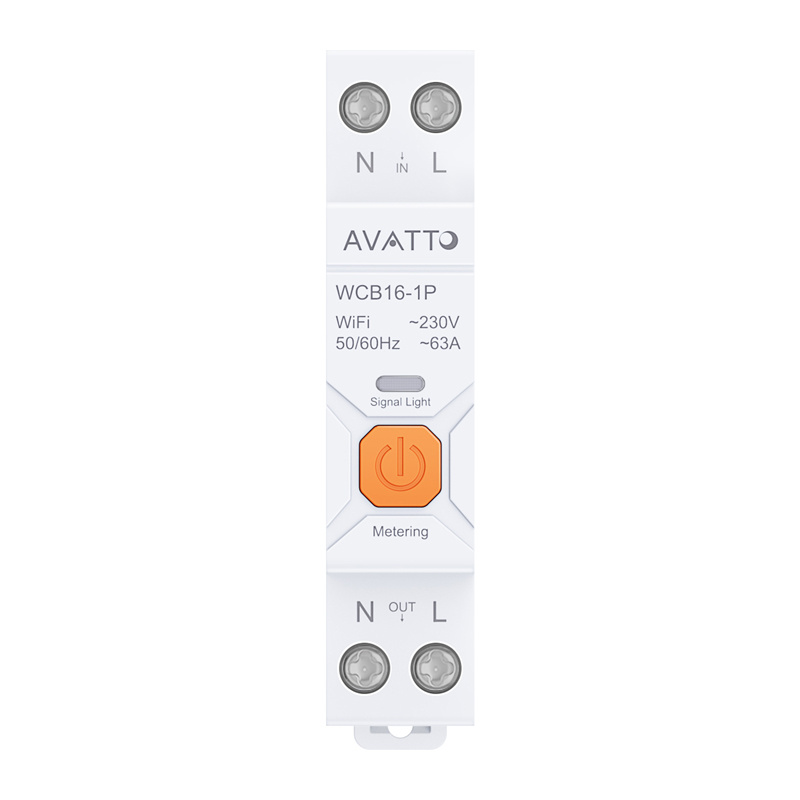

Smart fuse with WIFI Avatto WCB16
The Avatto WCB16 is a Wi-Fi smart fuse that enables remote control of an electrical circuit and real-time monitoring of energy consumption. The device integrates with Tuya Smart and Smart Life apps, allowing control from anywhere – from a smartphone or by voice using Amazon Alexa and Google Assistant. It’s ideal for homes, offices and workshops where safety, savings and full control of energy are important.
Safety and savings
The Avatto WCB16 module is equipped with a number of safety features that protect the installation from overload, overheating, overvoltage and under-voltage. The intelligent system automatically disconnects the power supply in an emergency situation, minimizing the risk of equipment damage. In addition, the energy measurement (metering) function allows precise tracking of current, voltage and power consumption, helping to optimize energy consumption and lower electricity bills.
Remote control and scheduling
With 2.4GHz Wi-Fi communication, users can turn the fuse on and off remotely from the app. It is also possible to set automatic schedules, time modes or countdowns. The system allows you to create scenes in which the fuse reacts to other smart devices – for example, it cuts off the power at certain times or after exceeding a set level of consumption. This is a convenient and modern energy management tool.
Easy installation and configuration
Installation of the Avatto WCB16 is quick and hassle-free – the device installs directly into a DIN rail, and its compact design fits into standard switchboards. After connecting the wires, all you need to do is launch the application, turn on the module and add it to the network. A built-in LED indicates the connection status (ON/OFF/pairing), and setup takes just a few minutes.
View consumption in real time
With Live View, the user can view the current, voltage and power of the load. The data can be analyzed on a daily, weekly, monthly and yearly basis, allowing you to better understand your energy consumption structure and plan for optimization. Consumption information can also be checked remotely, making the Avatto WCB16 an excellent tool for smart energy monitoring.
| Manufacturer | Avatto |
|---|---|
| Model | WCB16-1P |
| Type | Wi-Fi smart fuse with energy metering |
| Communication protocol | Wi-Fi 2.4 GHz (IEEE 802.11 b/g/n) |
| Operating voltage range | 90 – 240 V AC |
| Frequency | 50/60 Hz |
| Rated current | up to 63 A |
| Energy measurement | Yes (Metering function) |
| Control modes | Remote / Manual / Schedules |
| Protection functions | Overcurrent, overvoltage, undervoltage, temperature |
| LED indicator | Operation, connection and pairing status |
| Mounting | On a DIN rail (1P N-L pass-through) |
| Dimensions | 18 × 76 × 27 mm |
| Application support | Tuya Smart / Smart Life |
| Voice control | Amazon Alexa / Google Assistant |
