Shuttle XPС slim DH610V2. Chassis type: 1.35L sized PC, Product type: Mini PC barebone. Motherboard chipset: Intel H610, Processor socket: LGA 1700, BIOS type: AMI. Supported memory types: DDR5-SDRAM, Number of memory slots: 2, Maximum internal memory: 96 GB. Supported storage drive types: HDD & SSD. Ethernet LAN (RJ-45) ports: 2. Cooling type: Active. Power supply: 120 W

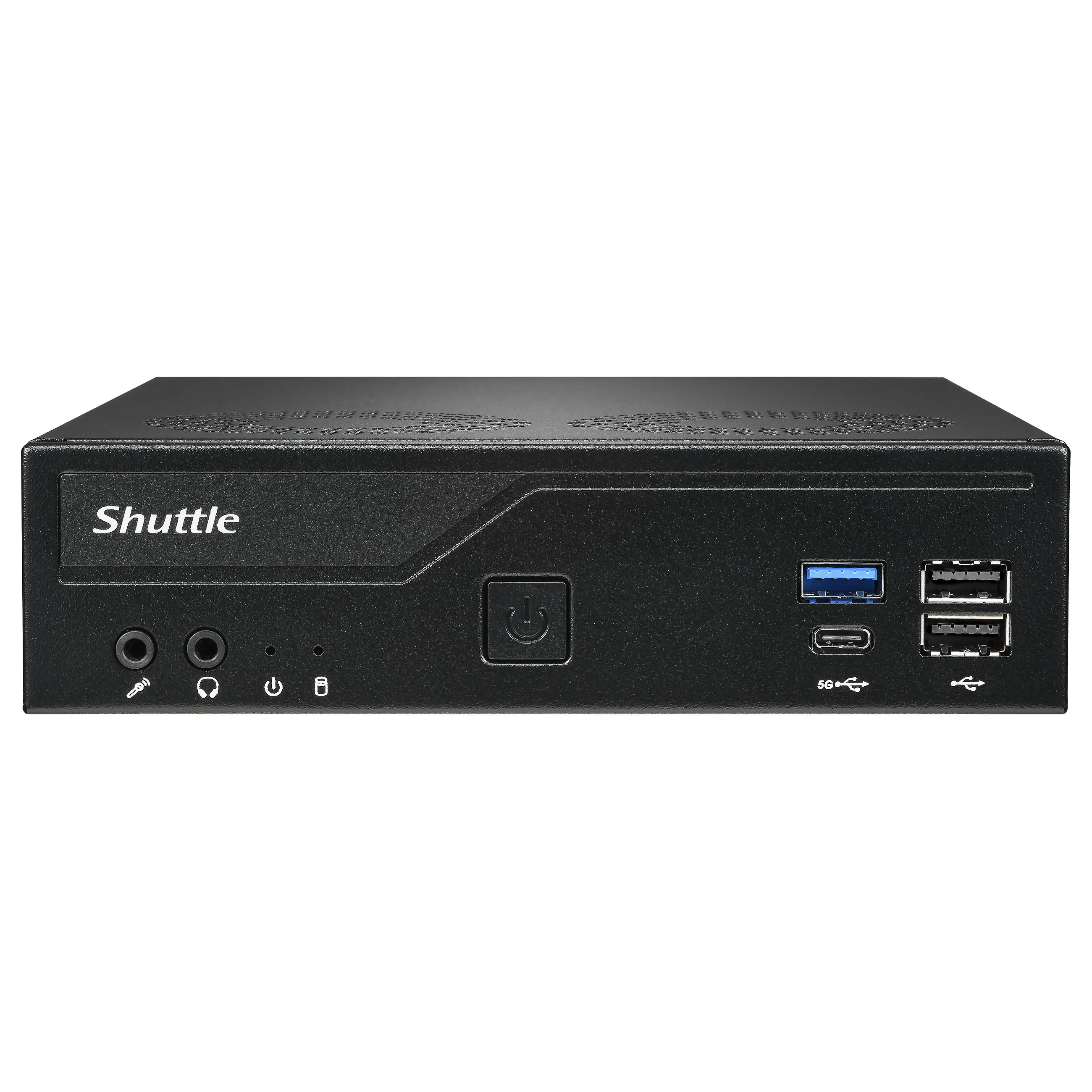

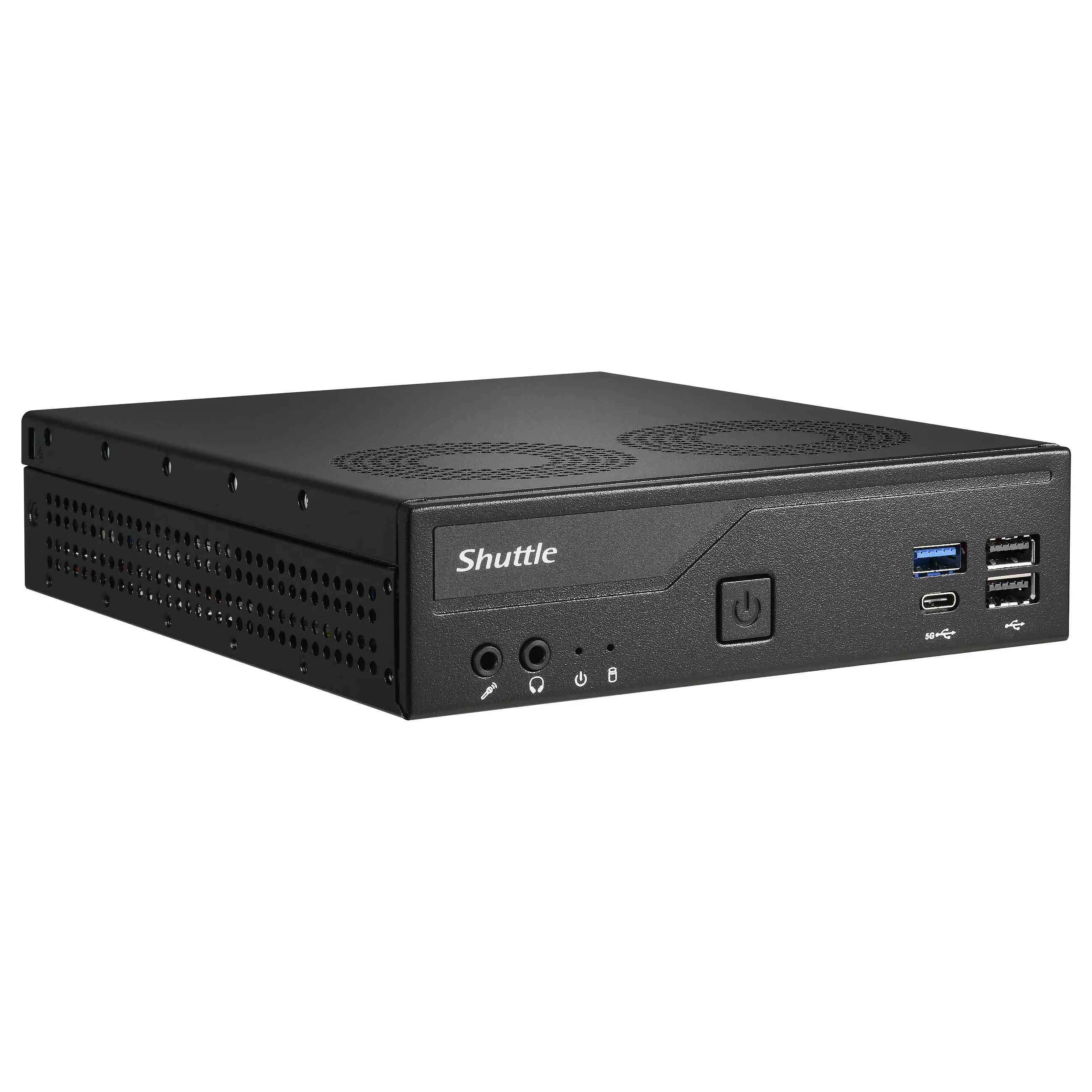

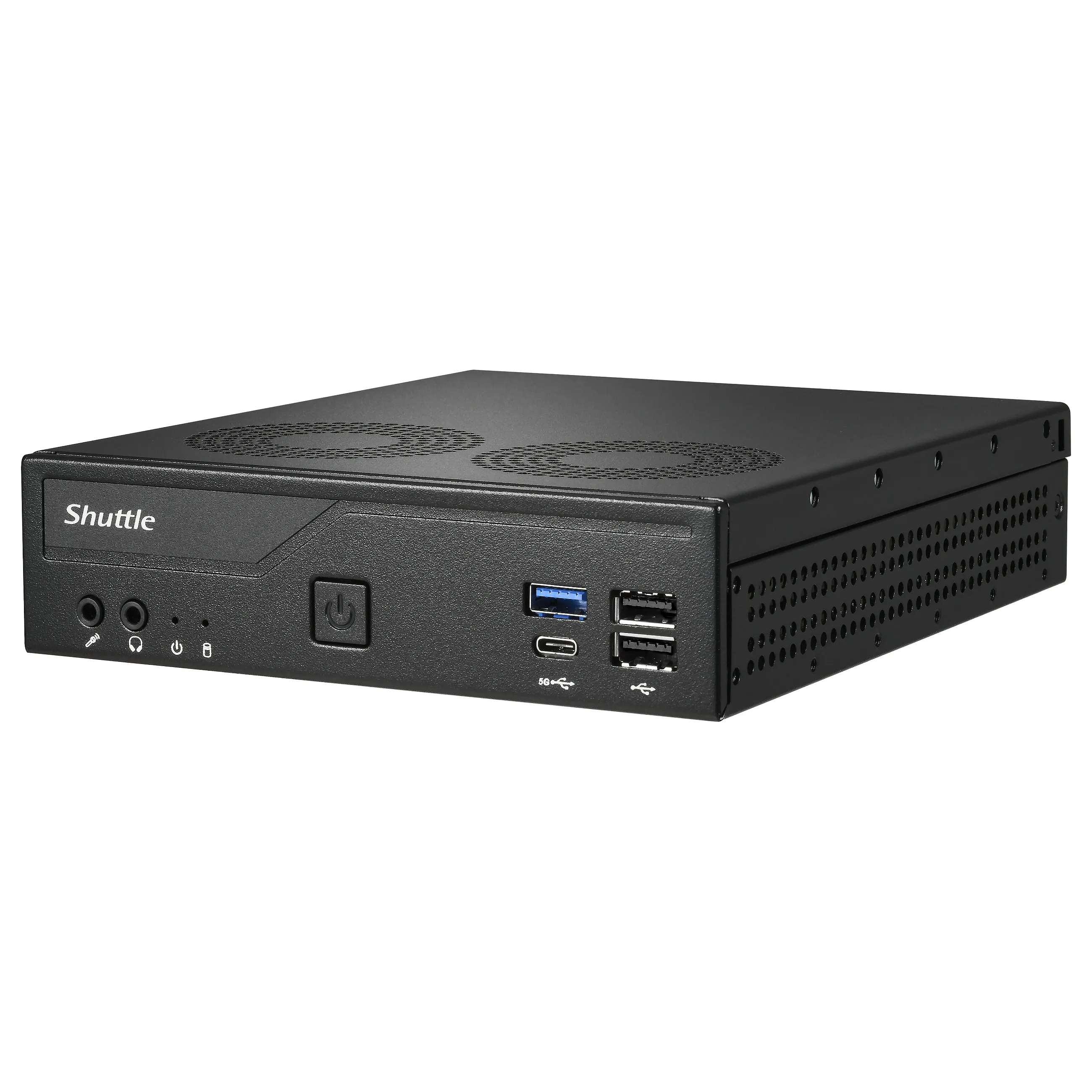

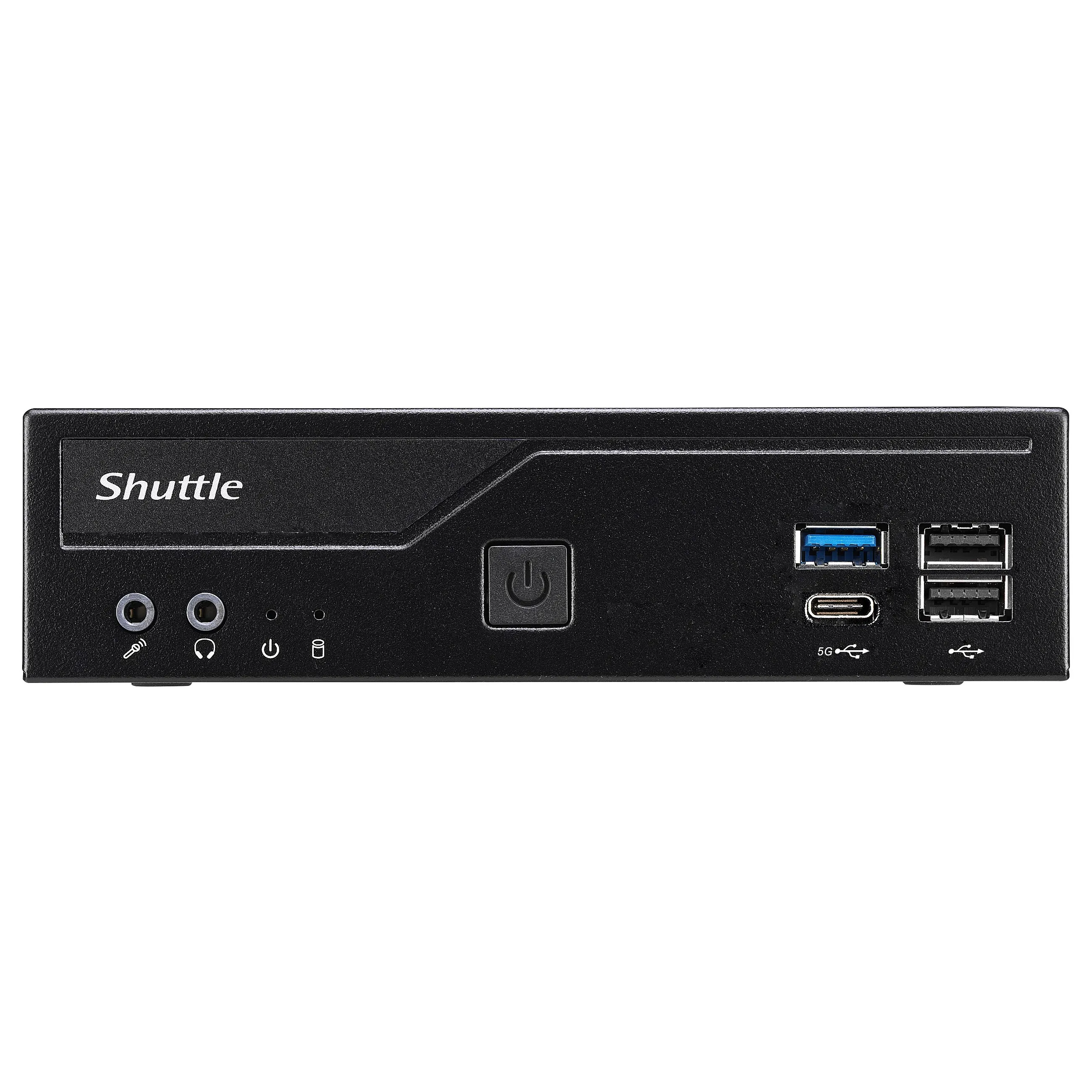

The Shuttle XPC slim Barebone DH610V2 with H610 chipset houses the performance of Intel’s 12th/13th/14th generation Core desktop processors (codenamed Alder Lake-S and Raptor Lake-S [Refresh]) for socket LGA1700 in a compact 1.3-litre format. The DH610V2 allows for three Ultra HD displays to be operated at the same time via 1x HDMI and 2x DisplayPort. It also offers Dual Intel LAN (one supports 2.5G speed), eight USB ports and two COM ports. The slim metal chassis comes with a VESA mount included, provides versatile connectivity and reliable operation in environments with ambient temperatures of up to 50 °C. This platform is targeted at professional applications such as Digital Signage, POS, POI, gambling machines, office, healthcare and industry.
Memory
Memory slots type: SO-DIMM
Number of memory slots: 2
Maximum internal memory: 96 GB
Supported memory clock speeds: 5600 MHz
Supported memory types: DDR5-SDRAM
Memory channels: Dual-channel
Memory voltage: 1.1 V
Feature: Non-ECC
Storage
Supported storage drive types: HDD & SSD
Storage drive sizes supported: 2.5,M.2
Feature: NVMe
Graphics
Feature: On-board graphics card
Network
Feature: Ethernet LAN
LAN controller: Intel I226, Intel I219V

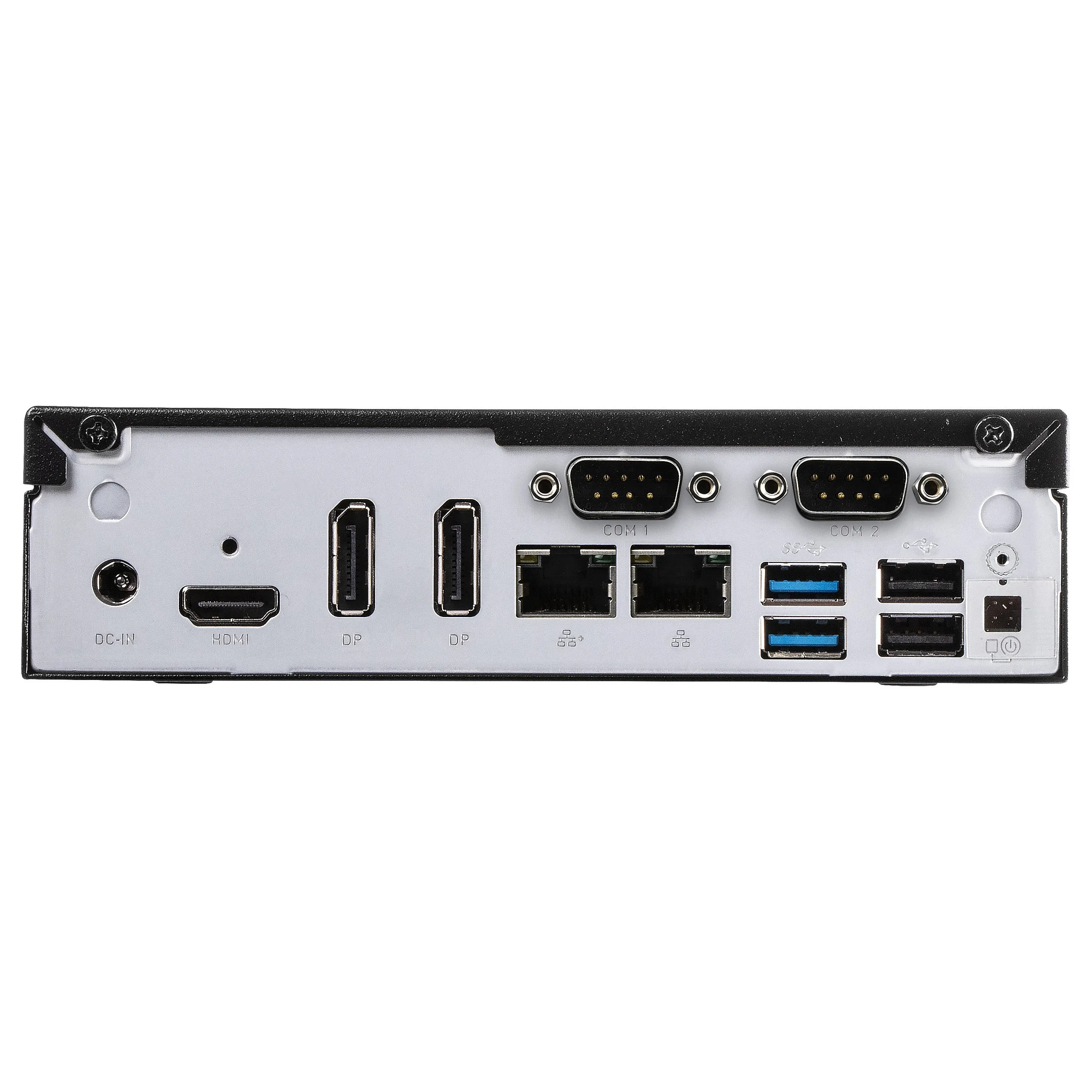

Ports & interfaces
USB 2.0 ports quantity: 4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 3
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity: 1
HDMI ports quantity: 1
HDMI version: 2.0b
DisplayPorts quantity: 2
DisplayPort version: 1.4
Feature: Microphone in
Headphone outputs: 1
Ethernet LAN (RJ-45) ports: 2
Serial ports quantity: 2
Feature: DC-in jack
Design
Chassis type: 1.35L sized PC
Product colour: Black

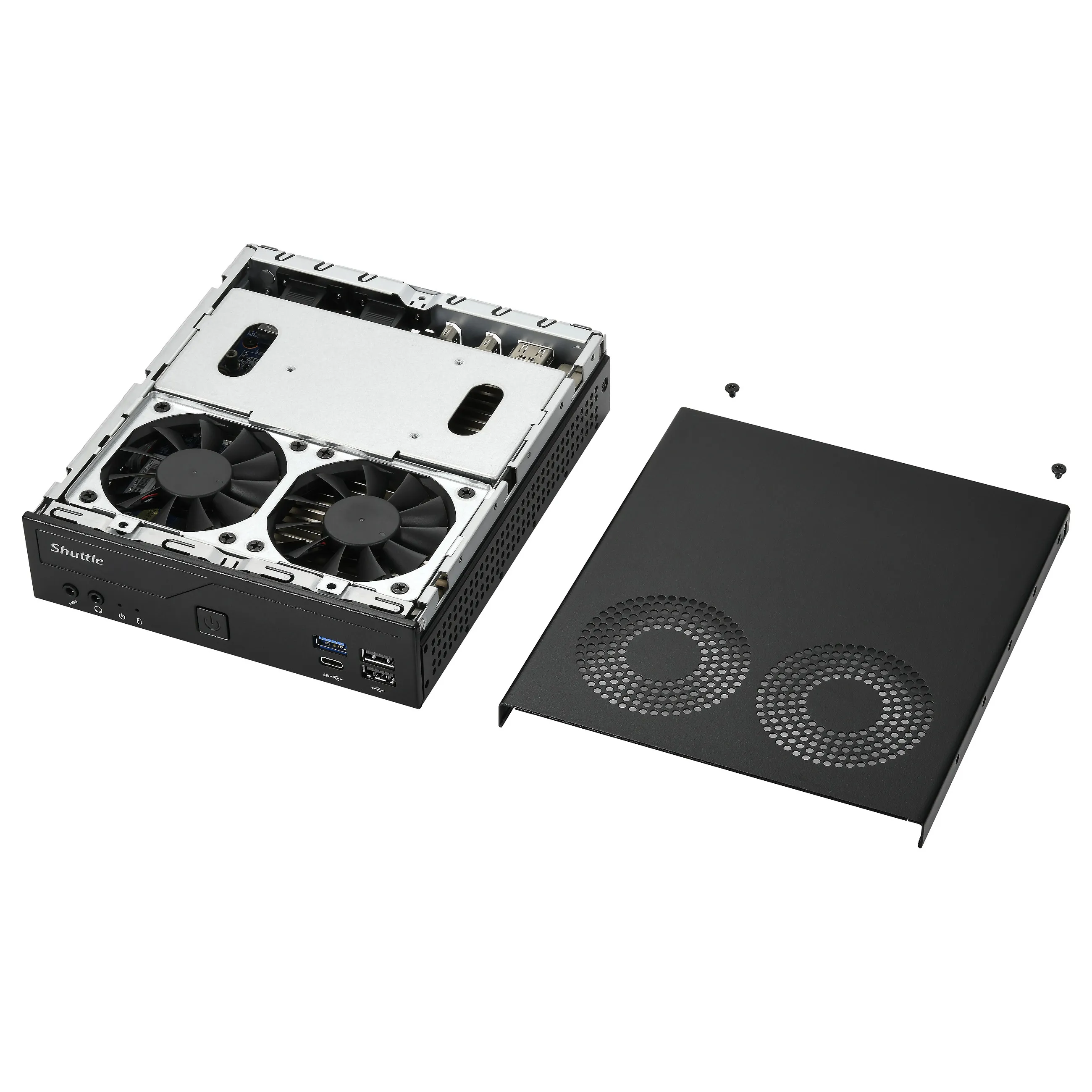

Cooling type: Active
Feature: On/off switch
LED indicators: Power, HDD
Housing material: Metal
Feature: Cable lock slot
Cable lock slot type: Kensington
Feature: VESA mounting
Panel mounting interface: 75 x 75,100 x 100 mm
Product type: Mini PC barebone
Performance

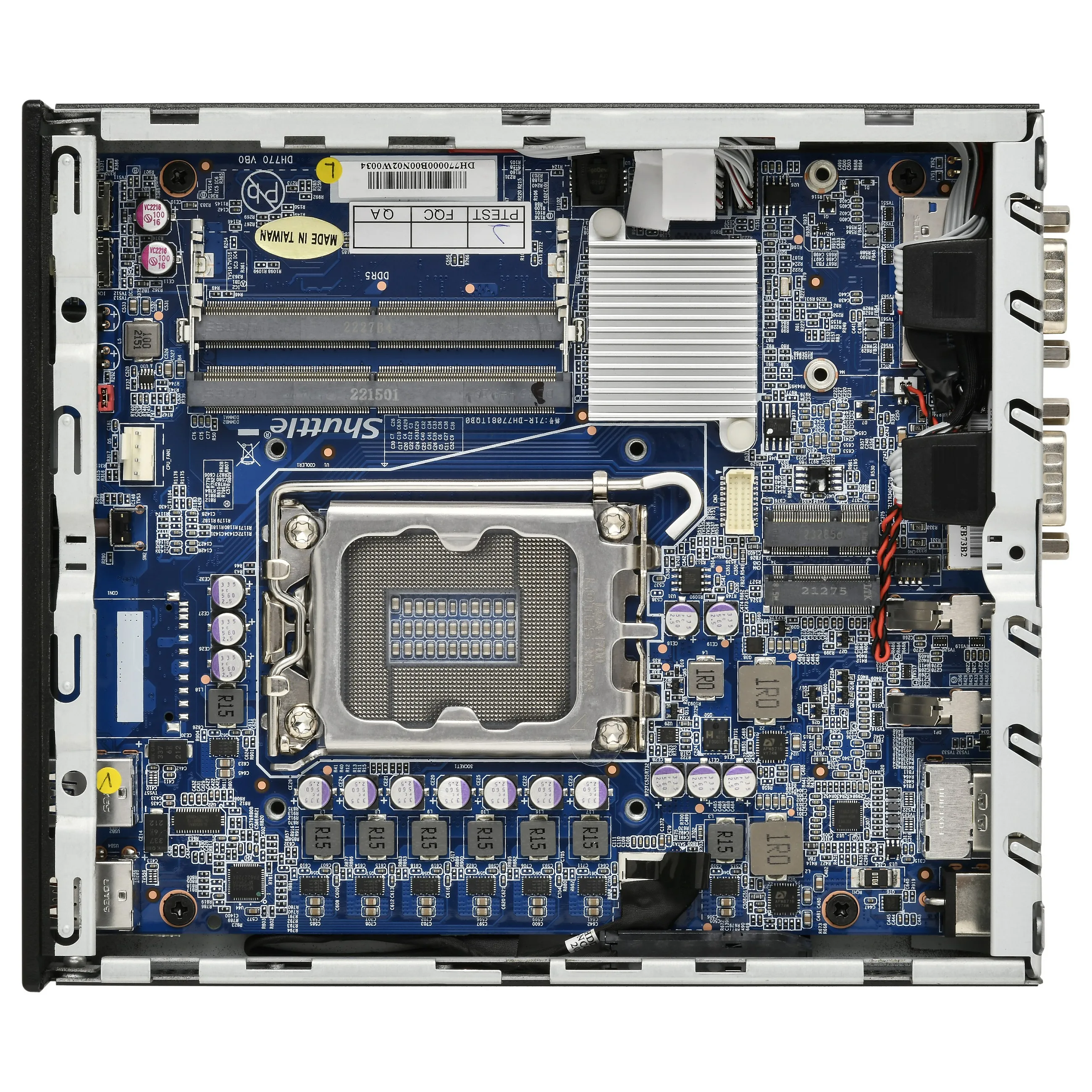

Motherboard chipset: Intel H610
Processor socket: LGA 1700
Number of processors supported: 1
BIOS type: AMI
Feature: Trusted Platform Module (TPM)
Trusted Platform Module (TPM) version: 2.0
Audio chip: Realtek ALC888S
Technical details
Compliance certificates: BSMI, CE, Federal Communications Commission (FCC), RCM, VCCI, ETL, CB, RoHS
Software
Windows operating systems supported: Windows 10, Windows 11
Linux operating systems supported: Yes
Sustainability
Sustainability certificates: ENERGY STAR, ErP
Power
Power supply type: External AC adapter
Power supply: 120 W
Number of power supply units: 1
AC input voltage: 100 – 240 V
AC input frequency: 50/60 Hz
AC adapter output voltage: 19 V
AC adapter output current: 6.32 A
Operational conditions
Operating temperature (T-T): 0 – 50 °C
Operating relative humidity (H-H): 10 – 90%
Weight & dimensions
Width: 165 mm
Depth: 190 mm
Height: 43 mm
Weight: 1.3 kg
Package weight: 2.1 kg
Packaging content
Feature: Power cord included
Feature: AC adapter included
Feature: Quick start guide
Feature: Drivers included
