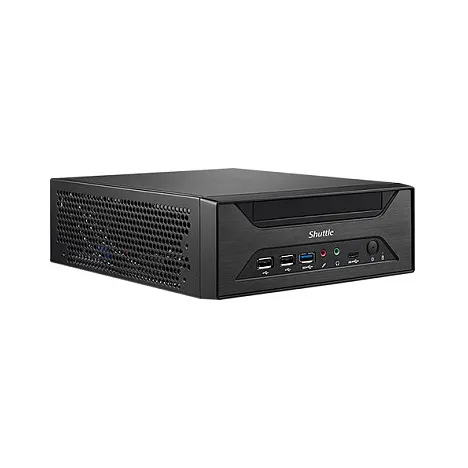

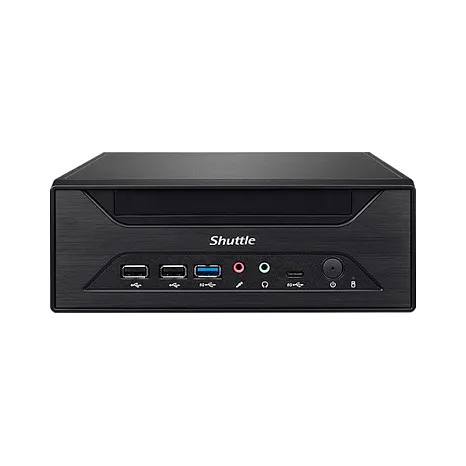

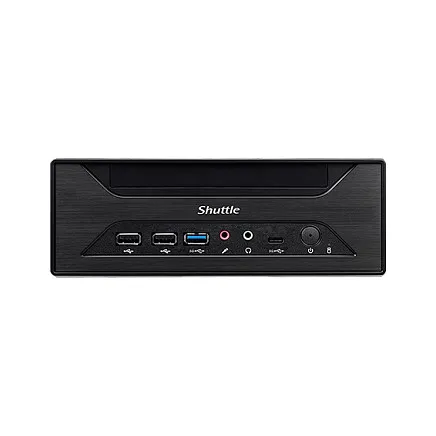

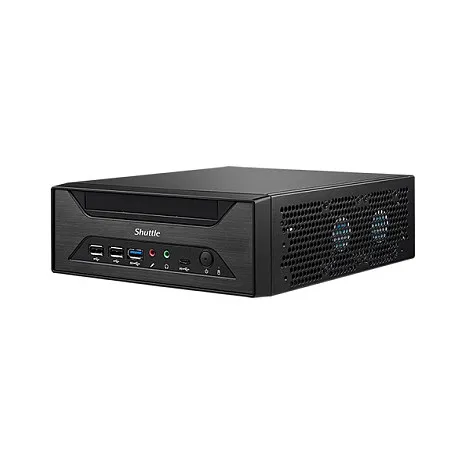

Shuttle XPC slim Barebone XH610 – S1700, Intel H610, 1xDP, 1xHDMI, 1x VGA, 2x COM (RS232), 2x LAN (2.5G and 1G), 1x slim5.25", 2x 3.5", 2x M.2, 24/7 permanent operation. Chassis type: 3.5L sized PC, Product type: PC barebone. Motherboard chipset: Intel H610, Processor socket: LGA 1700, BIOS type: AMI. Supported memory types: DDR4-SDRAM, Number of memory slots: 2, Maximum internal memory: 64 GB. Supported storage drive types: HDD & SSD, Storage drive interface: M.2, PCI Express, Serial ATA III. Ethernet LAN (RJ-45) ports: 2. Cooling type: Active. Power supply: 120 W
Combination of Connectivity and High Computing. Exceptional Reliability and Optimization to Your Business
Shuttle XPC slim 3-liter XH610/XH610V is equipped with Intel® H610 chipset that supports Intel® 12th LGA1700 65W processors and delivers 4K UHD video content. Up to three displays can be used simultaneously via one HDMI 2.0b, one DisplayPort, and one VGA. Feature an extra storage expansion that supports three 2.5” HDD/SSD storage drives or one 3.5” HDD (with an optional PHD4). Besides, the series includes 4 x USB 3.2 Gen1 (Include one Type-C), 4 x USB 2.0, Intel® 1G + Intel® 2.5G LAN, 2 x M.2, and 2 x RS232 to perform its rich I/O capabilities. In addition, another optional accessory PCM31 can be chosen to support a max of five RS232 ports to connect peripheral devices and deliver a robust performance that can drive highly interactive kiosks, vending machines, digital signage, and surveillance applications.
Shuttle XPC slim 3-liter XH610/XH610V is equipped with Intel® H610 chipset that supports Intel® 12th LGA1700 65W processors and delivers 4K UHD video content. Up to three displays can be used simultaneously via one HDMI 2.0b, one DisplayPort, and one VGA. Feature an extra storage expansion that supports three 2.5” HDD/SSD storage drives or one 3.5” HDD (with an optional PHD4). Besides, the series includes 4 x USB 3.2 Gen1 (Include one Type-C), 4 x USB 2.0, Intel® 1G + Intel® 2.5G LAN, 2 x M.2, and 2 x RS232 to perform its rich I/O capabilities. In addition, another optional accessory PCM31 can be chosen to support a max of five RS232 ports to connect peripheral devices and deliver a robust performance that can drive highly interactive kiosks, vending machines, digital signage, and surveillance applications.
Memory
Memory slots type: SO-DIMM
Number of memory slots: 2
Maximum internal memory: 64 GB
Supported memory clock speeds: 2133,2400,2666,2933,3200 MHz
Supported memory types: DDR4-SDRAM
Memory channels: Dual-channel
Memory voltage: 1.2 V
Feature: Non-ECC
Storage
Supported storage drive types: HDD & SSD
Storage drive sizes supported: 2.5″
Storage drive interface: M.2, PCI Express, Serial ATA III
Feature: NVMe
Graphics
Feature: On-board graphics card
Graphics card family: Intel
Network
Feature: Ethernet LAN

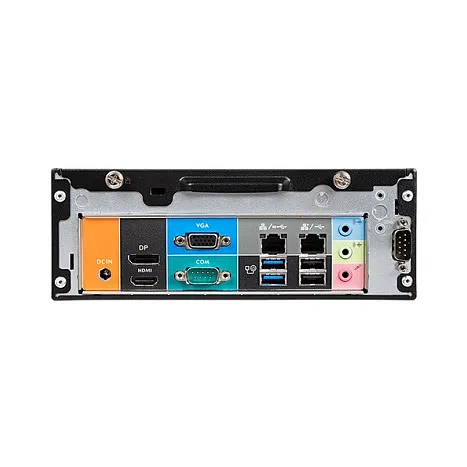

Ports & interfaces
USB 2.0 ports quantity: 4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 3
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity: 1
HDMI ports quantity: 1
HDMI version: 2.0b
VGA (D-Sub) ports quantity: 1
DisplayPorts quantity: 1
DisplayPort version: 1.4a
Feature: Microphone in
Headphone outputs: 1
Ethernet LAN (RJ-45) ports: 2
COM ports quantity: 2
Feature: DC-in jack
Expansion slots
Number of M.2 (M) slots: 1
Design
Chassis type: 3.5L sized PC
Product colour: Black
Cooling type: Active
LED indicators: HDD, Power
Feature: Cable lock slot
Cable lock slot type: Kensington
Product type: PC barebone
Performance
Motherboard chipset: Intel H610
Processor socket: LGA 1700
Number of processors supported: 1
Compatible processor series: Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium®
BIOS type: AMI
Feature: Trusted Platform Module (TPM)
Trusted Platform Module (TPM) version: 2.0
Technical details
Compliance certificates: RoHS
Logistics data
Harmonized System (HS) code: 84733080
Software
Windows operating systems supported: Windows 10, Windows 11
Linux operating systems supported: Yes
Operating system installed: No
Sustainability
Sustainability certificates: ENERGY STAR, ErP
Power
Power supply type: External AC adapter
Power supply: 120 W
Number of power supply units: 1
AC input voltage: 100 – 240 V
AC input frequency: 50 – 60 Hz
AC adapter output voltage: 19 V
AC adapter output current: 6.32 A
Operational conditions
Operating temperature (T-T): 0 – 50 °C
Operating relative humidity (H-H): 10 – 90%
Weight & dimensions
Width: 200 mm
Depth: 238 mm
Height: 72 mm
Weight: 2.2 kg
Package weight: 3.5 kg
Packaging content
Feature: Quick start guide
Feature: Drivers included
Other features
Country of origin: China
Memory slots type: SO-DIMM
Number of memory slots: 2
Maximum internal memory: 64 GB
Supported memory clock speeds: 2133,2400,2666,2933,3200 MHz
Supported memory types: DDR4-SDRAM
Memory channels: Dual-channel
Memory voltage: 1.2 V
Feature: Non-ECC
Storage
Supported storage drive types: HDD & SSD
Storage drive sizes supported: 2.5″
Storage drive interface: M.2, PCI Express, Serial ATA III
Feature: NVMe
Graphics
Feature: On-board graphics card
Graphics card family: Intel
Network
Feature: Ethernet LAN
Ports & interfaces
USB 2.0 ports quantity: 4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 3
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity: 1
HDMI ports quantity: 1
HDMI version: 2.0b
VGA (D-Sub) ports quantity: 1
DisplayPorts quantity: 1
DisplayPort version: 1.4a
Feature: Microphone in
Headphone outputs: 1
Ethernet LAN (RJ-45) ports: 2
COM ports quantity: 2
Feature: DC-in jack
Expansion slots
Number of M.2 (M) slots: 1
Design
Chassis type: 3.5L sized PC
Product colour: Black
Cooling type: Active
LED indicators: HDD, Power
Feature: Cable lock slot
Cable lock slot type: Kensington
Product type: PC barebone
Performance
Motherboard chipset: Intel H610
Processor socket: LGA 1700
Number of processors supported: 1
Compatible processor series: Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium®
BIOS type: AMI
Feature: Trusted Platform Module (TPM)
Trusted Platform Module (TPM) version: 2.0
Technical details
Compliance certificates: RoHS
Logistics data
Harmonized System (HS) code: 84733080
Software
Windows operating systems supported: Windows 10, Windows 11
Linux operating systems supported: Yes
Operating system installed: No
Sustainability
Sustainability certificates: ENERGY STAR, ErP
Power
Power supply type: External AC adapter
Power supply: 120 W
Number of power supply units: 1
AC input voltage: 100 – 240 V
AC input frequency: 50 – 60 Hz
AC adapter output voltage: 19 V
AC adapter output current: 6.32 A
Operational conditions
Operating temperature (T-T): 0 – 50 °C
Operating relative humidity (H-H): 10 – 90%
Weight & dimensions
Width: 200 mm
Depth: 238 mm
Height: 72 mm
Weight: 2.2 kg
Package weight: 3.5 kg
Packaging content
Feature: Quick start guide
Feature: Drivers included
Other features
Country of origin: China
