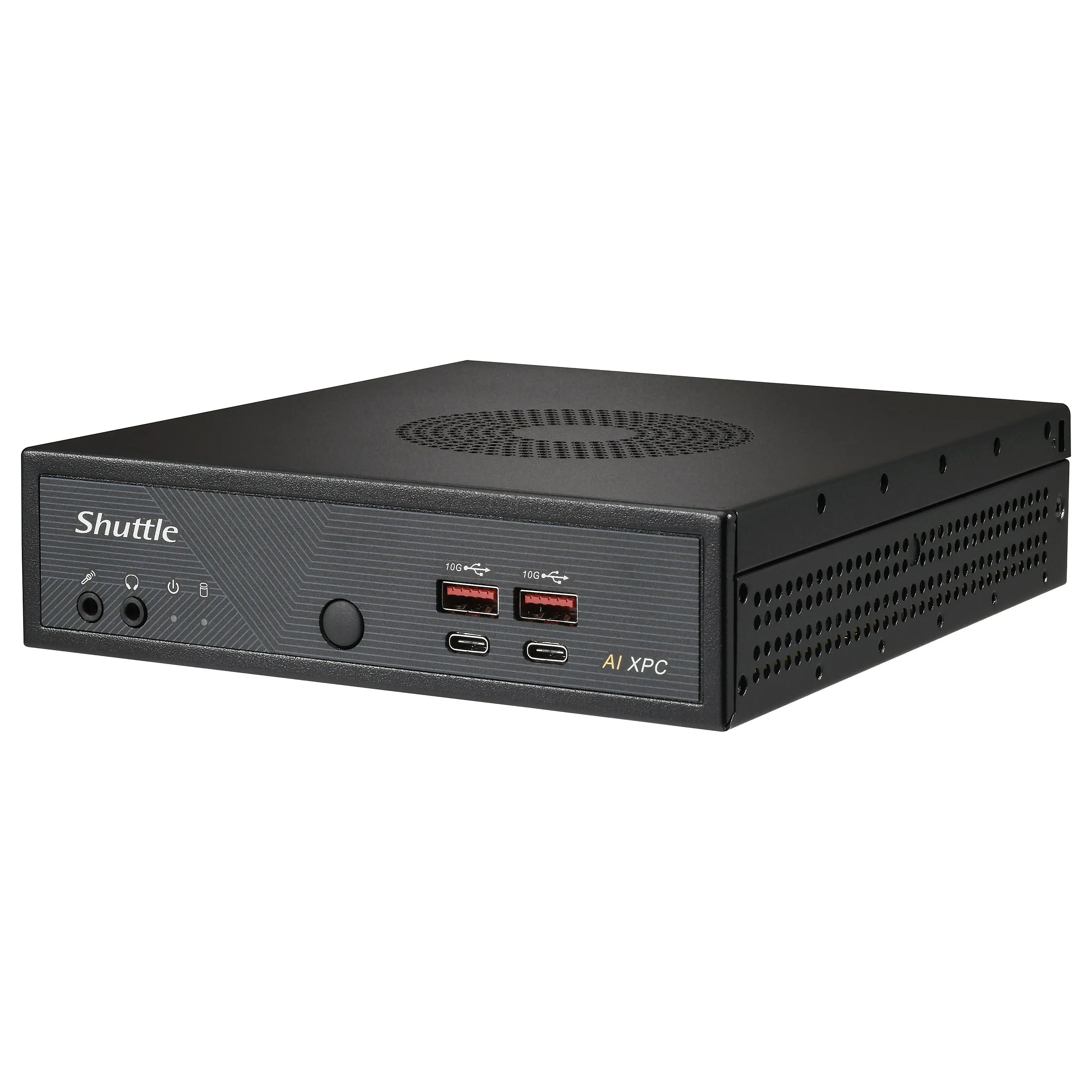

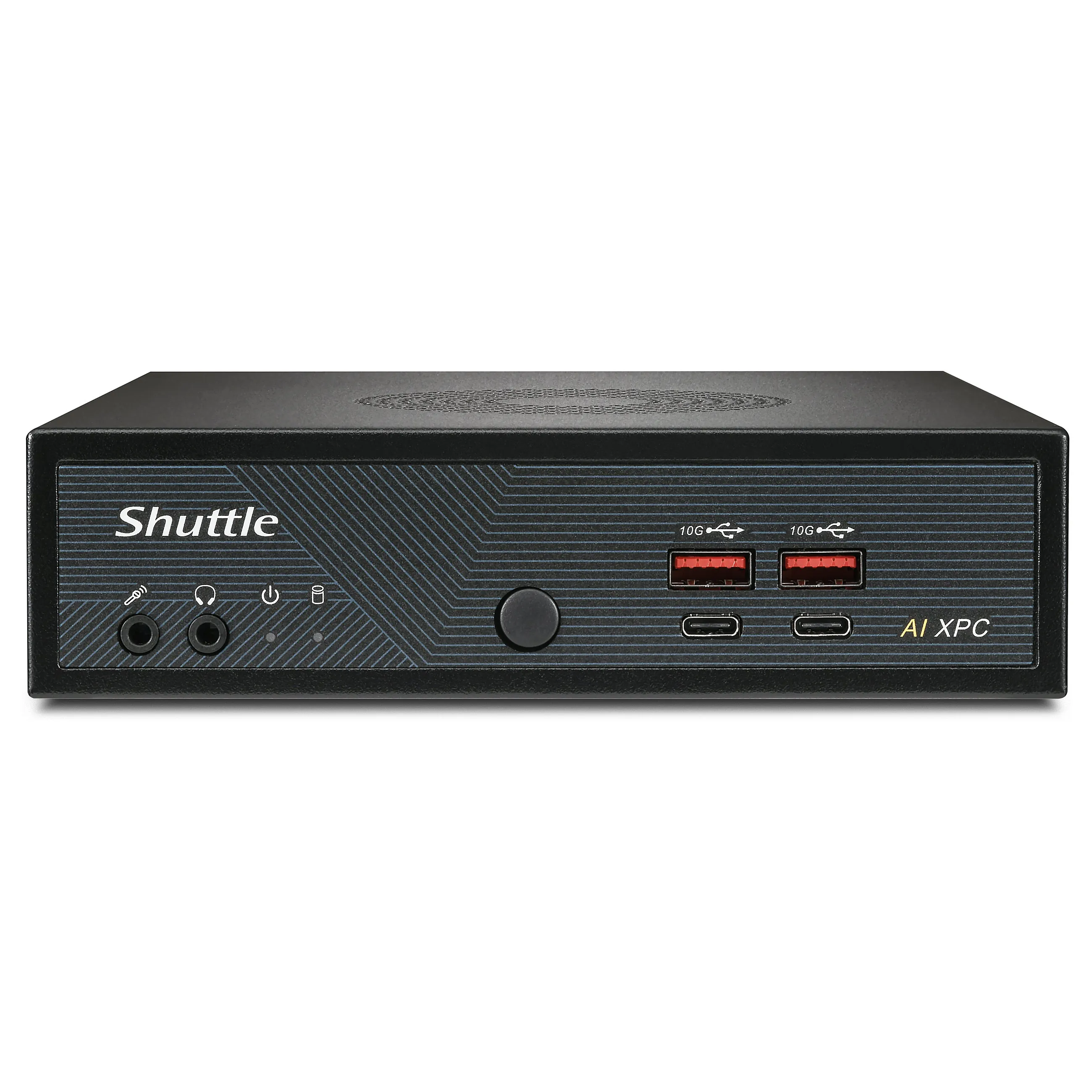

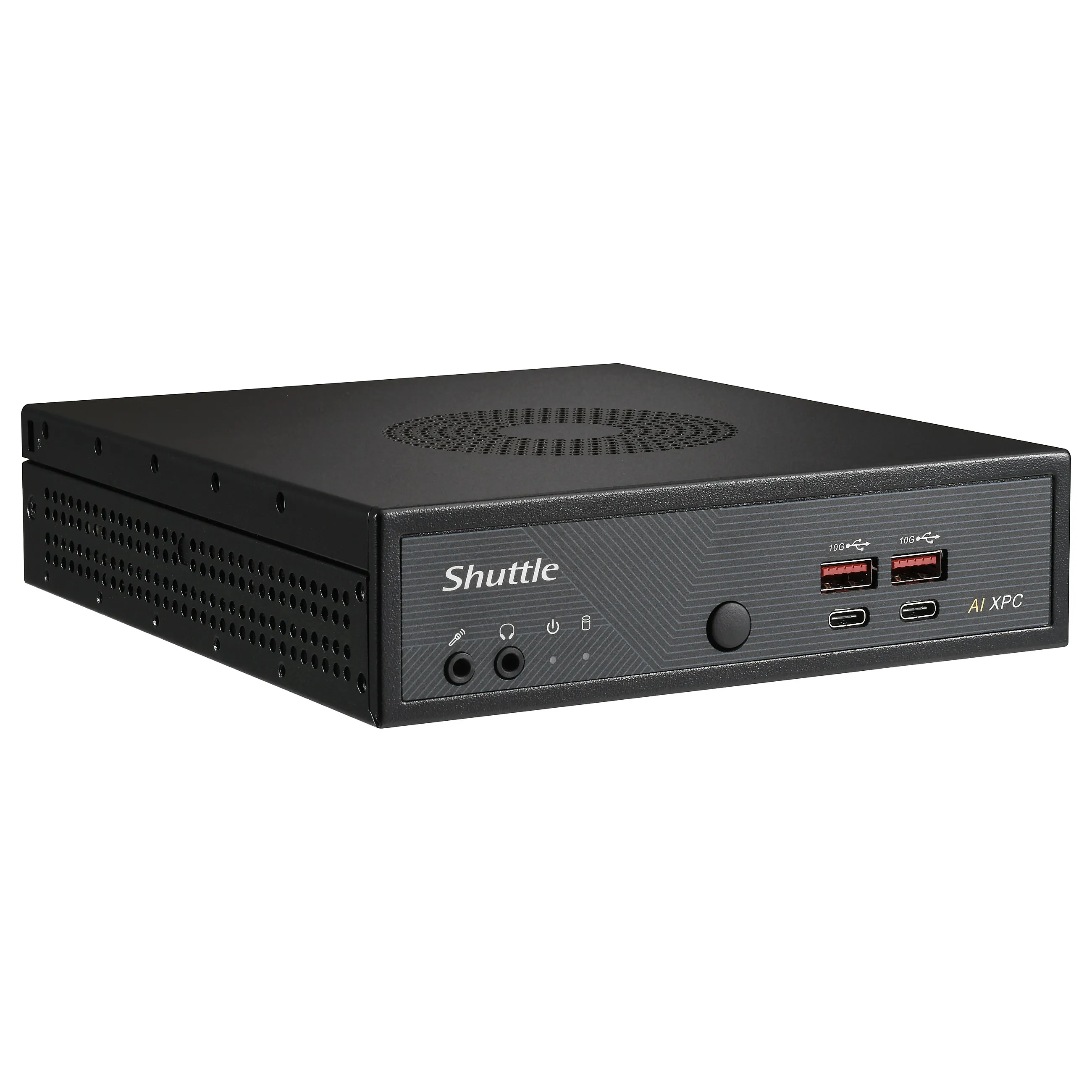

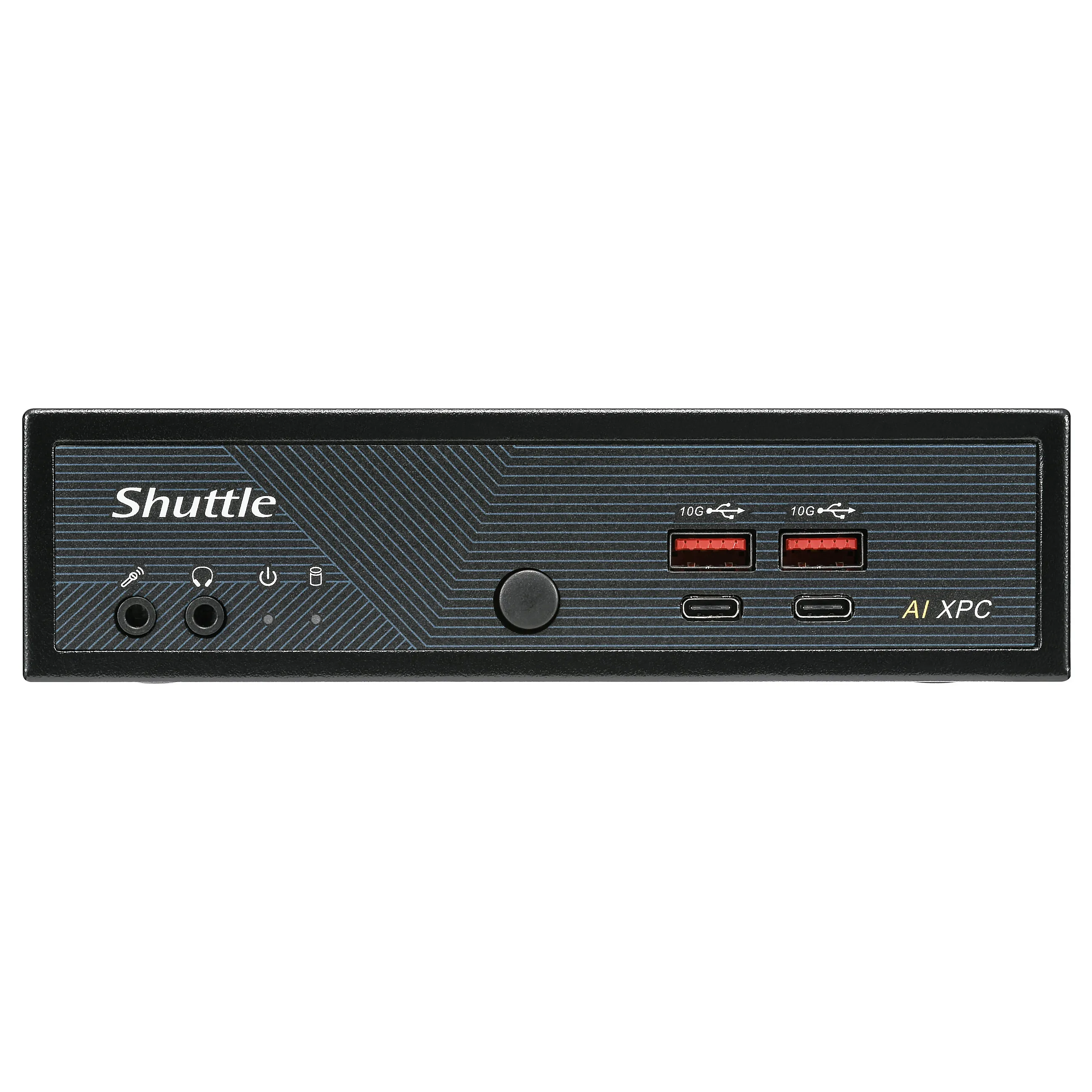

Shuttle Slim AI PC DN11H9 Intel Core Ultra 9 185H, Intel Arc graphics, 2xHDMI, 2x DP, 4x 2.5 Gbit LAN, VESA, 24/7 permanent operation. Chassis type: 1.35L sized PC, Product type: Mini PC barebone. Motherboard chipset: Intel SoC, BIOS type: UEFI AMI. Supported memory types: DDR5-SDRAM, Number of memory slots: 2, Maximum internal memory: 96 GB. Supported storage drive types: SSD, Storage drive interface: PCI Express. Ethernet LAN (RJ-45) ports: 4. Cooling type: Active. Power supply: 120 W
The Shuttle DN11H-series AI-PC is a 1.3-liter barebone PC powered by an Intel® Core™ Ultra series processor, delivering significantly upgraded performance from everyday tasks to business applications. This AI-focused platform integrates CPU, GPU, and a specialized NPU designed to accelerate neural network computations, offering up to 34 TOPS of total system performance to support complex AI workloads. The DN11H stands out with its exceptional connectivity, including four 2.5G LAN ports for high-bandwidth networking, eight high-speed USB-C/USB-A ports, four ports for UHD-displays and three M.2-2280 slots for SSD cards, making it ideal for data-intensive environments. The DN11H excels in diverse modern business and industrial scenarios, such as network video recorders, image processing and data visualization, virtual reality simulations, multimedia production, industrial process control, and more.
Processor
Processor manufacturer: Intel
Processor family: Intel Core Ultra 9
Processor generation: Intel® Core™ Ultra (Series 1)
Processor model: 185H
Processor cores: 16
Processor threads: 22
Processor boost frequency: 5.1 GHz
Performance cores: 6
Efficient cores: 8
Low Power Efficient-cores: 2
Performance-core Max Turbo Frequency: 5.1 GHz
Efficient-core Max Turbo Frequency: 3.8 GHz
Low Power Efficient-core Max Turbo Frequency: 2.5 GHz
Performance-core base frequency: 2.3 GHz
Efficient-core base frequency: 1.8 GHz
Low Power Efficient-core Base Frequency: 1000 MHz
Feature: Built-in processor
Processor cache: 24 MB
Memory
Memory slots type: SO-DIMM
Number of memory slots: 2
Maximum internal memory: 96 GB
Supported memory clock speeds: 5600 MHz
Supported memory types: DDR5-SDRAM
Memory channels: Dual-channel
Memory voltage: 1.1 V
Feature: Non-ECC
Storage
Supported storage drive types: SSD
Storage drive sizes supported: M.2
SSD form factor: M.2
Storage drive interface: PCI Express
Feature: NVMe
Graphics
Feature: On-board graphics card
Graphics card family: Intel
On-board graphics card model: Intel Arc Graphics
Maximum resolution: 3840 x 2160 pixels
Number of displays supported: 4
Network
Feature: Ethernet LAN
LAN controller: Intel I226-LM

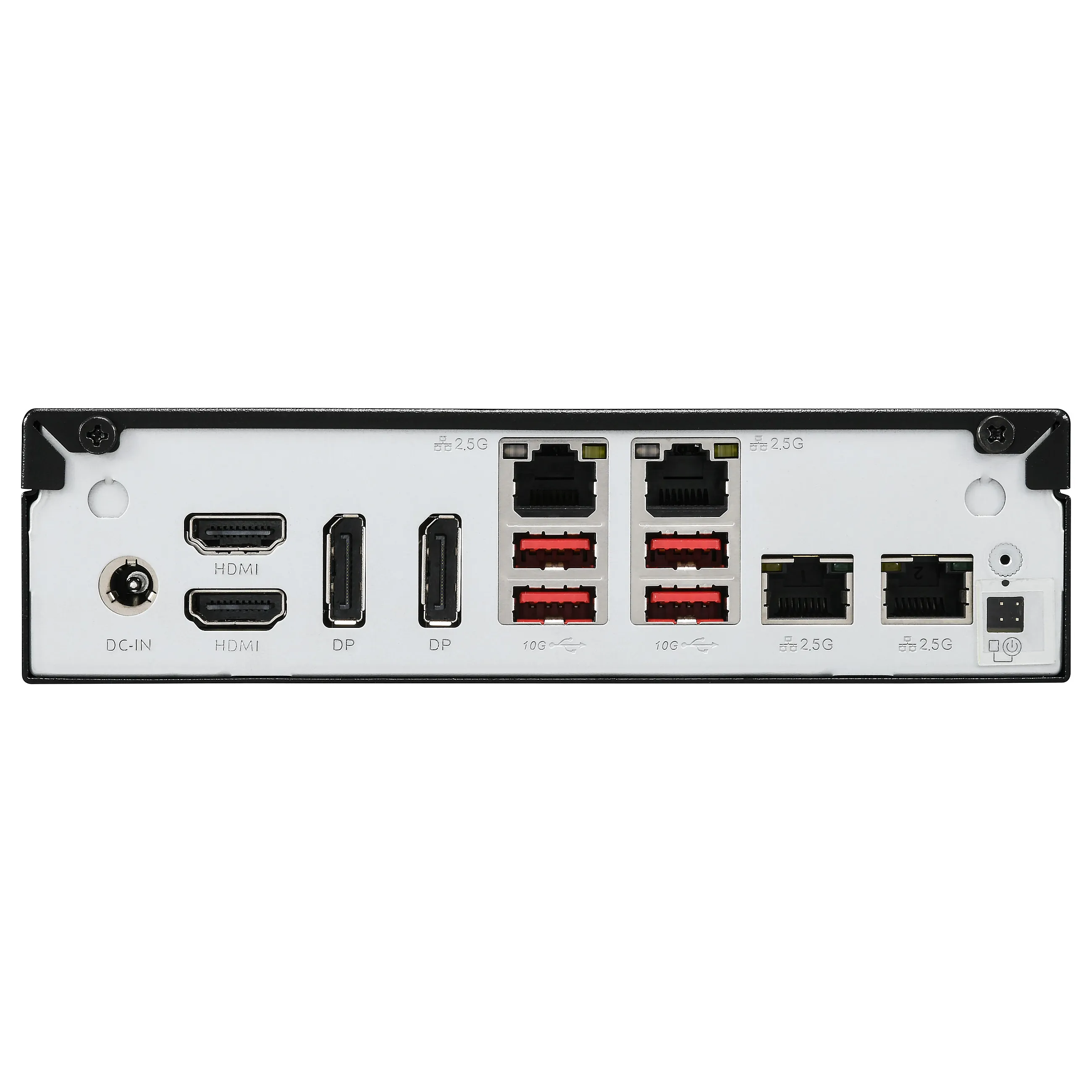

Ports & interfaces
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 6
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 2
HDMI ports quantity: 2
HDMI version: 2.1
DisplayPorts quantity: 2
DisplayPort version: 1.4
Feature: Microphone in
Headphone outputs: 1
Ethernet LAN (RJ-45) ports: 4
Feature: DC-in jack
Design
Chassis type: 1.35L sized PC
Product colour: Black
Cooling type: Active
Housing material: Metal
Feature: Cable lock slot
Cable lock slot type: Kensington
Feature: VESA mounting
Panel mounting interface: 75 x 75,100 x 100 mm
Product type: Mini PC barebone
Performance
Motherboard chipset: Intel SoC
BIOS type: UEFI AMI
Feature: Trusted Platform Module (TPM)
Trusted Platform Module (TPM) version: 2.0
Audio chip: Realtek ALC888S
Technical details
Compliance certificates: BSMI, CE, Federal Communications Commission (FCC), RoHS, cTUVus
Logistics data
Harmonized System (HS) code: 84733080
Software
Windows operating systems supported: Windows 11 x64
Linux operating systems supported: Yes
Sustainability
Sustainability certificates: ENERGY STAR, ErP
Power
Power supply type: External AC adapter
Power supply: 120 W
Number of power supply units: 1
AC input voltage: 100 – 240 V
AC input frequency: 50/60 Hz
AC adapter output voltage: 19 V
AC adapter output current: 6.32 A
Operational conditions
Operating temperature (T-T): 0 – 50 °C
Operating relative humidity (H-H): 10 – 90%
Weight & dimensions
Width: 190 mm
Depth: 165 mm
Height: 43 mm
Weight: 1.23 kg
Package weight: 2.46 kg
Packaging content
Feature: Power cord included
Feature: AC adapter included
Feature: Quick start guide
Processor manufacturer: Intel
Processor family: Intel Core Ultra 9
Processor generation: Intel® Core™ Ultra (Series 1)
Processor model: 185H
Processor cores: 16
Processor threads: 22
Processor boost frequency: 5.1 GHz
Performance cores: 6
Efficient cores: 8
Low Power Efficient-cores: 2
Performance-core Max Turbo Frequency: 5.1 GHz
Efficient-core Max Turbo Frequency: 3.8 GHz
Low Power Efficient-core Max Turbo Frequency: 2.5 GHz
Performance-core base frequency: 2.3 GHz
Efficient-core base frequency: 1.8 GHz
Low Power Efficient-core Base Frequency: 1000 MHz
Feature: Built-in processor
Processor cache: 24 MB
Memory
Memory slots type: SO-DIMM
Number of memory slots: 2
Maximum internal memory: 96 GB
Supported memory clock speeds: 5600 MHz
Supported memory types: DDR5-SDRAM
Memory channels: Dual-channel
Memory voltage: 1.1 V
Feature: Non-ECC
Storage
Supported storage drive types: SSD
Storage drive sizes supported: M.2
SSD form factor: M.2
Storage drive interface: PCI Express
Feature: NVMe
Graphics
Feature: On-board graphics card
Graphics card family: Intel
On-board graphics card model: Intel Arc Graphics
Maximum resolution: 3840 x 2160 pixels
Number of displays supported: 4
Network
Feature: Ethernet LAN
LAN controller: Intel I226-LM
Ports & interfaces
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 6
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 2
HDMI ports quantity: 2
HDMI version: 2.1
DisplayPorts quantity: 2
DisplayPort version: 1.4
Feature: Microphone in
Headphone outputs: 1
Ethernet LAN (RJ-45) ports: 4
Feature: DC-in jack
Design
Chassis type: 1.35L sized PC
Product colour: Black
Cooling type: Active
Housing material: Metal
Feature: Cable lock slot
Cable lock slot type: Kensington
Feature: VESA mounting
Panel mounting interface: 75 x 75,100 x 100 mm
Product type: Mini PC barebone
Performance
Motherboard chipset: Intel SoC
BIOS type: UEFI AMI
Feature: Trusted Platform Module (TPM)
Trusted Platform Module (TPM) version: 2.0
Audio chip: Realtek ALC888S
Technical details
Compliance certificates: BSMI, CE, Federal Communications Commission (FCC), RoHS, cTUVus
Logistics data
Harmonized System (HS) code: 84733080
Software
Windows operating systems supported: Windows 11 x64
Linux operating systems supported: Yes
Sustainability
Sustainability certificates: ENERGY STAR, ErP
Power
Power supply type: External AC adapter
Power supply: 120 W
Number of power supply units: 1
AC input voltage: 100 – 240 V
AC input frequency: 50/60 Hz
AC adapter output voltage: 19 V
AC adapter output current: 6.32 A
Operational conditions
Operating temperature (T-T): 0 – 50 °C
Operating relative humidity (H-H): 10 – 90%
Weight & dimensions
Width: 190 mm
Depth: 165 mm
Height: 43 mm
Weight: 1.23 kg
Package weight: 2.46 kg
Packaging content
Feature: Power cord included
Feature: AC adapter included
Feature: Quick start guide
