Shuttle XPC slim Barebone DL30N, Intel N100, 1x DDR5, 2x LAN (2x 2.5Gbit), 2xCOM,1xHDMI,1xDP, 1x VGA, fanless, 24/7 permanent operation. Chassis type: 1.35L sized PC, Product type: Mini PC barebone. BIOS type: UEFI AMI. Supported memory types: DDR5-SDRAM, Number of memory slots: 1, Maximum internal memory: 16 GB. Supported storage drive types: HDD & SSD, Storage drive interface: PCI Express, Serial ATA III. Ethernet LAN (RJ-45) ports: 2. Cooling type: Passive. Power supply: 65 W
The Shuttle XPC slim Barebone DL30N series is the successor to Shuttle’s DL20N series. These fanless Slim PC barebones with an energy-efficient Intel 12th-Gen „Alder Lake-N” processor are suitable for building particularly slim PC systems with drives and operating system as well as client/server setups for pure network-based applications. Two Intel 2.5G LAN ports provide excellent network connectivity and the optional Shuttle accessory WWN03 allows for an LTE module to be installed for mobile internet access. The integrated graphics is based on Intel’s powerful Intel UHD Graphics that supports hardware acceleration for 4K videos. Combined with an SSD drive, these Slim-PCs works virtually noiseless.
Processor
Processor manufacturer: Intel
Processor model: N100
Processor cores: 4
Processor threads: 4
Processor boost frequency: 3.4 GHz
Feature: Built-in processor
Processor cache: 6 MB
Thermal Design Power (TDP): 6 W
Memory
Memory slots type: SO-DIMM
Number of memory slots: 1
Maximum internal memory: 16 GB
Supported memory clock speeds: 4800 MHz
Supported memory types: DDR5-SDRAM
Memory channels: Single-channel
Memory voltage: 1.1 V
Feature: Non-ECC
Storage
Supported storage drive types: HDD & SSD
Storage drive sizes supported: 2.5,M.2
Storage drive interface: PCI Express, Serial ATA III
Feature: NVMe
Number of storage drives supported: 2
Graphics
Feature: On-board graphics card
Graphics card family: Intel
On-board graphics card model: Intel® UHD Graphics
Discrete graphics card model: Not available
Maximum resolution: 4096 x 2160 pixels
Number of displays supported: 3
Network
Feature: Ethernet LAN
LAN controller: Intel I226-LM
Ports & interfaces
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 8
HDMI ports quantity: 1
HDMI version: 2.0b
VGA (D-Sub) ports quantity: 1
DisplayPorts quantity: 1
DisplayPort version: 1.4a
Feature: Microphone in
Headphone outputs: 1

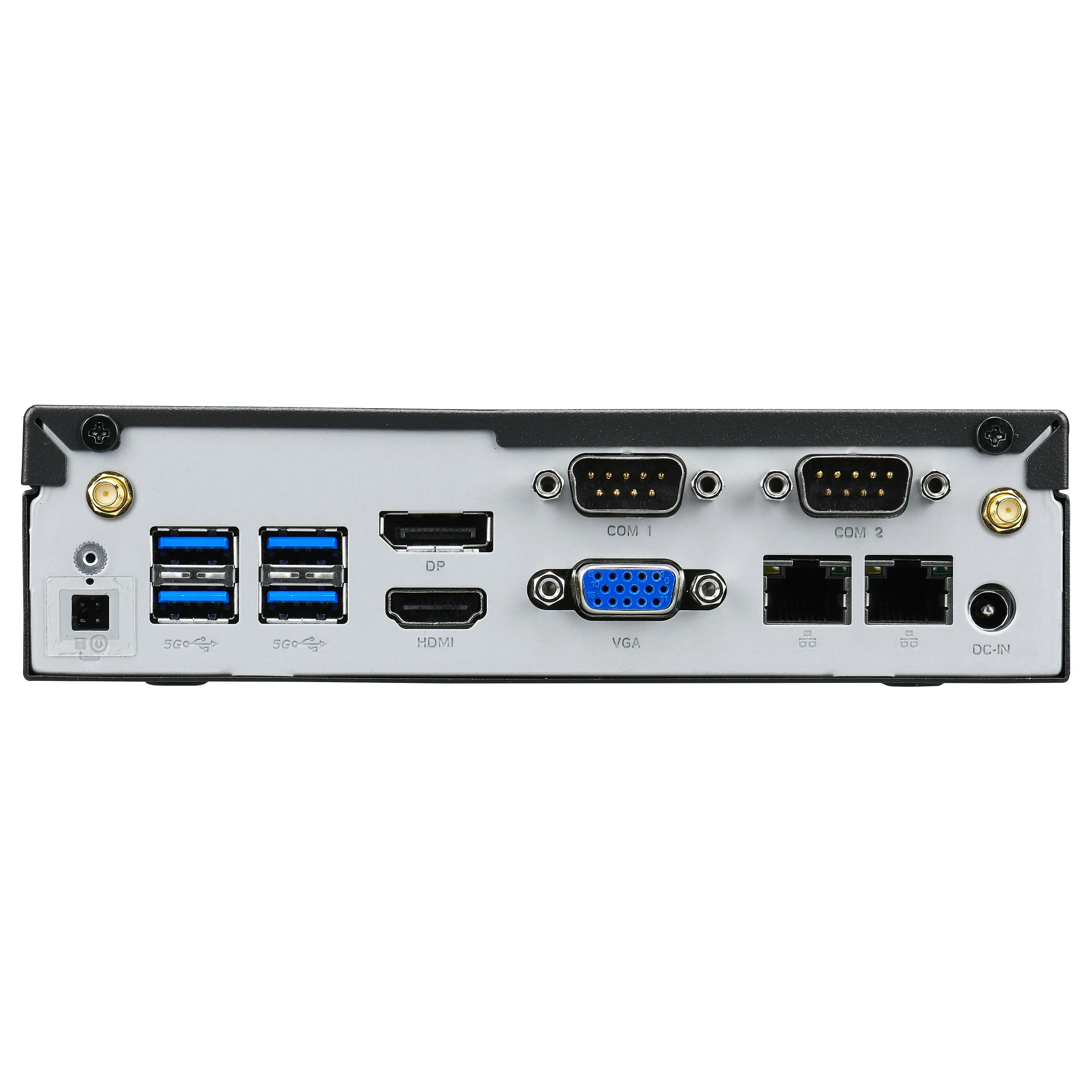

Ethernet LAN (RJ-45) ports: 2
Serial ports quantity: 2
Feature: DC-in jack
Design
Chassis type: 1.35L sized PC
Product colour: Black
Cooling type: Passive
Feature: On/off switch
LED indicators: HDD, Power
Housing material: Steel
Feature: Cable lock slot
Cable lock slot type: Kensington
Feature: VESA mounting
Panel mounting interface: 100 x 75 mm
Product type: Mini PC barebone
Performance
Number of processors supported: 1
BIOS type: UEFI AMI
Feature: Trusted Platform Module (TPM)
Trusted Platform Module (TPM) version: 2.0
Audio chip: Realtek ALC888S
Technical details
Compliance certificates: BSMI, CE, Federal Communications Commission (FCC), RCM, RoHS, UKCA, VCCI
Logistics data
Harmonized System (HS) code: 84733080
Software
Windows operating systems supported: Windows 10, Windows 11 x64
Linux operating systems supported: Yes
Operating system installed: No
Sustainability
Feature: Sustainability compliance
Sustainability certificates: ENERGY STAR, ErP
Power
Power supply type: External AC adapter
Power supply: 65 W
Number of power supply units: 1
AC input voltage: 100 – 240 V
AC input frequency: 50/60 Hz
AC adapter output voltage: 19 V
AC adapter output current: 3.42 A
Operational conditions
Operating temperature (T-T): 0 – 40 °C
Operating relative humidity (H-H): 10 – 90%
Weight & dimensions
Width: 165 mm
Depth: 190 mm
Height: 43 mm
Weight: 800 g
Package weight: 2.1 kg
Packaging content
Feature: Power cord included
Feature: AC adapter included
Feature: Quick start guide
Feature: Drivers included
