Shuttle Slim PC DH770 , S1700, 2x HDMI, 2x DP , 2x 2.5G LAN, 2x COM, 8x USB, 1x 2.5", 2x M.2, 24/7 permanent operation, incl. VESA. Chassis type: 1.35L sized PC, Product type: Mini PC barebone. Motherboard chipset: Intel H770, Processor socket: LGA 1700, BIOS type: UEFI AMI. Supported memory types: DDR5-SDRAM, Number of memory slots: 2, Maximum internal memory: 64 GB. Supported storage drive types: HDD & SSD, Storage drive interface: PCI Express, Serial ATA III. Ethernet LAN (RJ-45) ports: 2. Cooling type: Active. Power supply: 120 W

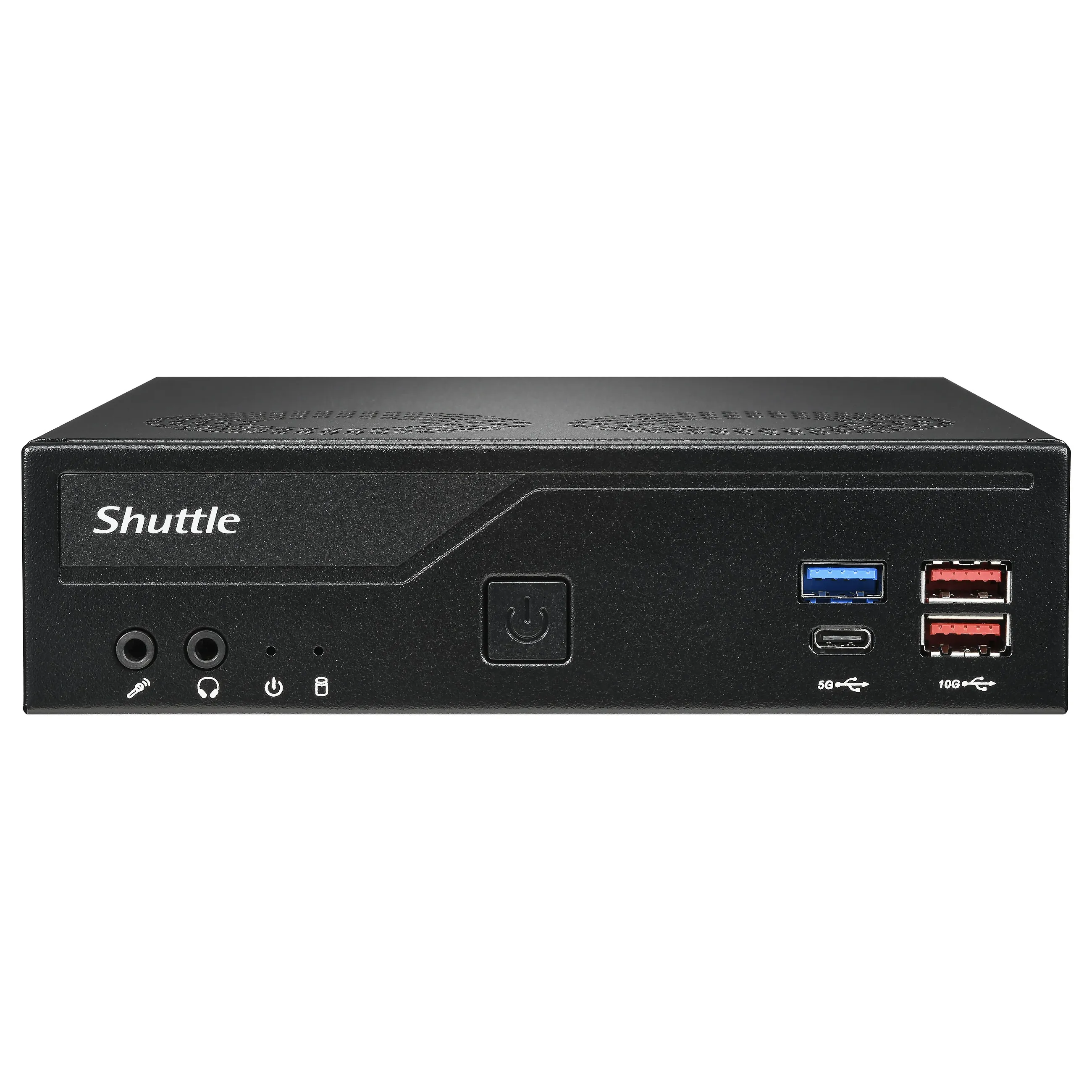

Robust 1.3-litre Slim PC supports Intel Core processors with Socket LGA1700 and four UHD displays
The Shuttle XPC slim Barebone DH770 with H770 chipset houses the performance of Intel’s 12th/13th/14th generation Core desktop processors (codenamed Alder Lake-S and Raptor Lake-S [Refresh]) for socket LGA1700 in a compact 1.3-litre format. The DH770 allows for four Ultra HD displays to be operated at the same time via 2x HDMI and 2x DisplayPort. It also offers Dual Intel 2.5G LAN, four USB 3.2 Gen 2 and COM ports. The slim metal chassis comes with a VESA mount included, provides versatile connectivity and reliable operation in environments with ambient temperatures of up to 50 °C. This platform is targeted at professional applications such as Digital Signage, POS, POI, gambling machines, office, healthcare and industry.
The Shuttle XPC slim Barebone DH770 with H770 chipset houses the performance of Intel’s 12th/13th/14th generation Core desktop processors (codenamed Alder Lake-S and Raptor Lake-S [Refresh]) for socket LGA1700 in a compact 1.3-litre format. The DH770 allows for four Ultra HD displays to be operated at the same time via 2x HDMI and 2x DisplayPort. It also offers Dual Intel 2.5G LAN, four USB 3.2 Gen 2 and COM ports. The slim metal chassis comes with a VESA mount included, provides versatile connectivity and reliable operation in environments with ambient temperatures of up to 50 °C. This platform is targeted at professional applications such as Digital Signage, POS, POI, gambling machines, office, healthcare and industry.
Memory
Memory slots type: SO-DIMM
Number of memory slots: 2
Maximum internal memory: 64 GB
Supported memory clock speeds: 5600 MHz
Supported memory types: DDR5-SDRAM
Memory channels: Dual-channel
Memory voltage: 1.1 V
Feature: Non-ECC
Storage
Supported storage drive types: HDD & SSD
Storage drive sizes supported: 2.5,M.2
Storage drive interface: PCI Express, Serial ATA III
Feature: NVMe
Performance
Motherboard chipset: Intel H770
Processor socket: LGA 1700
Number of processors supported: 1
Compatible processor series: Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold
BIOS type: UEFI AMI
Feature: Trusted Platform Module (TPM)
Trusted Platform Module (TPM) version: 2.0
Audio chip: Realtek ALC888S
Network
Feature: Ethernet LAN
LAN controller: Intel I226-LM

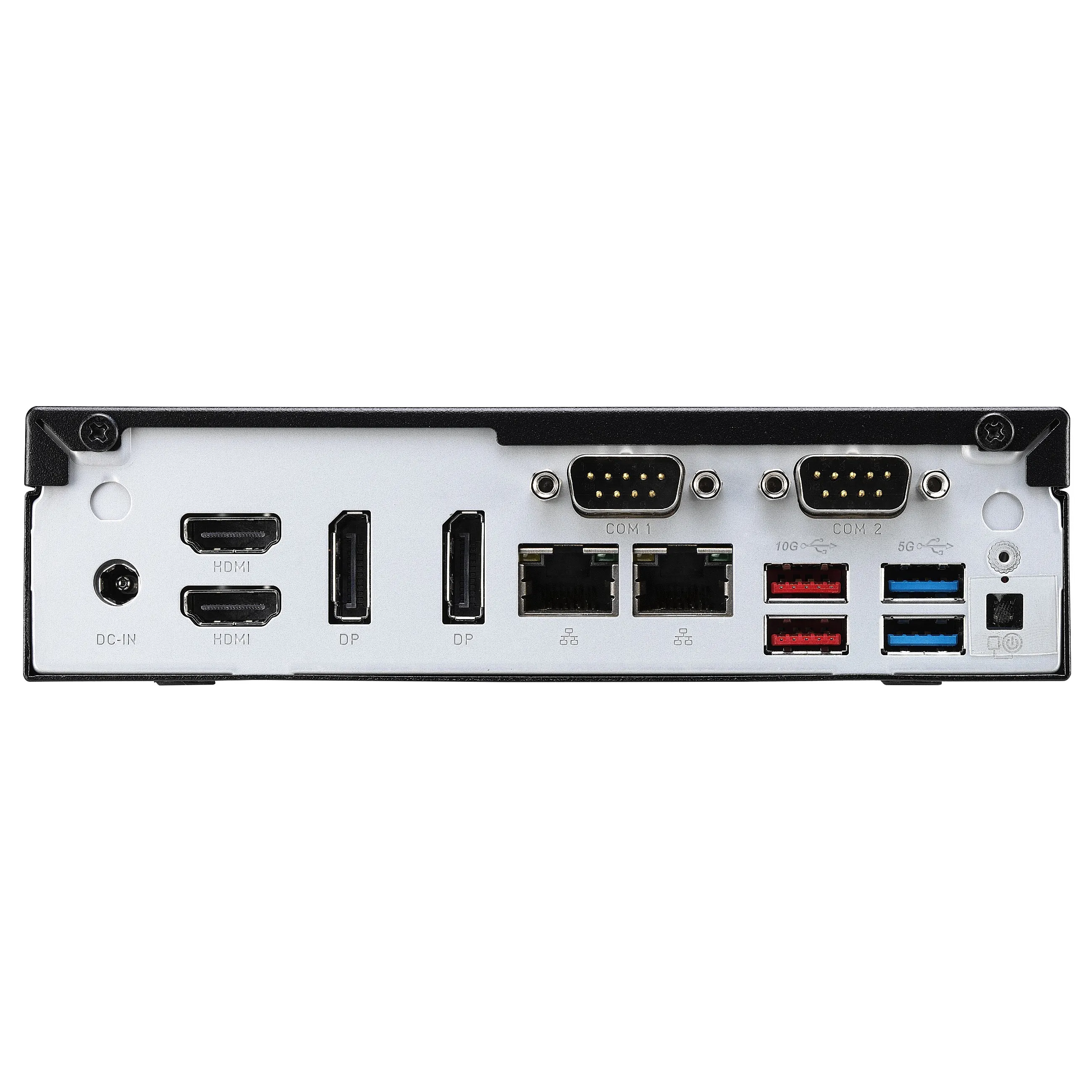

Ports & interfaces
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 3
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity: 1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 4
HDMI ports quantity: 2
HDMI version: 2.0b
DisplayPorts quantity: 2
DisplayPort version: 1.4
Feature: Microphone in
Feature: Combo headphone/mic port
Ethernet LAN (RJ-45) ports: 2
Serial ports quantity: 2
Feature: DC-in jack
Design
Chassis type: 1.35L sized PC
Product colour: Black
Cooling type: Active
Feature: On/off switch
LED indicators: HDD, Power
Housing material: Metal
Feature: Cable lock slot
Cable lock slot type: Kensington
Feature: VESA mounting
Panel mounting interface: 100 x 75 mm
Product type: Mini PC barebone
Technical details
Compliance certificates: BSMI, CB, CE, ETL, Federal Communications Commission (FCC), RCM, RoHS, VCCI
Logistics data
Harmonized System (HS) code: 84733080
Sustainability
Sustainability certificates: ENERGY STAR, ErP
Power
Power supply type: External AC adapter
Power supply: 120 W
Number of power supply units: 1
AC input voltage: 100 – 240 V
AC input frequency: 50/60 Hz
AC adapter output voltage: 19 V
AC adapter output current: 6.32 A
Operational conditions
Operating temperature (T-T): 0 – 50 °C
Operating relative humidity (H-H): 10 – 90%
Weight & dimensions
Width: 190 mm
Depth: 165 mm
Height: 43 mm
Weight: 1.3 kg
Package weight: 2.1 kg
Packaging content
Feature: Power cord included
Feature: AC adapter included
Feature: Drivers included
Other features
Country of origin: China
Memory slots type: SO-DIMM
Number of memory slots: 2
Maximum internal memory: 64 GB
Supported memory clock speeds: 5600 MHz
Supported memory types: DDR5-SDRAM
Memory channels: Dual-channel
Memory voltage: 1.1 V
Feature: Non-ECC
Storage
Supported storage drive types: HDD & SSD
Storage drive sizes supported: 2.5,M.2
Storage drive interface: PCI Express, Serial ATA III
Feature: NVMe
Performance
Motherboard chipset: Intel H770
Processor socket: LGA 1700
Number of processors supported: 1
Compatible processor series: Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold
BIOS type: UEFI AMI
Feature: Trusted Platform Module (TPM)
Trusted Platform Module (TPM) version: 2.0
Audio chip: Realtek ALC888S
Network
Feature: Ethernet LAN
LAN controller: Intel I226-LM
Ports & interfaces
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 3
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity: 1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 4
HDMI ports quantity: 2
HDMI version: 2.0b
DisplayPorts quantity: 2
DisplayPort version: 1.4
Feature: Microphone in
Feature: Combo headphone/mic port
Ethernet LAN (RJ-45) ports: 2
Serial ports quantity: 2
Feature: DC-in jack
Design
Chassis type: 1.35L sized PC
Product colour: Black
Cooling type: Active
Feature: On/off switch
LED indicators: HDD, Power
Housing material: Metal
Feature: Cable lock slot
Cable lock slot type: Kensington
Feature: VESA mounting
Panel mounting interface: 100 x 75 mm
Product type: Mini PC barebone
Technical details
Compliance certificates: BSMI, CB, CE, ETL, Federal Communications Commission (FCC), RCM, RoHS, VCCI
Logistics data
Harmonized System (HS) code: 84733080
Sustainability
Sustainability certificates: ENERGY STAR, ErP
Power
Power supply type: External AC adapter
Power supply: 120 W
Number of power supply units: 1
AC input voltage: 100 – 240 V
AC input frequency: 50/60 Hz
AC adapter output voltage: 19 V
AC adapter output current: 6.32 A
Operational conditions
Operating temperature (T-T): 0 – 50 °C
Operating relative humidity (H-H): 10 – 90%
Weight & dimensions
Width: 190 mm
Depth: 165 mm
Height: 43 mm
Weight: 1.3 kg
Package weight: 2.1 kg
Packaging content
Feature: Power cord included
Feature: AC adapter included
Feature: Drivers included
Other features
Country of origin: China
