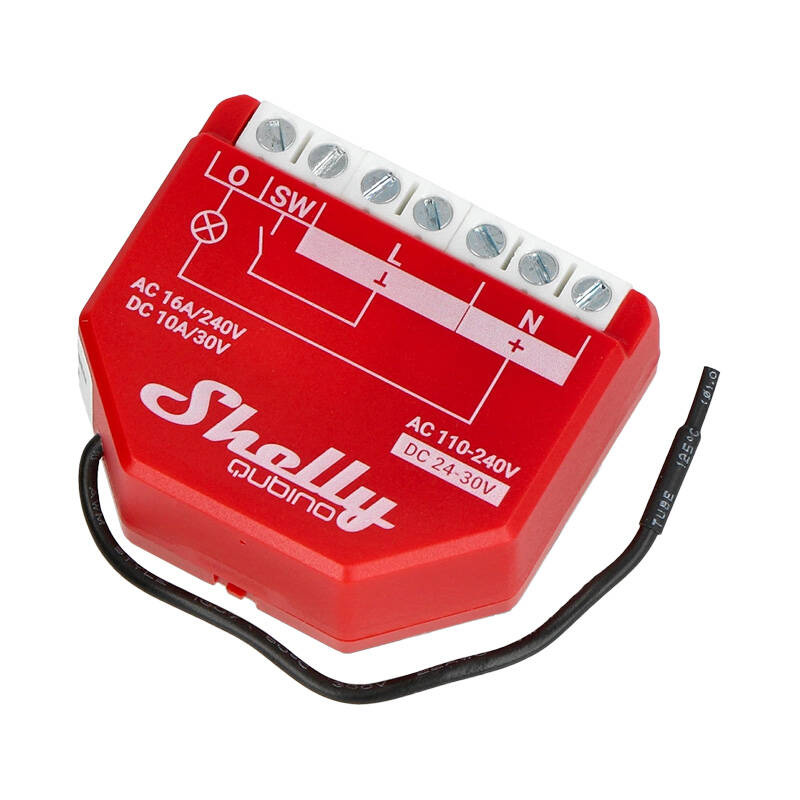

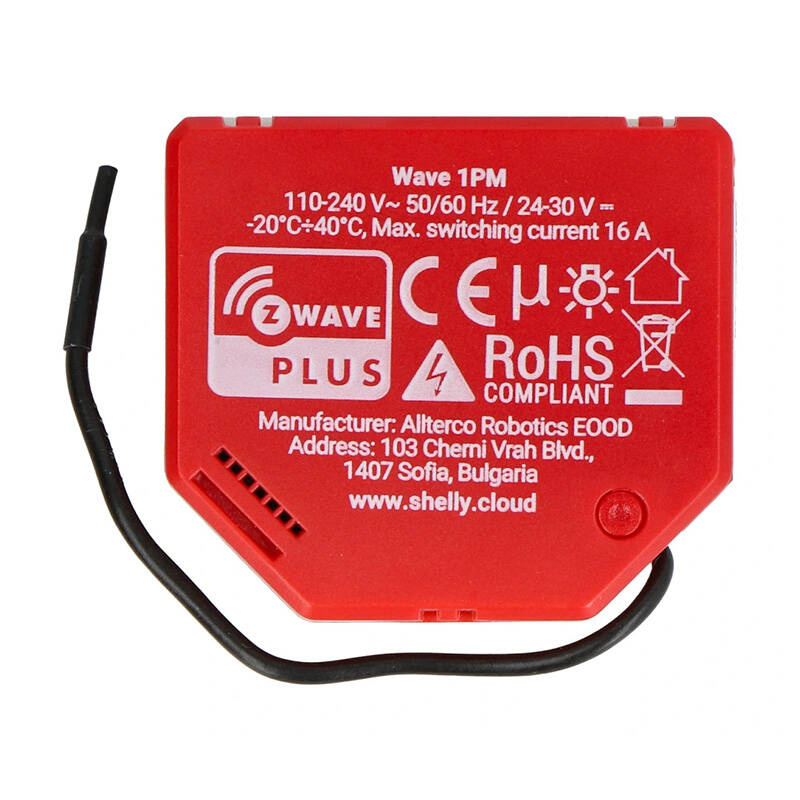

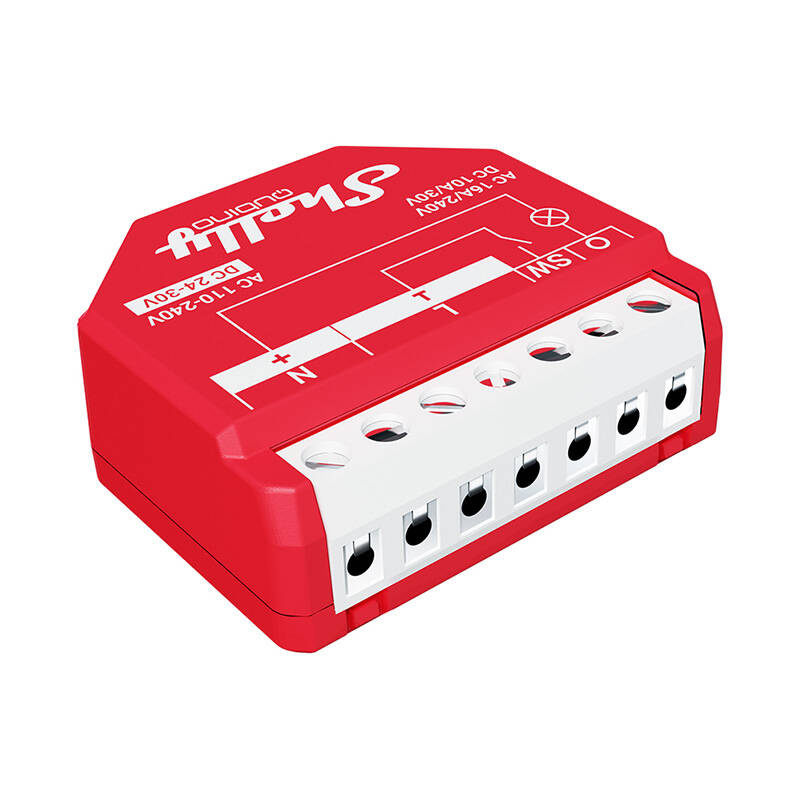

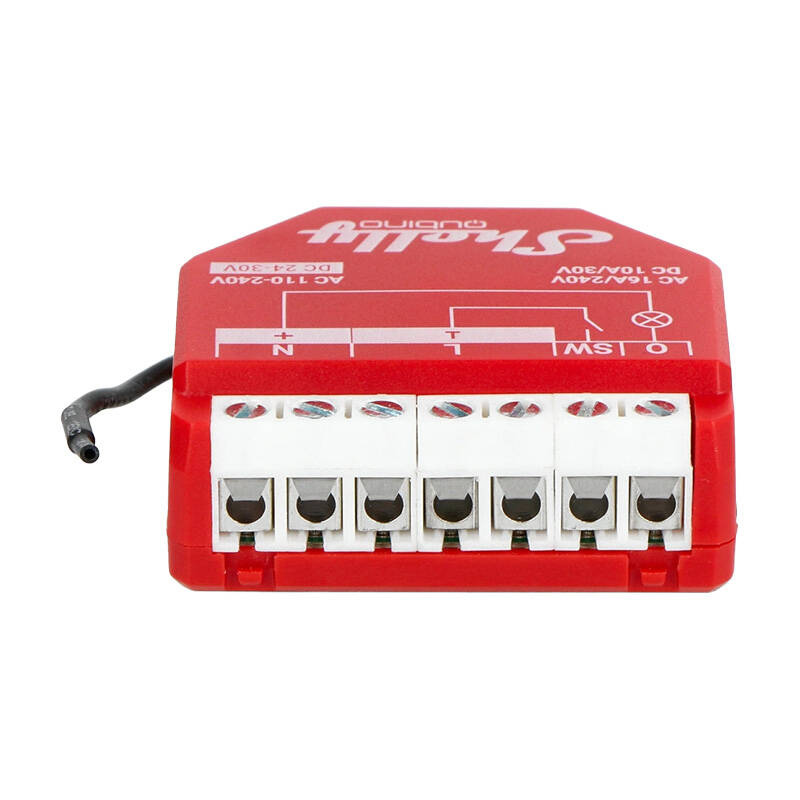

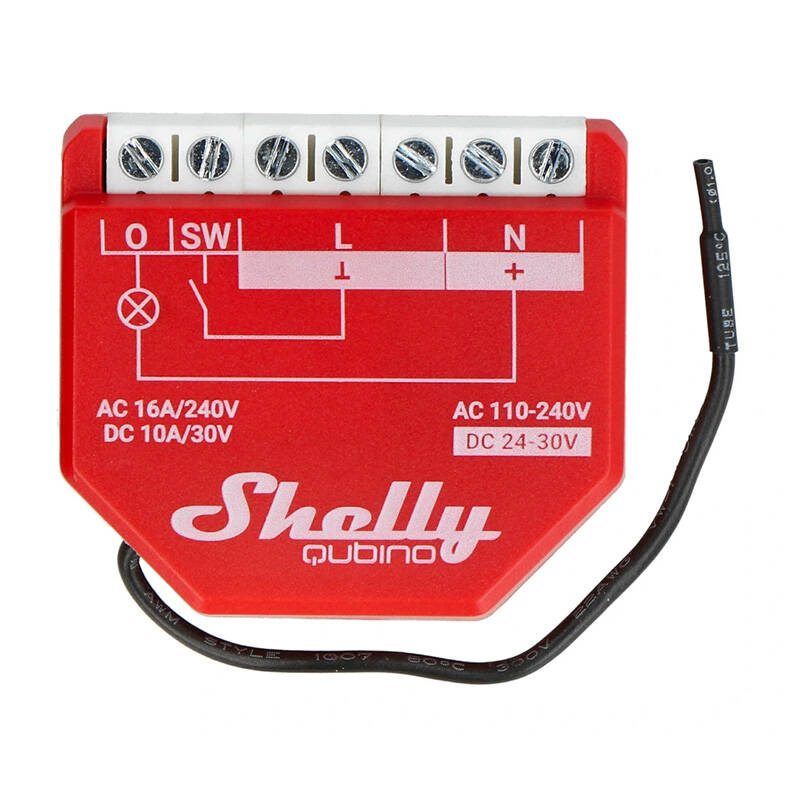

Shelly Qubino Wave1PM Controller
Shelly Qubino Wave 2PM Controller is the perfect solution for those who want to increase comfort and energy efficiency in their home. With it, you can save energy, control electrical appliances and enjoy the convenience of a smart home. Open the door to the future today and invest in the Shelly Qubino Wave 2PM Controller!
Z-Wave gateway compatibility
The Shelly Qubino Wave 2PM Controller is a state-of-the-art solution that allows you to intelligently control various electrical devices in your home. This controller is compatible with certified Z-Wave gateways and more than 4,000 other devices, allowing you to easily integrate it into your existing smart home infrastructure. This allows you to remotely control and monitor your devices, giving you full control over the energy consumed by each one.
Full control
One of the main advantages of this controller is its ability to remotely control a wide range of electrical devices. This gives you greater flexibility in energy management. For example, you can use it to turn on your heating appliances or water heater. With Shelly, you can enjoy convenience, energy efficiency and easy control!
Energy efficiency
This controller is distinguished by its low power consumption of only 0.3 watts. This is important because it minimizes the additional cost of electricity consumption, which benefits your budget. What’s more, the Shelly Qubino Wave 2PM controller allows you to accurately measure power per channel and monitor total power consumption. With this feature, you can accurately track how much energy is being consumed by each device, allowing you to effectively manage your energy expenses.
Easy setup and simple installation
Thanks to the SmartStart function, the configuration of this controller is intuitive and simple. You can easily install and configure it, which minimizes the difficulties associated with the installation process. What’s more, the installation of this controller is easy and can be installed in standard electrical boxes, making the installation process even easier.
Safety Guarantee
The Shelly Qubino Wave 2PM controller offers a high level of security thanks to two-step verification and support for wireless firmware updates. You can rest assured that your data is protected.
Versatile application
This smart controller is ideal for controlling lighting, electrical appliances and other equipment in a smart home. With it, you can create personalized schedules tailored to your daily routine or synchronize them with sunrise and sunset. You can also create custom scenes by combining the Shelly Qubino Wave 2PM Controller with other Z-wave devices. This allows for even more advanced control and automation in your home.
| Manufacturer | Shelly |
|---|---|
| Model | QubinoWave1PM |
| Power supply | 110-240 V AC / 24-30 V DC |
| Power consumption | < 0.3 W |
| Pomiar (W). | Yes |
| Maks switching tension AC. | 240 V |
| Maximum AC switching current. | 16 A |
| Maks switching voltage DC. | 30 V |
| Maximum DC switching current. | 10 A |
| Securing before switching | Yes |
| Protection before reloading | Yes |
| Distance | Up to 40 m indoors (131 feet) (depending on local conditions) |
| Z-Wave™ repeater | Yes |
| Processor | Z-Wave™ S800 |
| Z-Wave™ frequency bands | 868.4 MHz; 865.2 MHz; 869.0 MHz; 921.4 MHz; 908.4 MHz; 916 MHz; 919.8 MHz; 922.5 MHz; 919.7-921.7-923.7 MHz; 868.1 MHz; 920.9 MHz |
| Maximum radio frequency power transmitted in the frequency bands | < 25 mW |
| Size (H x W x D). | 37x42x16 ±0.5 mm |
| Weight | 27 g |
| Mounting | wall console |
| Screw terminals max. torque | 0.4 Nm / 3.5 lbs. |
| Cable cross section | 0.5 to 1.5 mm² / 20 to 16 AWG |
| Wire length without insulation | 5 to 6 mm / 0.20 to 0.24 in. |
| Sheath material | Plastic |
| Color | red |
| Ambient temperature | -20°C to 40°C / -5°F to 105°F |
| Humidity | 30% to 70% relative humidity |
| Max altitude | 2000 m |
