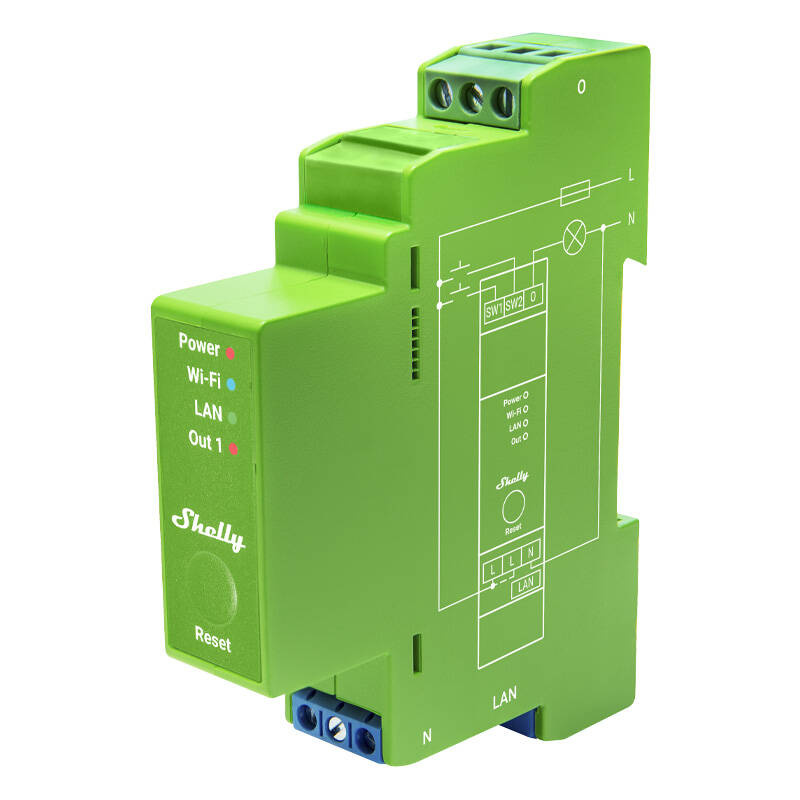

Shelly Pro Dimmer 1 1-channel DIN rail dimmer
The Shelly Pro Dimmer 1 is a state-of-the-art, single-channel DIN-rail-mounted dimmer designed for smart lighting management in the home or office. The device can operate autonomously on a local Wi-Fi network or be controlled by cloud-based home automation services. In addition, an integrated web interface allows remote access, control and monitoring of the dimmer’s status from anywhere in the world where an internet connection is available. No additional hub is required for the product to function properly – it can be controlled locally or remotely, via Shelly Smart Control or a third-party system.
Features and control
The Shelly Pro Dimmer 1 offers an automatic dimming calibration function, providing smooth adjustment of light brightness throughout the range. The user can choose the control mode via switches or buttons, allowing full control of the device’s functionality regardless of the wall installation configuration. The product also supports night mode, which allows setting a specific level of light intensity after dark. It is also possible to adjust the dimming time from 0% to 100%, as well as the rate of brightness change while holding down the buttons.
Automation and schedules
The Pro Dimmer 1 allows users to create weekly schedules, automating the setting of brightness and transition times, among other things. Users can also set timers and automation scenarios. Customize the lighting in your home to fit your lifestyle – now the lights can automatically turn off when you go to bed, and turn on when you get up!
Applications and integrations
With the Shelly Pro Dimmer 1, you can easily adjust the lighting in a room to suit your needs. Create the right atmosphere for any occasion! What’s more, the device is compatible with ecosystems such as Amazon Alexa, Google Home and Samsung SmartThings, so you can control it using your favorite app. In addition, the product supports a variety of connection options – it easily connects via Wi-Fi, Ethernet and Bluetooth.
Security and supported loads
Don’t worry about the security of your devices. The Pro Dimmer 1 is effectively protected against overheating, surges, overloads and excessive power consumption, among other things. You also don’t have to worry about compatibility issues. The product works perfectly with a variety of devices up to 200 watts, such as LED bulbs, traditional incandescent bulbs, halogen bulbs and transformers with low-voltage bulbs, for example.
| Manufacturer | Shelly |
|---|---|
| Model | ProDimmer1 |
| Power supply | 110-240 V ~50/60 Hz |
| Power consumption | < 2 W |
| Max. output power | 200 W |
| Wi-Fi connectivity | 802.11 b/g/n |
| Wi-Fi RF bandwidth | 2401-2483 MHz |
| Max Wi-Fi RF power | < 20 dBm |
| Wi-Fi range | Up to 30 m indoors / up to 50 m outdoors |
| Bluetooth version | 4.2 |
| Bluetooth RF band | 2400-2483.5 MHz |
| Max Bluetooth RF power | < 4 dBm |
| Bluetooth range | Up to 10 m indoors / up to 30 m outdoors |
| CPU | ESP32-D0WDQ6 |
| Flash memory | 8 MB |
| Max. number of schedules | 20 |
| Operating temperature | From -20°C to 40°C |
| Operating ambient humidity | From 30% to 70% RH |
| Material | Plastic |
| Dimensions | 94 x 19 x 69 mm |
| Weight | 75 g |
| Mounting | DIN rail |
| Compatibility | Amazon Alexa, Google Home, Samsung SmartThings |
