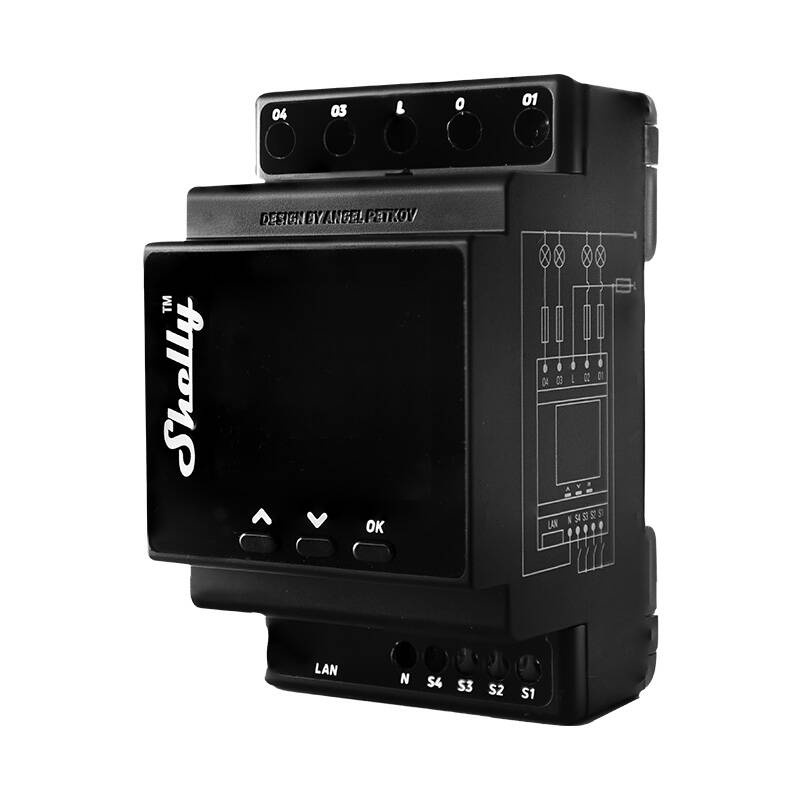

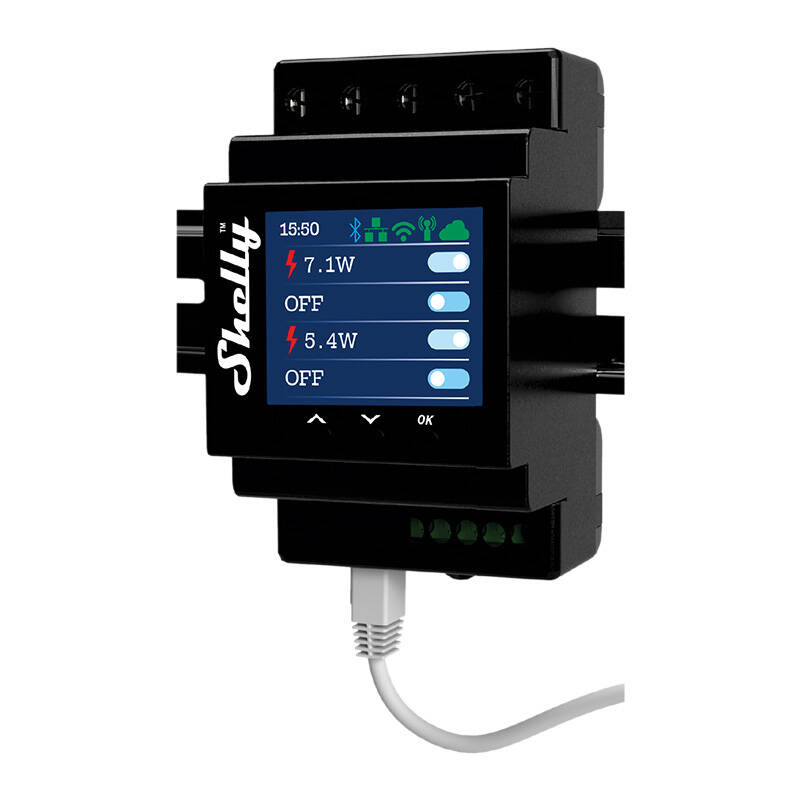

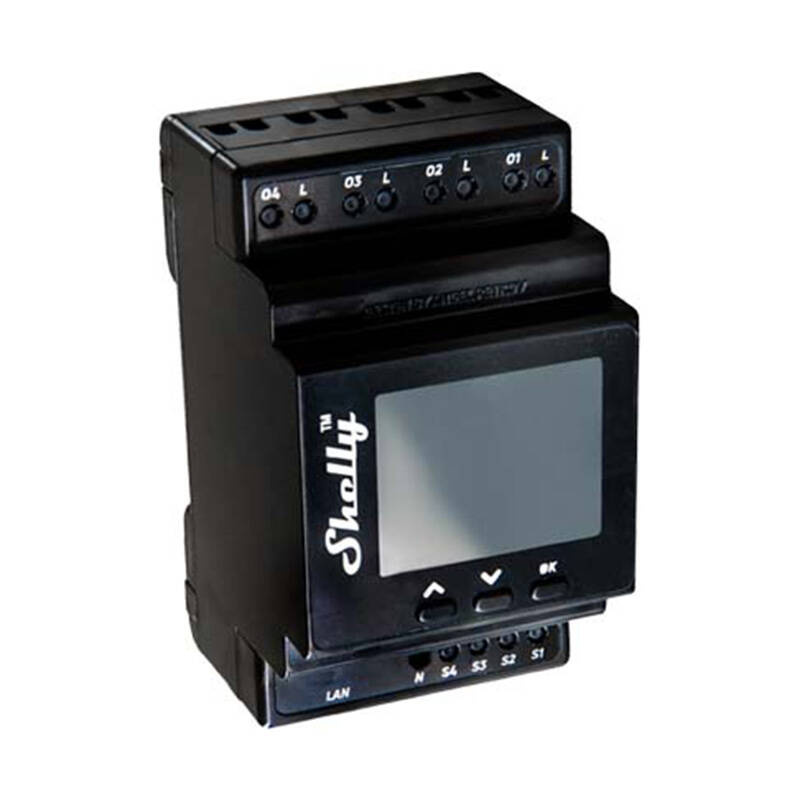

Shelly Pro 4PM V1 WIFI 4-channel DIN rail relay with power measurement
Discover the future of automation in your home with the Shelly Pro 4PM. The relay is designed to be mounted on a standard DIN rail in a switchboard, making it ideal for a variety of building types. It allows you to control four 230-volt powered devices, with a maximum load of 16 A per channel and a total of 40 A. Built-in power meters allow you to monitor the energy consumption of each device in real time, which helps optimize costs. It will be perfect for homes, offices, stores, as well as business and manufacturing facilities.
| Manufacturer | Shelly |
|---|---|
| Model | SPSW-004PE16EU |
| AC supply voltage | 110 – 240 V |
| Power consumption | < 4 W |
| Maximum switching voltage AC | 240 V |
| Maximum AC switching current | 16 A per channel, 40 A total |
| Voltmeter (AC) | Yes |
| Ammeter (AC) | Yes |
| Internal temperature sensor | Yes |
| Wi-Fi protocol | 802.11 b/g/n |
| Wi-Fi range | Up to 30 m indoors and 50 m outdoors |
| Bluetooth protocol | 4.2 |
| Bluetooth range | Up to 10 m indoors and 30 m outdoors |
| CPU | ESP32-D0WDQ6 |
| Flash memory | 8 MB |
| Dimensions | 96 x 53 x 59 ±0.5 mm |
| Mounting | DIN rail |
| Ambient temperature | -20°C to 40°C |
| Humidity | 30% to 70% RH |
| Maximum altitude | 2000 m |
