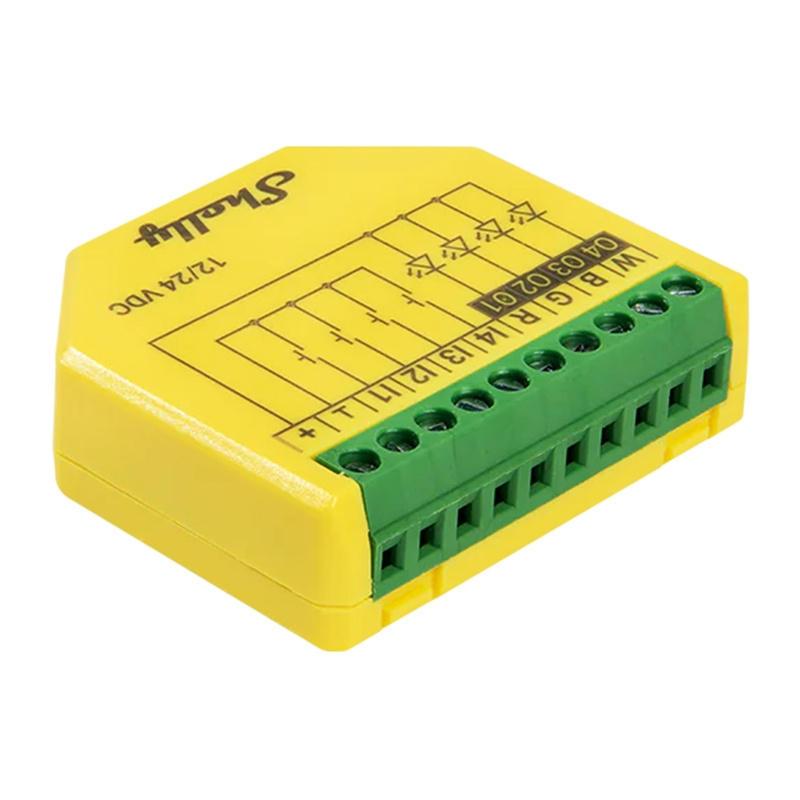

Shelly Plus RGBW PM LED Strip Controller
The Shelly Plus RGBW PM LED Strip Controller is your key to creating a unique atmosphere in your home or office. It supports 12V and 24V LED strips in White, RGB, and RGBW modes, giving you complete freedom to customize your lighting. Subtle lighting for evening relaxation, dynamic lighting effects at a party, or practical kitchen under-cabinet lighting—it’s all at your fingertips. No need to install additional hubs means you can start your smart lighting adventure right after connecting. The set includes two Shelly LED strip controllers.
Lighting effects that delight
With the Shelly Plus RGBW PM, you can give your interior a unique character. Set the right mood by dimming the lights or choosing from 16 million colors. The device also offers unique lighting effects that will bring any room to life—from subtle color transitions to dynamic color changes.
Smart schedules and scenes
Adapt your lighting to your lifestyle with smart schedules and scenes. The Shelly Plus RGBW PM controller lets you create personalized schedules that automatically adjust the lighting to your daily routine. Connect it with other Shelly devices to build a comprehensive automation system that fully meets your needs!
Control at your fingertips
With Wi-Fi and Bluetooth support, controlling your lighting is a breeze. All you need is the Shelly Smart Control app to monitor energy usage, set night mode, or make changes in real time. The device works with the most popular platforms and protocols, as well as voice assistants like Alexa and Home Assistant. You can also integrate it with your favorite automation system to enjoy full control over your lighting—no matter where you are.
Safety and reliability in one
The device monitors energy consumption and features overload protection, which enhances safety and helps control costs. The built-in ESP32 processor ensures instant responses to every change, so every setting adjustment is immediately visible. The Shelly Plus RGBW PM also functions as a Wi-Fi repeater and BLE gateway, improving the range of your home network.
Included

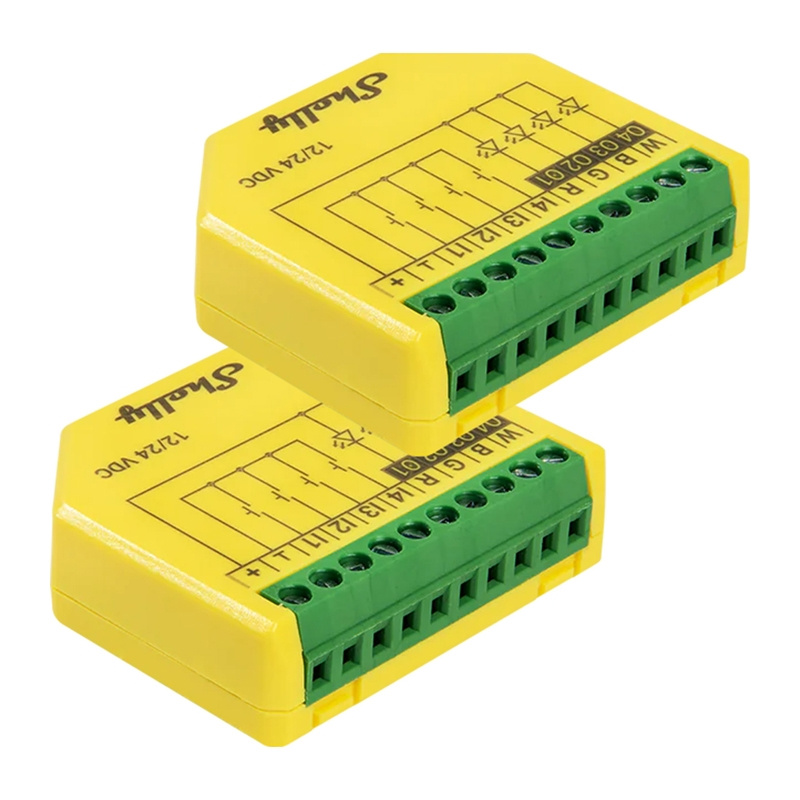

- Shelly LED strip controller x 2
| Manufacturer | Shelly |
|---|---|
| Model | PlusRGBWPM |
| Dimensions | 42 x 37 x 12 ±0.5 mm |
| Weight | 17 g |
| Maximum tightening torque for screw terminals | 0.2 Nm |
| Wire cross-section | 0.1 to 1 mm² |
| Stripped wire length | 6 mm |
| Installation | In a wall box |
| Housing material | Plastic |
| Housing color | Yellow |
| Connector color | Green |
| Ambient temperature | from -20 °C to 40 °C |
| Humidity | 30% – 70% |
| Power supply | 12/24 VDC |
| Power consumption | < 1.2 W |
| Maximum control voltage | 24 VDC |
| Maximum control current | 4 A per channel (10 A total) |
| PWM frequency | 22 kHz |
| Voltmeter | 0–24 V |
| Voltmeter accuracy | ± 5% |
| Ammeter | 0-10 A |
| Ammeter accuracy | ± 10% |
| Power and energy measurement | Yes |
| No-load detection threshold | 0.5 VA per channel |
| Built-in temperature sensor | Yes |
| Wi-Fi range | Up to 30 m indoors, up to 50 m outdoors (depending on local conditions) |
| Bluetooth version | 4.2 |
| Bluetooth range | Up to 10 m indoors, up to 30 m outdoors (depending on local conditions) |
| Processor | ESP-Shelly C38F |
| Clock speed | 160 MHz |
| RAM | 400 KB |
| Flash memory | 4 MB |
| Schedules | 20 |
| Webhooks (URL actions) | 20 (5 URLs per webhook) |
| Scripts | Yes |
| MQTT | Yes |
