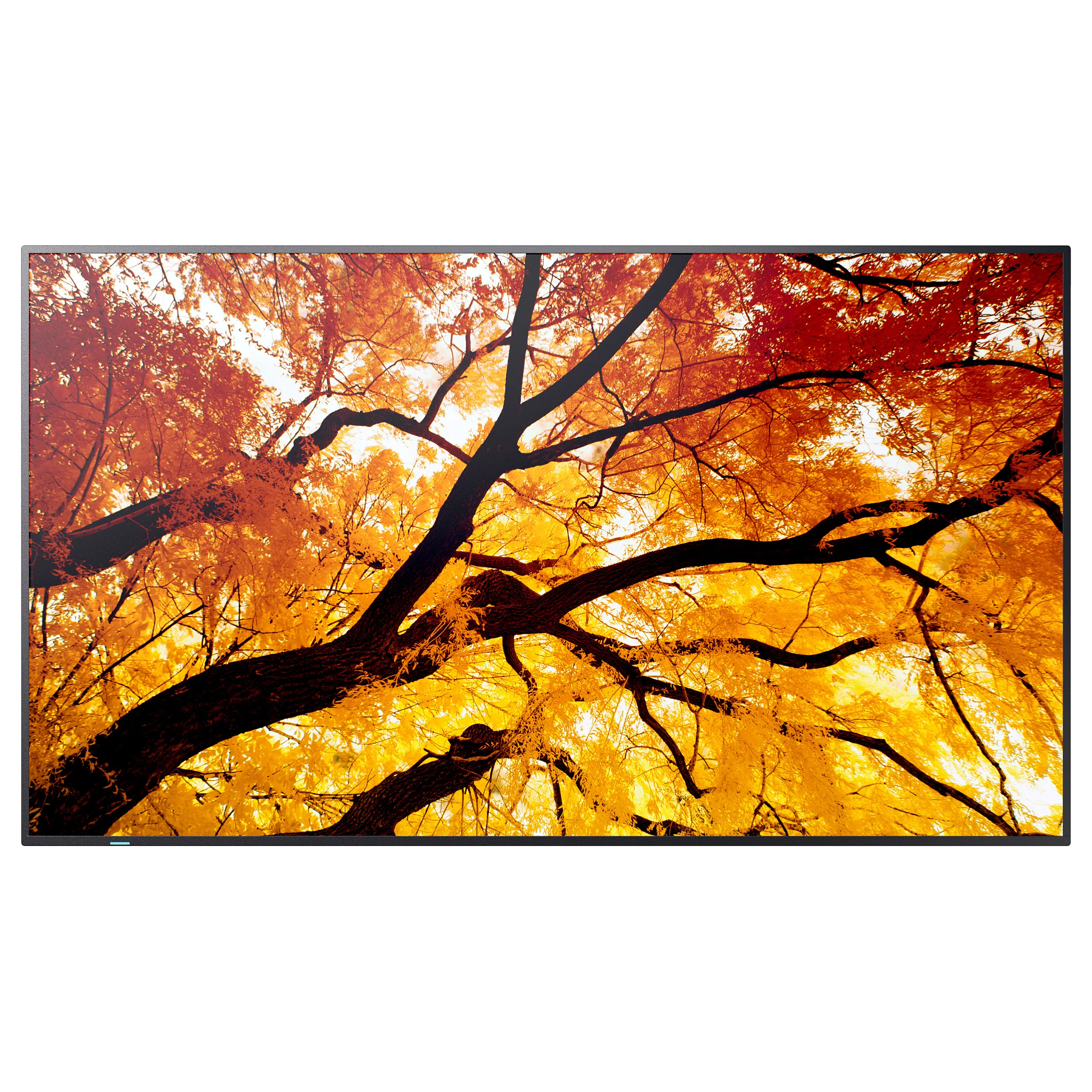

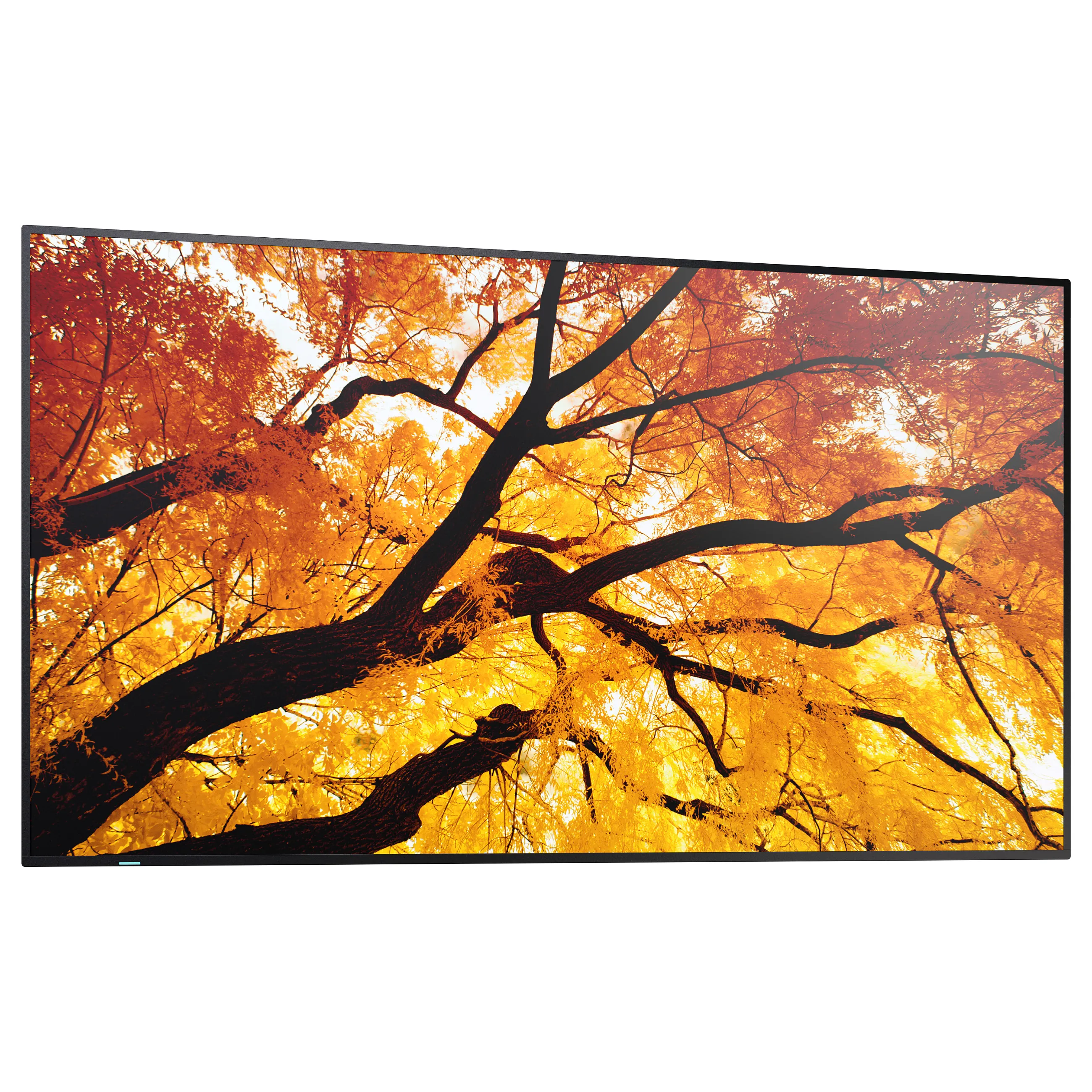

Sharp MultiSync PN-M982. Product design: Interactive flat panel. Display diagonal: 2.48 m (97.5"), Display technology: LED, Display resolution: 3840 x 2160 pixels, Display brightness: 550 cd/m², HD type: 4K Ultra HD. Operating hours (hours/days): 24/7. Product colour: Black
Built to perform, designed to last
The versatile solution for professional display applications, the Sharp MultiSync® M2 Series With native USB-C connectivity and broad compatibility with platforms such as Crestron, Cisco Webex, and Microsoft Teams, it enables seamless BYOD collaboration and future-ready integration, while 802.1x LAN support ensures enterprise-grade network security.
The versatile solution for professional display applications, the Sharp MultiSync® M2 Series With native USB-C connectivity and broad compatibility with platforms such as Crestron, Cisco Webex, and Microsoft Teams, it enables seamless BYOD collaboration and future-ready integration, while 802.1x LAN support ensures enterprise-grade network security.
As part of the new Sharp-branded display family, the MultiSync® M2 Series builds on NEC’s legacy of quality and reliability to drive greater efficiency and long-term value. Its proven modular design supports custom computing options (Raspberry Pi or Intel® SDM) and flexible connectivity (e.g. AV-over-IP), ensuring lasting versatility, performance, and sustainability.
Display
Panel type: IPS
Feature: LED backlight
LED backlighting type: Direct-LED
Display diagonal: 2.48 m (97.5″)
Display technology: LED
Display resolution: 3840 x 2160 pixels
Display brightness: 550 cd/m²
HD type: 4K Ultra HD
Native aspect ratio: 16:9
Response time: 8 ms
Contrast ratio (typical): 1200:1
Viewing angle, horizontal: 178°
Viewing angle, vertical: 178°
Display number of colours: 1.073 billion colours
Display diagonal (metric): 247.7 cm
Horizontal scan range: 15 – 135 kHz
Vertical scan range: 23 – 76 Hz
Native refresh rate: 60 Hz
Haze rate: 25%

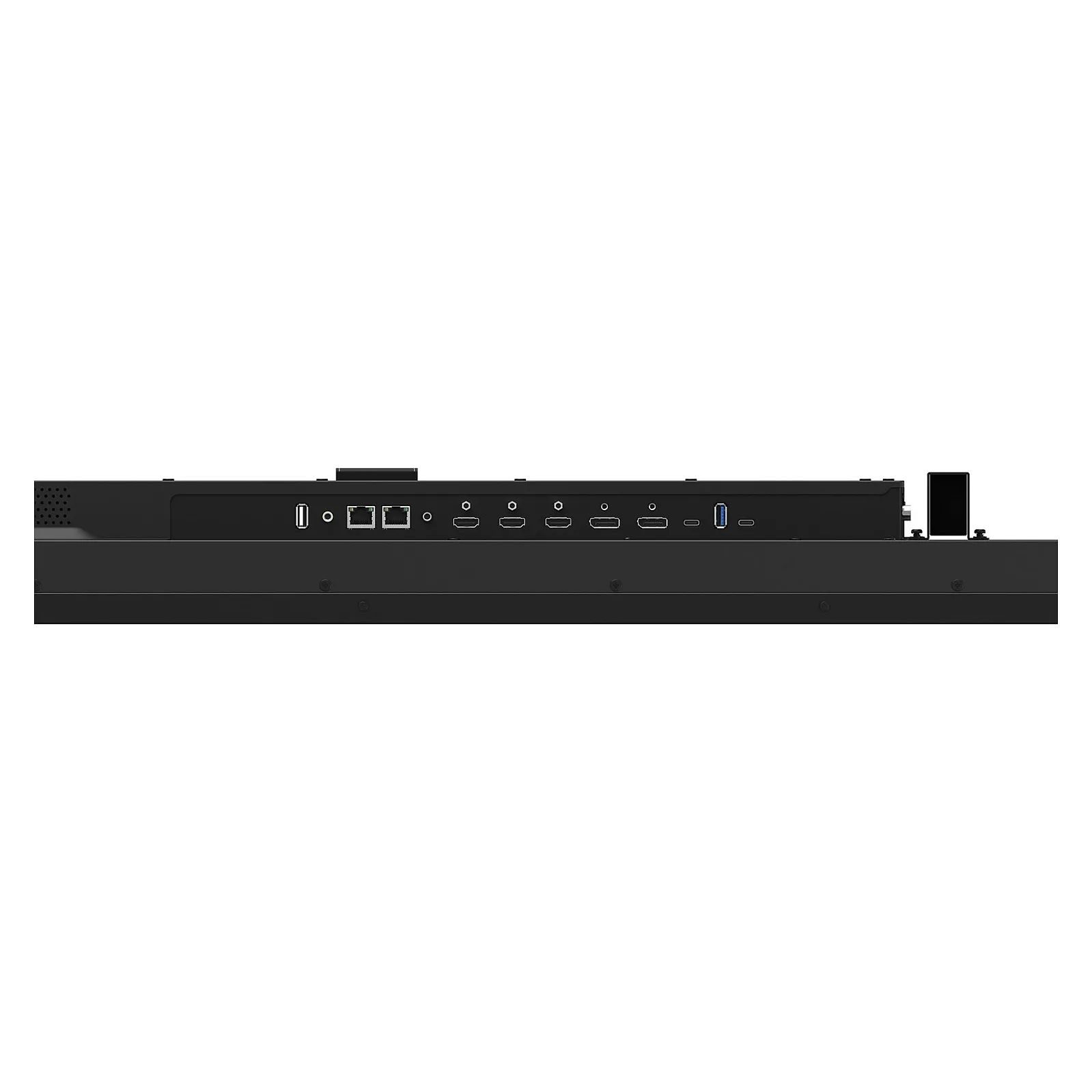

Ports & interfaces
HDMI ports quantity: 3
HDMI version: 2.0
HDMI input ports quantity: 2
HDMI output ports quantity: 1
DisplayPorts quantity: 2
DisplayPorts in: 1
DisplayPorts out: 1
DisplayPort version: 1.4
Feature: USB port
USB connector type: USB Type-C
Feature: USB Power Delivery (USB PD)
USB Power Delivery up to: 60 W
Feature: USB Type-C DisplayPort Alternate Mode
Ethernet LAN (RJ-45) ports: 1
Feature: Audio Return Channel (ARC)
Audio
Feature: Built-in speaker(s)
Number of built-in speakers: 2
RMS rated power: 20 W
Design
Product design: Interactive flat panel
Placement supported: Indoor

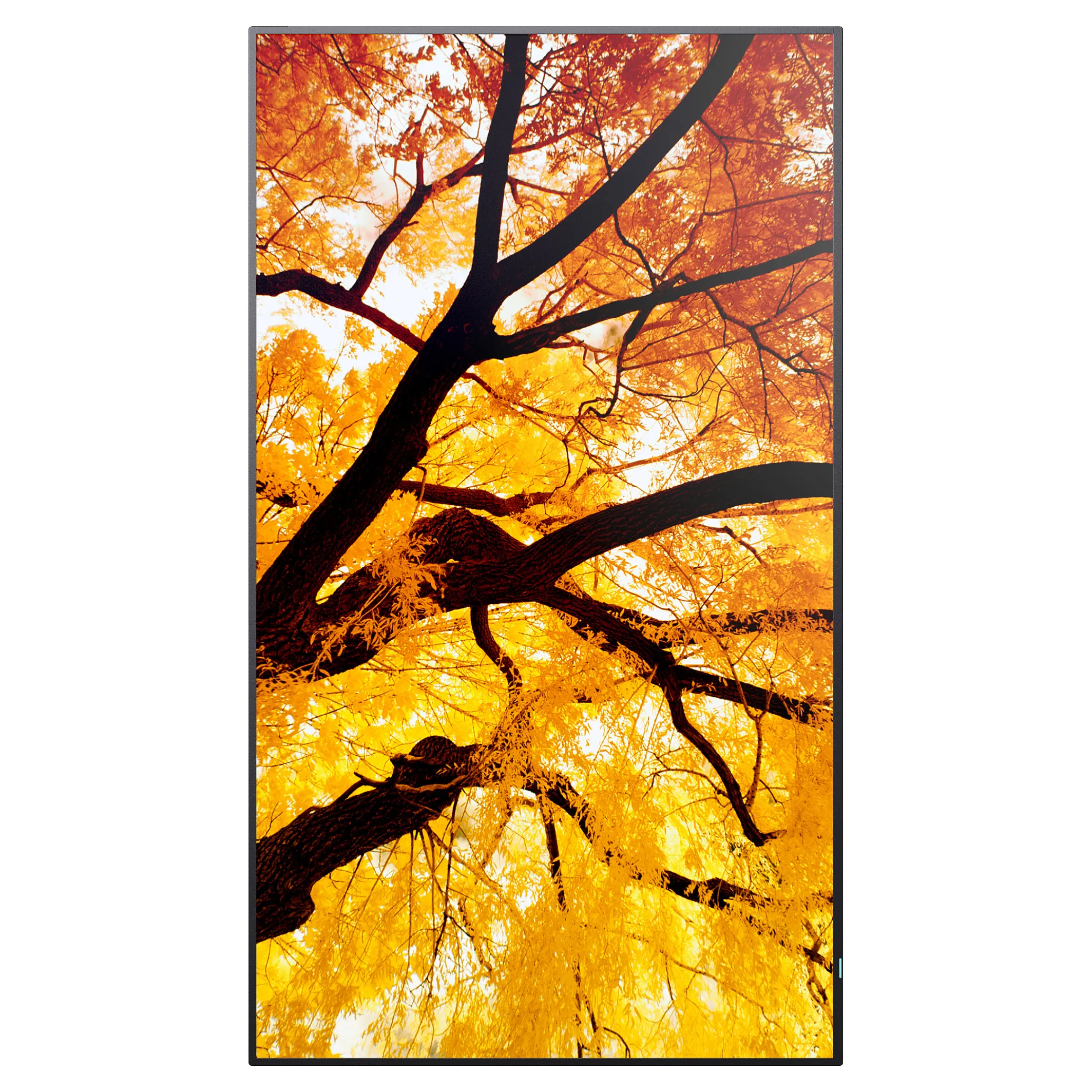

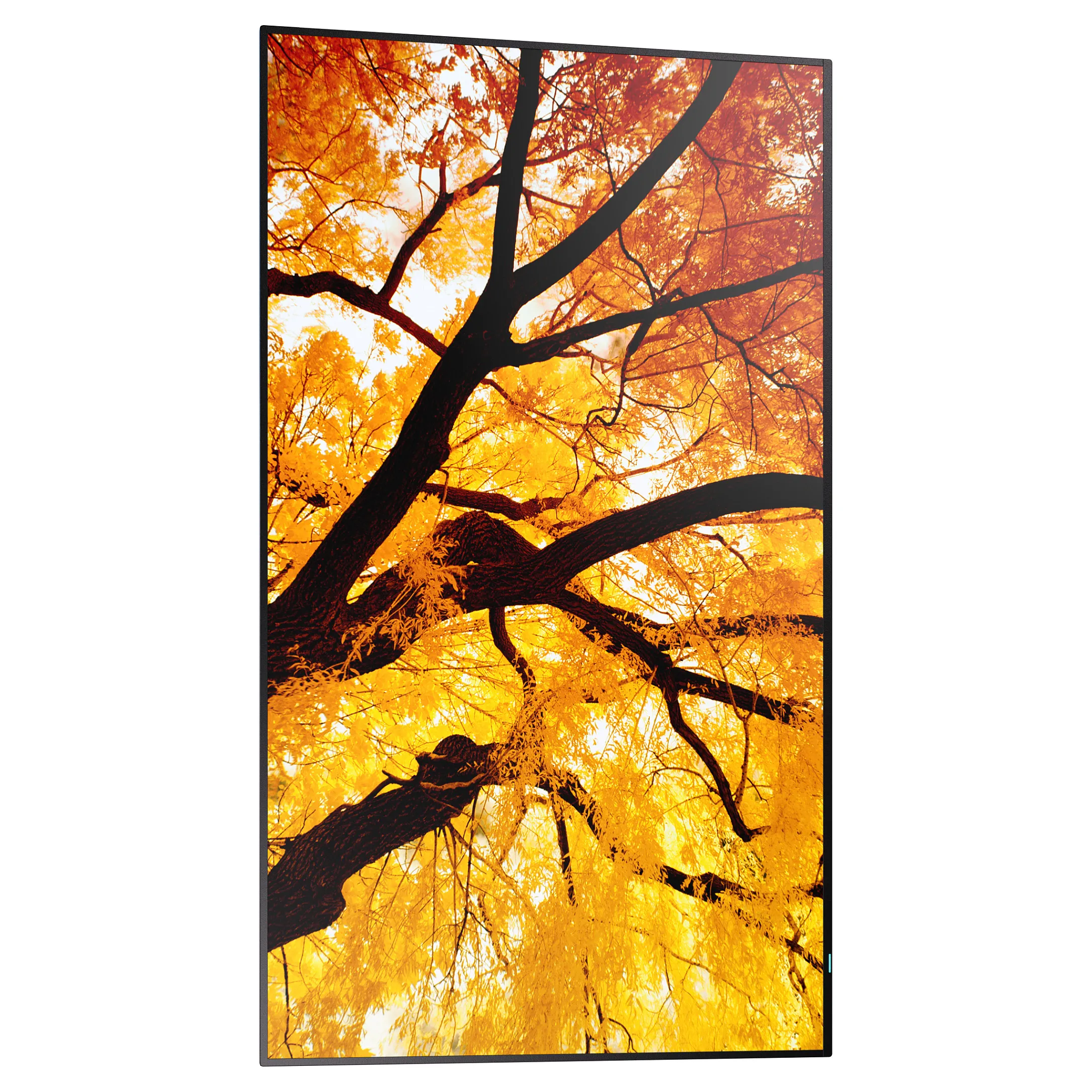

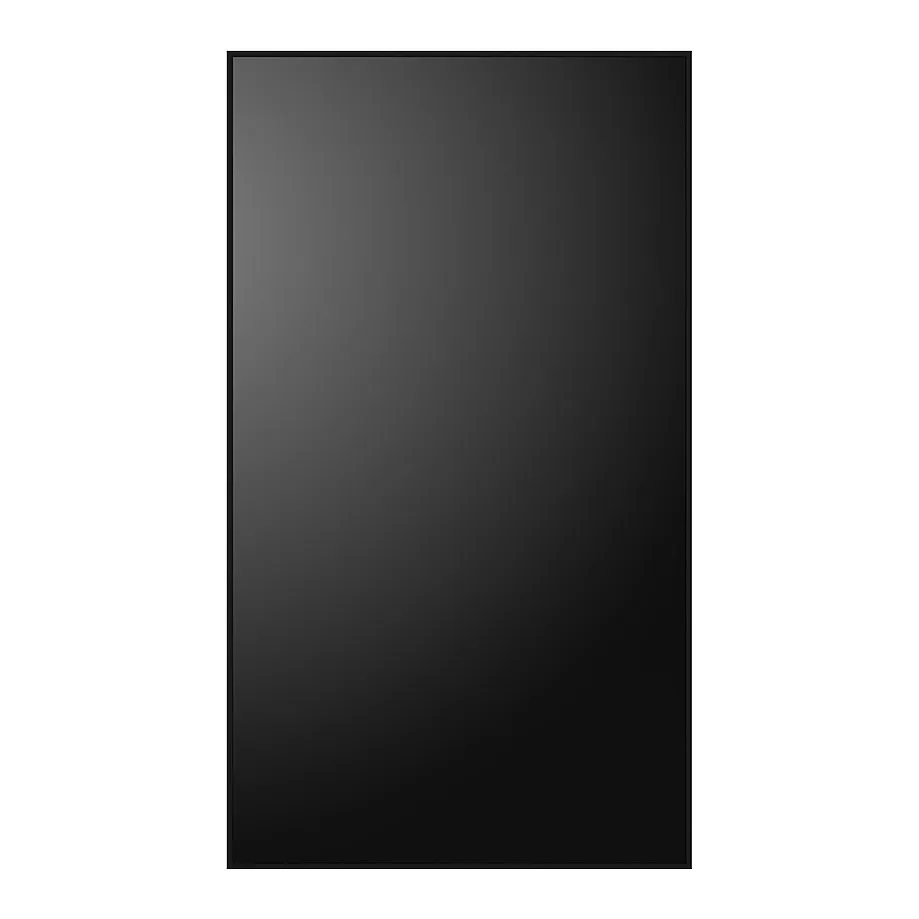

Orientation: Horizontal/Vertical
Product colour: Black
Feature: VESA mounting

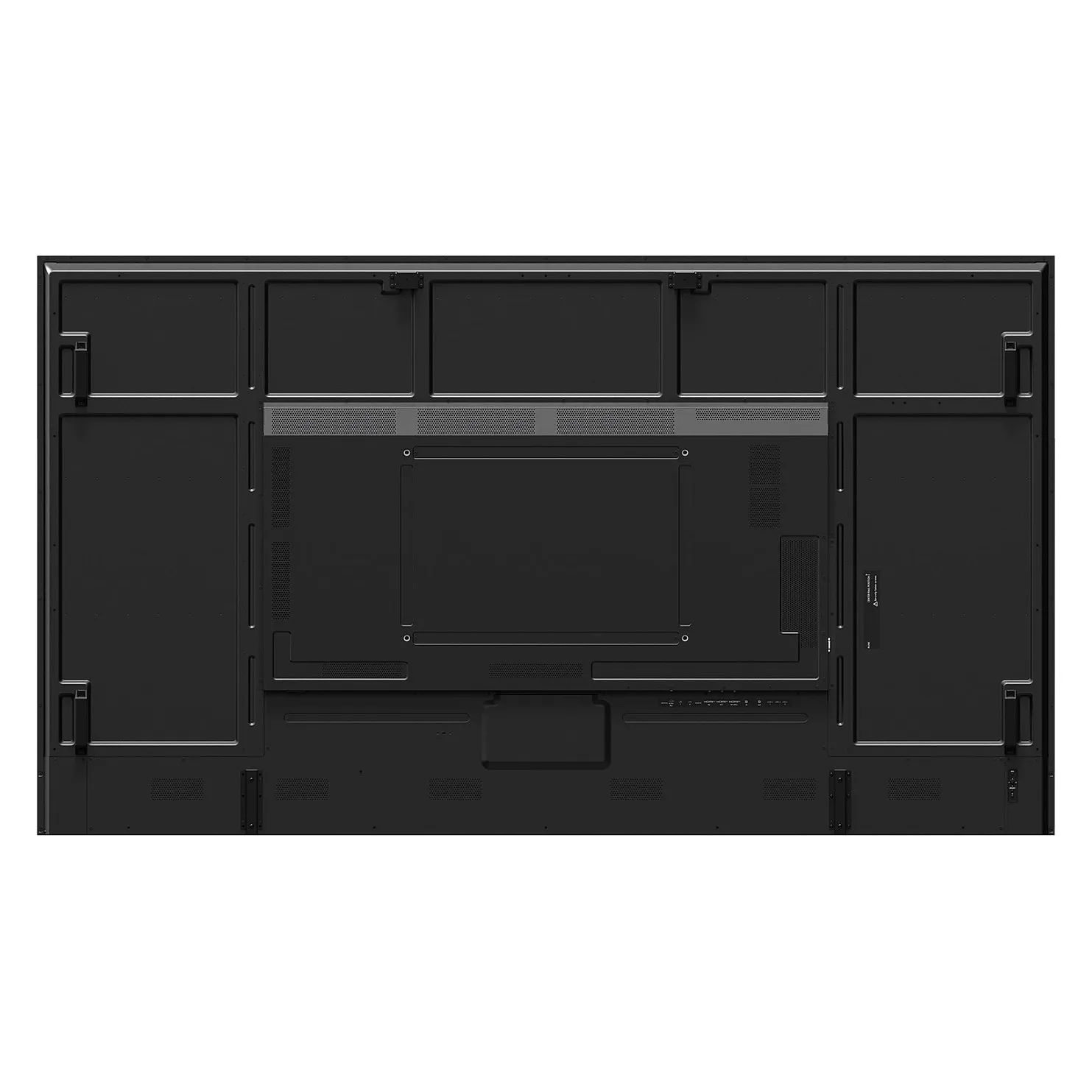

Panel mounting interface: 600 x 400 mm
Bezel width (bottom): 1.59 cm
Bezel width (side): 1.59 cm
Bezel width (top): 1.59 cm
Performance
Purpose: Universal
Operating hours (hours/days): 24/7
Power
Power consumption (typical): 210 W
Power consumption (standby): 0.5 W

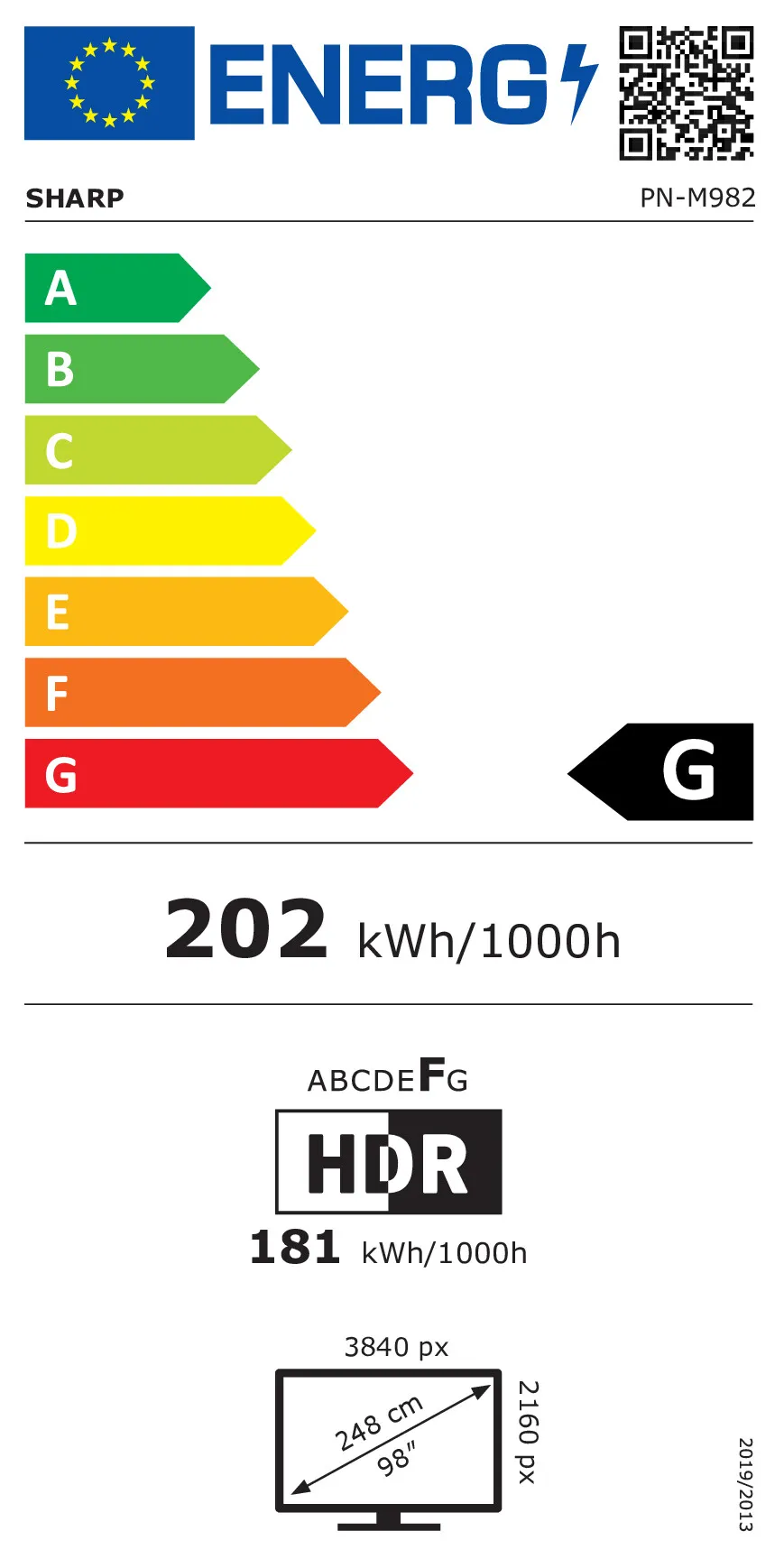

Energy efficiency class (SDR): G
Energy efficiency class (HDR): F
Energy consumption (SDR) per 1000 hours: 202 kWh
Energy consumption (HDR) per 1000 hours: 181 kWh
AC input voltage: 100 – 240 V
AC input frequency: 50/60 Hz
Energy efficiency scale: A to G
Weight & dimensions
Display width: 2194.7 mm
Display depth: 84.3 mm
Display height: 1250.2 mm
Display weight: 68 kg
Packaging data
Package width: 1830 mm
Package depth: 1070 mm
Package height: 225 mm
Package weight: 51 kg
Packaging content
Feature: Remote control included
Feature: Batteries included
Cables included: AC, HDMI
Operational conditions
Operating temperature (T-T): 0 – 40 °C
Operating relative humidity (H-H): 20 – 80%
Storage temperature (T-T): -20 – 60 °C
Storage relative humidity (H-H): 10 – 80%
Sensors
Feature: Ambient light sensor
Network
Feature: Ethernet LAN
Ethernet LAN data rates: 100 Mbit/s
Other features
Power supply type: Internal
