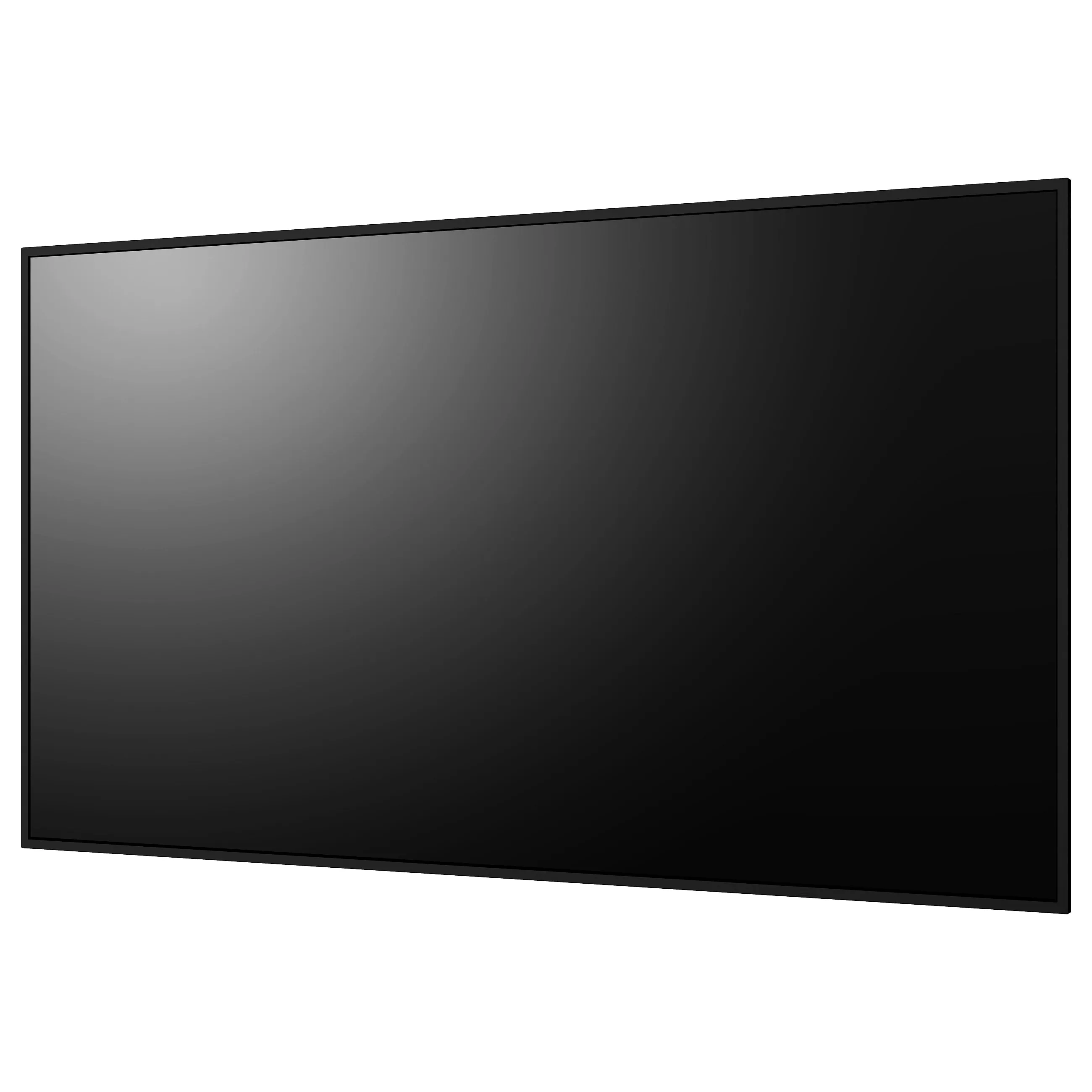

Sharp MultiSync E759. Product design: Digital signage flat panel. Display diagonal: 190.5 cm (75"), Display technology: LCD, Display resolution: 3840 x 2160 pixels, Display brightness: 350 cd/m², HD type: 4K Ultra HD. Product colour: Black
The entry point for professional display solutions, the Sharp MultiSync® E9 Series is designed for modern business environments that need more than a consumer TV can offer. Combining essential features for meeting rooms and digital signage with commercial-grade reliability, the E9 Series delivers crisp UHD resolution, integrated media playback, and 16/7 operation at an accessible price point. A professional matte high-haze panel ensures superior visual performance in this product category, minimising reflections and glare common with glossy panels.
Designed for seamless integration across the wider Sharp display family, the E9 Series shares the same core identity, including the same remote control and device management for a consistent user experience. A robust metal back cover secures product longevity in commercial settings. Whether for presentations, retail signage, or corporate communication, the E9 Series gives you the professional edge without stretching your budget
Panel type: IPS
Feature: LED backlight
LED backlighting type: Direct-LED
Display diagonal: 190.5 cm (75″)
Display technology: LCD
Display resolution: 3840 x 2160 pixels
Display brightness: 350 cd/m²
HD type: 4K Ultra HD
Native aspect ratio: 16:9
Response time: 8 ms
Contrast ratio (typical): 1200:1
Viewing angle, horizontal: 178°
Viewing angle, vertical: 178°
Display number of colours: 1.073 billion colours
Pixel pitch: 0.43 x 0.43 mm
Active display area (W x H): 1650 x 928 mm
Display diagonal (metric): 189.3 cm
Horizontal scan range: 31.5 – 135 kHz
Vertical scan range: 24 – 75 Hz
Native refresh rate: 60 Hz
Haze rate: 25%
Ports & interfaces
HDMI ports quantity: 4
HDMI input ports quantity: 2
HDMI output ports quantity: 2
Feature: USB port
USB ports quantity: 4
USB version: 2.0/3.2 Gen 1 (3.1 Gen 1)
USB connector type: USB Type-A, USB Type-C
Ethernet LAN (RJ-45) ports: 1
Feature: PC Audio in
Feature: RS-232C
Audio
Feature: Built-in speaker(s)
Number of built-in speakers: 2
RMS rated power: 20 W
Design
Product design: Digital signage flat panel
Placement supported: Indoor
Product colour: Black
Feature: VESA mounting
Panel mounting interface: 600 x 400 mm
Bezel width (bottom): 1.29 cm
Bezel width (side): 1.29 cm
Bezel width (top): 1.29 cm
Mounting type: Wall
Performance
Purpose: Universal
Power
Power consumption (typical): 170 W
Power consumption (standby): 0.5 W
Power consumption (sleep): 0.5 W
Energy efficiency class (SDR): G
Energy efficiency class (HDR): Not available
AC input voltage: 100 – 240 V
AC input frequency: 50/60 Hz
Energy efficiency scale: A to G
Weight & dimensions
Display width: 1680 mm
Display depth: 58.5 mm
Display height: 959 mm
Display weight: 24 kg
Packaging data
Package width: 1875 mm
Package depth: 186 mm
Package height: 1130 mm
Package weight: 33 kg
Packaging content
Feature: Remote control included
Feature: Batteries included
Cables included: AC
Operational conditions
Operating temperature (T-T): 0 – 40 °C
Operating relative humidity (H-H): 20 – 80%
Storage temperature (T-T): -20 – 60 °C
Storage relative humidity (H-H): 10 – 80%
Network
Feature: Ethernet LAN
Ethernet LAN data rates: 100 Mbit/s
Other features
Power supply type: Internal
