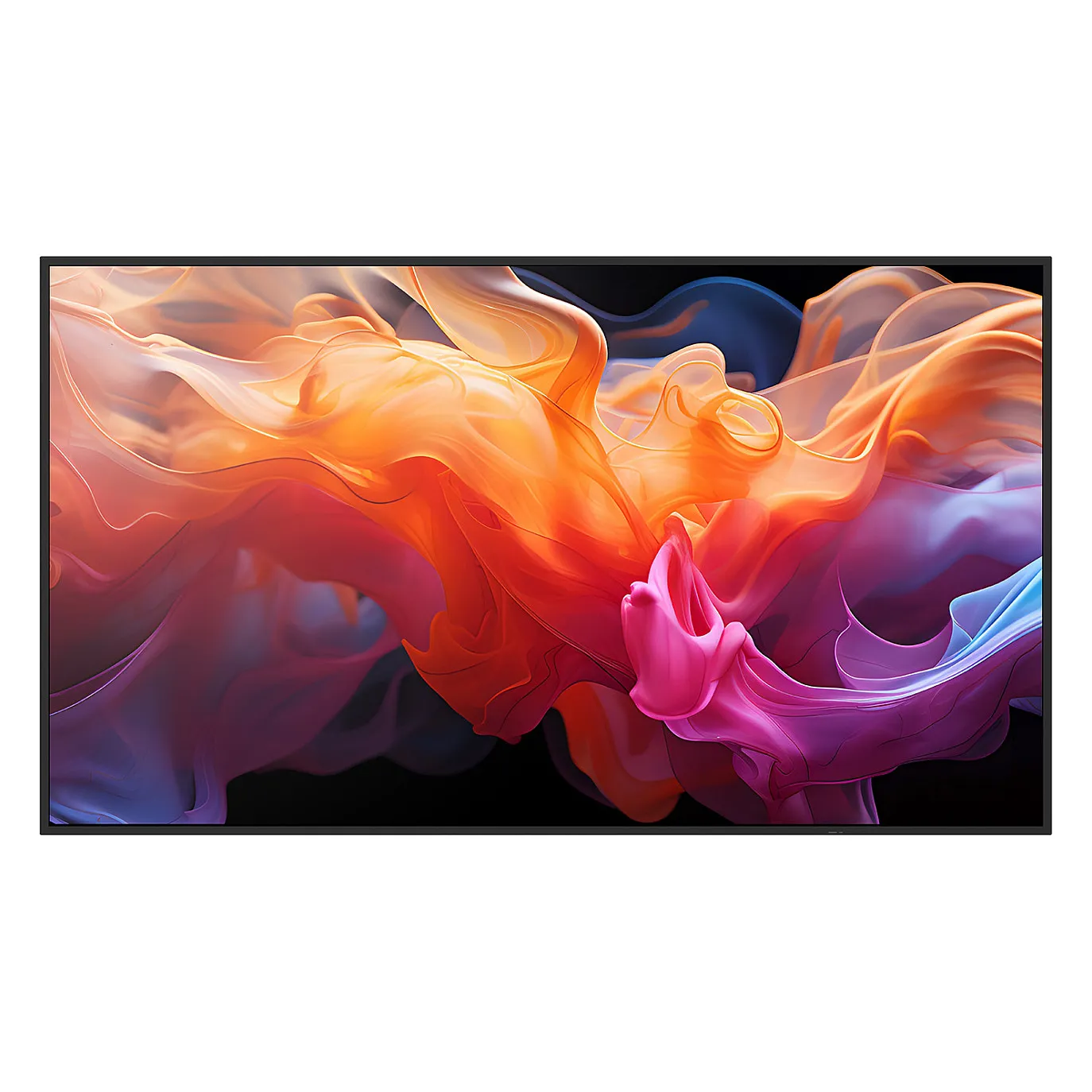

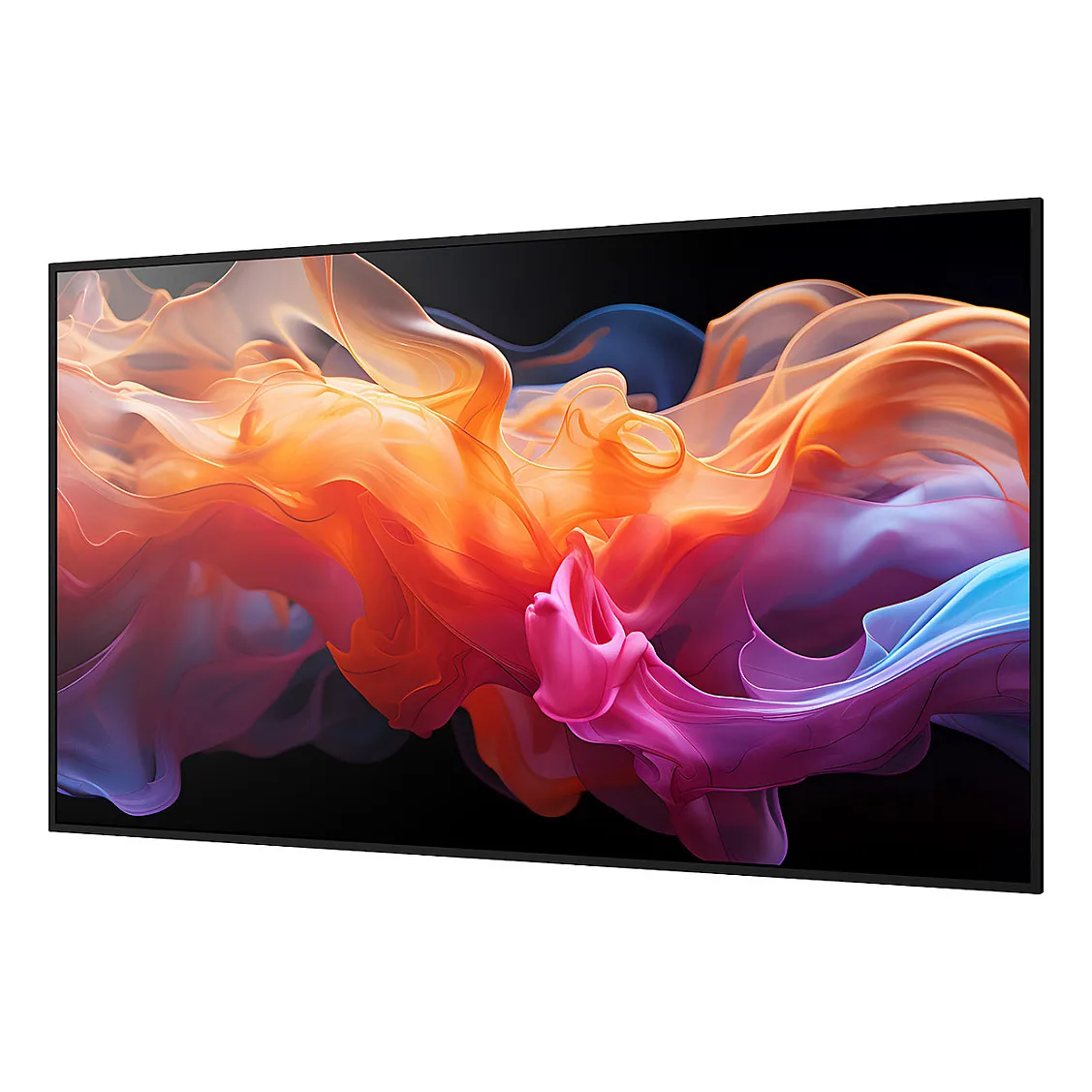

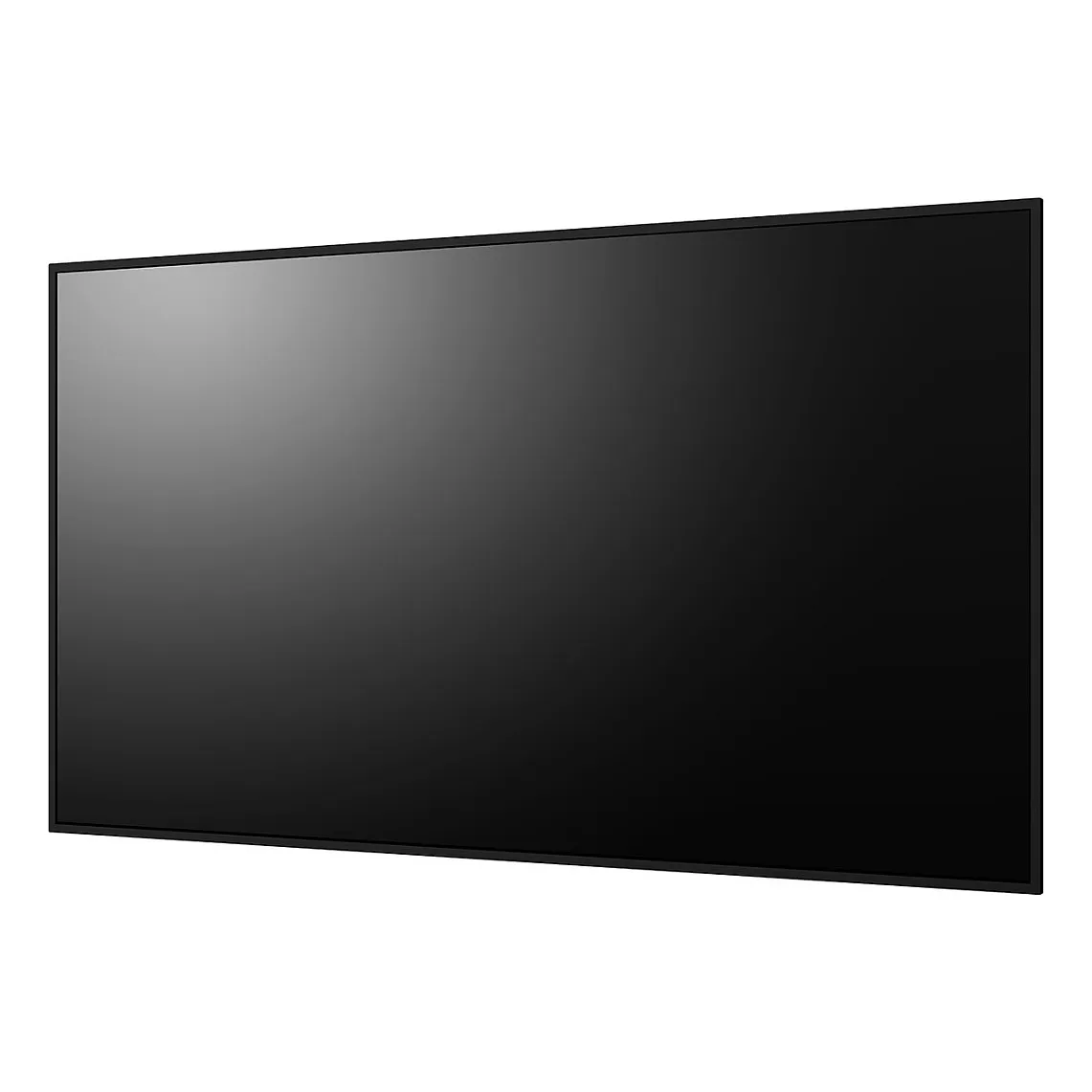

Sharp E869. Product design: Digital A-board. Display diagonal: 2.17 m (85.6"), Display technology: LED, Display resolution: 3840 x 2160 pixels, Display brightness: 350 cd/m², HD type: 4K Ultra HD. Operating hours (hours/days): 16/7. Product colour: Black
The entry point for professional display solutions, the Sharp MultiSync® E9 Series is designed for modern business environments that need more than a consumer TV can offer. Combining essential features for meeting rooms and digital signage with commercial-grade reliability, the E9 Series delivers crisp UHD resolution, integrated media playback, and 16/7 operation at an accessible price point. A professional matte high-haze panel ensures superior visual performance in this product category, minimising reflections and glare common with glossy panels.

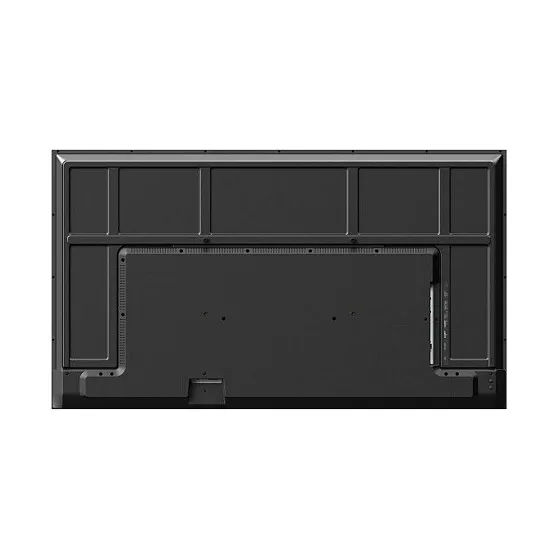

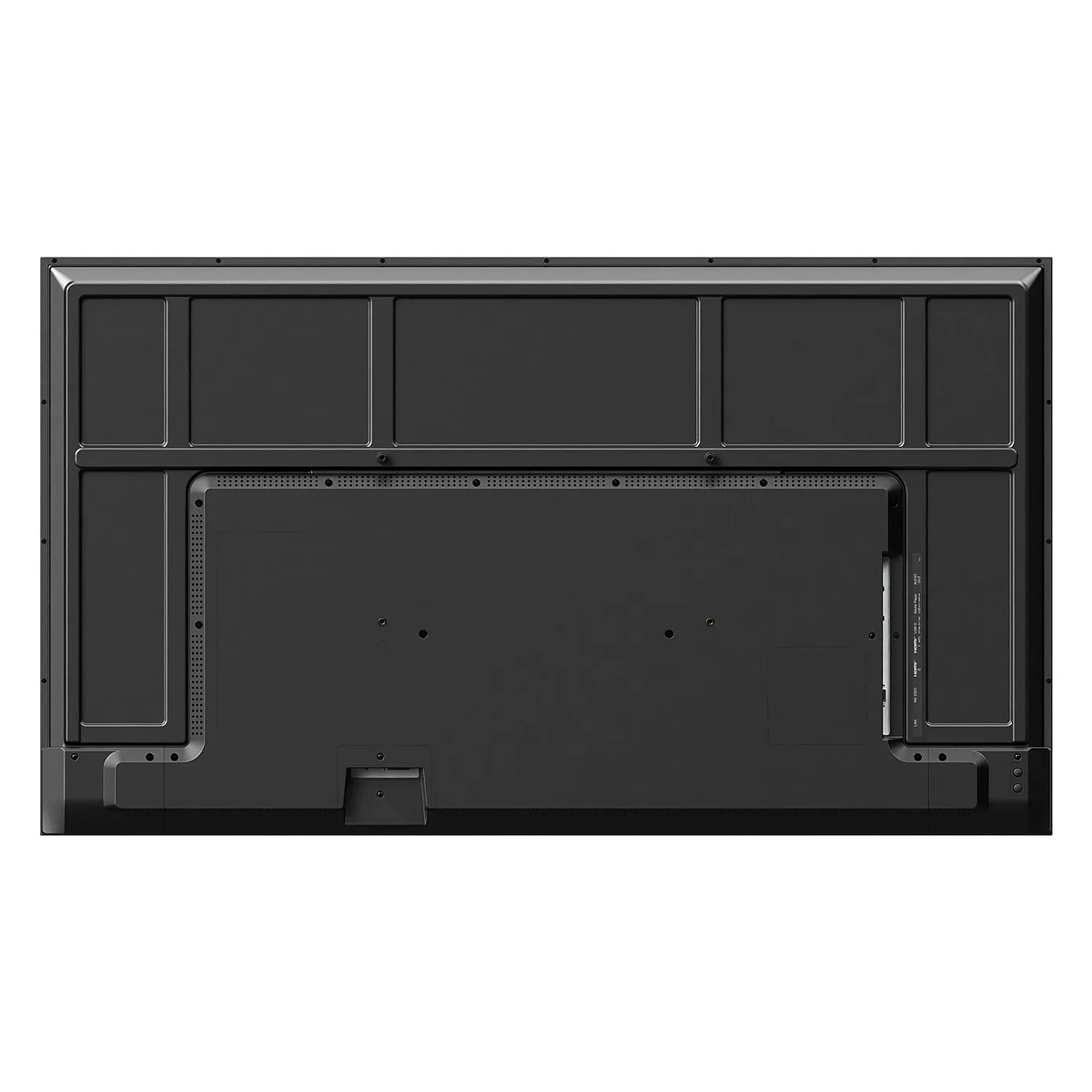

Designed for seamless integration across the wider Sharp display family, the E9 Series shares the same core identity, including the same remote control and device management for a consistent user experience. A robust metal back cover secures product longevity in commercial settings. Whether for presentations, retail signage, or corporate communication, the E9 Series gives you the professional edge without stretching your budget
Benefits
Unhindered readability – a high-haze panel reduces glare from windows and ambient light, keeping signage content and presentations clear for uninterrupted viewing in any environment
Standardised functionality – shares a common identity with the wider Sharp display portfolio, ensuring unified operation and remote device management, and consistent styling for a seamless user experience.
Effortless plug-and-play signage – the integrated USB MediaPlayer enables native UHD content playback with auto-start functionality, delivering instant digital signage without the need for external hardware or content management systems.

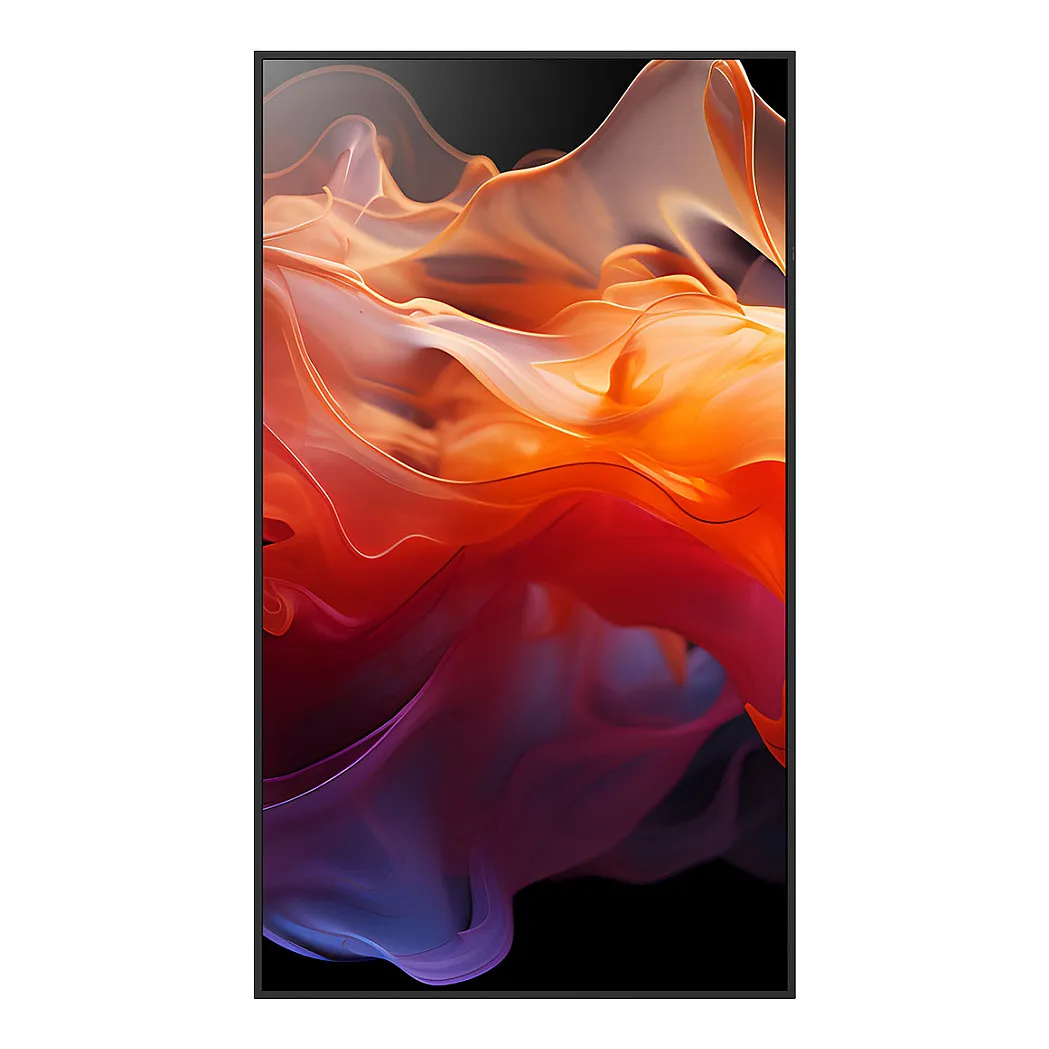

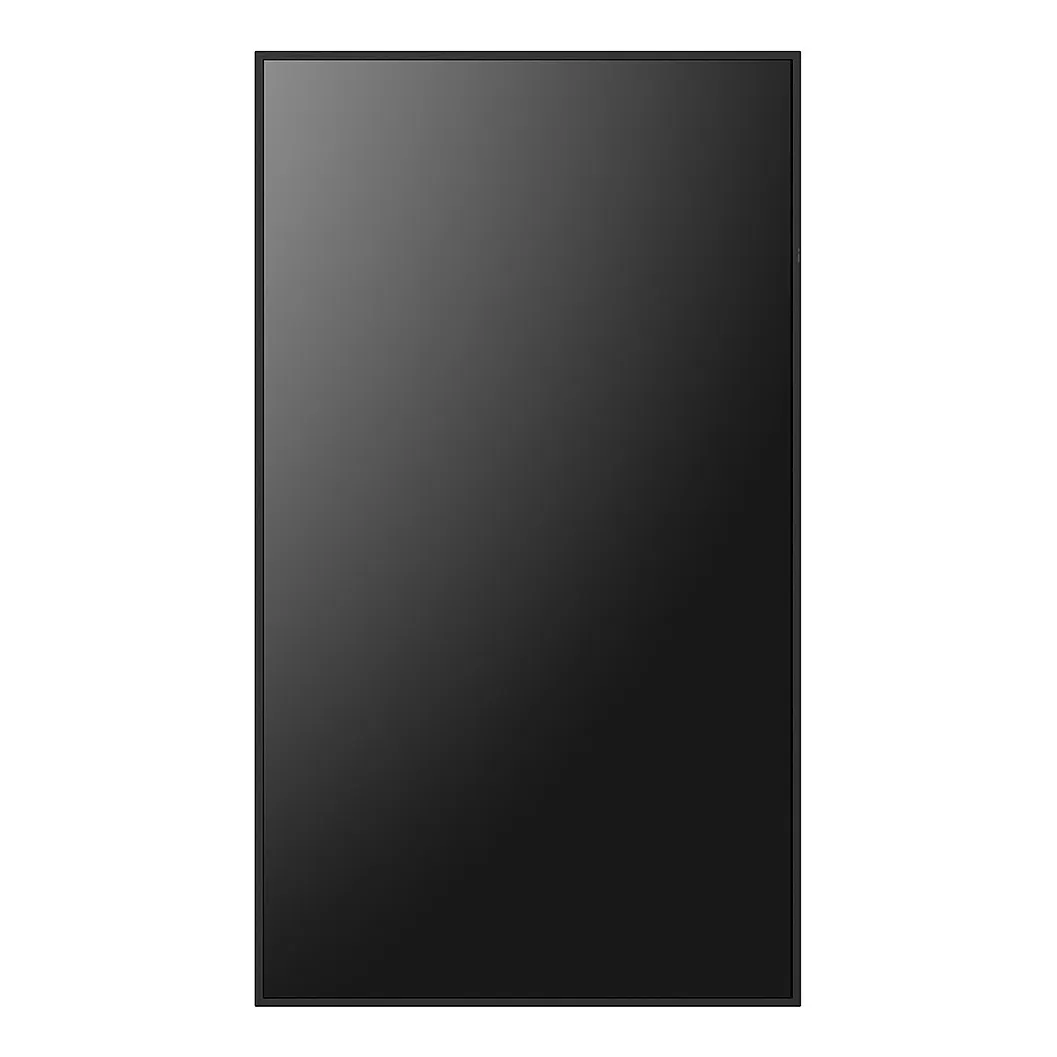

Flexible orientation – designed for both portrait and landscape installation, with uniform bezel width on all sides to ensure a clean, professional look in any configuration.
Panel type: IPS
Feature: LED backlight
LED backlighting type: Direct-LED
Display diagonal: 2.17 m (85.6″)
Display technology: LED
Display resolution: 3840 x 2160 pixels
Display brightness: 350 cd/m²
HD type: 4K Ultra HD
Native aspect ratio: 16:9
Response time: 8 ms
Contrast ratio (typical): 1200:1
Viewing angle, horizontal: 178°
Viewing angle, vertical: 178°
Display number of colours: 1.07 billion colours
Pixel pitch: 0.494 x 0.494 mm
Active display area (W x H): 1895 x 1066 mm
Display diagonal (metric): 217.43 cm
Horizontal scan range: 31.5 – 31.5 kHz
Vertical scan range: 24 – 75 Hz
Native refresh rate: 60 Hz
Haze rate: 25%

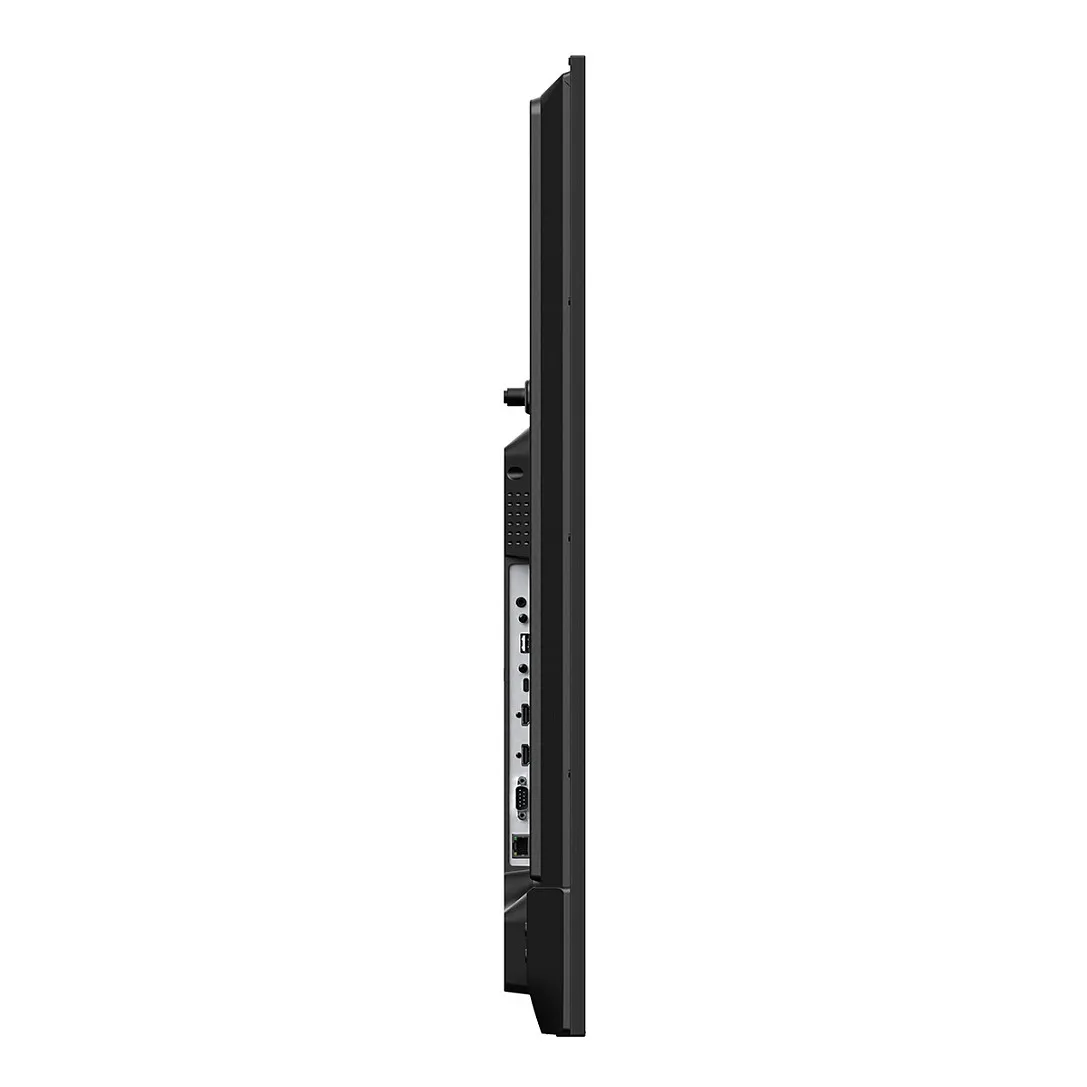

Ports & interfaces
HDMI ports quantity: 2
HDMI input ports quantity: 2
HDMI output ports quantity: 2
Feature: USB port
USB ports quantity: 3
USB version: 2.0
USB connector type: USB Type-A, USB Type-C
Feature: USB Power Delivery (USB PD)
USB Power Delivery up to: 15 W
Feature: USB Type-C DisplayPort Alternate Mode
Ethernet LAN (RJ-45) ports: 1
Feature: PC Audio in
Feature: RS-232 interface
Feature: RS-232C
Feature: PC Audio out
Audio
Feature: Built-in speaker(s)
Number of built-in speakers: 2
RMS rated power: 20 W
Design
Product design: Digital A-board
Placement supported: Indoor
Orientation: Horizontal/Vertical
Product colour: Black
Screen shape: Flat
Feature: VESA mounting
Panel mounting interface: 600 x 400 mm
Bezel type: 4 Bezel-less
Bezel width (bottom): 1.29 cm
Bezel width (side): 1.29 cm
Bezel width (top): 1.29 cm
Mounting type: Wall
Performance
Purpose: Corporate
Operating hours (hours/days): 16/7
Feature: HDCP
Power
Power consumption (typical): 245 W
Power consumption (standby): 0.5 W
Input voltage: 100 – 240 V
Power consumption (sleep): 0.5 W

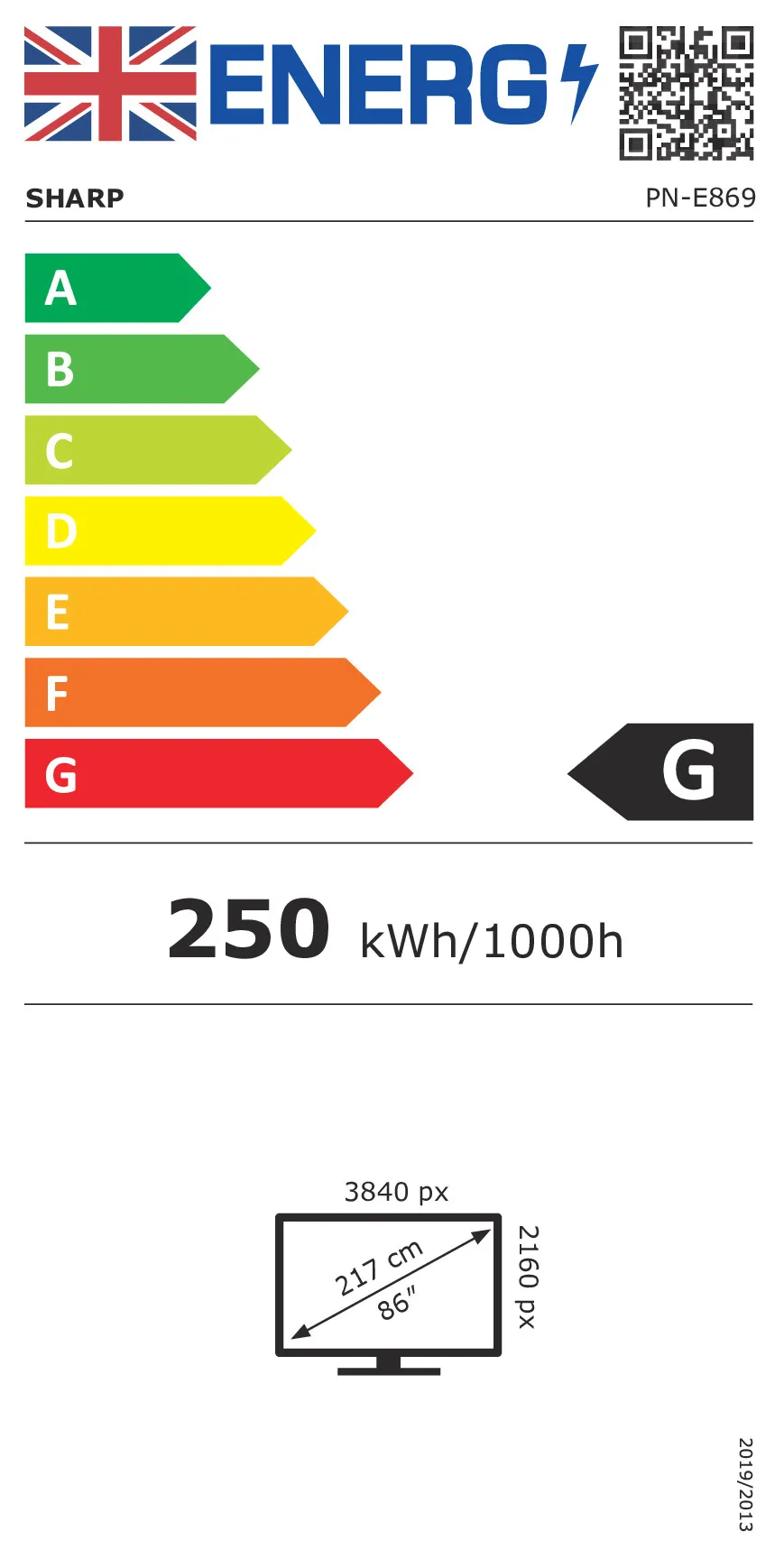

Energy efficiency class (SDR): G
Energy efficiency class (HDR): Not available
Energy consumption (SDR) per 1000 hours: 250 kWh
AC input voltage: 100 – 240 V
AC input frequency: 50/60 Hz
Energy efficiency scale: A to G
Computer system
Audio formats supported: AAC, LPCM, MP3, WMA, WMA-PRO, WMV
Weight & dimensions
Display width: 1927 mm
Display depth: 60 mm
Display height: 1098 mm
Display weight: 32.5 kg
Packaging data
Package width: 2080 mm
Package depth: 225 mm
Package height: 1250 mm
Package weight: 44 kg
Packaging content
Feature: Stand included
Remote control type: IR
Feature: Batteries included
Cables included: AC
Operational conditions
Operating temperature (T-T): 0 – 40 °C
Operating relative humidity (H-H): 20 – 80%
Storage temperature (T-T): -20 – 60 °C
Storage relative humidity (H-H): 10 – 80%
Network
Feature: Ethernet LAN
Ethernet LAN data rates: 1000 Mbit/s
Other features
Power supply type: Internal
