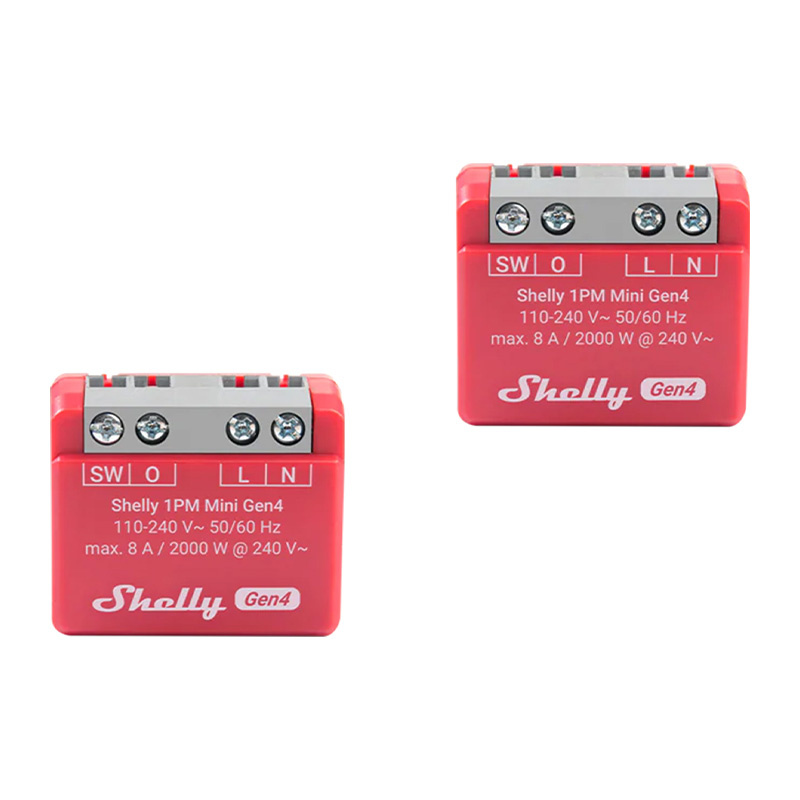

Set of 2 Shelly 1PM Mini Gen4 Zigbee/Matter Controllers
The Shelly 1PM Mini Gen4 controller allows for remote control of electrical devices and precise measurement of their energy consumption. It supports Wi-Fi, Zigbee, Bluetooth, and Matter, so it can be easily integrated with various home automation systems. It operates on a local network and via the cloud. The built-in web interface allows for configuration and monitoring without the need for additional software. Thanks to its compact size, it fits into standard electrical boxes and can be mounted behind outlets or switches in tight spaces. The set includes two controllers.
Control and monitoring in one
The Shelly 1PM Mini Gen4 functions simultaneously as a relay and an energy meter. This gives you not only the ability to remotely turn devices on and off, but also insight into actual power consumption. The power measurement feature allows for a detailed analysis of connected devices’ operation and helps optimize energy costs. The device sends data to the cloud or stores it locally, depending on the user’s preferences.
Compatibility and integrations with ecosystems
The device supports Zigbee, Wi-Fi, Bluetooth, and Matter protocols. It can be integrated into systems such as Google Home, Amazon Alexa, SmartThings, and KNX. The controller also supports MQTT, HTTPS, Web Hooks, UDP, and local APIs, enabling the creation of advanced scenarios and collaboration with other smart home components.
Programming, schedules, and reactions
The product allows you to create complex schedules and scenarios with the ability to set up to 20 schedules and webhooks—each with up to 5 URLs. It also supports scripts written in Shelly Script, allowing for the automation of actions based on time, device status, or input data. You can also use so-called virtual components, which increase the flexibility of system configuration.
Stability and operational safety
The Shelly 1PM Mini Gen4 is equipped with a range of safety features, including protection against overheating, power surges, overloads, and power limits. Thanks to the ESP-Shelly-C68F microprocessor and 8 MB of flash memory, the device ensures fast data processing and stable operation. Additionally, it can function as a repeater, amplifying the Zigbee or Wi-Fi signal in hard-to-reach areas.
Included
- Shelly controller x2
- user manual
General
| Manufacturer | Shelly |
|---|---|
| Model | 1PMMiniGen4 |
Physical specifications
| Dimensions | 29 x 34 x 16 ± 0.5 mm / 1.34 × 1.11 × 0.63 ±0.02 inches |
|---|---|
| Weight | 18 ±1 g / 0.63 ±0.04 oz |
| Maximum tightening torque for screw terminals | 0.4 Nm / 3.5 lbf.in |
| Wire cross-section | 0.2 to 2.5 mm² / 24 to 14 AWG (wire, stranded wire, and ferrules) |
| Wire stripping length | 6 to 7 mm / 0.24 to 0.28 inches |
| Mounting | Wall box |
| Housing material | Plastic |
| Housing color | Red |
| Connector color | Gray |
Environmental conditions
| Operating temperature | -20°C to 40°C / -5°F to 105°F |
|---|---|
| Operating humidity | 30% to 70% RH |
| Maximum altitude | 2000 m / 6562 ft |
Electrical Specifications
| Power Supply | 110–240 V AC |
|---|---|
| Relay | NO contact, 1-pole, µ contact |
| External Protection | Triggering characteristic B or C, max. rated current 10 A, min. breaking capacity 6 kA, energy limitation class 3 |
Output circuit parameters
| Maximum switching voltage | 240 V AC |
|---|---|
| Maximum switching current | 8 A / 240 V AC |
| Power measurement | Yes |
| Overvoltage protection / cut-off | Yes |
| Overload protection / cut-off | Yes |
| Power overload protection / cut-off | Yes |
Sensors, meters
| Built-in internal temperature sensor | Yes |
|---|
Wi-Fi
| Protocol | 802.11 b/g/n |
|---|---|
| RF band | 2412 – 2472 MHz |
| Maximum RF power | < 20 dBm |
| Range | Up to 30 m / 100 ft indoors and 50 m / 160 ft outdoors (depending on local conditions) |
Bluetooth
| Protocol | 5.0 |
|---|---|
| RF Band | 2402 – 2480 MHz |
| Maximum RF Power | < 4 dBm |
| Range | Up to 10 m / 33 ft indoors and 30 m / 100 ft outdoors (depending on local conditions) |
Zigbee
| Protocol | 802.15.4 |
|---|---|
| RF bands | 2400 – 2483.5 MHz |
| Maximum RF power | < 20 dBm |
| Range | Up to 100 m / 328 ft indoors and 300 m / 984 ft outdoors (depending on local conditions) |
Microcontroller unit
| CPU | ESP-Shelly-C68F |
|---|---|
| Flash memory | 8 MB |
Firmware capabilities
| Schedules | 20 |
|---|---|
| Webhooks (URL actions) | 20, each with up to 5 URLs |
| Scripts | Yes |
| MQTT | Yes |
