Seasonic SSR-750FA. Total power: 750 W, AC input voltage: 100 – 240 V, AC input frequency: 50 – 60 Hz. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 20 cm, SATA power cable length: 230,210,470 mm. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Gold. Product colour: Black, Cooling type: Active. Cables included: CPU, PCIe, Peripheral (Molex), Peripheral (Molex) to SATA 3.3, SATA
The exact time to market depends on your location. Please contact your local Seasonic Representative to obtain more information.
80 PLUS® GOLD
The PRIME Gold Series achieves 80 PLUS® Gold certification with its 90 % efficiency at 50 % system load.
INTRODUCING SEASONIC CONNECT

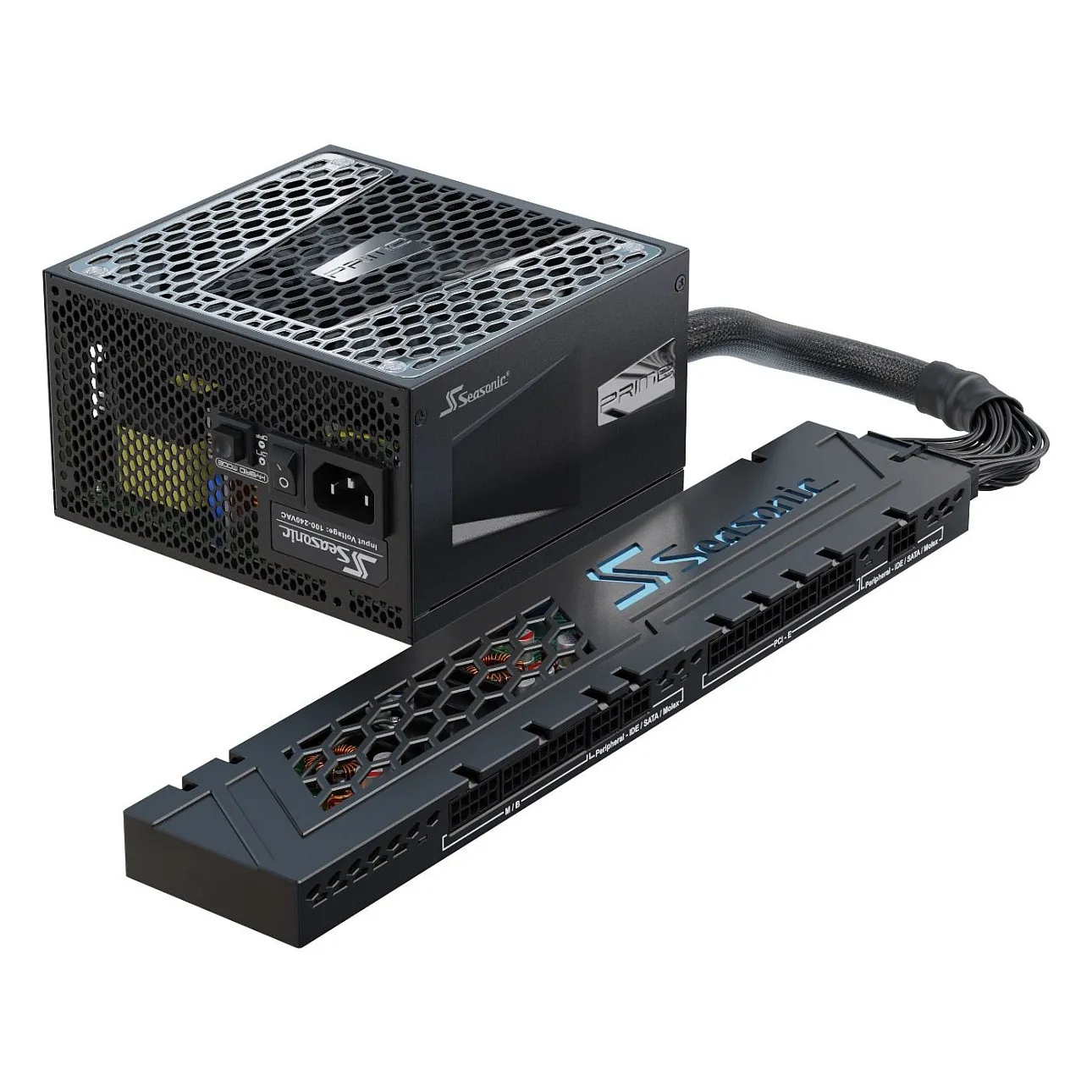

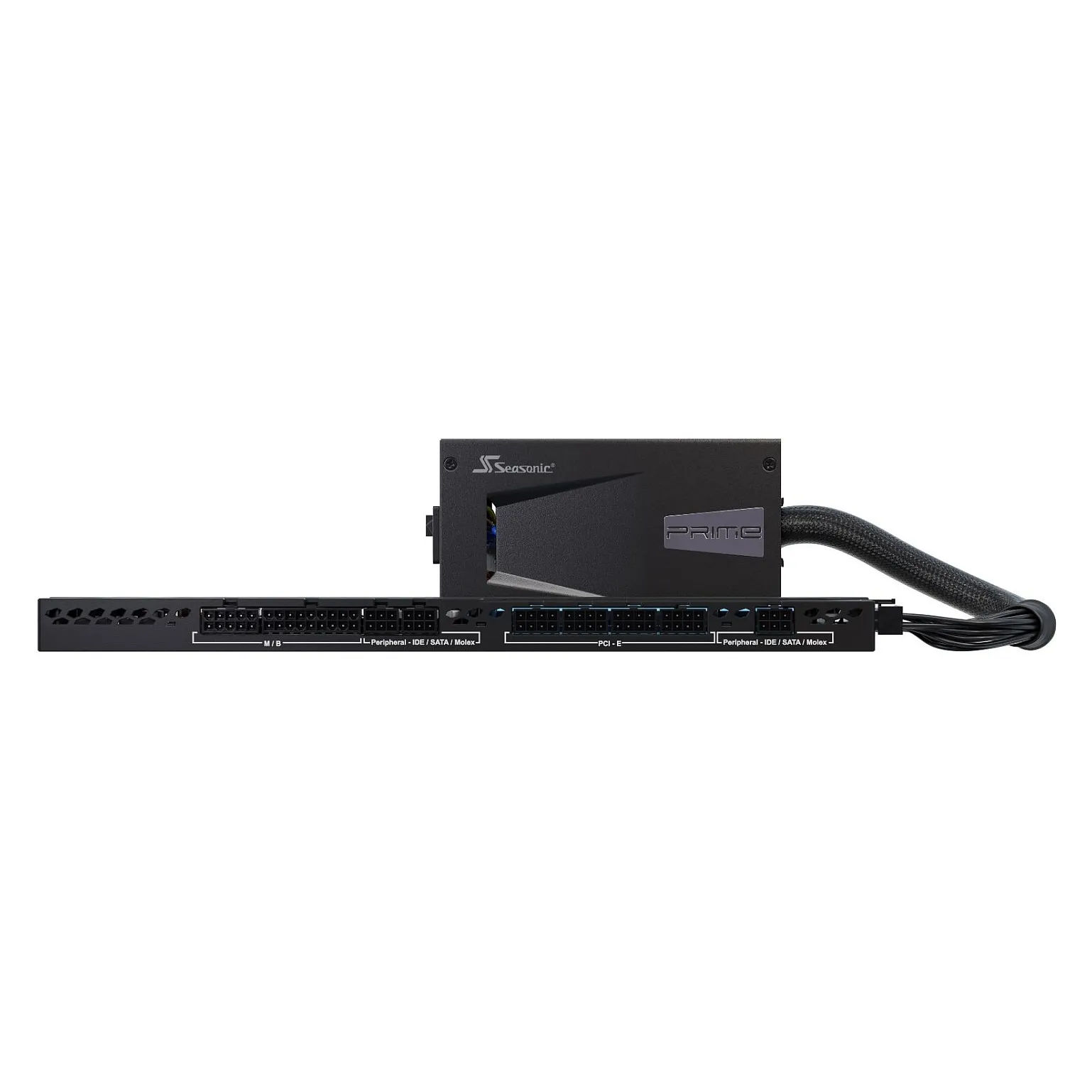

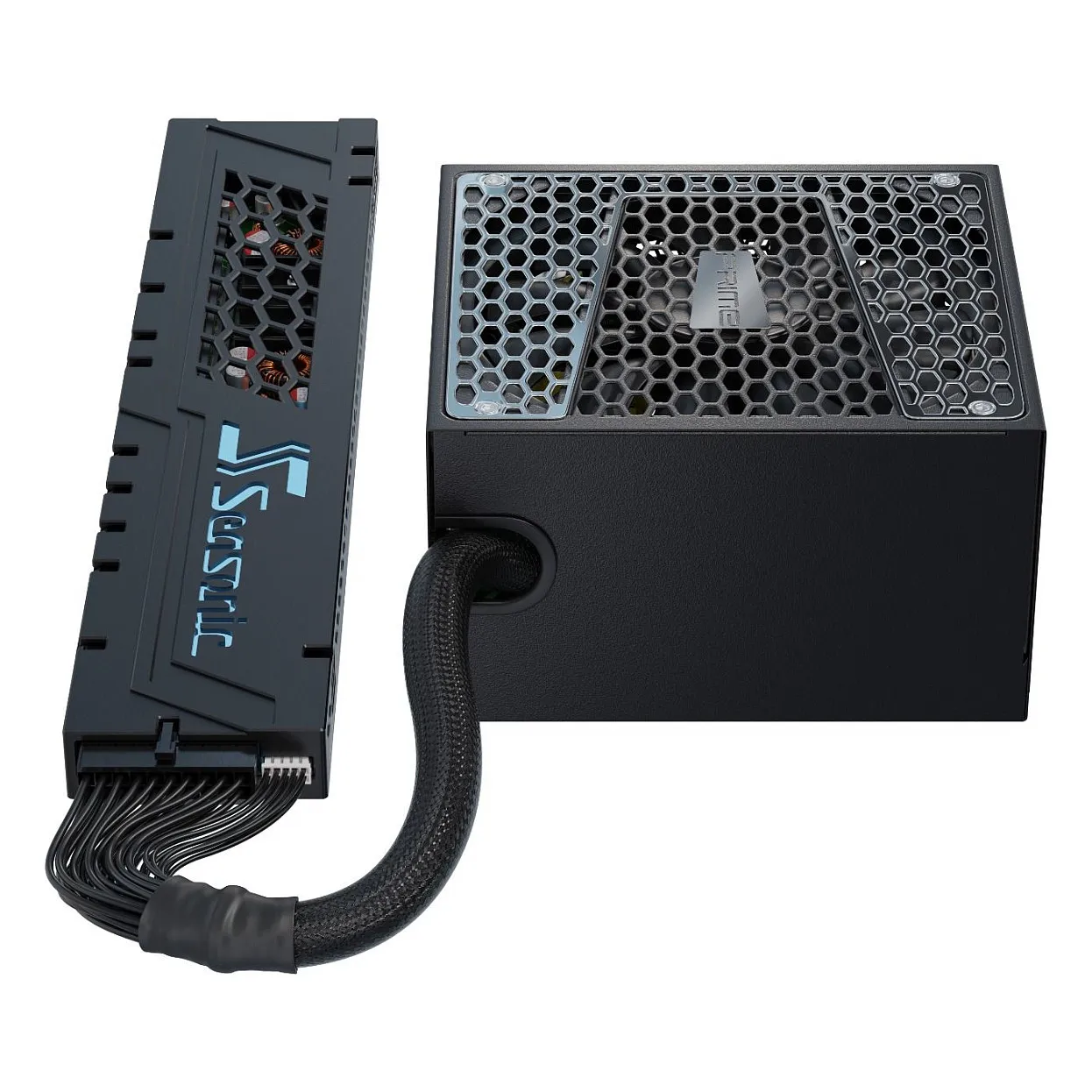

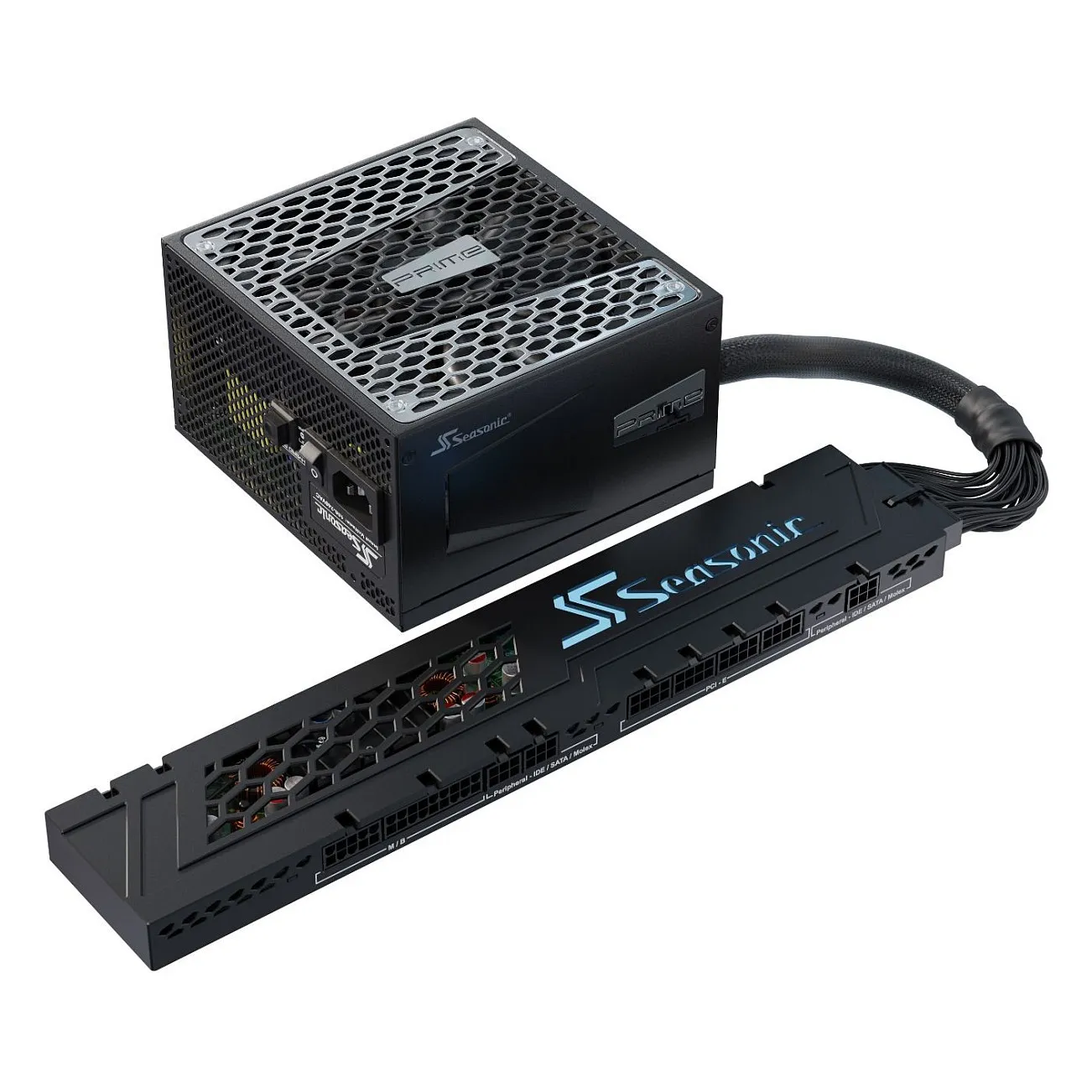

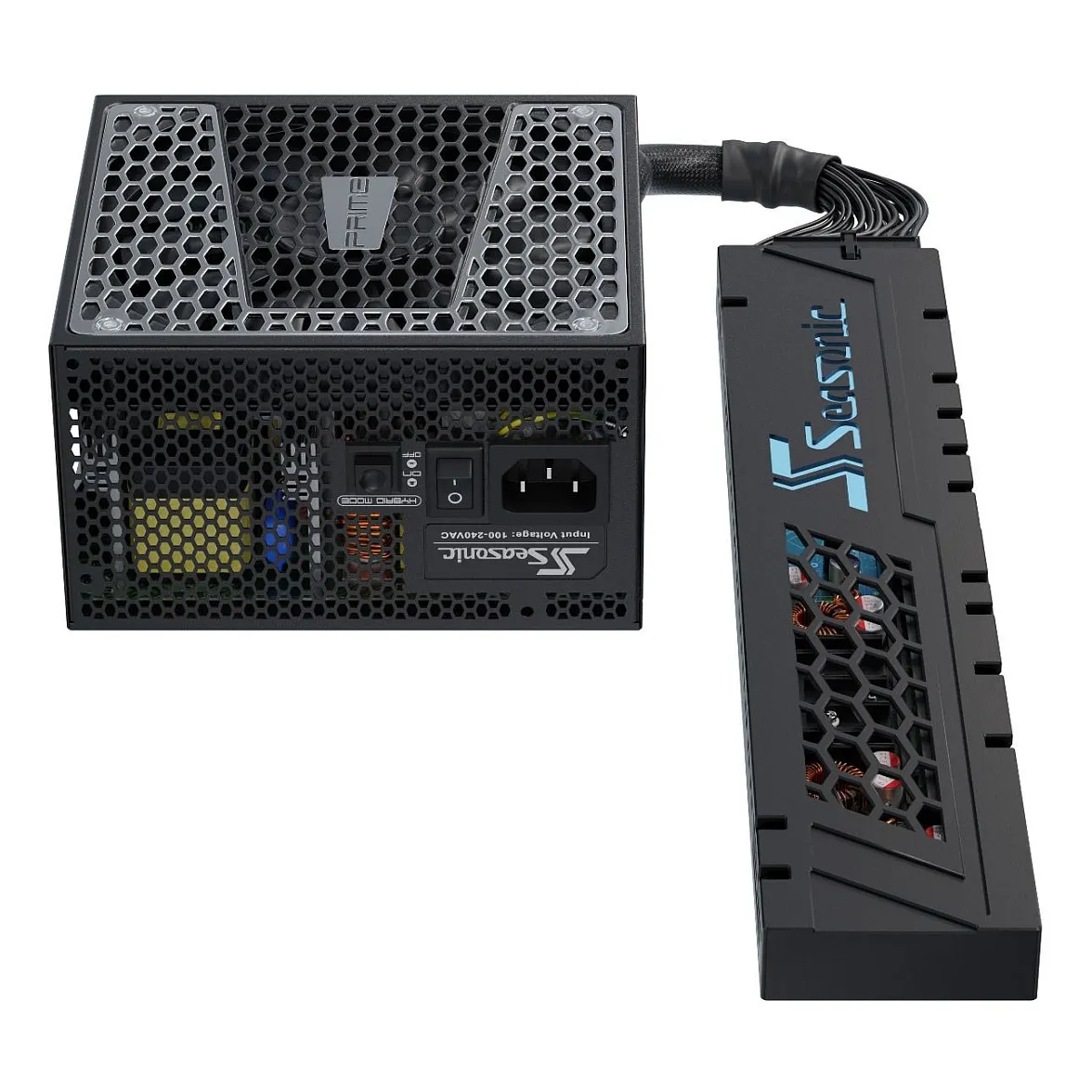

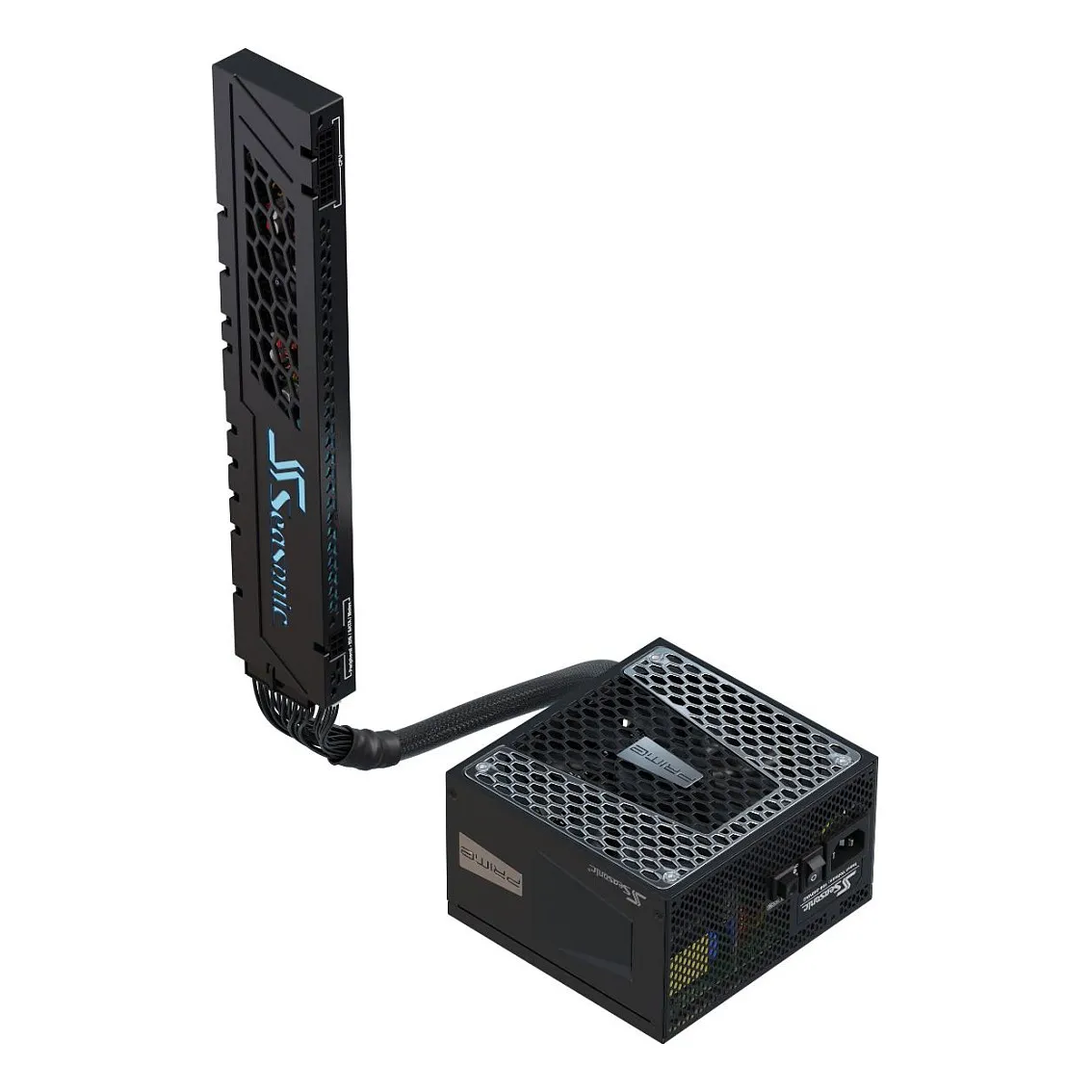

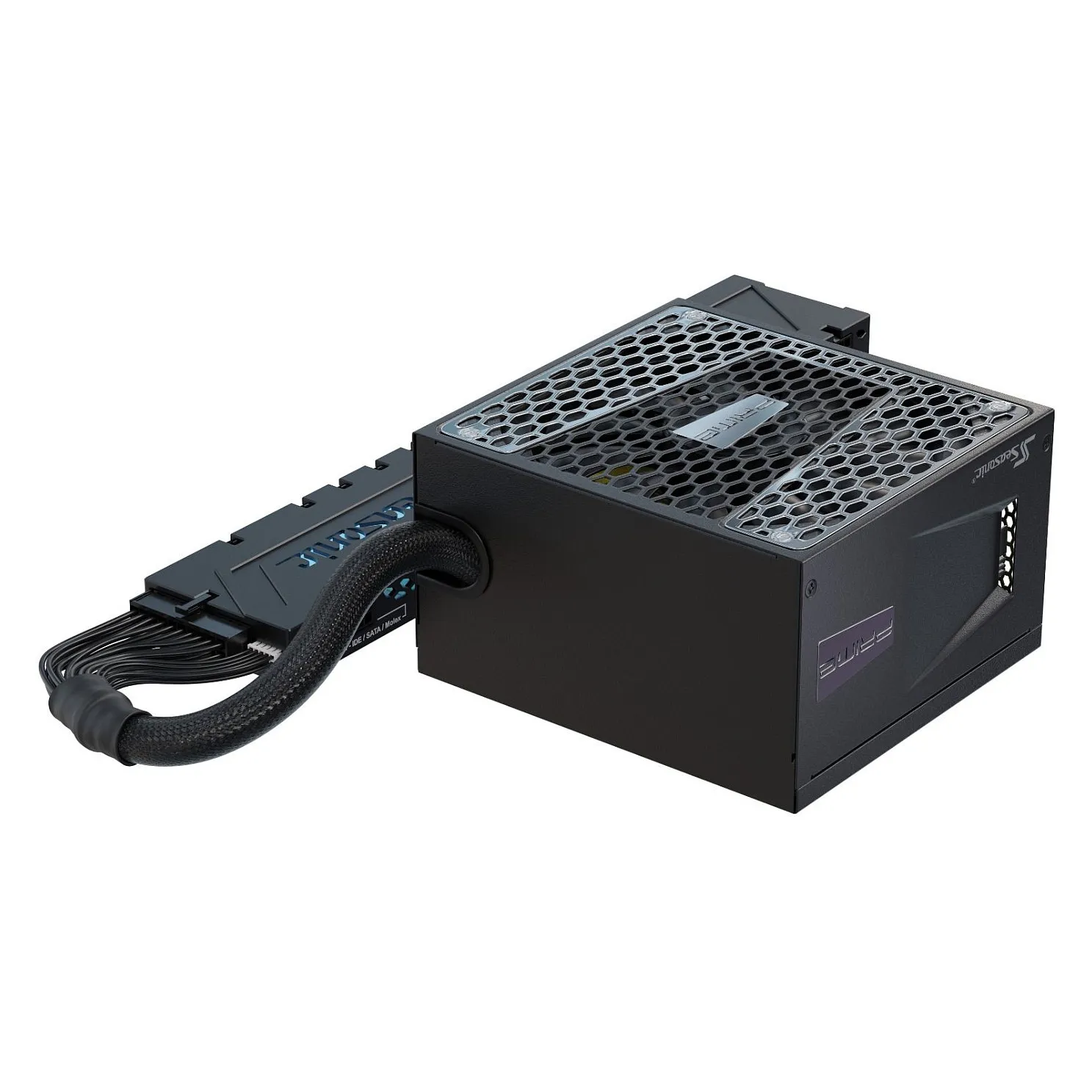

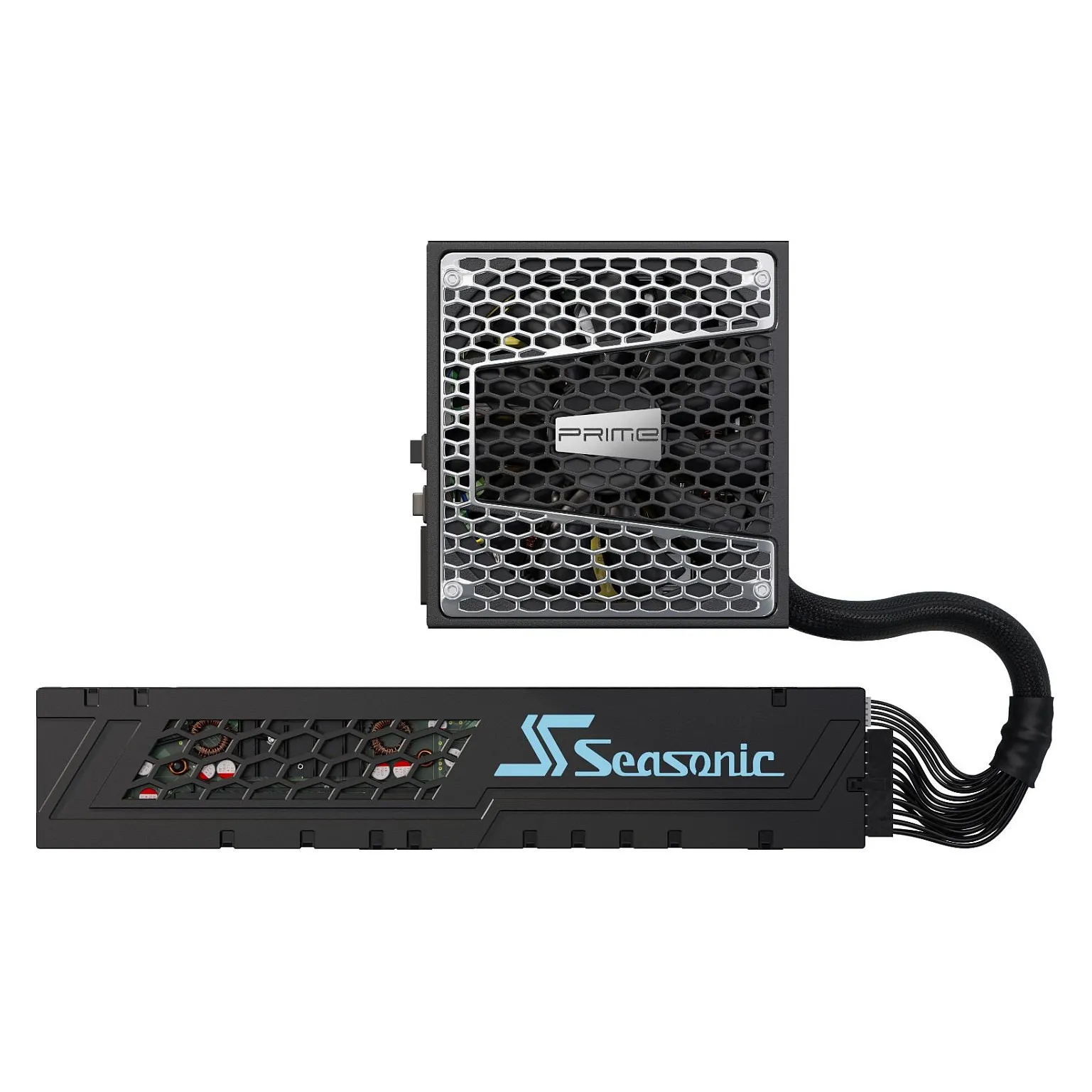

The Seasonic CONNECT is comprised of two linked products. One is the Seasonic PRIME 750 W 80 PLUS® Gold certified power supply, with our S3FC technology for efficient cooling and quiet operation. The other component is the CONNECT device, which is essentially a backplane that is mounted on the PC case with magnets to provide for the connections to all the components. During installation we only need to use two cables from the power supply to power the CONNECT. While the power supply itself supports the +12 V, -12 V and +5 Vsb rails, the CONNECT converts this power to provide the +3.3 V and +5 V outputs from the +12 V rail.
ONE CLEAN SOLUTION
The Seasonic CONNECT is an aesthetic upgrade to everyone’s system and it will also feature a Seasonic LED display. The Seasonic CONNECT will ship with a dedicated cable set that will be long enough to reach any part of your computer to make your CONNECT, a One Clean Solution.
Total power: 750 W
AC input voltage: 100 – 240 V
AC input frequency: 50 – 60 Hz
Input current: 5 – 10 A
Combined power (+3.3V): 100 W
Combined power (+12V): 744 W
Combined power (+5V): 100 W
Combined power (-12V): 3.6 W
Combined power (+5Vsb): 15 W
Max output current (+3.3V): 20 A
Max output current (+12V): 62 A
Max output current (+5V): 20 A
Max output current (-12V): 0.3 A
Max output current (+5Vsb): 3 A
Power protection features: Over current, Over power, Over voltage, Short circuit, Under voltage
Ports & interfaces
Motherboard power connector: 20+4 pin ATX
Motherboard power cable length: 20 cm
Number of SATA power connectors: 3
SATA power cable length: 230,210,470 mm
Peripheral (Molex) power connectors (4-pin): 1
Peripheral (Molex) power cable length: 690 mm
PCI Express power connectors (8-pin): 4
PCI Express power cable length: 28 cm
CPU power cable length: 23 cm
CPU power connectors (8-pin): 2
Cabling type: Fully-Modular
Performance
80 PLUS certification: 80 PLUS Gold
Supported motherboard form factors: ATX
Purpose: PC
Power supply unit (PSU) form factor: ATX
Bearing technology: FDB
Mean time between failures (MTBF): 150000 h
Design
Product colour: Black
Cooling type: Active
Feature: On/off switch
Operational conditions
Operating temperature (T-T): 0 – 50 °C
Operating relative humidity (H-H): 15 – 65%
Packaging content

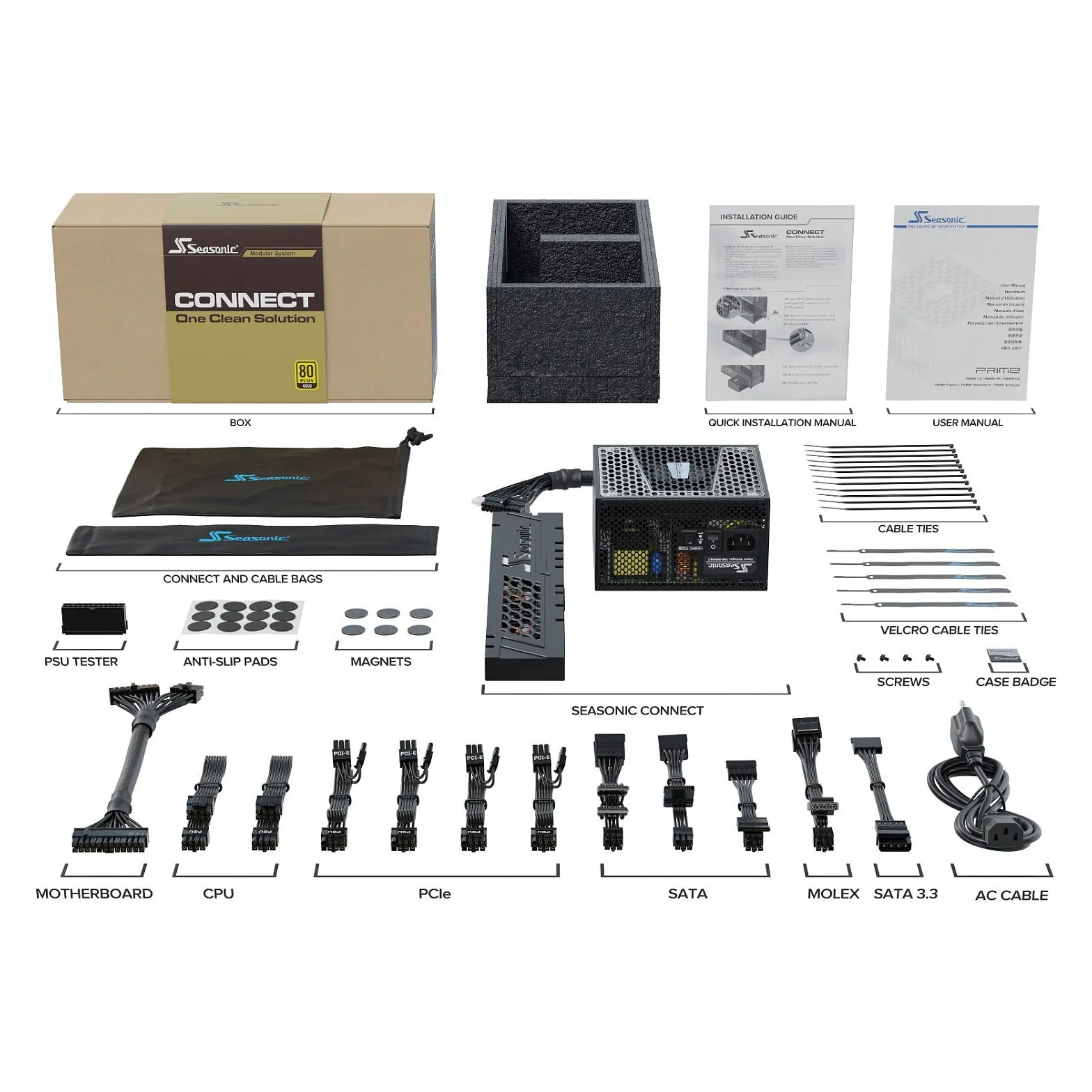

Cables included: CPU, PCIe, Peripheral (Molex), Peripheral (Molex) to SATA 3.3, SATA
Certificates
Compliance certificates: RoHS
Certification: cTUVus, TUV, CB, CCC, BSMI, EAC, CE, WEEE, ErP Lot 6, REACH
Weight & dimensions
Width: 150 mm
Depth: 140 mm
Height: 86 mm
Packaging data
Feature: Manual
Package type: Box
Technical details
Sustainability certificates: ENERGY STAR
Logistics data
Harmonized System (HS) code: 84733020
Other features
Feature: Screws included
Number of screws: 4
