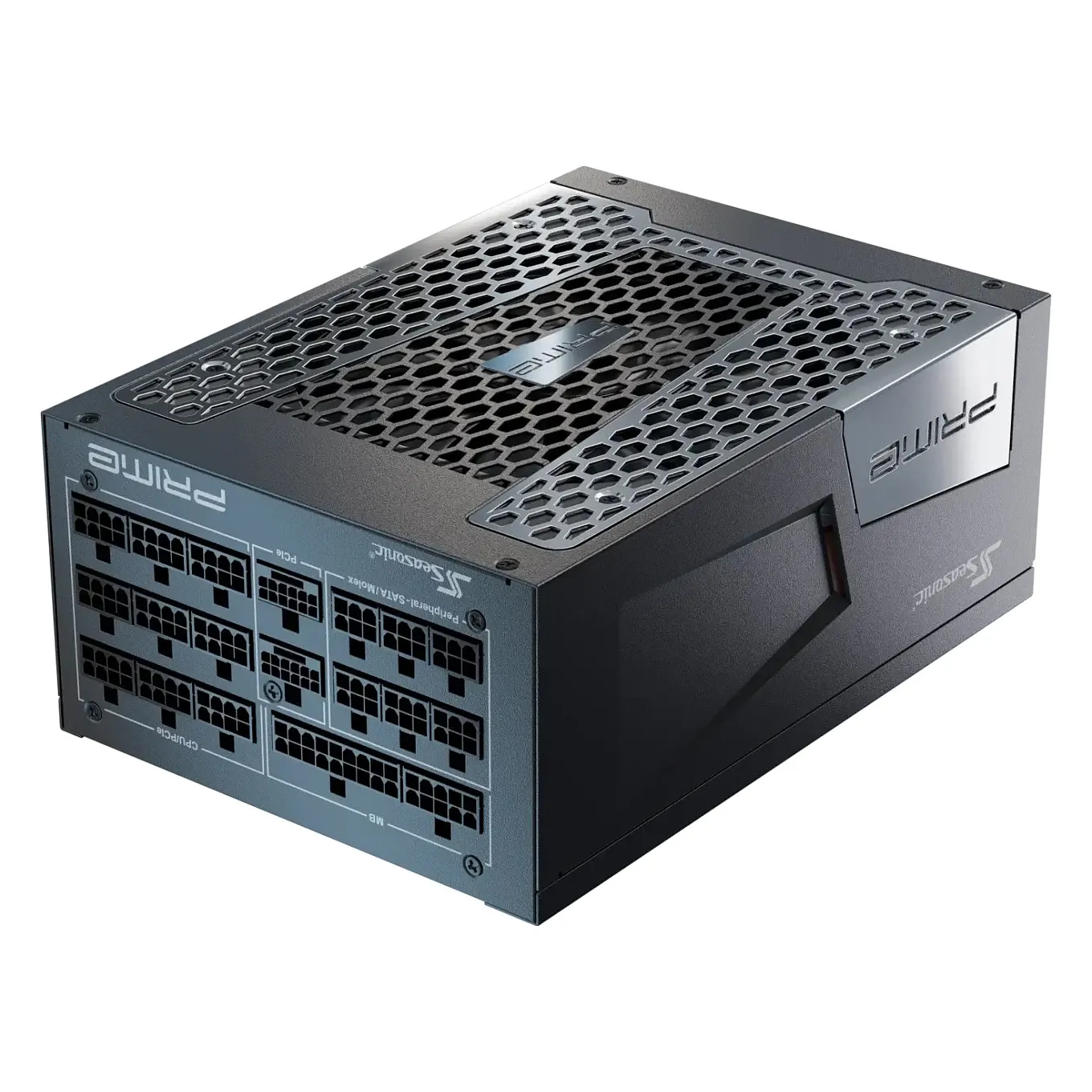

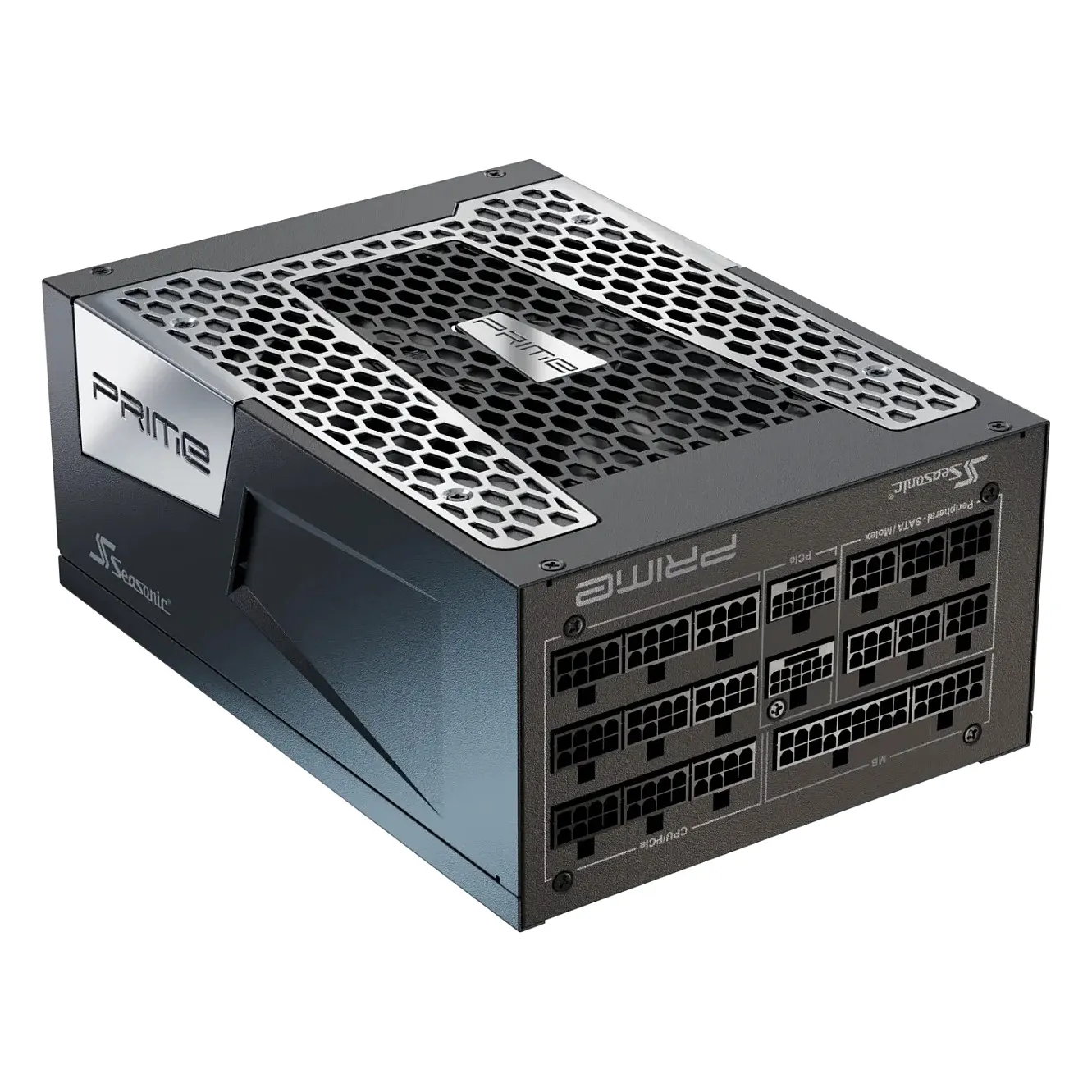

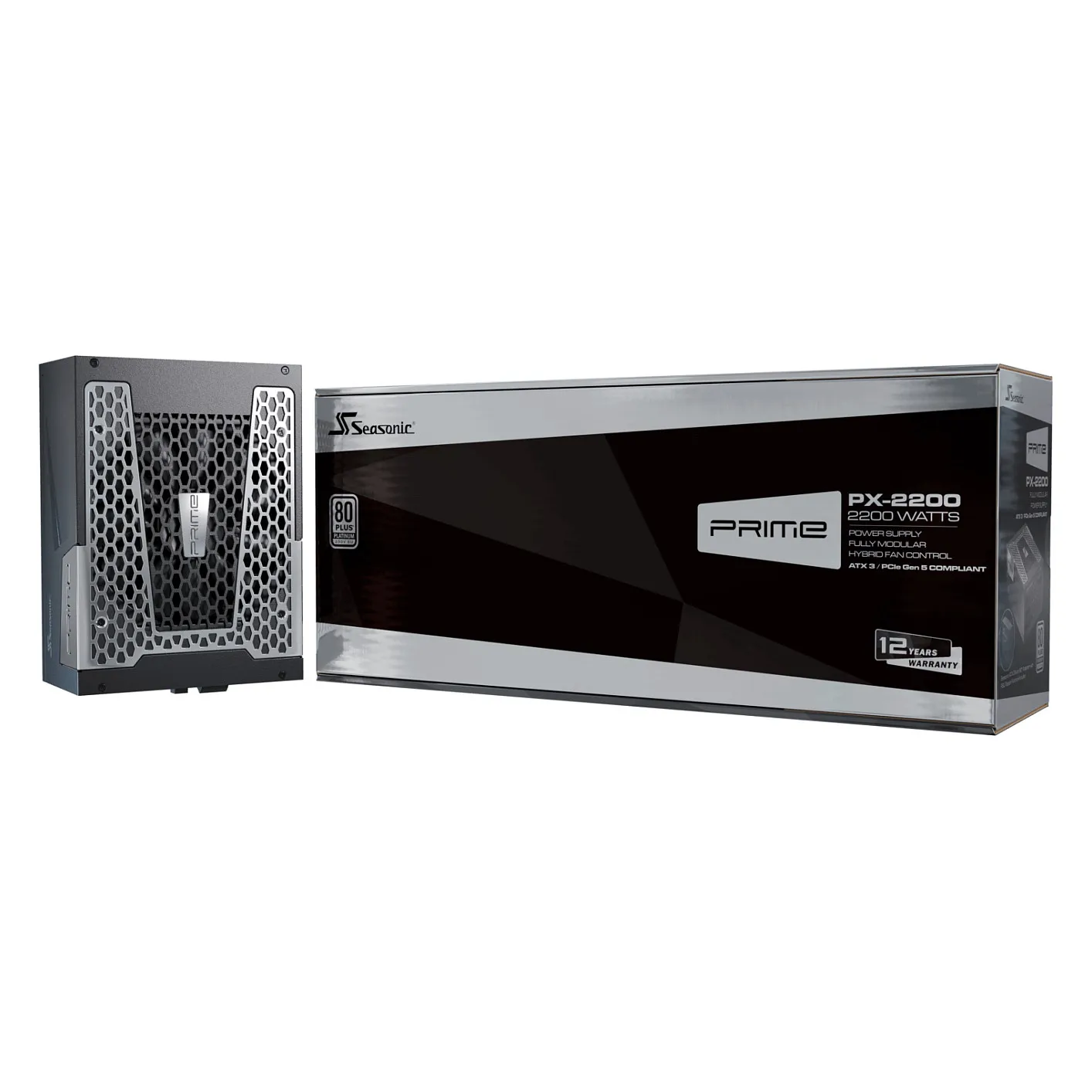

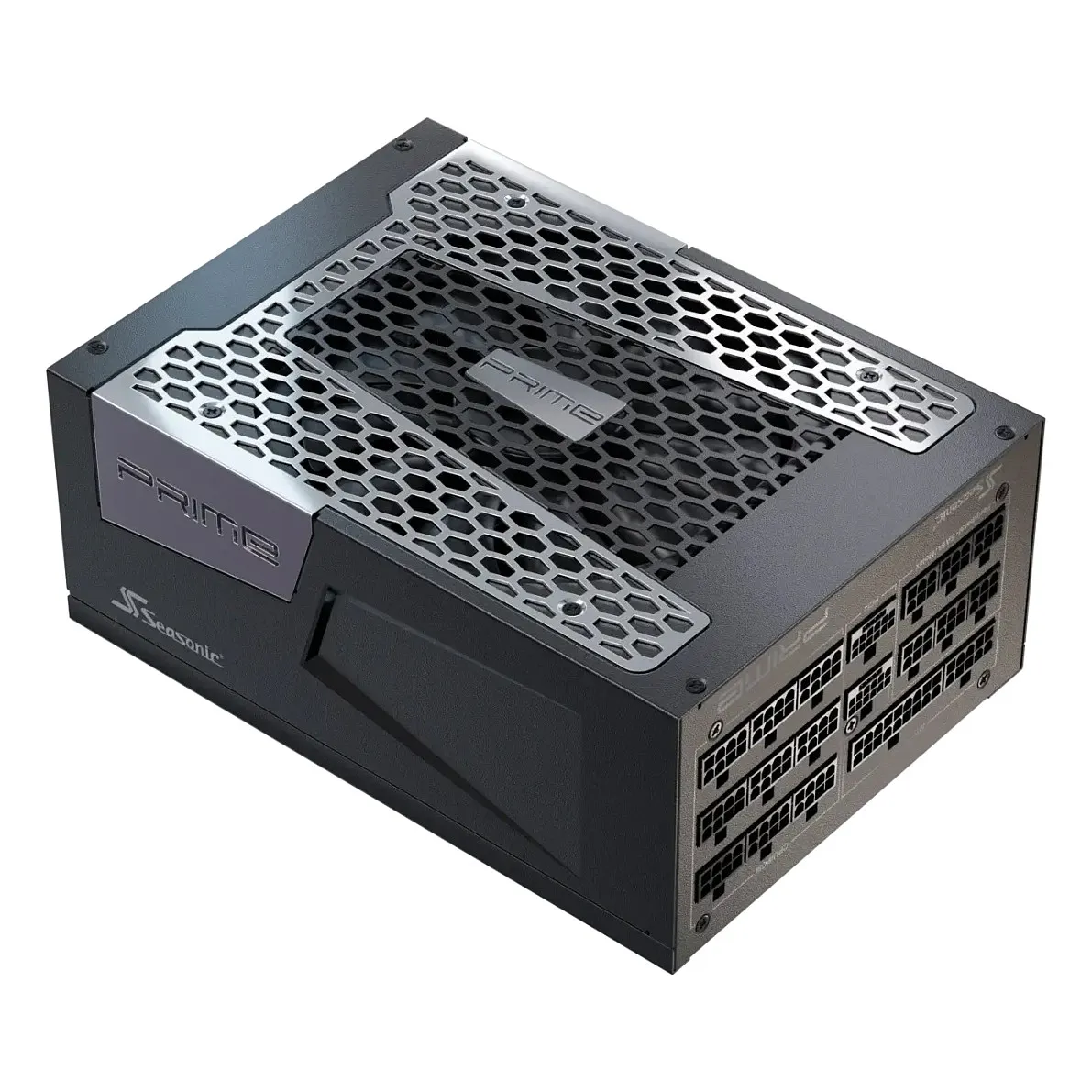

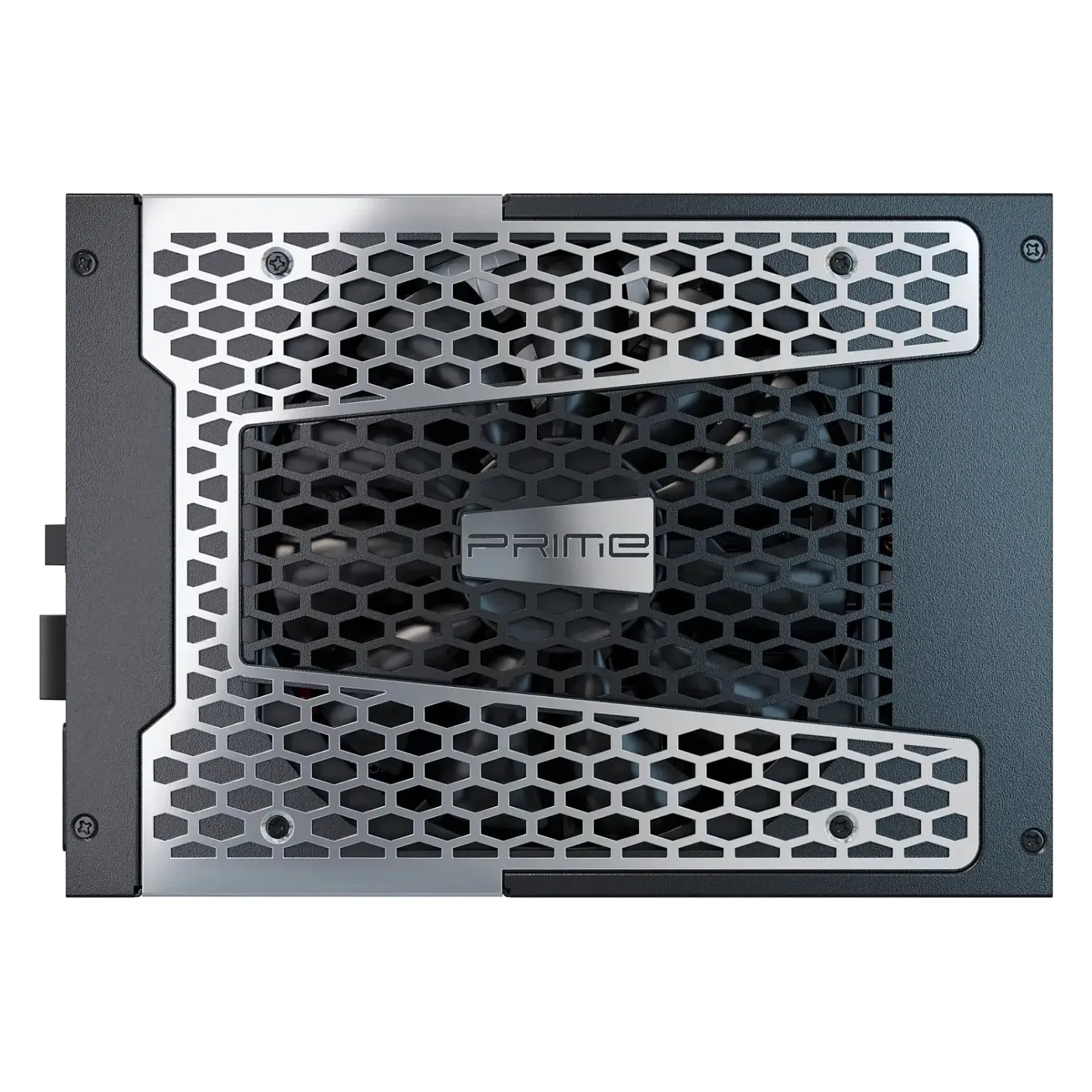

Seasonic Prime PX. Total power: 2200 W, AC input voltage: 115 – 240 V, Input current: 15 A. Motherboard power connector: 24-pin ATX, Motherboard power cable length: 61 cm, SATA power cable length: 450,470,550,570,760,860,950 mm. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Platinum. Product colour: Black, Cooling type: Active, Fan diameter: 13.5 cm. Cables included: AC, CPU, PCIe, Peripheral (Molex), SATA
Power. Performance. PRIME.
PRIME PX ATX 3
When selecting a power supply, it’s crucial to estimate the required power for both current and future components in your system. The Seasonic PRIME PX-2200 is a robust power supply capable of safely powering up to four RTX 4090 graphics cards, thanks to its adherence to ATX 3.1 and PCIe 5.1 specifications. Designed for demanding applications such as artificial intelligence and other high-power workloads, this flagship unit from the PRIME series delivers top-tier performance built on high-quality components.
ATX 3.1 and 16-Pin PCIe Gen 5.1 Cable (12V-2×6)
Seasonic’s latest PRIME ATX 3.1 Series is designed and built to power new PC components requiring the new ATX 3.1 and PCIe 5.1 standards.
Micro Tolerance Load Regulation
Seasonic’s latest design keeps the output voltage within a very tight range, achieving under 1 % load regulation. This impressive electrical performance and stability makes this power supply an ideal choice for high-performance systems.
Digital Hybrid Fan Control
Seasonic’s vast experience in designing the most silent and efficient power supplies on the market was translated into the development of Hybrid Mode; a state-of-the-art digital fan control that enables users to keep the overall fan noise at the lowest possible level.
Note: The Digital Hybrid Fan Control chart is provided for reference only. The shape of the curve can look different due to the variability in ambient temperature, system set-up, air flow, and other unpredictable factors.
Fluid Dynamic Fan Bearing
High performance Fluid Dynamic Bearing (FDB) fans are designed to take advantage of the impact absorbance effects of oil. They are extremely reliable and generate considerably less operating noise and heat than ball bearing fans. The lubrication of the bearing surface reduces friction and vibration and therefore lowers overall power consumption. Due to the effortless, quieter rotations and its robust construction, this reliable fan technology also greatly increases the lifespan of the fan.
Total power: 2200 W
AC input voltage: 115 – 240 V
Input current: 15 A
Combined power (+3.3V): 125 W
Combined power (+12V): 2200 W
Combined power (+5V): 125 W
Combined power (-12V): 6 W
Combined power (+5Vsb): 15 W
Max output current (+3.3V): 25 A
Max output current (+12V): 183.3 A
Max output current (+5V): 25 A
Max output current (-12V): 0.5 A
Max output current (+5Vsb): 3 A

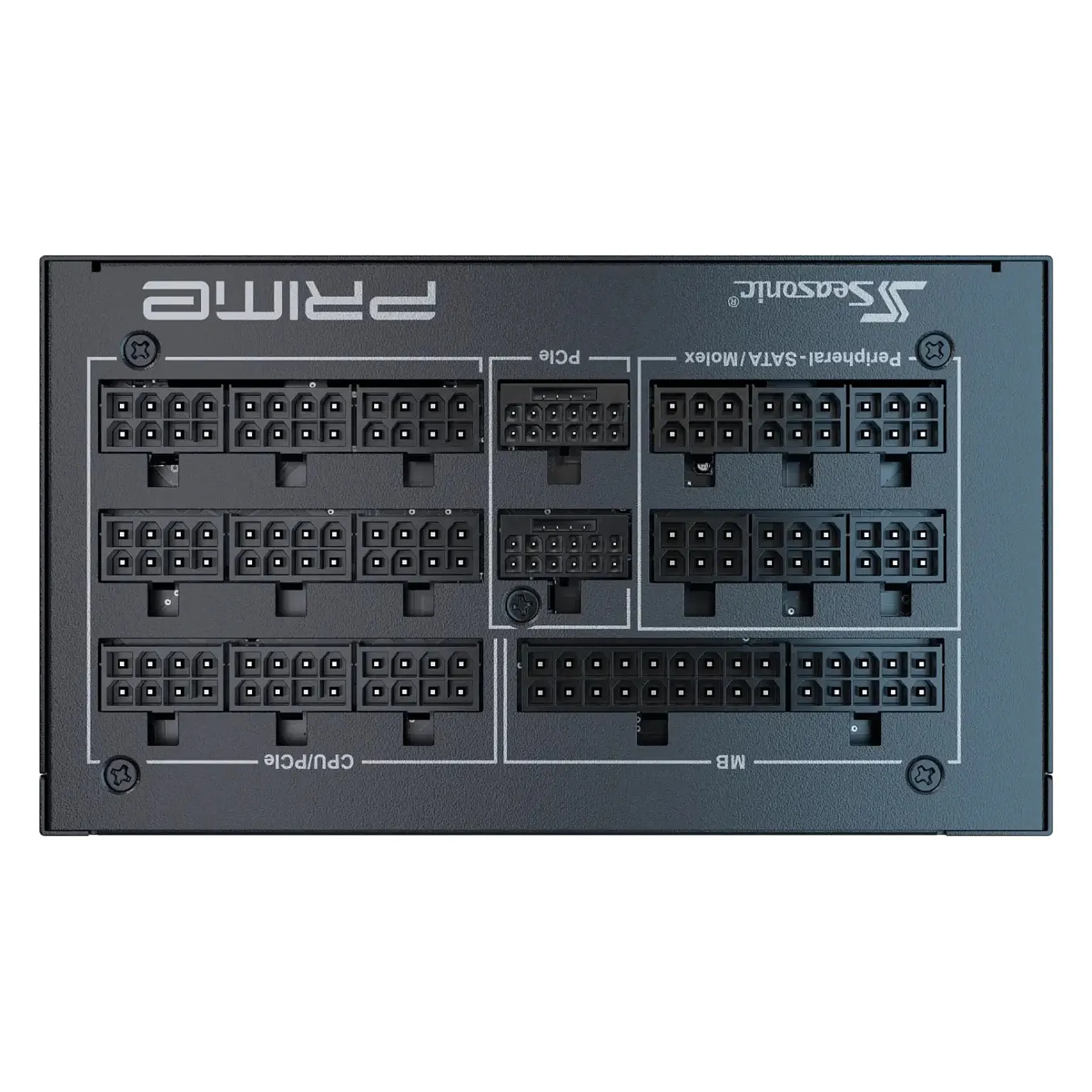

Ports & interfaces
Motherboard power connector: 24-pin ATX
Motherboard power cable length: 61 cm
Number of SATA power connectors: 10
SATA power cable length: 450,470,550,570,760,860,950 mm
Peripheral (Molex) power connectors (4-pin): 3
Peripheral (Molex) power cable length: 470,690 mm
EPS power connector (8-pin): Yes
CPU power cable length: 70 cm
Cabling type: Fully-Modular
Performance
80 PLUS certification: 80 PLUS Platinum
Purpose: PC
Power supply unit (PSU) form factor: ATX
ATX version: 3.0
Bearing technology: FDB
Mean time between failures (MTBF): 150000 h
Design
Product colour: Black
Cooling type: Active
Fan diameter: 13.5 cm
Number of fans: 1 fan(s)
On/off switch: Yes
Operational conditions
Operating temperature (T-T): 0 – 50 °C
Packaging content
Cables included: AC, CPU, PCIe, Peripheral (Molex), SATA
Cable tie(s) included: Yes
Certificates
Compliance certificates: CCC, CE, REACH, RoHS, WEEE
Weight & dimensions
Width: 150 mm
Depth: 210 mm
Height: 86 mm
Packaging data
Package type: Box
