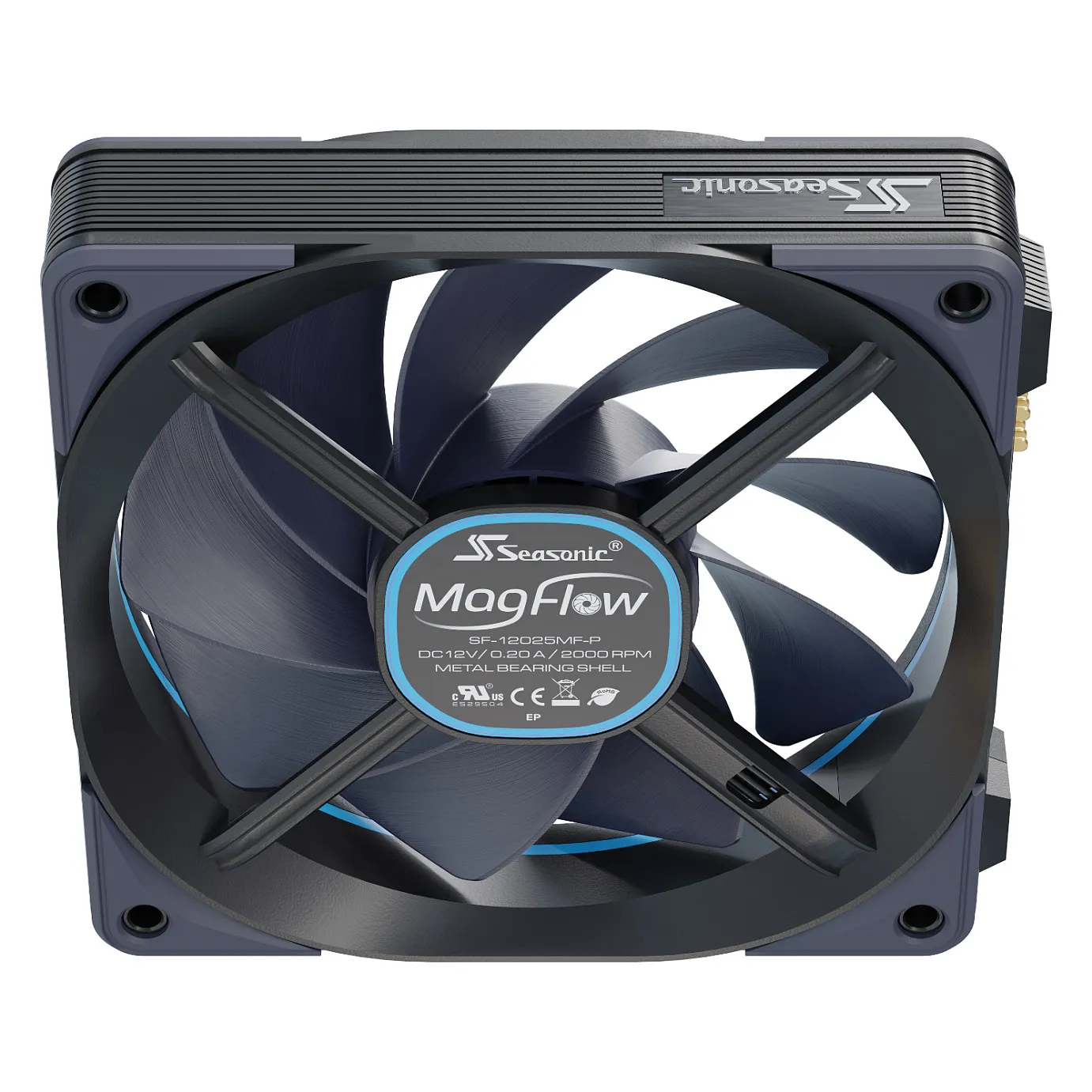

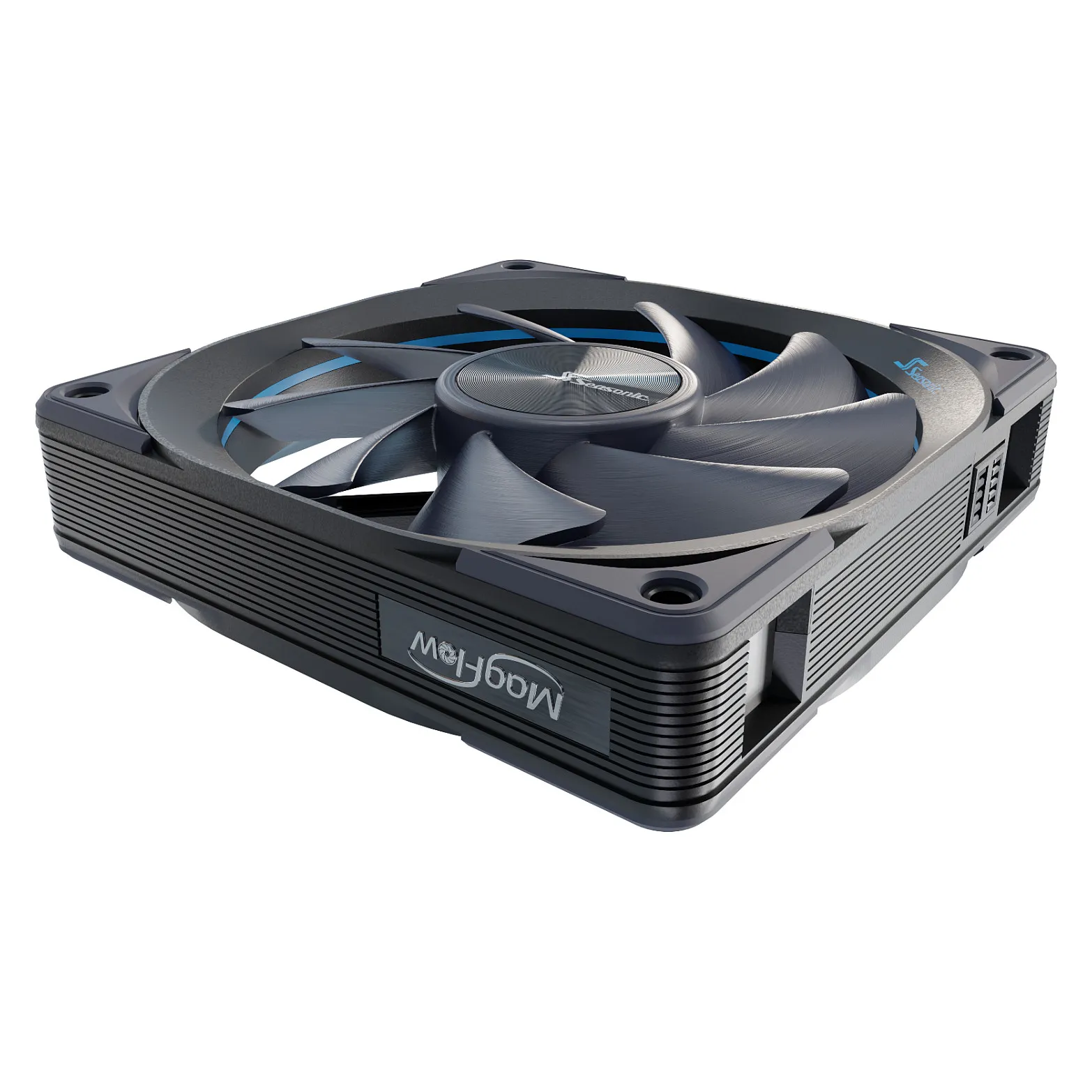

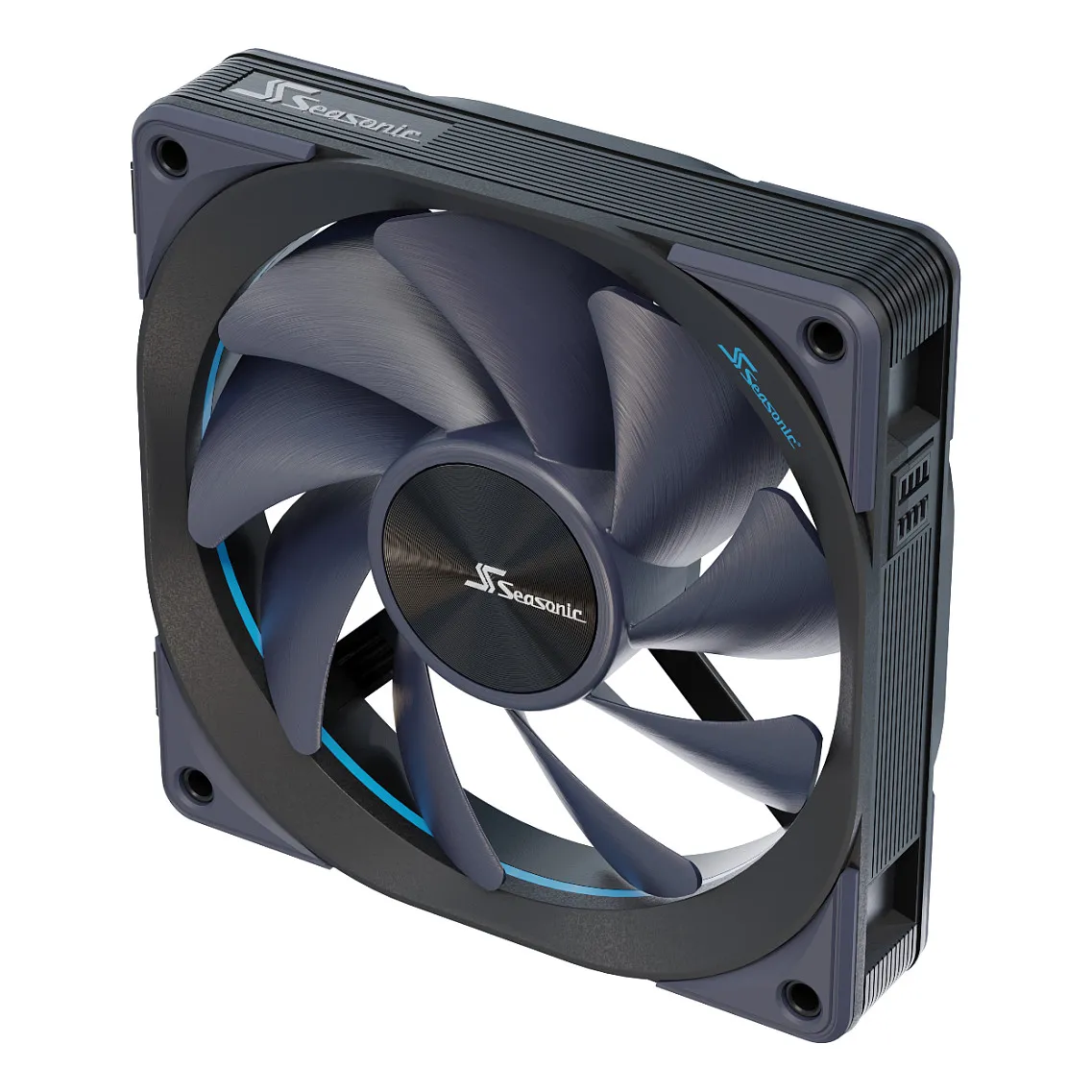

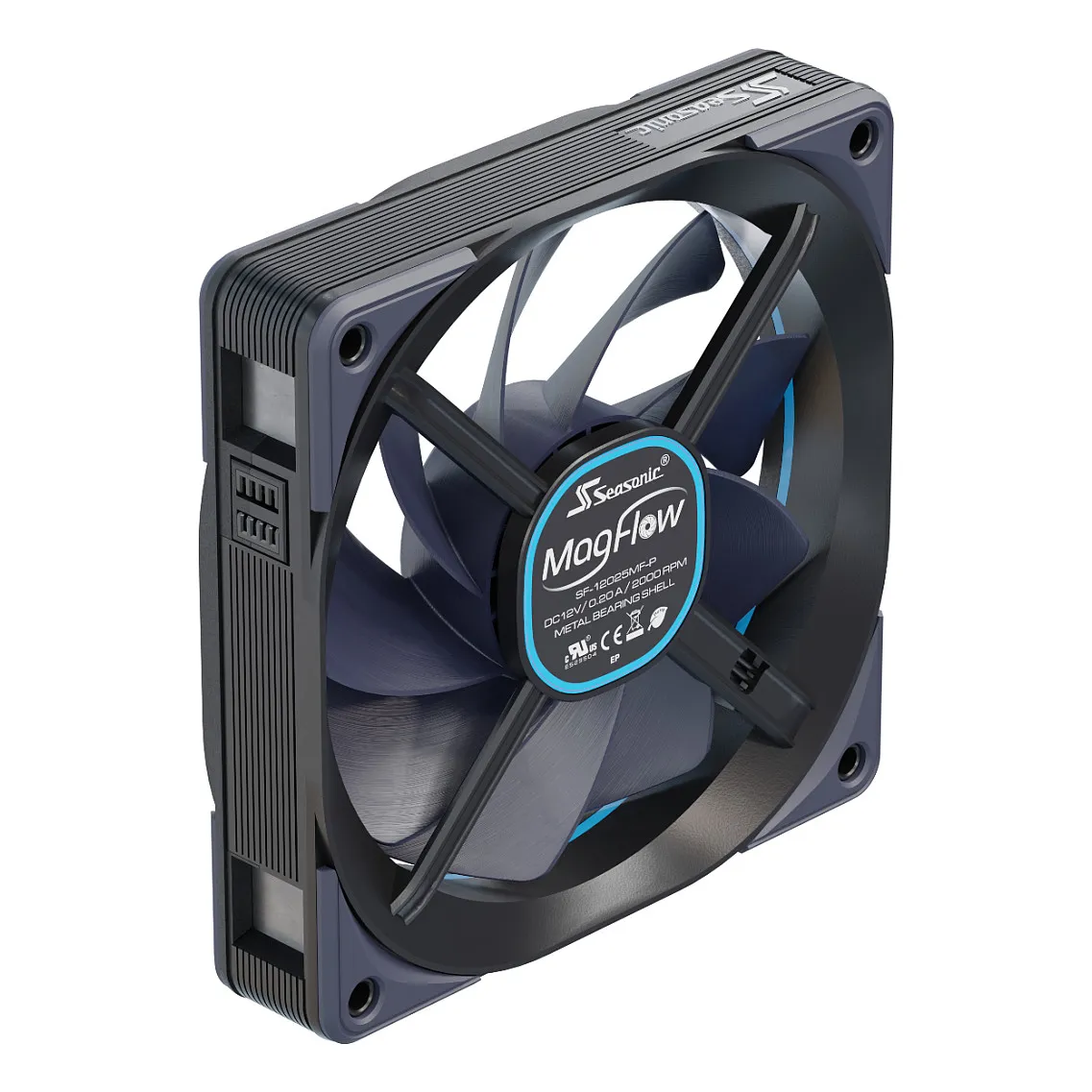

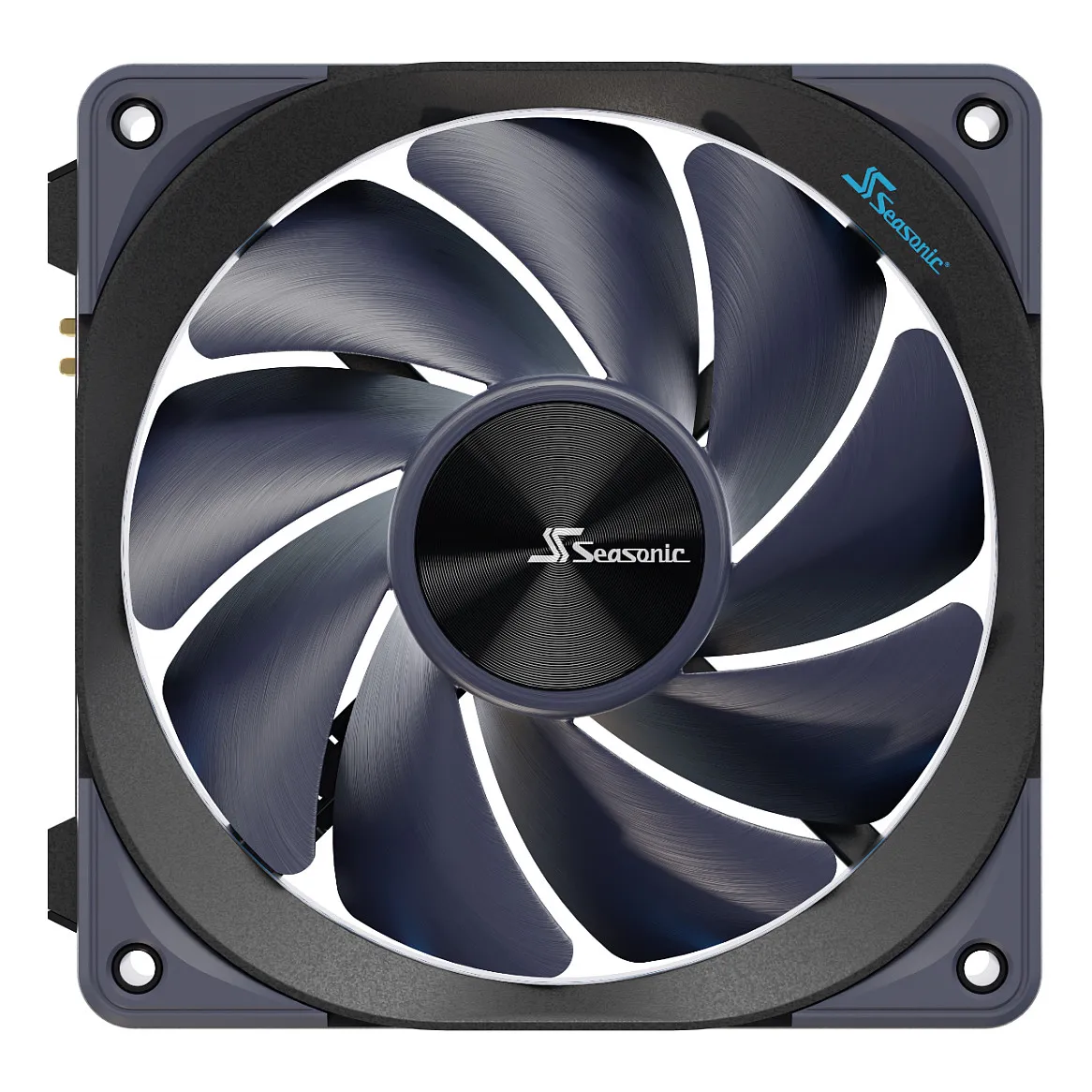

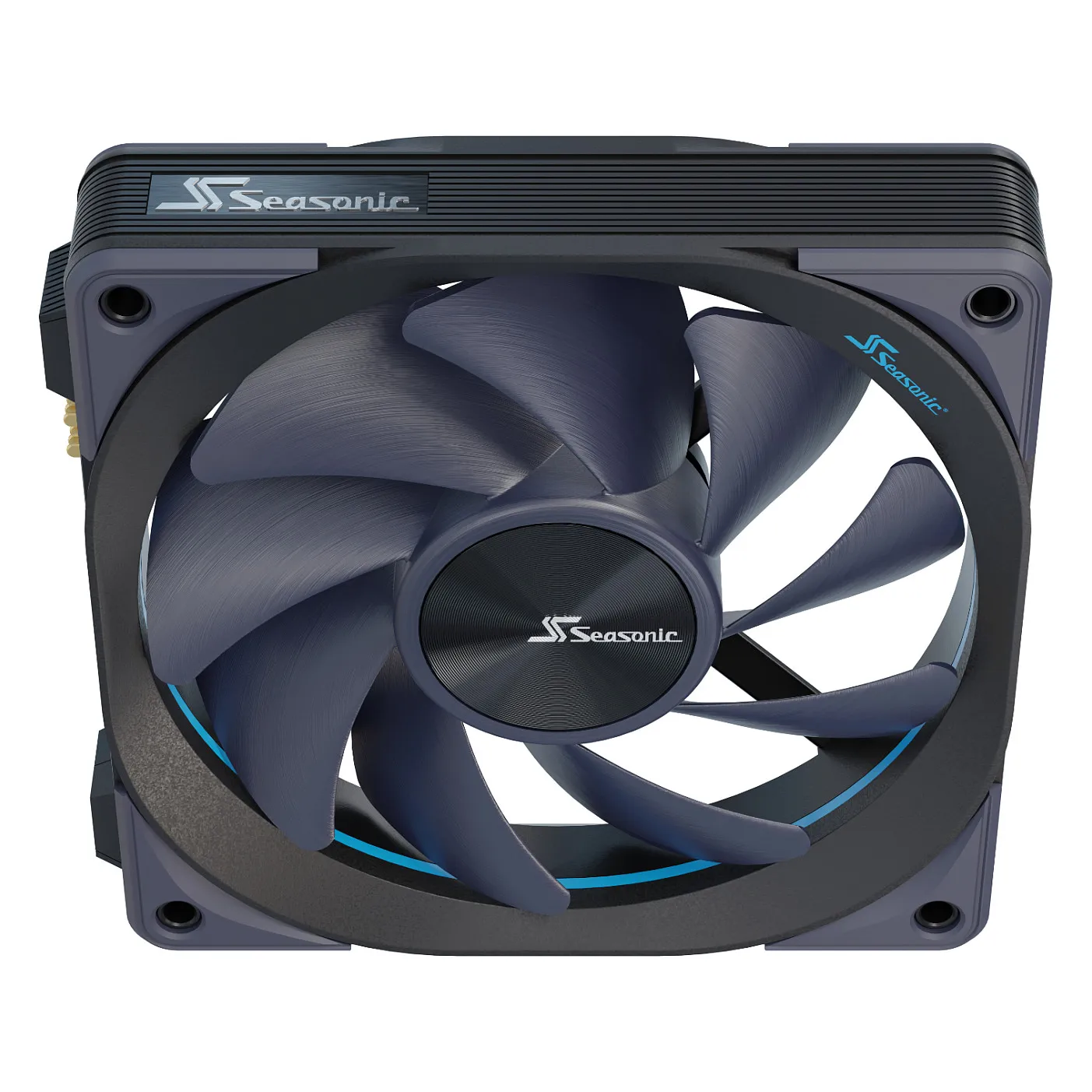

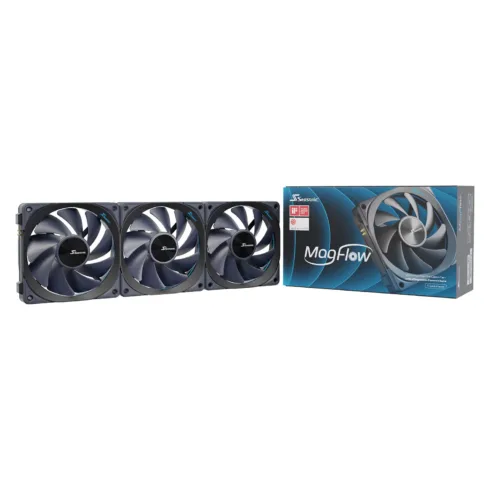

Seasonic MagFlow 3-Fan Kit. Type: Fan, Fan diameter: 12 cm, Rotational speed (min): 600 RPM, Rotational speed (max): 2000 RPM, Maximum air pressure: 2.61 mmH2O, Bearing type: Fluid Dynamic Bearing (FDB). Voltage: 12 V. Width: 124.2 mm, Depth: 26.6 mm, Height: 120.4 mm. Product colour: Black

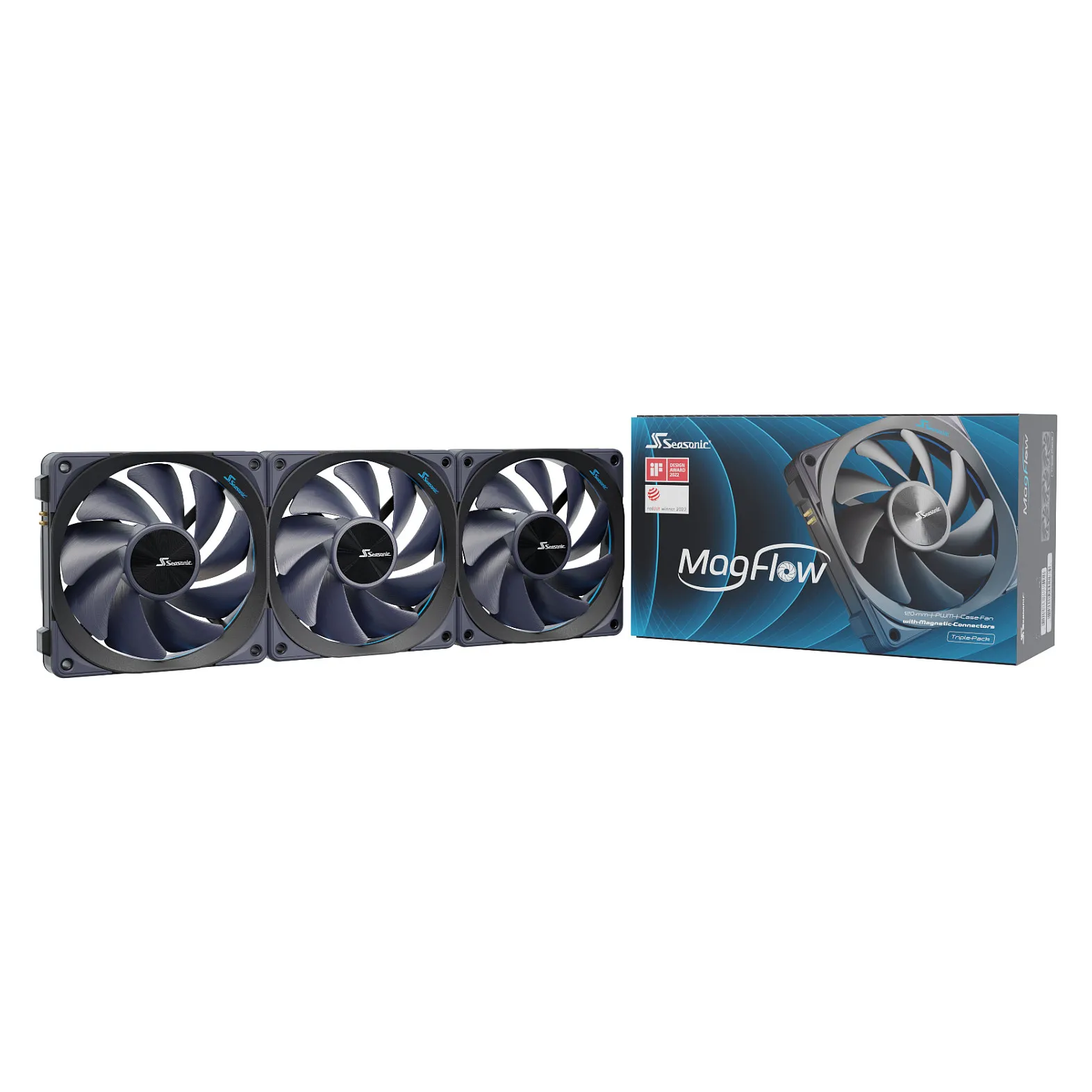

DAISY CHAIN DESIGN
Individual fans are attached to each other by an interlocking mechanism supported by magnets. This system eliminates the use of wires to make the installation simpler and cleaner.
MODULARITY
Regardless of the number of fans to be installed, attaching the cables for power and signal becomes extremely easy and convenient with the magnets. The connectors snap quickly and precisely in place, which greatly simplifies the assembly process.
EASY INSTALLATION ON TOP OF THE RADIATOR
After the fans are connected, they can be installed on top of the water-cooling radiator with only four screws, which reduces the time spent on alignment and screw locking.
Suitable location: Computer case
Type: Fan
Fan diameter: 12 cm
Rotational speed (min): 600 RPM
Rotational speed (max): 2000 RPM
Maximum airflow: 63.33 cfm
Maximum air pressure: 2.61 mmH2O
Bearing type: Fluid Dynamic Bearing (FDB)
Fan bearing technology: Fluid Dynamic Bearing (FDB)
Quantity per pack: 3 pc(s)
Fan speed (min): 600 RPM
Fan speed (max): 2000 RPM
Mean time between failures (MTBF): 100000 h
Design
Product colour: Black
Number of fans: 3 fan(s)
Number of fan blades: 9
Power
Voltage: 12 V
Rated current: 0.1 A
Maximum current: 0.18 A
Fan voltage: 12 V
Fan current: 0.1 A
Weight & dimensions
Width: 124.2 mm
Depth: 26.6 mm
Height: 120.4 mm
Weight: 212.7 g
Fan dimensions (W x D x H): 124.2 x 26.6 x 120.4 mm
Fan weight: 212.7 g

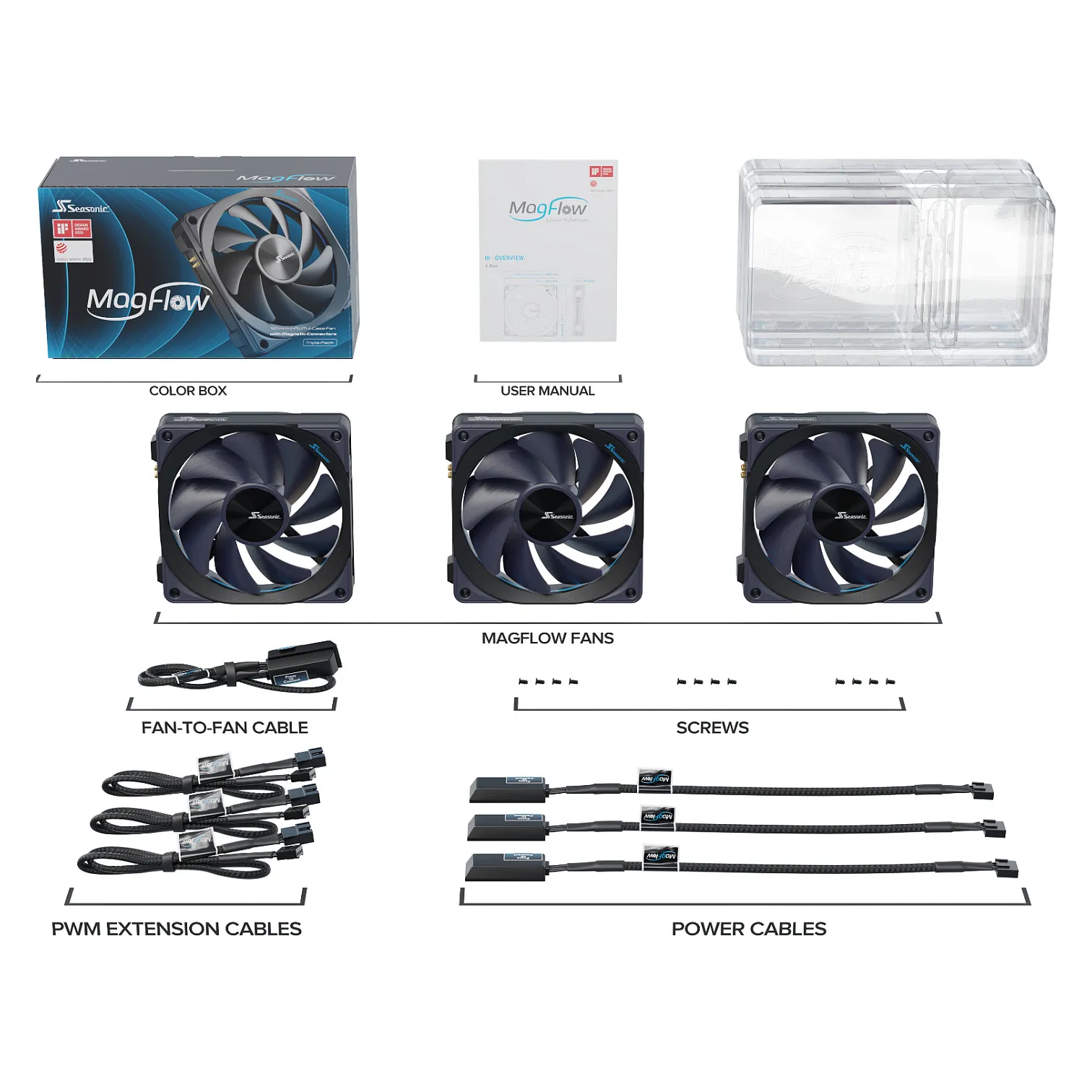

Packaging content
Package type: Box
Cables included: Fan
Feature: Screws included
Number of screws: 12
Feature: Manual
