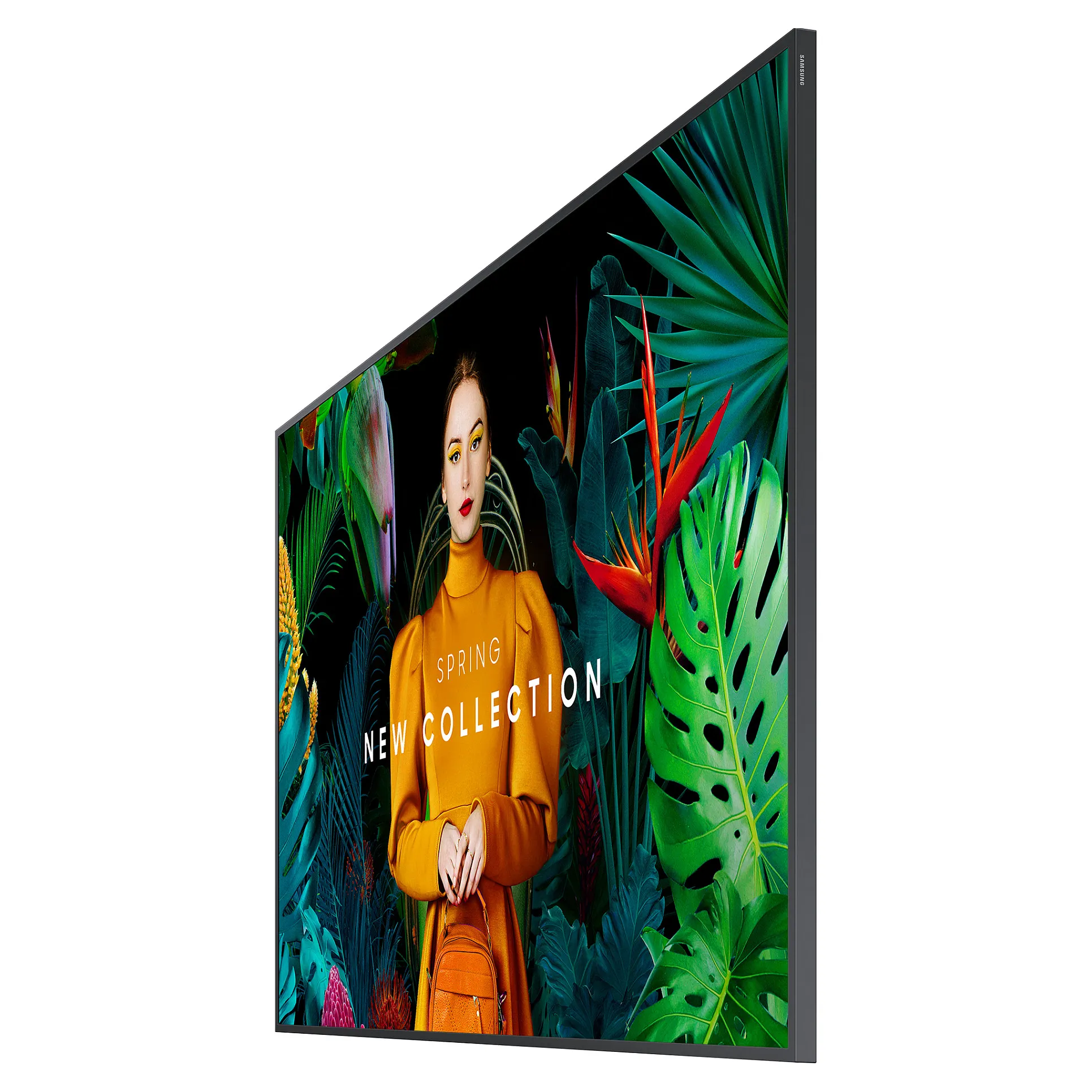

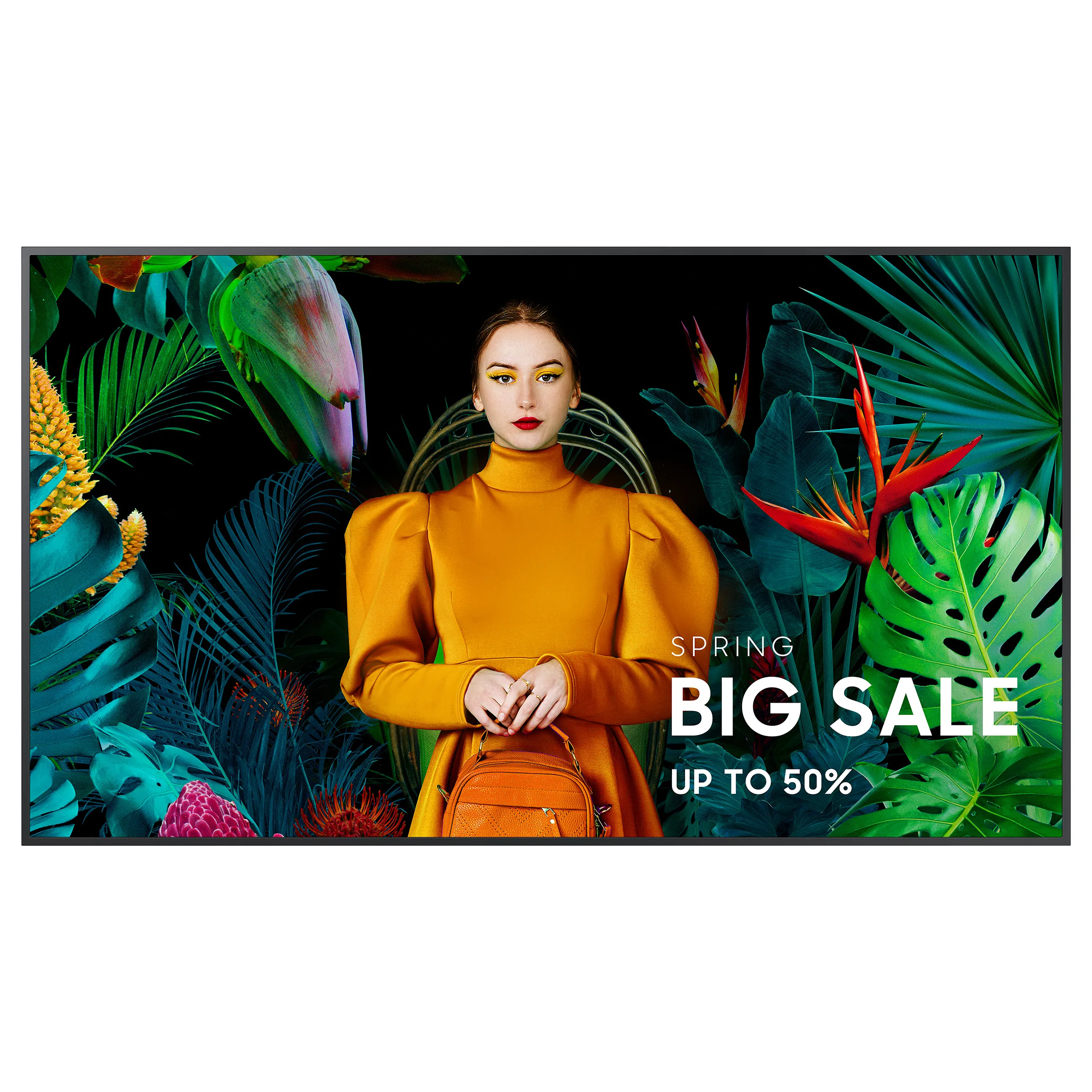

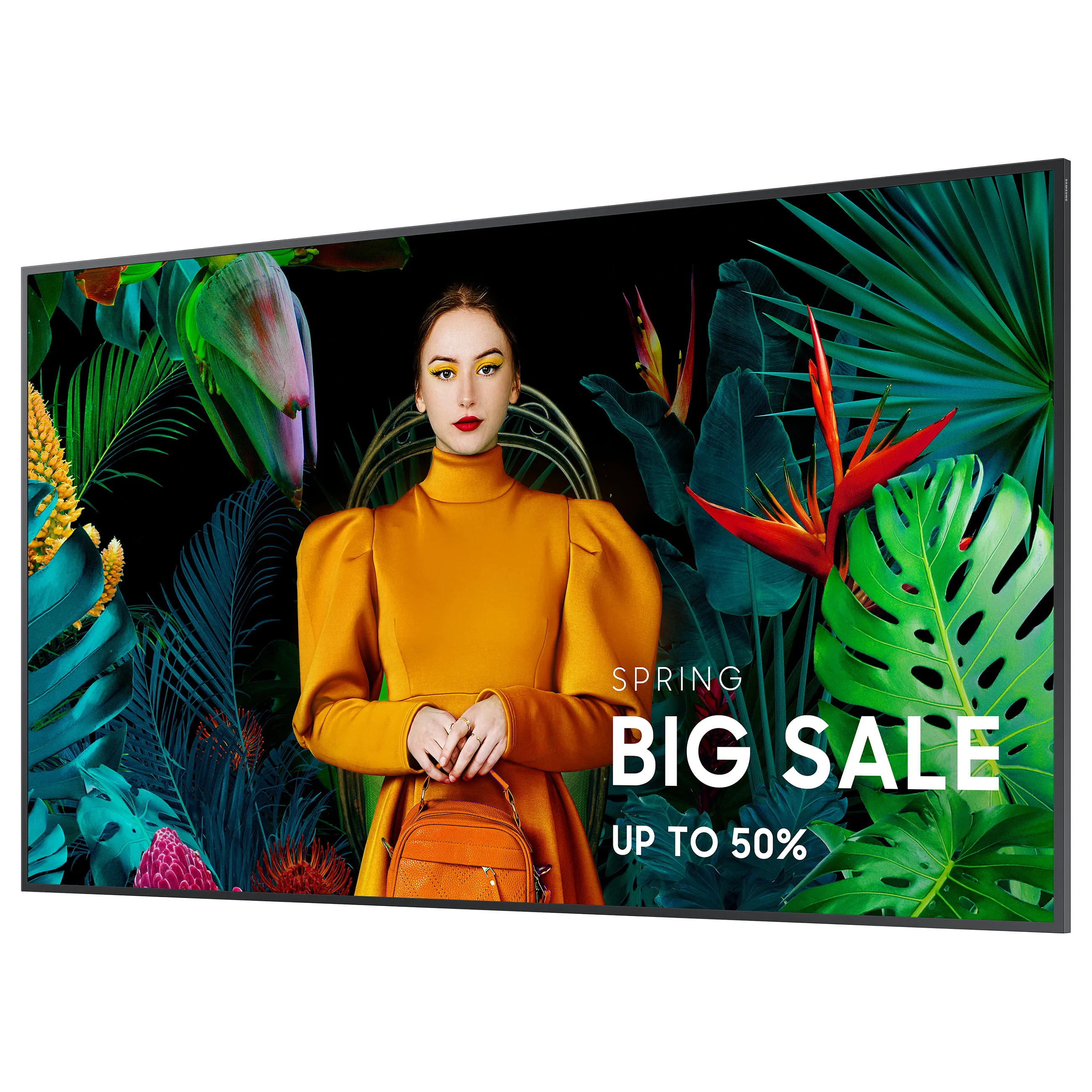

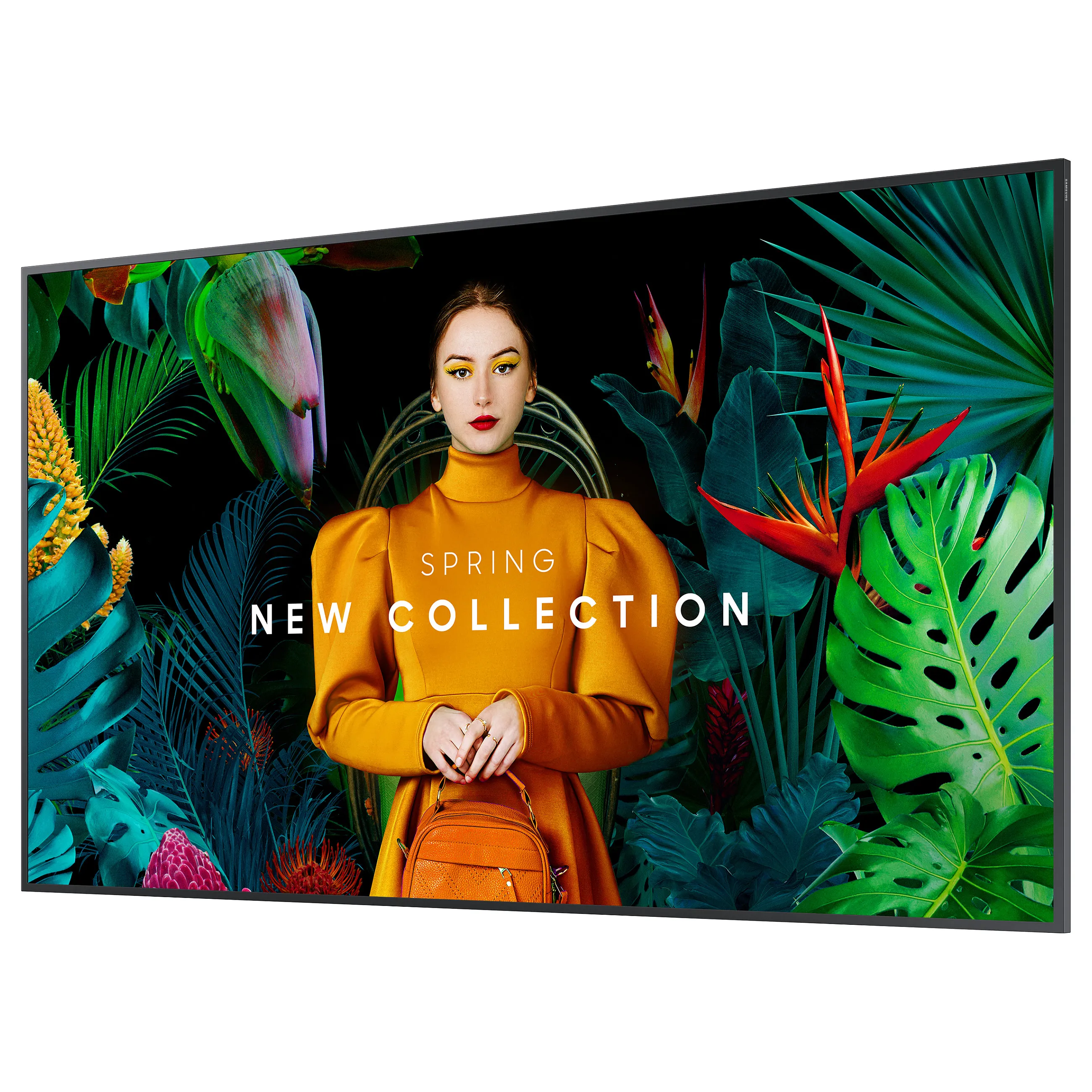

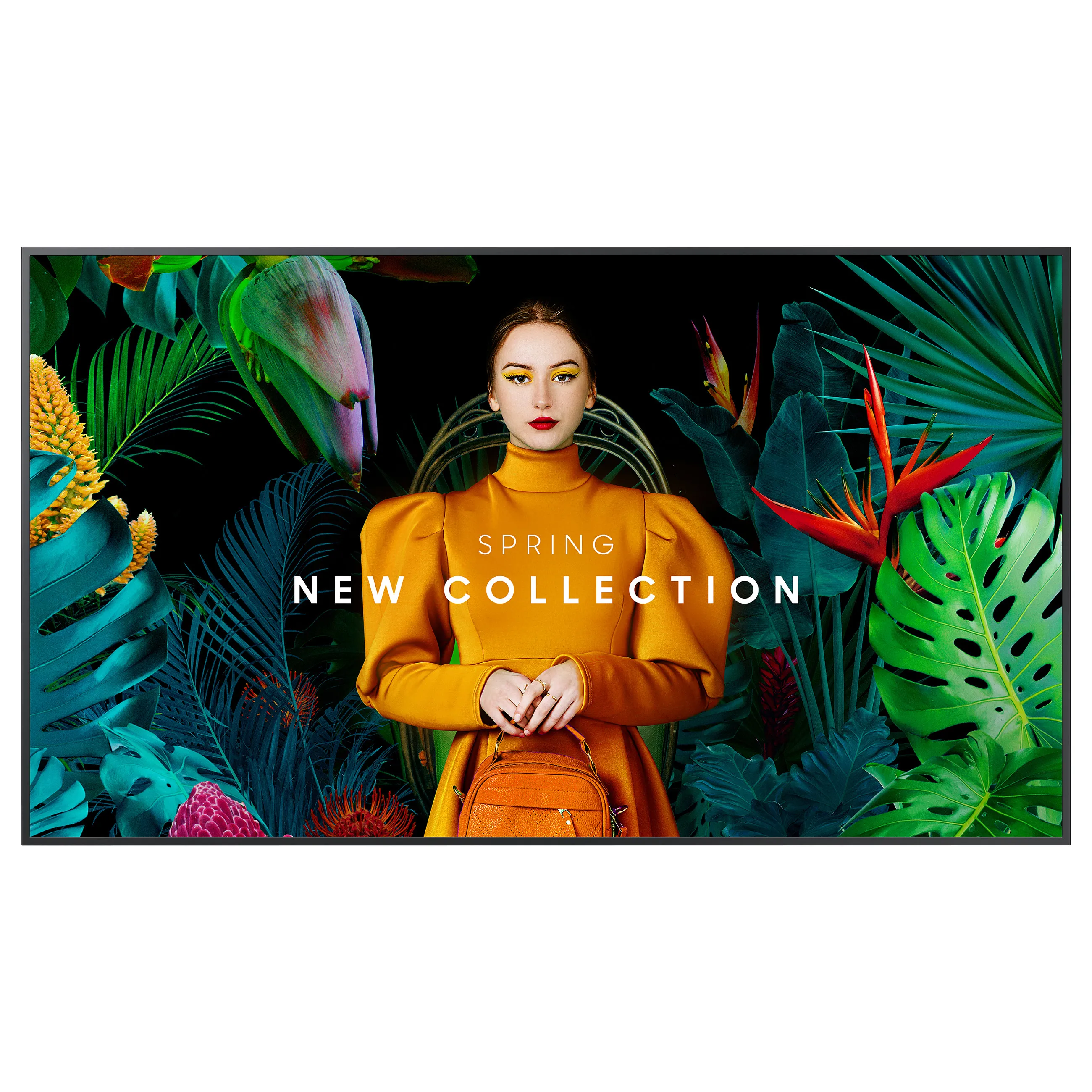

Samsung QH55C. Product design: Digital signage flat panel. Display diagonal: 139.7 cm (55"), Display technology: LCD, Display resolution: 3840 x 2160 pixels, Display brightness: 700 cd/m², HD type: 4K Ultra HD. Wi-Fi. Operating hours (hours/days): 24/7. Operating system installed: Tizen. Product colour: Black
Display
Panel type: VA
Display diagonal: 139.7 cm (55″)
Display technology: LCD
Display resolution: 3840 x 2160 pixels
Display brightness: 700 cd/m²
HD type: 4K Ultra HD
Response time: 8 ms
Contrast ratio (typical): 4000:1
Dynamic contrast ratio marketing name: Mega Contrast
Viewing angle, horizontal: 178°
Viewing angle, vertical: 178°
Pixel pitch: 0.315 x 0.315 mm
Display diagonal (metric): 138 cm
Horizontal scan range: 30 – 81 kHz
Vertical scan range: 48 – 75 Hz
Haze rate: 25%
Pixel frequency (max): 594 MHz
RGB colour space: NTSC
Colour gamut: 72%

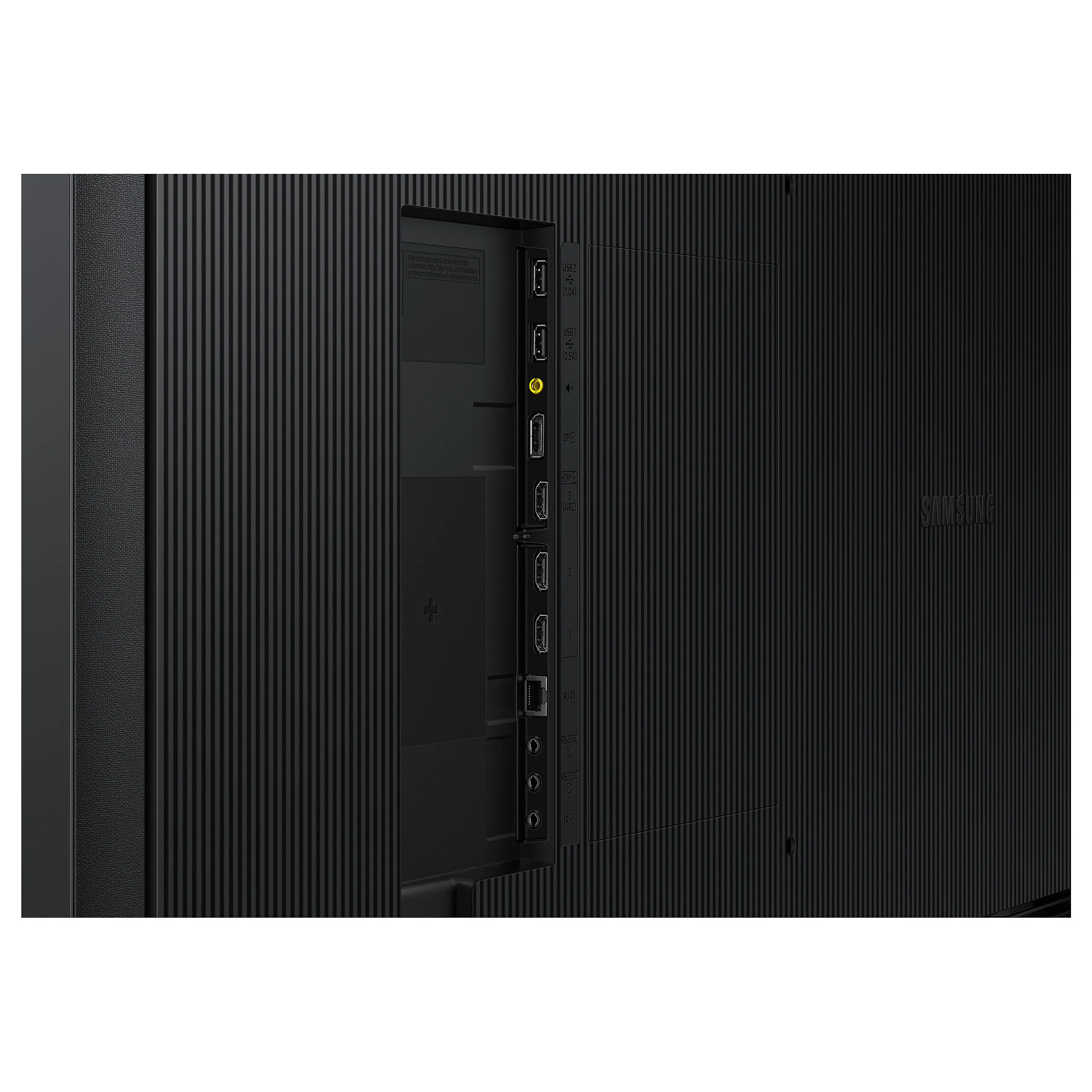

Ports & interfaces
HDMI ports quantity: 3
HDMI version: 2.0
HDMI input ports quantity: 3
DisplayPorts quantity: 1
DisplayPorts in: 1
DisplayPort version: 1.2
Feature: USB port
USB ports quantity: 2
Ethernet LAN (RJ-45) ports: 1
Feature: RS-232 interface
Feature: Infrared data port
Remote (IR) input: 1
Design
Product design: Digital signage flat panel
Placement supported: Indoor
Product colour: Black
Screen shape: Flat

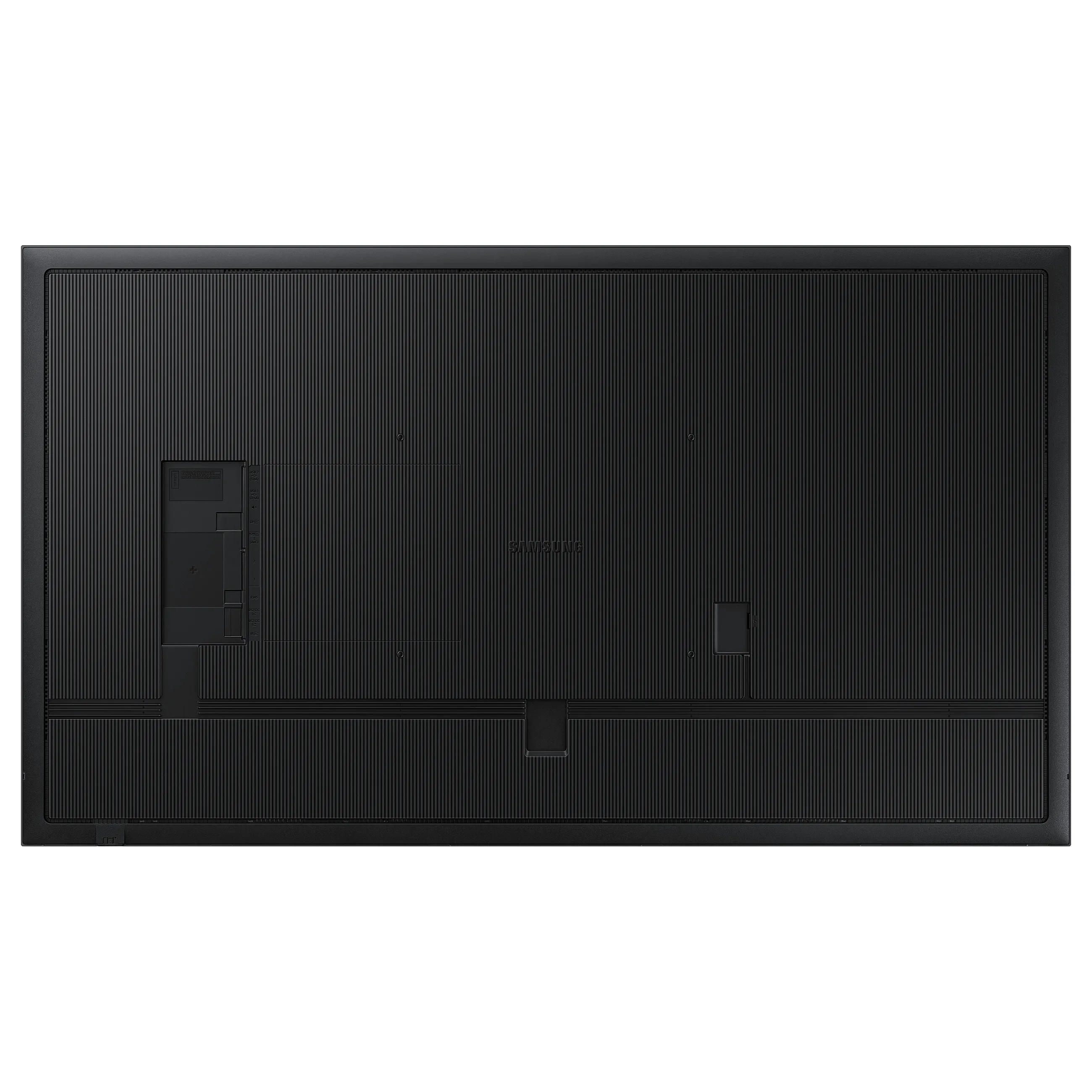

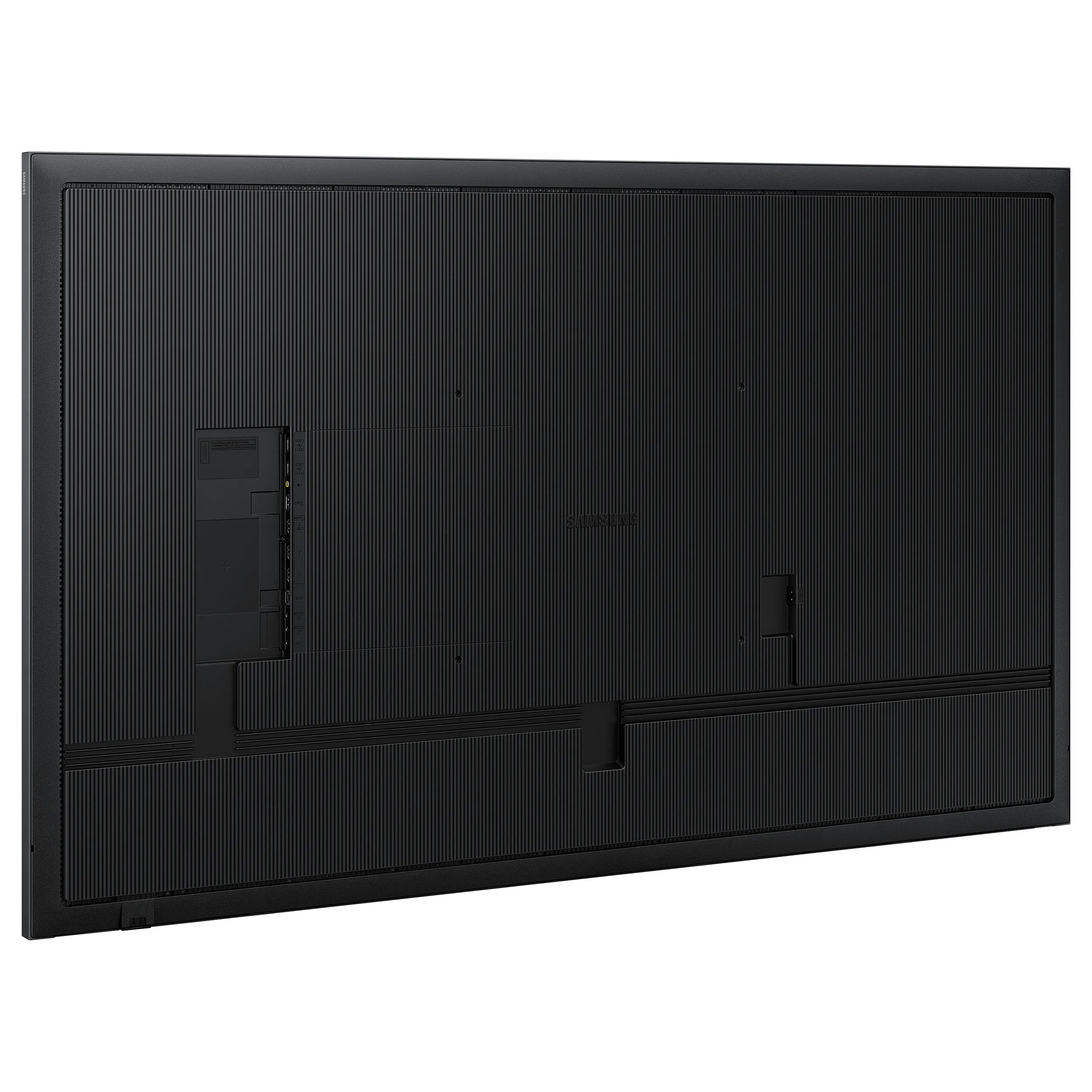

Feature: VESA mounting
Panel mounting interface: 200 x 200 mm
Bezel width (bottom): 1.15 cm
Bezel width (side): 1.15 cm
Bezel width (top): 1.15 cm
Bezel colour: Charcoal Black
Performance
Purpose: Universal
Operating hours (hours/days): 24/7
Feature: HDCP
HDCP version: 2.2
Power
Power consumption (typical): 187 W
Power consumption (sleep): 0.5 W

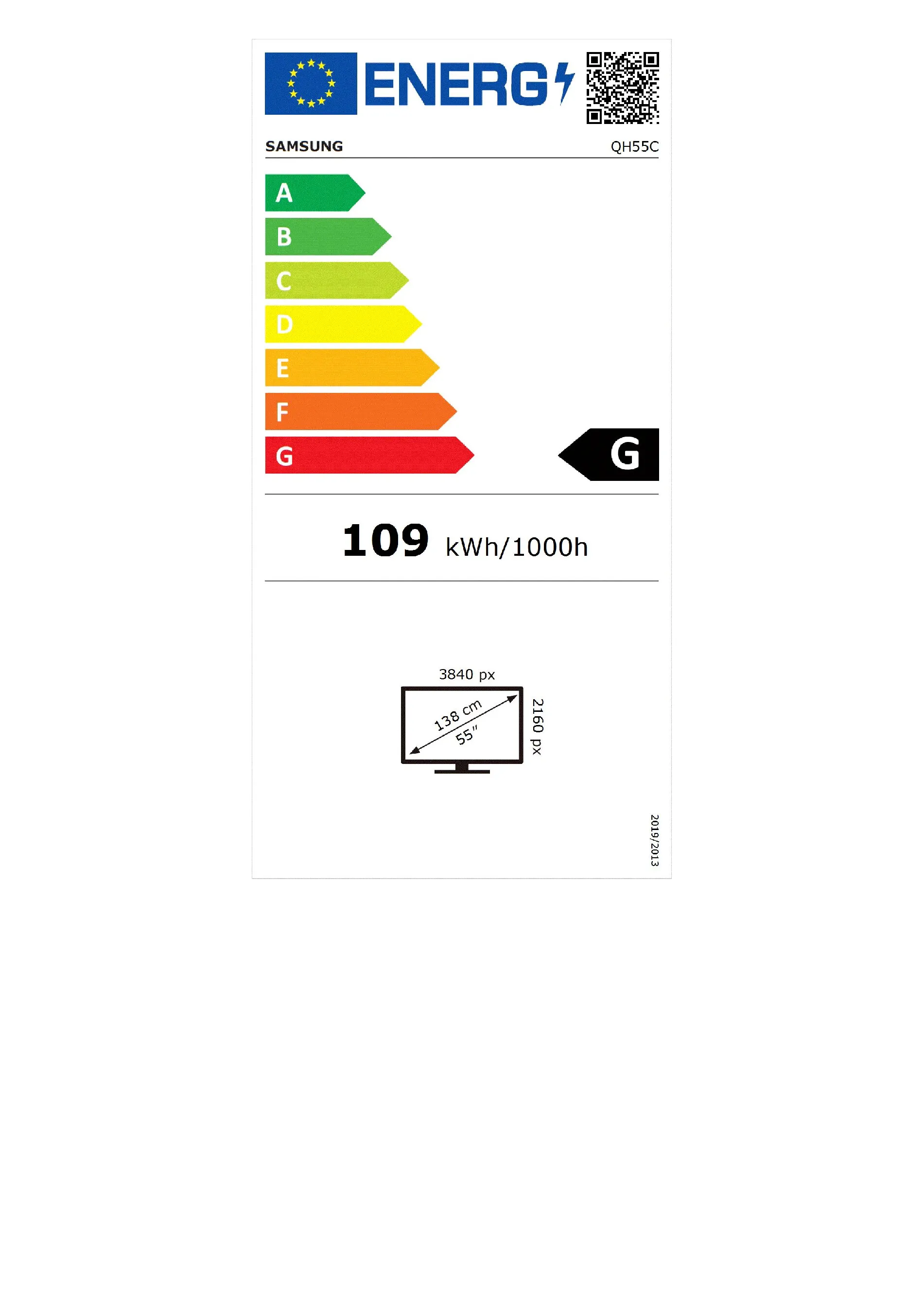

Energy efficiency class (SDR): G
Energy consumption (SDR) per 1000 hours: 109 kWh
AC input voltage: 100 – 240 V
AC input frequency: 50/60 Hz
Energy efficiency scale: A to G
Computer system
Feature: Computer system
Computer system type: System on Chip (SoC)
Feature: Built-in processor
Operating system installed: Tizen
Operating system version: 7.0
Weight & dimensions
Display width: 1237.9 mm

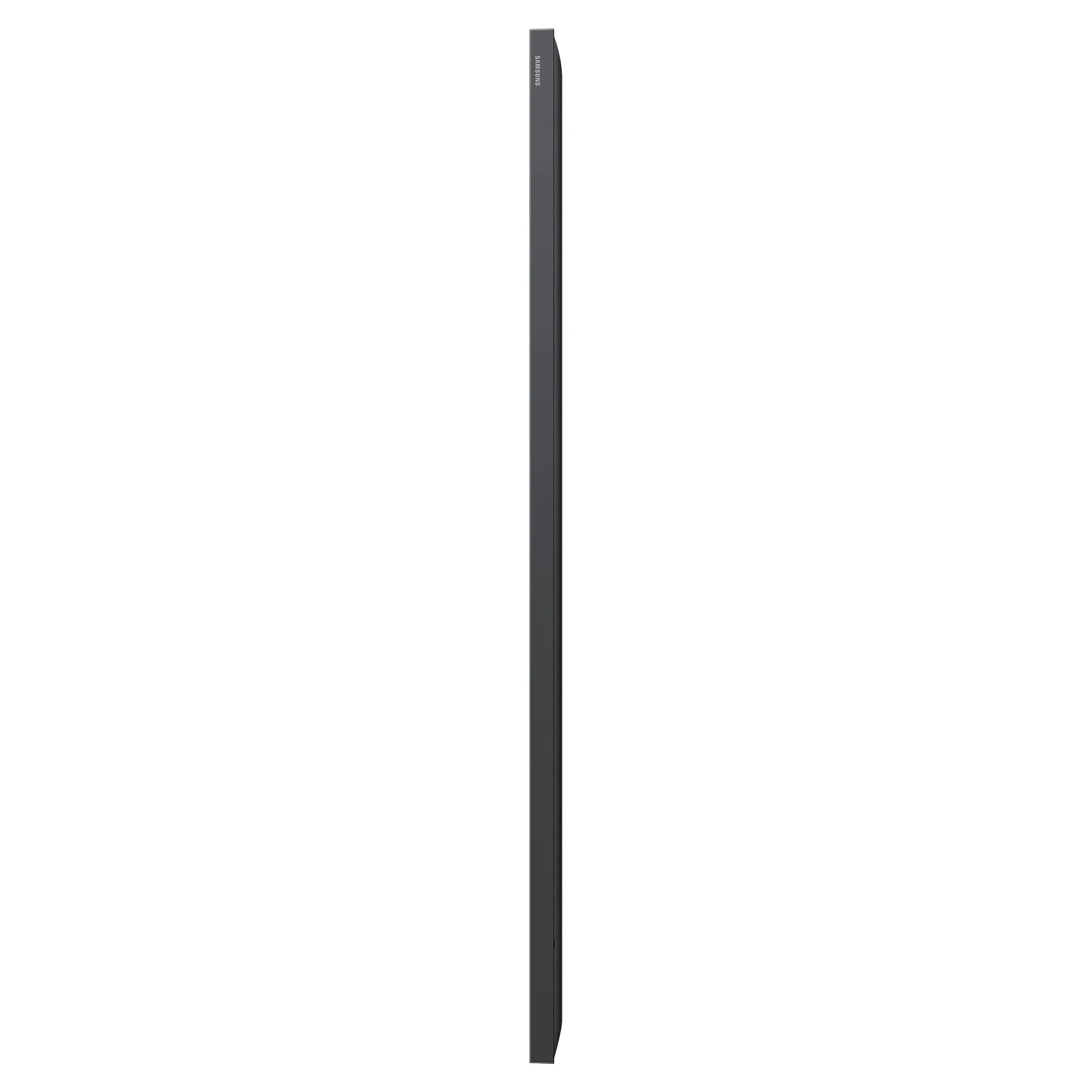

Display depth: 28.5 mm
Display height: 708.8 mm
Display weight: 16.9 kg
Packaging data
Package width: 1403 mm
Package depth: 148 mm
Package height: 835 mm
Package weight: 21.1 kg
Operational conditions
Operating temperature (T-T): 0 – 40 °C
Operating relative humidity (H-H): 10 – 80%
Certificates
Certification: Class B60950-1, 62368-1
Network
Feature: Ethernet LAN
Feature: Wi-Fi
Technical details
Audio out (mini jack): 1
Other features
Feature: Bluetooth
Flash memory: 16000 MB
RS-232 input ports: 1
RS-232 output ports: 1
RJ-45 input ports: 1
Optional features: WMN-B50SCSTN-L4355C
Panel type: VA
Display diagonal: 139.7 cm (55″)
Display technology: LCD
Display resolution: 3840 x 2160 pixels
Display brightness: 700 cd/m²
HD type: 4K Ultra HD
Response time: 8 ms
Contrast ratio (typical): 4000:1
Dynamic contrast ratio marketing name: Mega Contrast
Viewing angle, horizontal: 178°
Viewing angle, vertical: 178°
Pixel pitch: 0.315 x 0.315 mm
Display diagonal (metric): 138 cm
Horizontal scan range: 30 – 81 kHz
Vertical scan range: 48 – 75 Hz
Haze rate: 25%
Pixel frequency (max): 594 MHz
RGB colour space: NTSC
Colour gamut: 72%
Ports & interfaces
HDMI ports quantity: 3
HDMI version: 2.0
HDMI input ports quantity: 3
DisplayPorts quantity: 1
DisplayPorts in: 1
DisplayPort version: 1.2
Feature: USB port
USB ports quantity: 2
Ethernet LAN (RJ-45) ports: 1
Feature: RS-232 interface
Feature: Infrared data port
Remote (IR) input: 1
Design
Product design: Digital signage flat panel
Placement supported: Indoor
Product colour: Black
Screen shape: Flat
Feature: VESA mounting
Panel mounting interface: 200 x 200 mm
Bezel width (bottom): 1.15 cm
Bezel width (side): 1.15 cm
Bezel width (top): 1.15 cm
Bezel colour: Charcoal Black
Performance
Purpose: Universal
Operating hours (hours/days): 24/7
Feature: HDCP
HDCP version: 2.2
Power
Power consumption (typical): 187 W
Power consumption (sleep): 0.5 W
Energy efficiency class (SDR): G
Energy consumption (SDR) per 1000 hours: 109 kWh
AC input voltage: 100 – 240 V
AC input frequency: 50/60 Hz
Energy efficiency scale: A to G
Computer system
Feature: Computer system
Computer system type: System on Chip (SoC)
Feature: Built-in processor
Operating system installed: Tizen
Operating system version: 7.0
Weight & dimensions
Display width: 1237.9 mm
Display depth: 28.5 mm
Display height: 708.8 mm
Display weight: 16.9 kg
Packaging data
Package width: 1403 mm
Package depth: 148 mm
Package height: 835 mm
Package weight: 21.1 kg
Operational conditions
Operating temperature (T-T): 0 – 40 °C
Operating relative humidity (H-H): 10 – 80%
Certificates
Certification: Class B60950-1, 62368-1
Network
Feature: Ethernet LAN
Feature: Wi-Fi
Technical details
Audio out (mini jack): 1
Other features
Feature: Bluetooth
Flash memory: 16000 MB
RS-232 input ports: 1
RS-232 output ports: 1
RJ-45 input ports: 1
Optional features: WMN-B50SCSTN-L4355C
