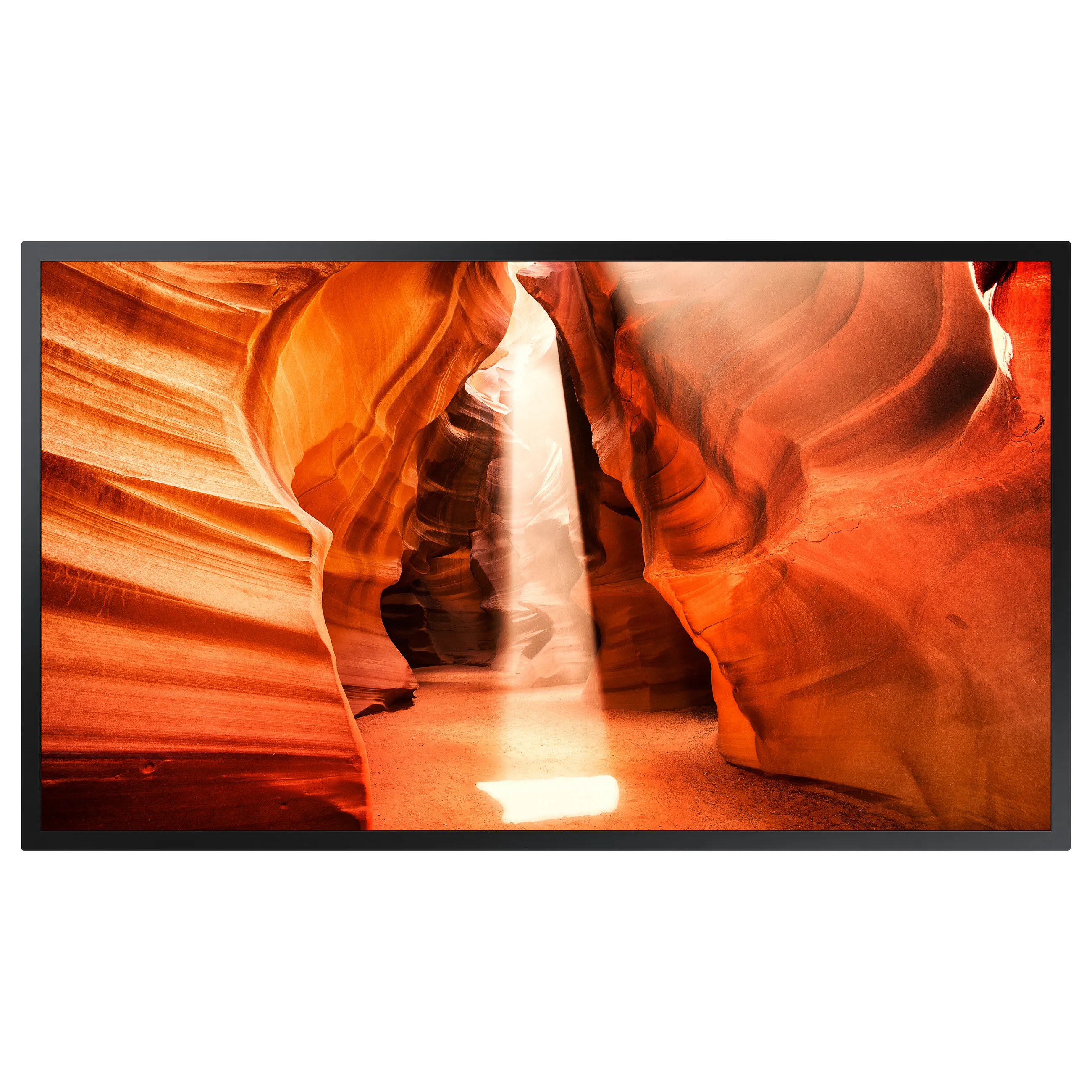

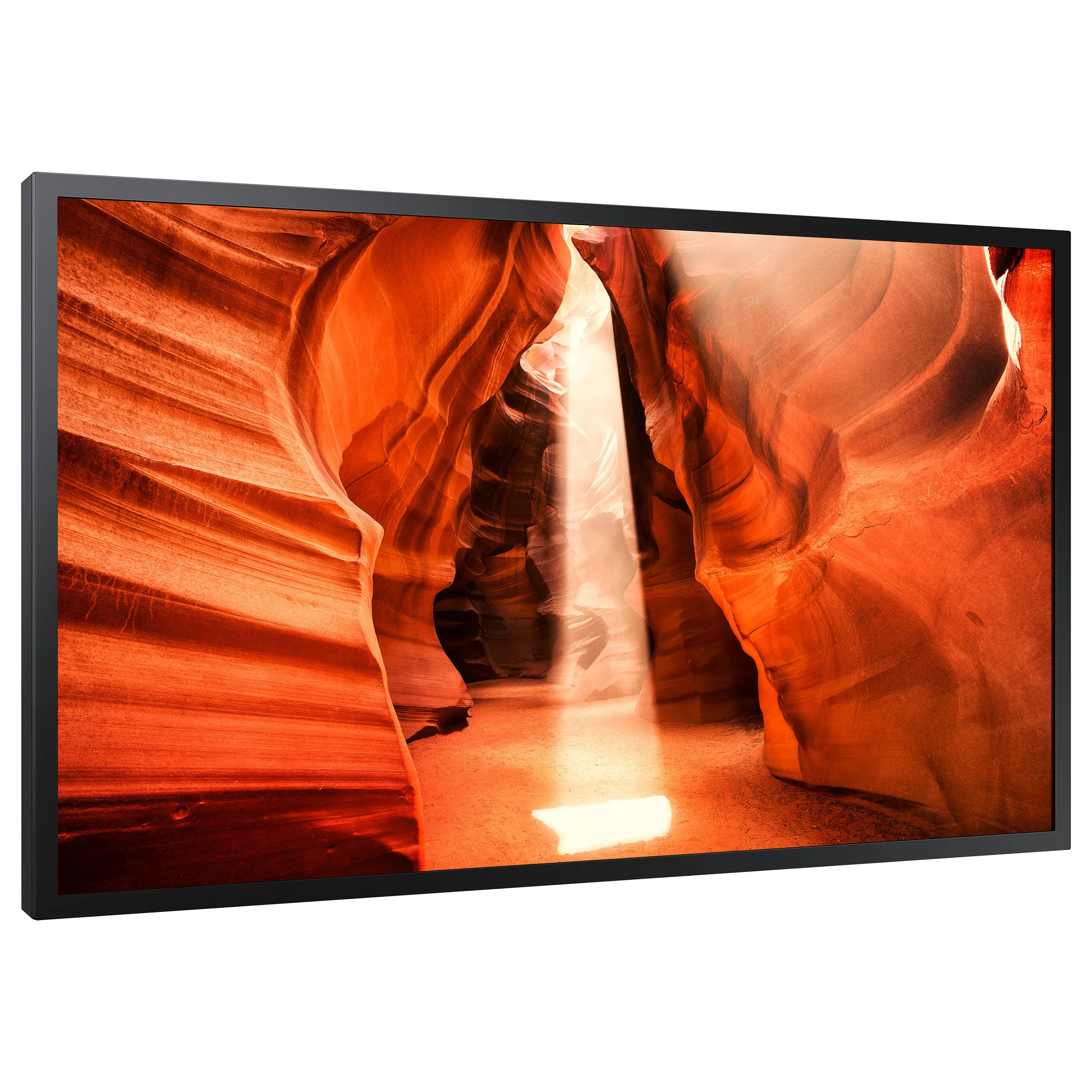

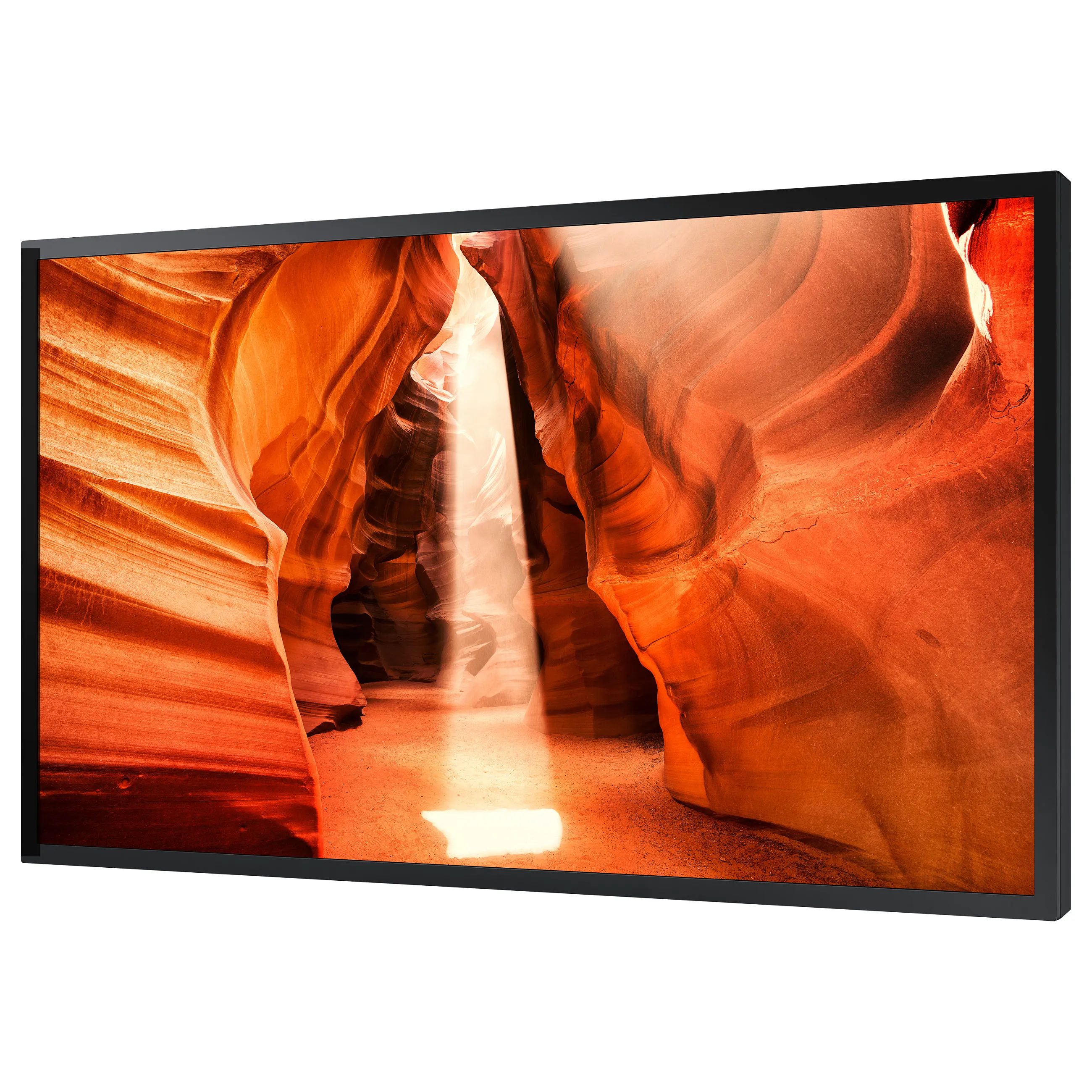

Samsung OM55N-S. Product design: Digital signage flat panel. Display diagonal: 139.7 cm (55"), Display technology: LCD, Display resolution: 1920 x 1080 pixels, Display brightness: 4000 cd/m², HD type: Full HD. Wi-Fi. Operating system installed: Tizen 5.0. Product colour: Black
Display
Panel type: VA
Display diagonal: 139.7 cm (55″)
Display technology: LCD
Display resolution: 1920 x 1080 pixels
Display brightness: 4000 cd/m²
HD type: Full HD
Response time: 6 ms
Contrast ratio (typical): 6000:1
Dynamic contrast ratio marketing name: Mega Contrast
Viewing angle, horizontal: 178°
Viewing angle, vertical: 178°
Pixel pitch: 0.63 x 0.63 mm
Horizontal scan range: 15 – 135 kHz
Vertical scan range: 24 – 75 Hz
Pixel frequency (max): 594 MHz
Colour gamut: 72%

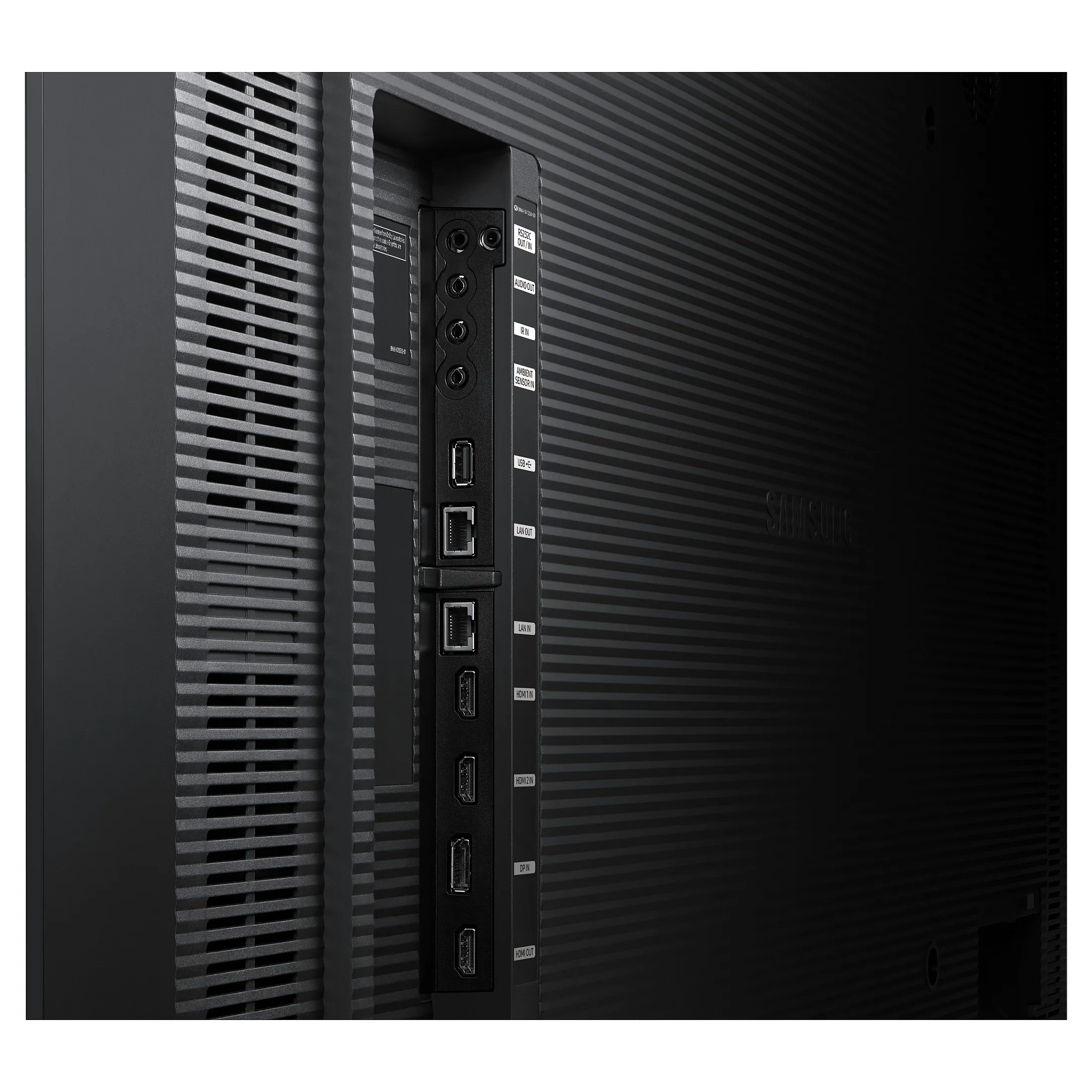

Ports & interfaces
HDMI ports quantity: 2
HDMI version: 2.0
HDMI input ports quantity: 2
DisplayPorts quantity: 1
DisplayPorts in: 1
DisplayPort version: 1.2
Feature: USB port
USB ports quantity: 1
Ethernet LAN (RJ-45) ports: 2
Feature: RS-232 interface
Feature: Infrared data port
Remote (IR) input: 1
Design
Product design: Digital signage flat panel
Placement supported: Indoor/outdoor

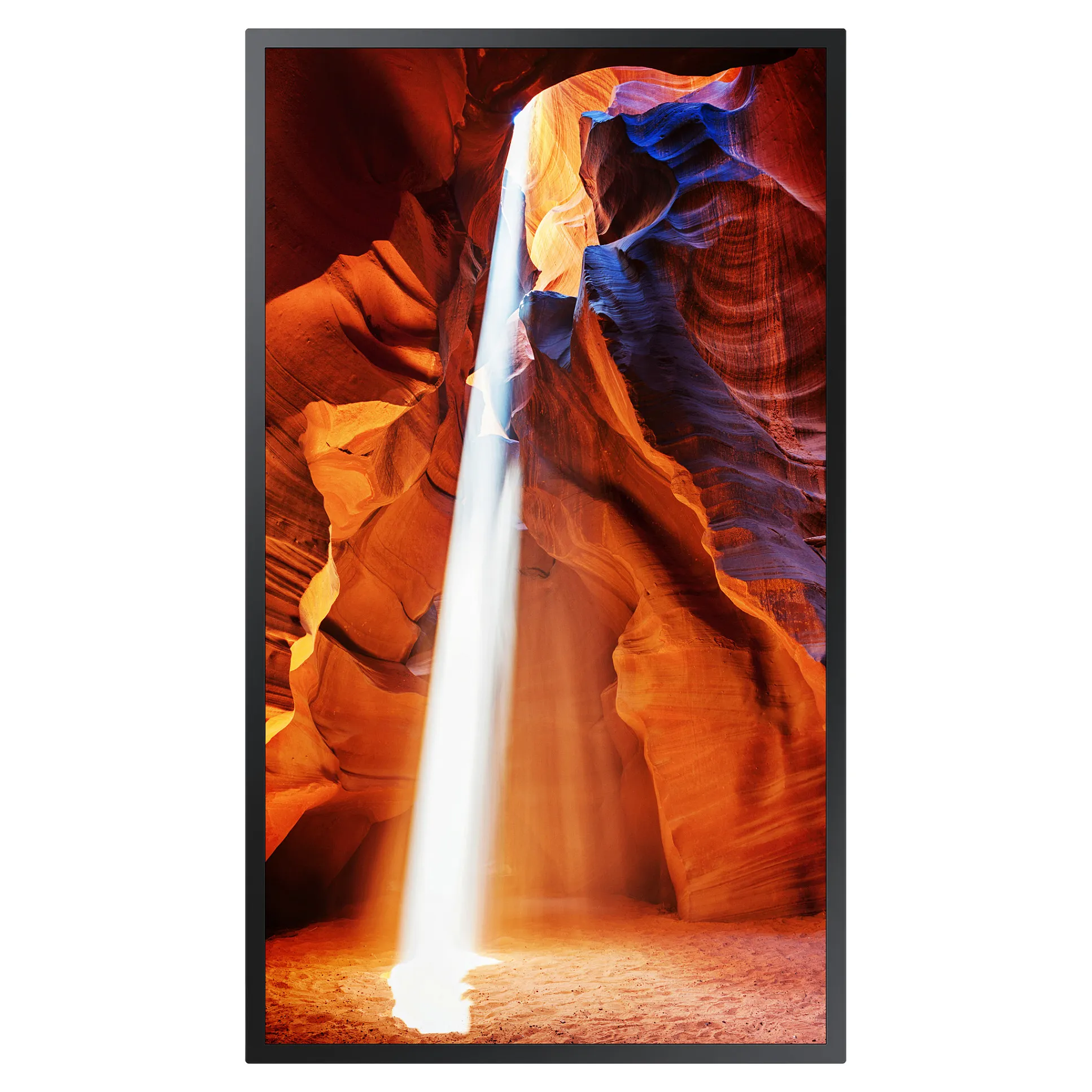

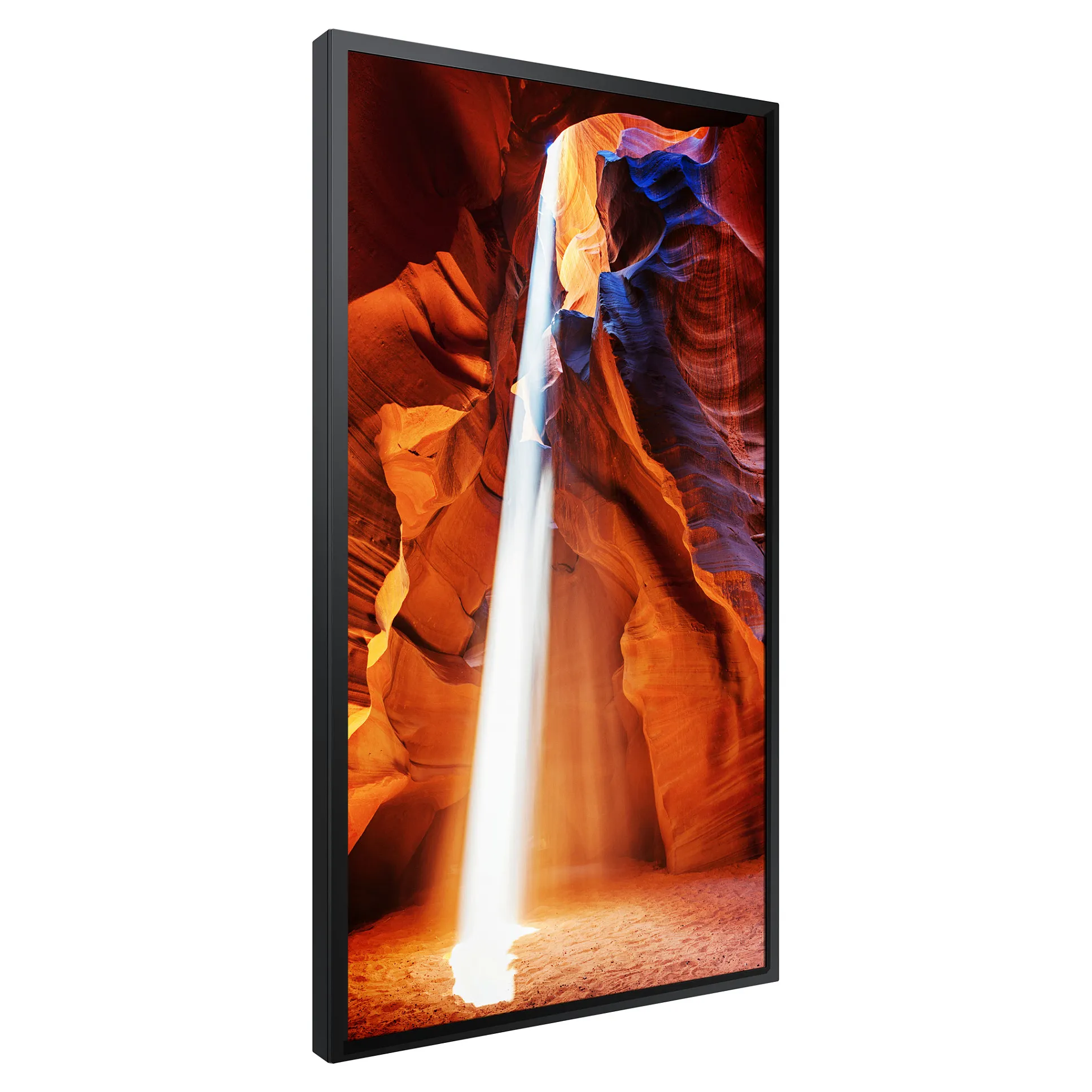

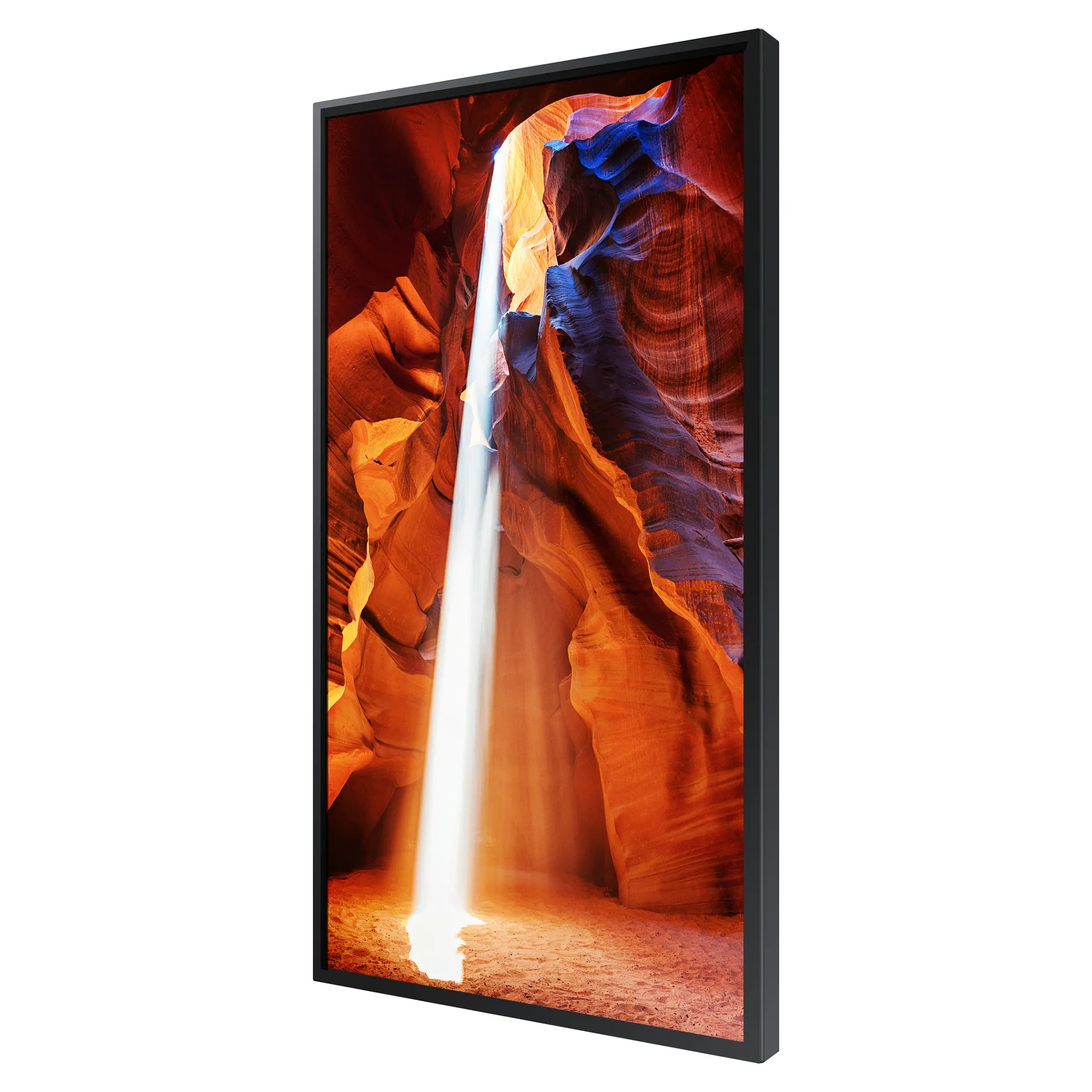

Orientation: Horizontal/Vertical
Product colour: Black
Screen shape: Flat
Feature: VESA mounting

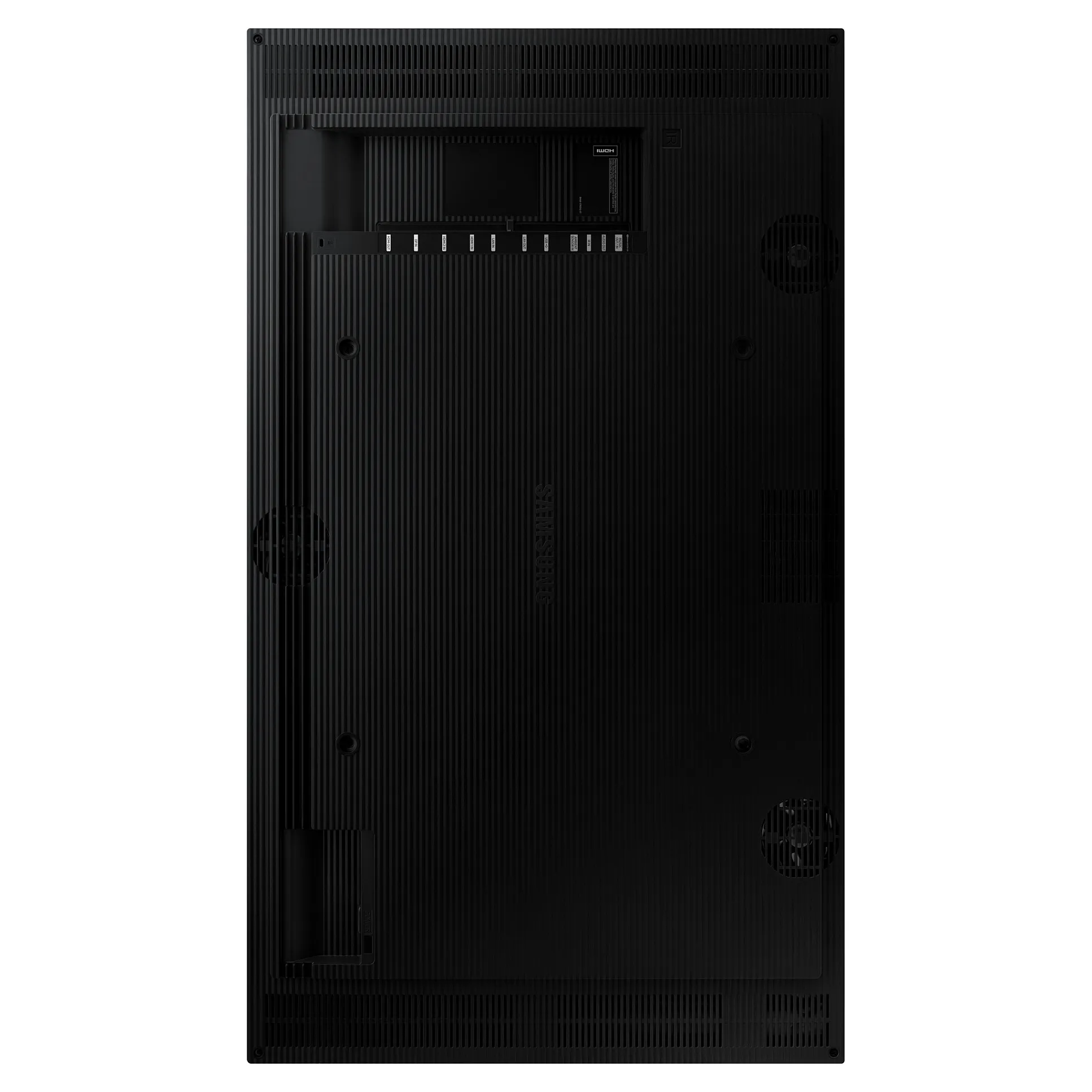

Panel mounting interface: 400 x 400 mm

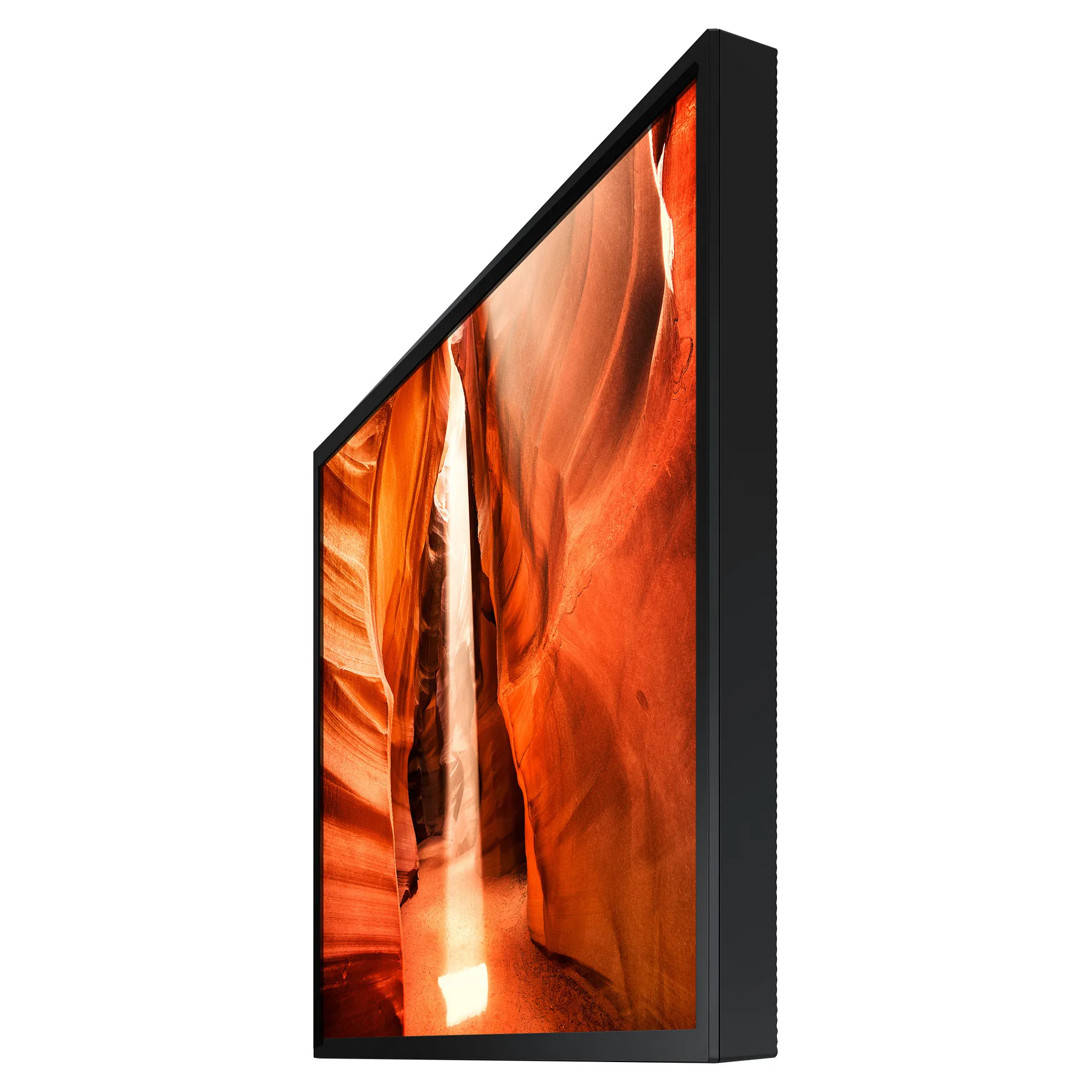

Bezel width (bottom): 1.99 cm
Bezel width (side): 1.99 cm
Bezel width (top): 1.99 cm
Performance
Purpose: Universal
Feature: HDCP
HDCP version: 2.2
Power
Power consumption (typical): 450 W
Power consumption (sleep): 0.5 W
AC input voltage: 100 – 240 V
AC input frequency: 50 – 60 Hz
Computer system
Feature: Computer system
Computer system type: System on Chip (SoC)
Feature: Built-in processor
Operating system installed: Tizen 5.0
Weight & dimensions
Display width: 1253.4 mm
Display depth: 54.5 mm
Display height: 724.2 mm
Display weight: 23.1 kg
Packaging data
Package width: 1420 mm
Package depth: 178 mm
Package height: 879 mm
Package weight: 29.1 kg
Operational conditions
Operating temperature (T-T): 0 – 40 °C
Operating relative humidity (H-H): 10 – 80%
Certificates
Certification: Class A60950-1
Logistics data
Harmonized System (HS) code: 85285210
Network
Feature: Ethernet LAN
Feature: Wi-Fi
Technical details
Audio out (mini jack): 1
Other features
Flash memory: 8000 MB
RS-232 input ports: 1
RS-232 output ports: 1
Video out: 1
RJ-45 input ports: 1
RJ-45 output ports: 1
Panel type: VA
Display diagonal: 139.7 cm (55″)
Display technology: LCD
Display resolution: 1920 x 1080 pixels
Display brightness: 4000 cd/m²
HD type: Full HD
Response time: 6 ms
Contrast ratio (typical): 6000:1
Dynamic contrast ratio marketing name: Mega Contrast
Viewing angle, horizontal: 178°
Viewing angle, vertical: 178°
Pixel pitch: 0.63 x 0.63 mm
Horizontal scan range: 15 – 135 kHz
Vertical scan range: 24 – 75 Hz
Pixel frequency (max): 594 MHz
Colour gamut: 72%
Ports & interfaces
HDMI ports quantity: 2
HDMI version: 2.0
HDMI input ports quantity: 2
DisplayPorts quantity: 1
DisplayPorts in: 1
DisplayPort version: 1.2
Feature: USB port
USB ports quantity: 1
Ethernet LAN (RJ-45) ports: 2
Feature: RS-232 interface
Feature: Infrared data port
Remote (IR) input: 1
Design
Product design: Digital signage flat panel
Placement supported: Indoor/outdoor
Orientation: Horizontal/Vertical
Product colour: Black
Screen shape: Flat
Feature: VESA mounting
Panel mounting interface: 400 x 400 mm
Bezel width (bottom): 1.99 cm
Bezel width (side): 1.99 cm
Bezel width (top): 1.99 cm
Performance
Purpose: Universal
Feature: HDCP
HDCP version: 2.2
Power
Power consumption (typical): 450 W
Power consumption (sleep): 0.5 W
AC input voltage: 100 – 240 V
AC input frequency: 50 – 60 Hz
Computer system
Feature: Computer system
Computer system type: System on Chip (SoC)
Feature: Built-in processor
Operating system installed: Tizen 5.0
Weight & dimensions
Display width: 1253.4 mm
Display depth: 54.5 mm
Display height: 724.2 mm
Display weight: 23.1 kg
Packaging data
Package width: 1420 mm
Package depth: 178 mm
Package height: 879 mm
Package weight: 29.1 kg
Operational conditions
Operating temperature (T-T): 0 – 40 °C
Operating relative humidity (H-H): 10 – 80%
Certificates
Certification: Class A60950-1
Logistics data
Harmonized System (HS) code: 85285210
Network
Feature: Ethernet LAN
Feature: Wi-Fi
Technical details
Audio out (mini jack): 1
Other features
Flash memory: 8000 MB
RS-232 input ports: 1
RS-232 output ports: 1
Video out: 1
RJ-45 input ports: 1
RJ-45 output ports: 1
