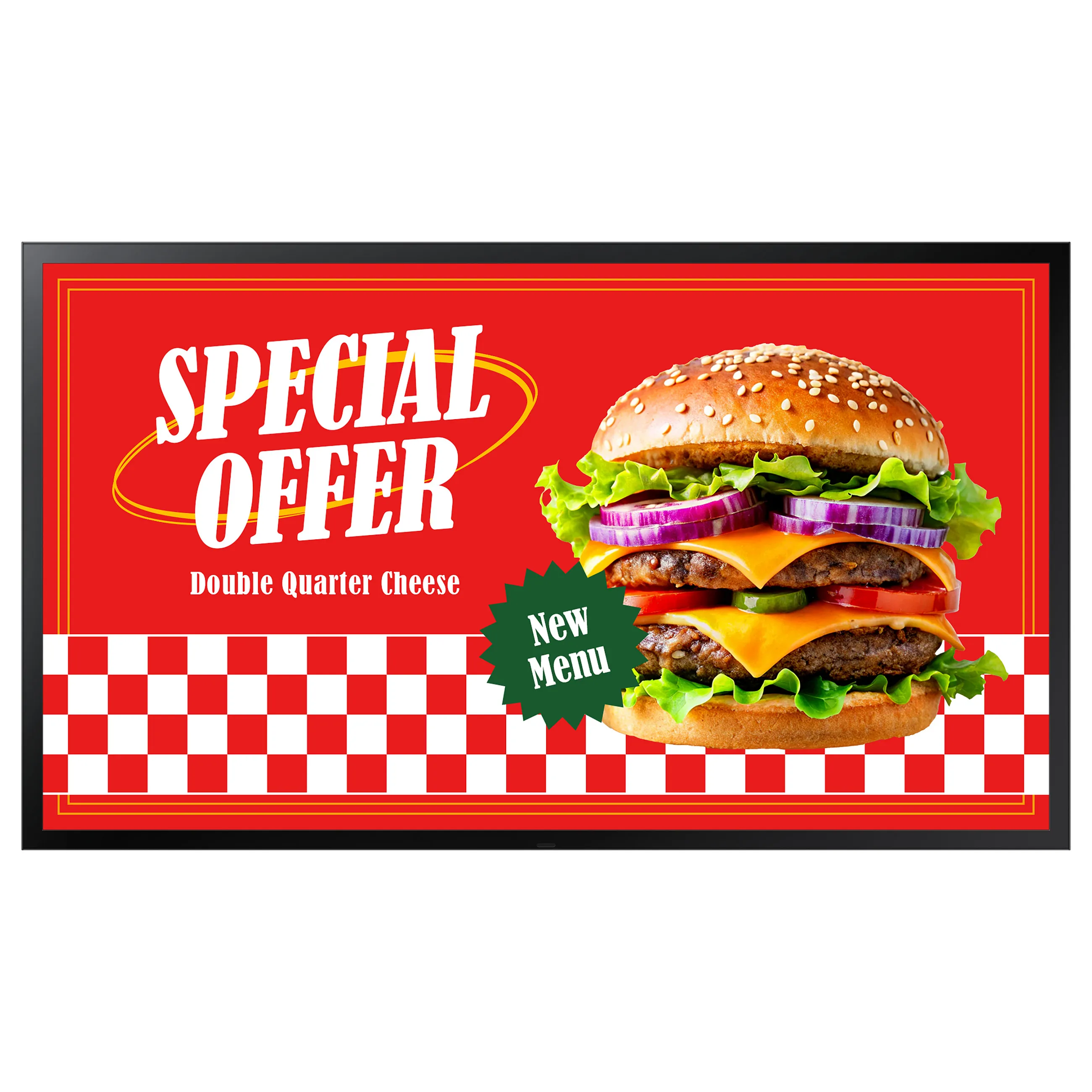

Samsung OH46DX

Display
Panel type: VA
Display diagonal: 116.8 cm (46″)
Display technology: LCD
Display resolution: 1920 x 1080 pixels
Display brightness: 3500 cd/m²
HD type: Full HD
Native aspect ratio: 16:9
Response time: 6 ms
Contrast ratio (typical): 6000:1
Dynamic contrast ratio marketing name: Mega Contrast
Viewing angle, horizontal: 178°
Viewing angle, vertical: 178°
Pixel pitch: 0.53 x 0.53 mm
Horizontal scan range: 15 – 135 kHz
Vertical scan range: 24 – 75 Hz
Haze rate: 0%
Pixel frequency (max): 594 MHz
Glass thickness: 3 mm
Glass film: AG/AR Film
Colour gamut: 72%

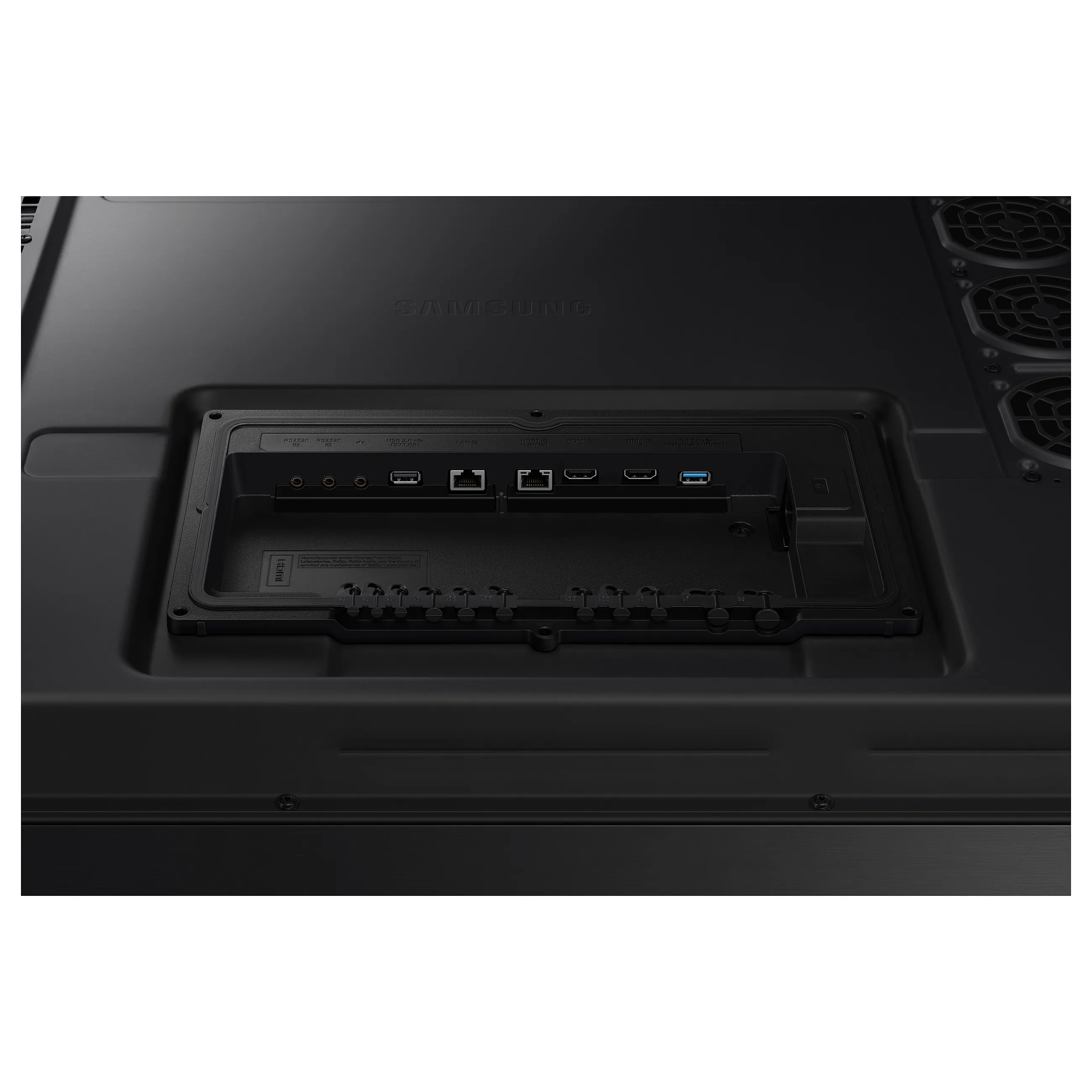

Ports & interfaces
HDMI ports quantity: 2
HDMI version: 2.0
Feature: USB port
USB ports quantity: 2
Ethernet LAN (RJ-45) ports: 2
Feature: RS-232 interface
HDBaseT input ports: 1
Design
Product design: Digital signage flat panel
Placement supported: Outdoor
Product colour: Black
Screen shape: Flat
Feature: VESA mounting
Panel mounting interface: 995 x 500 mm
Bezel width (bottom): 2.49 cm
Bezel width (side): 2.49 cm
Bezel width (top): 2.49 cm
Performance
Purpose: Retail
Operating hours (hours/days): 24/7
Feature: HDCP
International Protection (IP) code: IP56
HDCP version: 2.2
Power
Power consumption (typical): 480 W
Power consumption (standby): 0.5 W
AC input voltage: 100 – 240 V
AC input frequency: 50/60 Hz
Computer system
Operating system installed: Tizen
Operating system version: 8.0
Weight & dimensions
Display width: 1069 mm
Display depth: 69 mm
Display height: 623.6 mm
Display weight: 28.2 kg
Packaging data
Package width: 1190 mm
Package depth: 186 mm
Package height: 735 mm
Package weight: 33.7 kg
Operational conditions
Operating temperature (T-T): -30 – 50 °C
Operating relative humidity (H-H): 10 – 80%
Network
Feature: Ethernet LAN
Feature: Wi-Fi
Technical details
Audio out (mini jack): 1
Compliance certificates: Electromagnetic Compatibility (EMC)
Other features
Display brightness (peak): 4000 cd/m²
Feature: Bluetooth
Flash memory: 8000 MB
RS-232 input ports: 1
RS-232 output ports: 1
