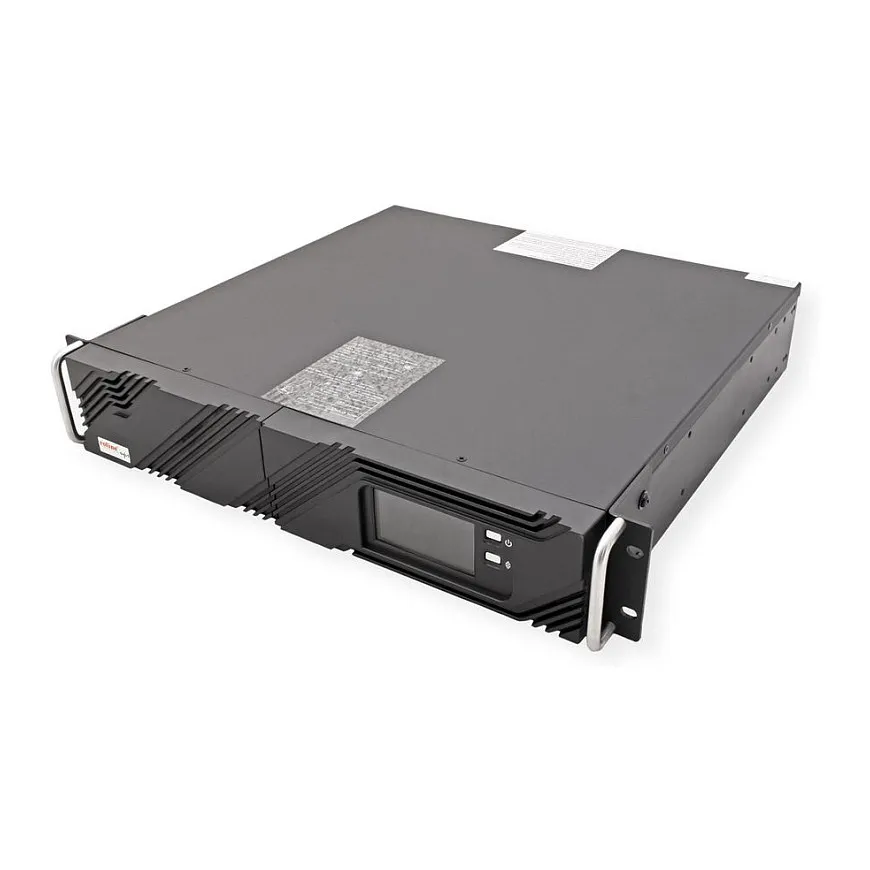

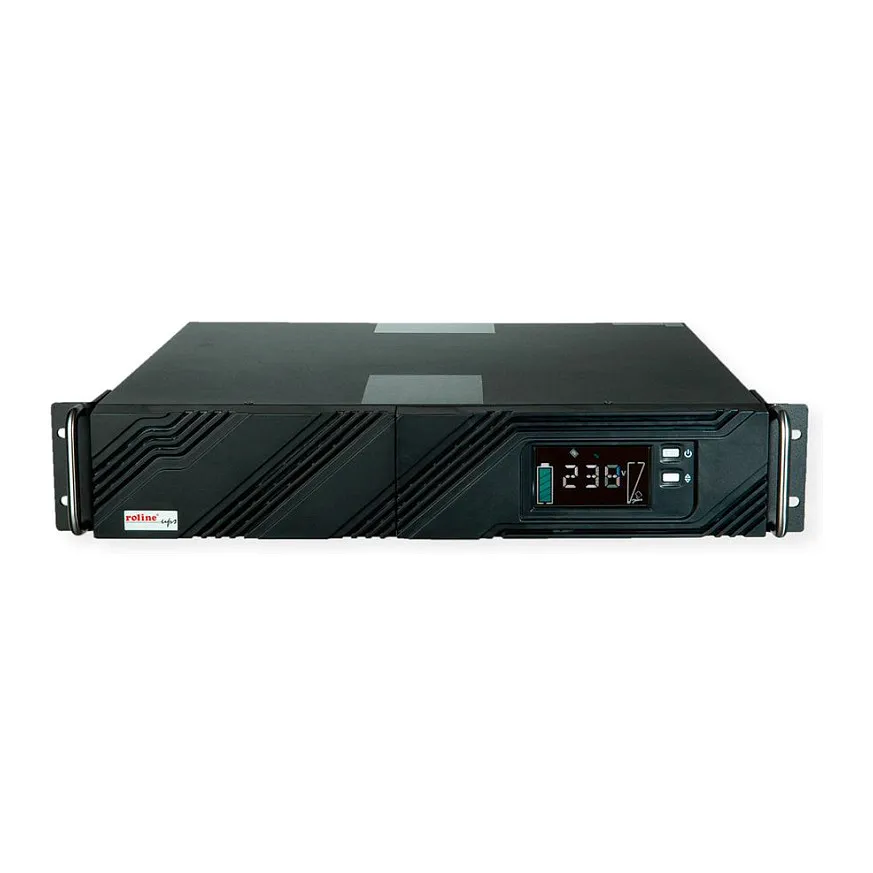

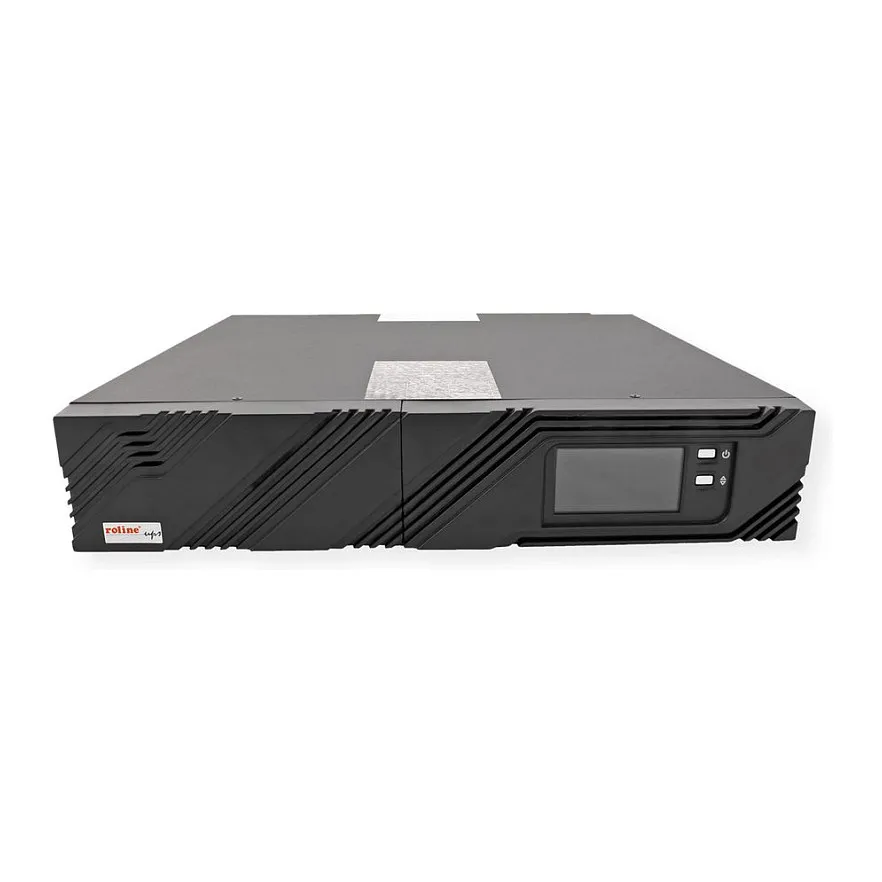

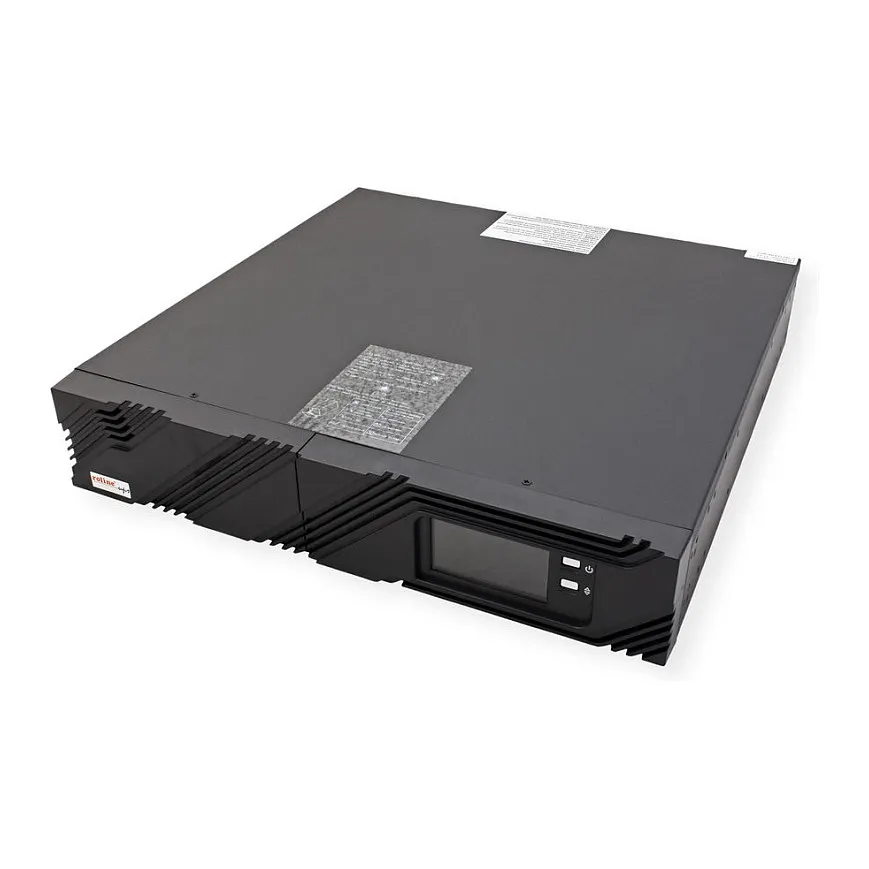

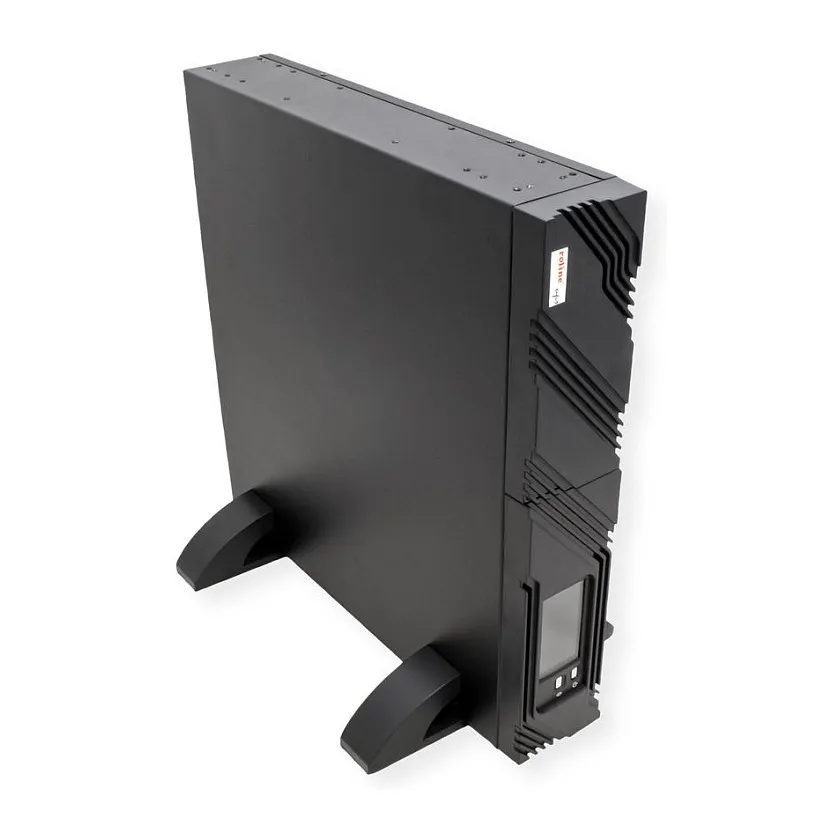

ROLINE LineSecure III 1000 Rackmount. UPS topology: Line-Interactive, Output power capacity: 1 kVA, Output power: 800 W. AC outlet types: C13 coupler, Power plug: C14 coupler, AC outlets quantity: 8 AC outlet(s). Battery technology: Lead-Acid, Battery capacity: 7 Ah, Battery voltage: 12 V. Form factor: Rackmount, Product colour: Black, Cooling type: Active. Width: 428 mm, Depth: 431 mm, Height: 84 mm
The LineSecure III UPS series, with its intelligent design and pure sine wave output for connected applications, is the best choice for office, SOHO, and home applications. It provides high-quality pure sine wave output for connected critical devices. Additionally equipped with an AVR (Automatic Voltage Regulator), it stabilizes fluctuating voltages such as overvoltages and undervoltages as well as other voltage problems and provides a stable output voltage for the most important devices. The LS III series is equipped with a color LCD display that shows the UPS status and increases user-friendliness. The LS III series offers power protection, including overload, surge, and short-circuit protection. The USB port allows you to monitor UPS status, schedule UPS events, and receive instant notifications via a computer system or portable device. It also has a slot for an SNMP/web card.
In areas with significant voltage fluctuations, the UPS uses buck and boost regulation to compensate for differences between the input and target voltage. The battery management system monitors the UPS batteries and only charges them when necessary, extending battery life by up to 50%.
UPS topology: Line-Interactive
Output power capacity: 1 kVA
Output power: 800 W
Waveform: Pure sine
Input operation voltage (min): 100 V
Input operation voltage (max): 240 V
Input frequency: 50/60 Hz
Output operation voltage (min): 100 V
Output operation voltage (max): 240 V
Output frequency: 50/60 Hz
Feature: Automatic Voltage Regulation (AVR)
Response time: 4 ms
Efficiency: 95%
Noise level: 40 dB
Feature: Surge protection
Surge protection features: Fax, Telephone
Power protection features: Overload, Short circuit
Feature: Maintenance-free

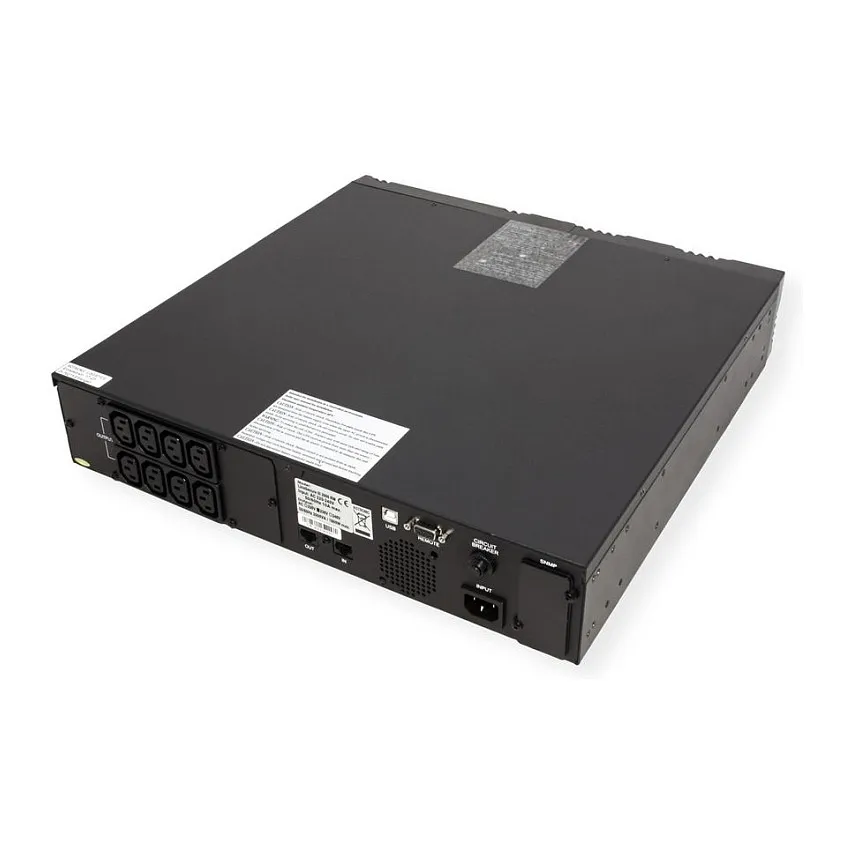

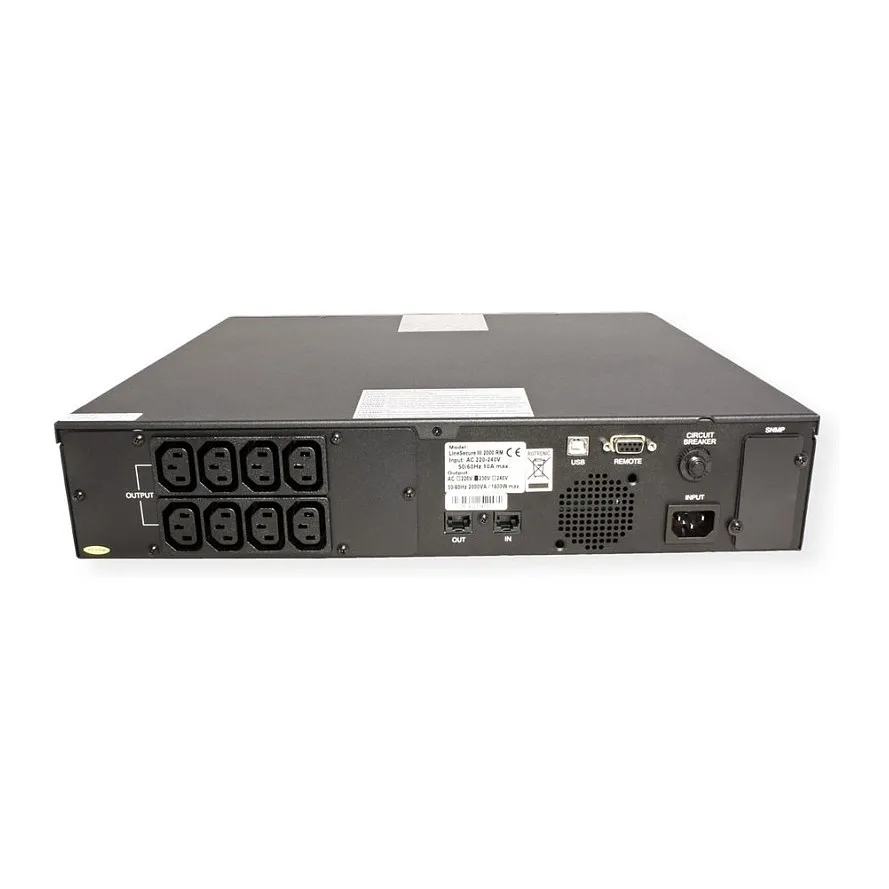

Ports & interfaces
AC outlet types: C13 coupler
Power plug: C14 coupler
AC outlets quantity: 8 AC outlet(s)
Feature: USB port
USB 2.0 ports quantity: 1
USB port type: USB Type-B
Feature: Serial interface
Serial interface type: RS-232
RS-232 ports: 1
Modem (RJ-11) ports: 1
Feature: Network card slot
Ethernet LAN (RJ-45) ports: 1

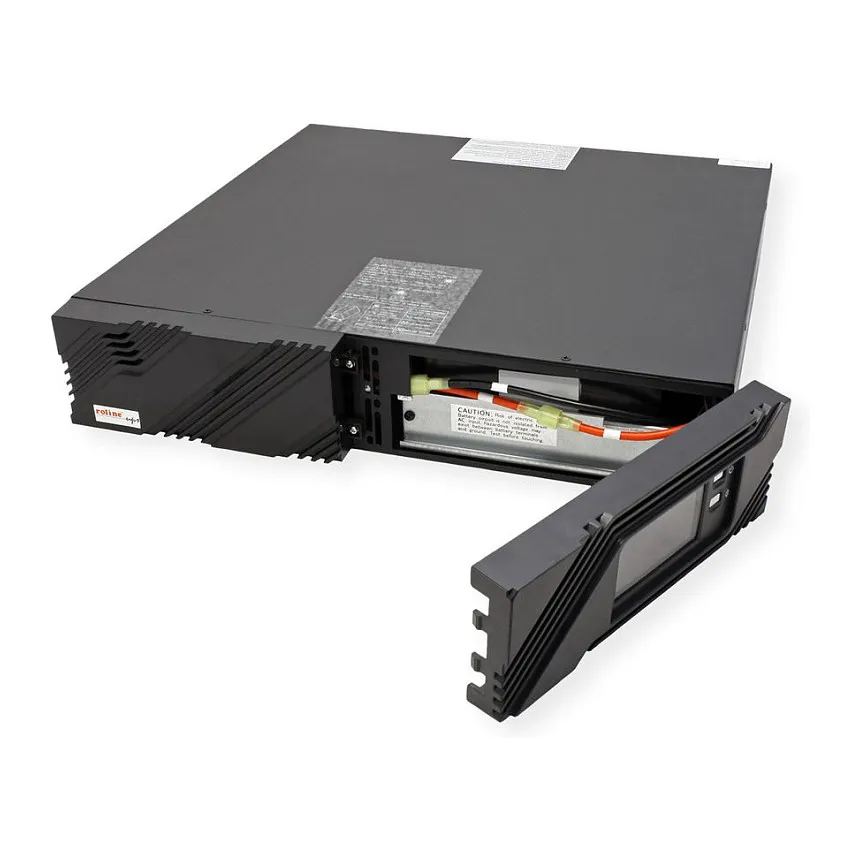

Battery
Battery technology: Lead-Acid
Battery capacity: 7 Ah
Battery voltage: 12 V
Number of batteries included: 2 pc(s)
Typical backup time at full load: 3 min
Typical backup time at half load: 6 min
Battery recharge time(90%): 4 h
Design

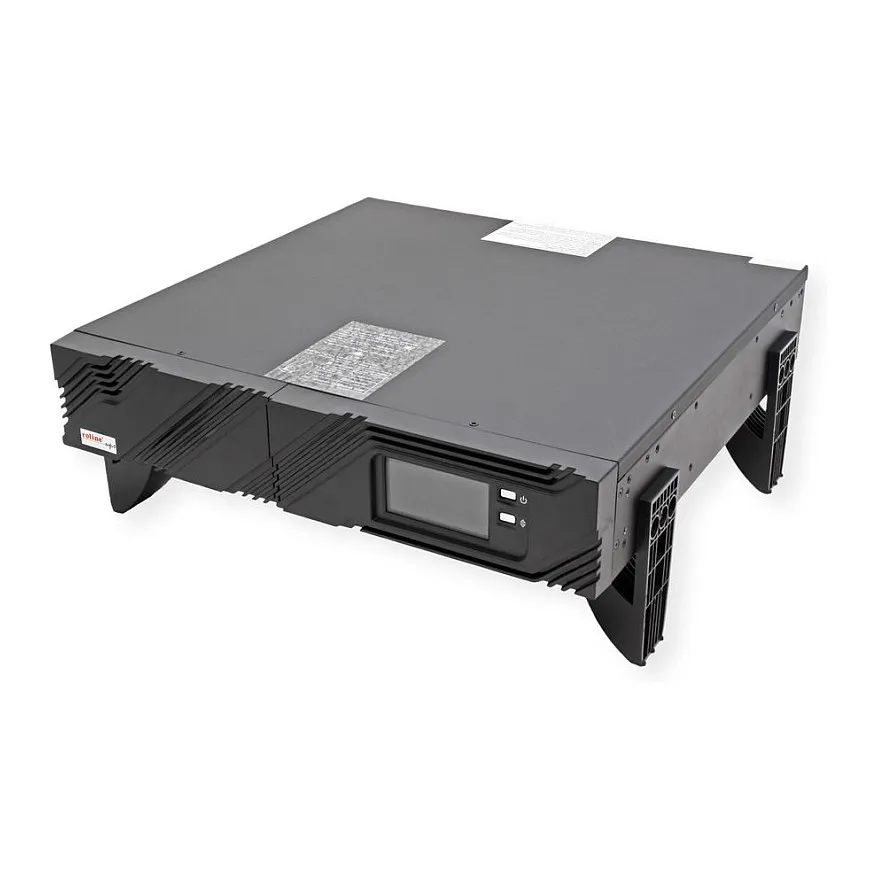

Form factor: Rackmount
Cooling type: Active
Feature: Built-in fan
Product colour: Black
Control type: Buttons

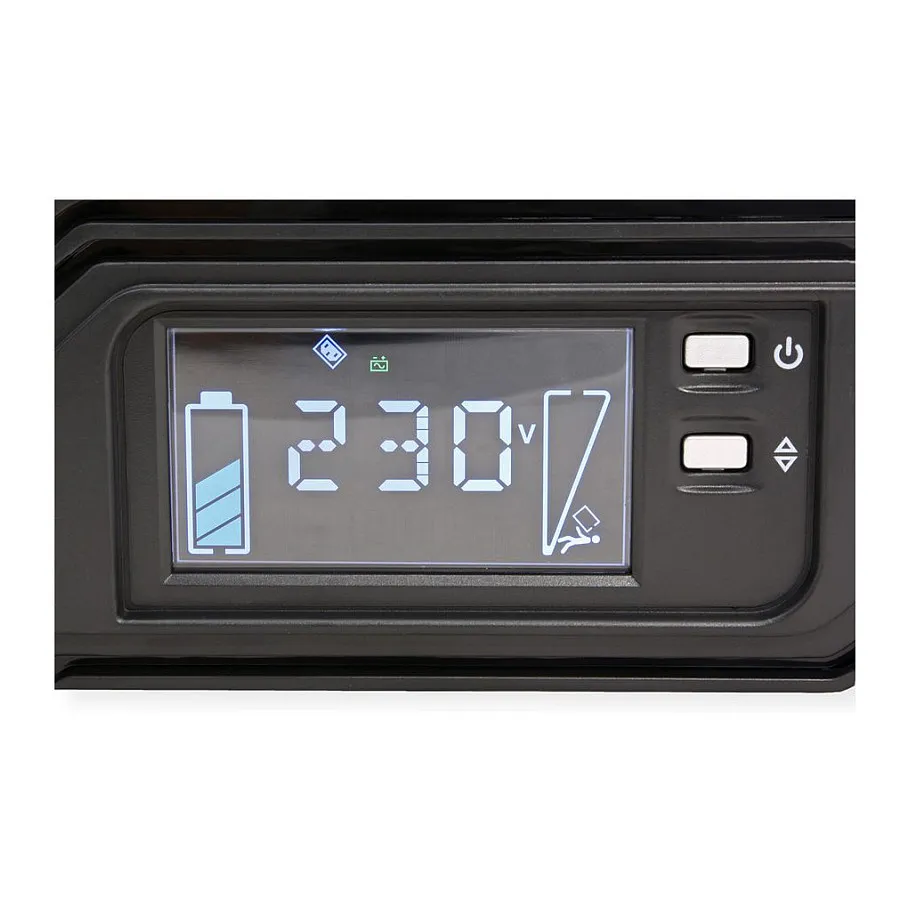

Display type: LCD
Operational conditions
Operating temperature (T-T): 0 – 40 °C
Operating relative humidity (H-H): 0 – 90%
Packaging content
Feature: Batteries included
Weight & dimensions
Width: 428 mm
Depth: 431 mm
Height: 84 mm
Weight: 14.4 kg
Packaging data
Package width: 577 mm
Package depth: 590 mm
Package height: 211 mm
Package weight: 18.2 kg
