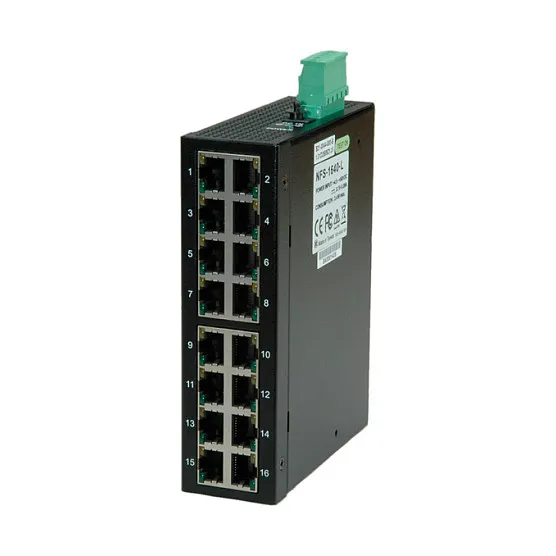

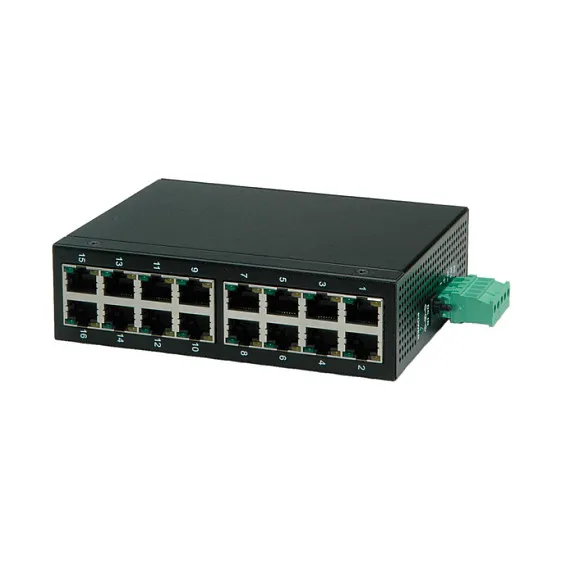

ROLINE Industrial Switch, 16x RJ-45, unmanaged. Full duplex. MAC address table: 8000 entries
- Fast Ethernet switch with 16 shielded 10/100 Base-T copper ports
- Wide operating temperature range for temperature critical environment
- Auto MDI/MDI-X crossover function
- Supports IEEE 802.3x flow control for full-duplex operation
- Supports Back-pressure flow control for half-duplex operation

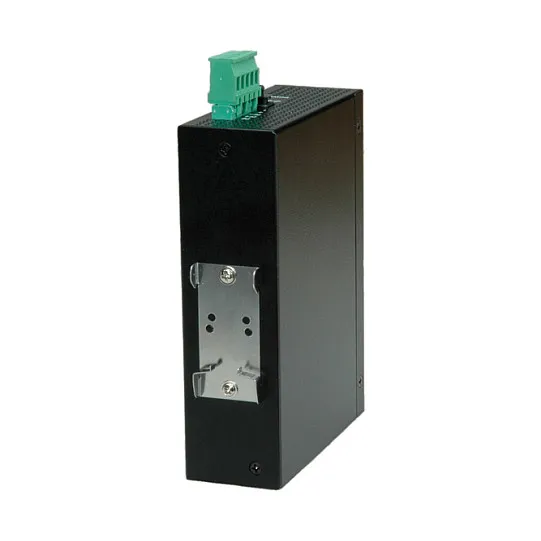

- Supports DIN-rail mounting and panel mounting
- Power: Input: 4.5 – 50V DC, Consumption: 3.4W (max.)
- Operating Temperature: – 20 ºC – +70 ºC
- DC Input via terminal block or DC power jack (6.3mm / 2.0mm)
- Dimensions: 140 x 106 x 40 mm (WxDxH)
- As according power supply we recommend 21.13.1226
- Contents: Switch
.
Network
Feature: Full duplex
Feature: Auto-negotiation
Data transmission
MAC address table: 8000 entries
Other features
Dimensions (WxDxH): 140 x 40 x 106 mm
Ethernet interface type: Fast Ethernet
Ethernet LAN (RJ-45) ports: 8
Feature: Full duplex
Feature: Auto-negotiation
Data transmission
MAC address table: 8000 entries
Other features
Dimensions (WxDxH): 140 x 40 x 106 mm
Ethernet interface type: Fast Ethernet
Ethernet LAN (RJ-45) ports: 8
