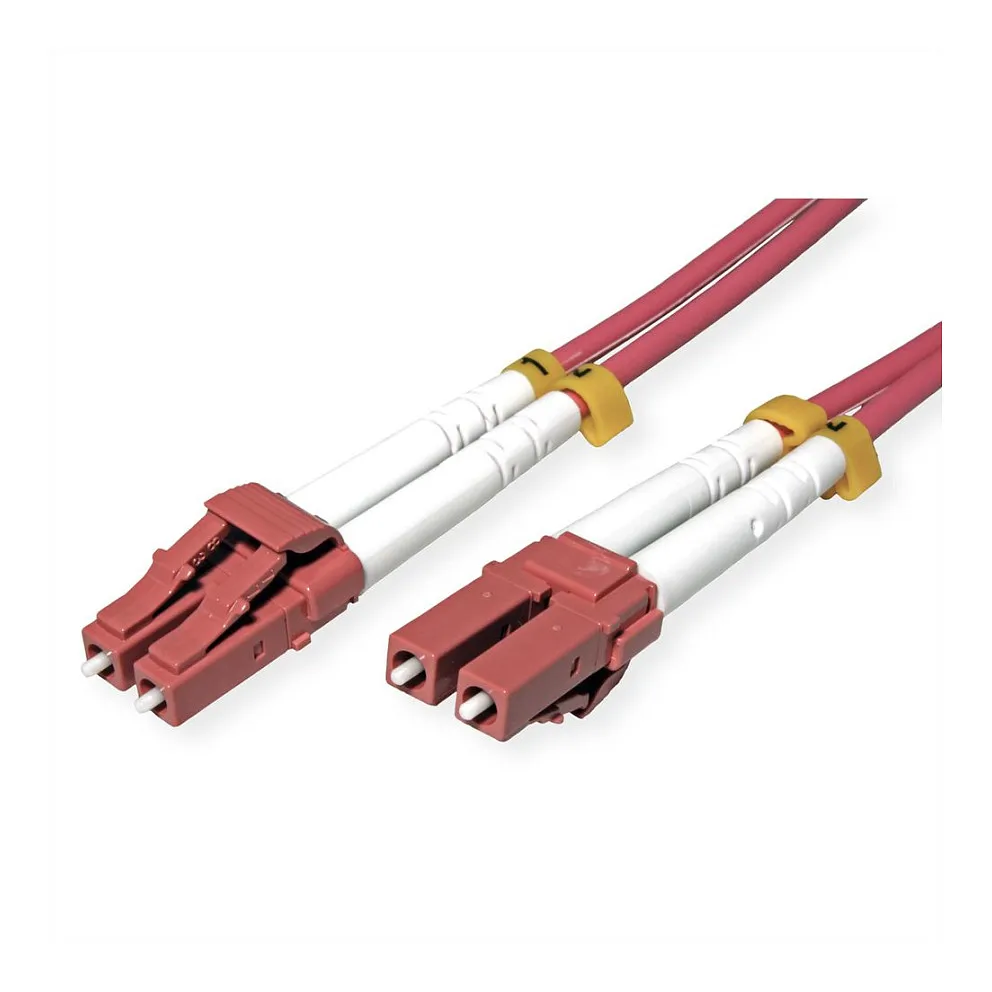

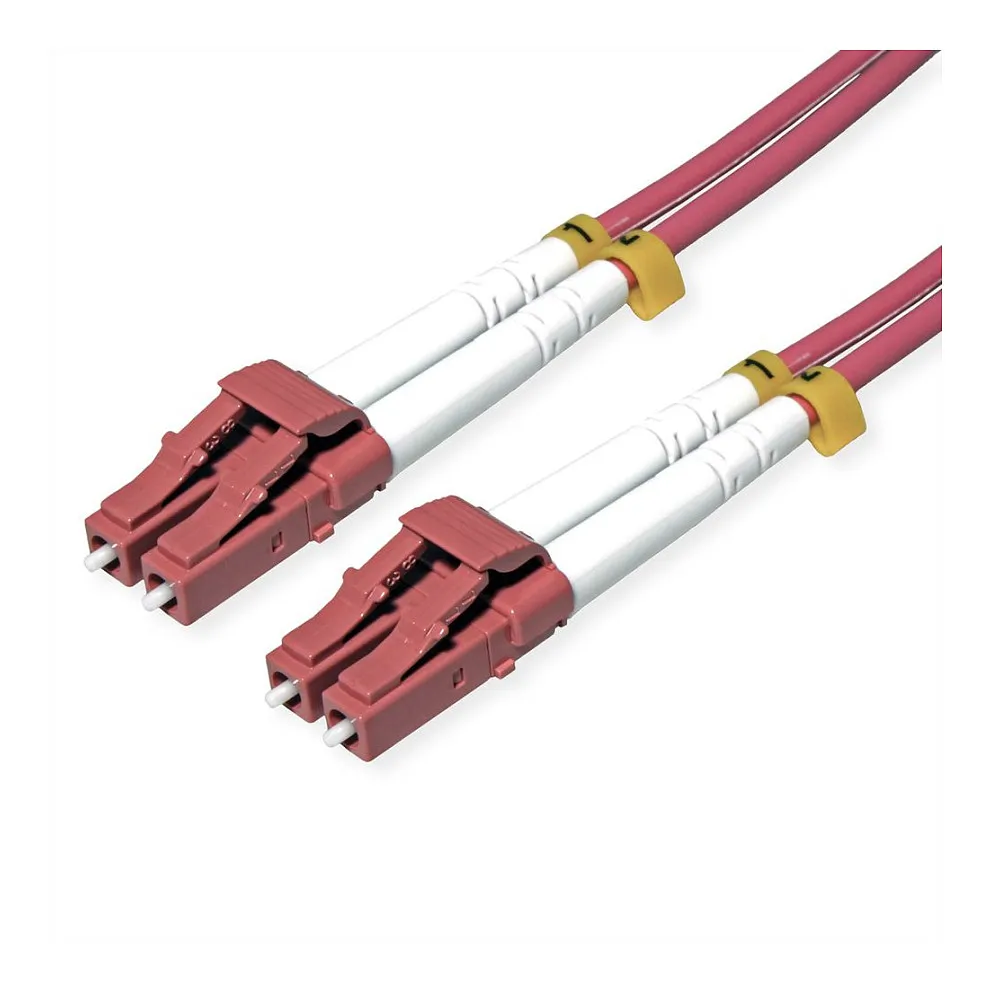

ROLINE 21.15.8613. Cable length: 5 m, Fibre optic type: OM4, Connector 1: LC, Connector 2: LC, Core diameter: 50 µm, Full duplex
OM4 fiber will support Ethernet, Fibre Channel, and OIF applications, allowing extended reach upwards of 550 meters at 10 Gbit/s for ultra long building backbones and medium length campus backbones. With an laser bandwidth of 4700 MHz-km (more than double the IEEE requirement for 10 Gbit/s 300 meter support), the OM4 fiber is also especially well suited for shorter reach in data centers and high performance computing applications.
In use at low data rates such as 100 Mbit/s or 1 Gbit/s, OM4 is on par with the OM2 or OM3 fibers. The OM4 fiber shows their true strengths at data rates of 10 Gbit/s and 40 Gbit/s with ranges of 550 meters or 300 meters.
Cable length: 5 m
Fibre optic type: OM4
Connector 1: LC
Connector 2: LC
Connector 1 gender: Male
Connector 2 gender: Male
Product colour: Violet
Feature: Full duplex
Core diameter: 50 µm
Cladding diameter: 120 µm
Data transfer rate: 10 Gbit/s
Jacket material: Polyvinyl chloride (PVC)
Connector material: Ceramic
Weight & dimensions
Weight: 134.7 g
Packaging data
Package width: 150 mm
Package depth: 150 mm
Package height: 20 mm
Package weight: 200 g
