Reiner SCT 2716050-103. Country of origin: Germany. Width: 91 mm, Depth: 91 mm, Height: 22 mm. Package width: 201 mm, Package depth: 149 mm, Package height: 47 mm

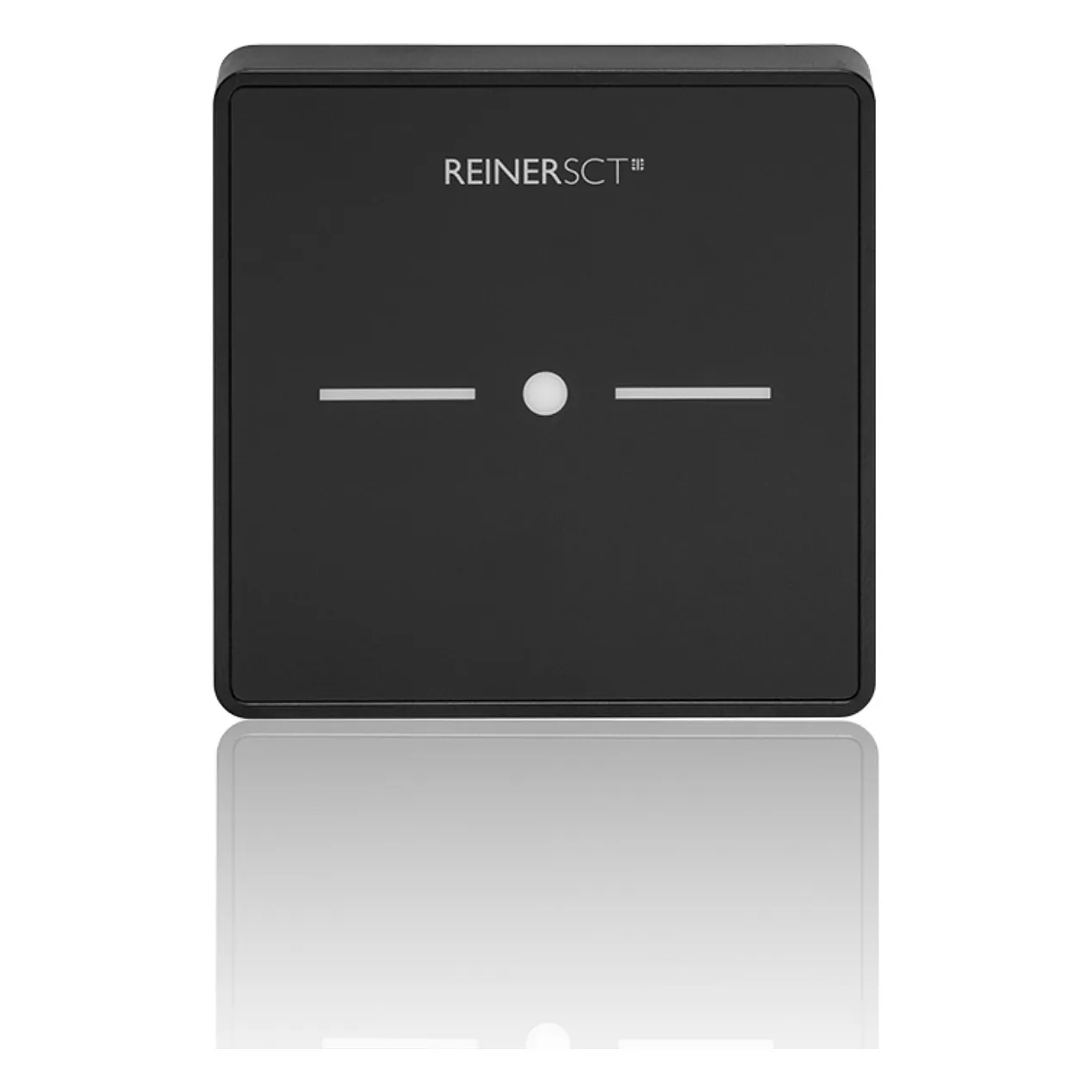

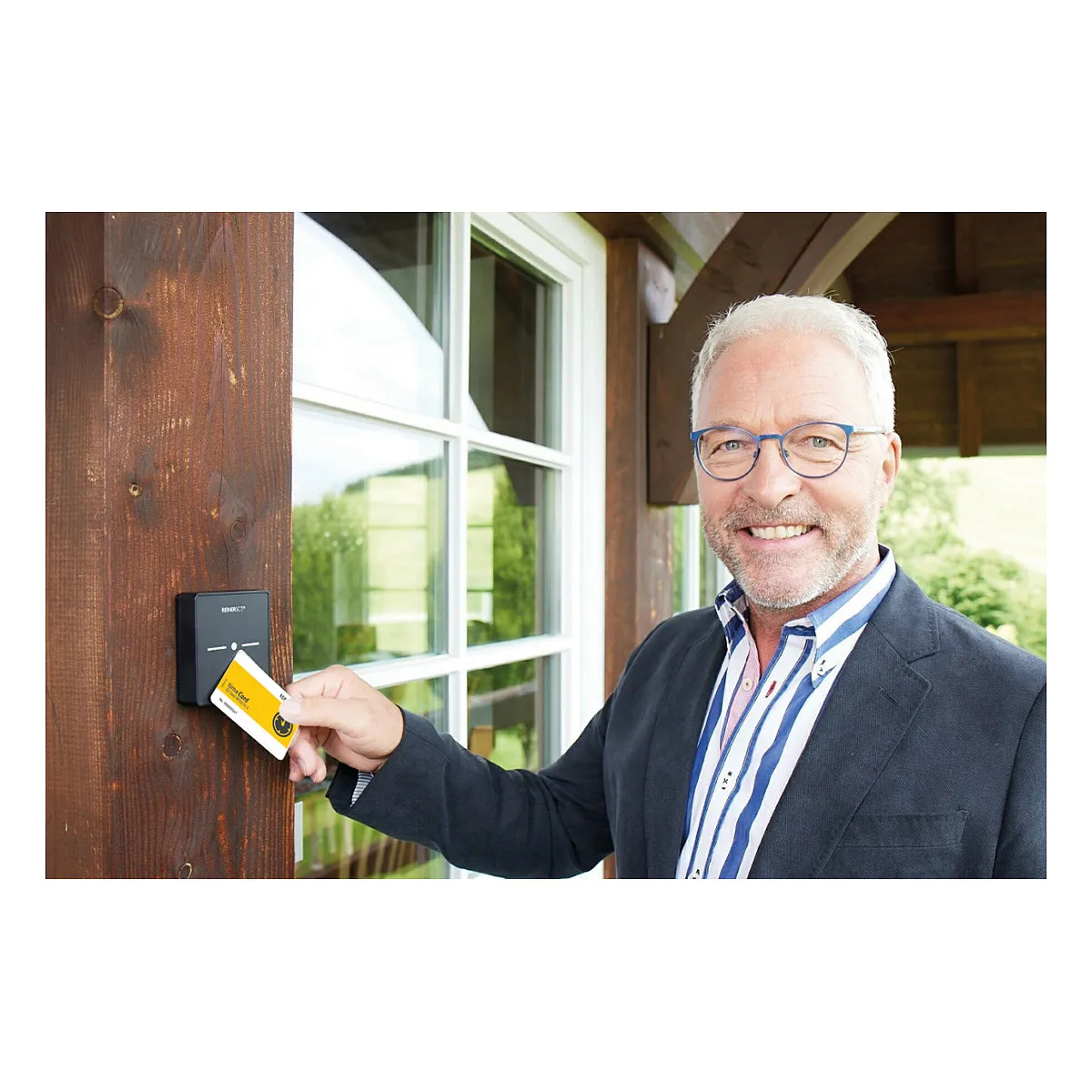

The external RFID reader V3 for the timeCard access control is an RFID wall reader that can read both timeCard ID cards as well as timeCard transponders. It can be installed both indoors and in protected outdoor areas using surface mounting.
Product description
timeCardexternal RFID reader V3 for access control
The innovative design of the product enables quick and easy installation thanks to the two-part housing construction. The integrated snap-in terminal strip in the rear case ensures a convenient connection. During installation, the front case with the electronics is simply snapped onto the pre-wired rear case and secured with two stainless steel screws. An injected special seal ensures that the housing is sealed. Thanks to the advanced circuit design, transponders or RFID cards are detected and read early and reliably, supported by a four-color backlight and acoustic signaling. The external RFID reader V3 can be connected to the following terminals:
timeCard Terminal 3
timecard accessbox
timeCard Multiterminal RFID (DES) – since 01.06.2020 EOL!
Frequency: 13560 kHz
Product colour: Black
International Protection (IP) code: IP54
LED indicators: Yes
Compliance certificates: CE, RoHS, WEEE
Logistics data
Country of origin: Germany
Certificates
Feature: Waste Electrical and Electronic Equipment (WEEE) compliance
Weight & dimensions
Width: 91 mm
Depth: 91 mm
Height: 22 mm
Weight: 100 g
Operational conditions
Operating temperature (T-T): -10 – 50 °C
Operating relative humidity (H-H): -25 – 60%
Storage temperature (T-T): 0 – 90 °C
Packaging data
Package width: 201 mm
Package depth: 149 mm
Package height: 47 mm
Package weight: 200 g
