QNAP TL-R1620Sep-RP. Product type: HDD enclosure. Number of storage drives supported: 16, Storage drive size: 2.5/3.5", Supported storage drive interfaces: SAS-3, Serial ATA III. Data transfer rate: 12 Gbit/s. Hot-swap. Rack mounting, Rack capacity: 3U, Product colour: Black, Grey
Achieve up to 96Gb/s with link aggregation
The TL-R1620Sep-RP is powered by a low-power 28nm SAS35x36R SAS Expander and supports 12/6 Gb/s SAS/SATA drives. Also, it has four 12 Gb/s SAS 3.0 (x4 Lane) SFF-8644 SAS Wide Ports. By connecting the TL-R1620Sep-RP to the host NAS and daisy-chaining multiple JBODs with two wide ports configured with link aggregation, the solution delivers up to 96Gb/s transfer speed.
Supports SAS DataBolt technology, delivers 12Gb/s speed using existing 6Gb/s infrastructure
Featuring Broadcom® SAS DataBolt™ bandwidth optimization technology, the TL-R1620Sep-RP features an intelligent data buffer for transferring data to drives at speeds that match the performance of the host NAS. Whether the TL-R1620Sep-RP uses 12Gb/s or 6Gb/s drives, the NAS host will transfer data to the TL-R1620Sep-RP at 12Gb/s, allowing you benefit from high-speed 12Gb/s SAS transmission with existing 6Gb/s infrastructure.
Connect up to 16 JBODs, support up to 4.6 PB raw capacity
The TL-R1620Sep-RP has four 12 Gb/s SAS 3.0 (x4 Lane) SFF-8644 SAS Wide Ports. Up to sixteen TL-R1620Sep-RP can be daisy-chained to achieve a raw capacity of up to 4.6PB.
Multipath routing to ensure continuous system operations
By daisy chaining the TL-R1620Sep-RP, data transmission loads can be balanced with multipath routing to achieve high availability. If one route fails, another transmission route can be used to access the data and ensure continuous system operations. The TL-R1620Sep-RP also features a redundant power supply to ensure system uptime.
Flexible daisy chaining modes
By daisy-chaining your NAS to multiple TL SAS JBODs and REXP SAS JBODs, you can take advantage of multipath routing and link aggregation to benefit from higher transfer speeds and system availability.
Storage Management
With Storage & Snapshot Manager on the host NAS, you can configure and manage the TL-R1620Sep-RP settings (including RAID groups, storage pools and snapshots), allowing you to easily expand NAS storage to accommodate massive data or backup files. You can also configure and manage the TL-R1620Sep-RP via the Console Port.
Speed up remote file transfers with JBOD migration
Moving many small files or a single large data file over a network can be time-consuming and negatively impact network performance. By setting up the RAID configuration on the TL-R1620Sep-RP, you can use it to move files to another computer or NAS. Simply save the files to the TL-R1620Sep-RP, connect it to the destination device, and then copy the files over.
Number of storage drives supported: 16
Storage drive size: 2.5/3.5″
Supported storage drive interfaces: SAS-3, Serial ATA III
Feature: Hot-swap
Design
Product type: HDD enclosure
Product colour: Black, Grey
LED indicators: Yes
Feature: On/off switch
Feature: Key lock
Feature: Rack mounting
Rack capacity: 3U
Number of fans: 3 fan(s)
Fan diameter: 8 cm
Performance
Data transfer rate: 12 Gbit/s
Noise level: 36 dB
Power
Power source type: AC
AC adapter input voltage: 100-240 V
Operational conditions
Operating temperature (T-T): 0 – 40 °C
Storage temperature (T-T): -20 – 70 °C
Operating relative humidity (H-H): 5 – 95%
Weight & dimensions
Width: 482.2 mm
Depth: 425.3 mm
Height: 131.3 mm
Weight: 13.1 kg
Package width: 595 mm
Package depth: 593 mm
Package height: 305 mm
Package weight: 16 kg
Packaging content
Package type: Box
Number of keys included: 2 pc(s)

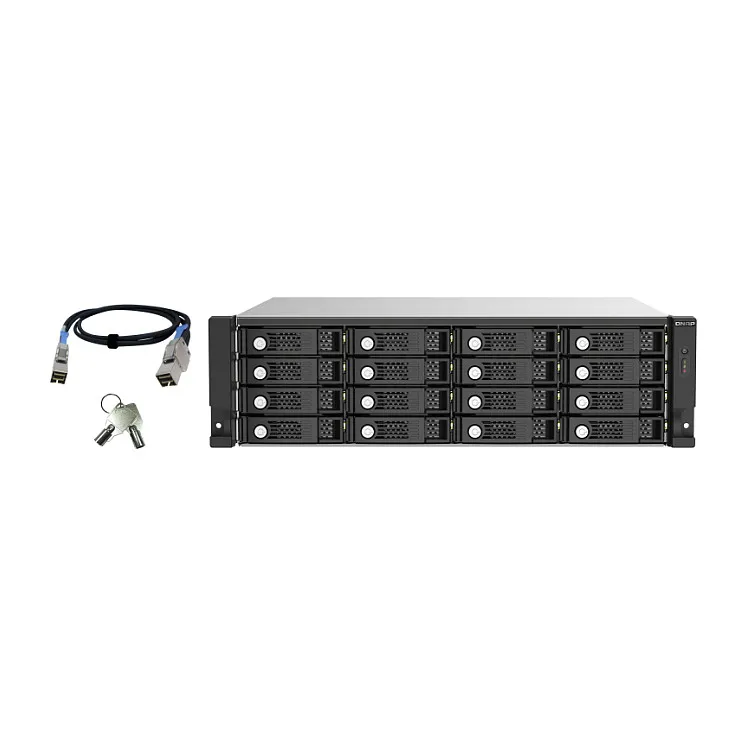

Cables included: AC, MiniSAS
Feature: Screws included
Feature: Manual
Technical details
Warranty period: 5 year(s)
Logistics data
Harmonized System (HS) code: 84733080
