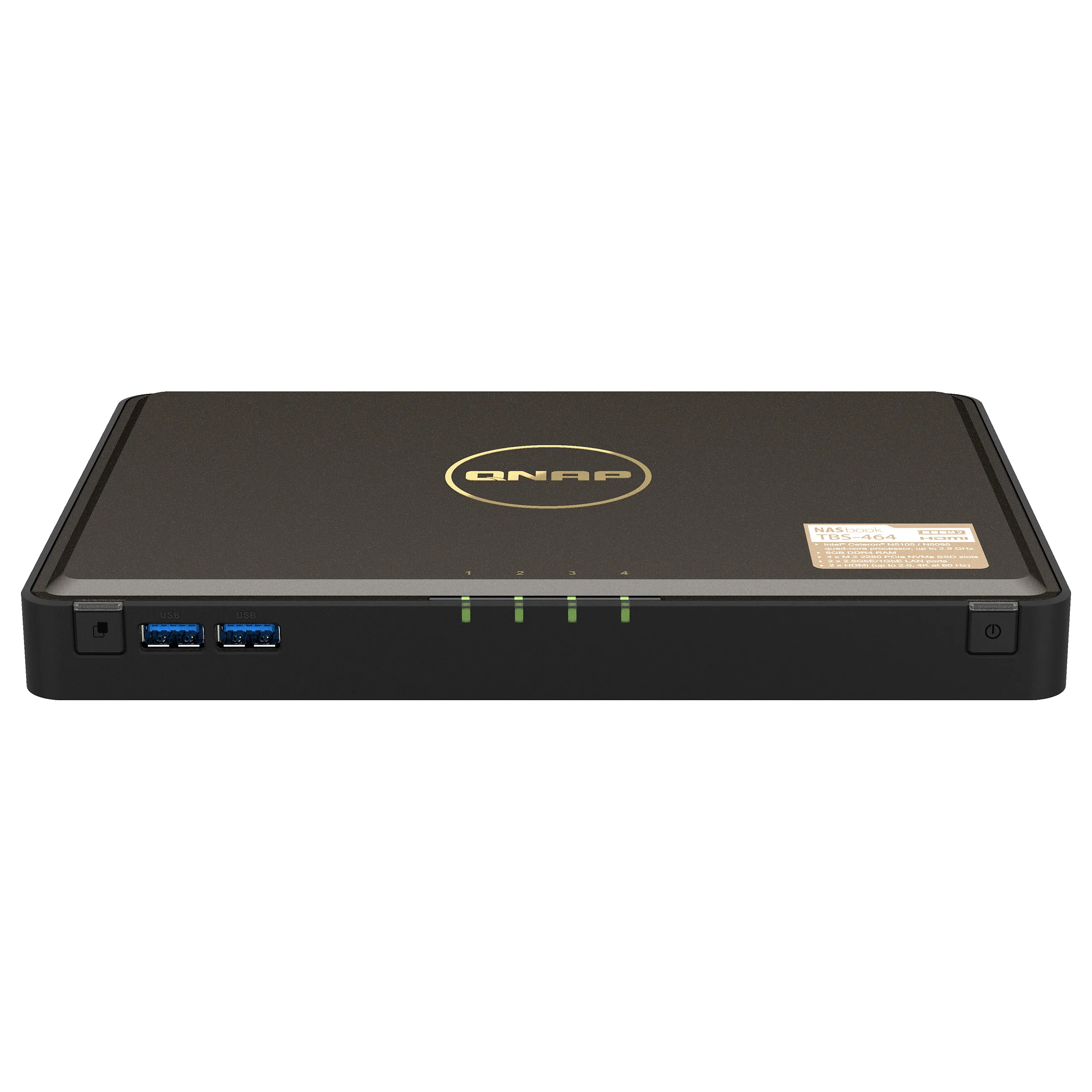

QNAP TBS-464

Storage
Supported storage drive interfaces: M.2
Number of M.2 (M & B) slots: 4
Feature: RAID support
RAID levels: 0, 1, 5, 6, 10, JBOD
Feature: Online RAID migration
Feature: Online RAID expansion
Supported file systems: FAT32, NTFS, ext3, ext4
Total installed storage capacity: 0 TB
Number of storage drives supported: 4
Installed storage drive type: No
Supported storage drive types: SSD
Feature: Disk roaming
Processor
Processor manufacturer: Intel
Processor family: Intel® Celeron®
Processor model: N5105
Processor frequency: 2 GHz
Processor boost frequency: 2.9 GHz
Processor cores: 4
Processor threads: 4
CPU configuration (max): 1
Number of processors supported: 1
On-board graphics card model: Intel® UHD Graphics
Memory
Internal memory: 8 GB
Internal memory type: DDR4
Maximum RAM supported: 8 GB
Flash memory: 4000 MB
Network
Feature: Ethernet LAN
Ethernet LAN data rates: 100,1000,2500 Mbit/s
Feature: DHCP server
Feature: Jumbo frames support
Feature: iSCSI support
Feature: Wake-on-LAN ready
Feature: Dynamic DNS (DDNS)

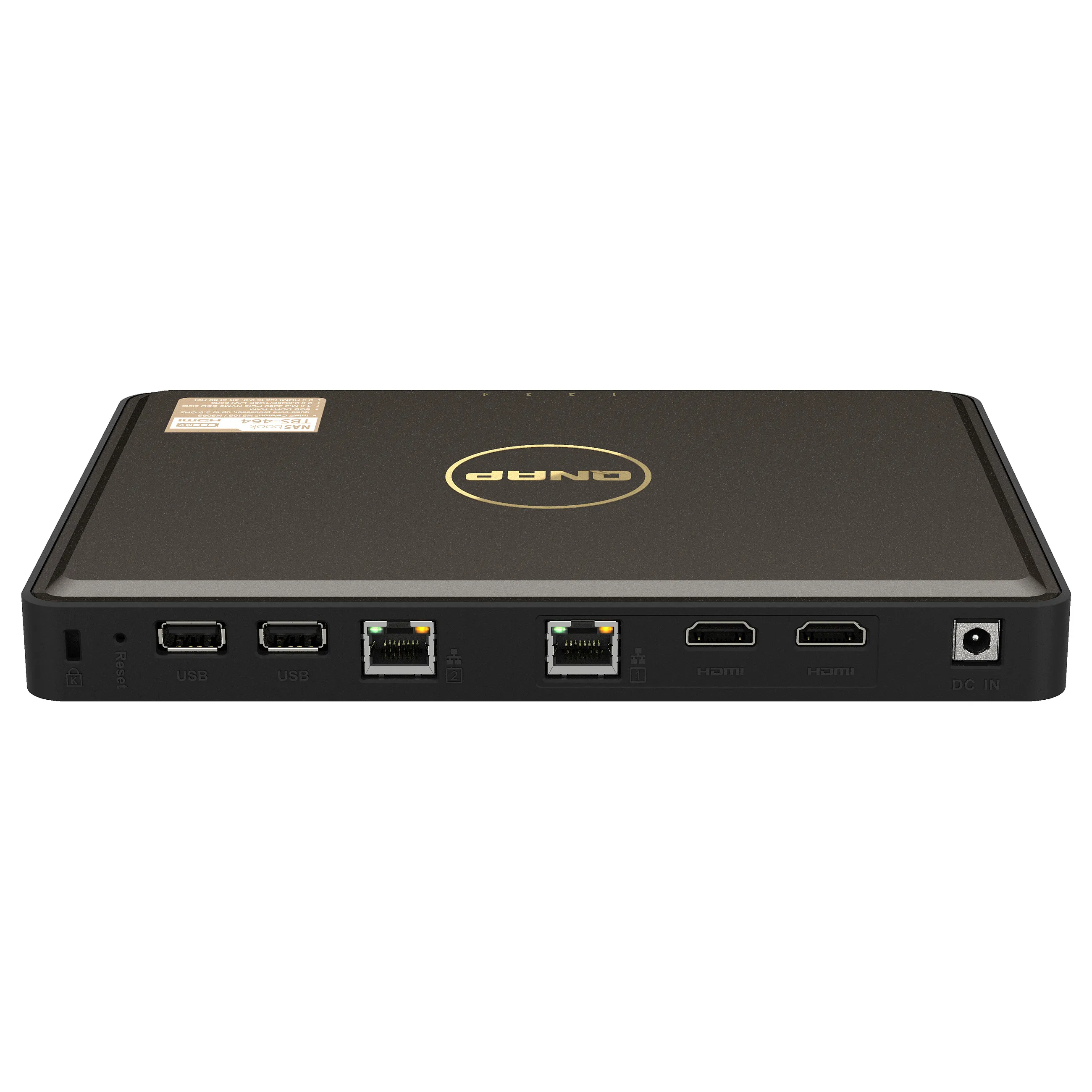

Ports & interfaces
Feature: USB port
USB 2.0 ports quantity: 3
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
HDMI ports quantity: 2
HDMI version: 2.0
Ethernet LAN (RJ-45) ports: 2
Design
Chassis type: Desktop
Cooling type: Active
Product colour: Black
Number of fans: 1 fan(s)
LED indicators: Yes
Feature: Cable lock slot
Cable lock slot type: Kensington
Performance
Type: NAS
Device class: Home & Home Office
Feature: Backup function
Backup features: Cloud
Feature: Buzzer
Feature: Multilingual support
Noise level: 25 dB
Feature: Snapshot
Security algorithms: 256-bit AES, FIPS 140-2, HTTPS, SNMPv2, SNMPv3
Feature: Access Control List (ACL)
Feature: Reset button
Feature: On/off switch
Feature: Built-in FTP server
Browser supported: Mozilla Firefox, Microsoft Edge, Google Chrome, Apple Safari
Feature: Hot spare
Feature: S.M.A.R.T. support
Software
Operating system installed: QNAP Turbo System
Operating system version: 5.0.0
Windows operating systems supported: Yes
Linux operating systems supported: Yes
Mac operating systems supported: Yes
Power
Power supply location: External
Power supply unit (PSU) capacity: 65 W
Number of power supply units: 1
Power consumption (typical): 28 W
Power consumption (sleep): 18 W
AC input voltage: 100 – 240 V
Weight & dimensions
Width: 230 mm
Depth: 165 mm
Height: 30 mm
Weight: 800 g
Package width: 93 mm
Package depth: 201 mm
Package height: 285 mm
Package weight: 1.8 kg
Packaging content
Feature: External power adapter
Cables included: AC, LAN (RJ-45)
Power cables quantity: 1
Package type: Box
Processor special features
Feature: Enhanced Intel SpeedStep Technology
Feature: Idle States
Feature: Intel 64
Feature: Intel Virtualization Technology (VT-x)
Feature: Intel Virtualization Technology for Directed I/O (VT-d)
Feature: Intel VT-x with Extended Page Tables (EPT)
Operational conditions
Operating temperature (T-T): 0 – 40 °C
Operating relative humidity (H-H): 5 – 95%
Storage temperature (T-T): -20 – 70 °C
Logistics data
Harmonized System (HS) code: 84714100
Other features
Warranty period: 2 year(s)
