QNAP QSW-M7308R-4X. Switch type: Managed, Switch layer: L3. Console port: RJ-45. MAC address table: 32000 entries, Switching capacity: 1200 Gbit/s. Networking standards: IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE…. Rack mounting, Form factor: 1U

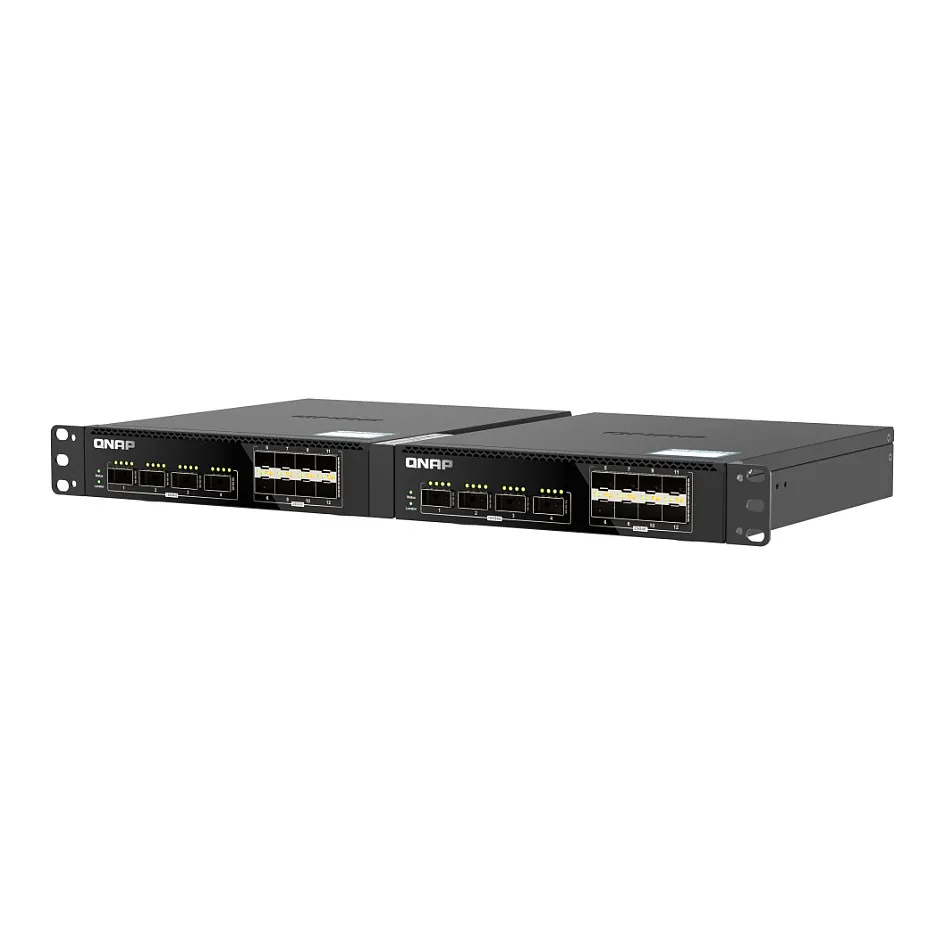

Half-width Rackmount 100GbE L3 Lite Managed Switch, cost-optimized for enterprise IT

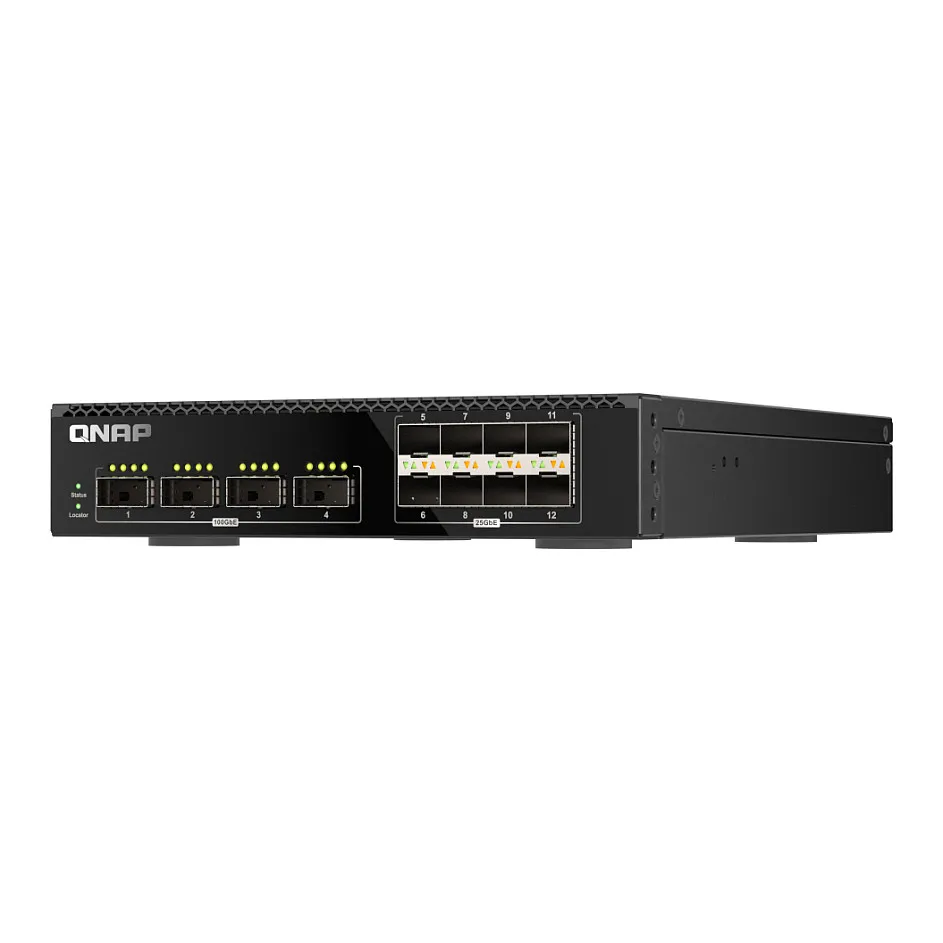

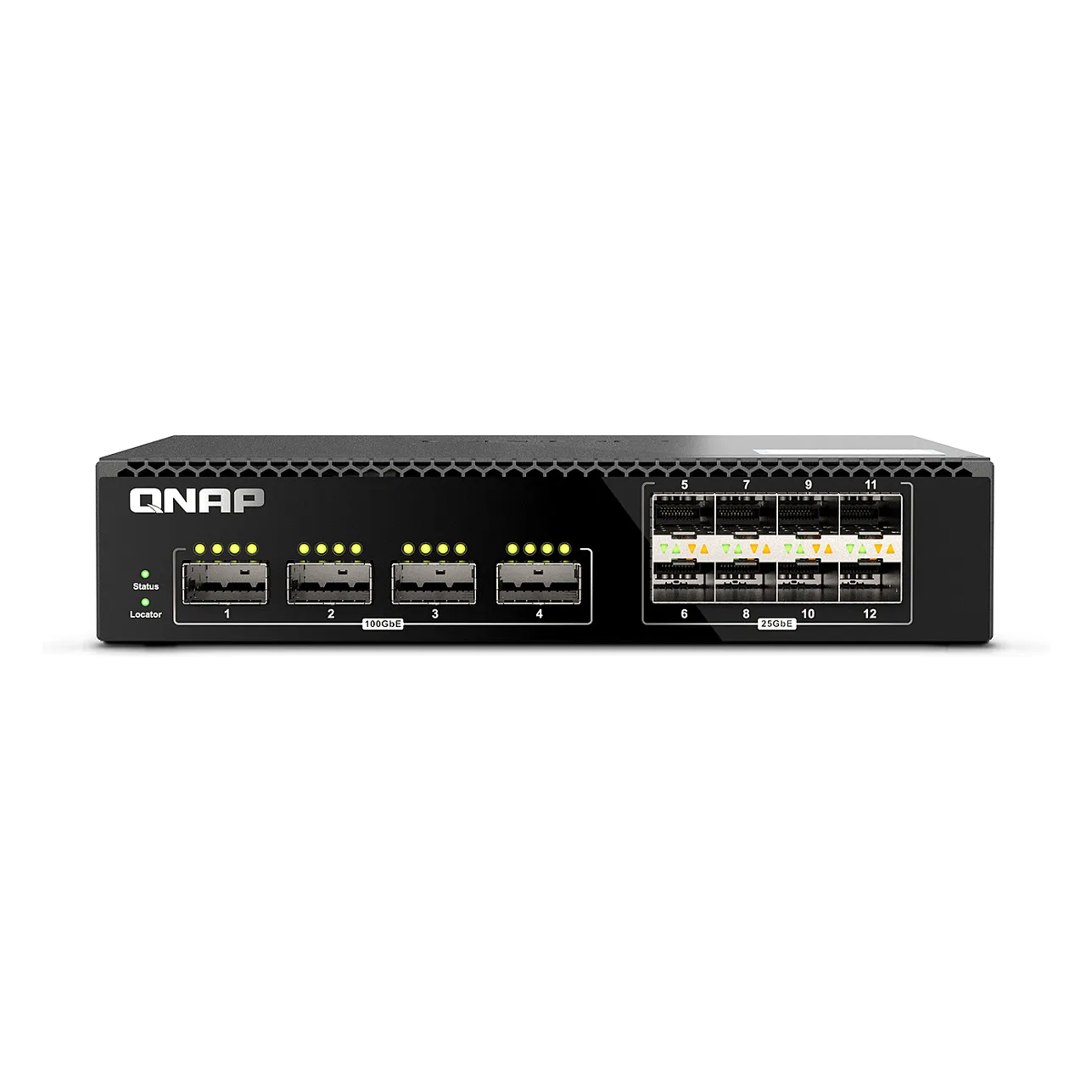

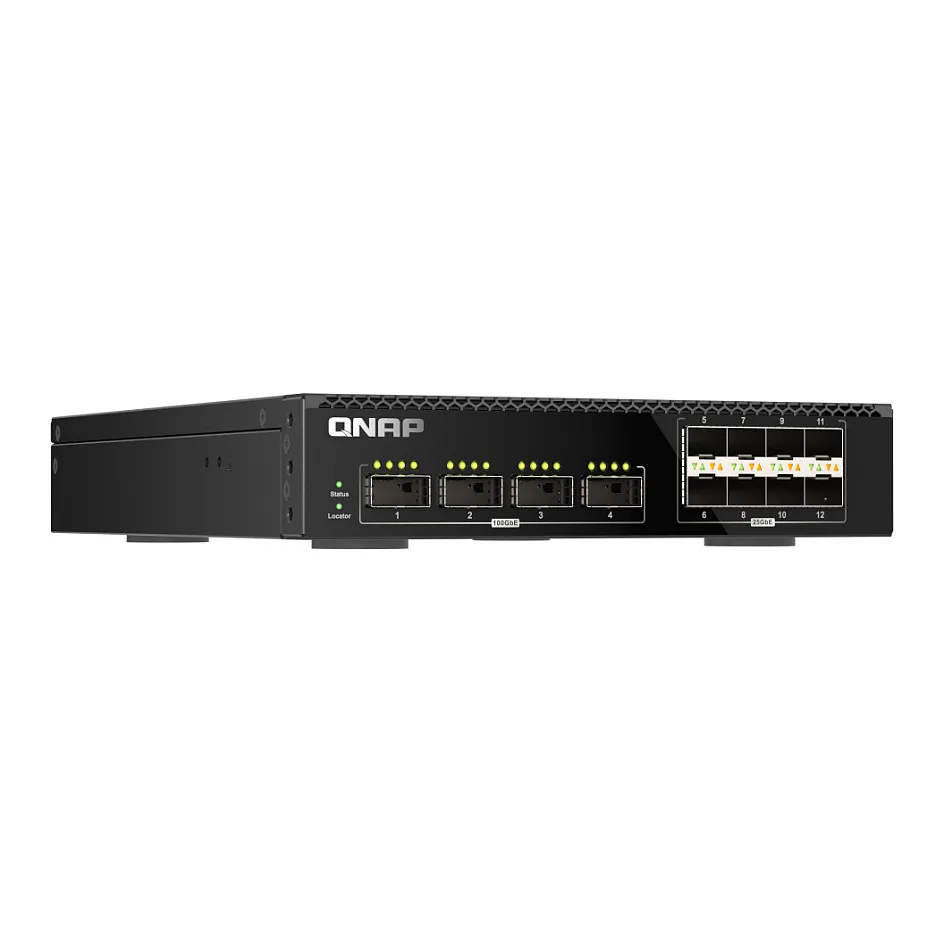

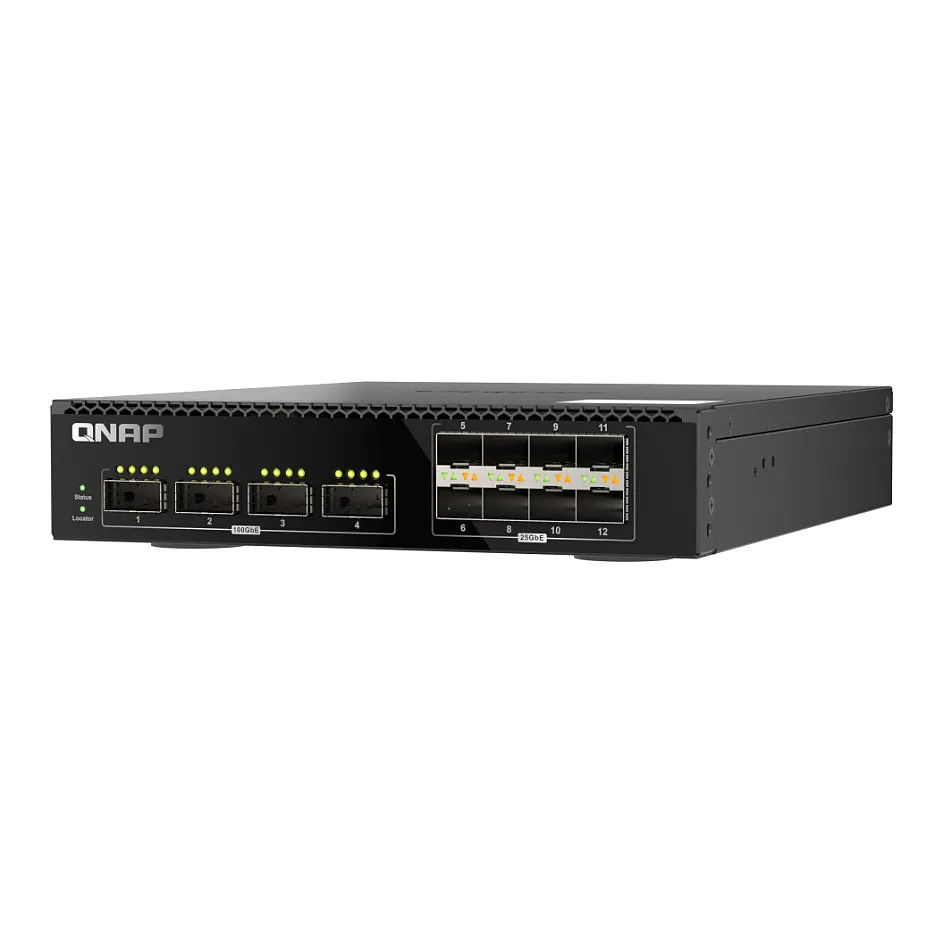

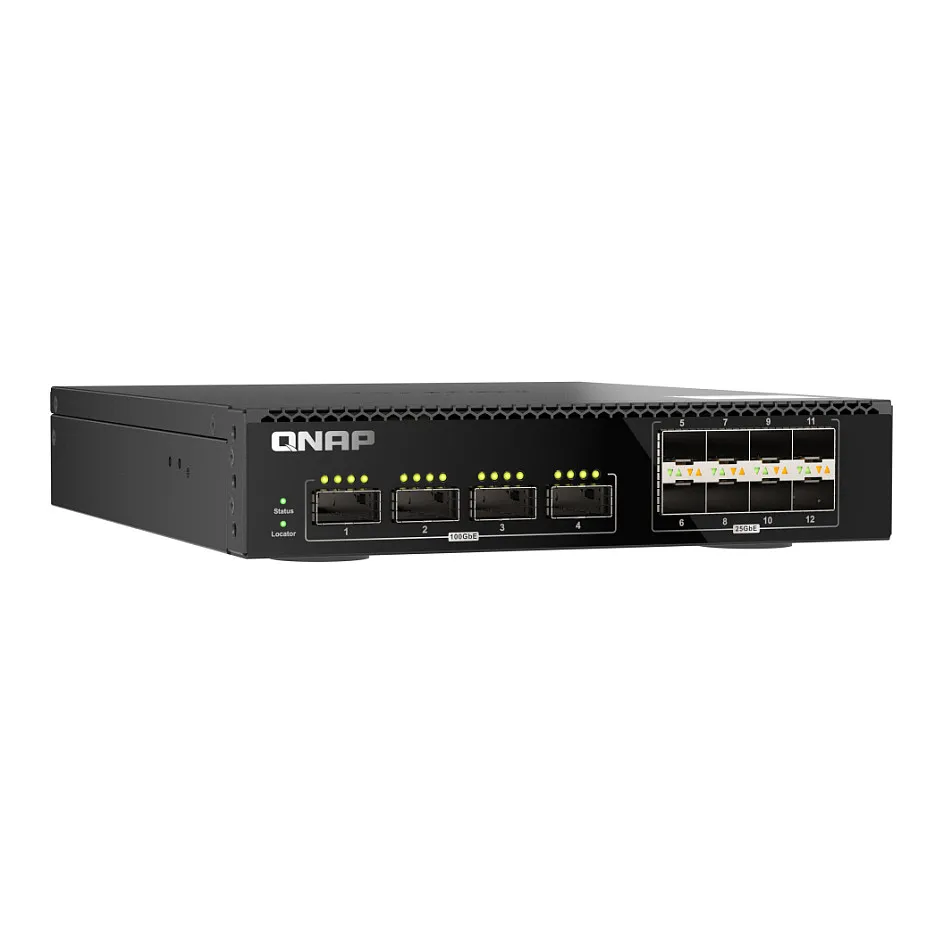

The QSW-M7308R-4X is a 100GbE L3 Lite Managed Switch with four 100GbE QSFP28 and eight 25GbE SFP28 ports. The QSW-M7308R-4X can uplink to 100G/25G servers and NAS in server rooms or connect to 100G/25G switches to accelerate high-speed storage, video editing, virtualization, and AI applications. With competitive pricing, space-saving features and MC-LAG switch redundancy ensuring continuous network, the QSW-M7308R-4X enables businesses to quickly upgrade to an ultra-high-speed backbone network infrastructure for building secure and reliable high-speed network transmission and storage solutions. The QSW-M7308R-4X is made in Taiwan (MIT), providing a high-quality and reliable networking solution.
Embrace the ultra-high-speed 100GbE network generation!
According to market research, the demand for 100GbE switches has taken off in 2023. Enterprises, hyperscalers, and service providers worldwide continue to invest in higher-speed network infrastructure to support higher-speed servers and higher bandwidth demands of new applications such as Generative AI workloads.
Switch type: Managed
Switch layer: L3
Feature: Quality of Service (QoS) support
Feature: Web-based management
Feature: System event log
Ports & interfaces
Basic switching RJ-45 Ethernet ports type: No
Number of management ports: 1 pc(s)

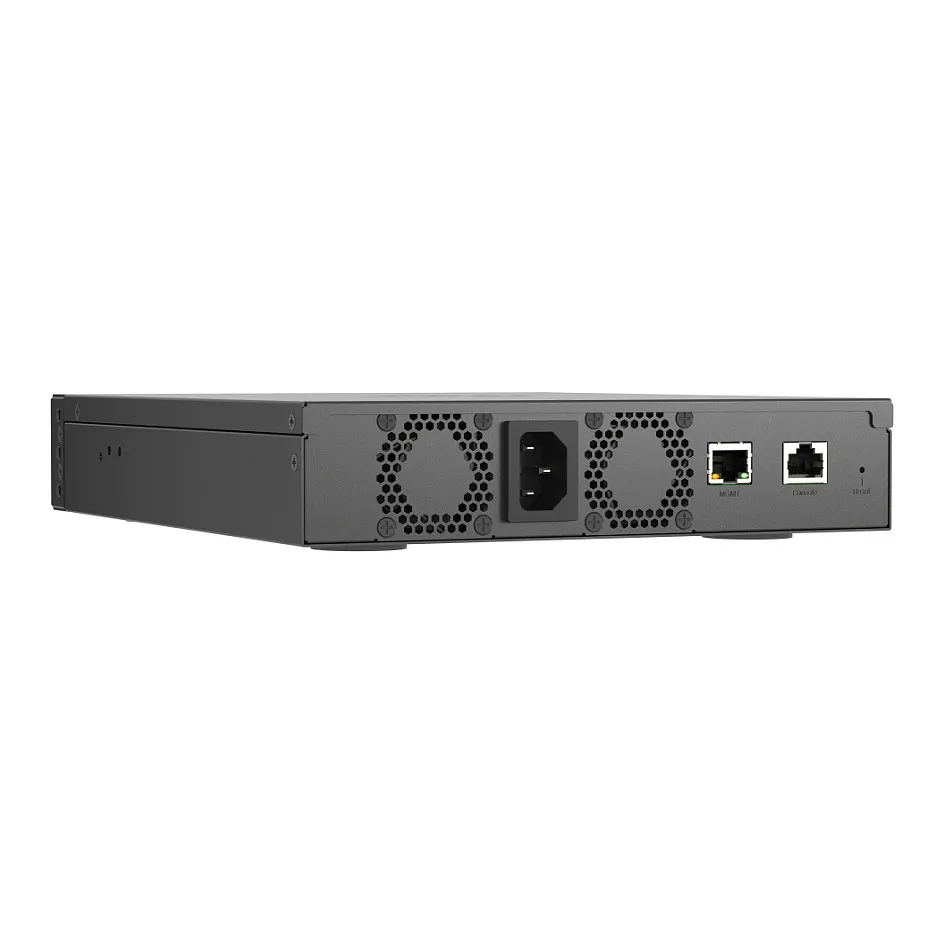

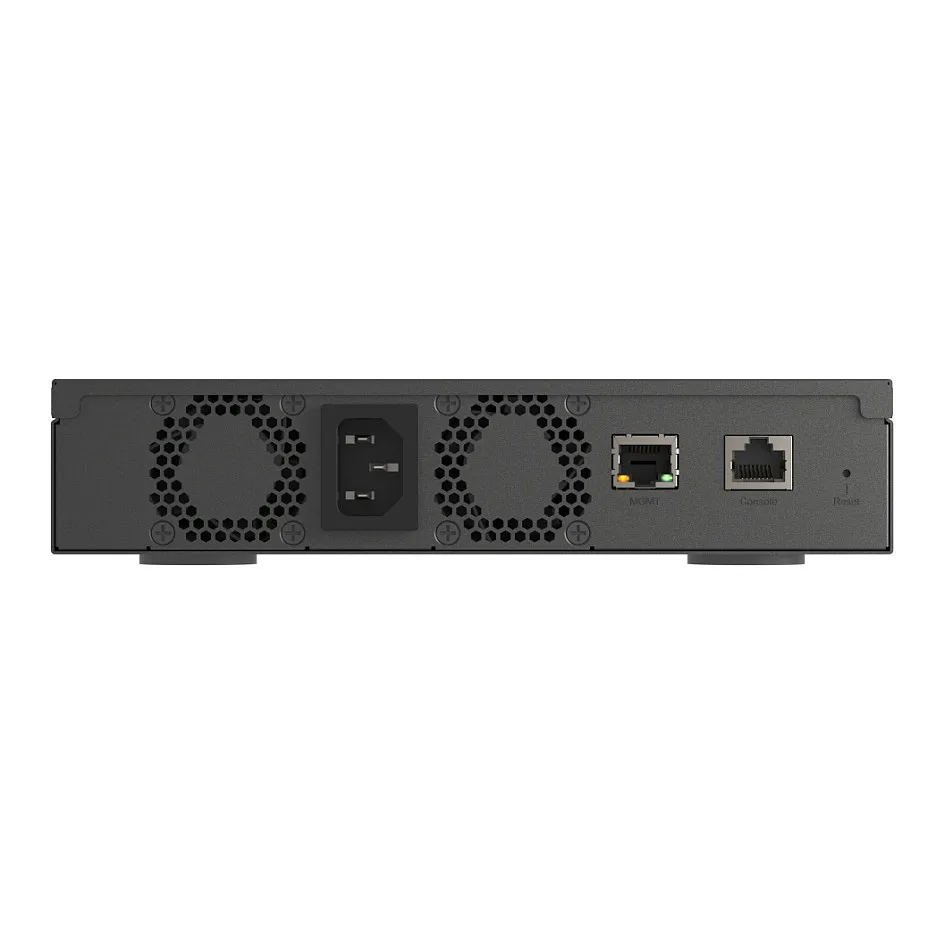

Console port: RJ-45
QSFP28 ports quantity: 4
SFP28 ports quantity: 8
Network
Networking standards: IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Feature: Port mirroring
Feature: Auto-negotiation
Feature: VLAN support
Data transmission
Switching capacity: 1200 Gbit/s
Throughput: 600 Gbit/s
MAC address table: 32000 entries
Feature: Static route
Feature: Jumbo frames support
Jumbo frames: 9000
Security
DHCP features: DHCP server
Feature: Access Control List (ACL)
Feature: IGMP snooping
Feature: Loop protection
Design
Feature: Rack mounting
Form factor: 1U
Product colour: Black
Feature: Reset button
Number of fans: 2 fan(s)
Performance
Feature: Firmware upgradeable
Power
Power source: AC
Feature: Power supply included
AC input voltage: 100 – 240 V
AC input frequency: 50/60 Hz
Power consumption (max): 100 W
Other features
Warranty period: 2 year(s)
Operational conditions
Operating temperature (T-T): 0 – 40 °C
Operating relative humidity (H-H): 5 – 95%
Weight & dimensions
Width: 207 mm
Depth: 248.8 mm
Height: 43.3 mm
Weight: 1.78 kg
Packaging content
Cables included: AC
Feature: Quick start guide
Feature: Rack mount kit
Packaging data
Package type: Box
Package width: 324 mm
Package depth: 282 mm
Package height: 88 mm
Package weight: 2.63 kg
Certificates
Compliance certificates: BSMI, CE, Federal Communications Commission (FCC), VCCI
Logistics data
Country of origin: Taiwan
Products per master (outer) case: 8 pc(s)
