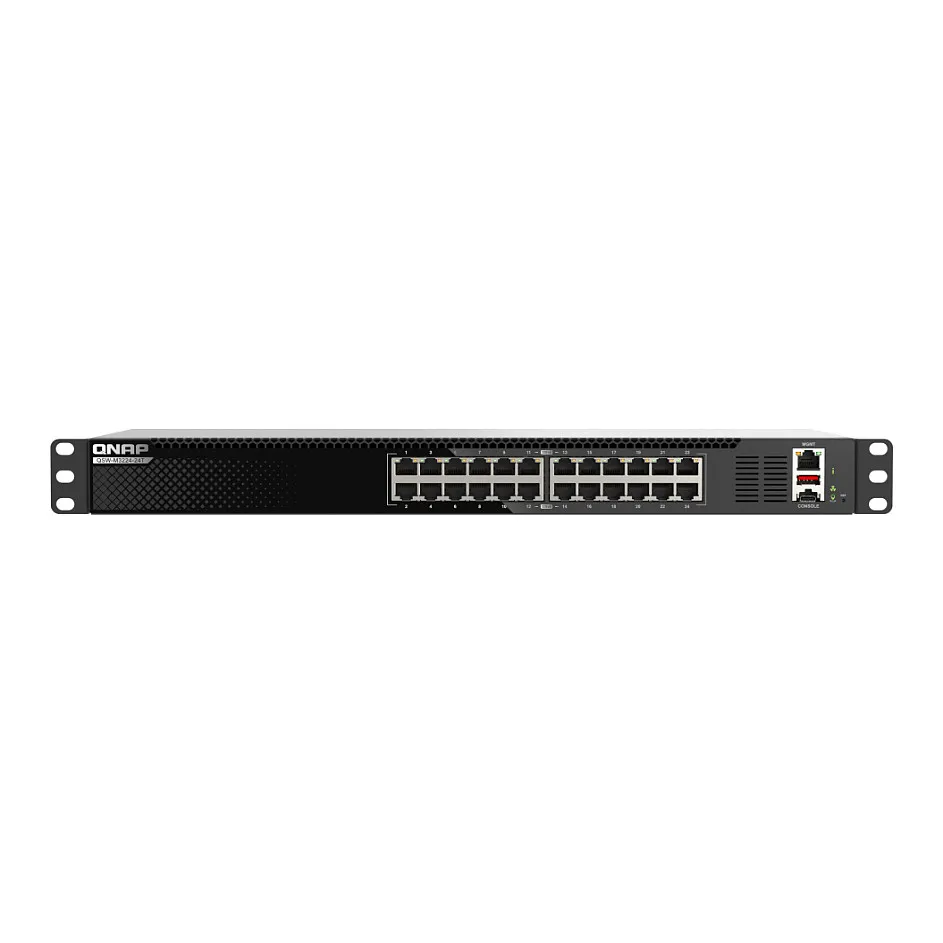

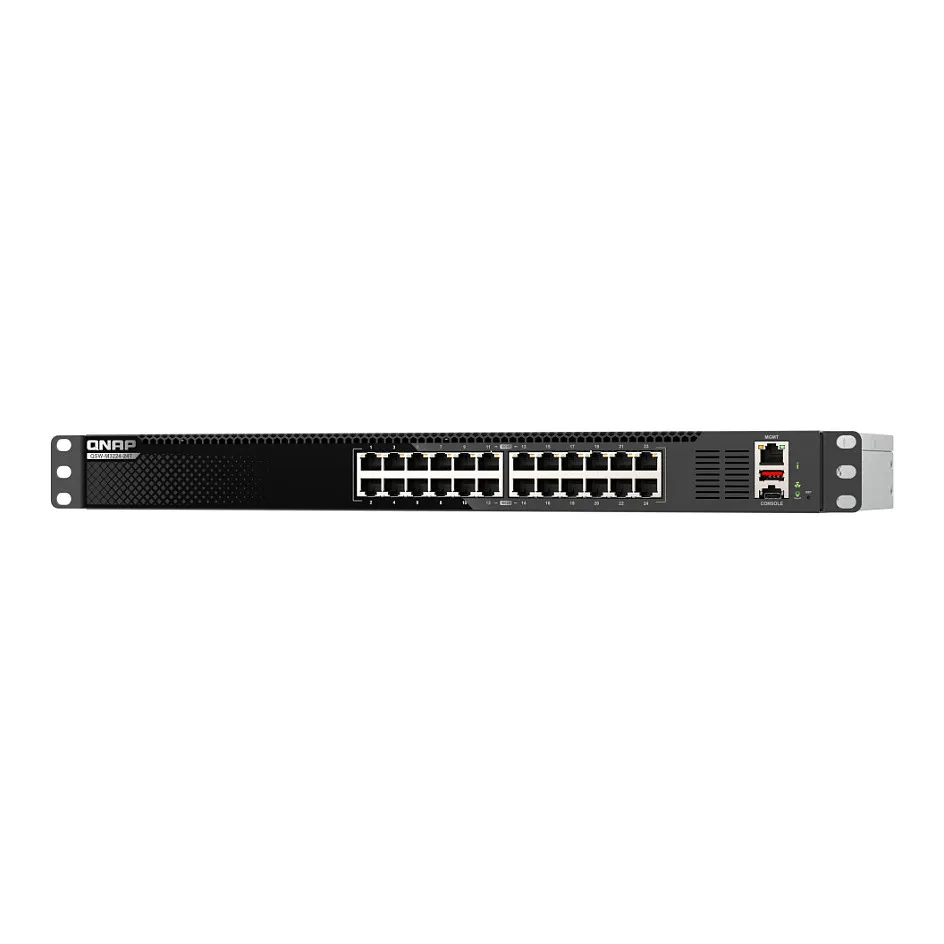

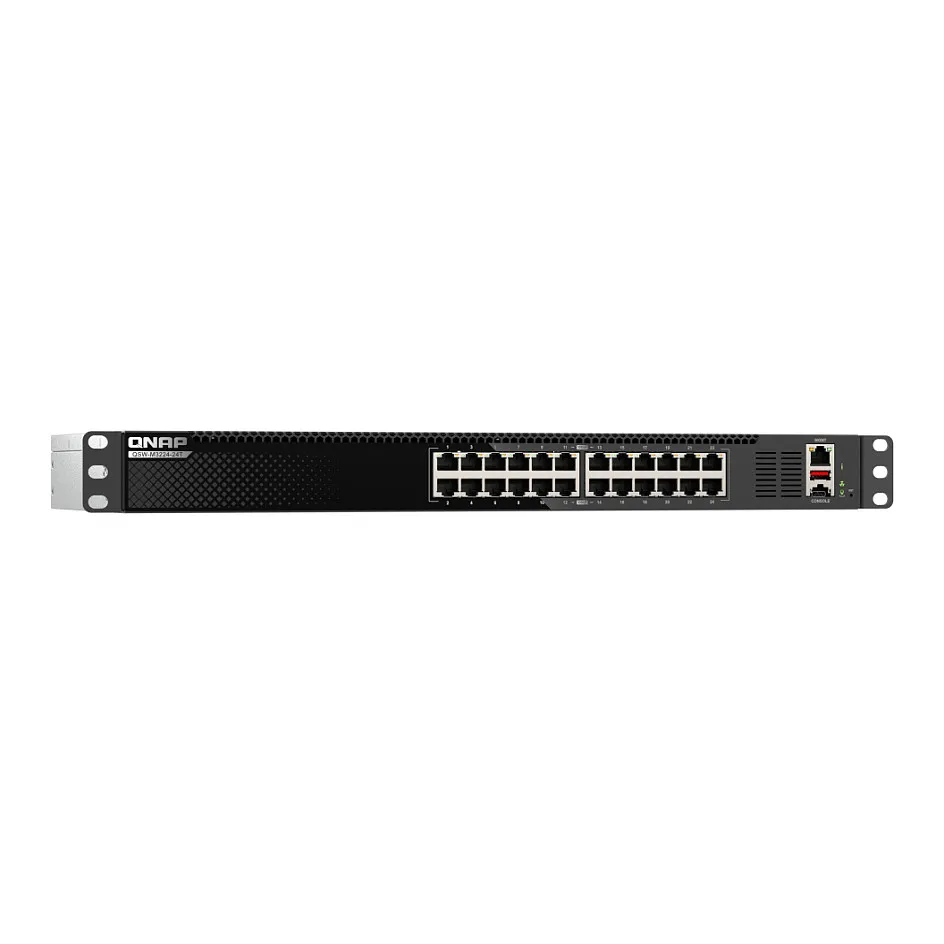

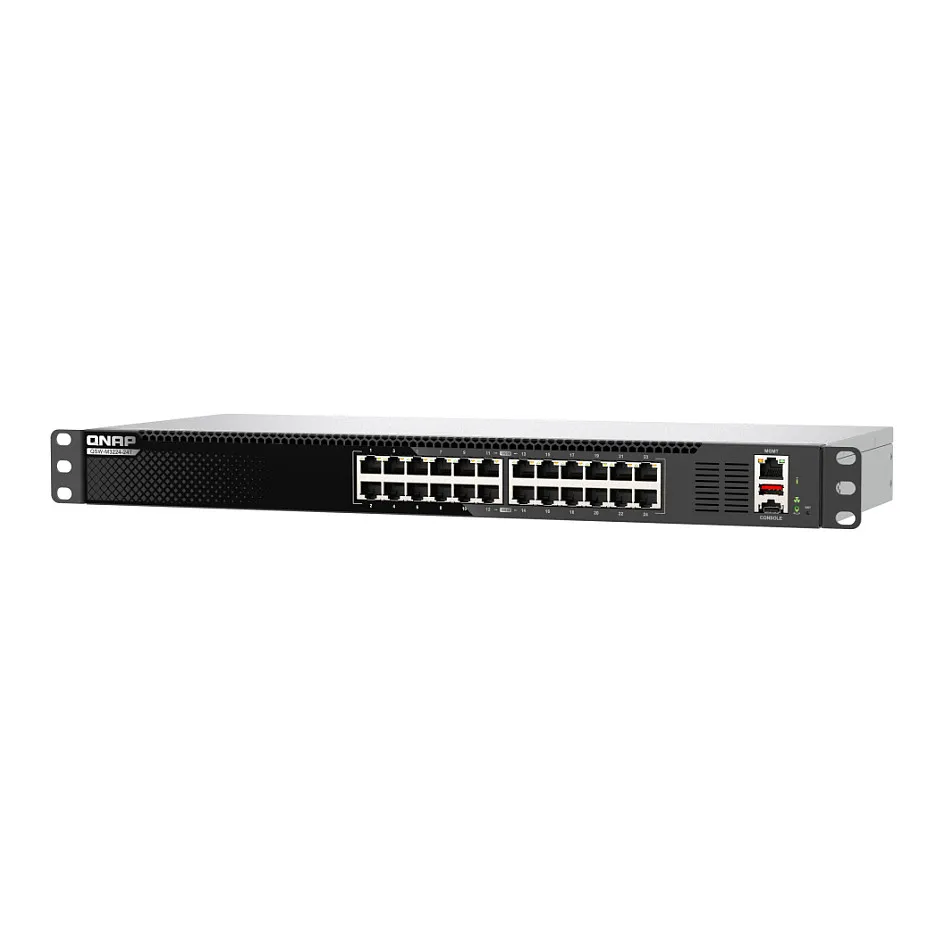

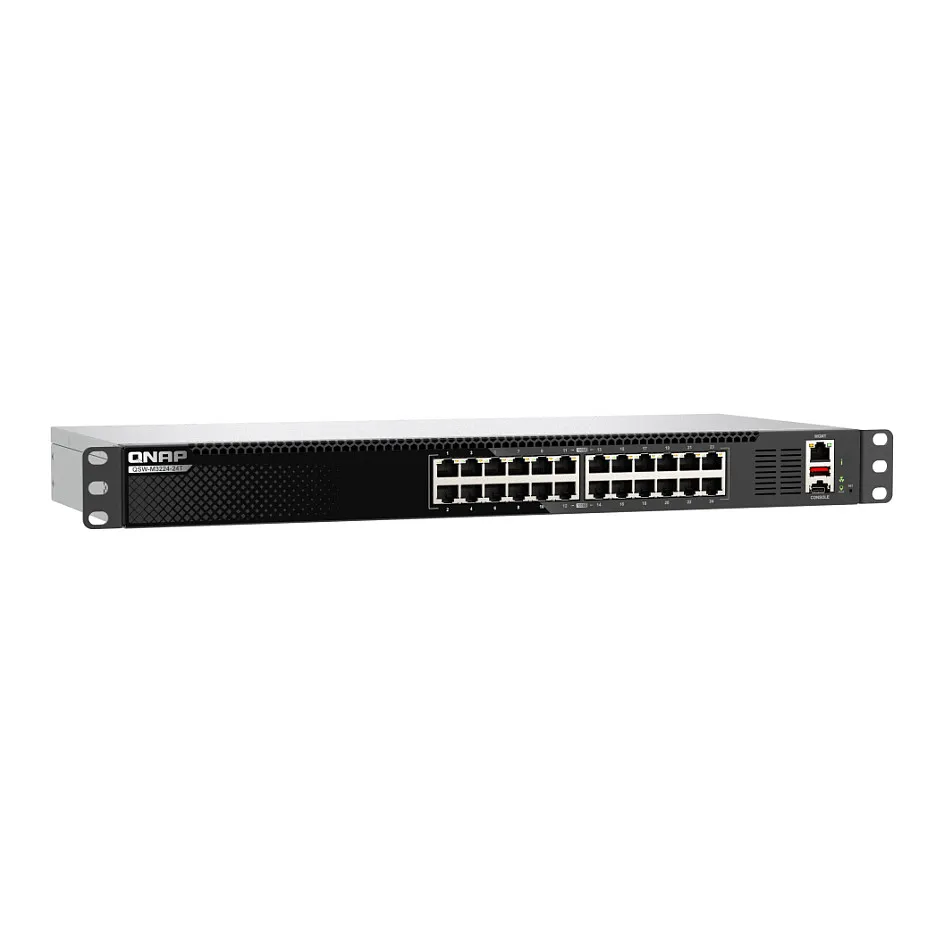

QNAP QSW-M3224-24T. Switch type: Managed, Switch layer: L3. Basic switching RJ-45 Ethernet ports type: 10G Ethernet (100/1000/10000), Basic switching RJ-45 Ethernet ports quantity: 24, Console port: RJ-45. MAC address table: 32000 entries, Switching capacity: 480 Gbit/s. Networking standards: IEEE 802.1Q, IEEE 802.1p, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3an, IEEE…. Rack mounting, Form factor: 1U
Cost-optimized high-density 1U Rackmount 24-port 10GbE Multi-gigabit L3 Lite managed switch, supporting MC-LAG for realizing IT room High Availability
QSW-M3224-24T is a cost-effective L3 Lite managed switch designed for enterprises. With twenty four 10GbE Multi-Gig ports for low-latency and high-density 10G network applications, QSW-M3224-24T accelerates high-speed storage, video editing, virtualization, AI and AVoIP applications. The QSW-M3224-24T is made in Taiwan (MIT), providing a high-quality and reliable networking solution.
Scale secure and highly-efficient enterprise network infrastructure with the QNAP L3 Lite switch
Medium to large-scale enterprises often have large and complicated network infrastructure. Upgrading to L3 Lite managed switches not only scales a secure high-speed network infrastructure, but also saves tremendous maintenance and management costs.
24x 10GbE ports for connecting more high-speed network devices
The switching capacity of the QSW-M3224-24T is 480Gbps, guaranteeing the full potential of each port. The QSW-M3224-24T can uplink to switches and servers in server rooms or connect to 10GbE NAS, workstations, AV-over-IP devices, and SNMP-compliant devices to build a flexible high-speed network transmission topology.
Optimize network performance with bandwidth and packet control
The QSW-M3224-24T offers practical bandwidth and packet control features that effectively allocate bandwidth and manage network segmentation. This significantly enhances network performance for administrators.
Powerful security and system functions
The QSW-M3224-24T has powerful security and system functions (including ACL, LLDP, RSTP and Flow Control) to help administrators enhance network reliability using access controls, troubleshooting, loop prevention and avoiding packet loss.
QSS Pro: Powerful and Smart
The QSW-M3224-24T adopts QNAP Switch System Pro (QSS Pro), which features an easy-to-use Web GUI with Layer 3 Lite and Layer 2 management and value-added functions to simplify network set up and management.
Switch type: Managed
Switch layer: L3
Feature: Quality of Service (QoS) support
Feature: Web-based management
Feature: System event log
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity: 24
Basic switching RJ-45 Ethernet ports type: 10G Ethernet (100/1000/10000)
Number of management ports: 1 pc(s)
Console port: RJ-45
Network
Networking standards: IEEE 802.1Q, IEEE 802.1p, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3an, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x
Feature: 10G support
Feature: Port mirroring
Feature: Auto-negotiation
Feature: VLAN support
Data transmission
Switching capacity: 480 Gbit/s
Throughput: 240 Gbit/s
MAC address table: 32000 entries
Feature: Static route
Feature: Jumbo frames support
Jumbo frames: 9000
Security
DHCP features: DHCP server
Feature: Access Control List (ACL)
Feature: IGMP snooping
Feature: Loop protection
Design
Feature: Rack mounting
Feature: Stackable
Form factor: 1U
Product colour: Black, Silver
Feature: Reset button
LED indicators: Yes
Performance
Feature: Firmware upgradeable
Power
Power source: AC
AC input voltage: 100 – 240 V
AC input frequency: 50/60 Hz
Power consumption (max): 116.9 W
Other features
Warranty period: 2 year(s)
Operational conditions
Operating temperature (T-T): 0 – 40 °C
Operating relative humidity (H-H): 5 – 95%
Weight & dimensions
Width: 438.5 mm
Depth: 190 mm
Height: 44.2 mm
Weight: 2.93 kg
Packaging content
Cables included: AC
Feature: Quick start guide
Feature: Rack mount kit
Packaging data
Package type: Box
Package width: 582 mm
Package depth: 362 mm
Package height: 170 mm
Package weight: 4.45 kg
Certificates
Certification: CE, FCC, VCCI, BSMI
Logistics data
Country of origin: Taiwan
Products per master (outer) case: 1 pc(s)
