QNAP QSW-M3216R-8S8T. Switch type: Managed, Switch layer: L2/L3. Basic switching RJ-45 Ethernet ports type: 10G Ethernet (100/1000/10000), Basic switching RJ-45 Ethernet ports quantity: 8, Installed SFP+ modules quantity: 8, Console port: RJ-45. MAC address table: 16000 entries, Switching capacity: 320 Gbit/s. Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3p, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z. Rack mounting, Form factor: 1U
10G Multi-Gig connectivity

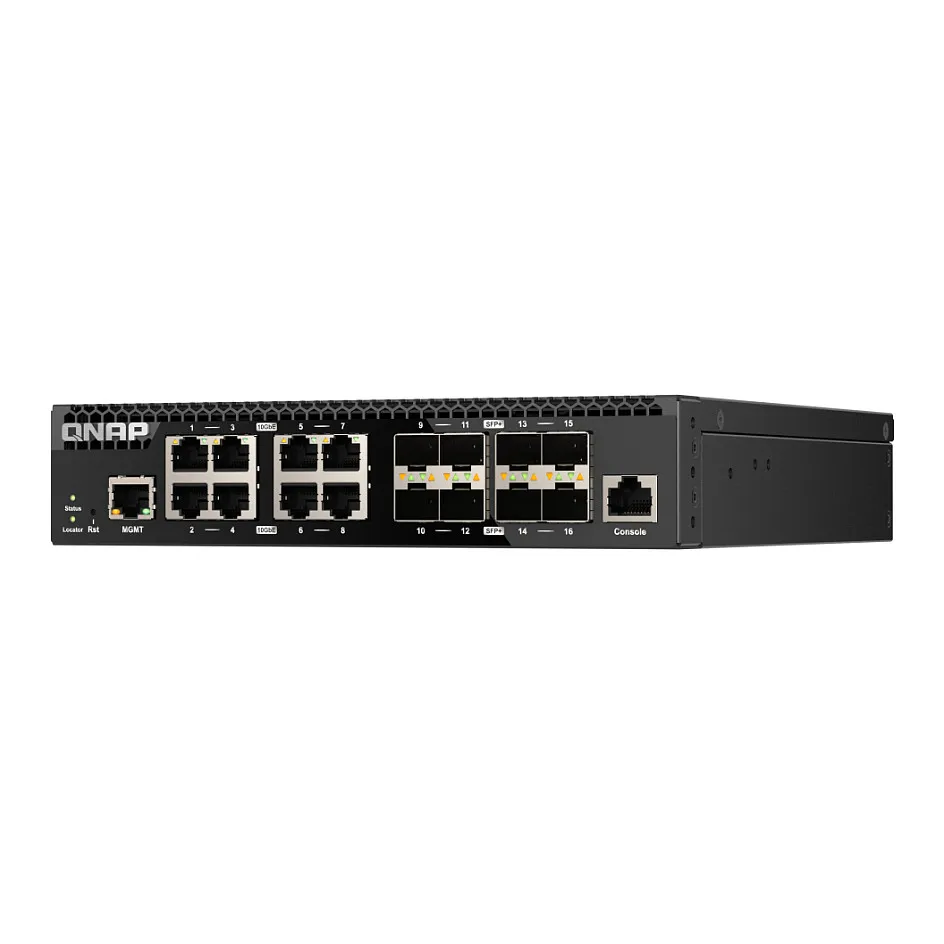

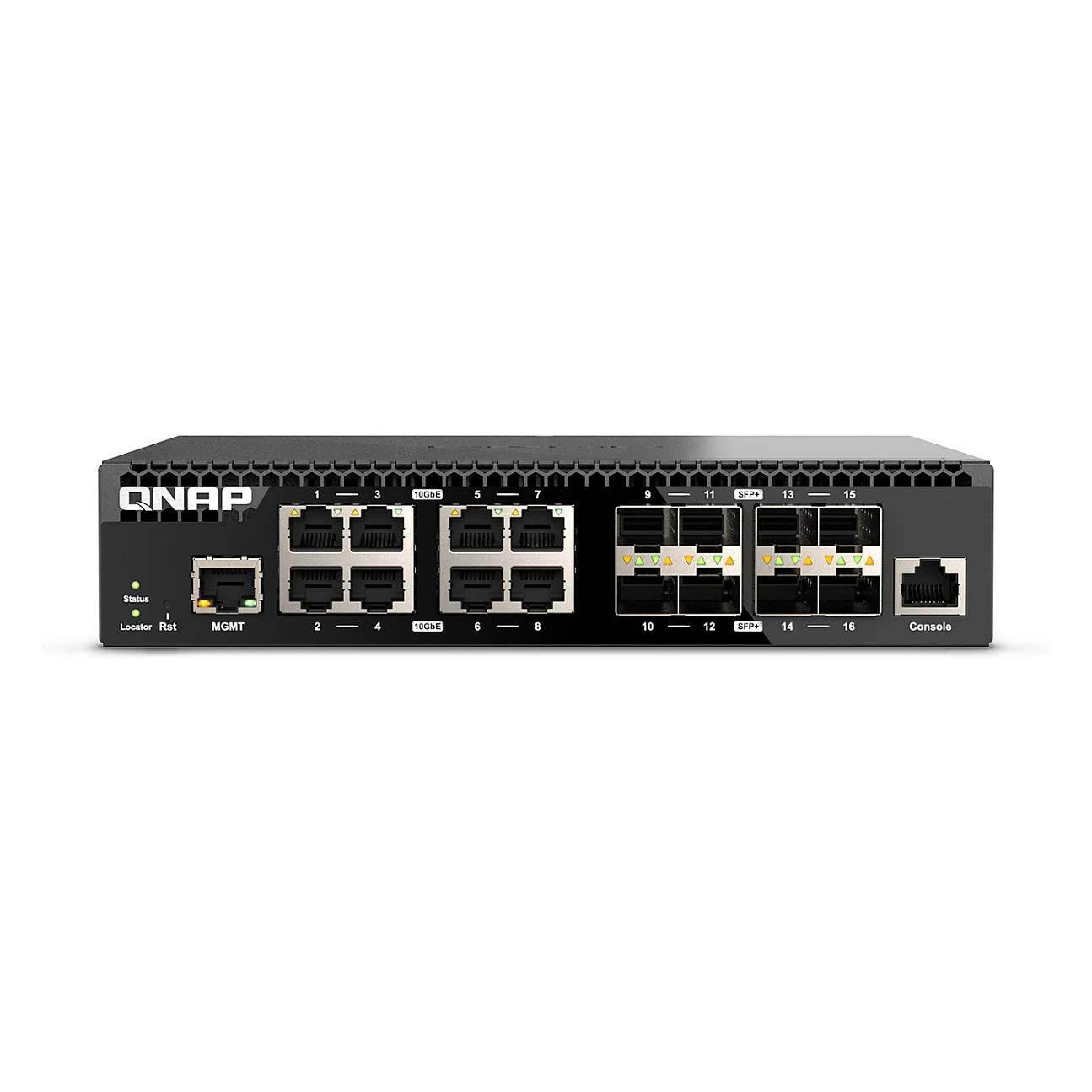

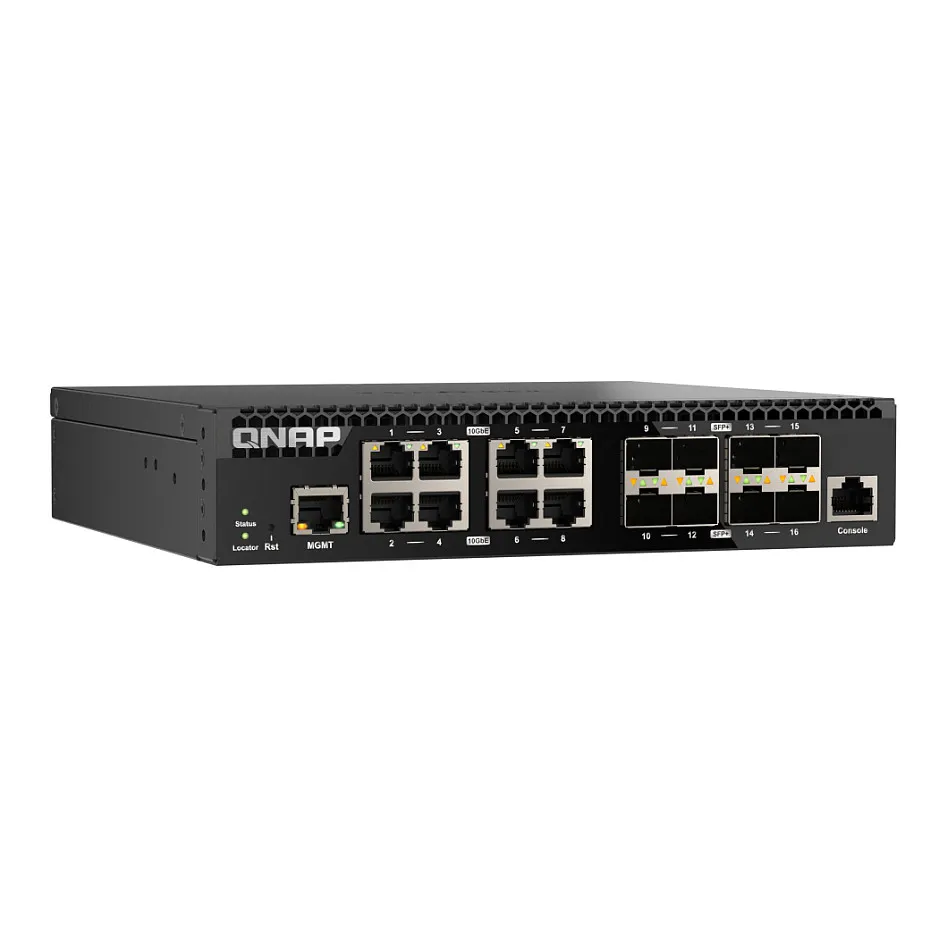

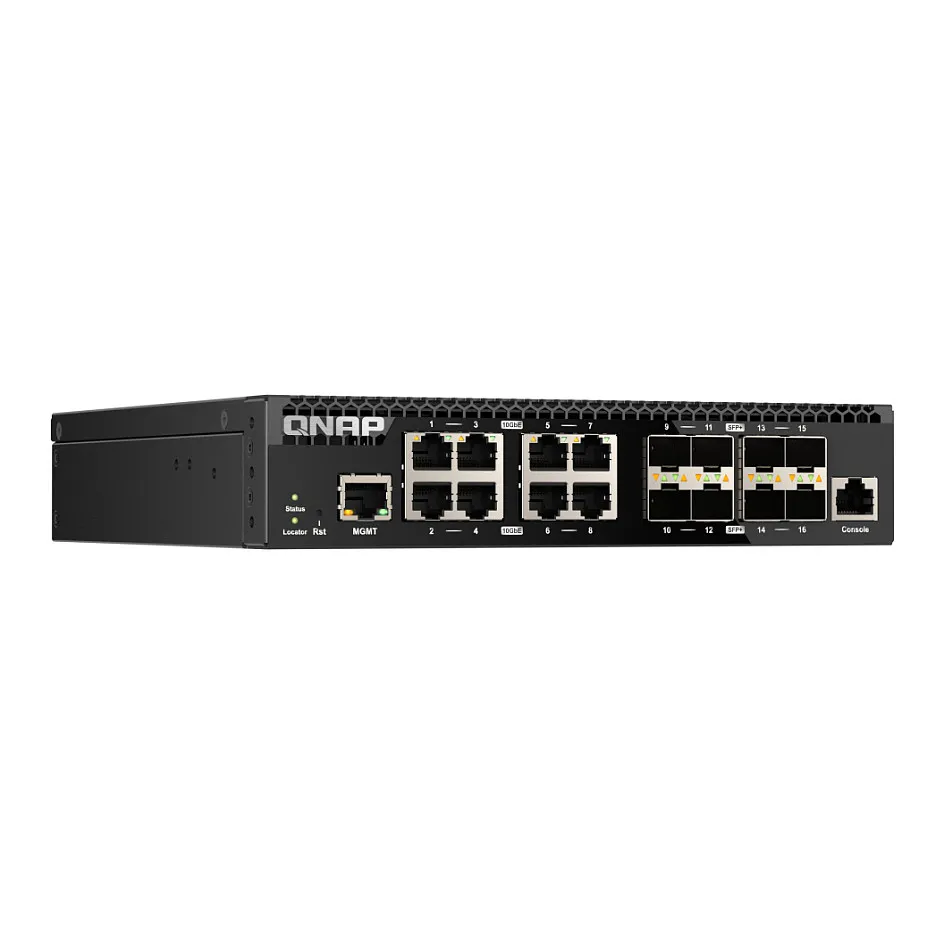

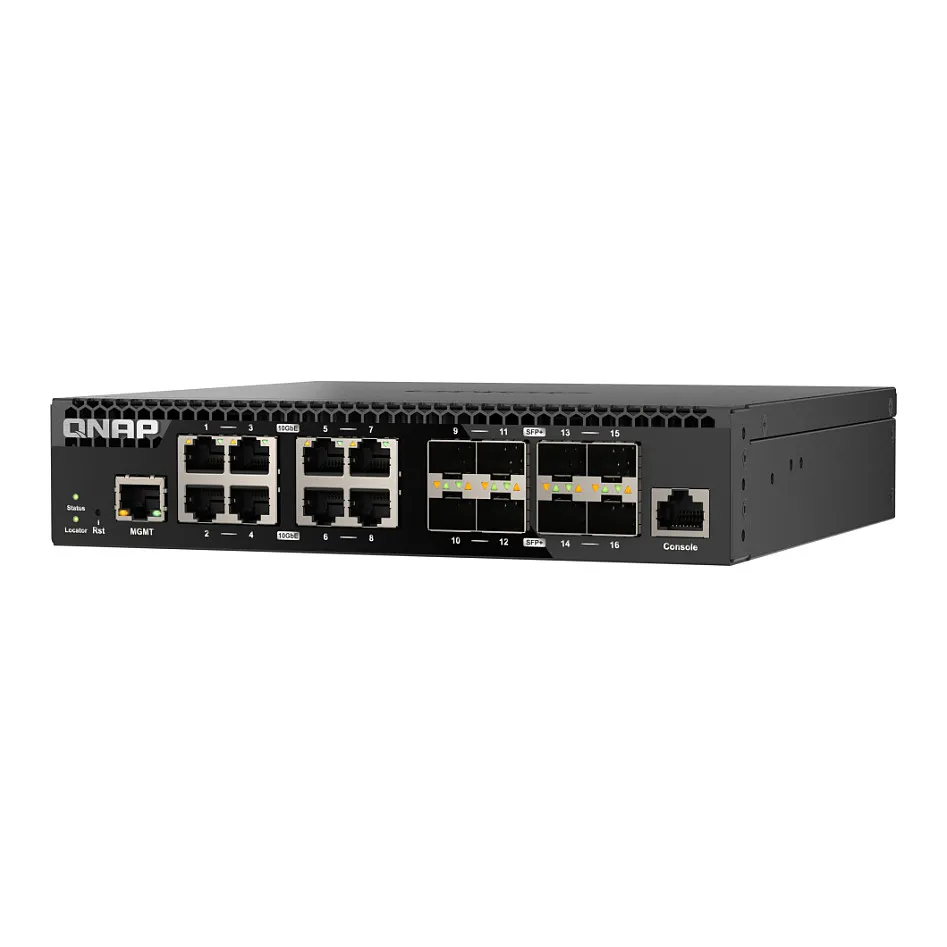

Includes eight 10GbE RJ45 and eight 10GbE SFP+ fiber ports for connecting different interfaces.
User-friendly management interface
The QNAP Switch System (QSS) is easy to use and provides an overview dashboard, port management and setting guide, making central network management intuitive.
Layer 2 network
Provides Layer 2 management features (such as LACP, VLAN, ACL and LLDP) for IT staff to efficiently control network bandwidth and enhance security.
RSTP
One of the few web-managed switches that supports Rapid Spanning Tree Protocol (RSTP). Easily and efficiently deploy small/medium-scale networks that support expansion, redundancy, and loop prevention.
Online firmware update
QSS can be updated with just one click, helping IT staff ensure their network security.
Flow Control
Compliant with IEEE802.3x Flow Control in full-duplex mode, the QSW-M3216R-8S8T avoids packet loss from unparalleled bandwidth.
Flexible deployment with sixteen 10GbE SFP+ and RJ45 ports
The QSW-M3216R-8S8T provides eight 10GbE SFP+ ports and eight 10GbE RJ45 ports for connecting various devices and enabling high-speed networks. With SFP+ interfaces, Direct Attach Copper (DAC) cables can be used for connecting directly to SFP+ devices. You can also use RJ45 ports to connect 10GBASE-T/NBASE-T™ devices through RJ45 Category 6 (or better) cabling.

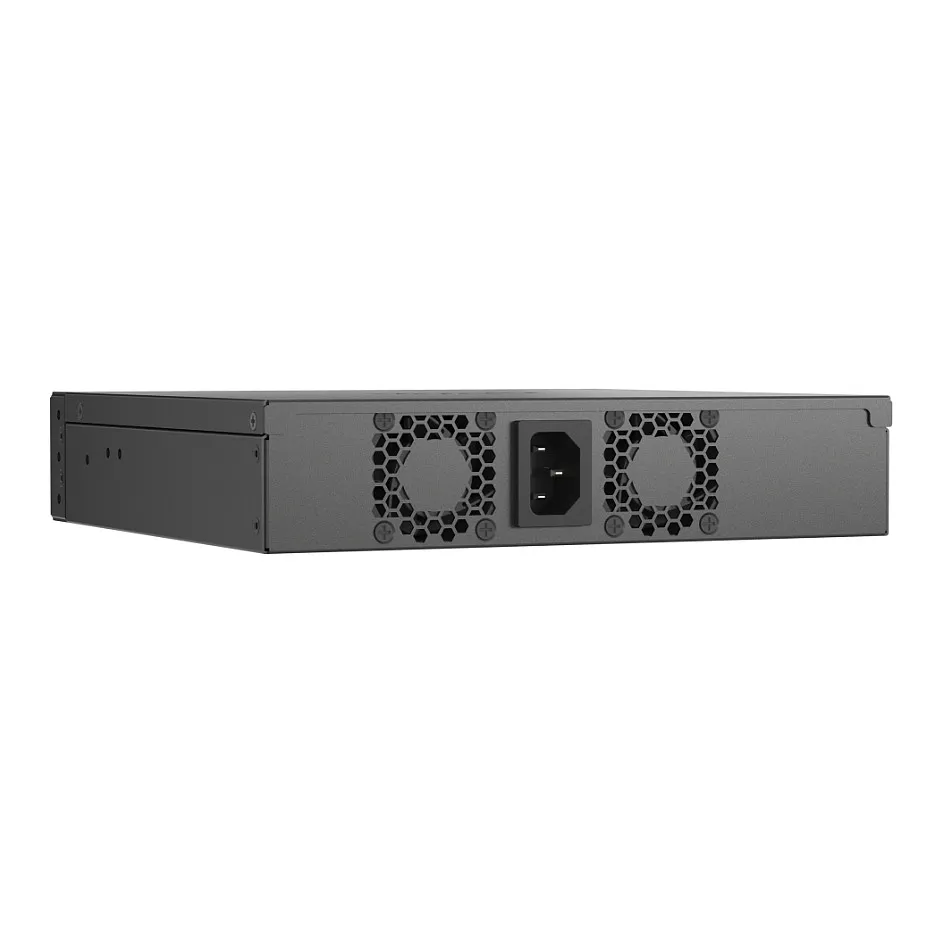

Dependable performance with effective heat dissipation

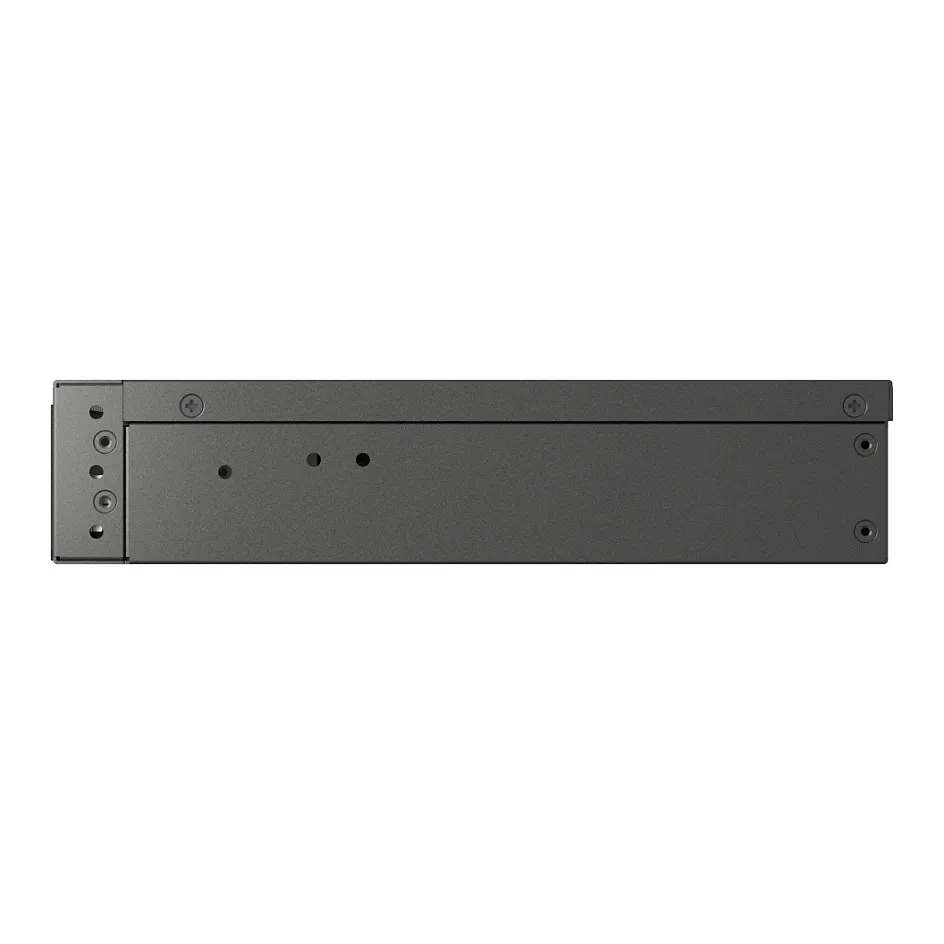

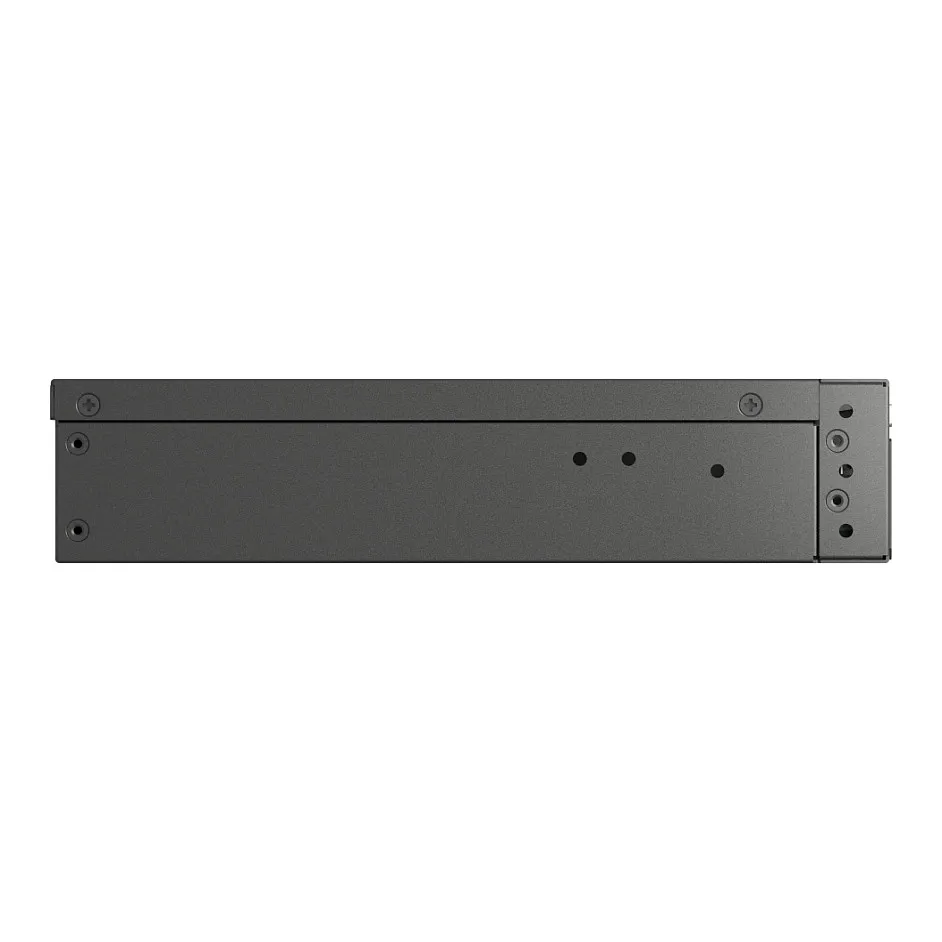

With a compact metal body that optimizes cooling performance, the QSW-M3216R-8S8T provides stable and reliable operations even when under full load. The front-panel LEDs also assist in viewing the current system status.
QSS: Human-centered settings guide
The QSW-M3216R-8S8T uses the QNAP Switch System (QSS), featuring an easy-to-use Web GUI with Layer 2 management and value-added functions to simplify network set up and management.
Switch type: Managed
Switch layer: L2/L3
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity: 8
Basic switching RJ-45 Ethernet ports type: 10G Ethernet (100/1000/10000)
Installed SFP+ modules quantity: 8
Console port: RJ-45
Network
Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3p, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Feature: 10G support
Feature: Flow control support
Data transmission
Switching capacity: 320 Gbit/s
Throughput: 160 Gbit/s
MAC address table: 16000 entries
Feature: Jumbo frames support
Jumbo frames: 9000
Security
Feature: Access Control List (ACL)
Design
Feature: Rack mounting
Form factor: 1U
Product colour: Black
Power

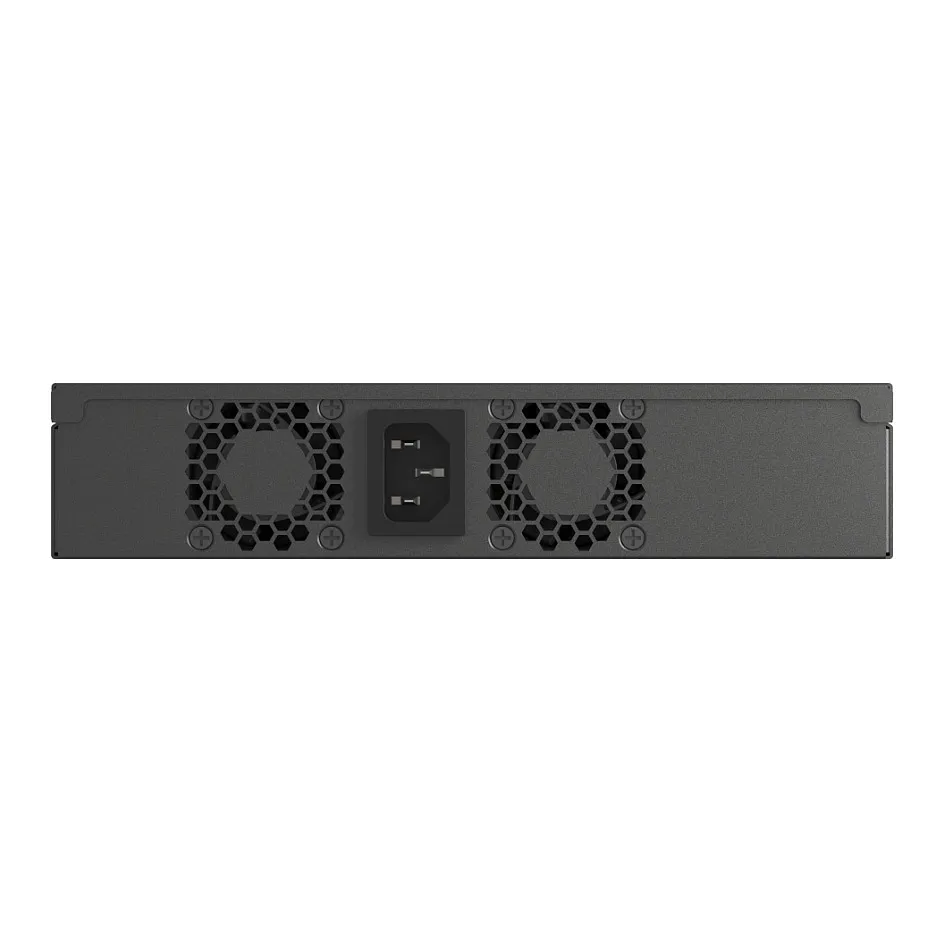

Power source: AC
AC input voltage: 100 – 240 V
AC input frequency: 50/60 Hz
Power consumption (max): 48.632 W
Other features
Warranty period: 2 year(s)
Operational conditions
Operating temperature (T-T): 0 – 40 °C
Operating relative humidity (H-H): 5 – 95%
Weight & dimensions
Width: 207 mm
Depth: 197 mm
Height: 43.3 mm
Weight: 1.52 kg
Packaging data
Package type: Box
Package width: 324 mm
Package depth: 282 mm
Package height: 88 mm
Package weight: 1.52 kg
Logistics data
Country of origin: Taiwan
Products per master (outer) case: 8 pc(s)
