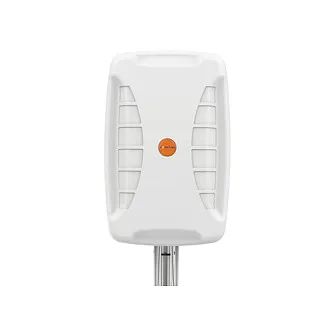

Poynting XPOL-24. Antenna gain level (max): 11 dBi, Frequency band: 0.617 – 0.96 & 1.71 – 4.2, Impedance: 50 Ω. Antenna type: SMA antenna, Antenna connector type: SMA, Connector gender: Male. Power source type: DC. Compliance certificates: CE, RoHS, Certification: CE, RoHS. Width: 290 mm, Depth: 444 mm, Height: 110 mm
The XPOL-24 is engineered with cutting-edge metamaterial technology and an Artificial Magnetic Conductor (AMC) for superior bandwidth and gain. This ensures exceptional performance for both current and future 5G/LTE networks.
Wideband Frequency Coverage: 617–4200 MHz, supporting a variety of bands:
– 617–960 MHz
– 1710–2170 MHz
– 2300–2700 MHz
– 3400–4200 MHz
4×4 MIMO Capability: Boosts connectivity and performance, ideal for Carrier Aggregation.
Peak Gain: Up to 11dBi, delivering reliable signal quality even in challenging environments.
The XPOL-24 is the go-to solution for demanding 5G/LTE deployments, ensuring robust and future-proof connectivity.
Performance
Frequency band: 0.617 – 0.96 & 1.71 – 4.2
Impedance: 50 Ω
Antenna gain level (max): 11 dBi
Features
Antenna type: SMA antenna
Antenna connector type: SMA
Connector gender: Male
Polarization: Horizontal & vertical polarization
Voltage Standing Wave Ratio (VSWR): 2:1
Product colour: White
International Protection (IP) code: IP65
Survival wind speed: 160 km/h
Power handling: 10 W
Cable length: 5 m
Cable type: Twin HDF-195

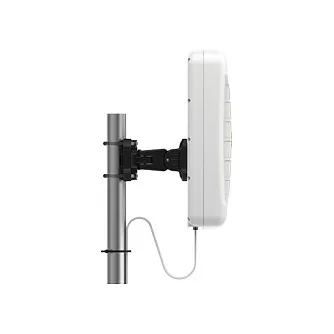

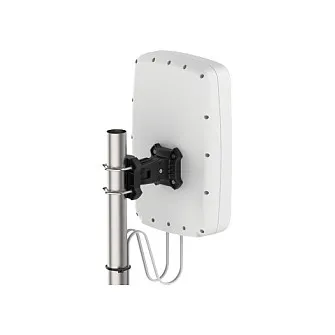

Mounting: Wall/Pole
Purpose: Outdoor
Power
Power source type: DC
Certificates
Compliance certificates: CE, RoHS
Certification: CE, RoHS
Operational conditions
Operating temperature (T-T): -40 – 80 °C
Storage temperature (T-T): -40 – 80 °C
Operating relative humidity (H-H): 5 – 95%
Storage relative humidity (H-H): 5 – 95%
Weight & dimensions
Width: 290 mm
Depth: 444 mm
Height: 110 mm
Weight: 3.17 kg
Packaging data
Package width: 510 mm
Package depth: 420 mm
Package height: 120 mm
Package weight: 4.38 kg
Package type: Box
Packaging content
Quantity per pack: 1 pc(s)
Feature: Mounting kit
Feature: Manual
Frequency band: 0.617 – 0.96 & 1.71 – 4.2
Impedance: 50 Ω
Antenna gain level (max): 11 dBi
Features
Antenna type: SMA antenna
Antenna connector type: SMA
Connector gender: Male
Polarization: Horizontal & vertical polarization
Voltage Standing Wave Ratio (VSWR): 2:1
Product colour: White
International Protection (IP) code: IP65
Survival wind speed: 160 km/h
Power handling: 10 W
Cable length: 5 m
Cable type: Twin HDF-195
Mounting: Wall/Pole
Purpose: Outdoor
Power
Power source type: DC
Certificates
Compliance certificates: CE, RoHS
Certification: CE, RoHS
Operational conditions
Operating temperature (T-T): -40 – 80 °C
Storage temperature (T-T): -40 – 80 °C
Operating relative humidity (H-H): 5 – 95%
Storage relative humidity (H-H): 5 – 95%
Weight & dimensions
Width: 290 mm
Depth: 444 mm
Height: 110 mm
Weight: 3.17 kg
Packaging data
Package width: 510 mm
Package depth: 420 mm
Package height: 120 mm
Package weight: 4.38 kg
Package type: Box
Packaging content
Quantity per pack: 1 pc(s)
Feature: Mounting kit
Feature: Manual
