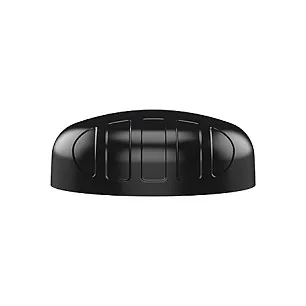

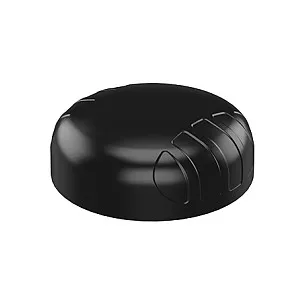

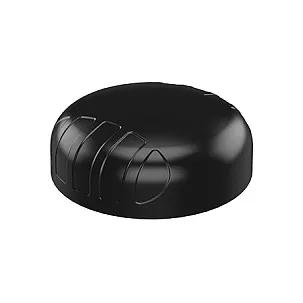

Poynting PUCK-7-V2. Antenna gain level (max): 6.5 dBi, Frequency band: 0.617 – 6 GHz, Gain: 6 dBi. Antenna type: Omni-directional antenna, Antenna connector type: SMA, Connector gender: Male. Compliance certificates: CE, RoHS, Certification: CE, RoHS. Height: 36 mm, Diameter: 9.93 cm, Weight: 340 g. Package width: 150 mm, Package depth: 150 mm, Package height: 120 mm
Wideband Cellular Coverage: Features 2x Cellular MIMO antennas covering 617 to 6000 MHz, ensuring compatibility with 2G, 3G, 4G, and 5G networks.
Dual-Band 2×2 MIMO Wi-Fi Connectivity: Supports 2.4 GHz, 5 GHz, and 6 GHz bands, compatible with 802.11n, 802.11ac/ax/be standards.
Future-Proof 5G and LTE Implementation: Ultra-wideband performance ensures seamless operation across different operators and evolving cellular technologies up to 6 GHz.
Optimised Radiation Patterns: Provides a balance of omnidirectionality, pattern diversity, and reliable signal performance at the desired elevation.
Compact & Versatile Design: Small form factor enables easy integration across multiple industries while maintaining high-performance capabilities.
Enhanced Connection Stability: Designed to ensure both 5G/LTE ports are connected to the router/device for maximum throughput and performance.
The PUCK-7 is an excellent choice for applications requiring a compact yet powerful antenna solution, delivering strong and stable 5G, LTE, and Wi-Fi connectivity. For SISO applications, other derivatives in the PUCK range may be more suitable.
Frequency band: 0.617 – 6 GHz
Gain: 6 dBi
Impedance: 50 Ω
Antenna gain level (max): 6.5 dBi
Wi-Fi standards: 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax), Wi-Fi 7 (802.11be)
Features
Antenna type: Omni-directional antenna
Antenna connector type: SMA
Connector gender: Male
Polarization: Linear polarization
Product colour: Black
Housing material: Acrylonitrile butadiene styrene (ABS)
International Protection (IP) code: IP69K
Cable length: 2 m
Cable type: RTK-031

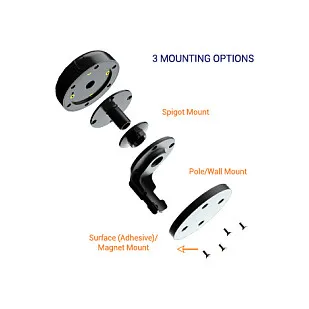

Mounting: Universal
Purpose: Outdoor
Certificates
Compliance certificates: CE, RoHS
Certification: CE, RoHS
Operational conditions
Operating temperature (T-T): -40 – 80 °C
Storage temperature (T-T): -40 – 80 °C
Operating relative humidity (H-H): 5 – 95%
Storage relative humidity (H-H): 5 – 95%
Weight & dimensions
Height: 36 mm
Diameter: 9.93 cm
Weight: 340 g
Packaging data
Package width: 150 mm
Package depth: 150 mm
Package height: 120 mm
Package weight: 661 g
Package type: Box
Mobile network
4G standard: LTE
Packaging content
Quantity per pack: 1 pc(s)
Feature: Mounting kit
Feature: Quick installation guide
