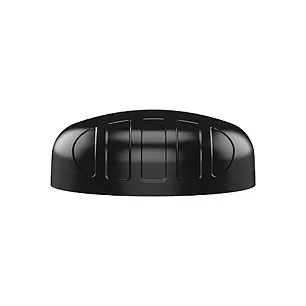

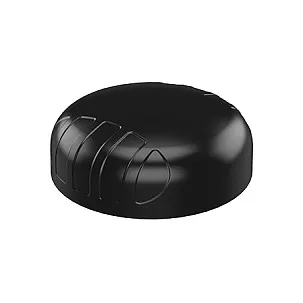

Poynting PUCK-3-V1 (EOL). Antenna gain level (max): 21 dBi, Frequency band: 0.617 – 4.2 GHz, Gain: 8 dBi. Antenna type: Omni-directional antenna, Antenna connector type: SMA, Connector gender: Male. Power consumption (max): 50 W, Input voltage: 2.7 – 3.3 V. Compliance certificates: CE, RoHS, Certification: CE, RoHS. Height: 36 mm, Diameter: 9.93 cm, Weight: 426 g
Wideband Cellular Coverage: Features a SISO Cellular antenna covering 617 to 6000 MHz, ensuring compatibility with 2G, 3G, 4G, and 5G networks.
Dual-Band SISO Wi-Fi Connectivity: Supports 2.4 GHz, 5 GHz, and 6 GHz bands, compatible with 802.11n, 802.11ac/ax/be standards.
High-Precision GPS/GLONASS Antenna: Active GPS system ensures accurate positioning, operational at temperatures as low as -40ºC.
Future-Proof 5G and LTE Implementation: Ultra-wideband performance ensures seamless operation across different operators and evolving cellular technologies up to 6 GHz.
Optimised Radiation Patterns: Provides a balance of omnidirectionality, pattern diversity, and reliable signal performance at the desired elevation.
Compact & Versatile Design: Small form factor enables easy integration across multiple industries while maintaining high-performance capabilities.
The PUCK-3 is an excellent choice for applications requiring a compact yet powerful antenna solution, delivering strong and stable 5G, LTE, Wi-Fi, and GPS connectivity.
Frequency band: 0.617 – 4.2 GHz
Gain: 8 dBi
Impedance: 50 Ω
Antenna gain level (max): 21 dBi
Wi-Fi standards: 802.11g
Features
Antenna type: Omni-directional antenna
Antenna connector type: SMA
Connector gender: Male
Polarization: Linear polarization
Product colour: Black
Housing material: Acrylonitrile butadiene styrene (ABS)
International Protection (IP) code: IP69K
Survival wind speed: 220 km/h
Cable length: 2 m
Cable type: RTK-031

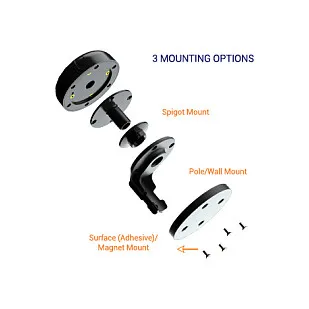

Mounting: Universal
Purpose: Outdoor
Power
Power consumption (max): 50 W
Input voltage: 2.7 – 3.3 V
Certificates
Compliance certificates: CE, RoHS
Certification: CE, RoHS
Operational conditions
Operating temperature (T-T): -40 – 80 °C
Storage temperature (T-T): -40 – 80 °C
Storage relative humidity (H-H): 5 – 95%
Weight & dimensions
Height: 36 mm
Diameter: 9.93 cm
Weight: 426 g
Packaging data
Package width: 150 mm
Package depth: 150 mm
Package height: 120 mm
Package weight: 557 g
Package type: Box
Mobile network
4G standard: LTE
Packaging content
Quantity per pack: 1 pc(s)
Feature: Mounting kit
Feature: Quick installation guide
