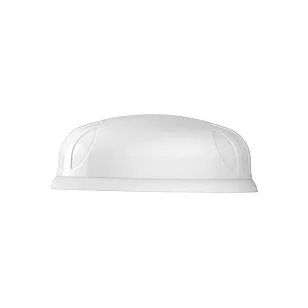

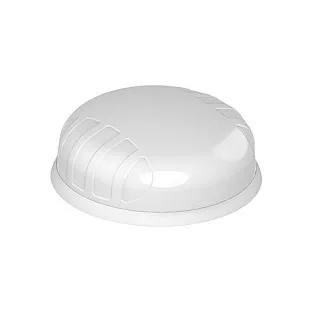

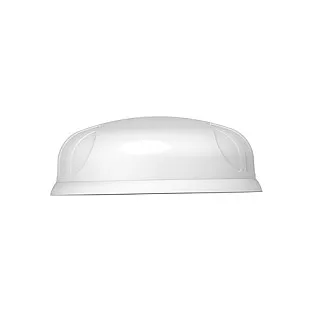

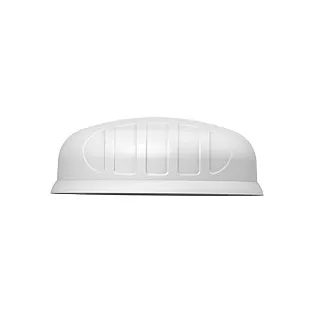

Poynting PUCK-2-V2. Antenna gain level (max): 6.5 dBi, Frequency band: 0.6 – 6 GHz, Networking standards: IEEE 802.11n, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11be, IEEE 802.11g. Antenna type: Omni-directional antenna, Antenna connector type: SMA, Polarization: Linear polarization. Package width: 150 mm, Package depth: 150 mm, Package height: 120 mm. 4G standard: LTE. Country of origin: China
Wideband Cellular Coverage: Features 2×2 MIMO 5G/LTE antennas covering 617 to 6000 MHz, ensuring compatibility with 2G, 3G, 4G, and 5G networks.
Future-Proof 5G and LTE Implementation: Ultra-wideband performance ensures seamless operation across different operators and evolving cellular technologies up to 6 GHz.
Optimised Radiation Patterns: Provides a balance of omnidirectionality, pattern diversity, and reliable signal performance at the desired elevation.
Compact & Versatile Design: Small form factor enables easy integration across multiple industries while maintaining high-performance capabilities.
Enhanced Connection Stability: Designed to ensure both 5G/LTE ports are connected to the router/device for maximum throughput and performance.
The PUCK-2 is an excellent choice for applications requiring a compact yet powerful antenna solution, delivering strong and stable 5G and LTE connectivity. For SISO applications, other derivatives in the PUCK range may be more suitable.
Frequency band: 0.6 – 6 GHz
Networking standards: IEEE 802.11n, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11be, IEEE 802.11g
Gain: 6.5 dBi
Antenna gain level (max): 6.5 dBi
Features
Antenna type: Omni-directional antenna
Antenna connector type: SMA
Polarization: Linear polarization
Product colour: White
Protection features: Weatherproof
International Protection (IP) code: IP69K
Mounting: Universal
Operational conditions
Operating temperature (T-T): -40 – 80 °C
Packaging data
Package width: 150 mm
Package depth: 150 mm
Package height: 120 mm
Package weight: 550 g
Mobile network
4G standard: LTE
Packaging content
Feature: Manual
Logistics data
Country of origin: China
