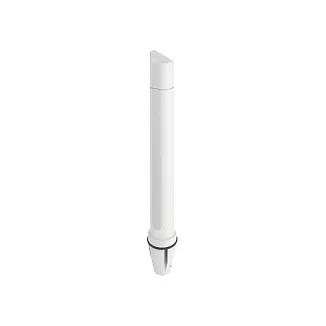

Poynting OMNI-291. Antenna gain level (max): 7 dBi, Frequency band: 0.45 – 2.7 GHz. Antenna type: Omni-directional antenna, Antenna connector type: N-type, Connector gender: Female. Compliance certificates: CE, RoHS, Certification: MIL-STD 810G/ASTM B117. Width: 75 mm, Depth: 75 mm, Height: 560 mm. Package width: 580 mm, Package depth: 95 mm, Package height: 95 mm
The OMNI-291 is a high-performance marine antenna. This antenna uses a standard 1-inch (14 TPI) marine mount for simplified installation to most marine attachments. The ultra-wide frequency band covers all contemporary LTE operating frequencies with excellent balanced gain across all frequencies, including the LTE & CDMA 450 MHz bands which are common requirements for marine applications. Higher frequencies are not compromised, and the antenna design allows Poynting to have superior pattern control over the entire frequency range making the OMNI-291 a true high performance omni-directional antenna. The OMNI-291 guarantees signal reception almost everywhere along the coast, allowing it to be usable in all parts of the world. Poynting Antennas achieves this through new antenna configuration using multiple dipoles and a uniquely (patented) feed network. The antenna is future proof as it covers the 450 MHz LTE frequency getting more and more popular in various regions and countries!
Performance
Frequency band: 0.45 – 2.7 GHz
Antenna gain level (max): 7 dBi
Features
Antenna type: Omni-directional antenna
Antenna connector type: N-type
Connector gender: Female
Polarization: Vertical polarization
Voltage Standing Wave Ratio (VSWR): 2.5:1
Product colour: White
Protection features: Saltwater resistant, Dust resistant, Fireproof, UV resistant, Water resistant
International Protection (IP) code: IP68
Feature: Ultraviolet (UV) resistant
Survival wind speed: 186 km/h
Power handling: 10 W
Mounting: Wall/Pole
Purpose: Outdoor
Certificates
Feature: Sustainability compliance
Compliance certificates: CE, RoHS
Certification: MIL-STD 810G/ASTM B117
Operational conditions
Operating temperature (T-T): -40 – 80 °C
Storage temperature (T-T): -40 – 80 °C
Operating relative humidity (H-H): 5 – 95%
Storage relative humidity (H-H): 5 – 95%
Weight & dimensions
Width: 75 mm
Depth: 75 mm
Height: 560 mm
Weight: 576 g
Packaging data
Package width: 580 mm
Package depth: 95 mm
Package height: 95 mm
Package weight: 1.25 kg
Packaging content
Quantity per pack: 1 pc(s)
Logistics data
Country of origin: China
