Poynting OMNI-0404. Antenna gain level (max): 2.5 dBi, Frequency band: 0.617- 3 GHz, Networking standards: IEEE 802.11g. Antenna type: Omni-directional antenna, Antenna connector type: N-type, Connector gender: Female. Height: 252 mm, Diameter: 7.5 cm, Weight: 350 g. Package width: 288 mm, Package depth: 97 mm, Package height: 97 mm

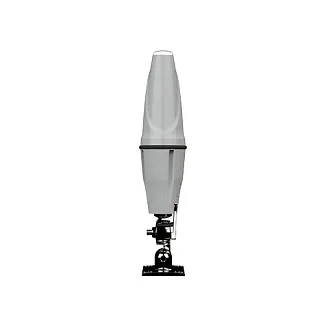

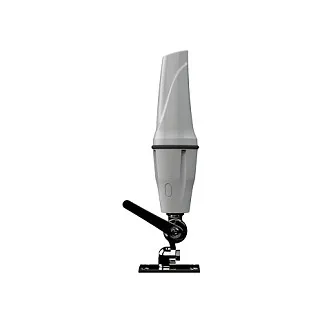

The OMNI-404 is a high-performance omni-directional LTE and 5G antenna, designed specifically for marine and coastal environments. With a compact radome and ultra-wideband coverage from 617 to 3800 MHz, this antenna ensures balanced gain across all frequencies, enhancing network performance with multi-carrier aggregation (CA) support. Its rugged construction and marine-grade mounting compatibility make it ideal for harsh offshore conditions.
Wideband LTE & 5G Coverage: Supports frequencies from 617 to 3800 MHz, ensuring compatibility with global LTE and 5G networks.
Compact Marine-Optimised Design: Features a smaller profile radome for seamless integration in marine and coastal environments.
Enhanced Performance with Multi-Carrier Aggregation (CA): Improves signal reliability and data throughput across all bands.
Superior Pattern Control: Ensures stable and consistent signal reception across the entire frequency range.
Patented Feed Network: Utilizes multiple dipoles and an innovative feed design for optimized performance.
Easy Marine Installation: Equipped with a standard 1-inch (14 TPI) marine mount connector for effortless attachment to standard marine fittings.
Built for Harsh Environments: Designed to withstand extreme marine conditions, ensuring long-lasting performance.
The OMNI-404 is an exceptional omni-directional LTE and 5G antenna, providing compact, high-performance connectivity for vessels, offshore platforms, and other maritime applications. Its balanced gain, superior pattern control, and rugged design make it the ideal choice for marine deployments.
Ideal Applications
– Marine applications / Yachts / Boats / Ferries
– Enhanced LTE Reception
– IoT and M2M
– Poor data signal reception
– Improve data transmission connection reliability & stability
Frequency band: 0.617- 3 GHz
Networking standards: IEEE 802.11g
Antenna gain level (max): 2.5 dBi
Features
Antenna type: Omni-directional antenna
Antenna connector type: N-type
Connector gender: Female
Product colour: White
International Protection (IP) code: IP69K
Purpose: Indoor & outdoor
Operational conditions
Operating temperature (T-T): -40 – 80 °C
Operating relative humidity (H-H): 5 – 95%
Weight & dimensions
Height: 252 mm
Diameter: 7.5 cm
Weight: 350 g
Packaging data
Package width: 288 mm
Package depth: 97 mm
Package height: 97 mm
Package weight: 500 g
