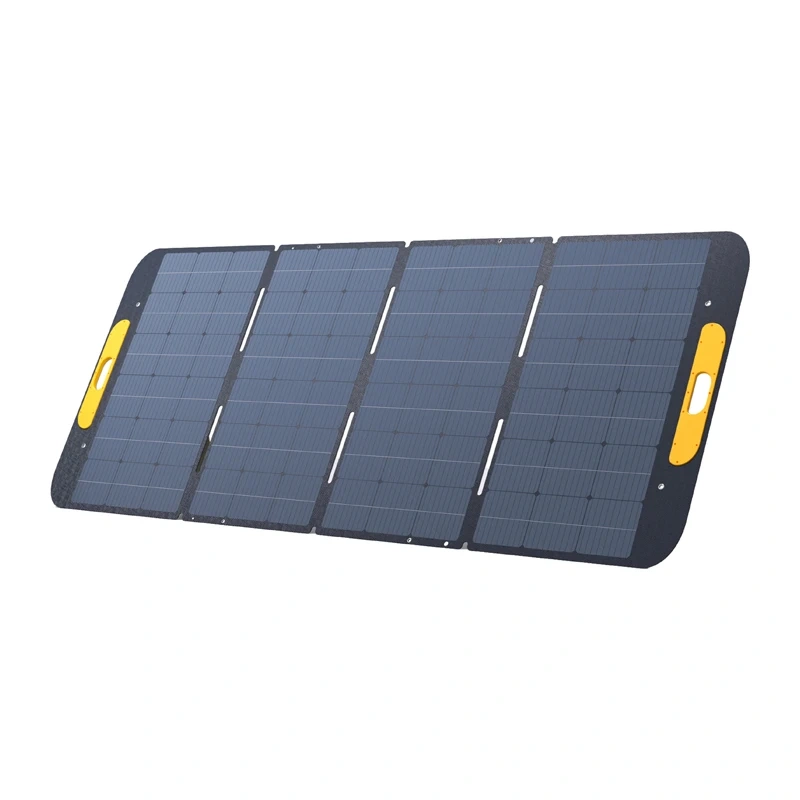

VTOMAN VS400 400W Portable Solar Panel
The VTOMAN VS400 is a foldable solar panel with a peak power output of 400 W and a conversion efficiency of 25%. It uses Topcorn cells and supports MC-4, Anderson, XT60, XT90, and DC5521 connectors, allowing it to work with VTOMAN portable power stations and compatible models from other brands. The design meets IP67 waterproofing standards, and its foldable design, handles, adjustable supports, and metal eyelets make it easy to transport and quickly set up the panel for use.
High Efficiency and 400 W Power
The Topcorn cells used provide a conversion efficiency of 25%, allowing for the effective use of solar energy. The panel offers a peak power of 400 W, an operating voltage of 43 V, and an operating current of 9.3 A. The open-circuit voltage is 50.2 V, while the short-circuit current reaches 9.8 A.
Wide compatibility with devices
The included 4-in-1 adapter cable allows you to use XT60, XT90, Anderson, and DC5521 connectors. Thanks to this, the VS400 can work with VTOMAN portable power stations and compatible devices from other brands. The panel can also be used with sealed lead-acid batteries, gel batteries, and open-type lead-acid batteries.

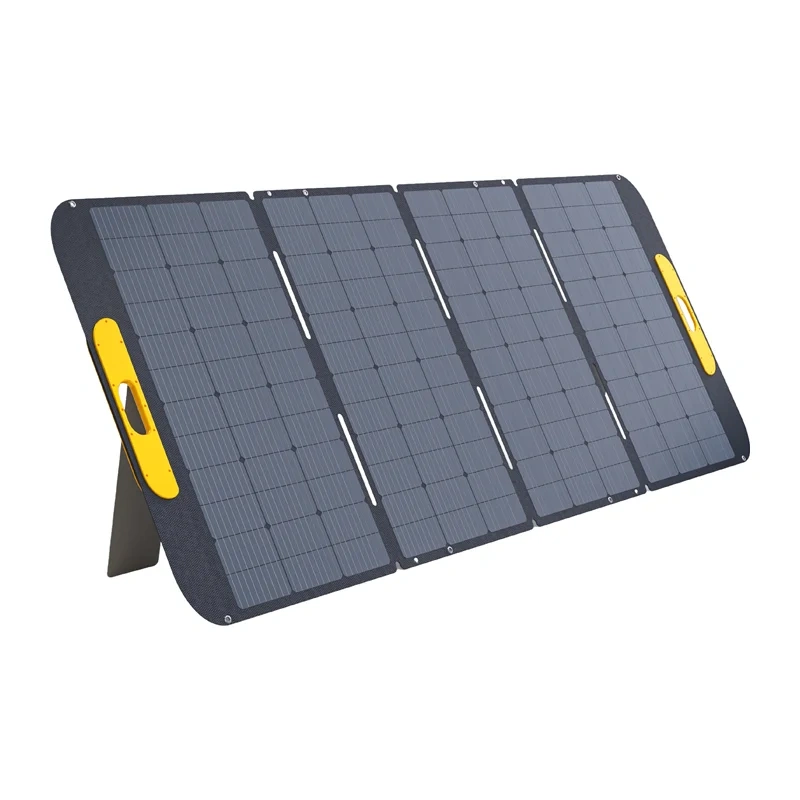

Quick setup in any location
Adjustable legs allow for quick placement of the panel on the ground and adjustment of its position to suit current conditions. Metal eyelets also allow the panel to be hung, for example, on a balcony or an RV. This makes it easy to adapt the installation method to the location and available space.
The foldable design makes transport easy
When unfolded, the panel measures 2,443 × 970 × 4 mm, and when folded, 656 × 970 × 50 mm. Integrated handles make it easy to carry, and a bag on the back allows you to store the cables along with the panel. This design is ideal for travel, camping, and other applications where there is no constant access to the power grid.
IP67 Rating for Outdoor Use
The VTOMAN VS400 meets the IP67 protection rating requirements, which enhances its durability during outdoor use. The net weight is 37.5 lb, and the combination of a foldable design, supports, handles, and metal eyelets makes the panel easy to handle despite its large working surface. An added convenience is the ability to store cables in a dedicated bag, keeping essential accessories organized and easily accessible.
Included in the set
VTOMAN VS400 solar panel x1

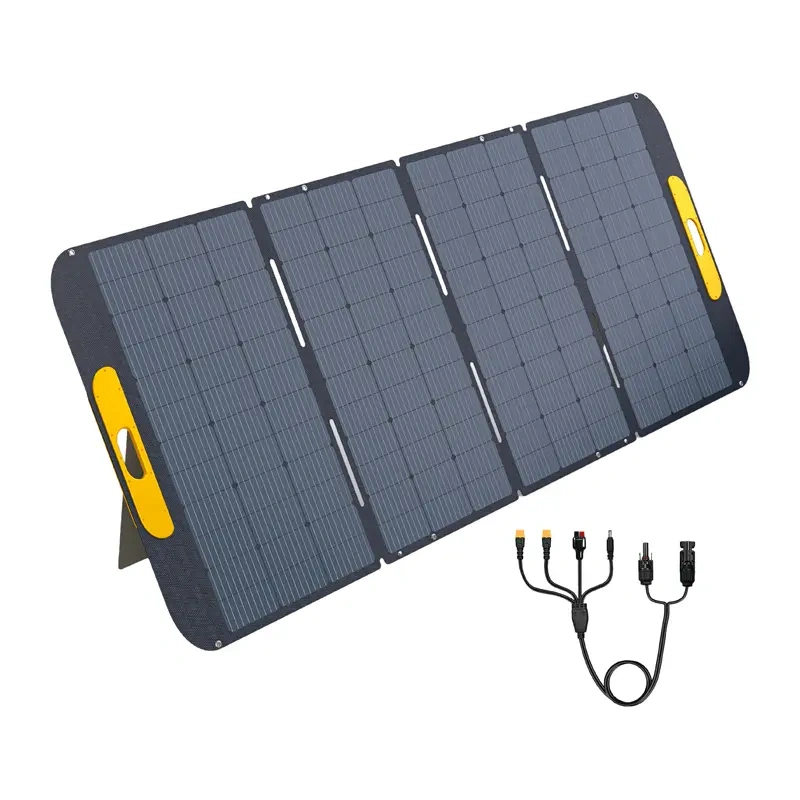

4-in-1 MC4 to XT60 / XT90 / Anderson / DC5521 adapter cable x1
User manual x1
| Manufacturer | VTOMAN |
|---|---|
| Name | Portable Solar Panel VS400 |
| Model | YT-0244 |
| Peak Power | 400 W |
| Operating Voltage | 43 V |
| Operating Current | 9.3 A |
| Open-Circuit Voltage | 50.2 V |
| Short-Circuit Current | 9.8 A |
| Conversion Efficiency | 25% |
| Cells | Topcorn |
| Protection Rating | IP67 |
| Net Weight | 37.5 lb |
| Dimensions (Folded) | 656 × 970 × 50 mm |
| Dimensions (Unfolded) | 2443 × 970 × 4 mm |
| Compatible connectors | MC-4, Anderson, XT60, XT90, DC5521 |
| Compatible devices | VTOMAN portable power stations, portable power stations from other brands |
| Compatible battery types | Sealed lead-acid, gel, open-type lead-acid |
| Included adapter cable | MC4 to XT60 / XT90 / Anderson / DC5521 |
