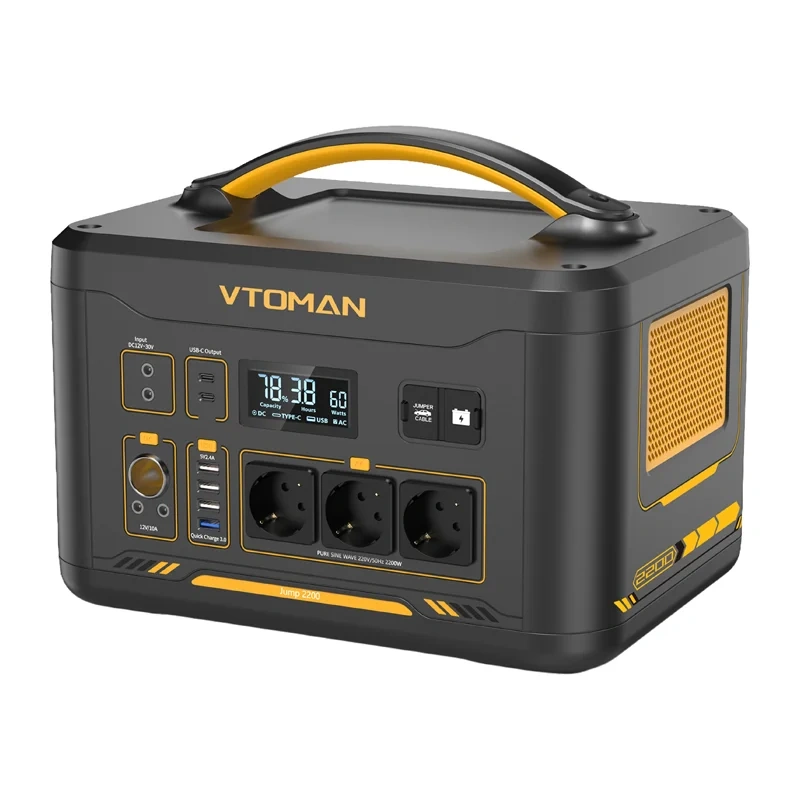

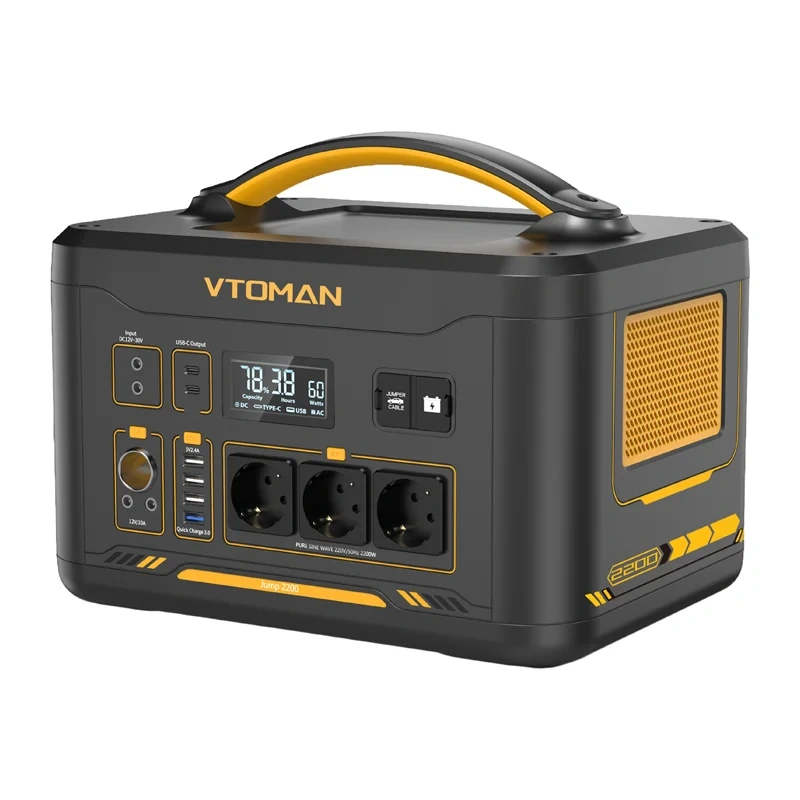

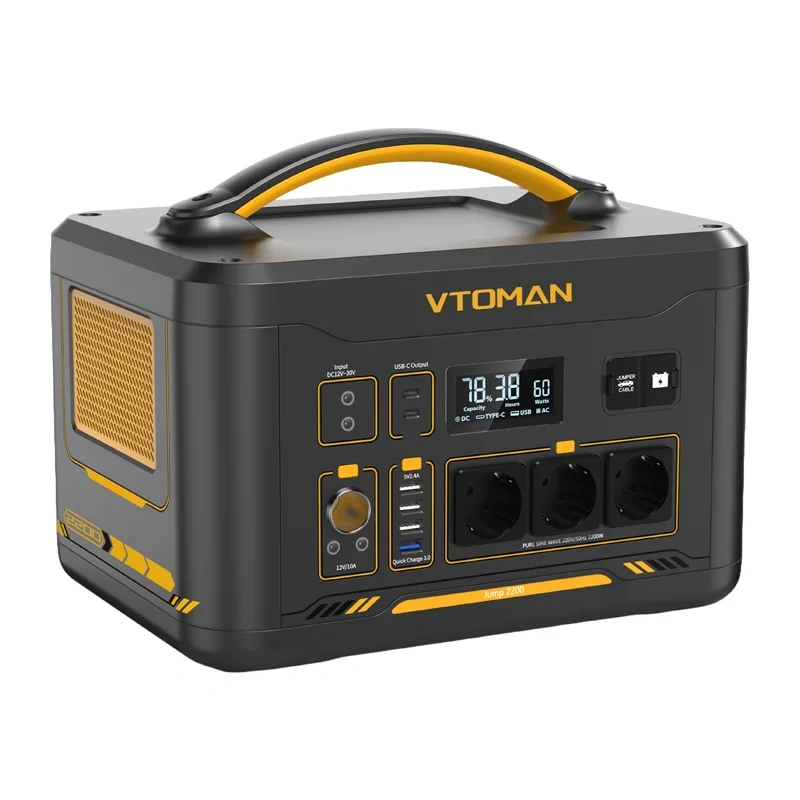

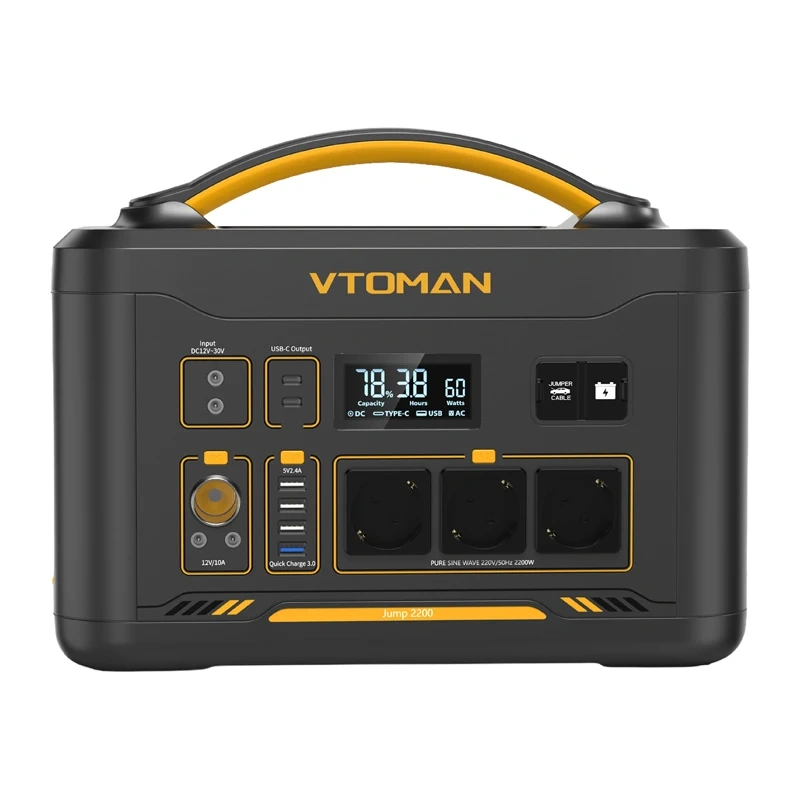

VTOMAN Jump 2200 2200W Portable Power Station
The VTOMAN Jump 2200 PB-29 delivers 2200 W of continuous power and up to 4400 W of peak power, allowing it to power both everyday devices and high-power equipment. The built-in LiFePO4 battery offers a capacity of 1,548 Wh, which can be increased to 3,096 Wh with an additional battery. Pure Sine Wave technology ensures a pure sine wave output, while V-Beyond Technology allows the station to power demanding appliances such as microwaves, washing machines, coffee makers, refrigerators, and air conditioners. There are also 12 outputs available for simultaneously powering multiple devices, as well as a car jump-start function for 12 V systems.
High-Capacity and Durable LiFePO4 Battery
The station’s base capacity is 1,548 Wh, and when an additional battery is connected, it can increase to 3,096 Wh, allowing for extended runtime off the grid. The LiFePO4 cells used provide over 3,000 charge cycles until 80% of their original capacity is retained, and according to the provided data, their lifespan is up to six times longer than that of standard lithium-ion units. Self-discharge is ≤100 μA, meaning that after one year without charging, the battery can retain over 85% of its energy, and the specified storage life is 5 years.
LifeBMS and 10 Levels of Protection
The LifeBMS system, which offers 10 protection levels, ensures safe battery operation. Protection includes, among other things, overvoltage, abnormal temperature, overcharging, over-discharge, short circuit, and current overload. The system continuously monitors the station’s key operating parameters, enhancing safety both during charging and when powering connected devices.
12 Outputs for Multiple Devices Simultaneously
The VTOMAN Jump 2200 can power up to 12 devices simultaneously. It offers three 230 V / 50 Hz AC outlets, three 12 W USB-A ports, a USB-A Fast Charge port with up to 18 W, two USB-C ports with up to 100 W each, two DC5521 12 V / 10 A, and a 12 V / 10 A car outlet. The maximum shared power output for the DC outputs is 120 W, so the power station allows you to conveniently use AC-, USB-, and DC-powered devices at the same time.
Car Jump-Start Function and Easy-to-Read LCD Screen
The Jump 2200 can also function as a jump starter for vehicles with a 12 V electrical system. A dedicated port provides a starting current of 500 A and a peak current of up to 2,000 A; according to the manufacturer’s specifications, it takes approximately 3 seconds to start the vehicle. The built-in LCD screen displays the battery charge level, estimated remaining runtime, current power consumption in watts, and information about active output ports, making it easy to monitor the device’s operation.
Flexible charging and uninterrupted operation
The station can be recharged using an AC power adapter, solar panels, or a car outlet. The two DC5521 inputs support voltages from 12 to 60 V, and their maximum combined input power is 400 W. The Pass-Through Charging feature allows the station to charge itself and power connected devices simultaneously, so you don’t have to interrupt their operation while recharging.
Mobile Design for Various Applications
The VTOMAN Jump 2200 measures 360 × 270 × 280 mm and weighs 17.5 kg, allowing you to move the station as needed. The operating temperature range is from -20°C to 55°C, while charging can take place at temperatures ranging from 0°C to 55°C. The combination of high power, an extensive set of ports, a car jump-start function, and the ability to increase capacity makes the station suitable for use both at home and at work, or when away from a power outlet.
Included in the set
VTOMAN Jump 2200 Power Station x1
AC charger with power cord x1
Car charger cable x1
USB-C to USB-C cable x1
USB-A to USB-C cable x1
User manual x1
| Manufacturer | VTOMAN |
|---|---|
| Model | PB-29 |
| Name | Jump 2200 Portable Power Station |
| Battery capacity | 1548 Wh |
| Maximum capacity after expansion | 3,096 Wh |
| Cell type | LiFePO4 |
| Battery lifespan | Over 3,000 cycles to 80% capacity |
| Storage life | 5 years |
| Self-discharge | ≤100 μA |
| Energy Retention After One Year Without Charging | Over 85% |
| Battery Management System | LifeBMS |
| Number of Safety Protections | 10 |
| Protections | Against overvoltage, abnormal temperature, overcharging, short circuit, overcurrent, and over-discharge |
| Number of devices that can be powered simultaneously | Up to 12 |
| AC outlets | 3 |
| AC output specifications | 230 V 50 Hz |
| AC continuous power | 2200 W |
| AC peak power | 4400 W |
| AC output technology | Pure Sine Wave |
| Technology | V-Beyond Technology |
| USB-A ports | 3 × 5 V 2.4 A |
| Maximum USB-A port power | 12 W |
| USB-A Fast Charge port | 5 V 3 A / 9 V 2 A / 12 V 1.5 A |
| Maximum USB-A Fast Charge power | 18 W |
| USB-C Ports | 2 |
| USB-C Specifications | 5 V 3 A / 9 V 3 A / 12 V 3 A / 15 V 3 A / 20 V 3 A / 20 V 5 A |
| Maximum USB-C Port Power | 100 W |
| DC5521 Outputs | 2 × 12 V 10 A |
| Car Socket | 12 V 10 A |
| Maximum Shared DC Power | 120 W |
| Jump Start Port | 12 V |
| Jump Start Current | 500 A |
| Peak starting current | 2000 A |
| Vehicle start-up time | 3 s |
| DC inputs | 2 × DC5521 |
| DC input specifications | 12–60 V |
| Maximum total DC input power | 400 W |
| Charging methods | AC power adapter, solar panel, car charger |
| Pass-through charging | Yes |
| Display | LCD |
| Display information | SOC, remaining runtime, current power consumption, active output ports |
| Net weight | 17.5 kg / 38.5 lb |
| Dimensions | 360 × 270 × 280 mm / 14.2 × 10.6 × 11.1 in |
| Operating temperature | 14–113°F / -20–55°C |
| Charging temperature | 0–55°C / 32–113°F |
