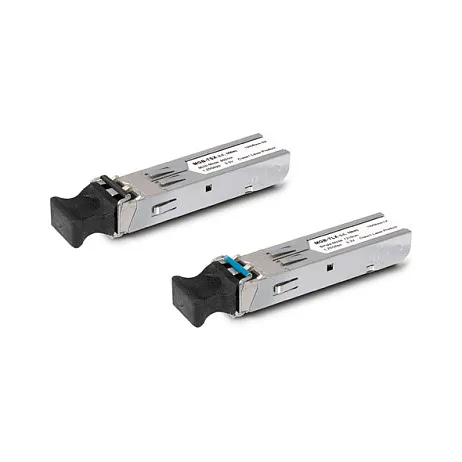

PLANET MGB-TSX. SFP transceiver type: Fiber optic, Maximum data transfer rate: 1000 Mbit/s, Interface type: mini-GBIC. Quantity per pack: 1 pc(s)
The MGB family of SFP Mini-GBIC Gigabit Ethernet modules can be installed in PLANET Switch products with SFP mini-GBIC interface. The deployment distance can be extended from 100 meters (TP), 550 meters (Multi-Mode, LC), and up to 120 kilometers (Single-Mode, LC).
To meet the increasing demand of the Industrial Ethernet fiber solution, Planet releases the MGB-T series 1000BASE-SX/LX/BX transceivers that can operate reliably in electrically harsh, climatically demanding, and wide temperature range (-40℃ to 75℃) environment. The MGB-T series 1000BASE-SX/LX/BX transceivers provide easy and fast 1000BASE-SX/LX/BX connection for Planet wide temperature industrial equipment.
SFP transceiver type: Fiber optic
Maximum data transfer rate: 1000 Mbit/s
Interface type: mini-GBIC
Feature: Multi-mode fiber (MMF) supported
Fiber optic connector: LC
SFP transceiver standard: SX
Maximum transfer distance: 550 m
Wavelength: 850 nm
Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3z
Duplex system: Full, Half
Fiber ports quantity: 1
Features
Feature: Plug and Play
Feature: Hot-Plug support
Operational conditions
Operating temperature (T-T): -40 – 75 °C
Packaging content
Quantity per pack: 1 pc(s)
Logistics data
Harmonized System (HS) code: 85369010
