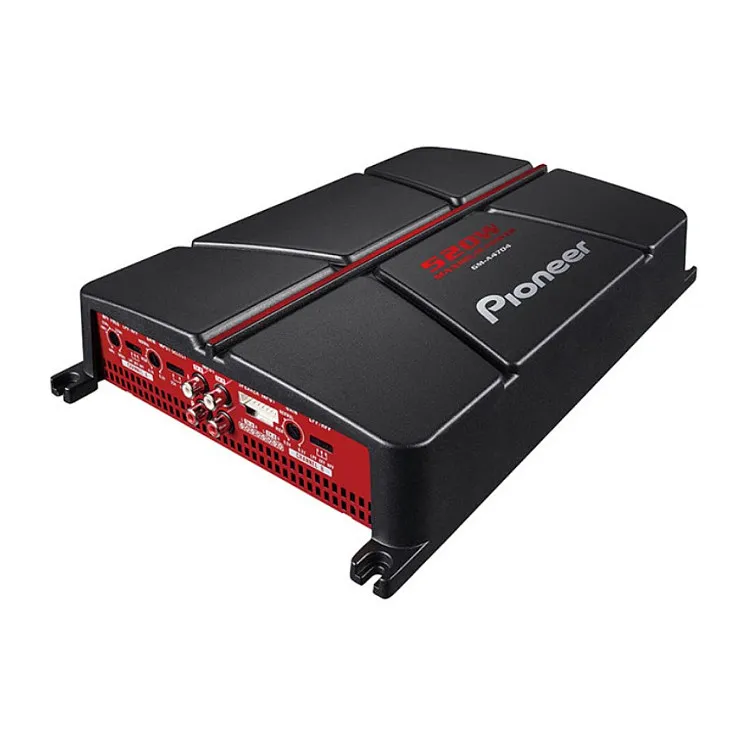

Pioneer GM-A4704. Amplifier class: A/B, Number of amplifier channels: 4 channels, RMS output power (max): 520 W. High pass & low pass filter slope: 12 dB/octave, Product colour: Black, Red. Width: 326 mm, Depth: 215 mm, Height: 60 mm
From dramatic distinction to dramatic design, Pioneer’s new GM-Series amplifiers are thrillers in every sense, pushing the limits of flexibility and functionality.
Variable HPF
Variable HPF (high pass filter) allow for adjustable frequency from 40 Hz to 500 Hz* and greater car audio system flexibility according to subwoofer characteristics and personal listening preference.
Growing Power, Shrinking Size
New Pioneer amps brilliantly integrate high-power performance superior to that of previous models in space-efficient sizes for flexibility of installation in various car cabins.
Automatic Signal Sensing and Turn-On
Pioneer amplifiers automatically select the proper input signal mode, either RCA or speaker level. When the receiver is turned on, the amplifier automatically turns on. When connected to an OEM receiver or a receiver without RCA output and utilizing speaker level output, the amp automatically senses the input mode and powers up in sync with the receiver.
When connected to an OEM receiver or a receiver without RCA output using speaker wire, the amplifier is turned on at the same time as the receiver. Pioneer’s amplifiers automatically detect the input signal and select RCA level or speaker level.
Number of amplifier channels: 4 channels
RMS output power (max): 520 W
Amplifier class: A/B
Feature: High pass filter
Feature: Low pass filter
Total Harmonic Distortion (THD): 0.05%
RMS power output per channel (2 Ohm): 65 W
RMS power output per channel (4 Ohm): 40 W
Maximum power output per channel (2 Ohm): 130 W
Maximum power output per channel (4 Ohm): 80 W
Bridged output power (max): 520 W
High pass filter range: 40 – 500 Hz
Signal-to-Noise Ratio (SNR): 94 dB
Current: 30 A
Feature: Variable bass boost
Frequency range: 10 – 70000 Hz
Ports & interfaces
Audio RCA inputs: 4
Features
High pass & low pass filter slope: 12 dB/octave
Product colour: Black, Red
Weight & dimensions
Width: 326 mm
Depth: 215 mm
Height: 60 mm
